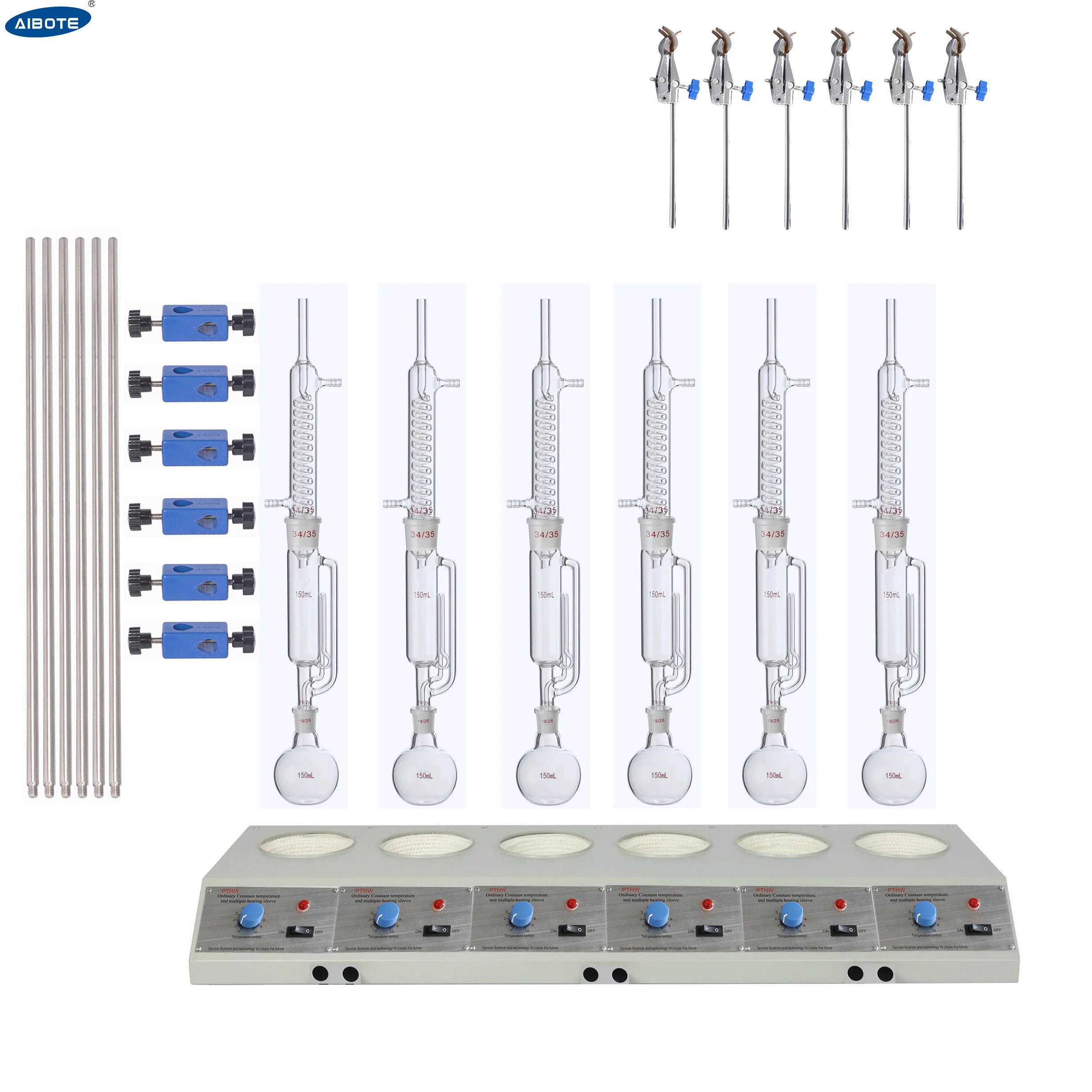

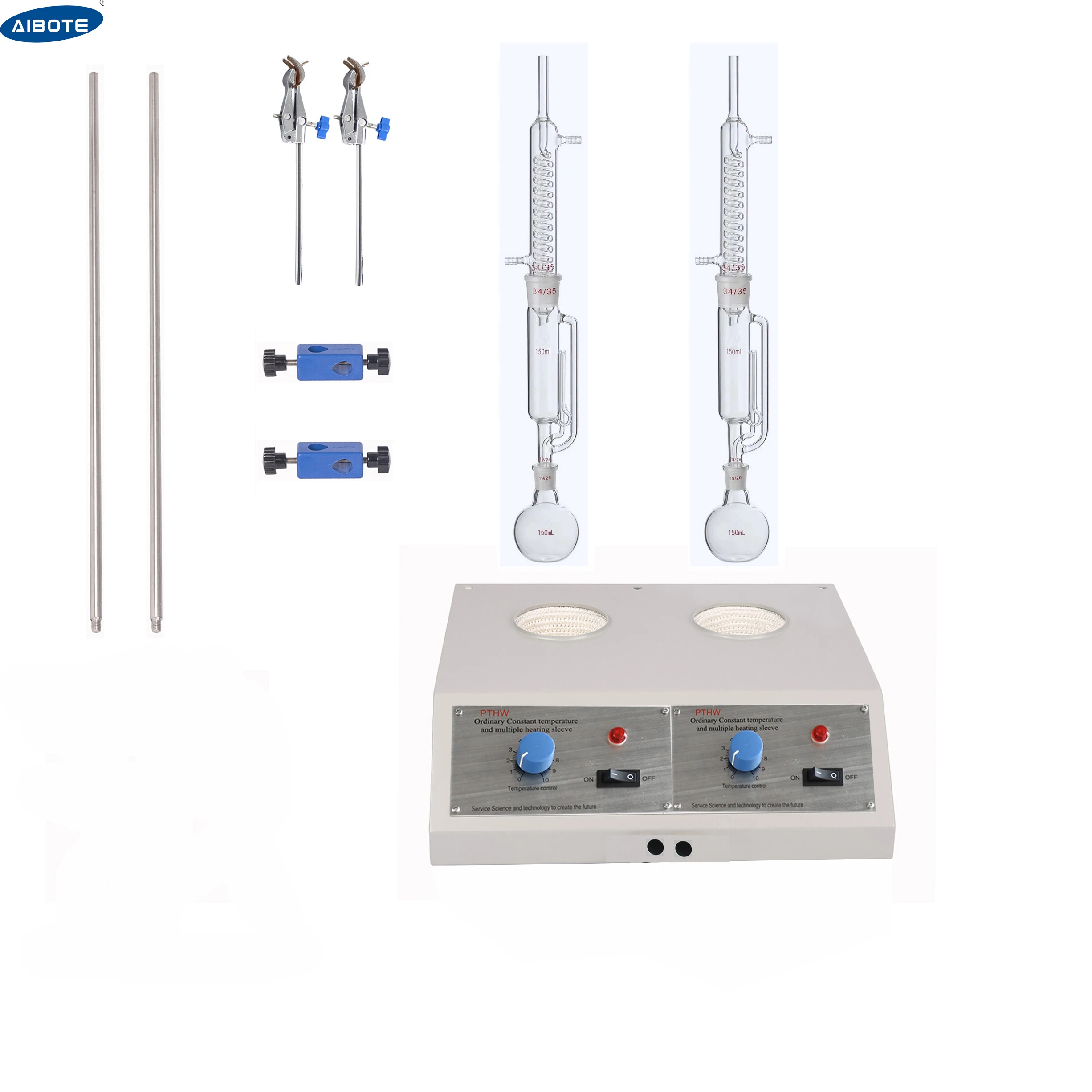

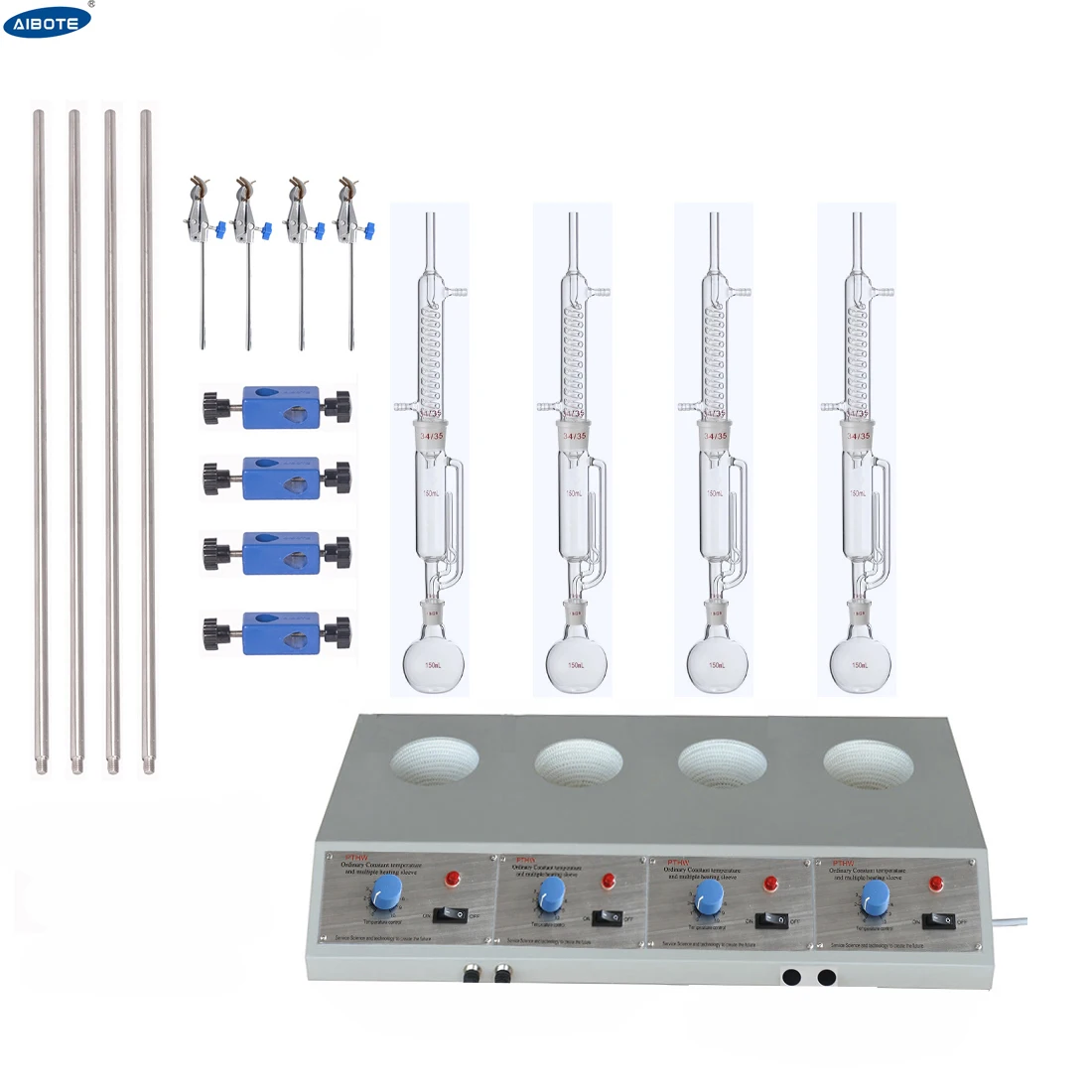

250ML 500ml 6 unit heating mantle for repetitive extracting refluxing and distilling
- Category: >>>
- Supplier: Aibote Henan Science And Technology Development Company Limited
Share on (1601004089578):
Product Overview
Description
Products Description
Features
1.4 series mantles sizes available from 100 ml to 1000ml.
2..Built-in electronic controller PID Control ! Inner and Outer Temperature Sensor. Temperature accuracy +/- 1 degree ,Built-in temperature control maintains element temperature from ambient to 380°C !
3.LED digital Displayfor both Temperature Reduce ,Add and set.
4. Each position can be controlled separated.
1.4 series mantles sizes available from 100 ml to 1000ml.
2..Built-in electronic controller PID Control ! Inner and Outer Temperature Sensor. Temperature accuracy +/- 1 degree ,Built-in temperature control maintains element temperature from ambient to 380°C !
3.LED digital Displayfor both Temperature Reduce ,Add and set.
4. Each position can be controlled separated.
Specification | ||||||||||
Model | PTHWDL650 | PTHWDL6100 | PTHWDL6250 | PTHWDL6500 | PTHWDL61000 | |||||
Volume for each position | 50ml | 100ml | 250ml | 500ml | 1000ml | |||||
Temp Range | Ambient to 380℃ | |||||||||
Temp Control | PID AUTO | |||||||||
Temperature accuracy | +/- 1 ℃ | |||||||||
Temp Display | Scale | |||||||||
Self- tunning function | Make the actual temp closely to set temp | |||||||||
Voltage | 110V- 240V. | |||||||||
Power supply (w) | 660 | 780 | 1295 | 1320 | 3180 | |||||
Insulating Course Material | Environmental Alumina Silicate Fiber | |||||||||
Insulating Barrier Material | Alkali-free glass fiber . Max Temperature Resistance 450° | |||||||||
Specification | ||
Volume | Items | |

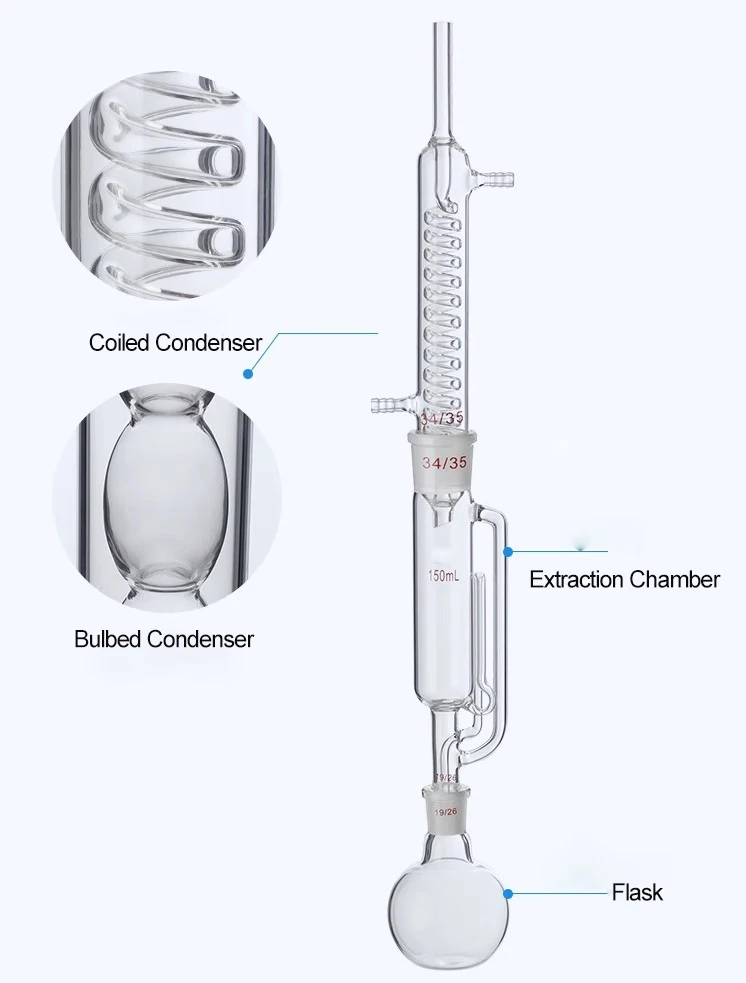

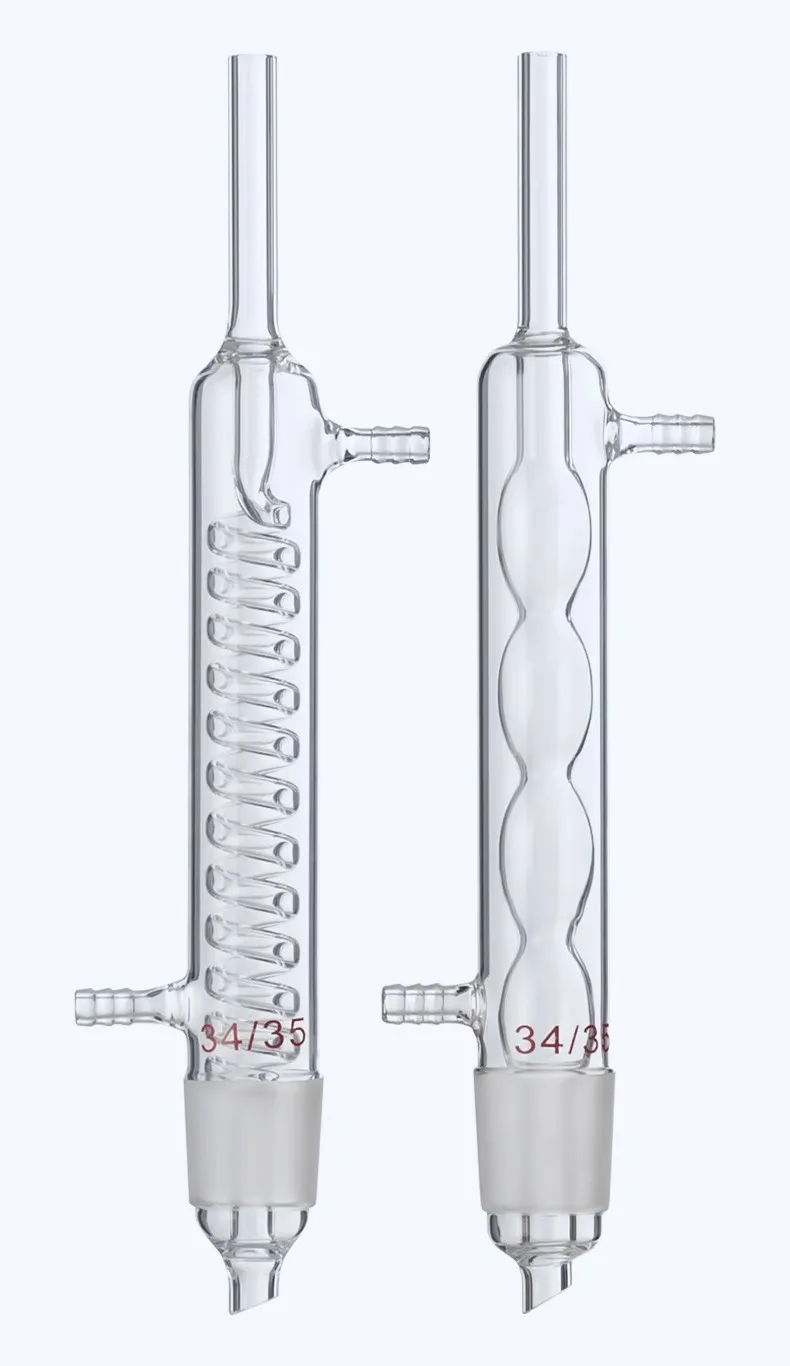

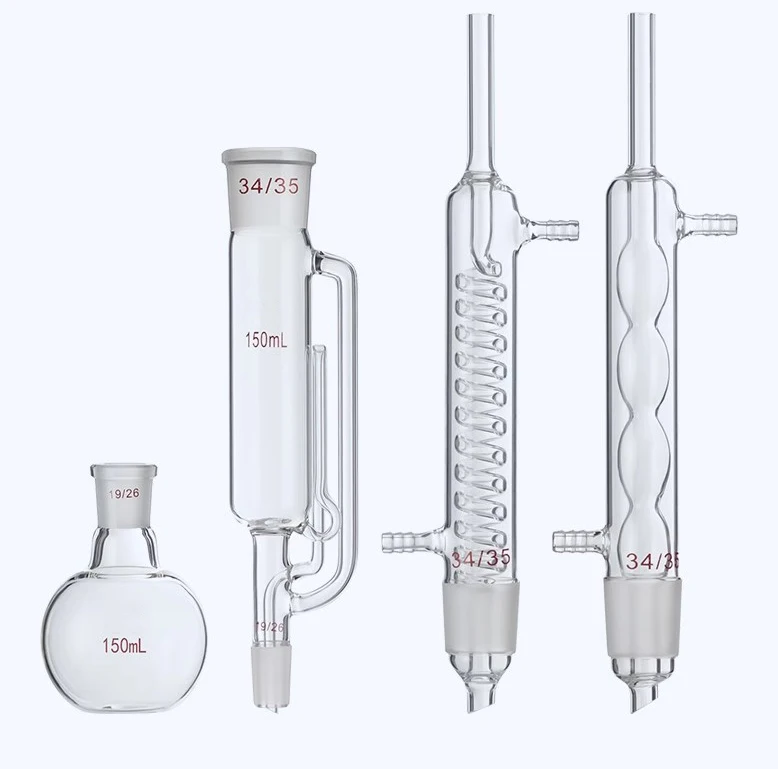

60ml | 60ml round bottom flask ,extraction Chamber upper 34# below 19#. Bulb Condenser | |
150ml | 150ml round bottom flask ,extraction Chamber upper 34# below 19#. Bulb Condenser | |
250ml | 250ml round bottom flask ,extraction Chamber upper 40# below 24#. Bulb Condenser | |
500ml | 500ml round bottom flask ,extraction Chamber upper 50# below 24#. Bulb Condenser | |
1000ml | 1000ml round bottom flask ,extraction Chamber upper 60# below 25#. Bulb Condenser | |
2000ml | 2000ml round bottom flask ,extraction Chamber upper 100# below 29#. Bulb Condenser | |
5000ml | 5000ml round bottom flask ,extraction Chamber upper 100# below 34#. Bulb Condenser | |
60ml | 60ml round bottom flask ,extraction Chamber upper 34# below 19#. Coiled Condenser | |
150ml | 150ml round bottom flask ,extraction Chamber upper 34# below 19#. Coiled Condenser | |
250ml | 250ml round bottom flask ,extraction Chamber upper 40# below 24#. Coiled Condenser | |
500ml | 500ml round bottom flask ,extraction Chamber upper 50# below 24#. Coiled Condenser | |
1000ml | 1000ml round bottom flask ,extraction Chamber upper 60# below 24#. Coiled Condenser | |
2000ml | 2000ml round bottom flask ,extraction Chamber upper 100# below 29#. Coiled Condenser | |

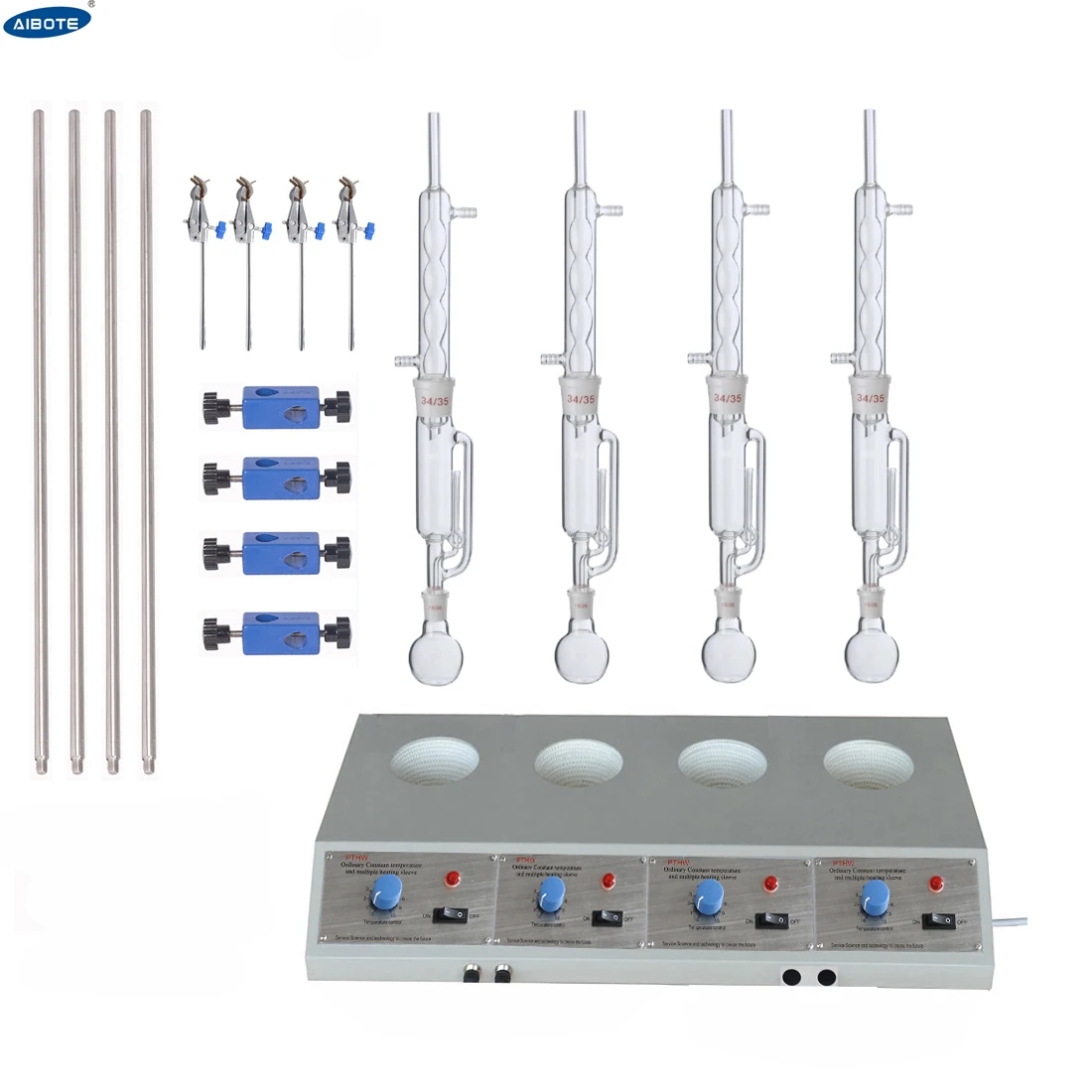

Noted | Multi position mantle can be 2,.3.4.6.position | |
Multi position mantle vacuum : 50ml, 100ml,150ml ,250ml,500ml .1000ml. | ||
Please contact us if you need Extraction Apparatus 2l and 5L . | ||
