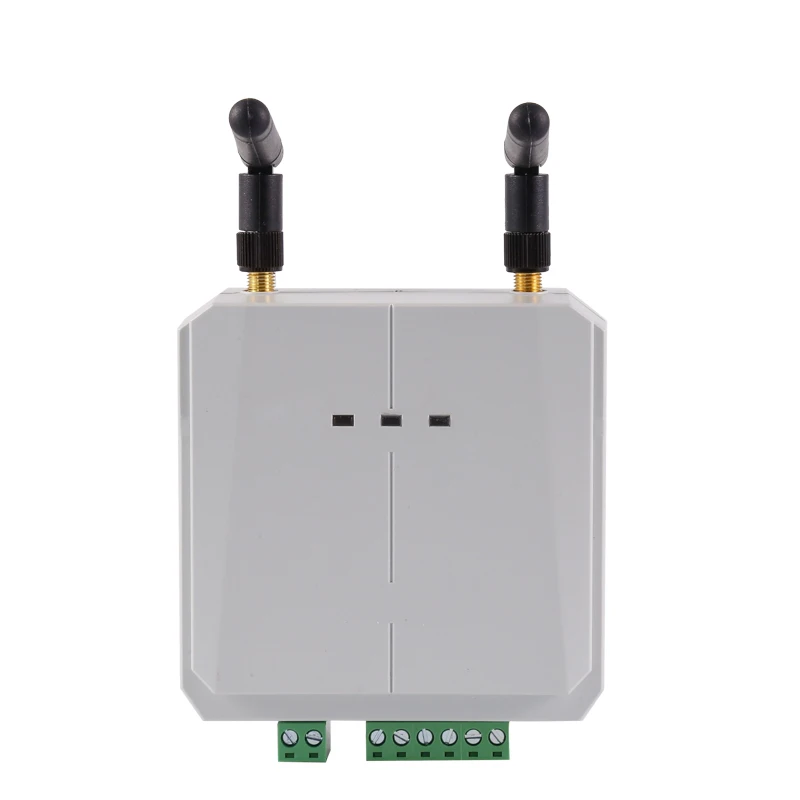

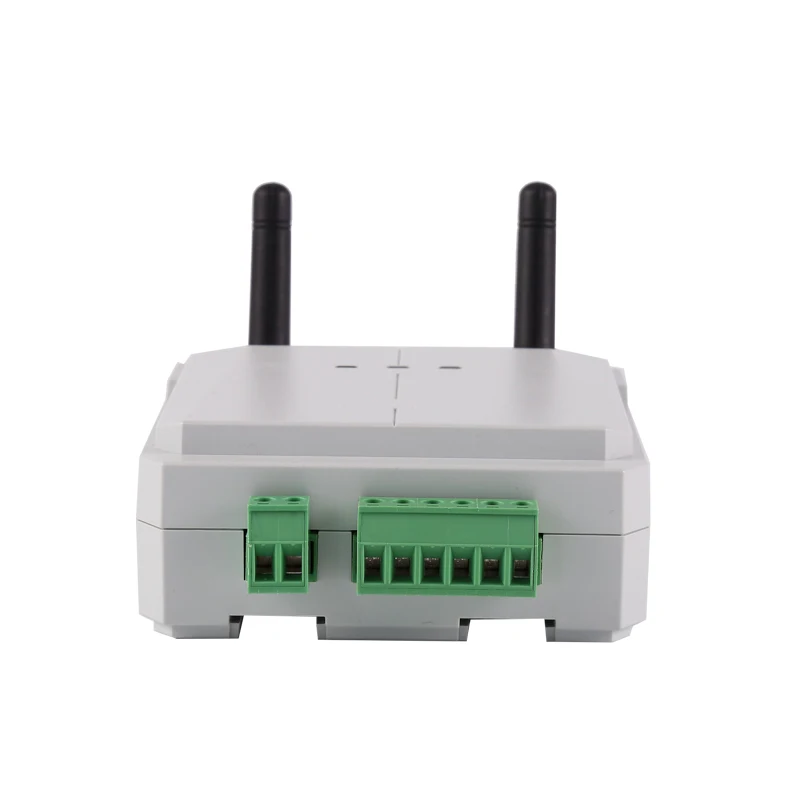

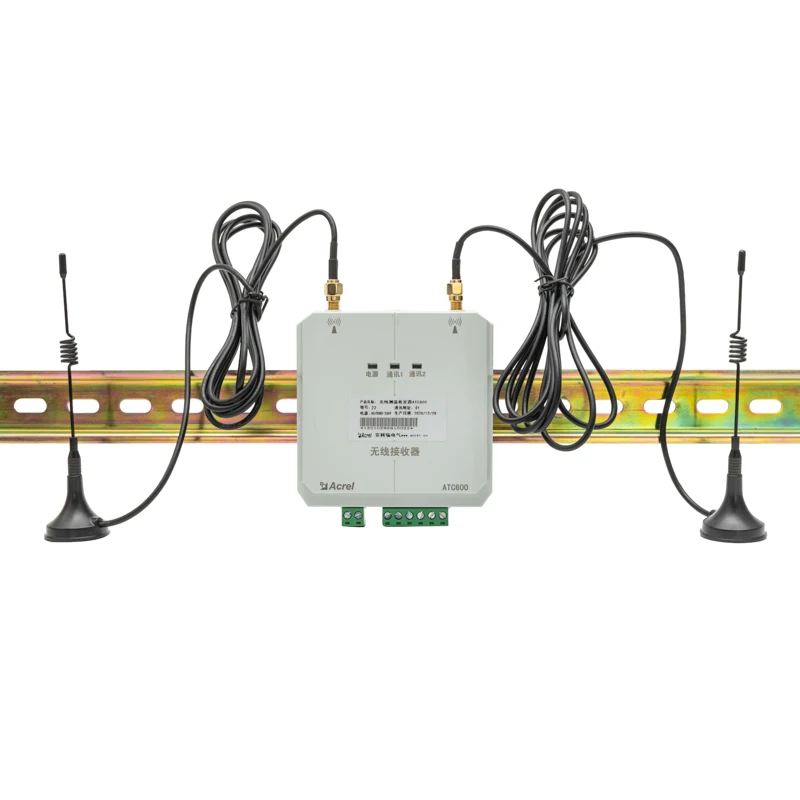

Acrel ATC600 C RS485 Din Rail Wireless Transceiver support received 240 pcs ATE sensors data with Alarm relay output
- Category: >>>
- Supplier: Acrel E-Business (shanghai) Co. Ltd.
Share on (1601004109554):
Product Overview
Description
Solutions & Applications
Wireless Temperature Monitoring System

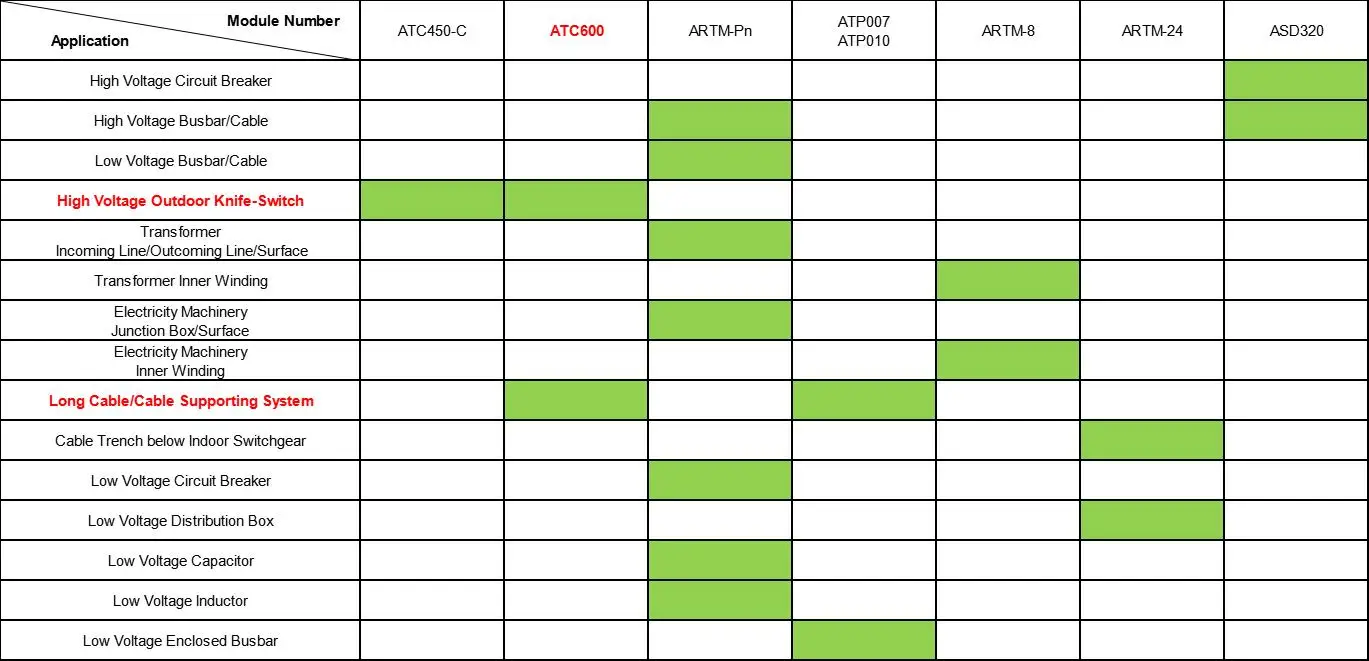

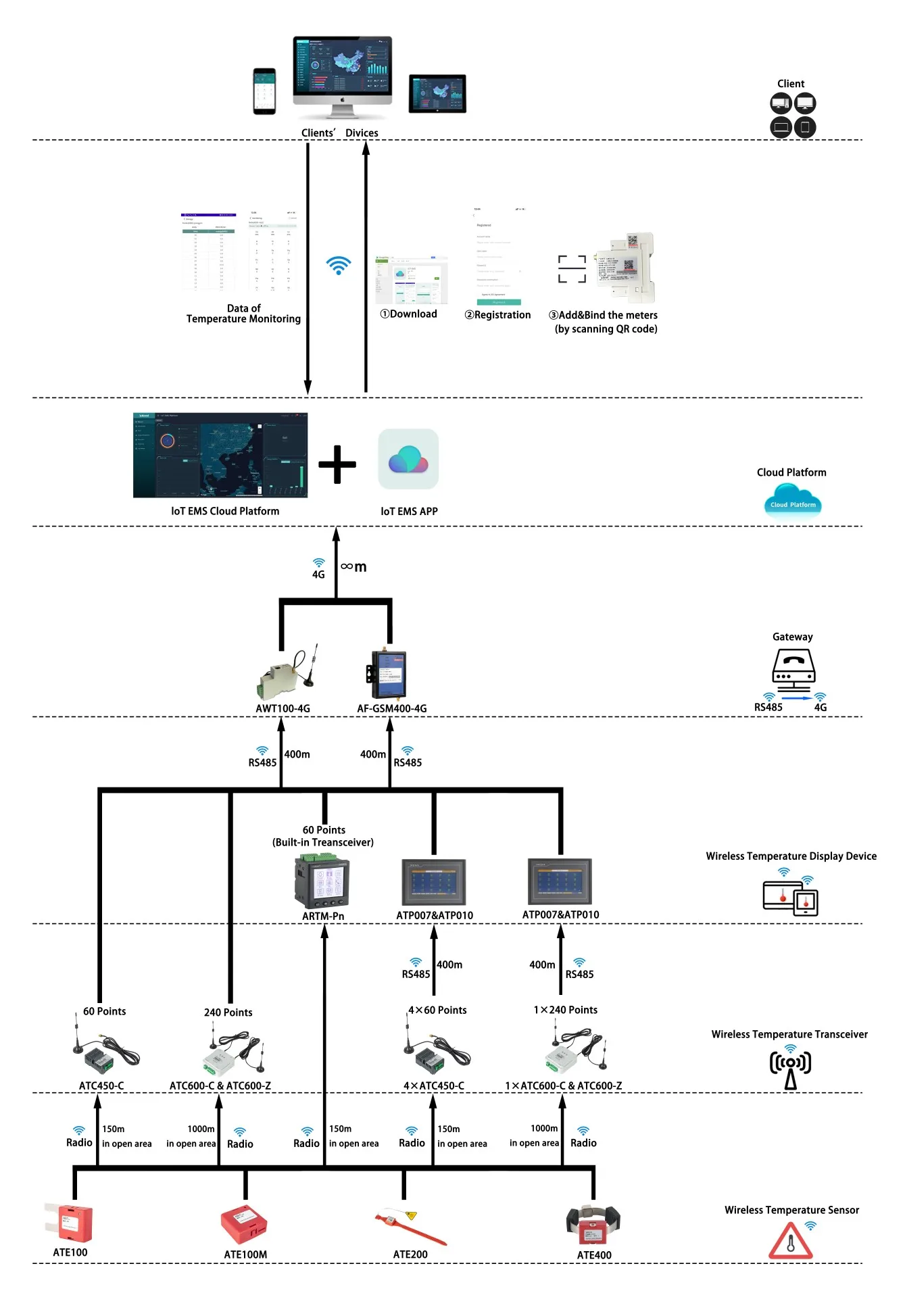

Application Overview

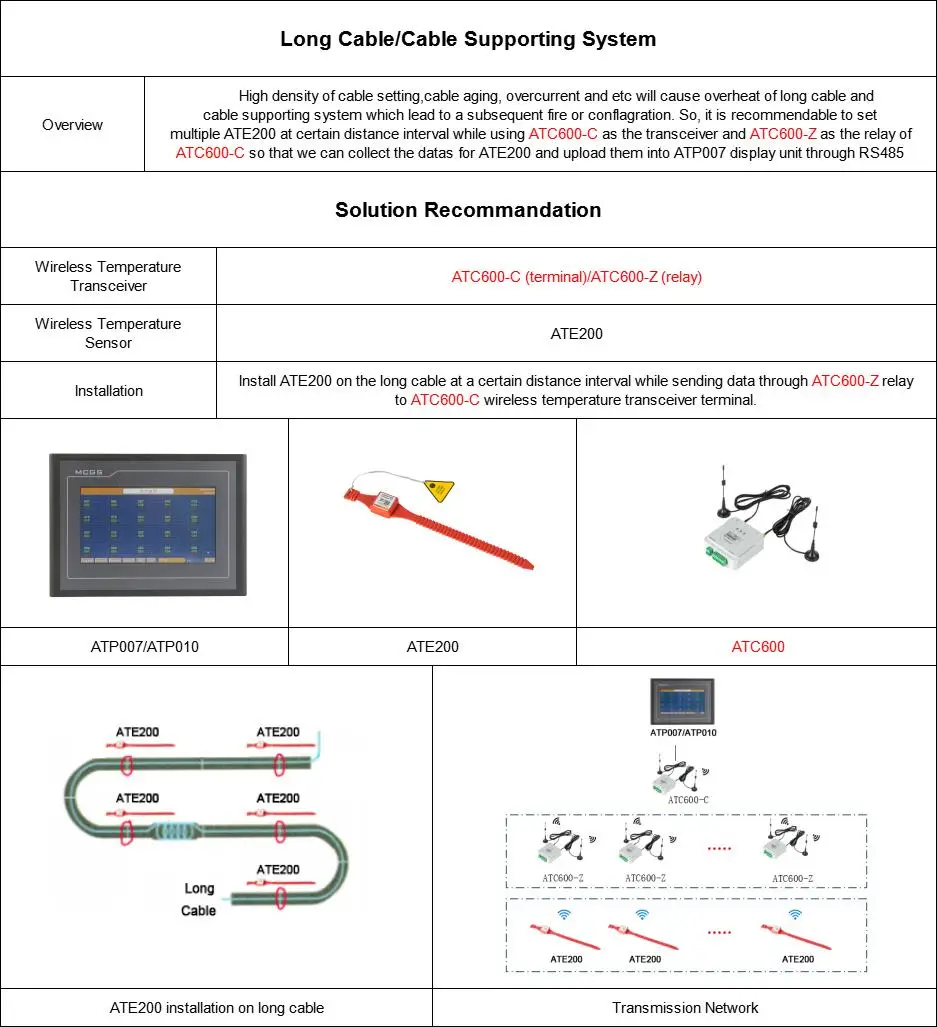

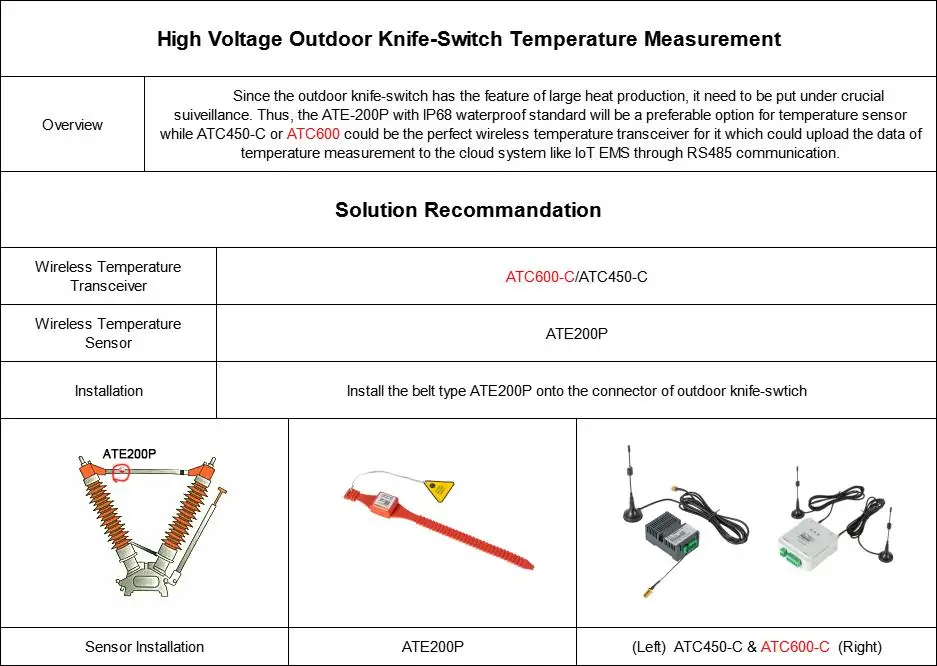

Practical Application Sample
Products Description

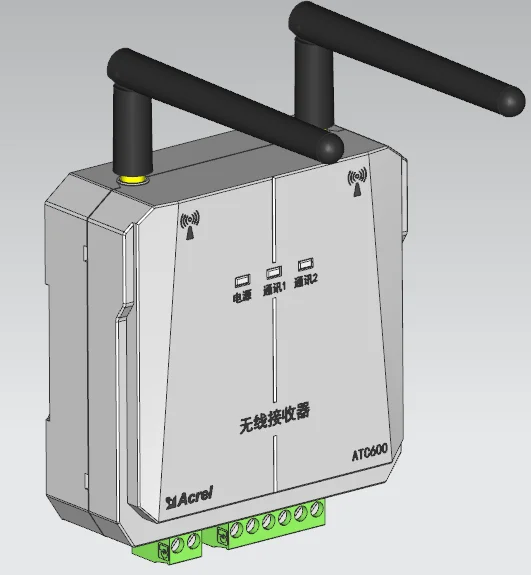

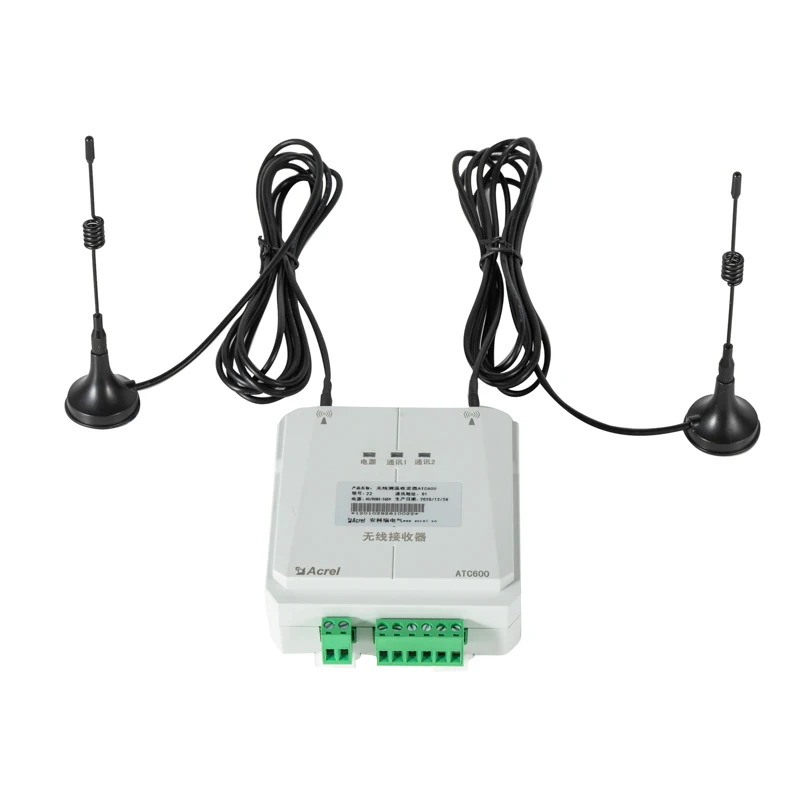

ATC600
ATC600-C wireless temperature transceiver can receive the signal within 1000m in open area when attached with ATC600-Z relay from ATE Series temperature sensors like ATE400 with the amount of up to 240 devices. Meanwhile,
it attached with MODBUS-RTU protocol which could be used for RS485 communication and upload data into display device like ATP007 or ATP010 touch screen.
it attached with MODBUS-RTU protocol which could be used for RS485 communication and upload data into display device like ATP007 or ATP010 touch screen.

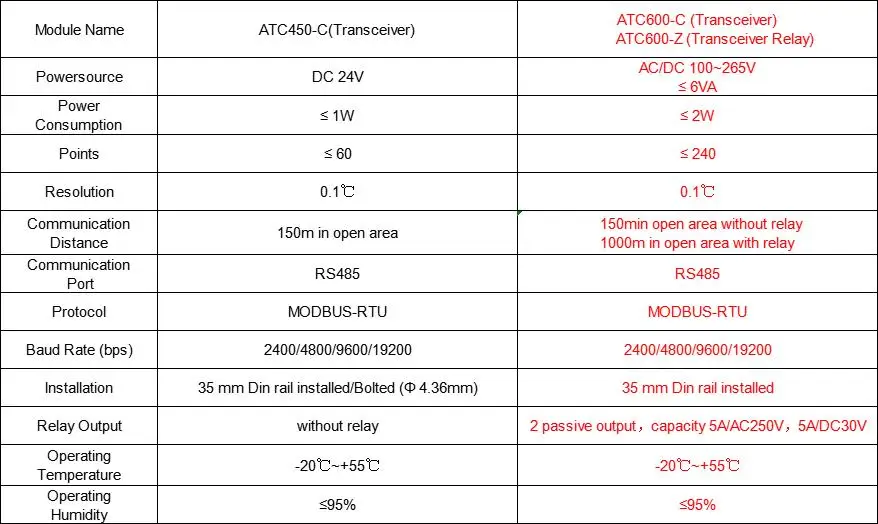

Function & Parameter
Model Name | Receive data of ATE Sensor quantity | Frequency |
ATC600-C | 240 pcs | 433Mhz,470Mhz |
Dimension & Installation

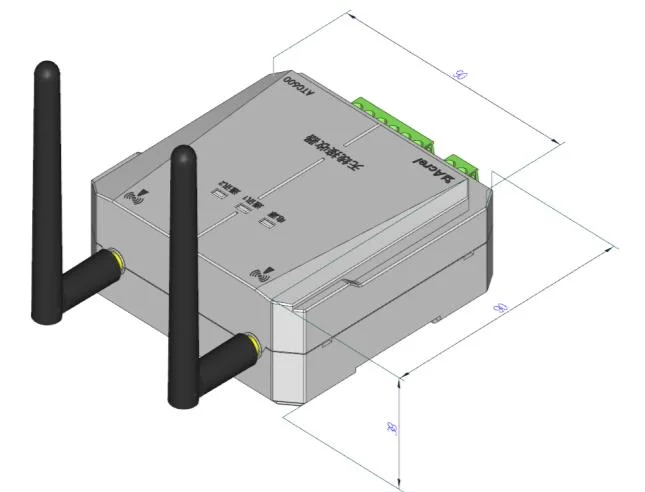

Hull Dimension

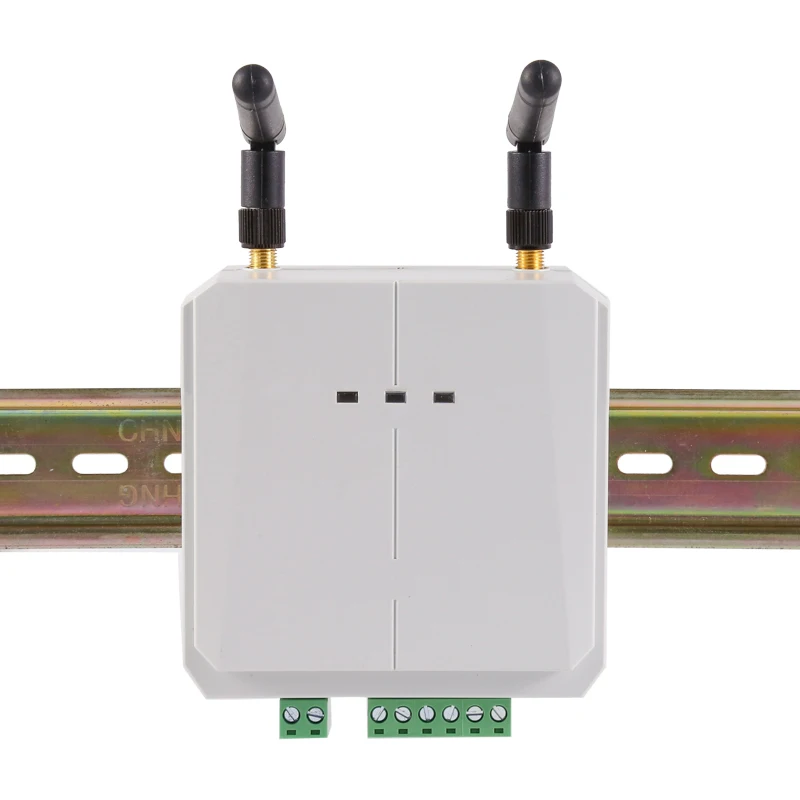

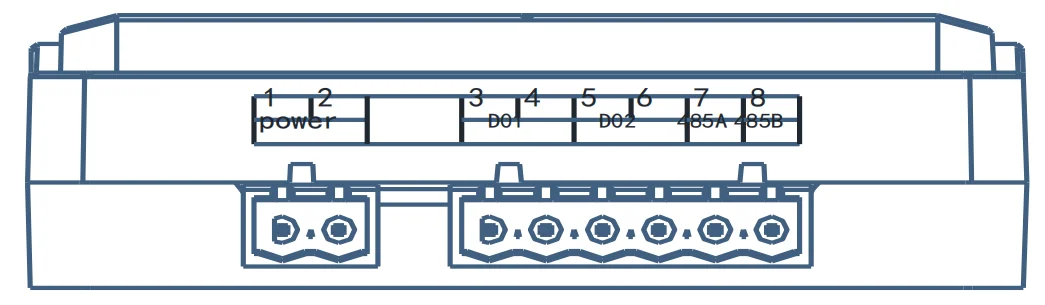

Installation
Company Profile
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
Payment & Delivery
1.Payment: T/T 100% in advance, credit card, western union, in cash and etc. T/T 30% as deposit and the balance before shipment or against copy of B/L is acceptable with enough MOQ.
2.Delivery Arriving Time: in 3-7 working days after payment received.
3.Ways of Delivery: By sea, air, train or international courier like Fedex, TNT, DHL and UPS.
FAQ
Q: Why us ?
A: We are the leading company in China major in electronic equipment and meters manufacture. Since our company is particularly
proud of the quality of products, every single piece of commodity will be made elaborately
Q: Where to find us ?
A: Our company's headquarter located in Shanghai, the jewelry of China. And our factory was located in Jiangyin, Jiangsu Province.
Q: What is your lead time ?
A: Sample will be sent in 3days and mass production which is more than 500pcs will be arrived in 10~20days.
Q: How to pay the price ?
A: Usually by T/T credit card, wester union, in cash and etc. And there is another option that you can pay 30% as desposit and the balance before shipment or against copy of B/L under large order circumstances
Q: Other logo options for products (OEM) ?
A: Of course we can provide other logo options but the MOQ for OEM should be at least 100pcs. Meanwhile, we may also need logo AI Format or EPS provided by you.
A: We are the leading company in China major in electronic equipment and meters manufacture. Since our company is particularly
proud of the quality of products, every single piece of commodity will be made elaborately
Q: Where to find us ?
A: Our company's headquarter located in Shanghai, the jewelry of China. And our factory was located in Jiangyin, Jiangsu Province.
Q: What is your lead time ?
A: Sample will be sent in 3days and mass production which is more than 500pcs will be arrived in 10~20days.
Q: How to pay the price ?
A: Usually by T/T credit card, wester union, in cash and etc. And there is another option that you can pay 30% as desposit and the balance before shipment or against copy of B/L under large order circumstances
Q: Other logo options for products (OEM) ?
A: Of course we can provide other logo options but the MOQ for OEM should be at least 100pcs. Meanwhile, we may also need logo AI Format or EPS provided by you.
