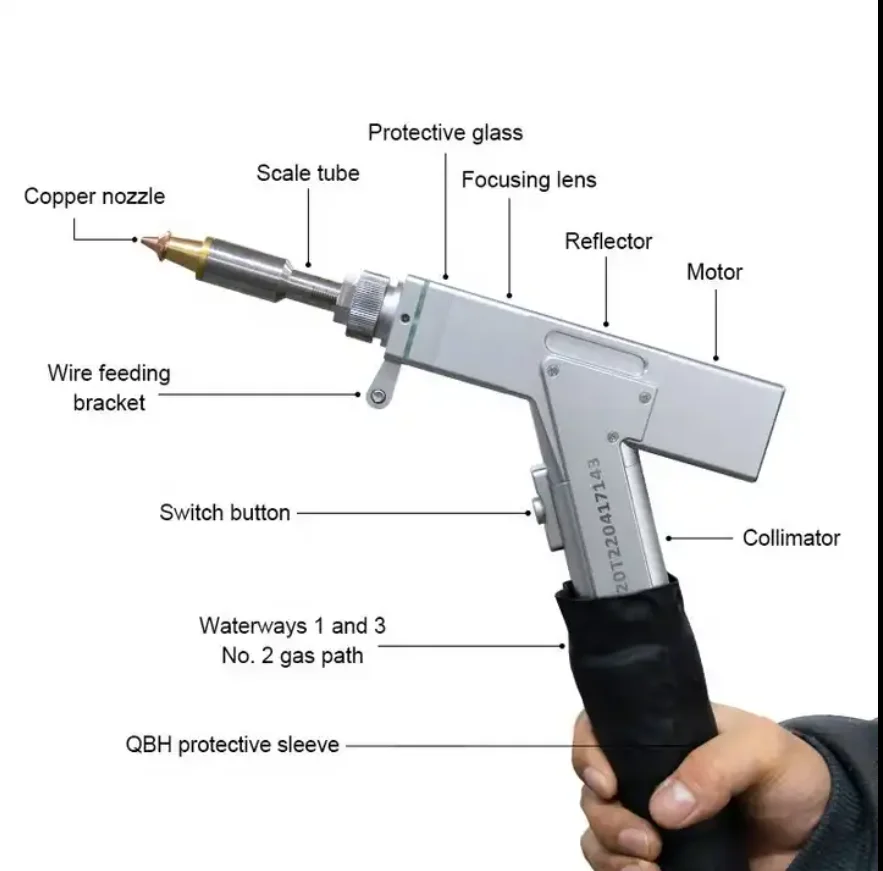

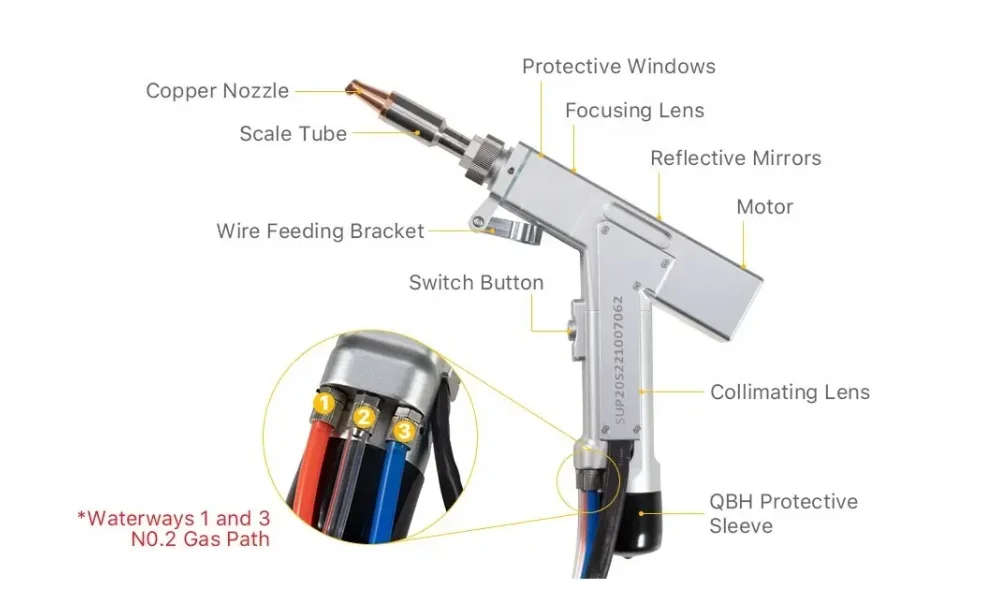

Super SUP20S Handheld Fiber Laser Welding Gun
- Category: >>>
- Supplier: Demark (Wuhan) Technology Co. Ltd.
Share on (1601004200801):
Product Overview
Description
Company Profile
Product Description
●Basic features of the product: self-developed control system and structural design, suitable for various welding needs within 3000W, multiple safety alarms and status indicators, and instant response to abnormal conditions. The net weight is 750k, which is flexible in operation and easy to use.
● The whole machine is more stable: all parameters can be seen, and the status of the laser welding machine can be monitored in real time to avoid problems in advance, facilitate troubleshooting and troubleshooting, and ensure the stable operation of the handheld laser welding head.
● Scientific structural design: The main structure is designed and processed in one piece, which greatly reduces the failure rate and facilitates later maintenance. The anti-interference ability is strengthened by adopting the insulating shell.
● It is easy to debug the parameters and the software runs smoothly. The software interface is friendly, the chip operation speed is fast, and the effect of wire feeding and wire breaking is excellent.
● The whole machine is more stable: all parameters can be seen, and the status of the laser welding machine can be monitored in real time to avoid problems in advance, facilitate troubleshooting and troubleshooting, and ensure the stable operation of the handheld laser welding head.
● Scientific structural design: The main structure is designed and processed in one piece, which greatly reduces the failure rate and facilitates later maintenance. The anti-interference ability is strengthened by adopting the insulating shell.
● It is easy to debug the parameters and the software runs smoothly. The software interface is friendly, the chip operation speed is fast, and the effect of wire feeding and wire breaking is excellent.
Specification
1. Safety-foolproof: independent research and development of safety detection system, built-in real-time monitoring of temperature;
2. Time-saving - efficient and convenient: the focusing mirror and protective mirror are made into drawers, and the collimating mirror and QBH are integrated, which can be plugged and plugged in, which is convenient for on-site replacement;
3. Lightweight - Lightweight and light-weight: Compared with the previous generation, the weight is further reduced, the operation is more flexible, the hands are easier to use, and the grip is more comfortable;
4. Quality - beautiful welding, stable performance: the optical structure is further optimized, the welding strength is high, the deformation is small, and the penetration depth is high;
5. Performance-multiple functions: support handheld continuous welding, spot welding, cleaning, bead cleaning, cutting, "hand" and"self" integration, password authorization, real-time monitoring of all interfaces, convenient on-site maintenance, and remote support.
2. Time-saving - efficient and convenient: the focusing mirror and protective mirror are made into drawers, and the collimating mirror and QBH are integrated, which can be plugged and plugged in, which is convenient for on-site replacement;
3. Lightweight - Lightweight and light-weight: Compared with the previous generation, the weight is further reduced, the operation is more flexible, the hands are easier to use, and the grip is more comfortable;
4. Quality - beautiful welding, stable performance: the optical structure is further optimized, the welding strength is high, the deformation is small, and the penetration depth is high;
5. Performance-multiple functions: support handheld continuous welding, spot welding, cleaning, bead cleaning, cutting, "hand" and"self" integration, password authorization, real-time monitoring of all interfaces, convenient on-site maintenance, and remote support.
Product Paramenters

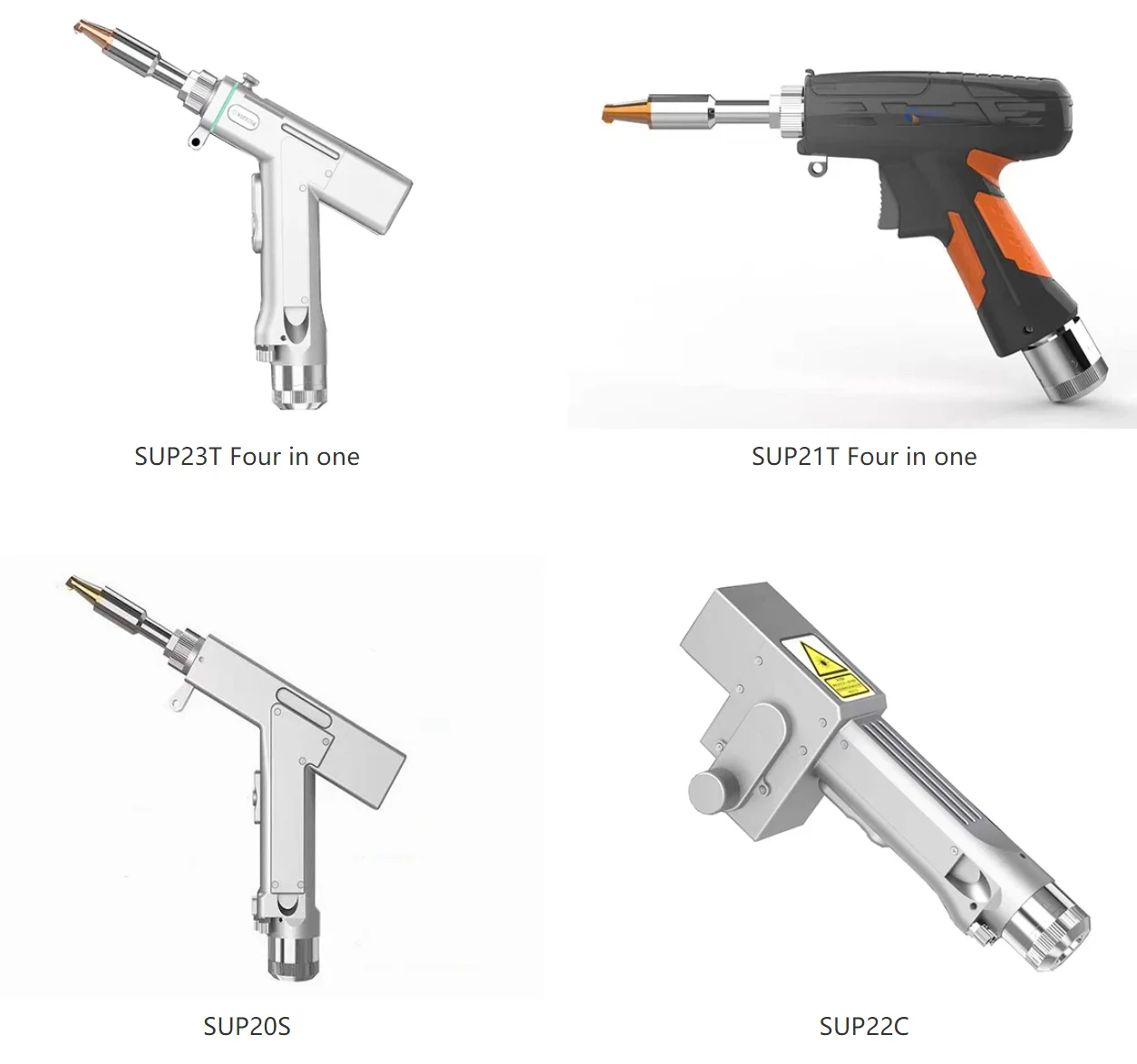

Model | SUP20S | SUP21T | SUP23S | SUP23T |
Interface type | QBH | QBH | QBH | QBH |
Power Range | 0-2000W | 0-3000W | 0-3000W | 0-3000W |
Laser Wavelength | 1070nm | 1070nm | 1070nm | 1070nm |
Focus vertical adjustment range | 10 mm | 10 mm | 10 mm | 10 mm |
Light Spot adjustment range | 0.2-5.0 mm | 0-8.0 mm | 0-8.0 mm | 0-8.0 mm |
Collimating length | D20-F60 mm | D16-F60 mm | D16-F60 mm | D16-F60 mm |
Focal length | D20-F150 mm | D20-F150 mm | D20-F150 mm | D20-F150 mm |

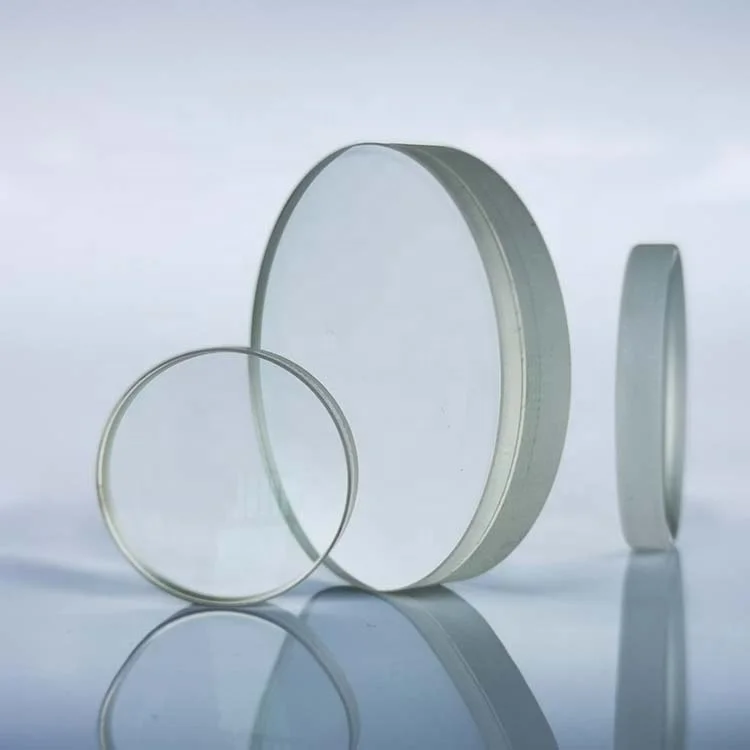

Protective lens | D18*2mm | D18*2mm | D18*2mm | D18*2mm |
Cooling Way | Water | Water | Water | Water |
Weight | 0.7kg | 0.7kg | 0.7kg | 0.7kg |
Maximum air pressure | 15Bar | 15Bar | 15Bar | 15Bar |

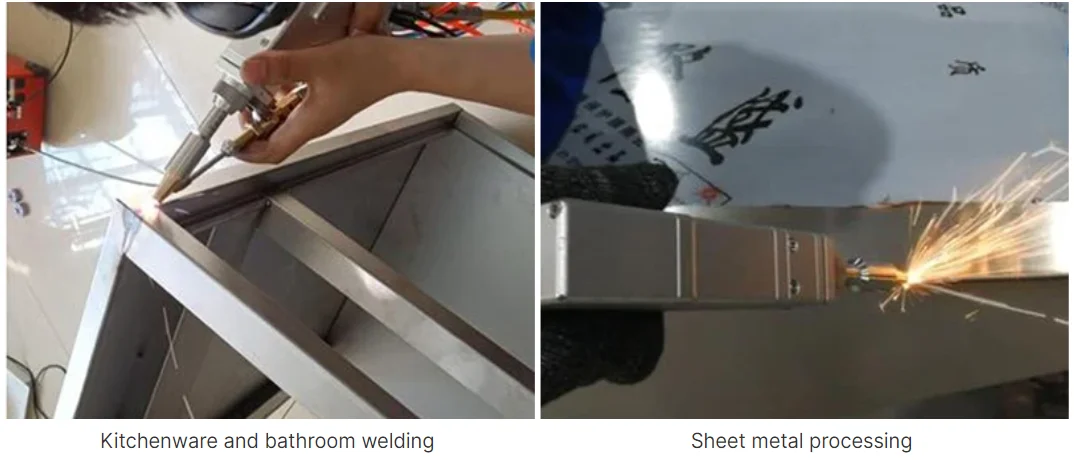

Application
