Free sample zn98al2 zn78al22 and zn85al15 rod flux cored Brazing Wire Rod,zinc aluminium alloy low carbon welding wire
- Category: >>>
- Supplier: Foshan Zhonghanyan New Material Technology Co. Ltd.
Share on (1601004217811):
Product Overview
Description
Why choose us?
1.Provide free sample and professional inquire service for you .
2.Low MOQ.
3.We own professional technicial has rich brazing experience for solve aluminum braze questions .
4.We have ISO certificate / SGS report welding wire patent .
5.We accept customize for wire of size 800---1000 mm and LOGO
6.Welcome share your brazing question to me then will share better welding menthod to you for improve process .
4.We have ISO certificate / SGS report welding wire patent .
5.We accept customize for wire of size 800---1000 mm and LOGO
6.Welcome share your brazing question to me then will share better welding menthod to you for improve process .
7.Ordering 100 kilo 7-10 days lead time
8.Accept oem / fob / cnf /cif
Products Description

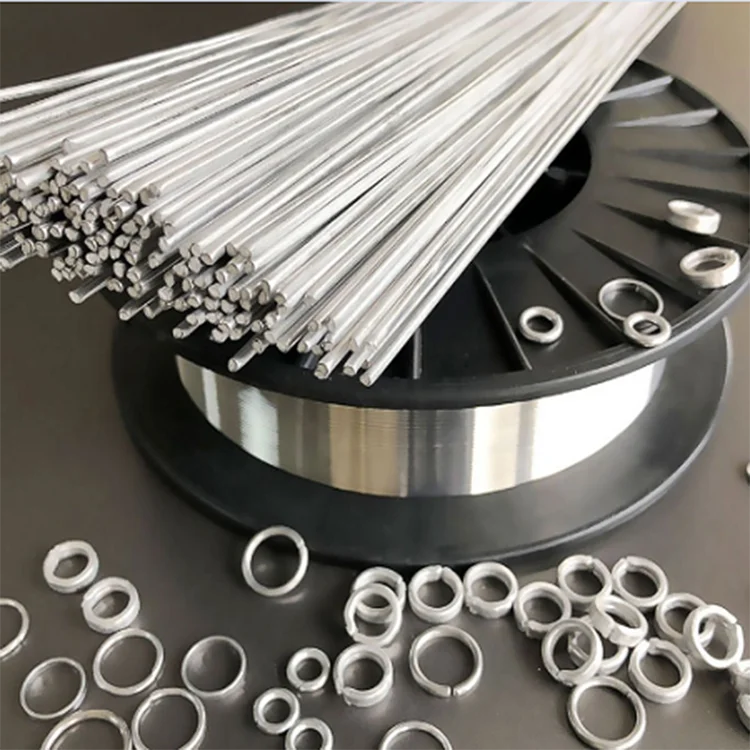

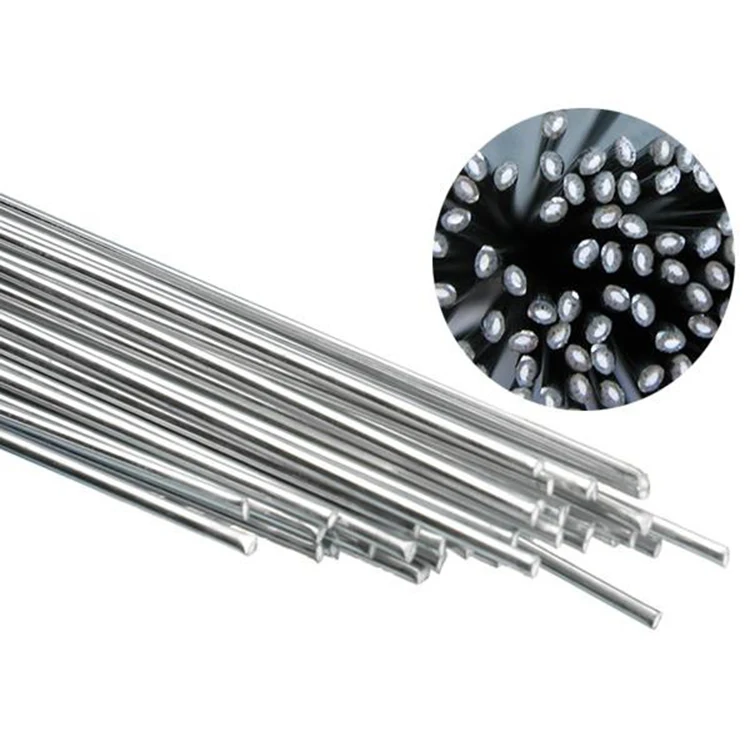

Zhonghanyan offer zn98al2,zn78al22 and zn85al15 zinc aluminium flux cored brazing wire rod.
Zn92Al8 flux core rod have the same performance with Zn78Al22.
Different shapes like foil,strip,rod,wire,ring can be provided.
PRODUCT SPECIFICATION | ||
zn78al22、zn98al2、zn85al15 | ||
Chemical composition | content (%) | |
F | 28～38 | |
Cs | 53～62 | |
Al | 7～12 | |
Alloy ratio | ||
Al | 2～24 | |
Zn | margin | |
Model | Element | Melting point temperature | Wire diameter specifications | shape | Usage | Joint strength |
zn95al05 | Zinc-Aluminum-Cesium Rare Earth | 370-390 ℃ | 1.6/2.0 mm custom | Thread-like ring-like paste. custom | Brazing | ≥800Mpa |
zn85al15 | 395 415 ℃ | |||||
zn78al22 | 420 430 ℃ |
For asking more available types and full chemical composition sheet, just drop us a message!
Usage Scenario
This product can be used in aluminum wire and copper joints, copper bar and aluminum foil welding in transformers and reactors, welding of aluminum and copper tubes in condensers and evaporators in refrigerators and air conditioners, aircraft air filter joints, and rocket guide valves.
Welding of copper and aluminum wires in connectors, radiators, motors and other products. (As long as it is brazing of common aluminum alloys and copper, it can be used.)
Custom service

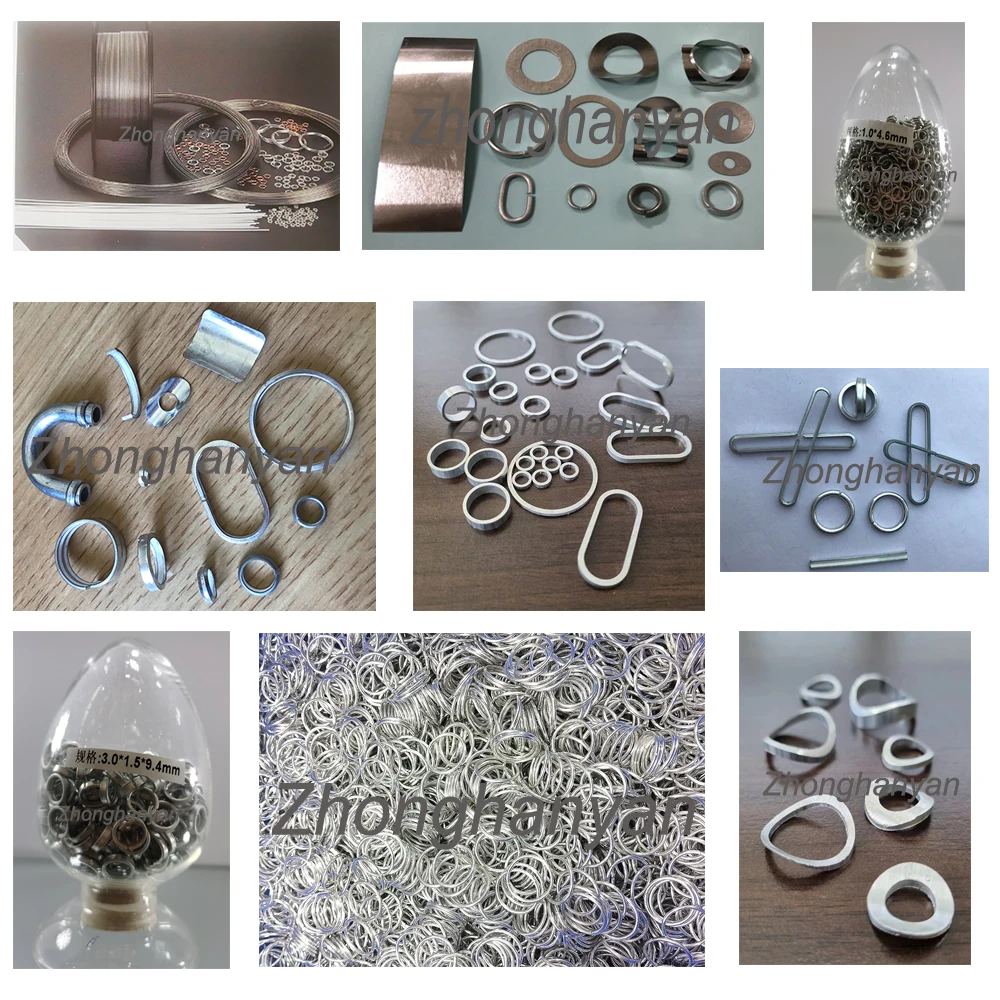

Supports customization of various lengths/shapes/sizes
Company Profile
Our Certificate
Our Partner Company
Company Information
We have technology department,Over 10-years brazing experiences.While facing hard to solve,Please send us your inquiry.Lets go cross with welding professional menthod.

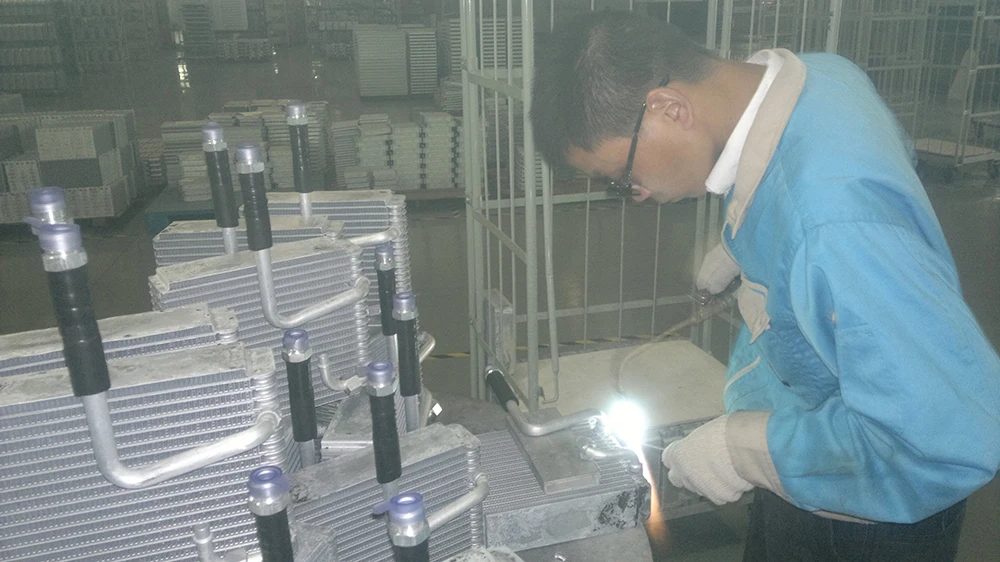

Our superstar welding rings widely used to condenser,most upper cooling skill and more comfortable .
Brazing process: the workpieces cleaned on the surface are assembled together in a lapping type, and the filler metal is placed near or between the joint gaps. When the workpiece and filler metal are heated to a temperature slightly higher than the melting point of the filler metal, the filler metal melts (the workpiece is not melted), and is sucked into and filled with the gap between the solid workpiece by capillary action.
Brazing process: the workpieces cleaned on the surface are assembled together in a lapping type, and the filler metal is placed near or between the joint gaps. When the workpiece and filler metal are heated to a temperature slightly higher than the melting point of the filler metal, the filler metal melts (the workpiece is not melted), and is sucked into and filled with the gap between the solid workpiece by capillary action.
The liquid filler metal and the workpiece metal are mutually diffused and dissolved, and the brazing joint is formed after condensation.
Our customers

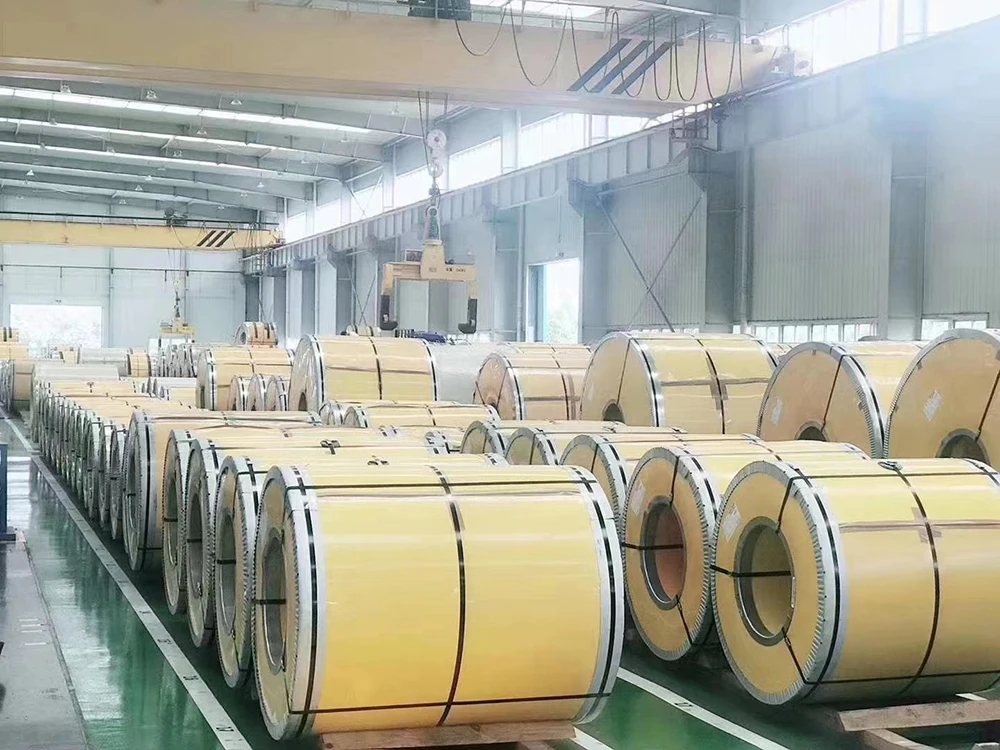

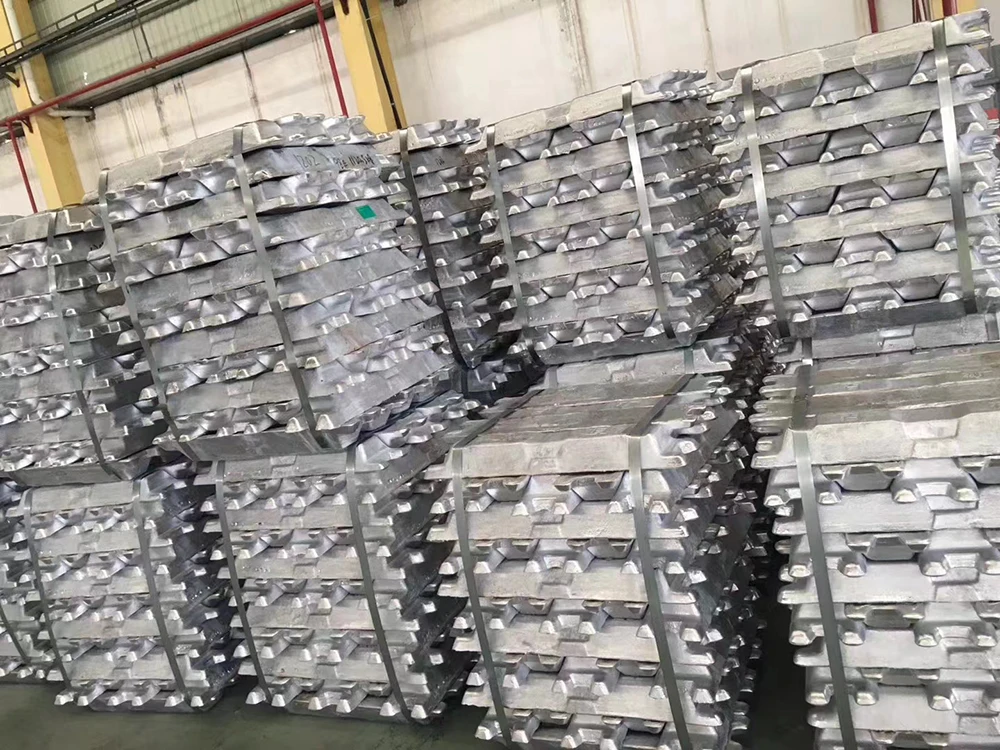

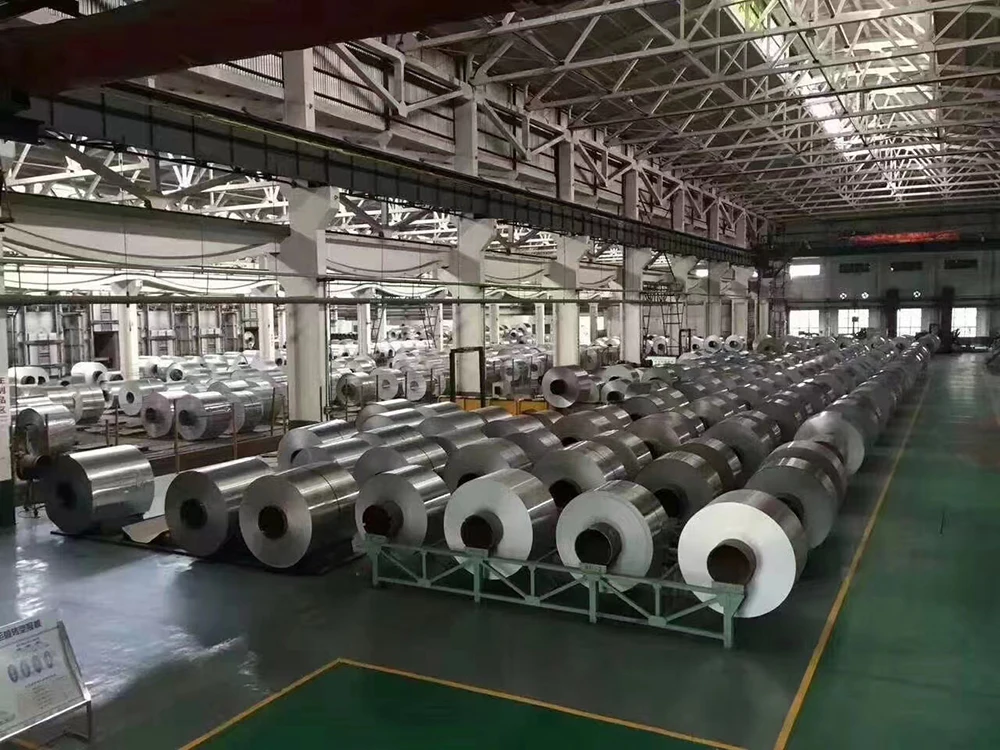

Our factory

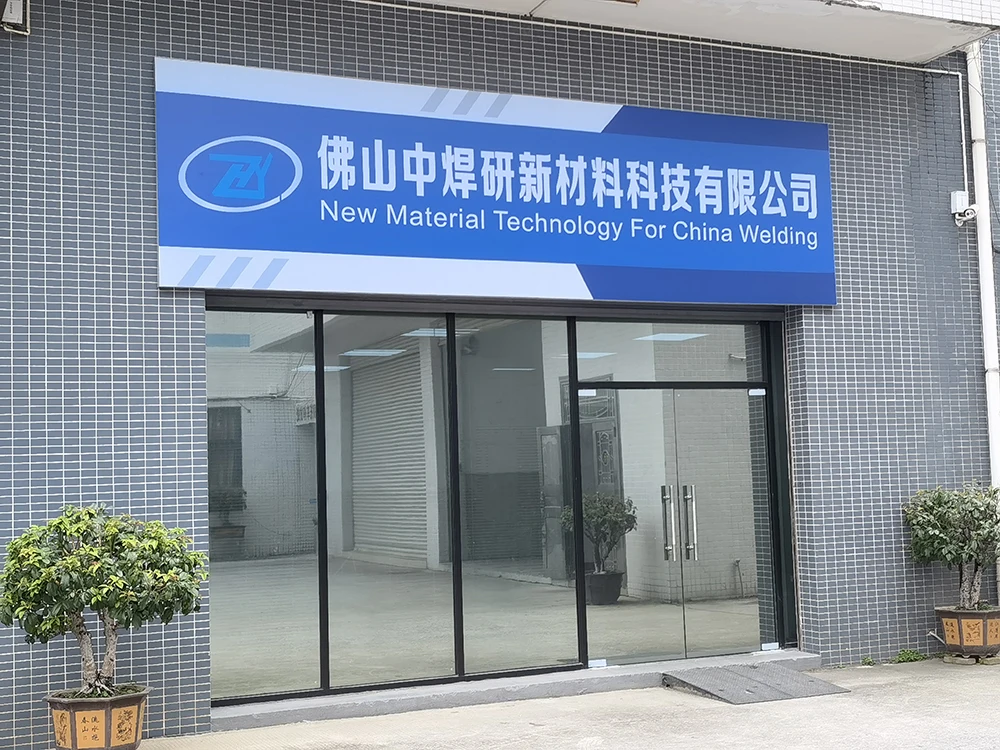

Our office

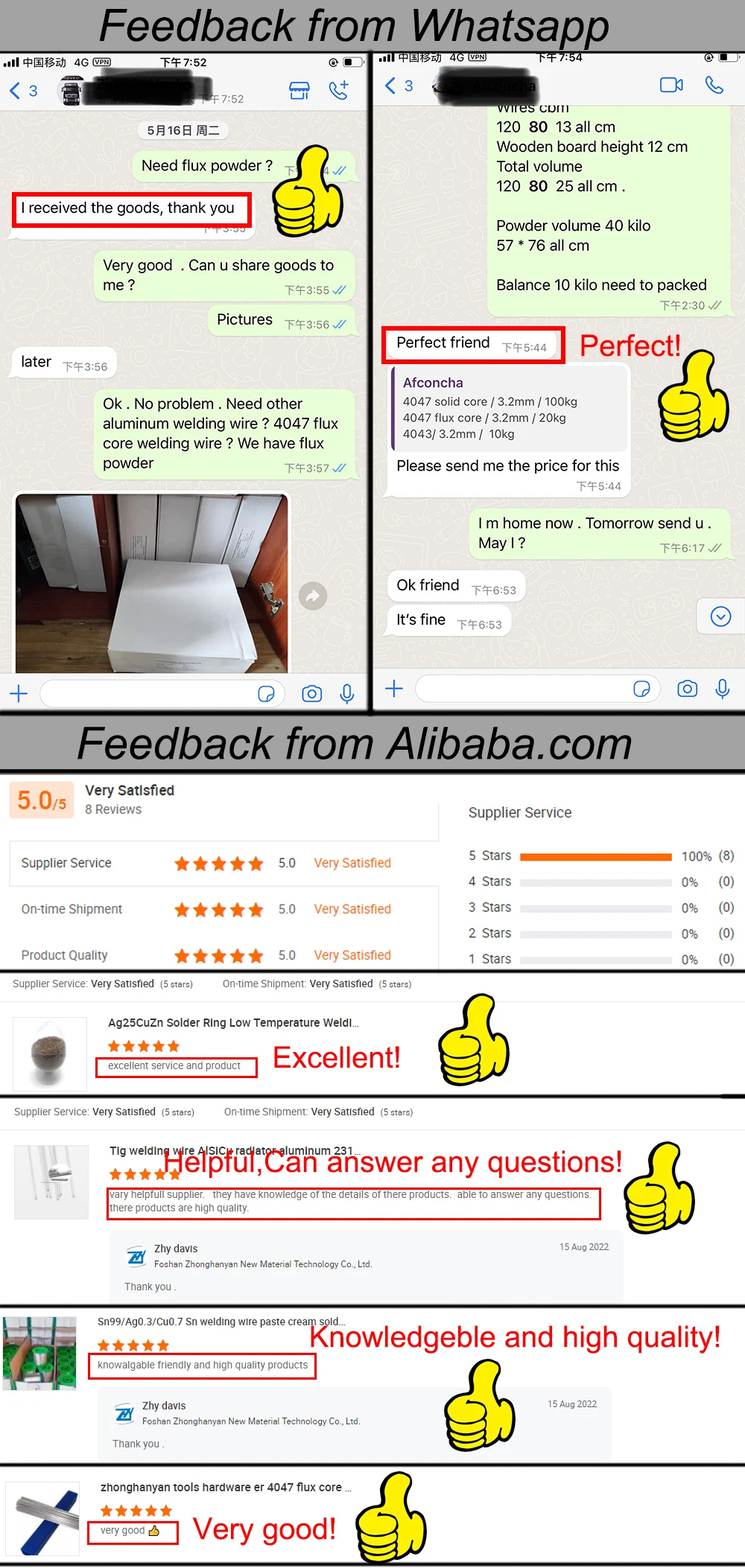

Customer Feedback
FAQ
1:How do you ensure your product and service quality?
All our processes strictly adhere to ISO9001 procedures. And have 12 months quality warranty and exchange serviceagainst Bl issue date for the quality problem caused by our side.
2:Can you provide several pieces of samples for testing before place mass order?
Yes,we are pleasure to send you samples to test the quality and performance.
3:How can I make order and settle payment?
Once clear your requirement and determined which product is ideal for you,we will send Pl to you. L/C,D/P,T/T,Paypal,Western Union etc.are all available.
4:If we find your bank account different as before how should we respond?
Please DON'T arrange the payment until double check with usa (Bank details will be listed in each pieace of Pl)
5.What is your Minimum Order Quantity?
NO MOQ.
6.What about Delivery Date?
For sample order:3-5 days afterthe requirement. For mass order:15 days after confirm oeder.
7.What about Shipping?
We can send the small batches by express and the mass orders by LCL or FCL condition. To save logistics cost,you can use your own nominated shipping agent for the shipment.
We are welcoming your consultant
and looking forward to cooperating with you!
