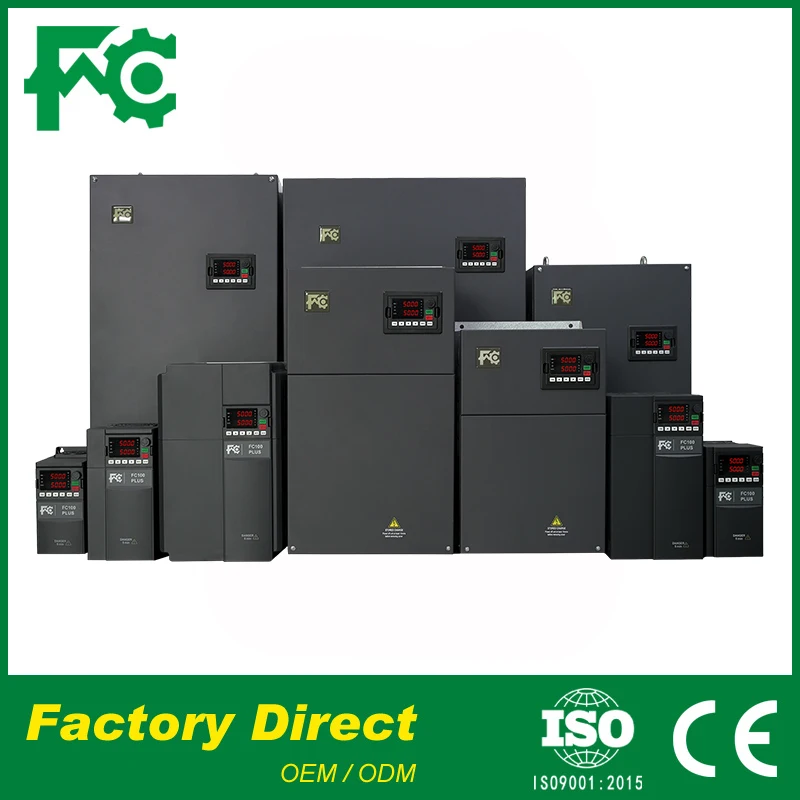

Product Description


MODEL SIZE 1
FC100P-2S-0.4G~2T-2.2GB
FC100P-4T-0.75GB~4T-4.0GB
Adaptable Motor 0.4kW~4.0kW
220V/380V 1/3 PHASE
SIZE 1 :89.6 * 197.2 * 139 (mm)
MODEL SIZE 2
FC100P-2S/T-4.0GB
FC100P-4T-5.5GB~4T-7.5GB
Adaptable Motor 4.0kW~7.5kW
220V/380V 1/3 PHASE
SIZE 2 :102 * 202 * 162 (mm)
MODEL SIZE 3
FC100P-2S/T-5.5GB~2S/T-7.5GB
FC100P-4T-11GB~4T-15GB
Adaptable Motor 5.5kW~15kW
220V/380V 1/3 PHASE
SIZE 3 :125 * 242.5 * 169.5 (mm)


MODEL SIZE 4
FC100P-2S/T-11GB
FC100P-4T-18.5GB~4T-22GB
Adaptable Motor 11kW~22kW
220V/380V 1/3 PHASE
SIZE 4 :165 * 297 * 206.2 (mm)
MODEL SIZE 5
FC100P-2S/T-15GB~2T-18.5G(-B)
FC100P-4T-30G~4T-37G
Adaptable Motor 18.5kW~37kW
220V/380V 3 PHASE
SIZE 5 :225 * 360 * 231.7 (mm)
MODEL SIZE 6
FC100P-2T-22G(-B)
FC100P-4T-45G
Adaptable Motor 37kW~45kW
220V/380V 3 PHASE
SIZE 6:260 * 440 * 230 (mm)


MODEL SIZE 7
FC100P-2T-30G(-B)
FC100P-4T-55G(-B)~4T-75G(-B)
Adaptable Motor 55kW~75kW
380V 1/3 PHASE
SIZE 4 :300 * 555 * 270 (mm)
MODEL SIZE 8
FC100P-4T-90G~4T-110G
Adaptable Motor 90kW~110kW
380V 3 PHASE
SIZE 8 :338 * 580 * 315 (mm)
MODEL SIZE 9
FC100P-4T-132G~4T-160G
Adaptable Motor 132kW~160kW
380V 3 PHASE
SIZE 9 :400 * 840 * 340 (mm)




Specification




Item No.

W
(MM)

H
(MM)

D
(MM)

Diameter
(MM)
Rated
Input/Output Current
(A)
Power Capacity
(KVA)
Adaptable Motor
(kW)
1/3 Phase Input and 3 Phase Output 220V (-15%~+15% Tolerance)
FC100P-2S-0.4GB
89.60
197.20
139.00
Ø5
6.5/2.1
0.7
0.4
FC100P-2S-0.75GB
89.60
197.20
139.00
Ø5
8.2/4.0
1.5
0.75
FC100P-2S-1.5GB
89.60
197.20
139.00
Ø5
14.0/7.0
3
1.5
FC100P-2S-2.2GB
89.60
197.20
139.00
Ø5
23.0/9.6
4
2.2
FC100P-2S/T-4.0GB
102.00
202.00
162.00
Ø5.6
39 &19/16.5
5.9
4
FC100P-2S/T-5.5GB
125.00
242.50
169.50
Ø6.3
60 & 28/25
8.5
5.5
FC100P-2S/T-7.5GB
125.00
242.50
169.50
Ø6.3
70 & 35/30
11
7.5
FC100P-2S/T-11GB
165.00
297.00
206.20
Ø7
100 & 47/45
16
11
FC100P-2S/T-15G
225.00
360.00
231.70
Ø7
130 & 62/55
21
15
3 Phase Input and 3 Phase Output 220V (-15%~+15% Tolerance)
FC100P-2T-18.5G(-B)
225.00
360.00
231.70
Ø7
77/70
24
18.5
FC100P-2T-22G(-B)
260.00
440.00
230.00
Ø7
92/80
30
22
FC100P-2T-30G(-B)
300.00
555.00
270.00
Ø8
113/110
39
30
3 Phase Input and 3 Phase Output 380V (-15%~+15% Tolerance)
FC100P-4T-0.75GB
89.60
197.20
139.00
Ø5
3.4/2.1
1.5
0.75
FC100P-4T-1.5GB
89.60
197.20
139.00
Ø5
5.0/3.8
3
1.5
FC100P-4T-2.2GB
89.60
197.20
139.00
Ø5
5.8/5.1
4
2.2
FC100P-4T-4.0GB
89.60
197.20
139.00
Ø5
10.5/9.0
5.9
4
FC100P-4T-5.5GB
102.00
202.00
162.00
Ø5.6
14.6/13.0
8.9
5.5
FC100P-4T-7.5GB
102.00
202.00
162.00
Ø5.6
19/17
11
7.5
FC100P-4T-11GB
125.00
242.50
169.50
Ø6.3
28/25
16
11
FC100P-4T-15GB
125.00
242.50
169.50
Ø6.3
35/32
21
15
FC100P-4T-18.5GB
165.00
297.00
206.20
Ø7
39/37
24
18.5
FC100P-4T-22GB
165.00
297.00
206.20
Ø7
47/45
30
22
FC100P-4T-30G(-B)
225.00
360.00
231.70
Ø7
62/60
39
30
FC100P-4T-37G(-B)
225.00
360.00
231.70
Ø7
77/75
49
37
FC100P-4T-45G(-B)
260.00
440.00
230.00
Ø8
92/90
59
45
FC100P-4T-55G(-B)
300.00
555.00
270.00
Ø10
113/110
72
55
FC100P-4T-75G(-B)
300.00
555.00
270.00
Ø10
156/152
100
75
FC100P-4T-90G
338.00
580.00
315.00
Ø10
180/176
116
90
FC100P-4T-110G
338.00
580.00
315.00
Ø10
214/210
138
110
FC100P-4T-132G
400.00
840.00
340.00
Ø10
256/253
167
132
FC100P-4T-160G
400.00
840.00
340.00
Ø10
307/304
200
160


Certifications




Janson Controls

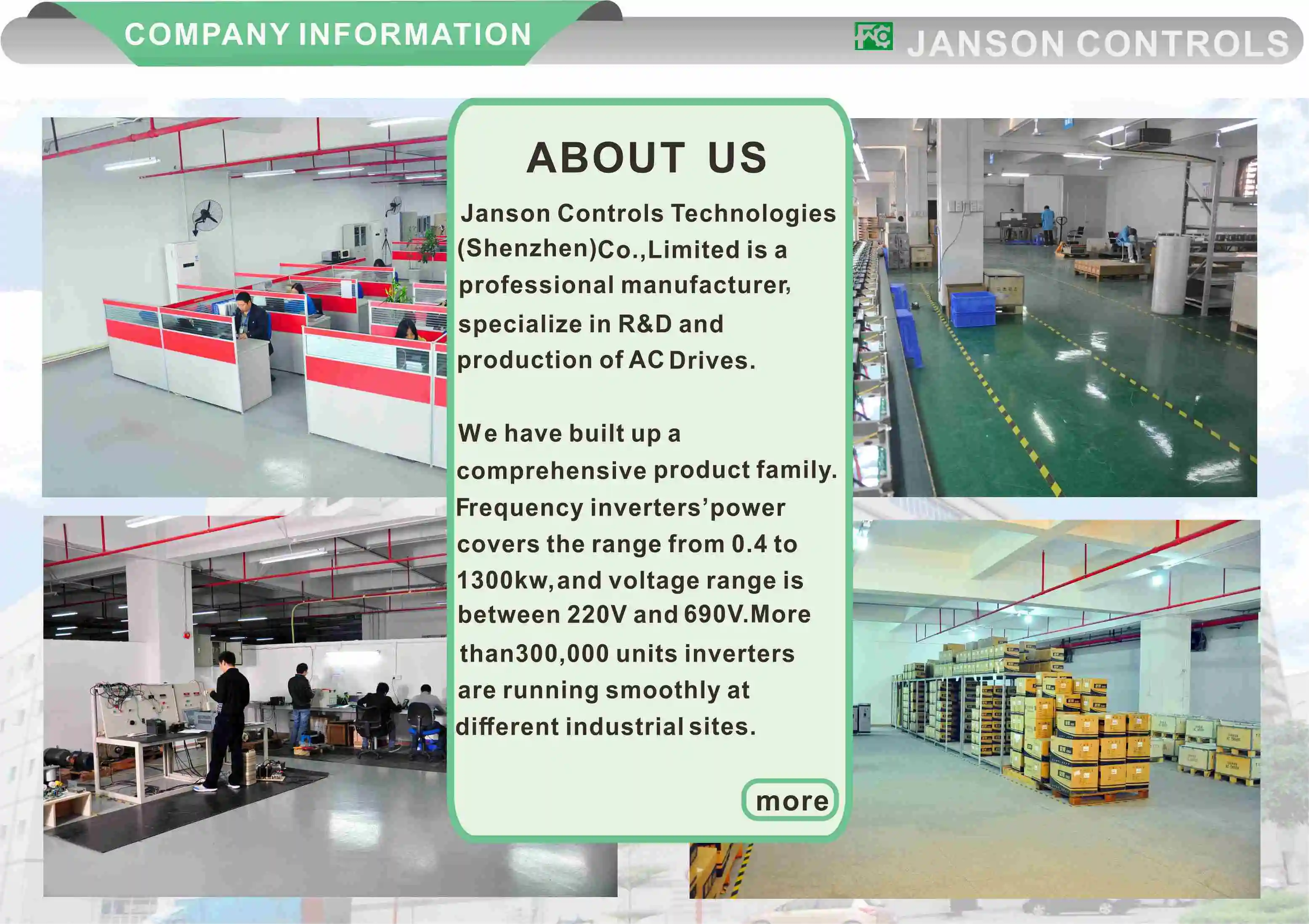

Company Profile






FAQ
1. who are we?
We are based in Guangdong, China, start from 2012,sell to South Asia(25.00%),Mid East(20.00%),North America(15.00%),Southeast
Asia(10.00%),Africa(10.00%),South America(5.00%),Northern Europe(5.00%),Western Europe(5.00%),Eastern Asia(5.00%). There are total
about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
vfd,solar inverter,soft starter,Elevator VFD,plc

4. why should you buy from us not from other suppliers?
Janson Controls Company Limited is a factory that obtained ISO9001:2008 and CE certificate, we are highly skilled in V/F Control
frequency inverter (AC Drives, Speed Controller) and Vector Controls AC Drives, focusing on green energy of harmonic drive

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
