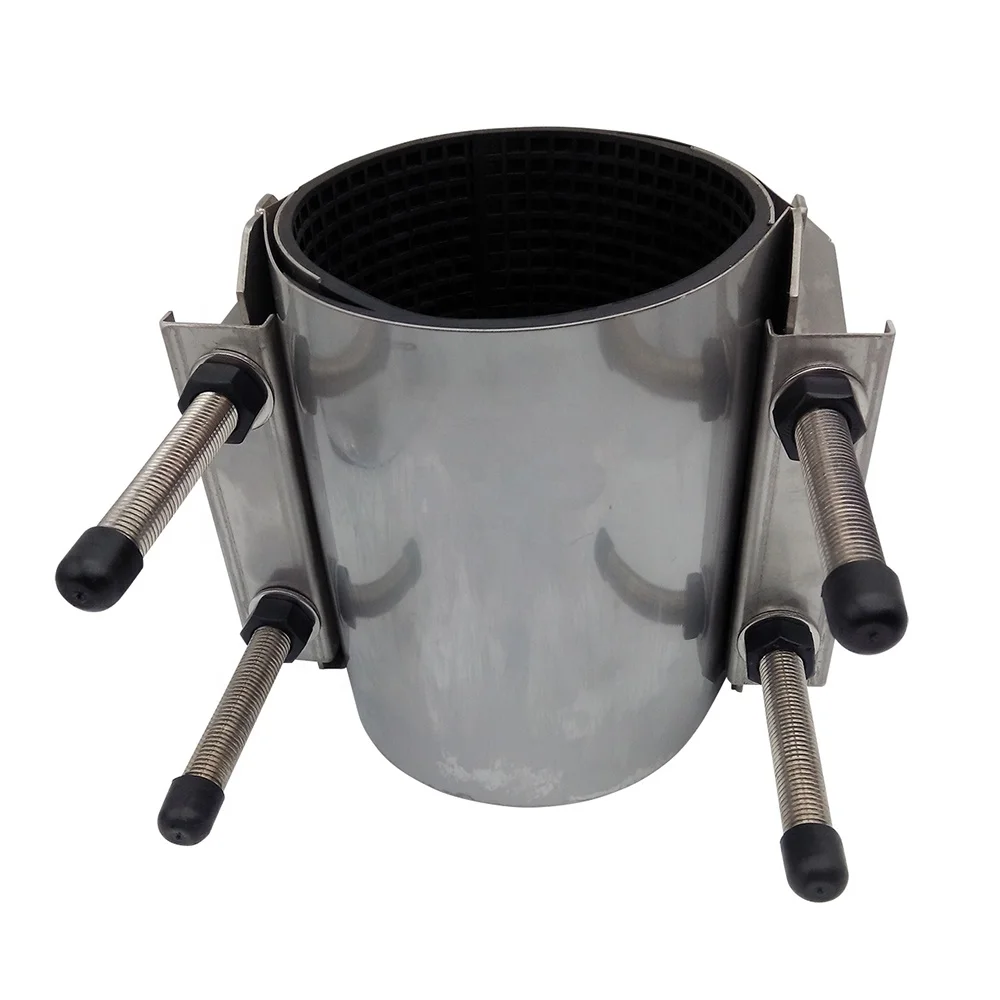

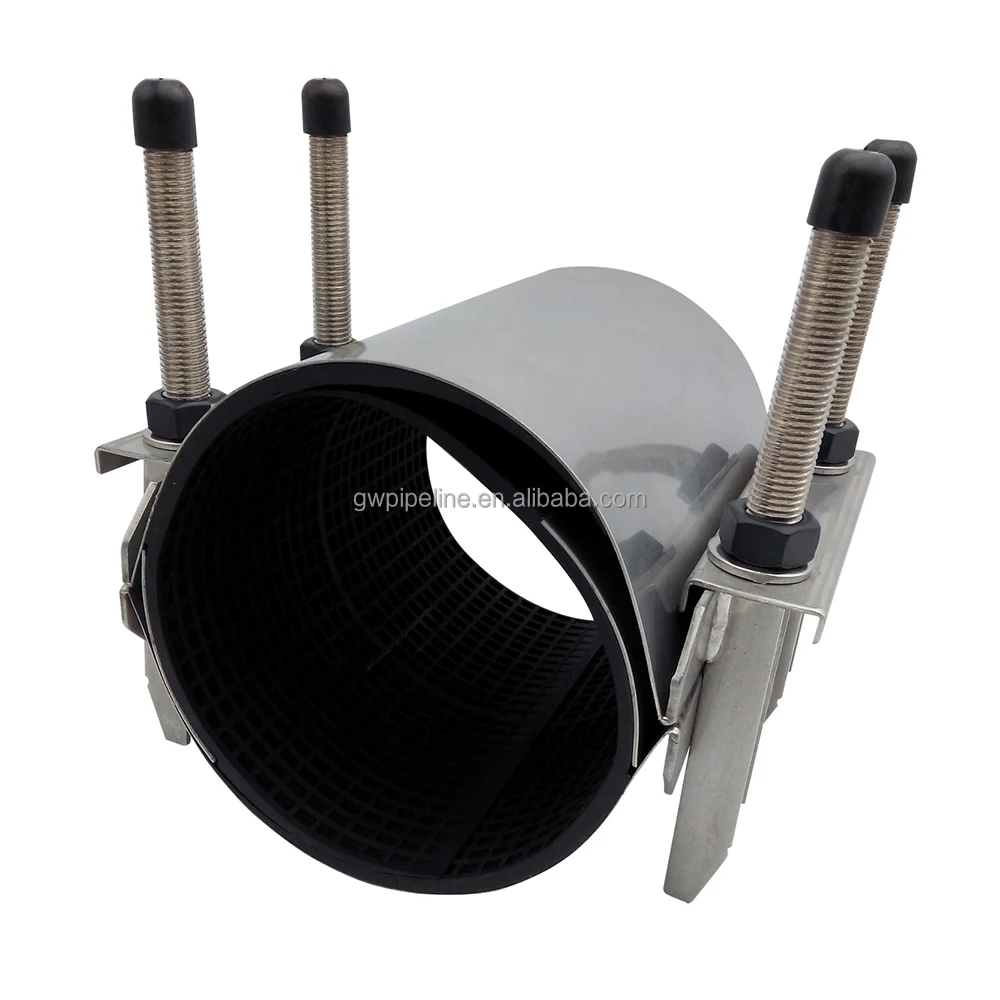

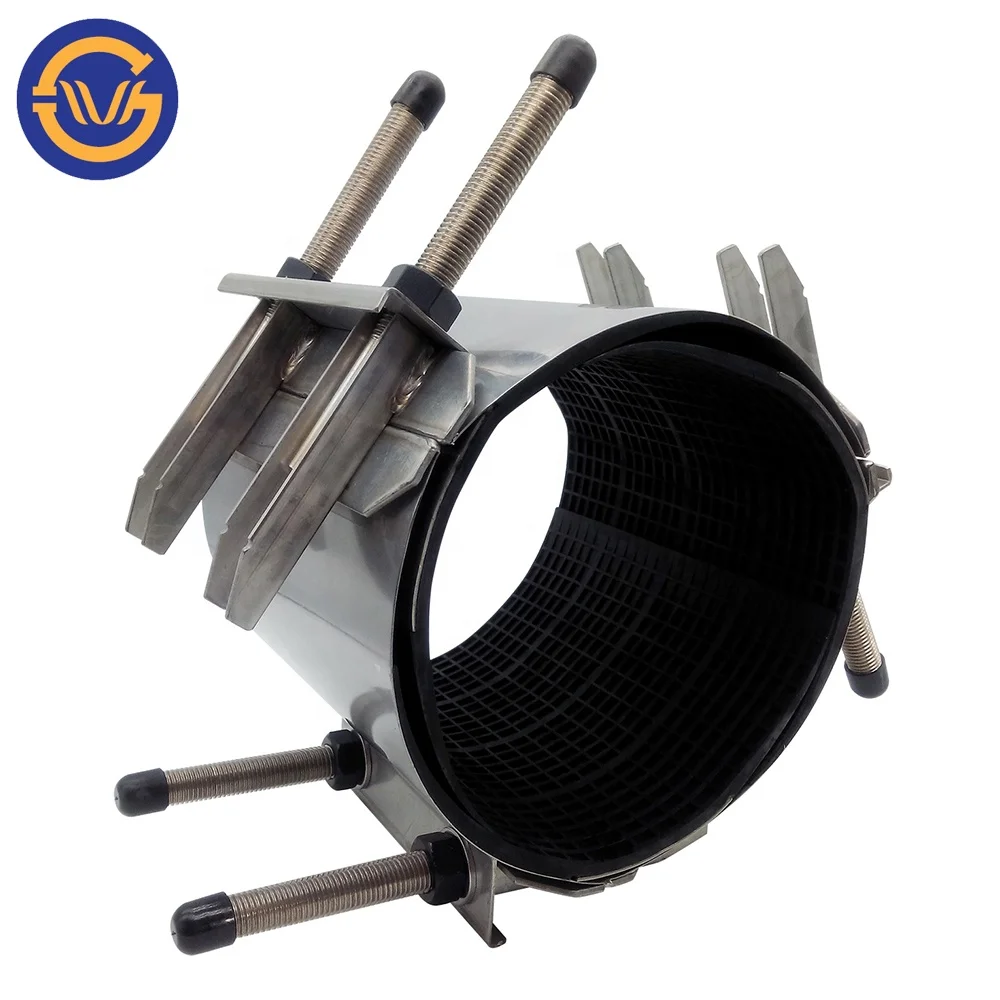

Full Stainless Steel Band Repair Pipe Clamps for Various Pipe O.D.

Our Full Stainless Steel Band Repair Clamps which is a quick and economic repair method can greatly reduce material and labor costs. This repair clamp use the card buckle type connection mode, and the biggest suitable diameter can be up to 30mm. It can be used for leaking pipes repairs Under pressure PN10 or PN16.
Suit for various pipe medium including drinking water, sewage, oil, gas, chemical plants and ect


Product Features


wide range of tolerance for various pipe OD
anticorrosive
easy installation


Material:

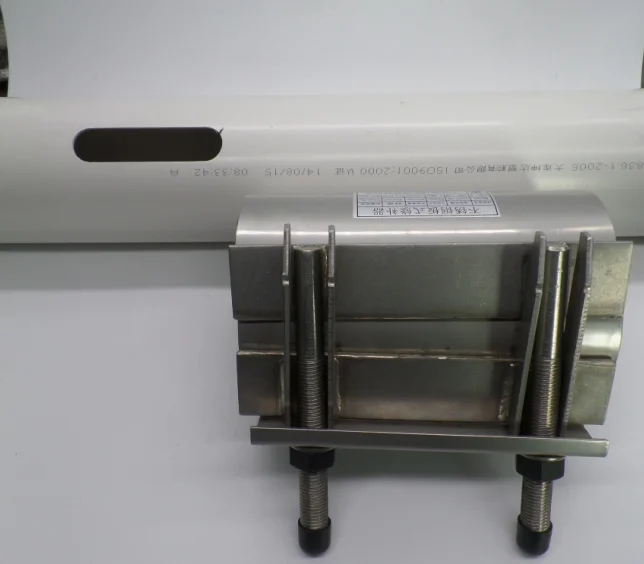

Product Imagines




Technical Specification


Full Stainless Steel Band Repair Pipe Clamps TDS


S/N
O.D Range
Working Pressure
O.D Range
Working Pressure
O. D Range
Working Pressure
O. D Range
Working Pressure
Length
1-Band
PN
2-Band
PN
3-Band
PN
4-Band
PN
mm
1
59-67
16
150-600
2
65-73
16
150-600
3
69-76
16
150-600
4
75-83
16
150-600
5
86-94
16
88-108
16
150-600
6
108-118
16
108-128
16
150-2000
7
113-121
16
113-133
16
150-2000
8
121-131
16
120-141
16
150-2000
9
126-136
16
168-188
16
150-2000
10
132-142
16
174-194
16
150-2000
11
145-155
16
219-239
16
150-2000
12
151-161
16
228-249
16
150-2000
13
159-170
16
238-258
16
150-2000
14
166-177
16
258-278
16
150-2000
15
170-180
16
273-293
16
150-2000
16
174-184
16
282-302
10
150-2000
17
179-189
16
295-315
10
150-2000
18
189-199
16
324-344
10
150-2000
19
218-228
16
335-356
10
150-2000
20
222-233
16
347-367
10
150-2000
21
229-239
16
357-376
10
150-2000
22
248-258
16
365-384
10
150-2000
23
250-260
10
383-402
10
150-2000
24
252-263
10
404-423
10
150-2000
25
261-271
10
421-440
10
150-2000
26
271-281
10
436-455
10
150-2000
27
280-291
10
453-472
10
150-2000
28
288-298
10
469-488
10
150-2000
29
298-309
10
488-507
10
150-2000
30
300-310
10
505-525
10
150-2000
31
304-314
10
526-545
8
150-2000
32
321-331
10
547-566
8
150-2000
33
333-343
10
562-581
8
630-660
8
150-2000
34
340-351
10
582-601
8
670-700
8
150-2000
35
348-358
10
630-650
8
720-750
8
150-2000
36
356-366
10
670-690
8
770-780
6
150-2000
37
720-740
8
820-850
6
150-2000
38
870-900
6
150-2000
39
920-950
6
920-960
6
150-2000
40
1020-1060
6
150-2000
41
1070-1110
6
150-2000
42
1120-1160
6
150-2000
43
1220-1260
6
150-2000


Full Stainless Steel Coupling Repair Pipe Clamp
Note: Your specific pipe OD range and clamp length are acceptable for us.


Full Stainless Steel Band Repair Pipe Clamps Installation Procedure


Step 1.
choose suit repair clamps based on the pin hole size


Step 2.

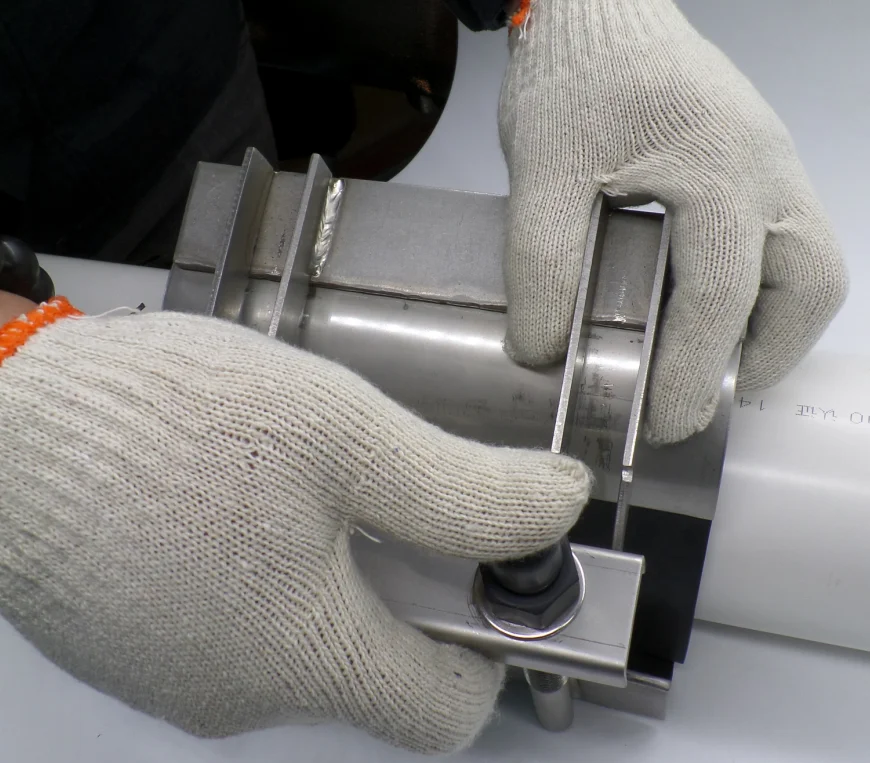

wrap repair clamp around the pipe


Step 3.

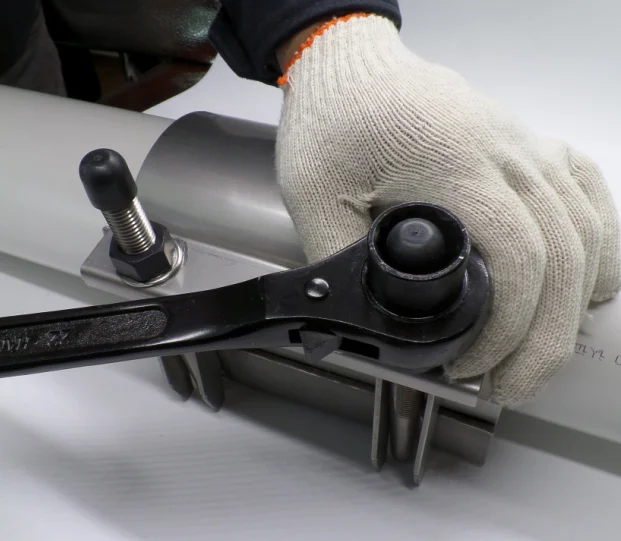

tighten studs with torque wrench as per given torque parameter


Step 4.
Installation completed

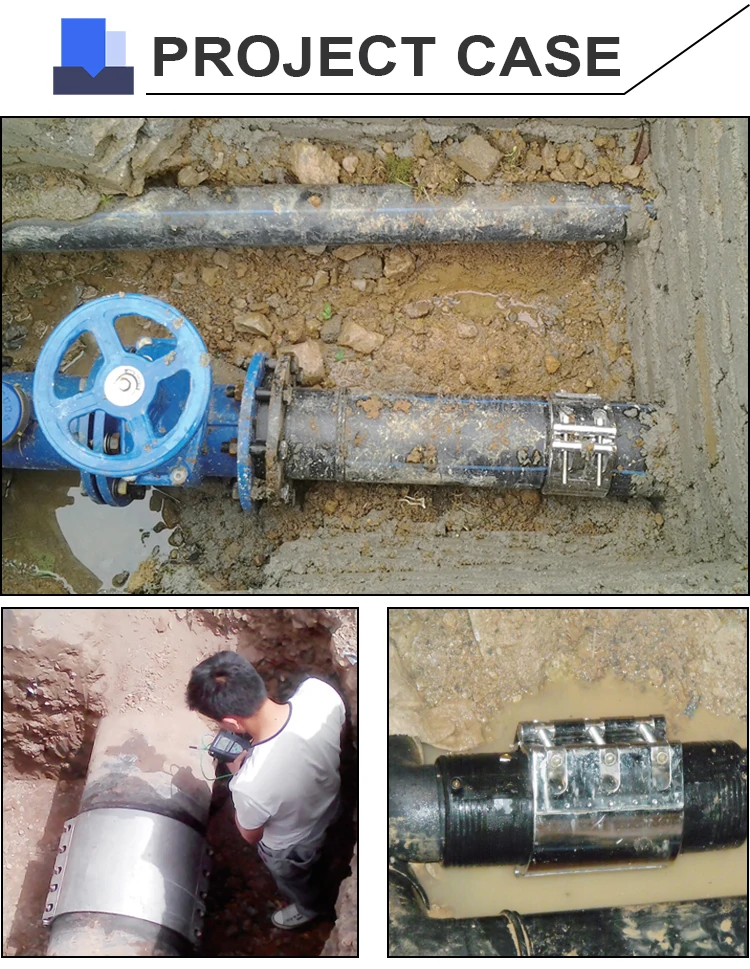

Full Stainless Steel Coupling Repair Pipe Clamp Applications

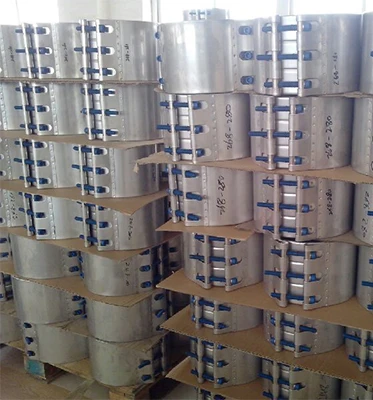

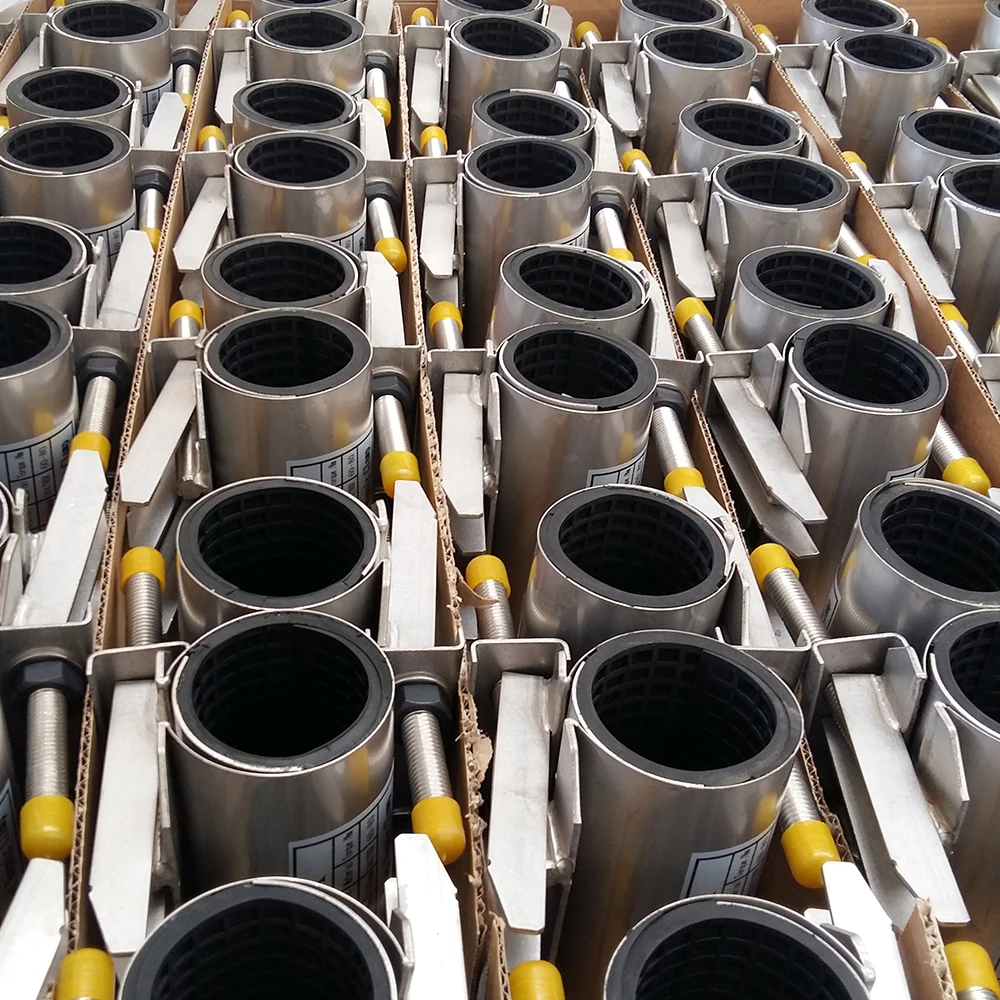

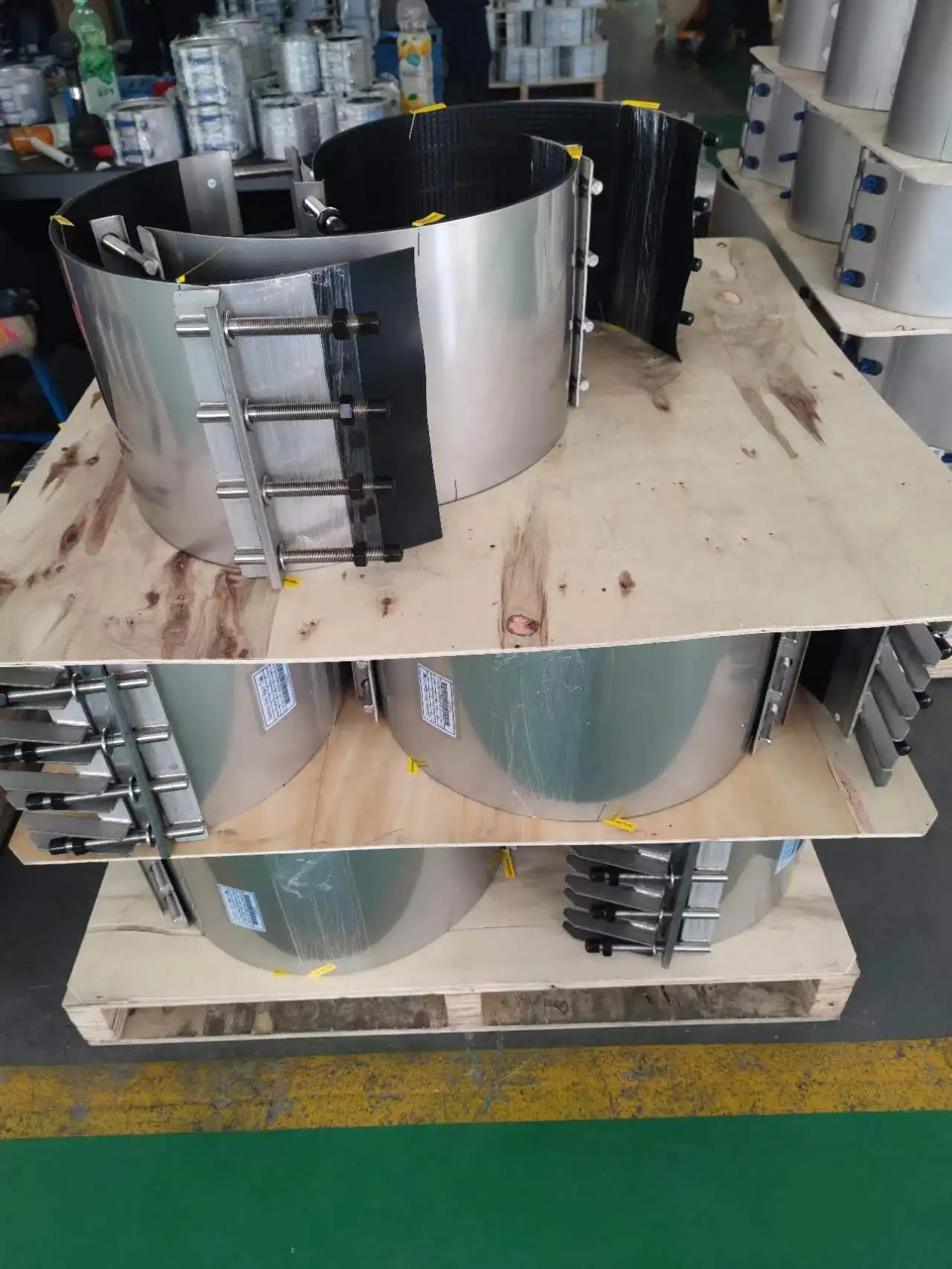

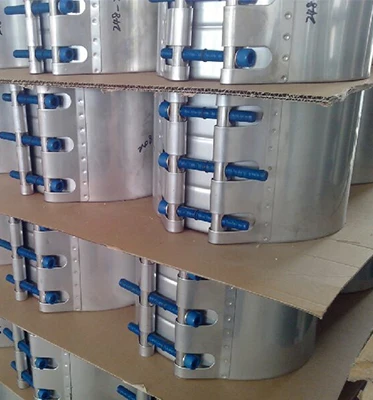

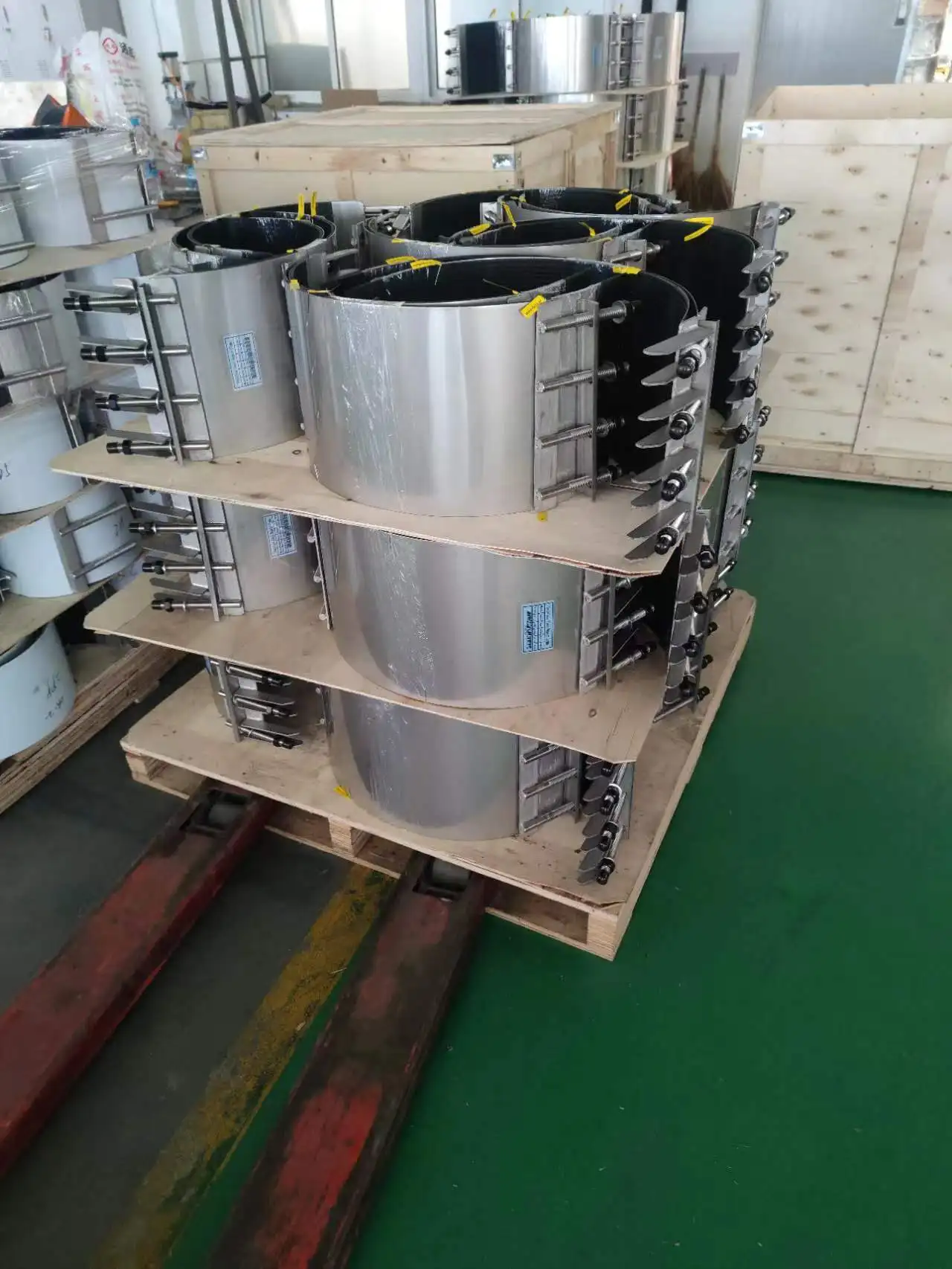

Stainless Steel Open Flex Couplings Packing and Delivery






Certifications






FAQ


1. Do Straub Coupling offer axial flexibility ?
Yes, Straub Flex Couplings offers axial flexibility in case the pipe ends move towards or away from each other .
These couplings can accommodate pipe shifts while ensuring a leak-tight seal for the passing media ?
2. Do these couplings require welding ?
No, straub couplings can be readily installed onto the pipes with simple tools and do not require welding for leak-tight seals. These couplings can be fixed just by screwing bolts onto the pipe using a torque wrench.
3. Are Straub Coupling reusable ?
Yes, our Straub Coupling are reusable as they have wrap-around design.
4. What pipes are ideal for Straub Couplings ?
They are ideal for plain end pipes made from ductile iron, steel, stainless steel, PVC, FRP, CPP, CPVC, copper and concrete.
5. Do these couplings require lubrication?
No, straub couplings have built-in gaskets and do not require additional lubricants while installation.
6. What applications are these couplings suitable for ?
They are ideal for vacuum, pressure and suction lines.
