Product Overview
Description

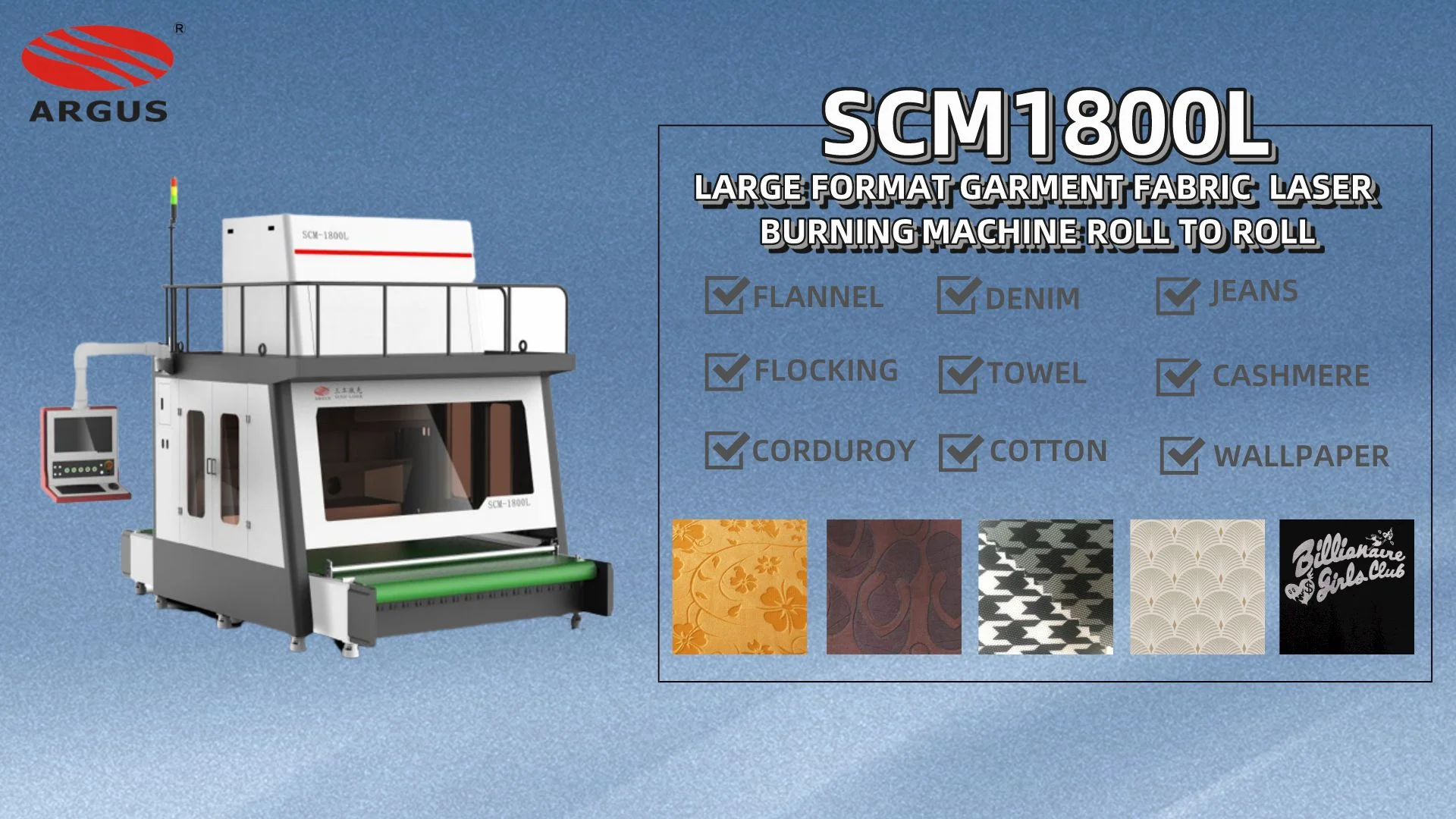

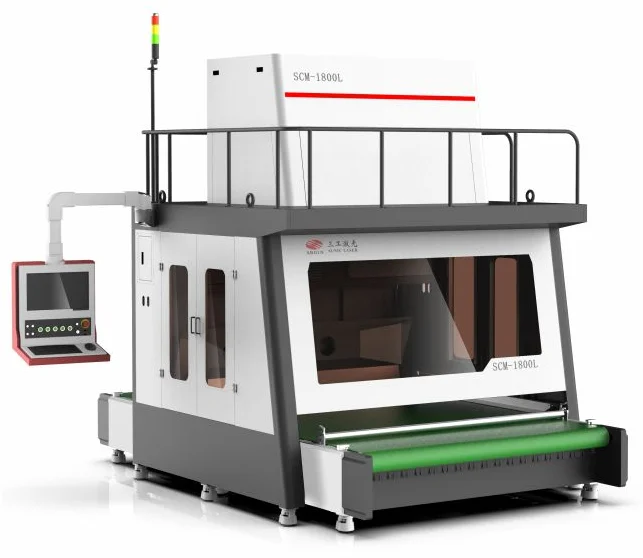

SCM1600L laser flower burning machine for clothing fabric
The device utilizes the thermal effect of the laser to burn and etch the fabric without contact and form a pattern of convex and concave patterns.
Fabric Laser Marking Machine Applicable Industries:
Clothing, luggage, textile, home, hotel, advertising, exhibition decoration, automotive decoration and other industries.
Fabric Laser Marking Machine Applicable Materials:
Suitable for super soft fabrics, flocking fabrics, art wallpaper, denim fabrics, corduroy, velvet and other fabrics.
Product Parameter
Model | SCM1600L/SCM1800L/SCM2200L | |||
Max working Area | Width1600mm/1800mm/2200mm *Unlimited Length | |||
Laser Output Power | ≥250W(Coherent J2) | |||
Marking Speed | ≤10000mm/s | |||
Power Consumption | ≤7 kWh | |||
Marking Speed | ≤10000mm/s | |||
Worktable | 1.6m/1.8m/2.2m width Automatic Conveyor belt | |||
Laser Source | US Coherent RF Metal Laser Source | |||
Laser Wavelength | 10.64μm | |||
Laser Frequency | 20kHz~200kHz | |||
Scanner | 3D Dynamic Focusing System | |||
Repetition Precision | 0.01mm | |||
Spot Quality | <1.2M² | |||
System Support | WIN 7/ WIN 8 | |||
Output Compatibility | Auto CAD,Photoshop,CorelDRAW etc | |||
File Formats | PLT,DXP,BMP,JPG,AI etc | |||
Software Character | Integrated Function of Dotting Design,Vector Drawing,Marking Scribing and Cutting | |||
Power Supply | 380V/50Hz~60Hz | |||
Cooling Way | Circulation of Water Cooling |

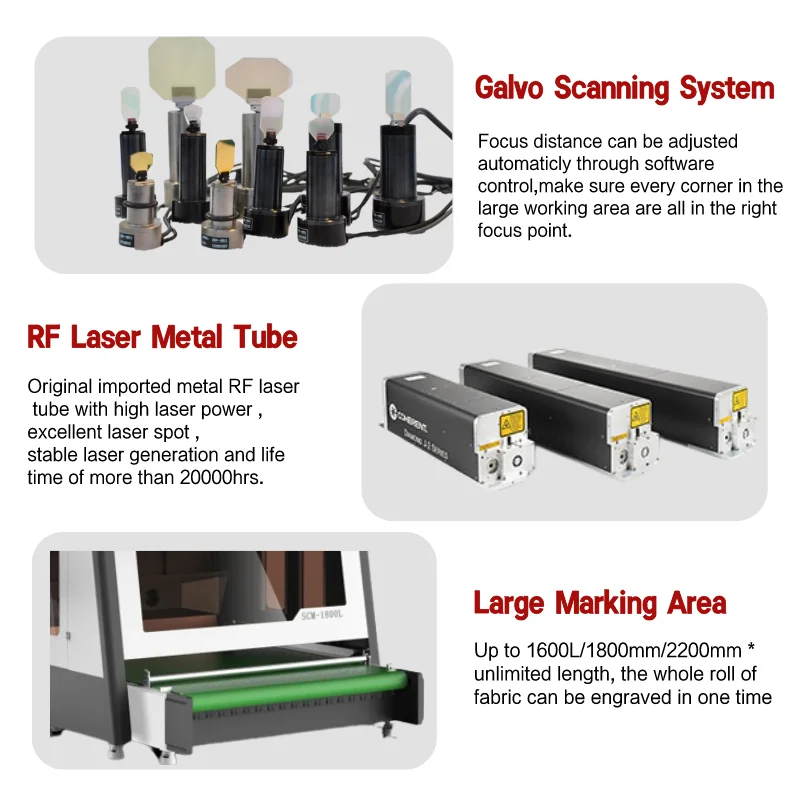

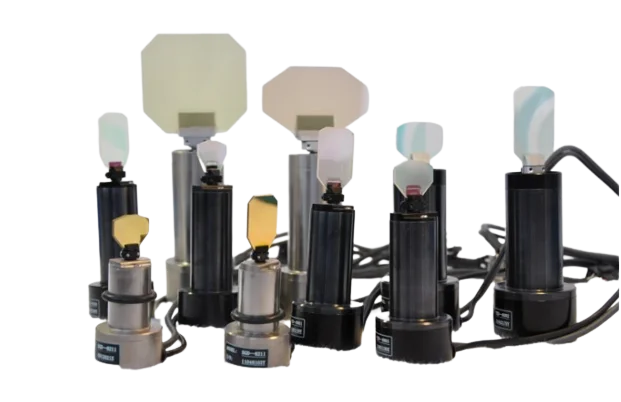

3D dynamic Galvo head ,
one time scan area could
reach to 800*800mm.
3D dynamic galvanometer
control system ensure the
best processing results .
one time scan area could
reach to 800*800mm.
3D dynamic galvanometer
control system ensure the
best processing results .

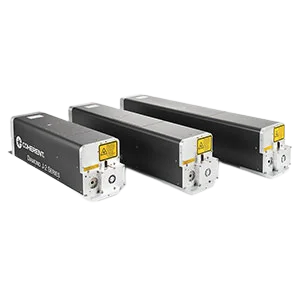

RF Laser Metal Tube
Original imported metal RF
laser tube with high laser
power , excellent laser spot .
Stable laser generation and life
time of more than 20000hrs.

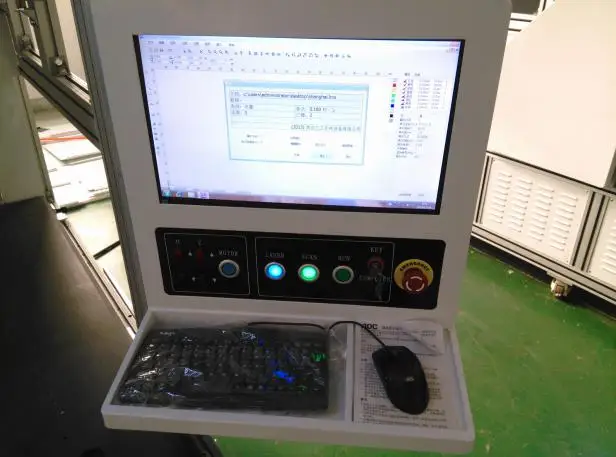

Sunic Laser self - developed software supports multiple formats to meet your needs . Application under Windows interface, AutoCAD, PLT , Al Photoshop compatible , ect supportive.
Marking Area
Large marking area : Width
1600mm/1800mm/2200mm*
Unlimited Length;
Can realize marking , cutting ,
punching , carving process.
punching , carving process.

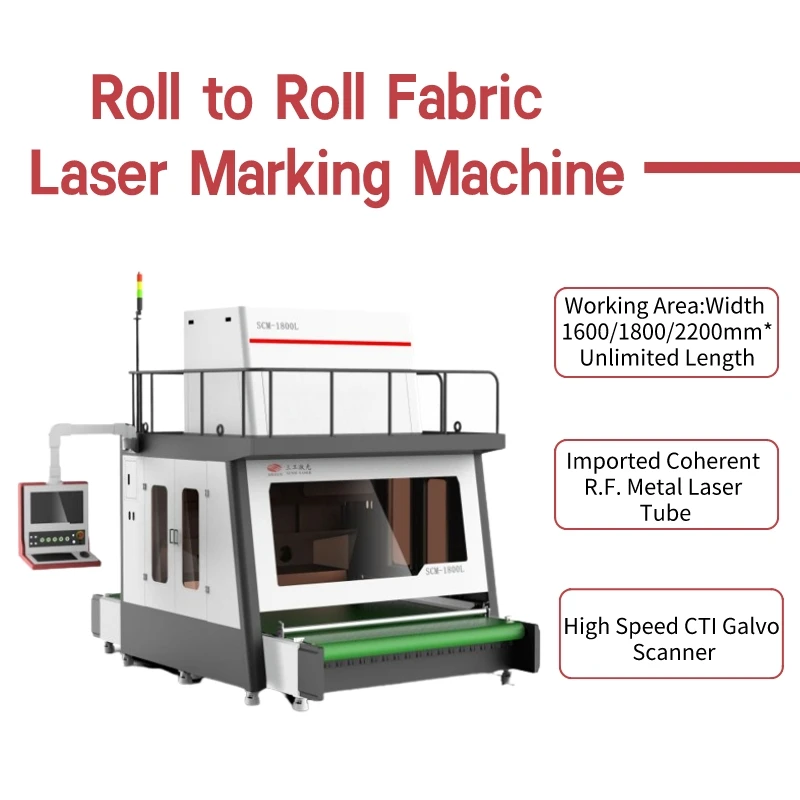

Top 1 Fabric Laser Marking Machine SCM1600L Model
1. Large engraving range: up to 1600mm * unlimited length, the whole roll of fabric can be engraved in one time
2. A wide range of applicable materials: super soft fabrics, flocking fabrics, art wallpaper, denim fabric, corduroy, velvet and other fabrics;3. The speed is super fast: the laser engraving speed is up to 10000mm/s, according to the complexity of the graphics engraving, the fabric of 1600mm width can be engraved up to
100 meters per hour;
4. The engraving effect is exquisite, no flash, no burr, no flanging, no paste;
5. Independent operation software: free typesetting, ready to sample, no stitching, infinite
4. The engraving effect is exquisite, no flash, no burr, no flanging, no paste;
5. Independent operation software: free typesetting, ready to sample, no stitching, infinite
loop carving;
6. Support a variety of software formats: AI, DWG, DXF, PLT, BMP, JPG and other vector graphics and bitmaps.
6. Support a variety of software formats: AI, DWG, DXF, PLT, BMP, JPG and other vector graphics and bitmaps.

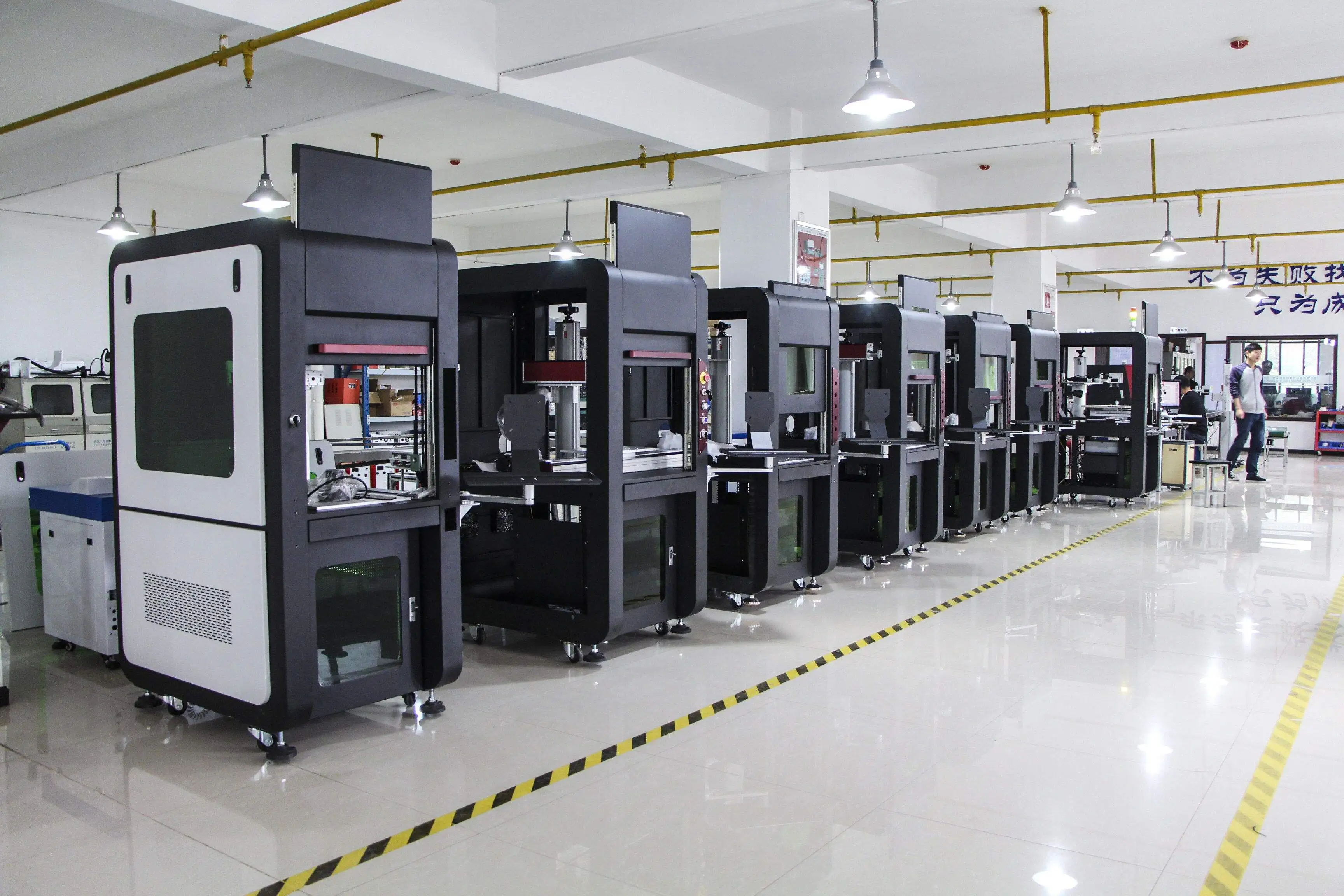

About Sunic Group
Wuhan Sunic Group are a professional laser machines and solar panel products lines equipment manufacturer since 1998.We are specialized in design, research, manufacture, sales and service for laser machines. Sunic Group would like to be customer's technical consultant, support in laser&solar equipment to make further development and progress together.
We supply customized solution for different materials processing , such as invitation cards, wedding cards, pop up cards, Pop up books,candy box,paper products,acrylic, PMMA, LGP, jeans wash,leather, Fabric,textiles,wood,MDF,laminate materials,marble, package film, metalp, plastic products and so on.
What kind of laser machine and model should I choose?
You can tell us your processing material, working size and detail requirement, detail work by picture or video so that we can judge whether our machine can meet your need.
What kind of materials does the laser machine can process?
We have different laser machines, such as Fiber laser, CO2 Laser, UV Laser, Green Laser. Normally fiber laser can process metal and plastic. CO2 laser is for processing non-metallic materials, such as Acrylic, PMMA, Wood, Glass, Leather, Jeans, Paper, Textiles Garments and so on. UV laser and green laser are also called cold laser source, they are usually used for plastic, glass, crystal and some special processing job.
Is it easy to operate?
We will send you manual and guide video in English, I can teach you how to operate the machine. lf you still can not learn how to use it, we can help you by Team viewer online help software. Or we can talk by phone email or other contact ways.
What s your guarantee. in case the machine breaks down?
The machine has one year guarantee. If it breaks down, generally speaking our technician will figure out what the problem may be, according to client's feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
How will you do the after- sale service?
We will firstly check your problems online through Teamviewer, E-mail, Whatsapp or other contact way, if it is easy to handle it, we will guide you onlinet to fix it or send you the spare parts for replacement.
What is your equipment lead time?
Fiber laser marking machine lead time is around 7 working days.CO2 laser engraving&cutting machine lead time is around 2-3 weeks. 3D dynamic CO2 laser marking machine lead time is around 10 working days.

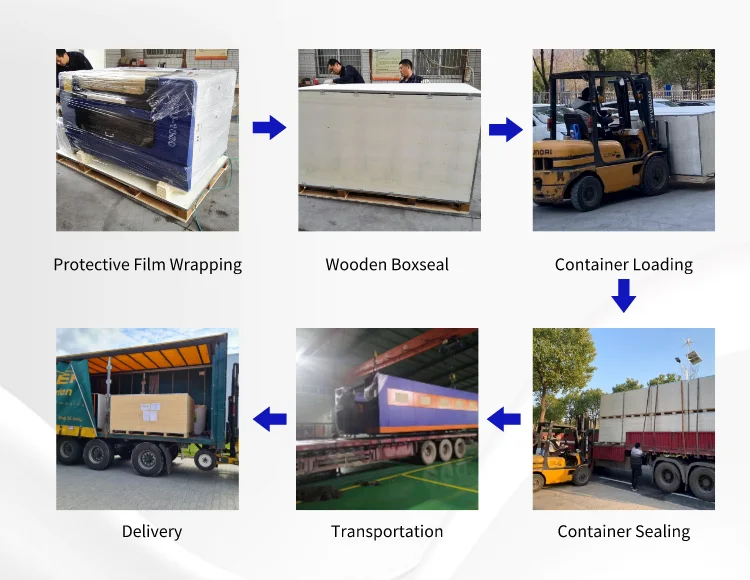

How will you do the package and shipping?
All of our equipment are packed in export standard cases. Express, air shipping, sea shipping are all available.
