Warehouse Rotating LED 220v Waterproof Spotlight Outdoor Lighting Light 80 IP65 Surface Light Price Led Aluminum Alloy 40 50
- Category: >>>
- Supplier: Guangxi Sinso Lighting Co. Ltd.Guangxi Ltd.
Share on (1601004419953):
Product Overview
Description
Product Description

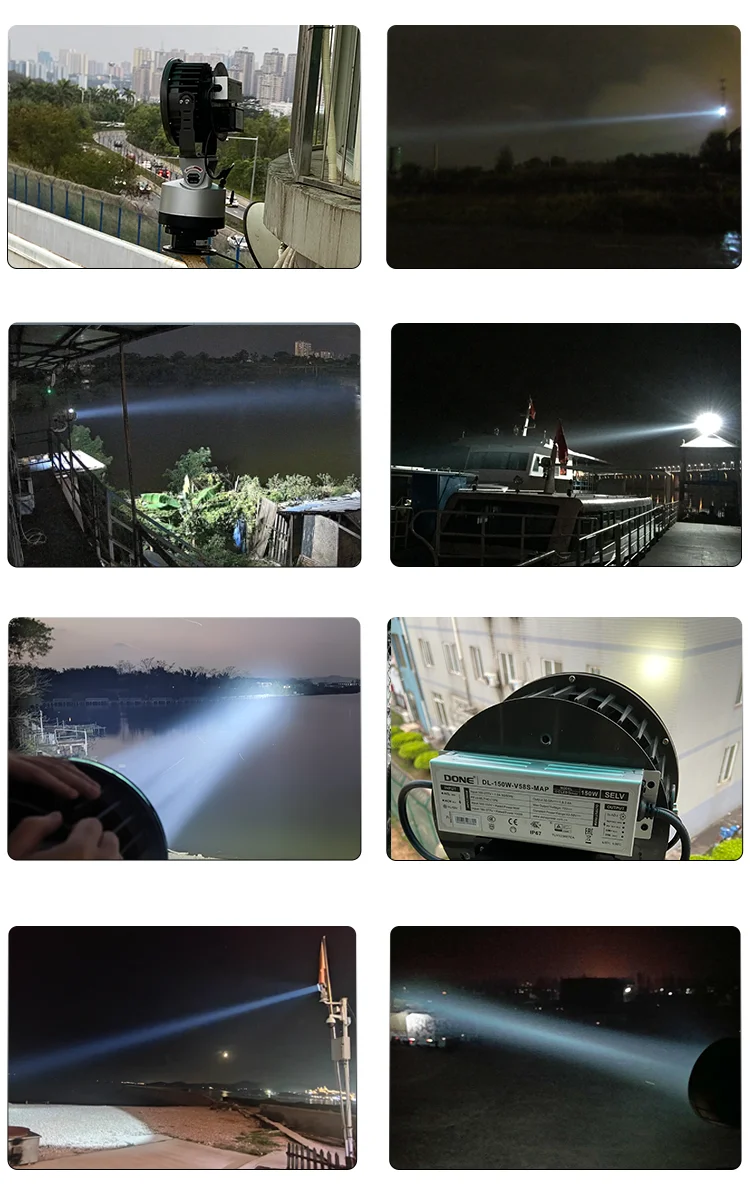

Project case
LED searchlight most used for outdoor security.especially used for ships,ports,docks ,bridges,border,
warehouse, farm,guardtower,harbor/orchard and so on.
Detailed Images
Product detail drawing
Die -cast aluminum material,integrated molding, high structural strength, suitable for outdoor.
Excellent weather resistance, with active heat dissipation system,working temperature:-40℃~+55℃.
Excellent weather resistance, with active heat dissipation system,working temperature:-40℃~+55℃.
Adopt high luminous effciency LED,the light power is low but the illumination distance and effect are better than 1000W Tungeten halogen lights
High -efficiency constant current driver, Metal clad construction，level of Protection：IP67,with short -circuit and overload protection, MTBF> 20,000 hours.
Ta:60℃;Tc:90℃
Ta:60℃;Tc:90℃
Product Presentation
Product specific parameters
Model | SN-231LED-H |
Control mode | Radio remote |
Control distance | 0~100M |
Material | casting aluminium+ABS |
Irradiation range | 1000M |
Light Source | LED |
LED chip | 5050 |
Beam angle | 6° |
CRI(Ra>) | Ra>80 |
Temperature(CCT) | 3000K,6000K |
IP rate | IP65 |
Lifespan | 50000h |
Working Temperature | -40~+50℃ |
Power | Input voltage | Dimension | Weight |
100W | 220VAC,24VDC | 232*190*520mm(L*W*H) | 8Kg |
150W | 220VAC,24VDC | 232*190*520mm(L*W*H) | 8Kg |
200W | 220VAC,24VDC | 232*190*520mm(L*W*H) | 8Kg |
300W | 220VAC | 245*190*550mm(L*W*H) | 9Kg |
400W | 220VAC | 245*190*550mm(L*W*H) | 9Kg |
500W | 220VAC | 245*190*550mm(L*W*H) | 9Kg |

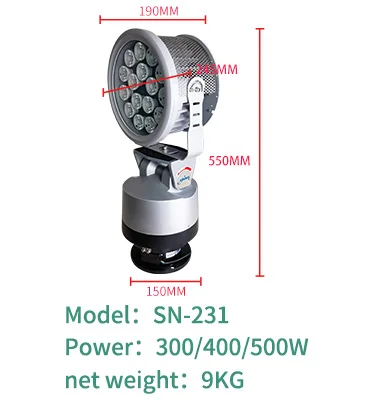

Dimension and weight
Product advantages

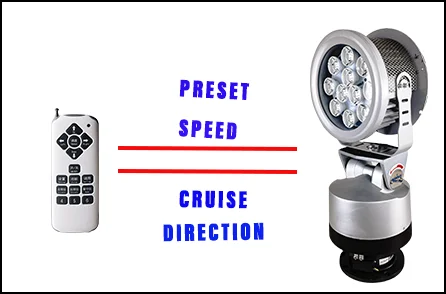

Radio Control
Radio remote,315 Hz frequency,control distance 0~100M.
1)4 directions adjustment:right,left,up and down
2)Three speed adjustment:Arbitrary switching High speed, Medium speed,low speed
High speed:pan: 15°/sec, tilt:3°/s
Medium speed: pan:5°/sec, tilt:1°/s
Low speed: pan:2.5°/sec, tilt:0.5°/s
3)preset:there are 5 presets and 1 watch position
1)4 directions adjustment:right,left,up and down
2)Three speed adjustment:Arbitrary switching High speed, Medium speed,low speed
High speed:pan: 15°/sec, tilt:3°/s
Medium speed: pan:5°/sec, tilt:1°/s
Low speed: pan:2.5°/sec, tilt:0.5°/s
3)preset:there are 5 presets and 1 watch position

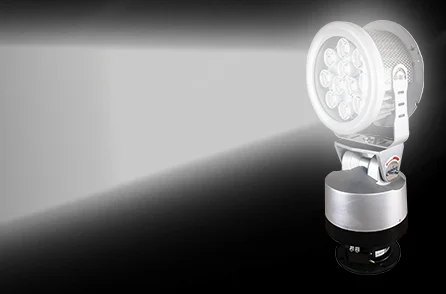

Good LED chip,long irradiation range
High quality LED light source,5050 LED chip
high brightness lamp beads/energy
saving/high-efficience lumens,long life,low power consumption,color index greater than 80
Multifunctions/High Brightness/Long-Range,
Irradiation range up to 1000M
high brightness lamp beads/energy
saving/high-efficience lumens,long life,low power consumption,color index greater than 80
Multifunctions/High Brightness/Long-Range,
Irradiation range up to 1000M

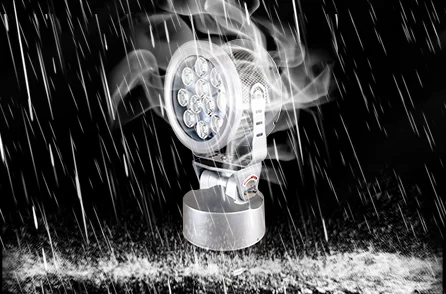

Efficient heat dissipation scales/waterproof
IP65 water proof rating strict protective treatment,anti-corrosion and durable, no fear of storms.
Multi-sides surrounding sie-casting aluminum heat dissipation design and fan fast heat dissipation,durable and better heat dissipation effect.
Anti-aging silicone rubber raw materials,waterprooand dustproof performance tough
Multi-sides surrounding sie-casting aluminum heat dissipation design and fan fast heat dissipation,durable and better heat dissipation effect.
Anti-aging silicone rubber raw materials,waterprooand dustproof performance tough

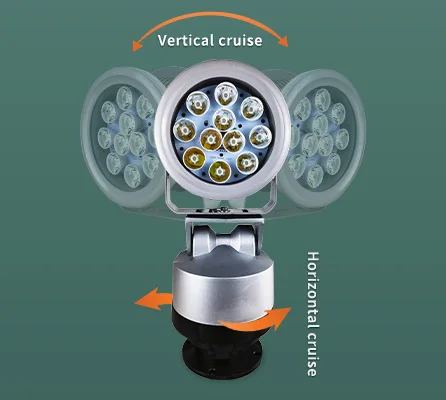

Auto rotation
Auto rotation:three modes arbitrary switching,horizontal mode,vertical mode, horizontal +vertical mode
pan angle:0~355°,Tilt angle:±35°
moving speed:
pan speed:0~355°/s,Tilt speed:±35°/s
pan angle:0~355°,Tilt angle:±35°
moving speed:
pan speed:0~355°/s,Tilt speed:±35°/s

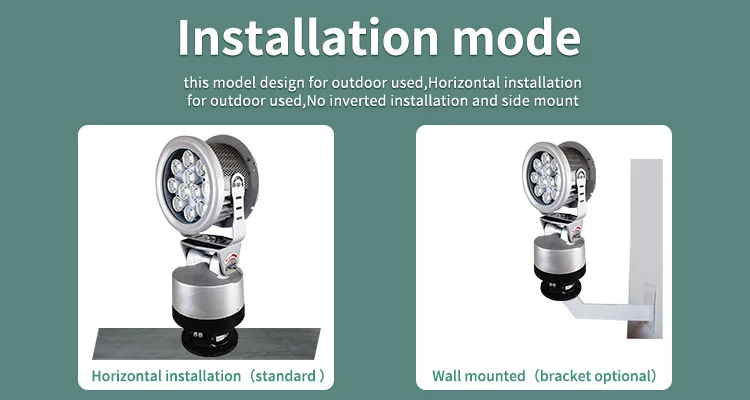

Installation
Related Products

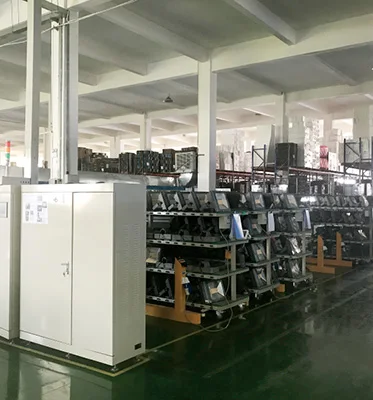

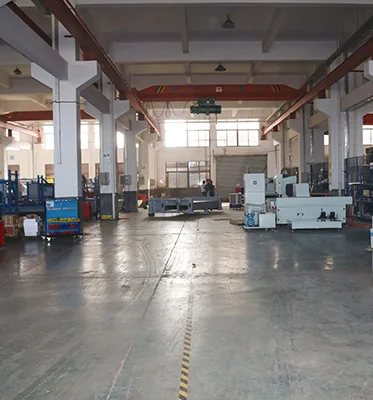

Company Introduction
