Caged Ball LINEAR GUIDE Actuator Model SKR20 SKR26 SKR33 SKR46 SKR55 SKR65
- Category: >>>
- Supplier: Tianjin Tengqi International Trade Co. Ltd.
Share on (1601004425854):
Product Overview
Description
Product Description
contact me！！！
Product Name | Caged Ball LINEAR GUIDE Actuator Model SKR20 SKR26 SKR33 SKR46 SKR55 SKR65 |
Material | Stainless Steel/chrome steel |
Quality | high-precision, high-rigidity, with long service lives. |
Feature | energy-saving, high-speed |
Application | Linear Rail on CNC machine. |
Brand Name | japan |
instock | yes |
HS CODE | 8483300090 |
Structure

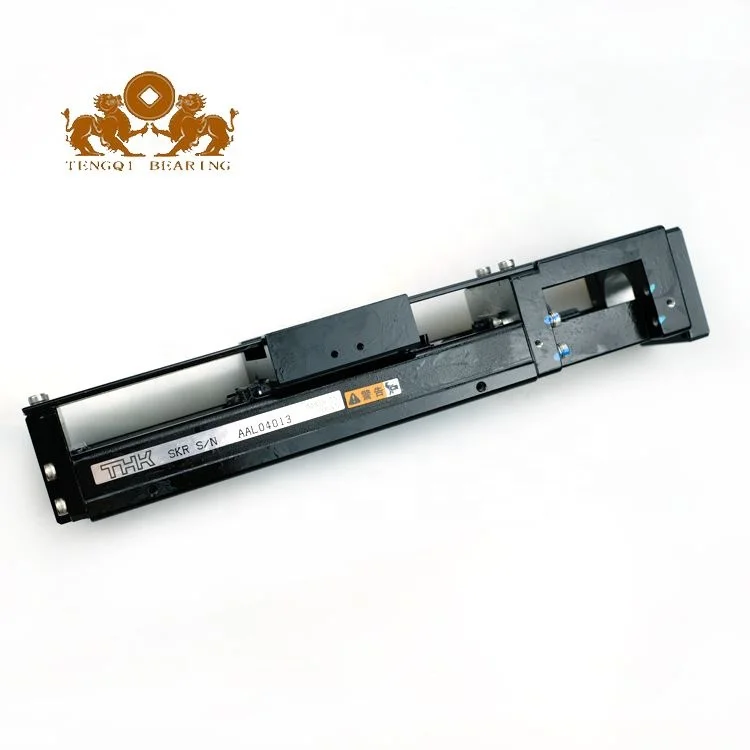

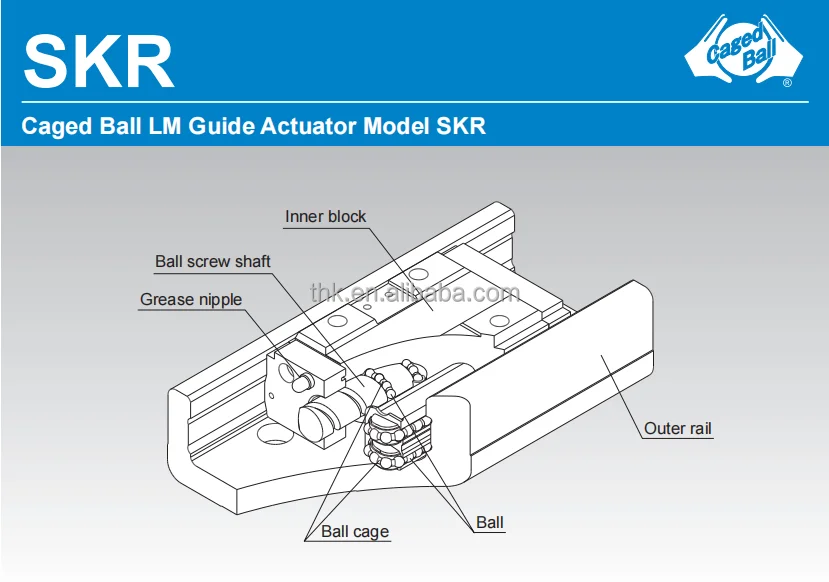

Caged Ball LM Guide Actuator model SKR is a compact actuator that has a inner block consisting of LM blocks and a ball screw nut integrated inside a U-shaped outer rail.
In addition, this model achieves high speed operation, lower noise and longer-term maintenancefree operation by using ball cages in the LM Guide units and the Ball Screw unit. (A ball cage is used only for the LM guide section of models SKR20 and SKR26 and the ball screws are fi tted with QZ lubricators.)
Features
[4-way Equal Load]
[High Rigidity]
[High Accuracy]
[Space Saving]
https://tech.thk.com/en/products/pdfs/en_a02_038.pdf
Types and Confi gurations

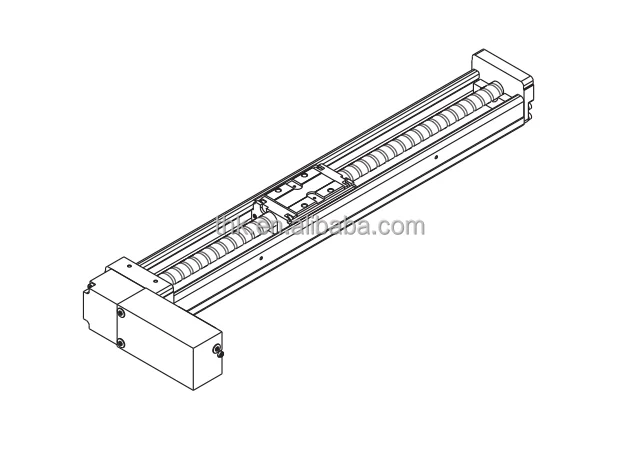

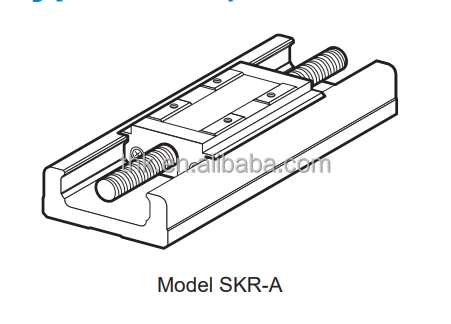

Model SKR-A (with a Single Long Type Block)
Representative model of SKR.

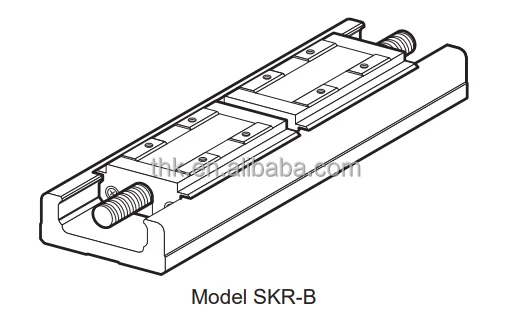

Model SKR-B (with Two Long Type Blocks)
Equipped with two units of the inner block of model SKR-A, this model achieves higher rigidity and higher load carrying capacity.

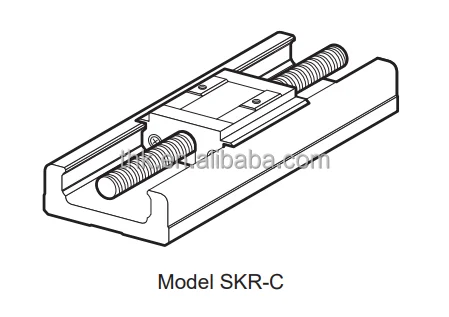

Model SKR-C (with a Single Short Type Block)
This model has a shorter overall length of the inner block and a longer stroke than model SKR-A. (Applicable models: SKR33, 46) ＊
＊With model SKR3320, a short-block type is not available.

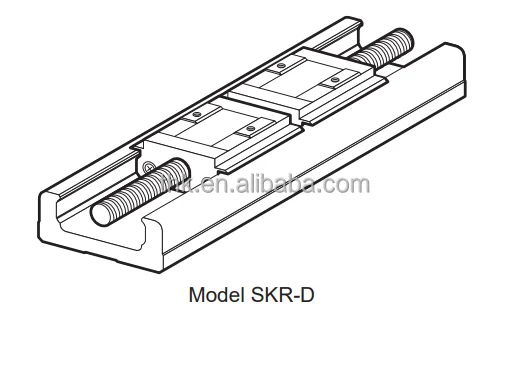

Model SKR-D (with Two Short Type Blocks)
Equipped with two units of the inner block of model SKR-C, this design allows a span between blocks that suits the equipment,
thereby achieving high rigidity. (Applicable models: SKR33, 46) ＊ ＊With model SKR3320, a short-block type is not available.

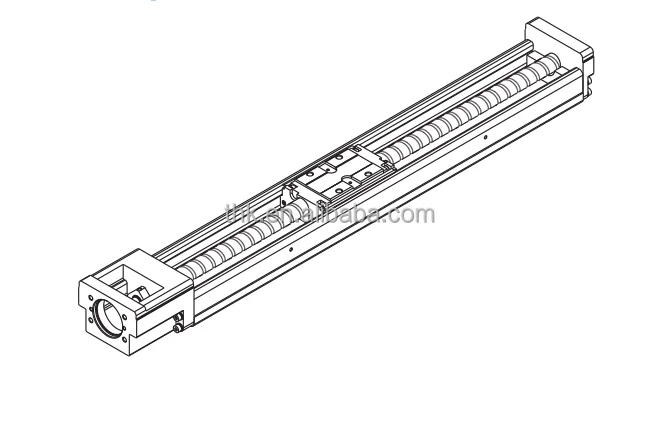

Direct motor coupling (without cover)

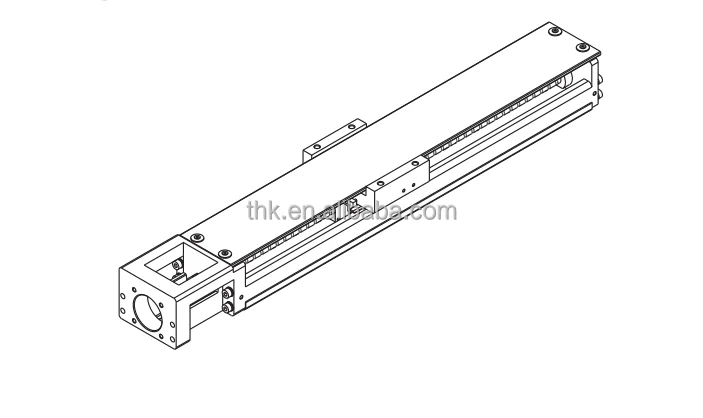

Direct motor coupling (with cover)
Motor wrap (without cover)
Motor wrap (with cover)
