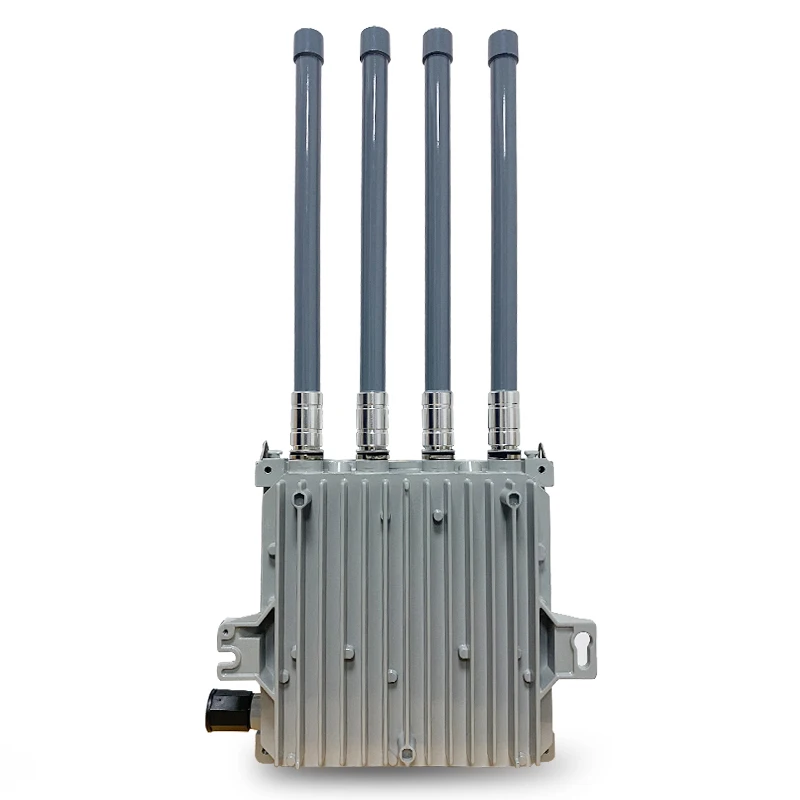

ZBT Outdoor lte 4g 5g 3000Mbps wifi6 wifi router wireless network devices support 5g modem x65 with sim card slot
- Category: >>>
- Supplier: Shenzhen Zhibotong Electronics Co. Ltd.
Share on (1601004432596):
Product Overview
Description
Gigabit WiFi6 AX3000 Unlocked openwrt Wireless router sim 4g 5g wifi router with sim card slot Z8105AX-M2-H is a 5G/4G+WIFI6 home CPE router, which can access the Internet through 5G/4G mobile communication dial-up or 1000Mbps WAN port, and then share the Internet network through wireless WiFi 6 and 1000Mbps wired LAN. In addition, this product also uses a PHY network interface chip to directly communicate with the 5G module, improving the speed and making its high-speed transmission or reception ability more stable.
Warm reminder: The price is NOT include the cost of 4G or 5G module, if you need to the price of Z8105AX-T with 4G or 5G module, please contact us!
Alibaba is for all clients from all over the world, different area will use different 4G modules or 5G modules, so that the prices will be different. That's why we do not declare the price with 4G or 5G module on the web
Alibaba is for all clients from all over the world, different area will use different 4G modules or 5G modules, so that the prices will be different. That's why we do not declare the price with 4G or 5G module on the web
Product Description
Product features:
1). Using in MT7981B solution, ARM Cortext-A53 dual-core CPU, main frequency up to 1.3GHZ
l2). Adopt independent WIFI6 chip, MT7976CN, the speed is up to 3000Mbps.Support 128 WIFI wireless terminals online simultaneously
l3). High-speed 256M DDR3, with 128MB SPI NAND Flash
4).1WAN+3LAN,All support 10/100/1000M adaptive, support automatic flip (Auto MDI/MDIX)
5).Support "one-key flashing mode", that is, long press the reset button to enter the rescue flashing mode
l6).Support "one-key" MESH networking
l7).Built in 1 M.2 standard interface, which can be used to connect to 5G mobile communication modules
l8).External standard SIM card interface and built-in eSIM (QFN-8 6mmx5mm) card interface, support SIM/USIM card
9).Built-in high gain WIFI antenna and 5G mobile communication antenna, wireless signal 360 degrees without dead angles
l2). Adopt independent WIFI6 chip, MT7976CN, the speed is up to 3000Mbps.Support 128 WIFI wireless terminals online simultaneously
l3). High-speed 256M DDR3, with 128MB SPI NAND Flash
4).1WAN+3LAN,All support 10/100/1000M adaptive, support automatic flip (Auto MDI/MDIX)
5).Support "one-key flashing mode", that is, long press the reset button to enter the rescue flashing mode
l6).Support "one-key" MESH networking
l7).Built in 1 M.2 standard interface, which can be used to connect to 5G mobile communication modules
l8).External standard SIM card interface and built-in eSIM (QFN-8 6mmx5mm) card interface, support SIM/USIM card
9).Built-in high gain WIFI antenna and 5G mobile communication antenna, wireless signal 360 degrees without dead angles
RJ45 ports | 1*WAN port, 1000Mbps supports automatic flip (Auto MDI/MDIX) Conforms to IEEE 802.3/802.3u/802.ab |
3* LAN port, 1000Mbps supports automatic flip (Auto MDI/MDIX) Conforms to IEEE 802.3/802.3u/802.ab | |
SIM interface | 1* Standard SIM interface, supporting SIM/USIM |
power interface | DC5.5*2.1MM |
Button | 1* reset button, 1* MESH button |

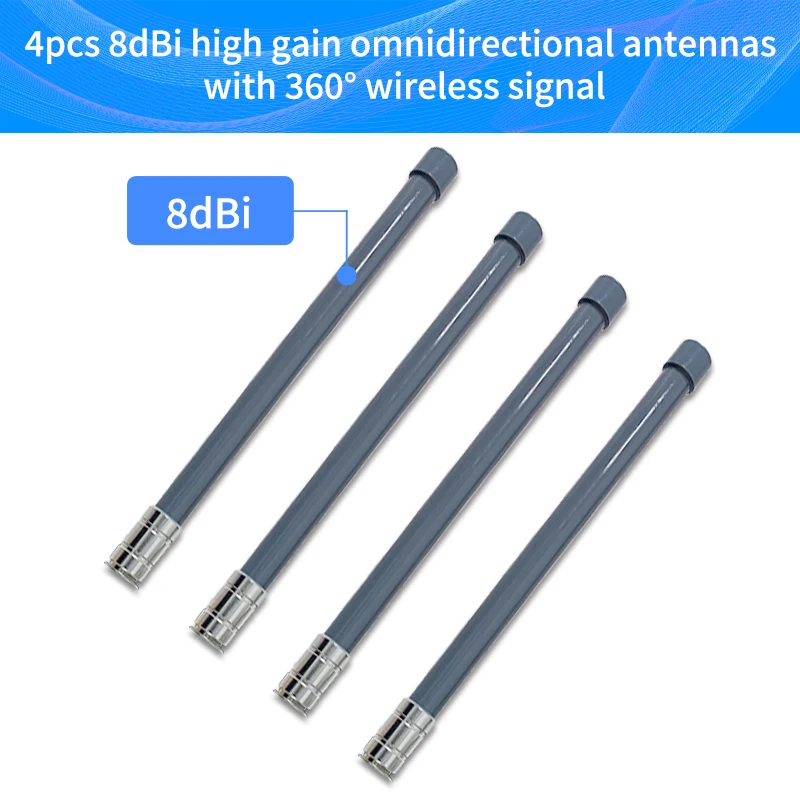

Antennas | 2* omnidirectional 8dbi 2.4G & 5G Mobile antennas |
2* omnidirectional 8dbi 5.8G & 5G Mobile antennas | |
Processor | MT7981B ARM Cotext-A53 dual-core CPU, 1.3GHZ main frequency |
WIFI Chip | MT7976CN IEEE 802.11n/g/b/a/ac/ax,Max. 3000Mbps |
RAM | DDR3 256MB |
Flash | SPI NAND Flash 128MB |
Software | Openwrt/OS |
antennas | 2*8dBi undetachable 2.4GHz+5G antennas |
2*8dBi undetachable 5.8GHz+5G antennas |
Ports | 1*PCIE/M.2 slot 1*SIM card slot 1*Reset button 1*MESH button |

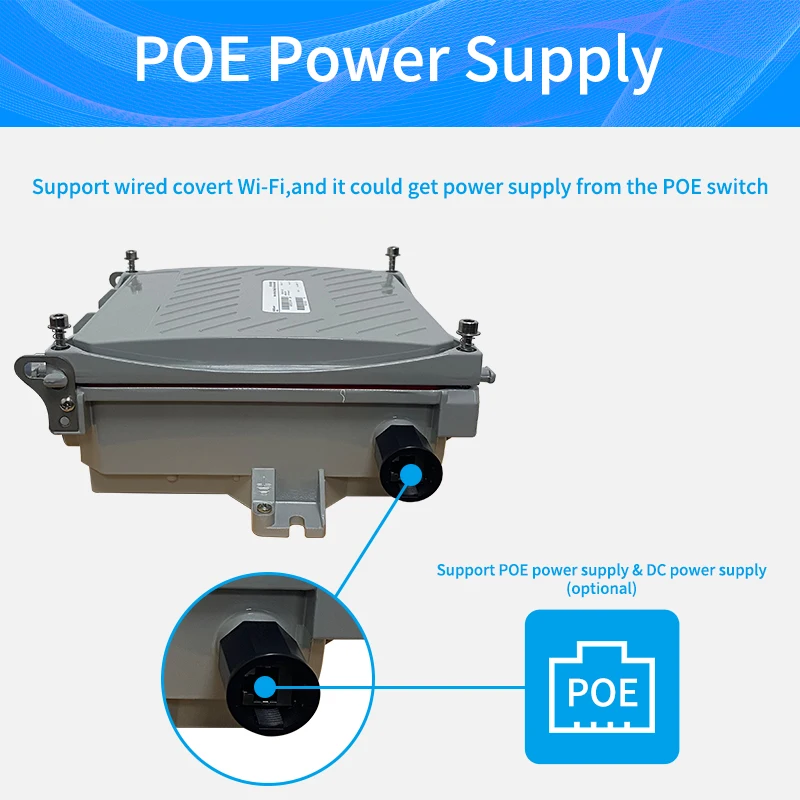

1*10/100/1000M LAN port(Support standard POE) | |
Flah/RAM | 128MB/ 256MB |
WiFi frequency Wireless rate | 2.4GHz and 5.8GHz, 1800Mbps |
Software | Openwrt/OS |
antennas | 2*8dBi undetachable 2.4GHz+5G antennas |
2*8dBi undetachable 5.8GHz+5G antennas |
