Acrel ATE400 High Voltage Bus Bar Transformer Connector Wireless Temperature Sensor 410 810MHz for Distribution
Acrel ATE400 High Voltage Bus Bar Transformer Connector Wireless Temperature Sensor 410-810MHz for Distribution
Acrel ATE400 High Voltage Bus Bar Transformer Connector Wireless Temperature Sensor 410-810MHz for Distribution
Acrel ATE400 High Voltage Bus Bar Transformer Connector Wireless Temperature Sensor 410-810MHz for Distribution
Acrel ATE400 High Voltage Bus Bar Transformer Connector Wireless Temperature Sensor 410-810MHz for Distribution
Acrel ATE400 High Voltage Bus Bar Transformer Connector Wireless Temperature Sensor 410-810MHz for Distribution
Acrel ATE400 High Voltage Bus Bar Transformer Connector Wireless Temperature Sensor 410-810MHz for Distribution

Acrel ATE400 High Voltage Bus Bar Transformer Connector Wireless Temperature Sensor 410 810MHz for Distribution

Share on (1601004440655):


Price:$43.00

Quantity:


Product Overview

Description





Detail


Acrel ATE400 High Voltage Circuit Breaker static contact
header Temperature Monitoring Sensor For Busbar
● Wireless transmit,470MHz;
● Wireless transmission distance, 150 meters in open area;
● CT Sensing powered, more than 10 years;
● Widely temperature measuring range, -50℃~+125℃.


ACREL Model
ATE400
Power supply
CT powered, starting current ≥ 5A
Transmission frequency
470Mhz or 433Mhz
Sampling cycle
15s
Transmission cycle
15s
Measuring range
-50℃~125℃
Operating Temperature
-50℃~105℃
Accuracy
±1℃
Communication distance
150m in open space
Operation Life
≥10 years
Installation
Alloy Chip Fixing
Size
25.82*20.42*12.8 mm (L*W*H)

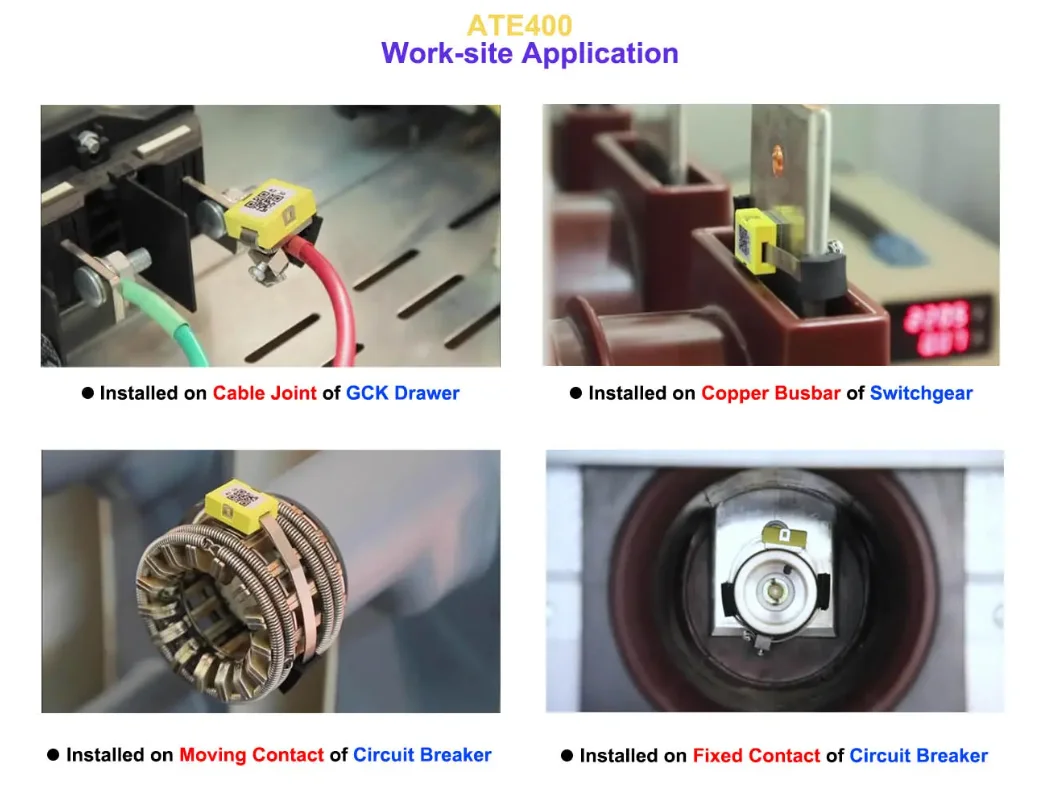

Application and Installation


Application
Wireless temperature monitoring system is prevents potential safety hazards caused by overheating of the contact resistance caused by oxidation, looseness, dust, and other factors during operation, improves equipment safety, timely, continuously, and accurately reflects the operating status of the equipment, and reduces the accident rate of the equipment.

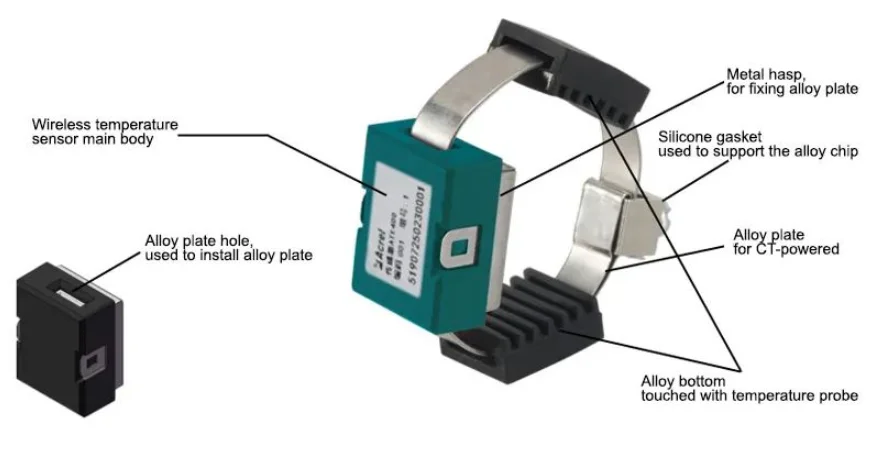

Structure

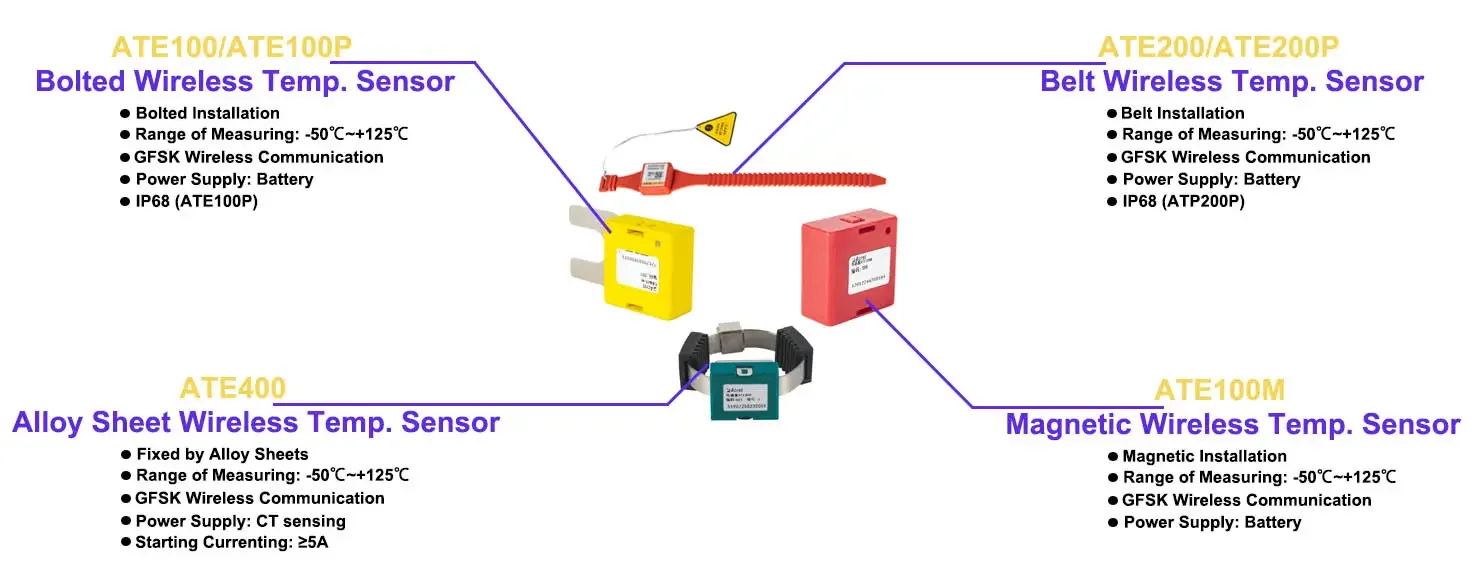

Solutions and Related Produtcs

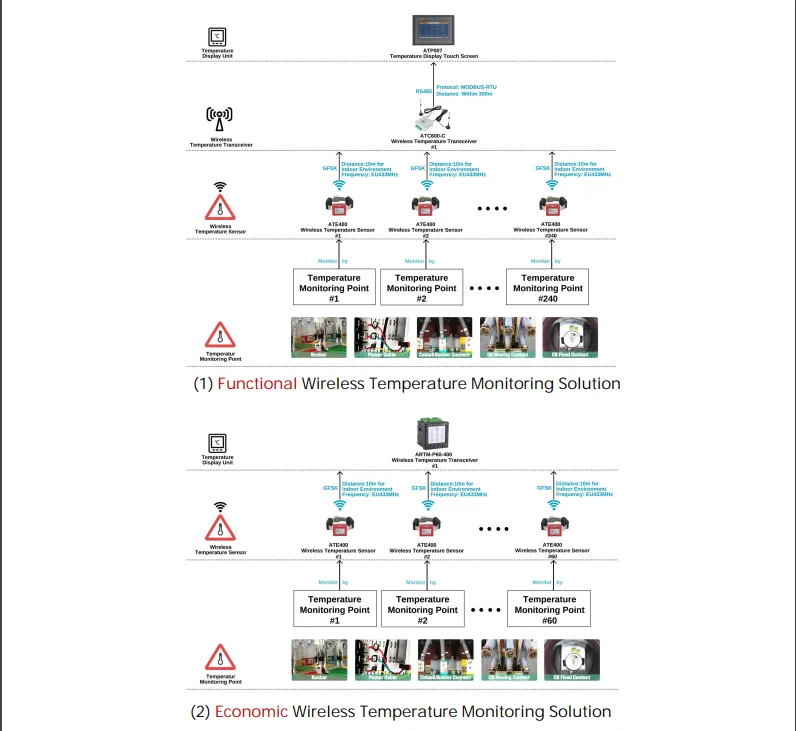

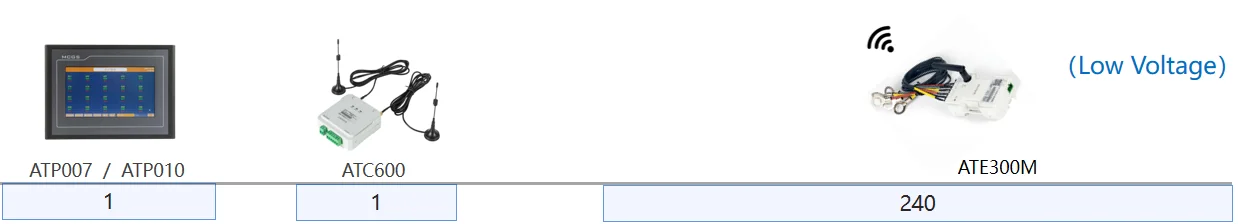

1. Wireless temperature measurement of electrical contacts in high and low voltage cabinets

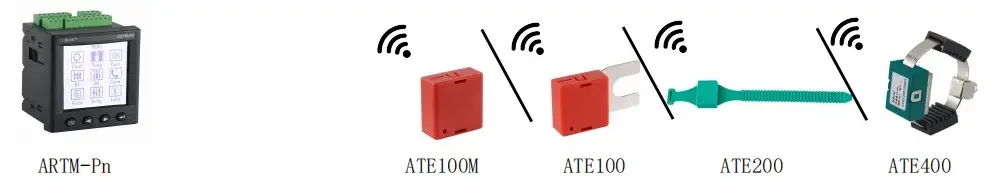

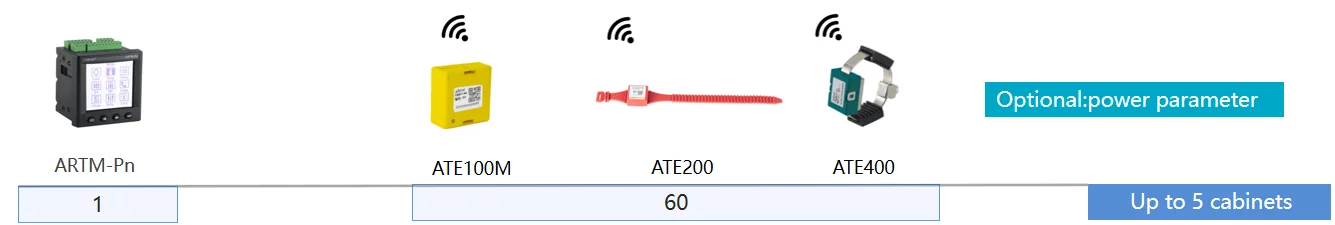

2. Wireless temperature measurement of electrical contacts in high and low voltage cabinets

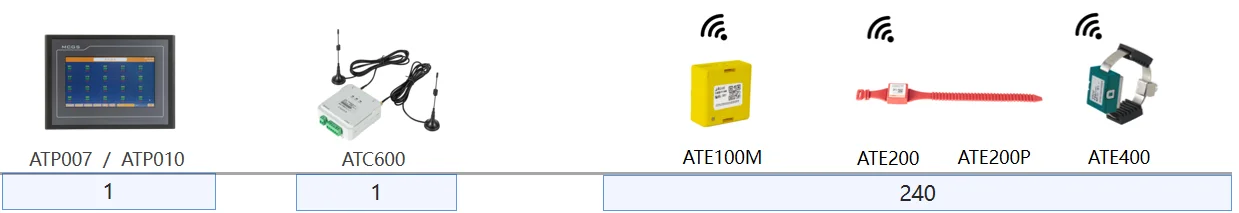

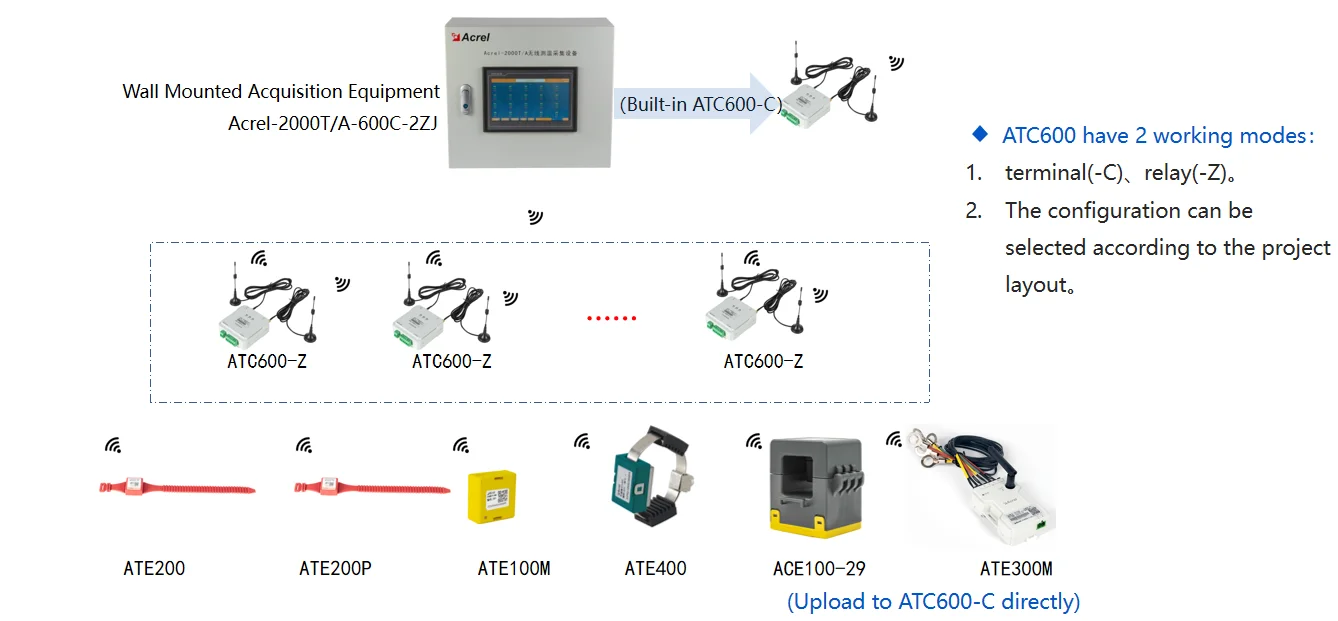

3. On-site wall-mounted centralized display solution

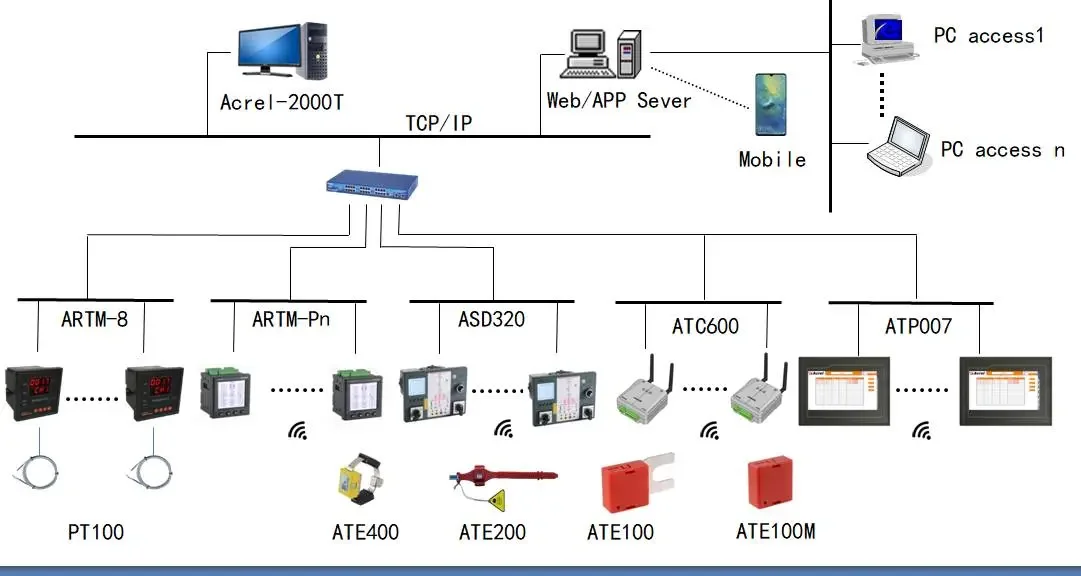

4. Wireless temperature monitoring system-IOT system








Contact us

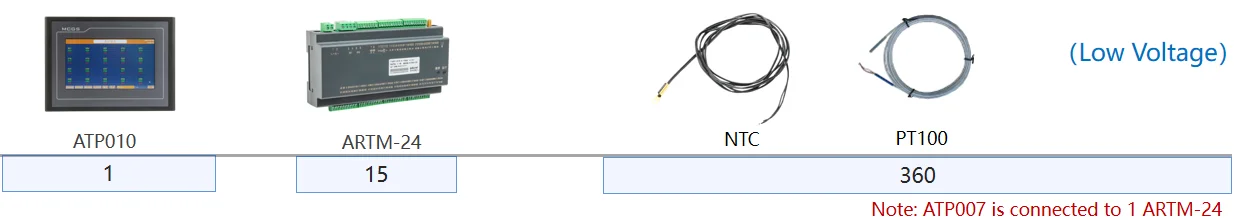

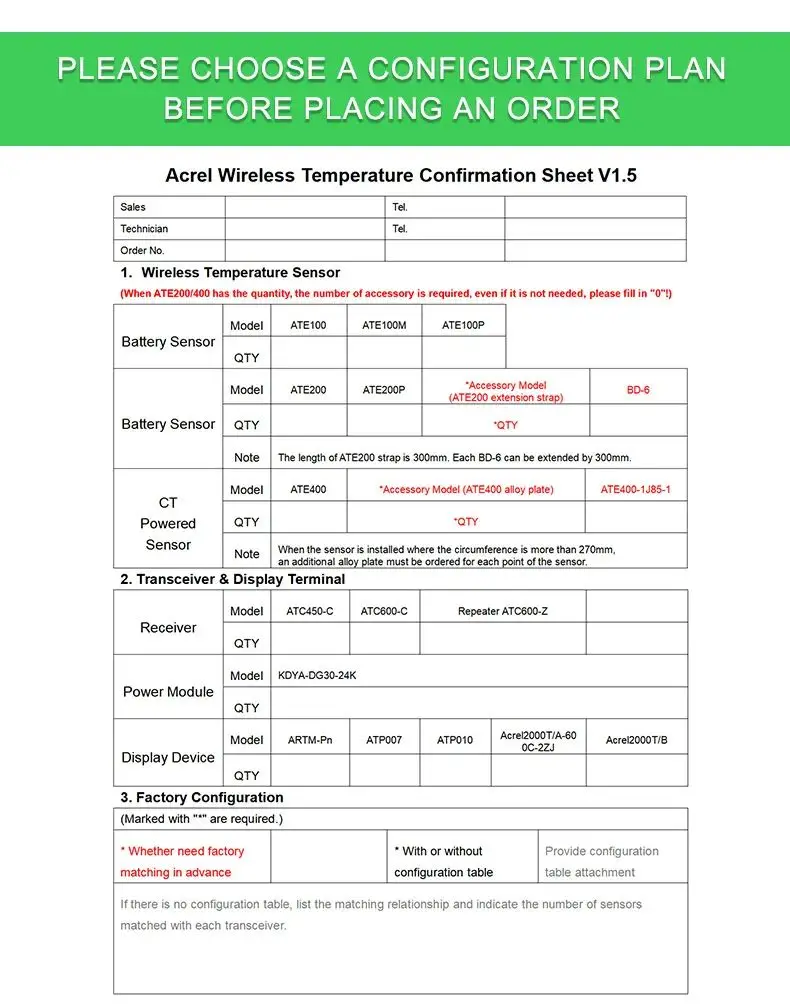

Product Selection

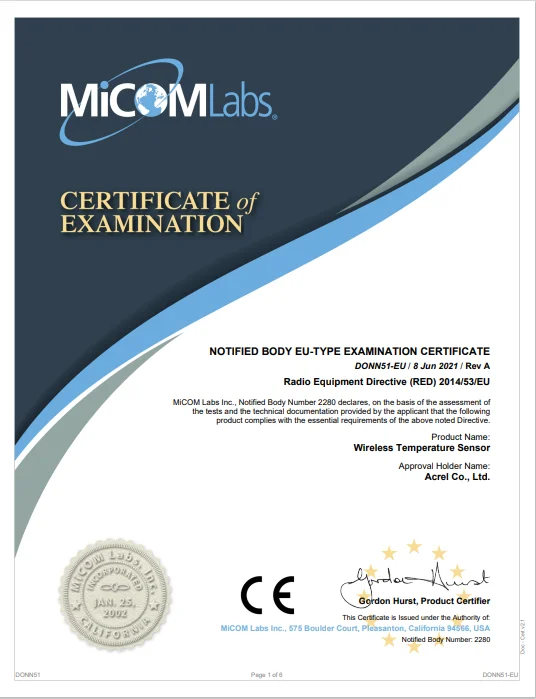

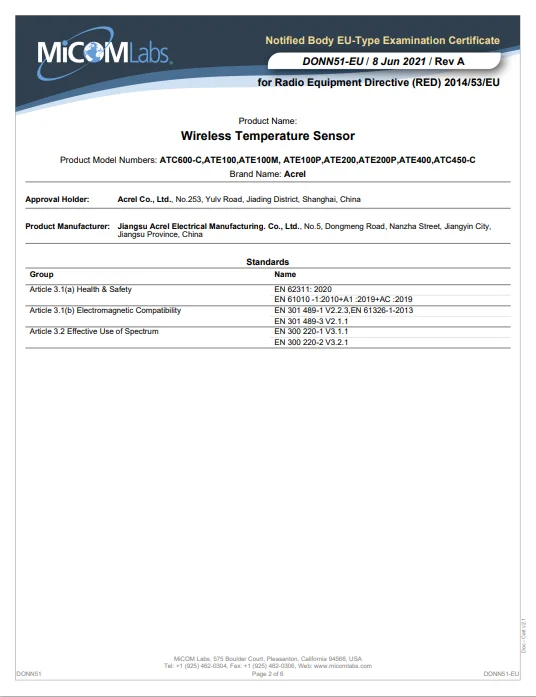

Certification
