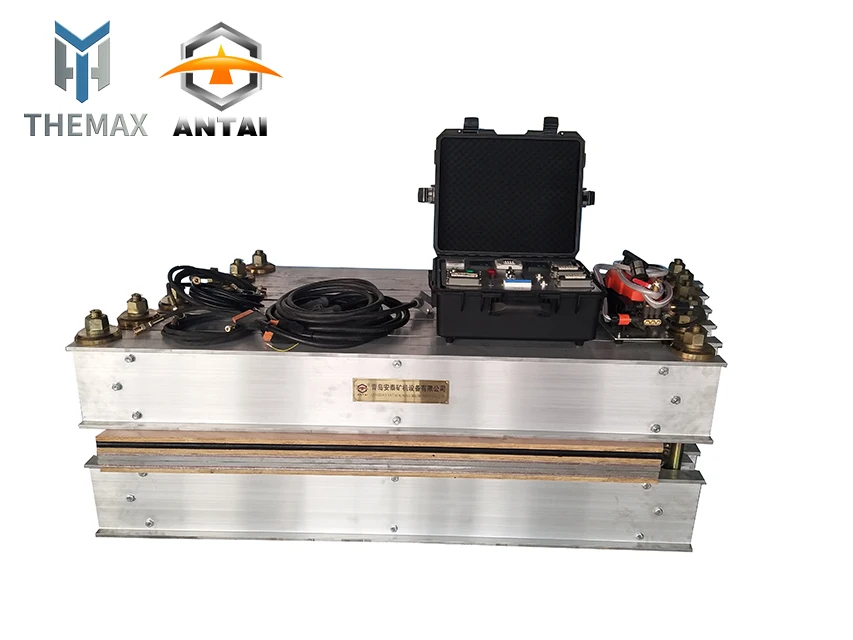

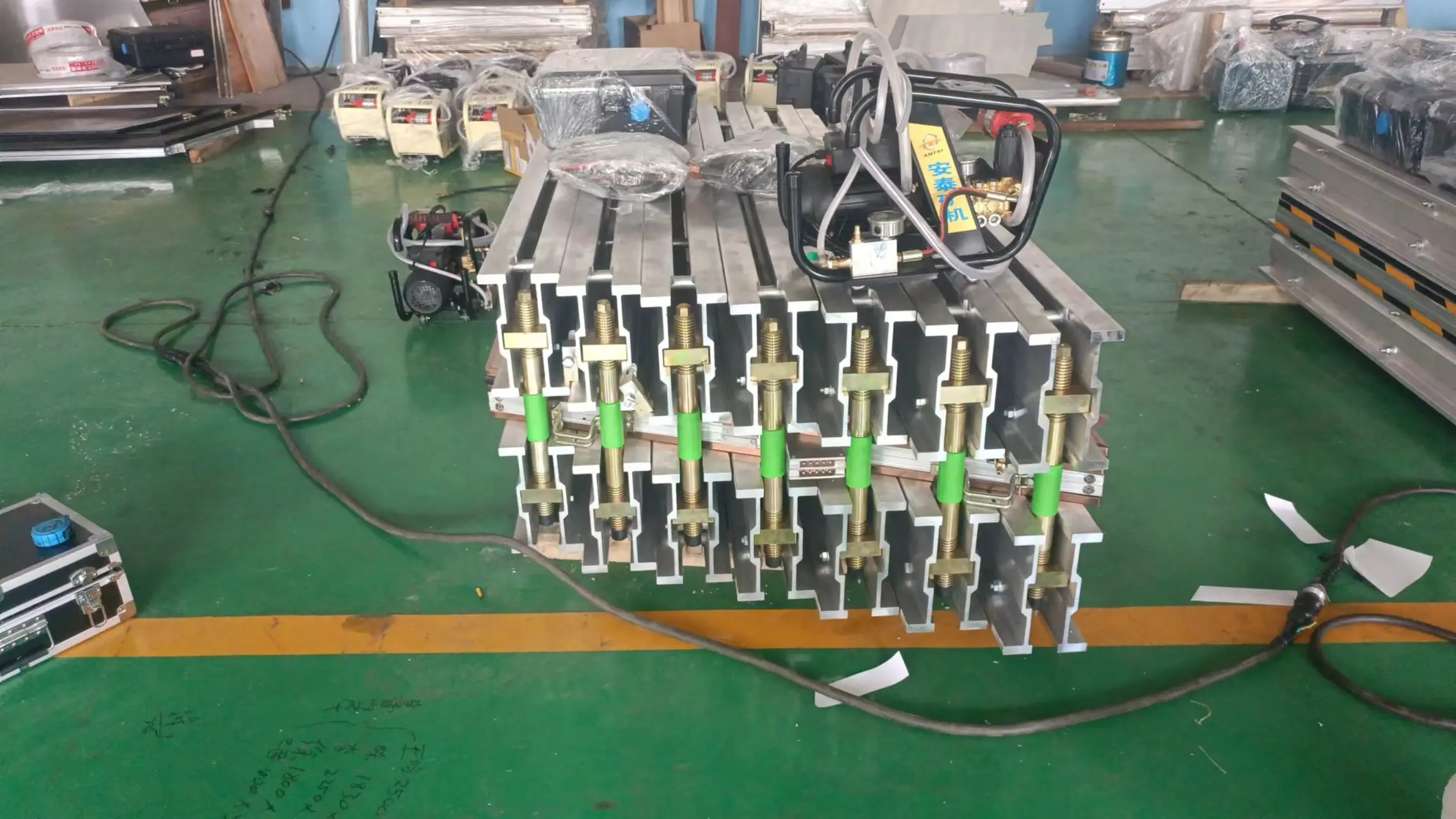

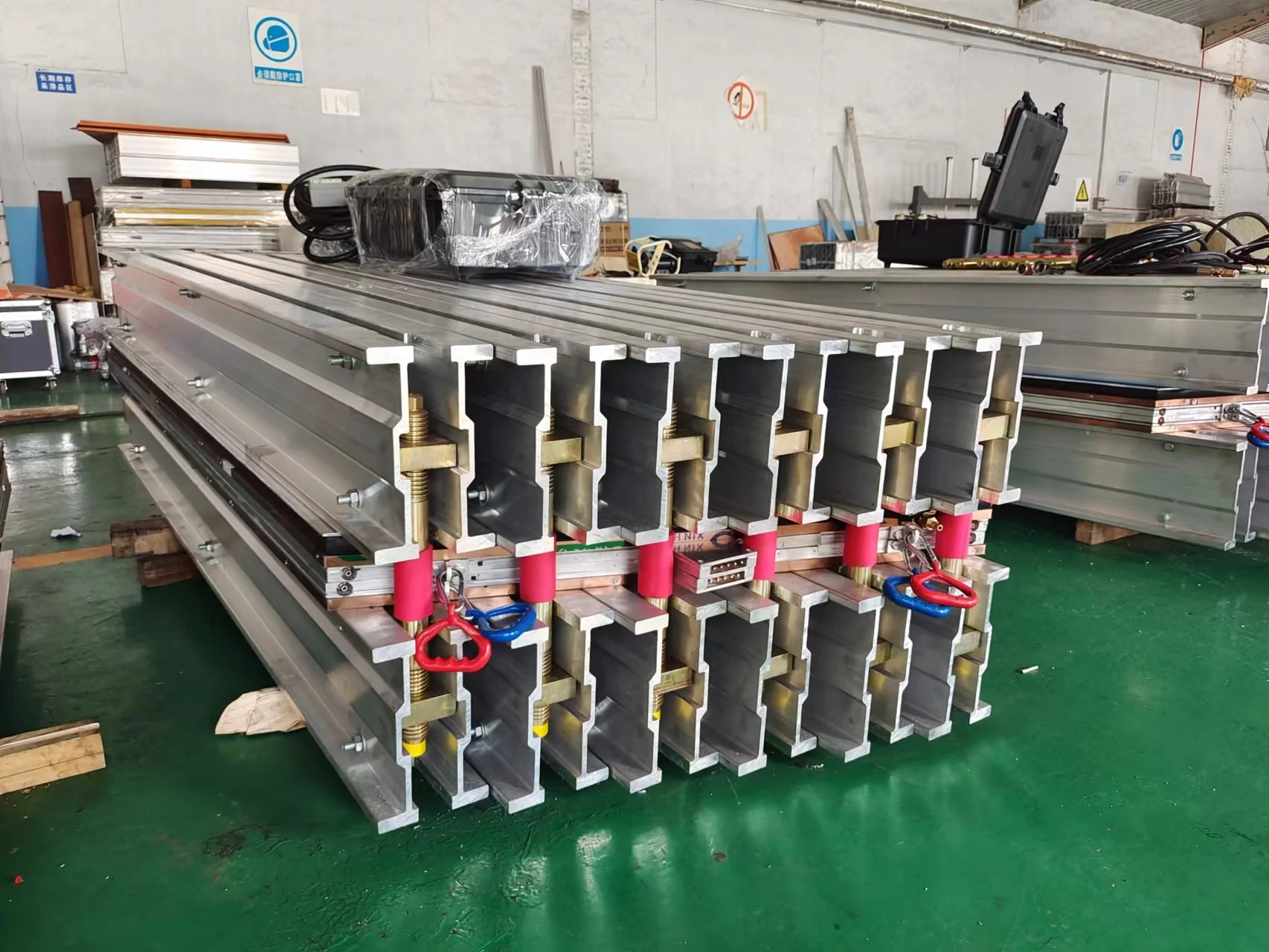

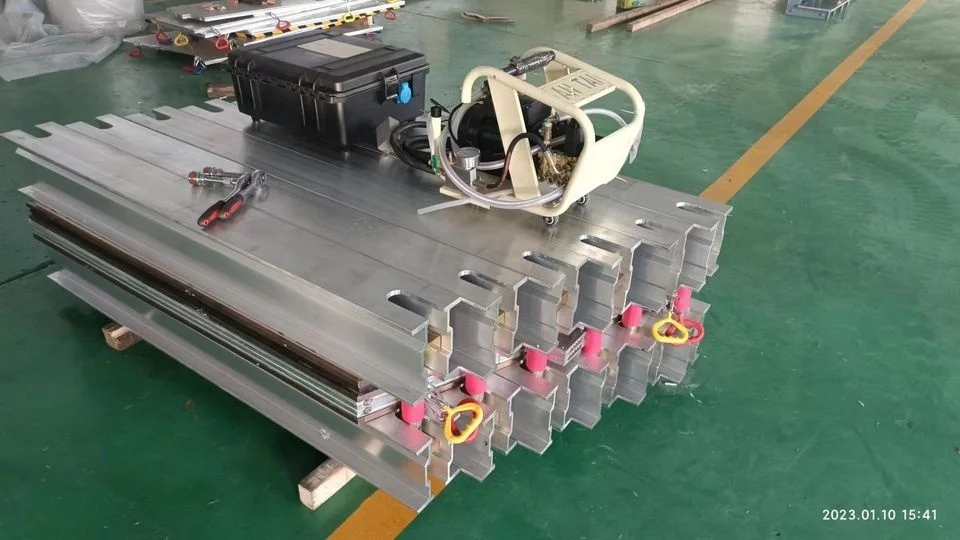

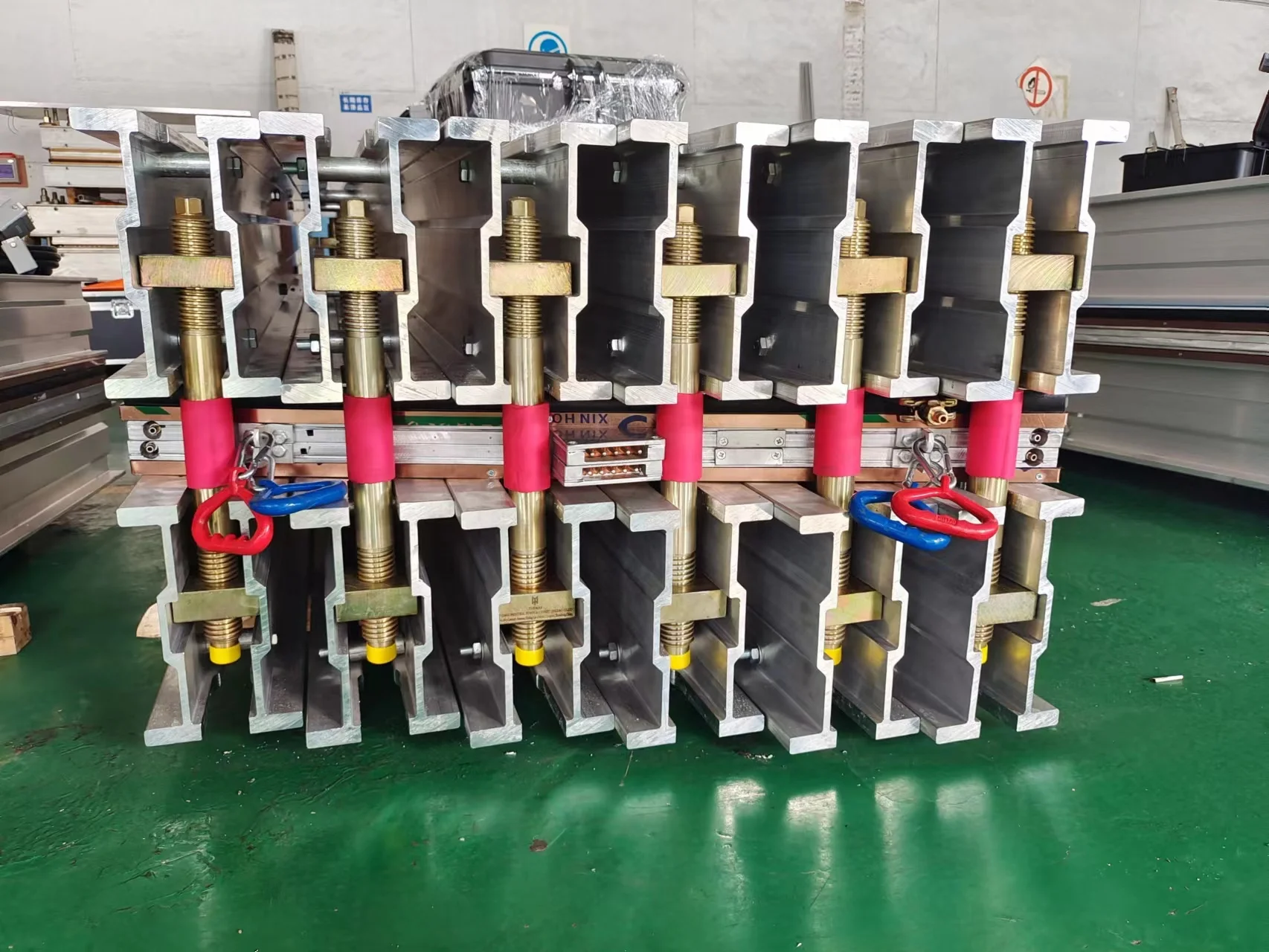

Rubber Vulcanizer Machine Repair Vulcanizers Rubber Conveyor Belt Splicing Joint Hot Vulcanizing
- Category: >>>
- Supplier: Qingdao Antai Mining Machinery Co. Ltd.
Share on (1601004449251):
Product Overview
Description
Products Description
Product Name | Antai Vulcanizing Press Hot Splicing Conveyor Belt Vulcanizing Press | |
Conveyor belt type | Rubber Conveyor Belt Splicing Joint Hot Vulcanizing | |
Size(L*W*H mm) | 1520*830*630mm | |
Application | mining, cement,power plants, ports, building materials, chemical and other sectors. | |
Can splicing max belt width | 600mm-3600mm | |
Antai Vulcanizing Press Hot Splicing Conveyor Belt Vulcanizing Press | ||
FEATURES
• Signature ANTAI “Pressure Bag” uniform pressure system.
• Custom “Extruded Plank” cooling system within platens.
• Innovative “Silicone Element” fast heating system.
• Custom “Extruded Plank” cooling system within platens.
• Innovative “Silicone Element” fast heating system.
• Automatic mute pressure pumps for operating pressures above 20kg/cm2(2.0MPa).
• ZLJ platens are built to order with all dimensions offered to accommodate various belt widths.
• DELIXI electrical apparatus element assembled into insulating and waterproof control panel.
• All electrical systems are CE, CSA and UL approved.
• DELIXI electrical apparatus element assembled into insulating and waterproof control panel.
• All electrical systems are CE, CSA and UL approved.
Click here for more information !!!
SPECIFICATIONS
1. Voltage: 220V 380V 415V 525V 660V 1140V 50HZ 60HZ(Customize available according to your requirement)
2. Quick water cooling device: 15 minutes From 145 ℃down to 80 ℃or even lower
3.Cooling source: Water or Air
4.Heating source: Electricity
5. Heating time: from room temperature to vulcanization temperature need less than 20 minutes
6. Heating plate surface temperature difference: ± 1 ℃
7. The temperature adjustment range: 0 ~ 200 ℃(custom)
8. Vulcanization pressure: Max 2.5MPa.
9. Curing temperature: 0 ~ 99min (according to the thickness of the belt to adjust)
1. Voltage: 220V 380V 415V 525V 660V 1140V 50HZ 60HZ(Customize available according to your requirement)
2. Quick water cooling device: 15 minutes From 145 ℃down to 80 ℃or even lower
3.Cooling source: Water or Air
4.Heating source: Electricity
5. Heating time: from room temperature to vulcanization temperature need less than 20 minutes
6. Heating plate surface temperature difference: ± 1 ℃
7. The temperature adjustment range: 0 ~ 200 ℃(custom)
8. Vulcanization pressure: Max 2.5MPa.
9. Curing temperature: 0 ~ 99min (according to the thickness of the belt to adjust)
Usually 10mm~25mins, 20mm~35mins
10. Automatic mute pressure pump
11. Automatic control panel: insulating and waterproof, security alarm, Auto power-off when reach the vulcanization temperature.
Upgrading explosion proof control box option available.
10. Automatic mute pressure pump
11. Automatic control panel: insulating and waterproof, security alarm, Auto power-off when reach the vulcanization temperature.
Upgrading explosion proof control box option available.
Our Advantages
HEATING PLATEN
Custom extruded plank, silicone heating elements (up to 180°C/356°F), and durable composite insulating packaging are used to
construct a flexible platen that contours to belt irregularities.
It takes 15~25mins rise up to vulcanizing temperature (about 145°C).
The flush “quick connect” make smooth profile. Recessed power connections are sealed for moisture resistance.
construct a flexible platen that contours to belt irregularities.
It takes 15~25mins rise up to vulcanizing temperature (about 145°C).
The flush “quick connect” make smooth profile. Recessed power connections are sealed for moisture resistance.
PRESSURE SYSTEM
Signature ANTAI “Pressure Bag” uniform pressure system is lighter up to 4 times than the outdated pressure bag.
The pressure bag can reach full expansion in one time and ensure the uniform pressure up to 3.0MPa.
The pressure bag can reach full expansion in one time and ensure the uniform pressure up to 3.0MPa.
PRESSURE PUMP
Automatic mute pressure pump own the features as smaller size, lighter weight and high impact-resistance. Compared with the manual pump, the operating pressure can be 23kg/cm2 (2.3MPa).
COOLING SYSTEM (Option Available)
Custom “Extruded Plank” cooling system within platens is made by several cuprum pipelines, it only takes about 20mins to drop the temperature down to 60°C.
AUTOMATIC CONTROL BOX
With automatic temperature control, security alarm and automatically switch off the power. The control box can monitor the temperature of 3-5 different points on each heating platen at the same time to ensure the result of jointing.
Main Parts
ZLJ conveyor belt vulcanizing machines can be used by one or multiple combinations according to the joint length of the belt.The main configuration of a single vulcanizing machine is as following:
Name | Amount |
The whole machine | 1 set |
Ratchet wrench | 2 piece |
steel pad | 1 set |
Clamping device | 1 set |
Electric control box | 1 set |
Power cable | 1 root |
Control cable | 2 root |
Thermal resistance | 2 pieces |
Water pump | 1 set |
Pressure pipe | 2 roots |
Technical Parameters (Reference)
(Except for 830 mm, 1000 mm and other conventional sizes, any non-standard size is accepted.)
Product packaging
We use fumigation-free box as our packing box.It has clean and tidy appearance,easy to load and unload.Comply with the export standards of the customs.
Customer Photos
Our Plant
Certifications
We are the Direct Manufacturer of conveyor belt vulcanizing equipment. Our company is the direct manufacturer supplier in China for the production of the pressurized bag. ALMEX STYLE available,with lower ANTAI price.
Yes! We promise you the lowest price in China. In case of the higher price you may get from our domestic trading company Please keep in touch with me.
Contact with me
If you need the latest catalogue of our conveyor belt vulcanizing press or have any problem about our products,please feel free to contact with me. I will do my best to provide you our professional service.
Here is my EMAIL address:
sherry@antai86.com (Sales manager of ANTAI OVERSEAS DPT)
WhatsAPP: +86 15665751353
PHONE: +86 15665751353
