E3262 LE202 500kW PNG CNG LNG Gas Generator

Product Overview

Description

E3262 LE202 500kW PNG CNG LNG Gas Generator

  Product Description



500kw Natural Gas Generator is equipped with MAN Gas engine as original power.It is consisted of brush-less three-phase synchronous alternator, which is produced in China and Control Panel made by advanced manufacturing plant.



Jichai Brand Generator is designed and manufactured to be high quality, long usage life, easy operation, low maintenance cost, high intelligence with low engine speed, low fuel consumption, low gas quality requirement, tough environmental adopt ability, high stability and low fluctuation. The generator is desirable for industrial power solution.





  Advantage

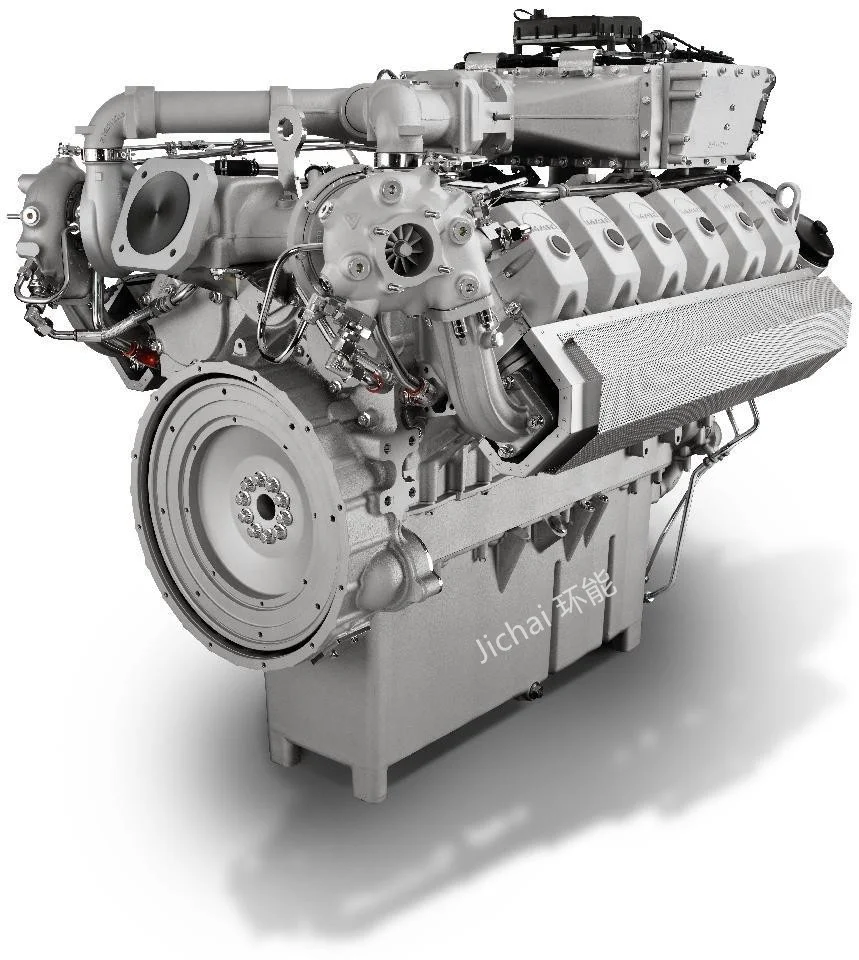

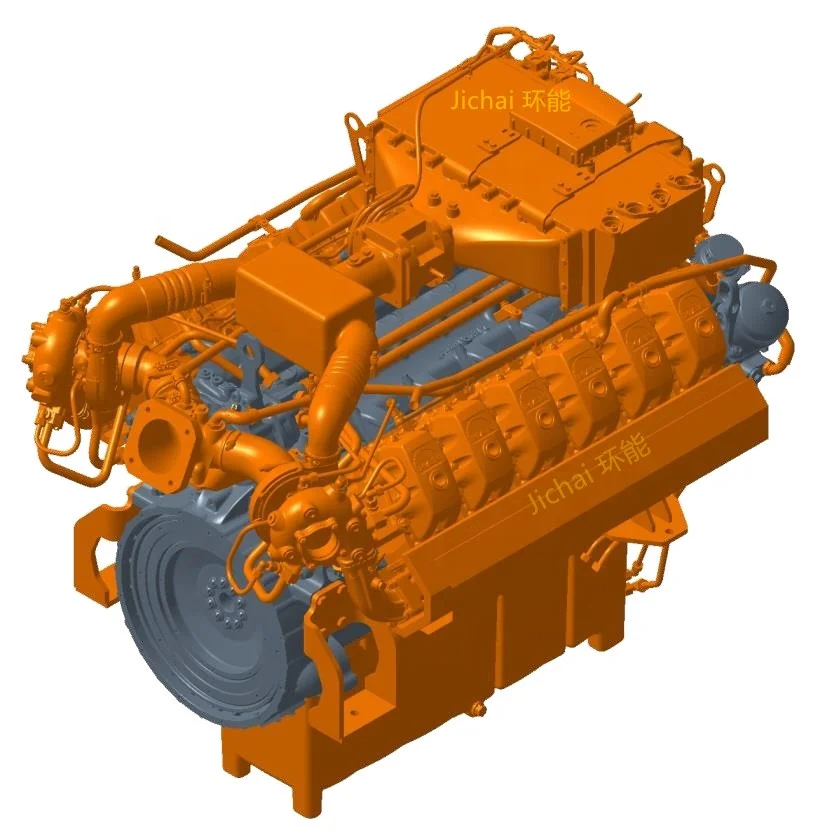

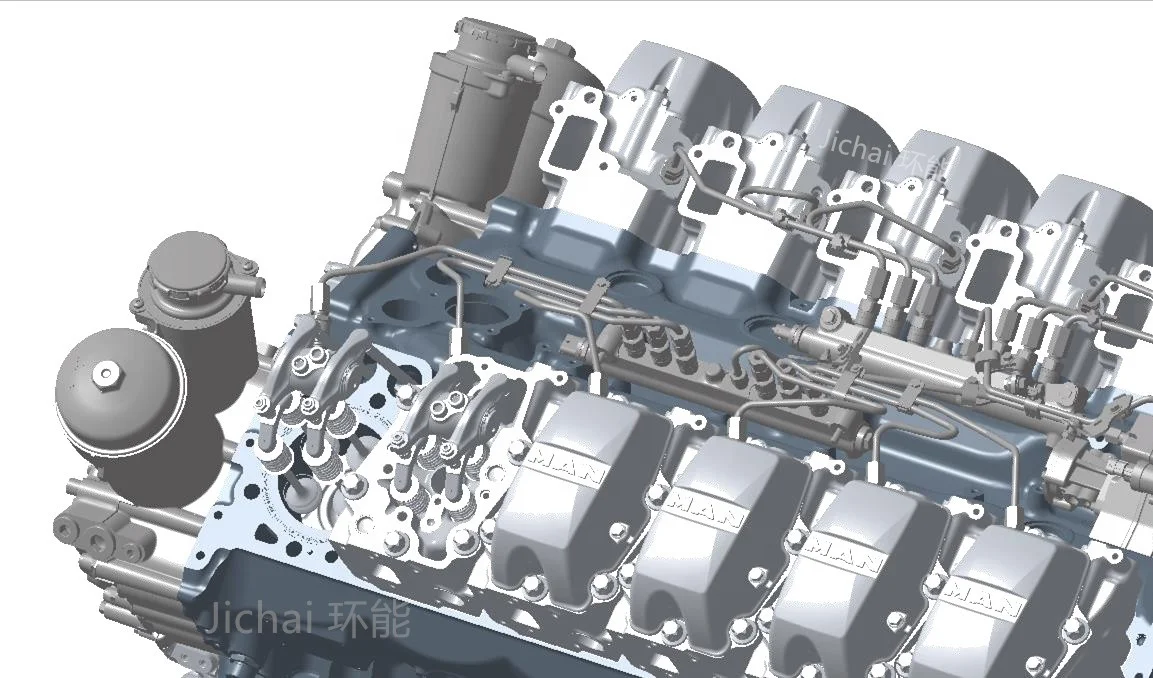

MAN gas engines offer high efficiency and flexibility, fast starting and ramp-up capability, and low-load performance, making them an excellent choice for industrial applications.



They also have extremely low exhaust emissions and fuel consumption rates-making them an environmentally friendly choice for power generation. Talk to our experts-together, you can design the perfect engine configuration to meet your needs.

1) Key components are provided by internationally renowned parts manufacturers.

Control system--Woodward(same with Jenbach, Cat, Waukesha,MTU)

2) Lean combustion technology

3) NOx closed-loop control

4) Knock control: The knock intensity of the whole machine is detected at all times, and delayed ignition, load reduction, and shutdown instructions are executed according to different knock situations.





E3262 LE202 500kW PNG CNG LNG Gas Generator

  Main Specification of 500GF-T Gas generator

Model of genset	500GF-T
Model of engine	E3262 LE202
Model of alternator	BEM
Coupling method	Elastic coupling
Rated speed(r/min)	1500
Rated power(kW/KVA)	500/625
Rated voltage(V)	400
Rated current(A)	902
Rated frequency(Hz)	50
Rated power factor	0.8 lagging
Voltage regulation	Automatic
Supply connecting	3 phase 4wire
Governor	WOODWARD
Control model	Remote electric control
Starting method	24V DC electric starting motor
Cooling method	Water cooling system
Electrical efficiency	40.4%
Heat Consumption	≤ 9000kJ/kWh
Net weight(kg)	5600



E3262 LE202 500kW PNG CNG LNG Gas Generator

E3262 LE202 500kW PNG CNG LNG Gas Generator

  Requirements for fuel gas
In order to ensure its reliable and stable operation of the generator set, the requirements for the natural gas quality is as follows:
——Natural gas should be dehydrated without any water, crude oil & clean oil
——Natural gas pressure 100~400kPa;
——Natural gas temperature -20~40℃;
——Total sulfur content less than 100mg/m3.
Note: Gas volume is under standard condition with 100kPa atmosphere, 20℃ambient temperature,30% relative moisture.



  Requirements for cooling water
Soften water is required by high temp and low temp engine circulation system. Cooling water should be lightly alkaline clean water without any corrosive compound, such as chloride,sulfate or acid etc.



E3262 LE202 500kW PNG CNG LNG Gas Generator

  Requirements for lubricant



Engine is equipped with complete lubrication system, with oil consumption≤0.3g/kW·h. Lubricant model: Mobil Pegasus 705 or 15W40CD.



  Requirements for environment

Gas generator set can run steadily, reliably, continuously under following condition: ambient temperature between -40℃~+40℃,relative moisture<90%,sea level elevation≤2000m. The generator can output rated power under standard environmental conditions:atmosphere pressure 100kPa, ambient temperature25℃, air relative moisture 30%.



E3262 LE202 500kW PNG CNG LNG Gas Generator

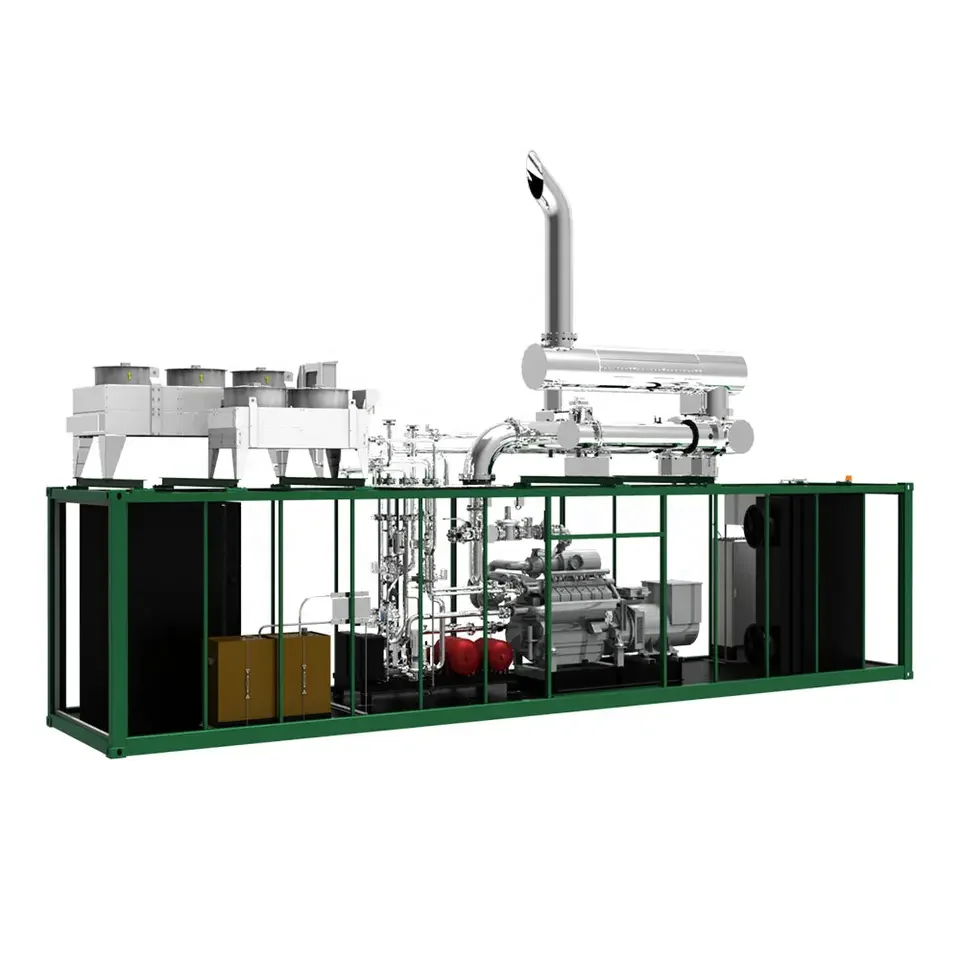

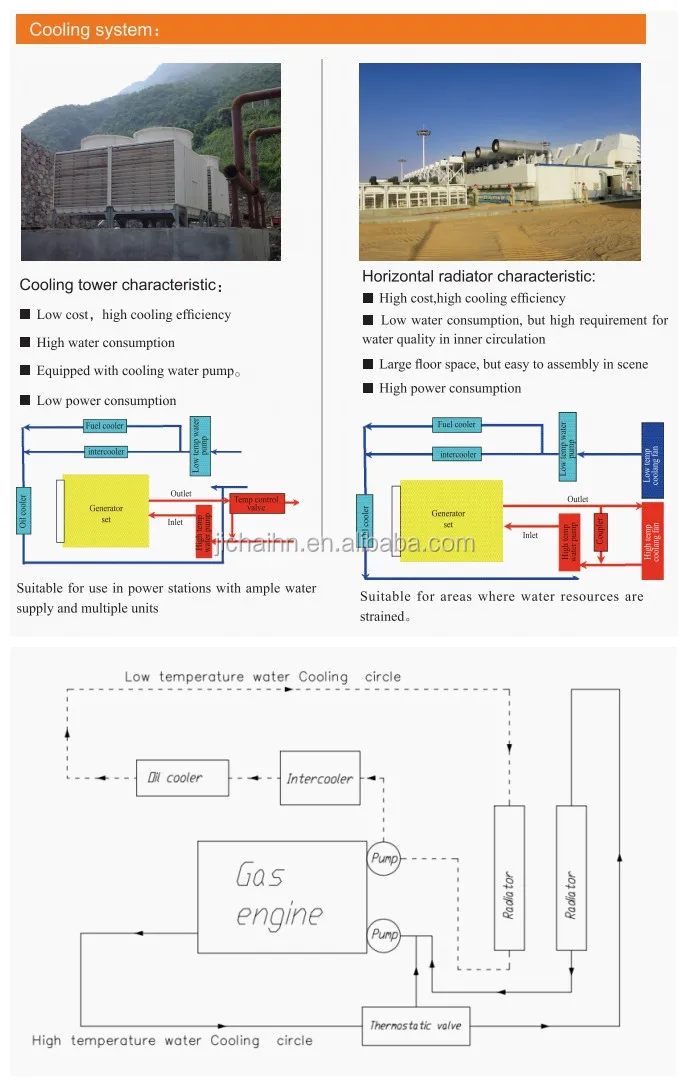

 Cooling system

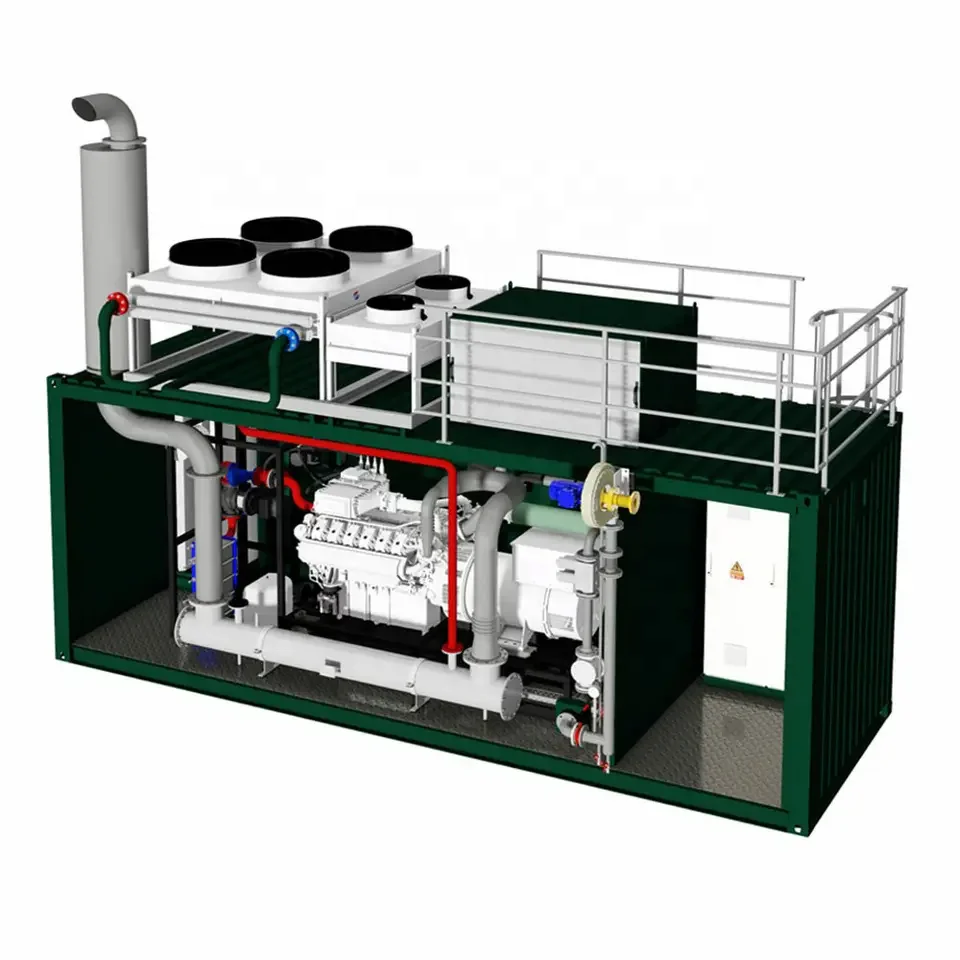

500kW Gas generator set adopts closed circulation flat bed radiator. This radiator owns low consumption and high efficiency characteristics. Shown as the above picture, this flat bed radiator is equipped with fans and independent motors and consists of control system, motor driving device, electric fan, radiator and base. This control system owns air blower automatic start and stop function.

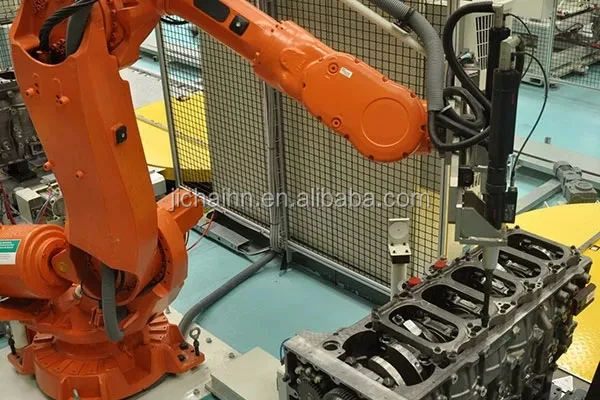

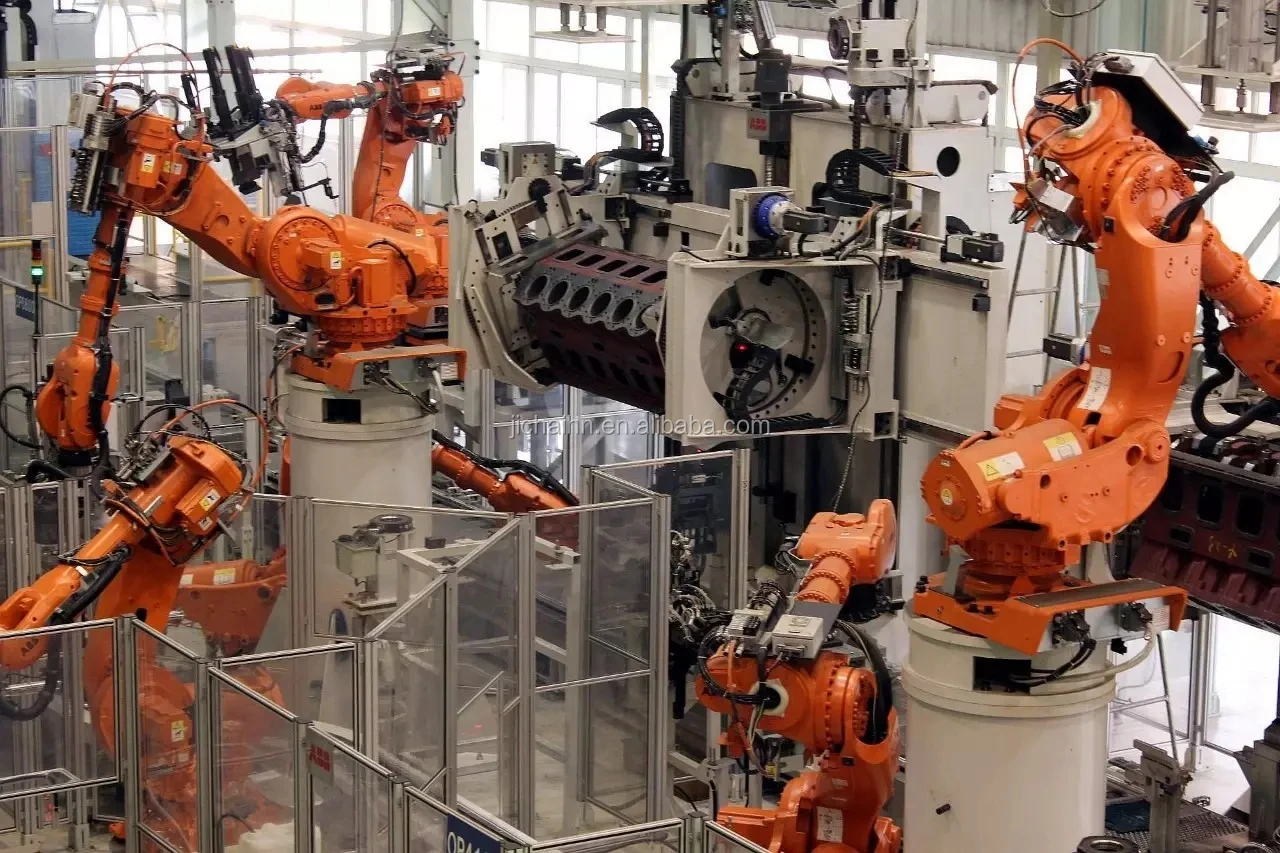

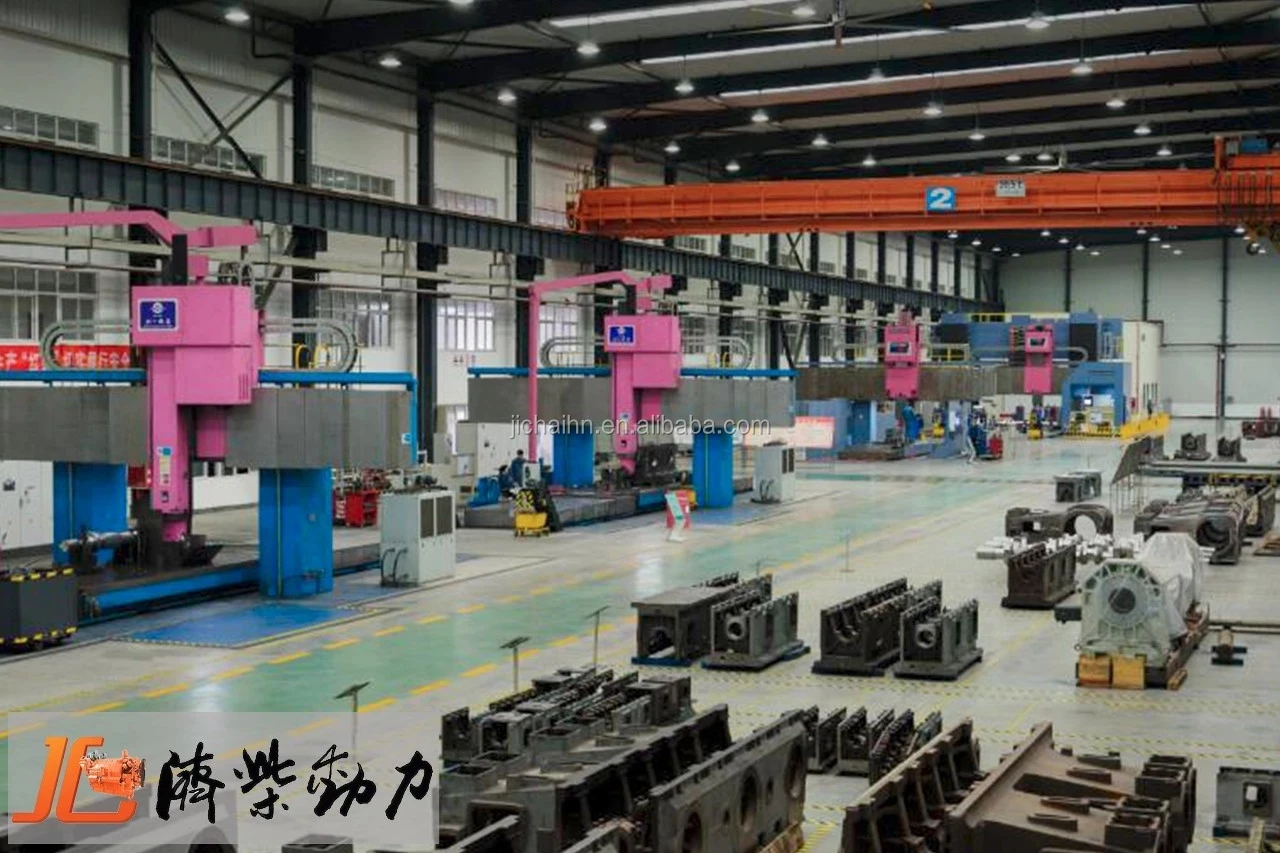

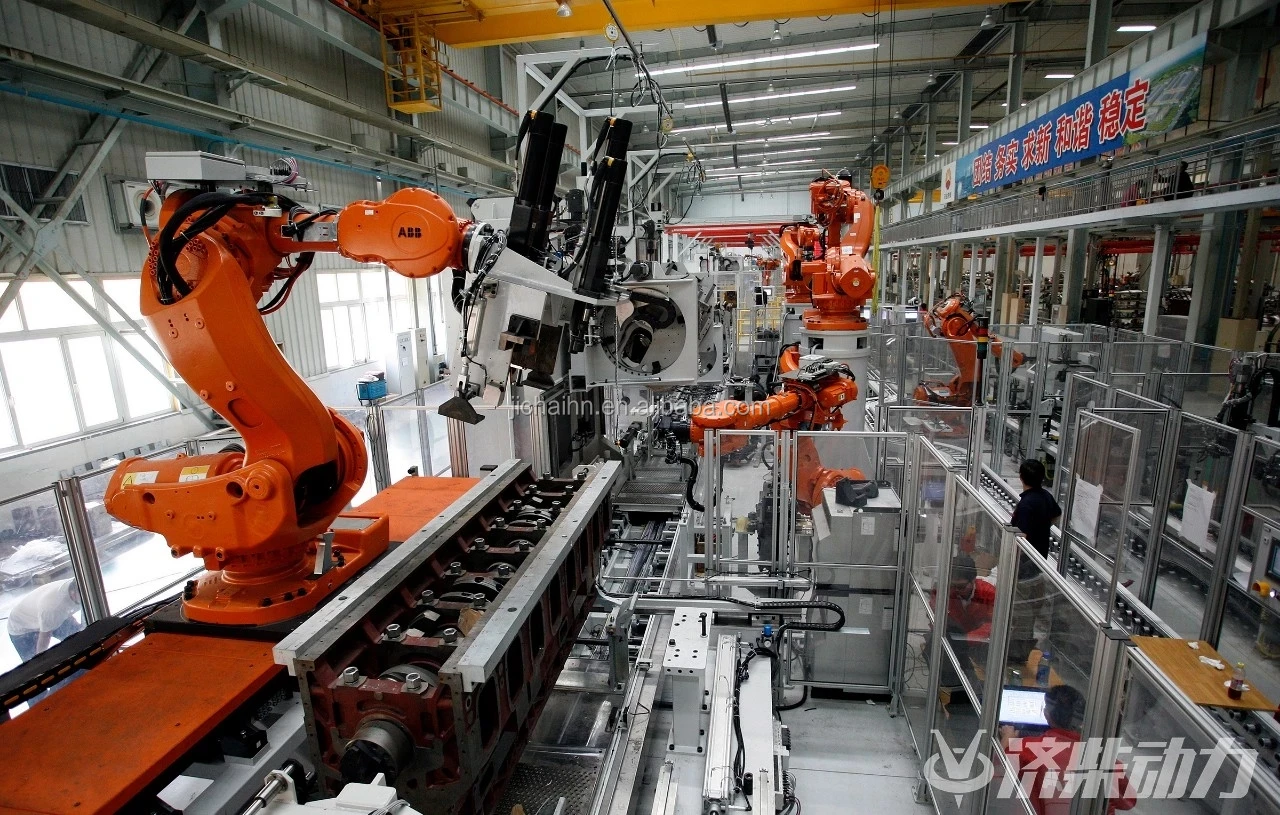

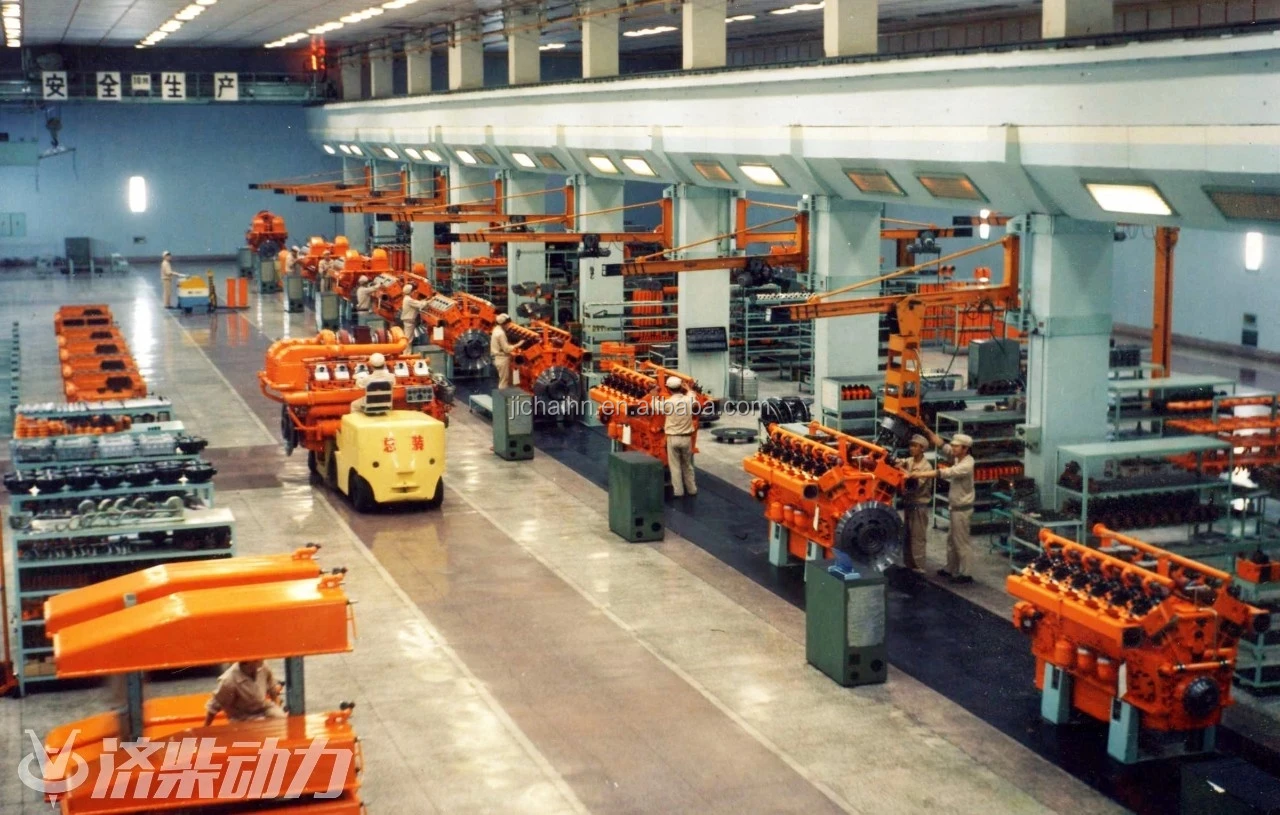

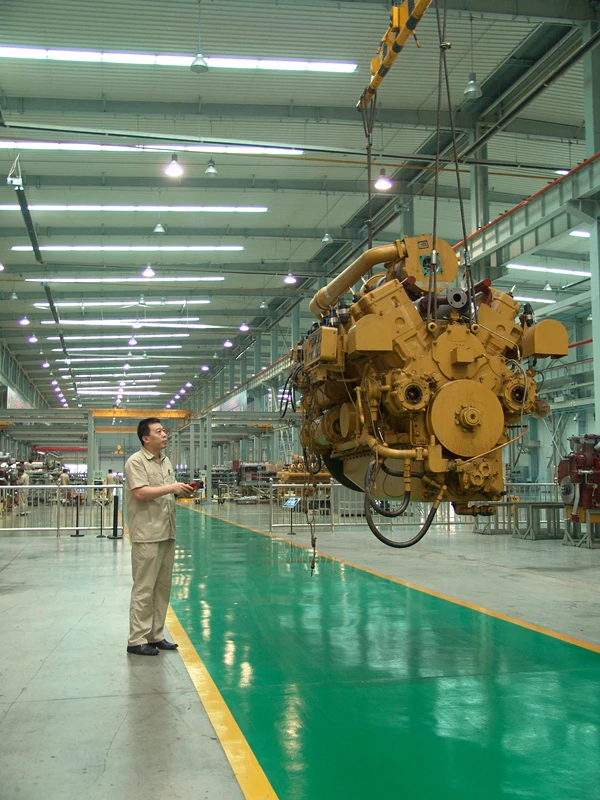

  Factory show

E3262 LE202 500kW PNG CNG LNG Gas Generator

E3262 LE202 500kW PNG CNG LNG Gas Generator

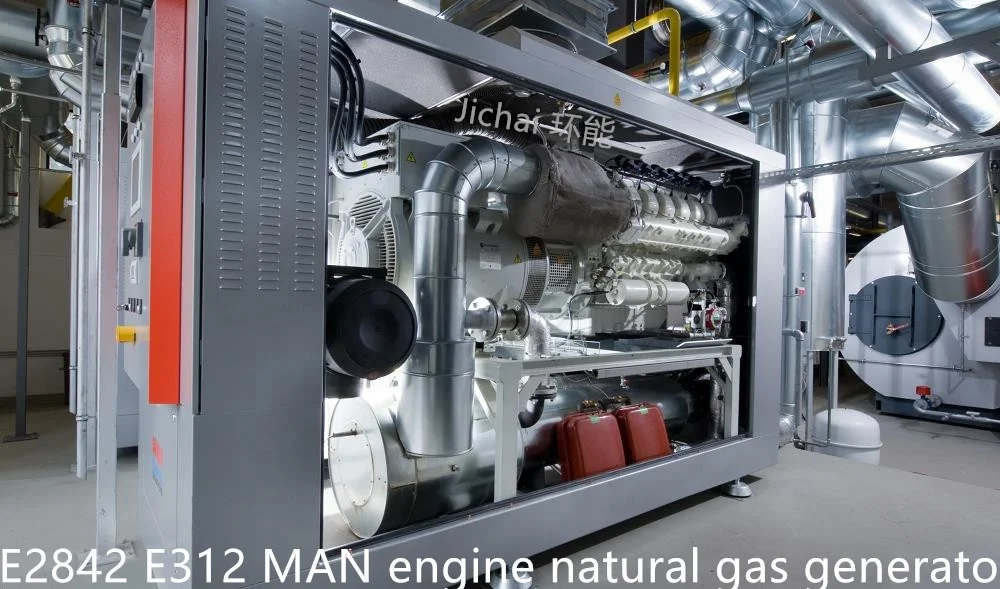

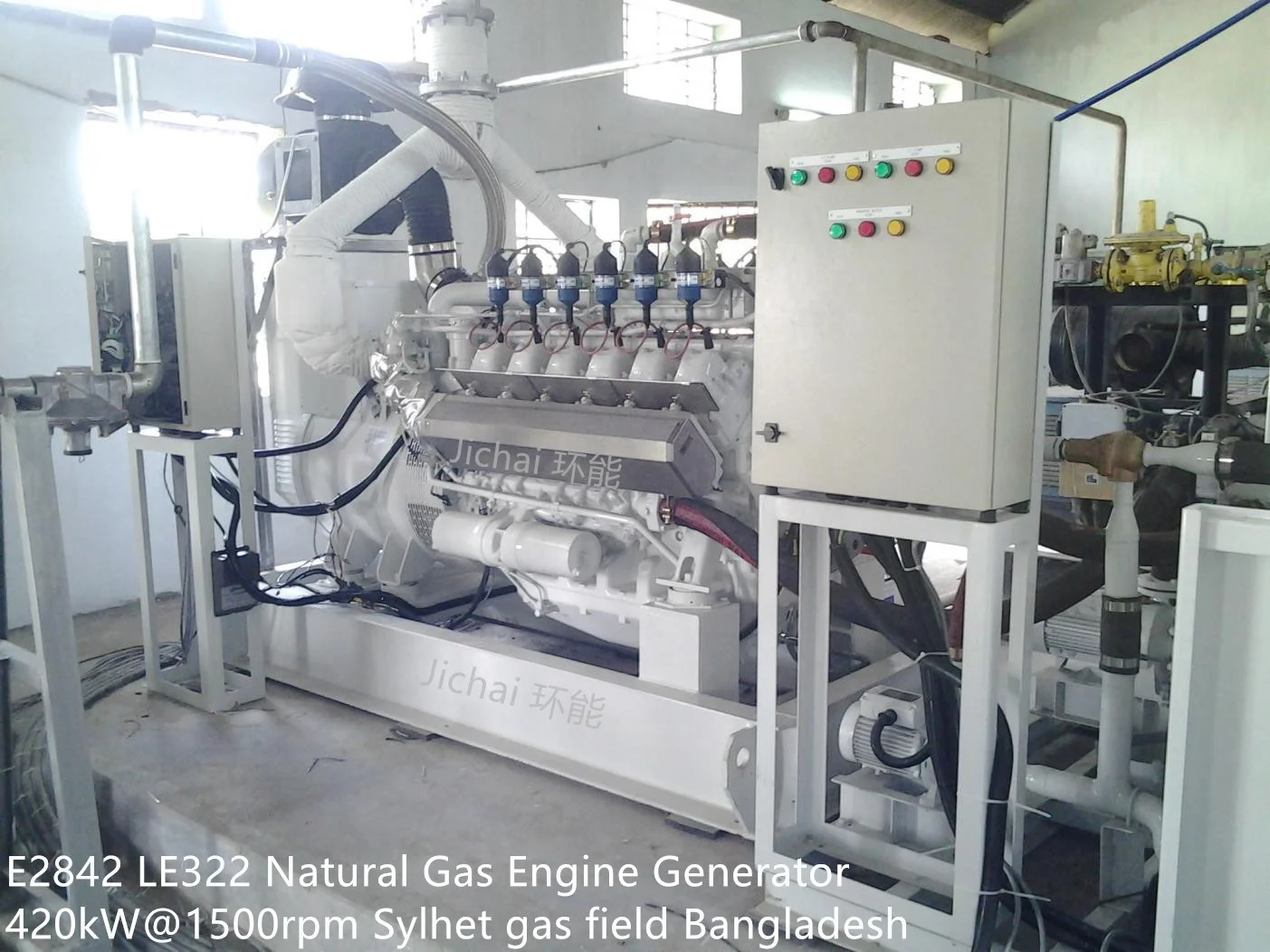

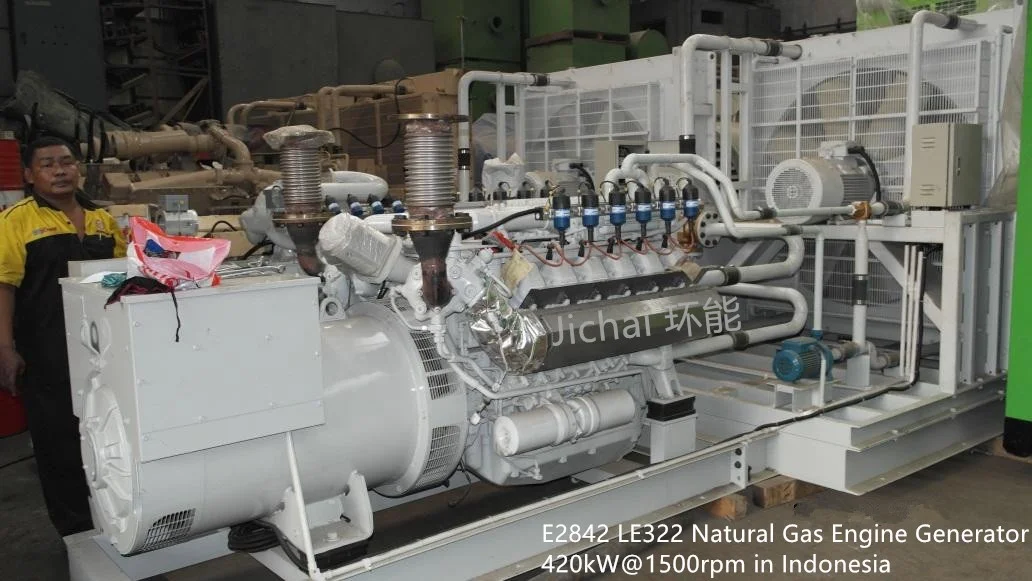

 Successful Projects

  Cetification



E3262 LE202 500kW PNG CNG LNG Gas Generator

  FAQ

1.The power range we can supply: 150kW 200kW 250kW 300kW 350kW 400kW 500kW 600kW 700kW 800kW 1000kW 1200kW 1500kW 1600kW 2000kW 3500kW 4000kW.

2.what type of Gas our genset can fuel on: CNG,LNG, Natural gas,Biogas, Syngas,Biomass, Associated Gas,Well gas etc.

2.What we can do for you?

 Any more detail technical data,feel free to contact us:

Email: ellayuan(@)jichaipower.com
