LEYON UL FM Fire Fighting Pipes Protection System Fire Sprinkler System Stainless Steel Fitting Braided Flexible Fire Hose

Share on (1601004484218):


Price:$6.85

Quantity:


Product Overview

Description



Product Name






Description

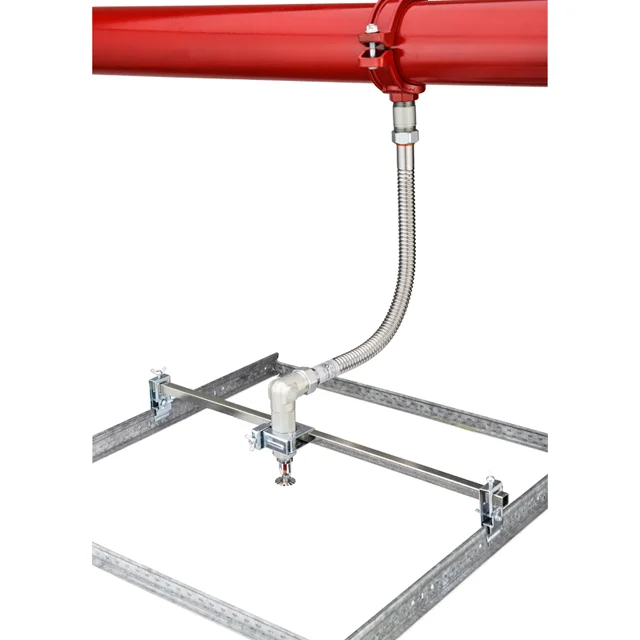

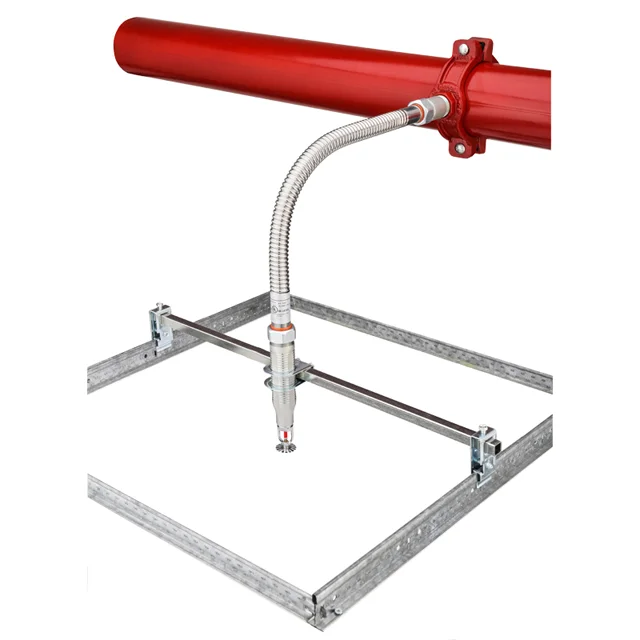

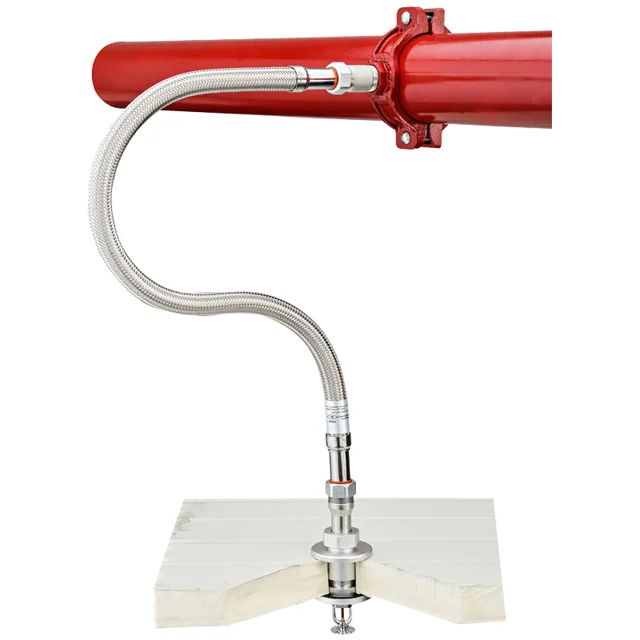

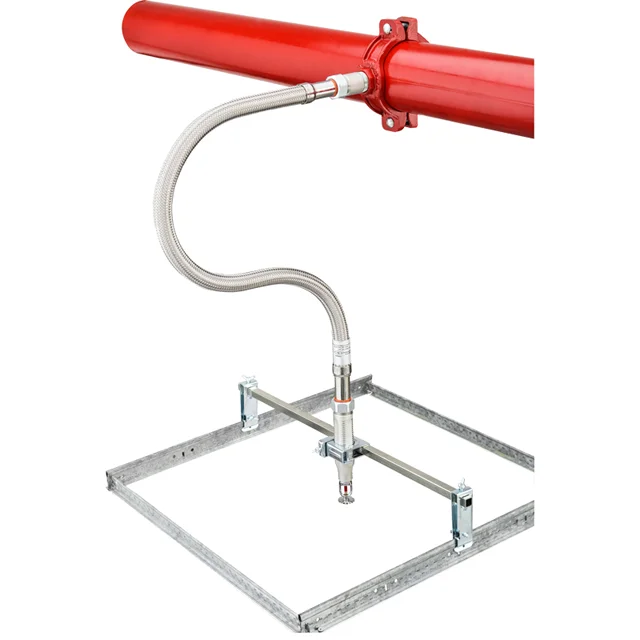

Leyon-Flexible hose for sprinkler industry:

1.Safe and ReliableLeyon flexible hoses are manufactured in corrosion resistant ANSI 304 stainless steel with high performance fittings and seals,hoses are 100% leak tested prior to the factory. The rated working pressure is 14bar/200psi with a burst test of 70bar/875psi and environmental temperature resistanceof 107℃.

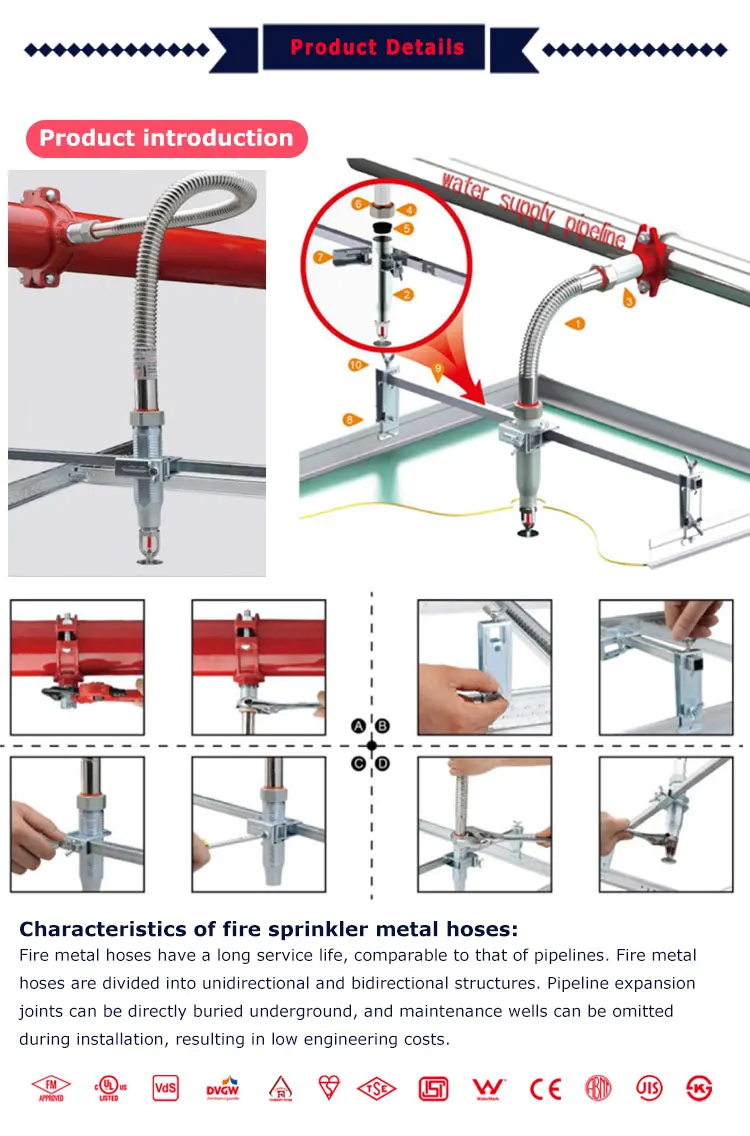

2.Easy Installation
No special tools are required to install Leyon hoses,not cutting,no more threading,just the simple use of a wrench,screw drive and
pipe sealing tape is all that's required to have your Leyon hoses.

3.Environmental friendly
No waste,not cutting Leyon hoses can be re-shaped,relocated to suit final sprinkler location on the ceiling without draining the system. No sprinklers displacement after pressure test,eliminating the need for an oversized ring around the sprinkler.

4.Seismically
Leyon stainless steel hoses in the case of an earthquake can absorb seismic shock,assisting the sprinkler system to maintain normal operation.




Product Specification


Parameters and Functions
Product Name
Flexible Hose
Material
Stainless Steel
Type
FLEXIBLE
Norminal diameter(mm)
1/2"  3/4"   1"
Connecting thread
BSPT NPT
Power
Manual
Connection
with fire sprinkler heads
Usage
Fire fighting system
Certification
UL/FM
