Price:$95,600.00 - $107,000.00

Quantity:


Product Overview

Description





1MW/2.5MWH Energy Storage System
Rated output power
1000KW
Rated capacity
2500KWH
AC Phases
Three-phase Four-wire
Grid discharge mode
Rated voltage: 380V
AC output
Voltage range:380±15%V
Capacity
Rated frequency: 50HZ
Power Source
Frequency range:47.5～51.5Hz
Special Features
Total current waveform
distortion rate(THD): <5%
Application
Output power factory; ≥0.99
Isolated network operation mode
Rated voltage:380V
Load Power (W)
Voltage accuracy:<±3%
Nominal Capacity
Output voltage distortion:<5%
The Rated Power
Rated output frequency:50±2％Hz
Continuous Charge Current
Voltage transition range:<10%
Continuous Discharge Current
Can withstand three - phase load imbalance： 100%
Grid-connected charging operation mode
Rated voltage:400V
Appearance Size(mm)
Voltage range is allowed:380±15%V
Charging Voltage
Frequency range:47.5~51.5HZ
Discharge Termination Voltage
Power factory:≥0.99（absolute value）
Noise
＜70dB
IP GRADE
IP54
External communication
Ethernet
Dimension
12192mm(L)*2438mm( W)*2591mm(H)
Weight
22T

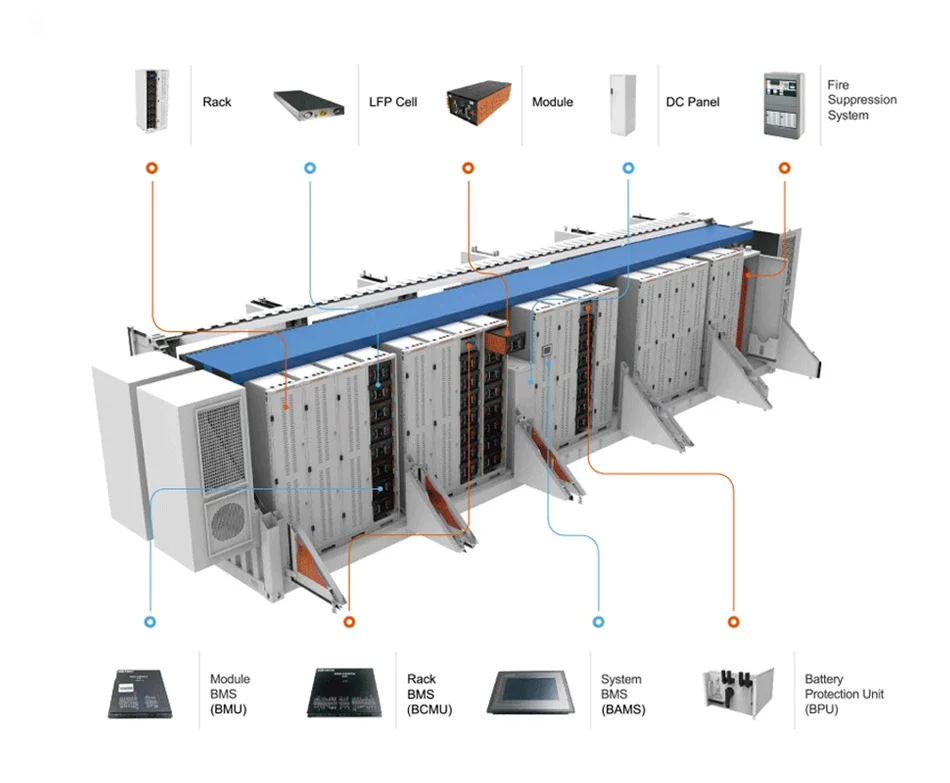

Products Details

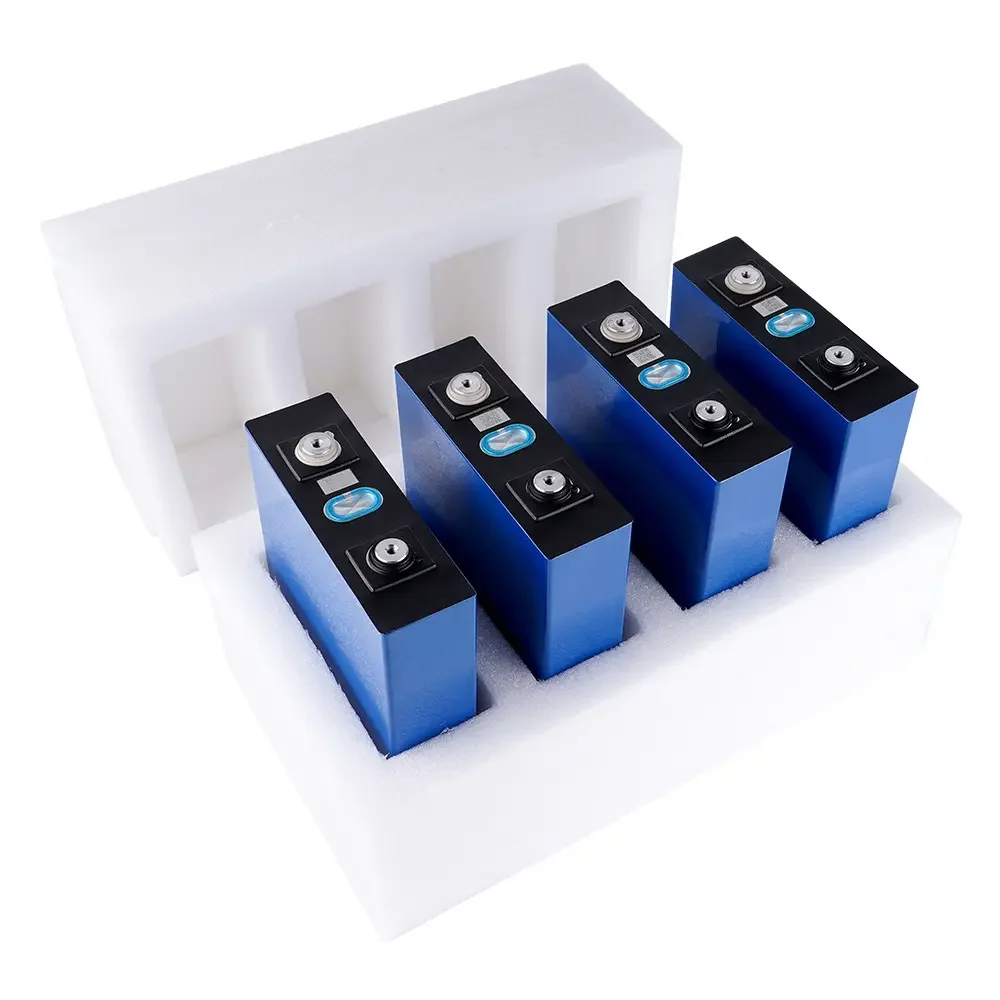

Battery Cell

The battery core adopts lithium iron phosphate battery, the capacity is 120Ah, the nominal voltage is 3.2V, the working voltage range is 2.5~3.65V, the monthly self-discharge rate of the battery is ≤3%.






Battery Module
The energy storage standard module consists of 24 single cells, the specification is 2P12S, the power is 9.216kWh, the nominal voltage is 38.4V, the working voltage range is 33.6~43.2V, and the mass is about 85kg.


Battery Cluster
The battery cluster consists of 18 energy storage standard modules with a specification of 2P216S, a power of 165.888kWh, a
nominal voltage of 691.2V, an operating voltage range of 604.8V-766.8V, and a total mass of approximately 1700kg.


PCS 500KW
Bidirectional battery inverter 500KW, can be used alone or with solar charger and other accessories for different application scenario. Paralleling multiple units, Flexible Configuration, Programmable working mode, Support remote control of DG, Touchscreen
LCD.

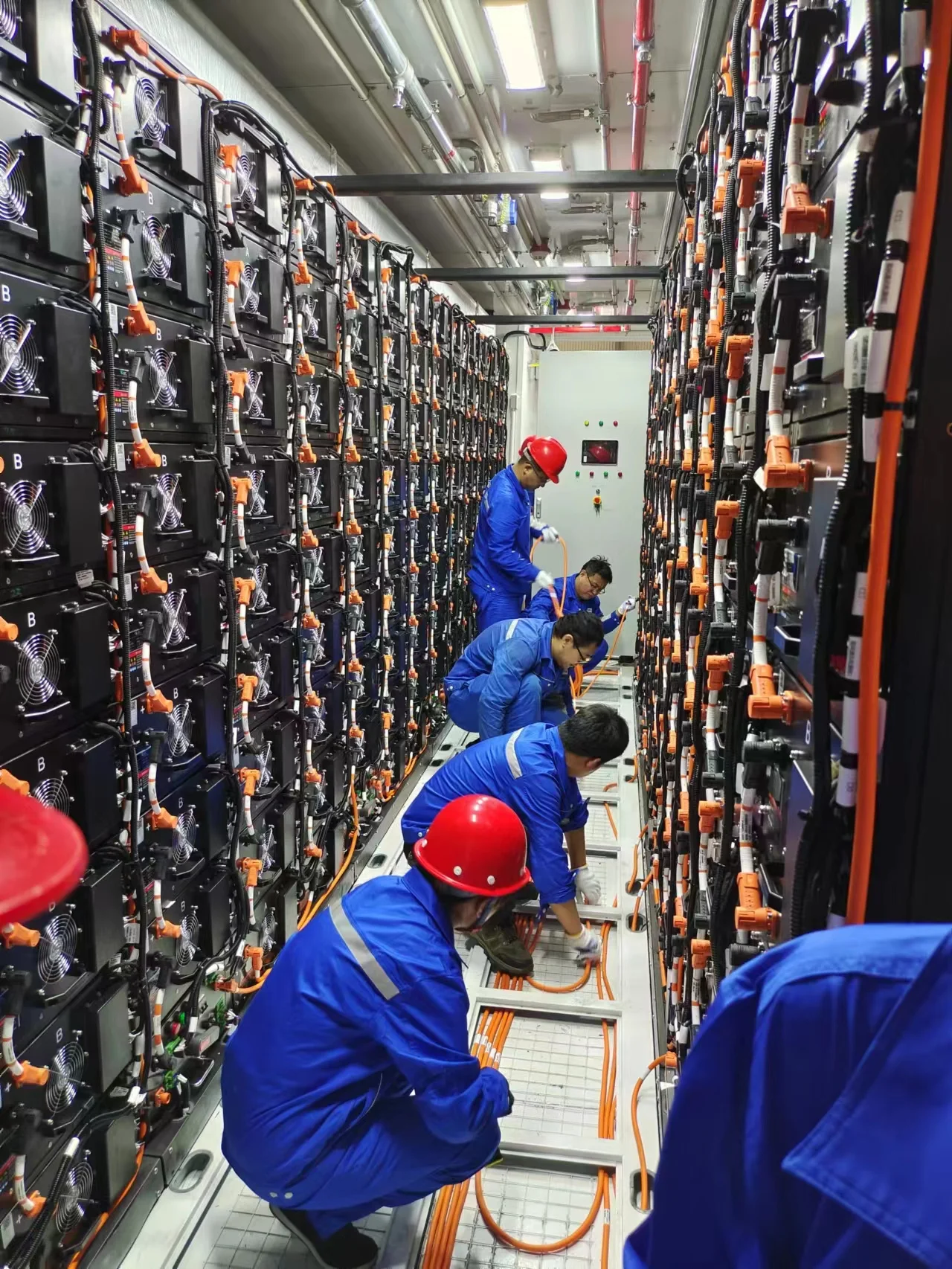

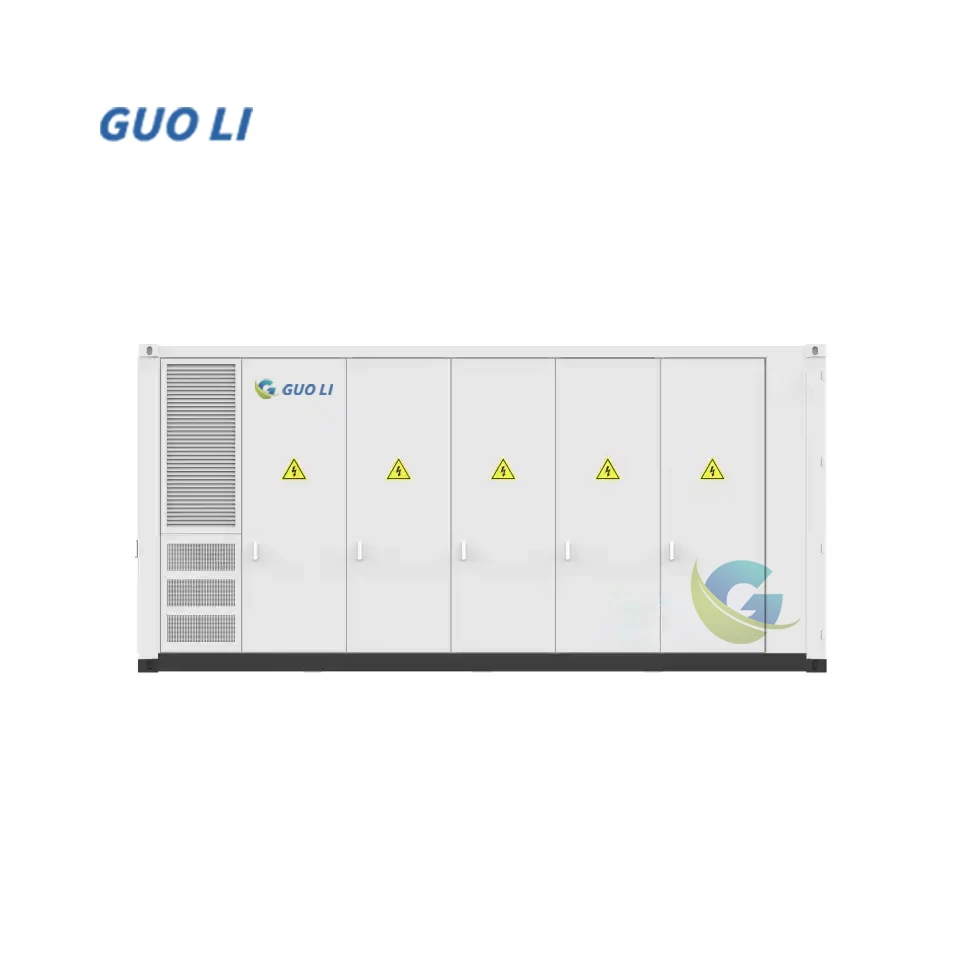

ESS Container Battery
Our containerised energy storage system (BESS) is the perfect solution for large-scale energy storage projects. The energy storage containers can be used in the integration of various storage technologies and for different purposes.


Title goes here.

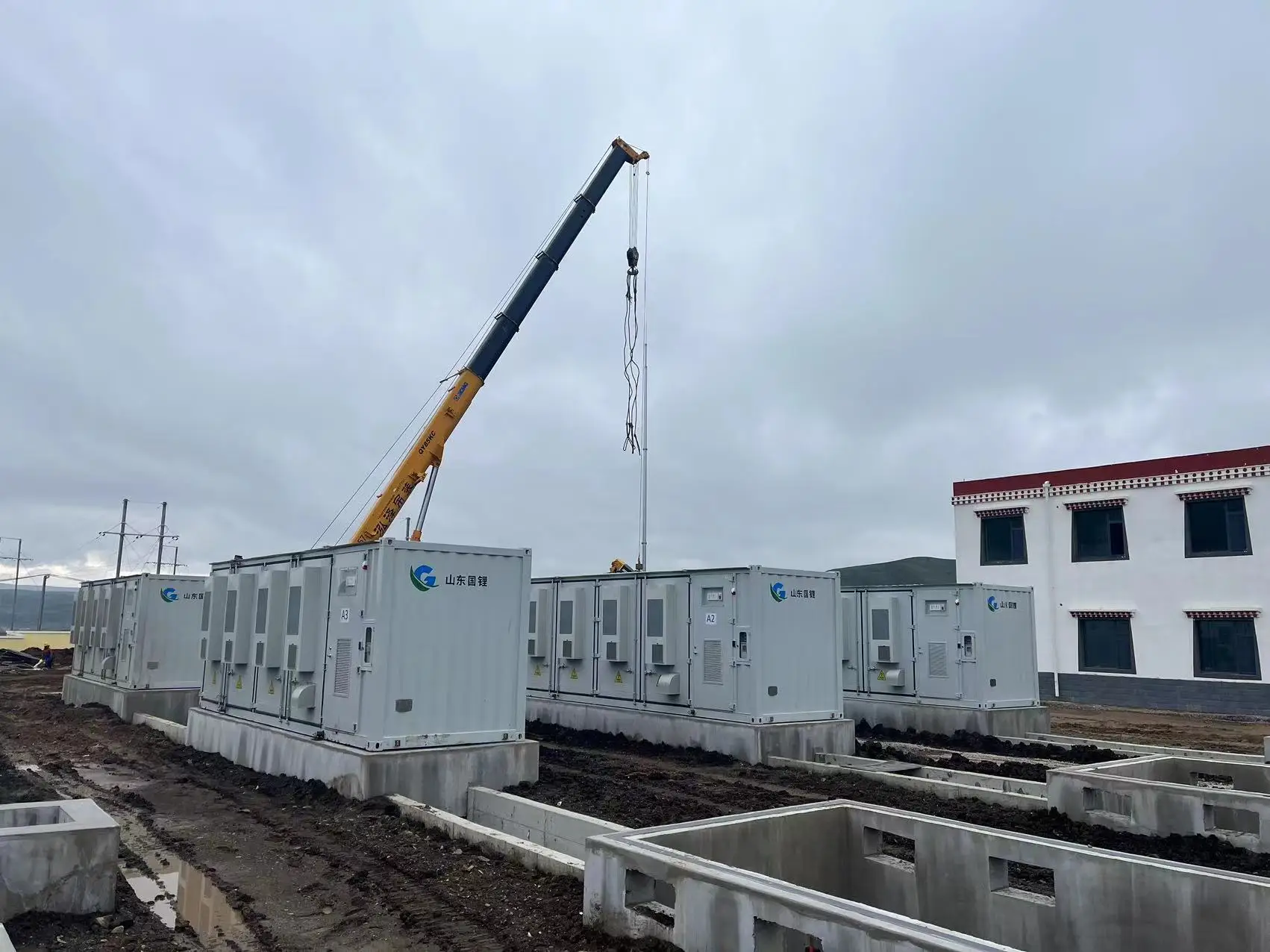

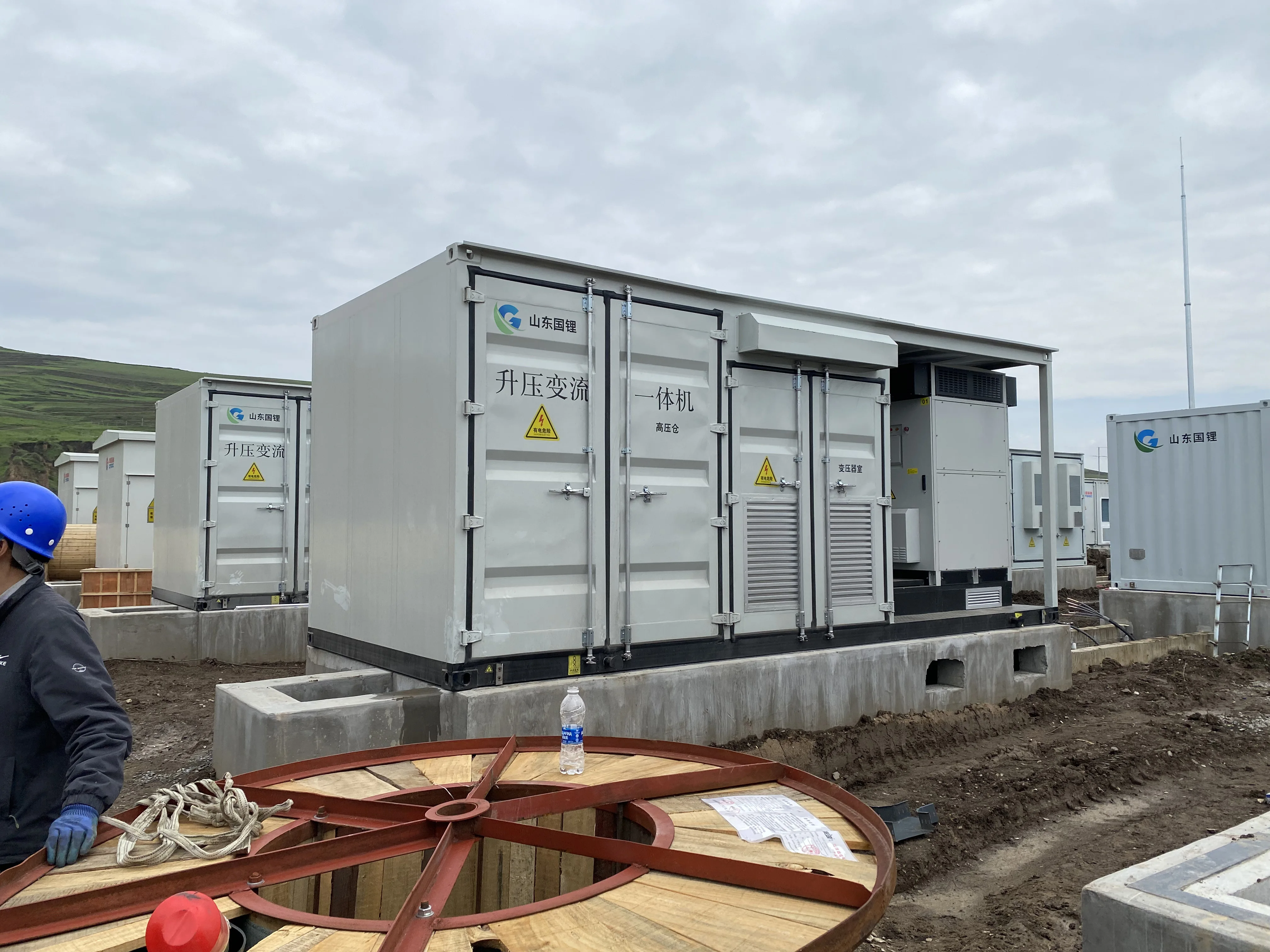

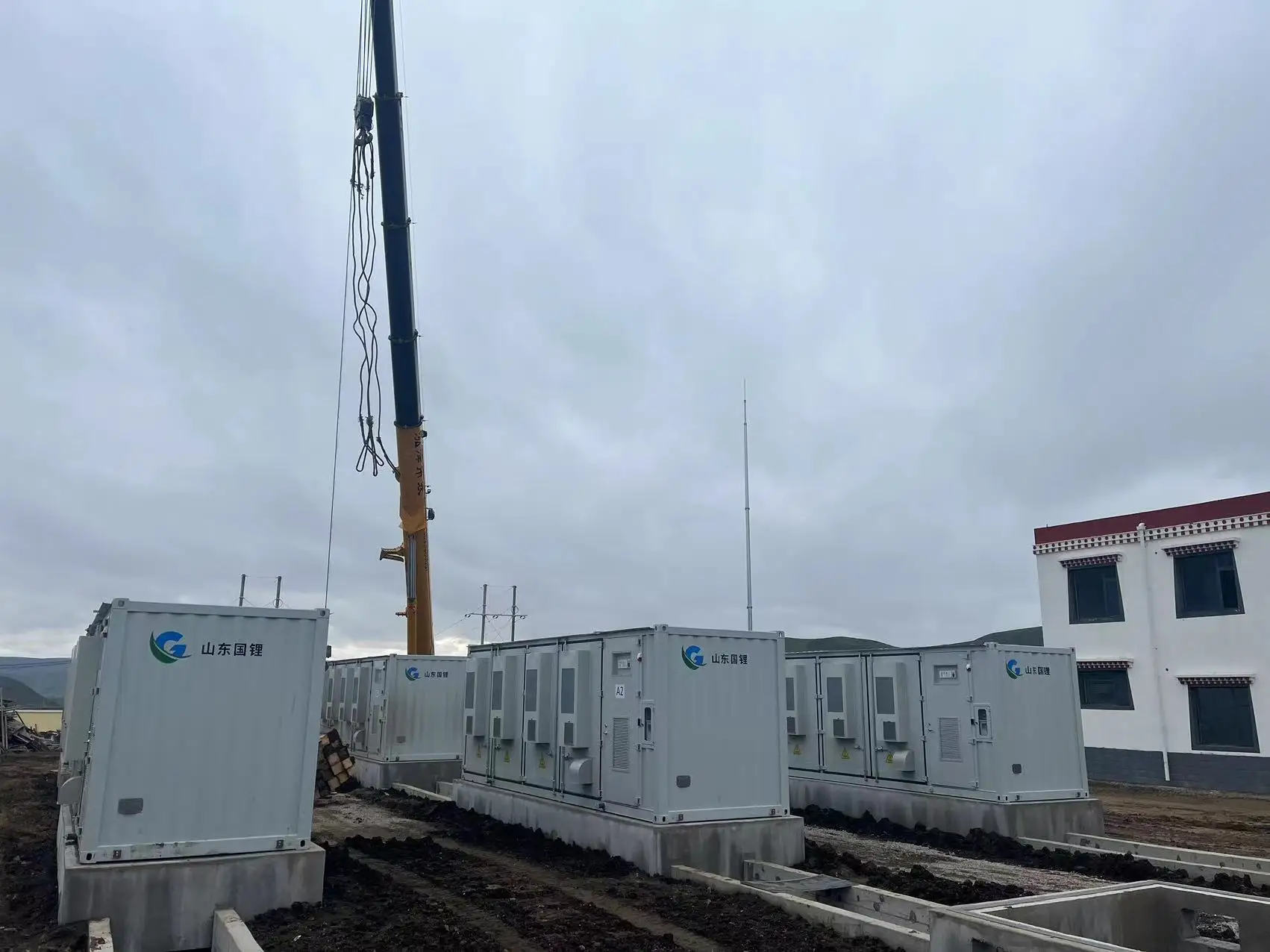

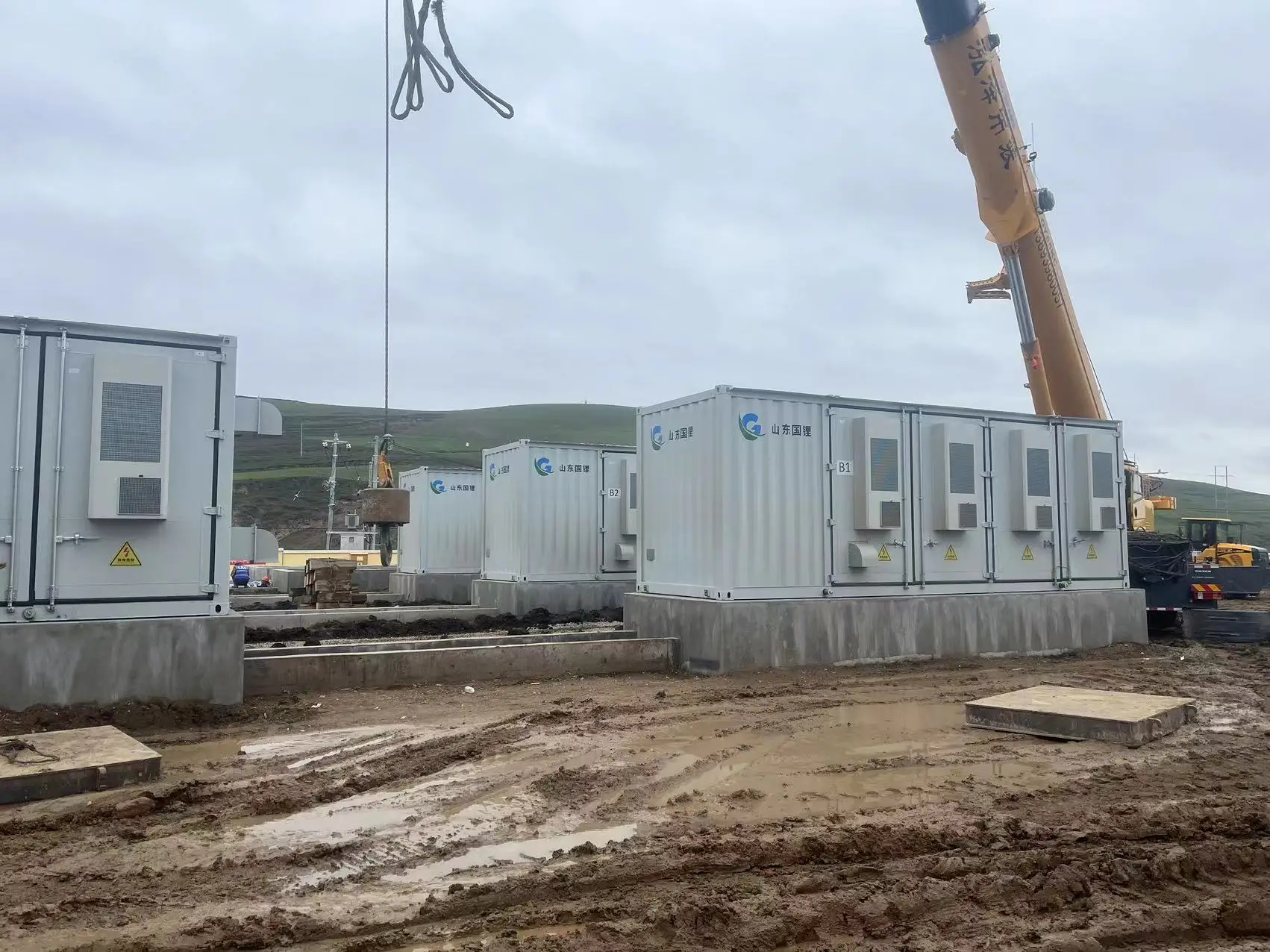

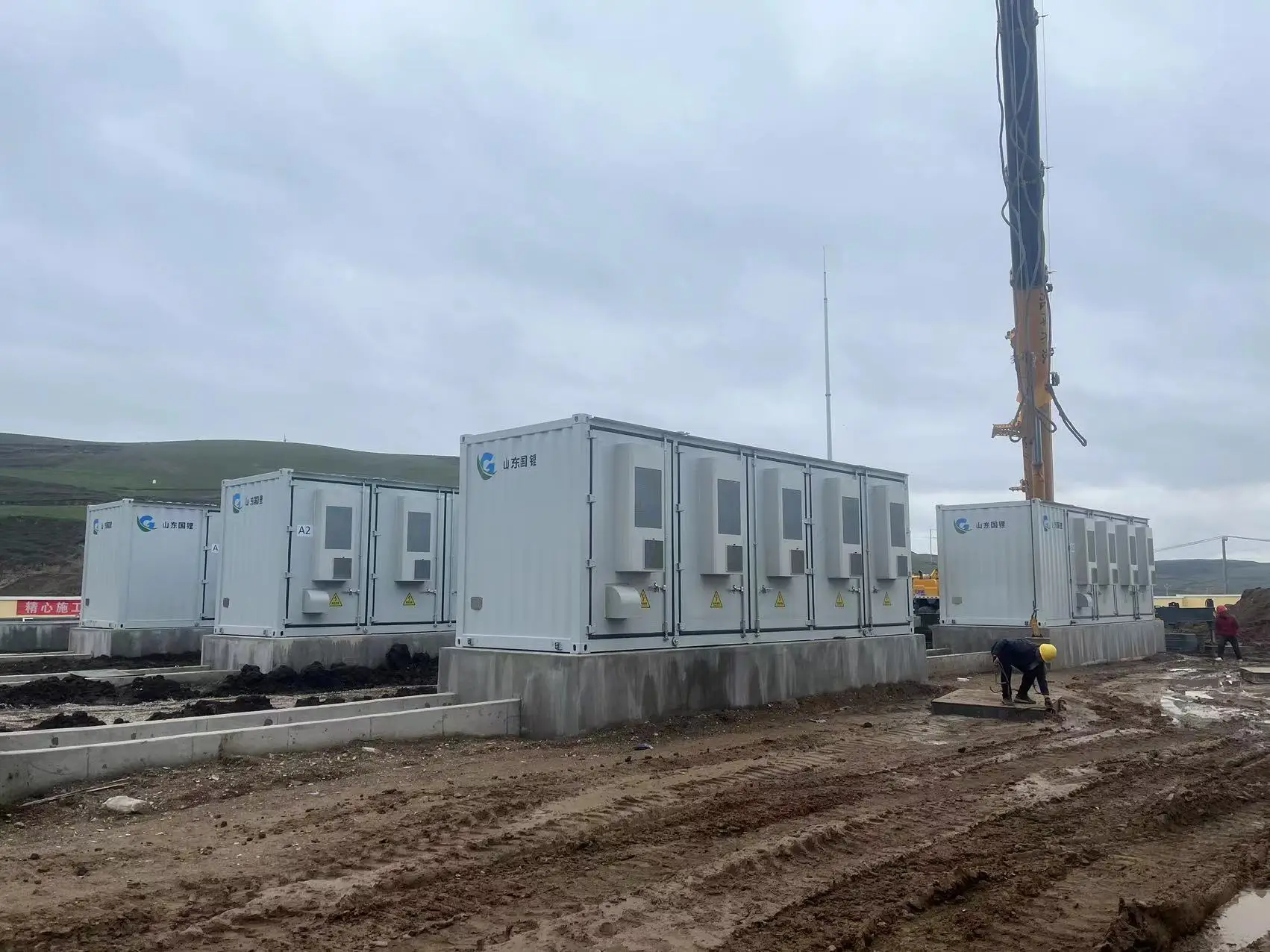

Our Projects




Title goes here.

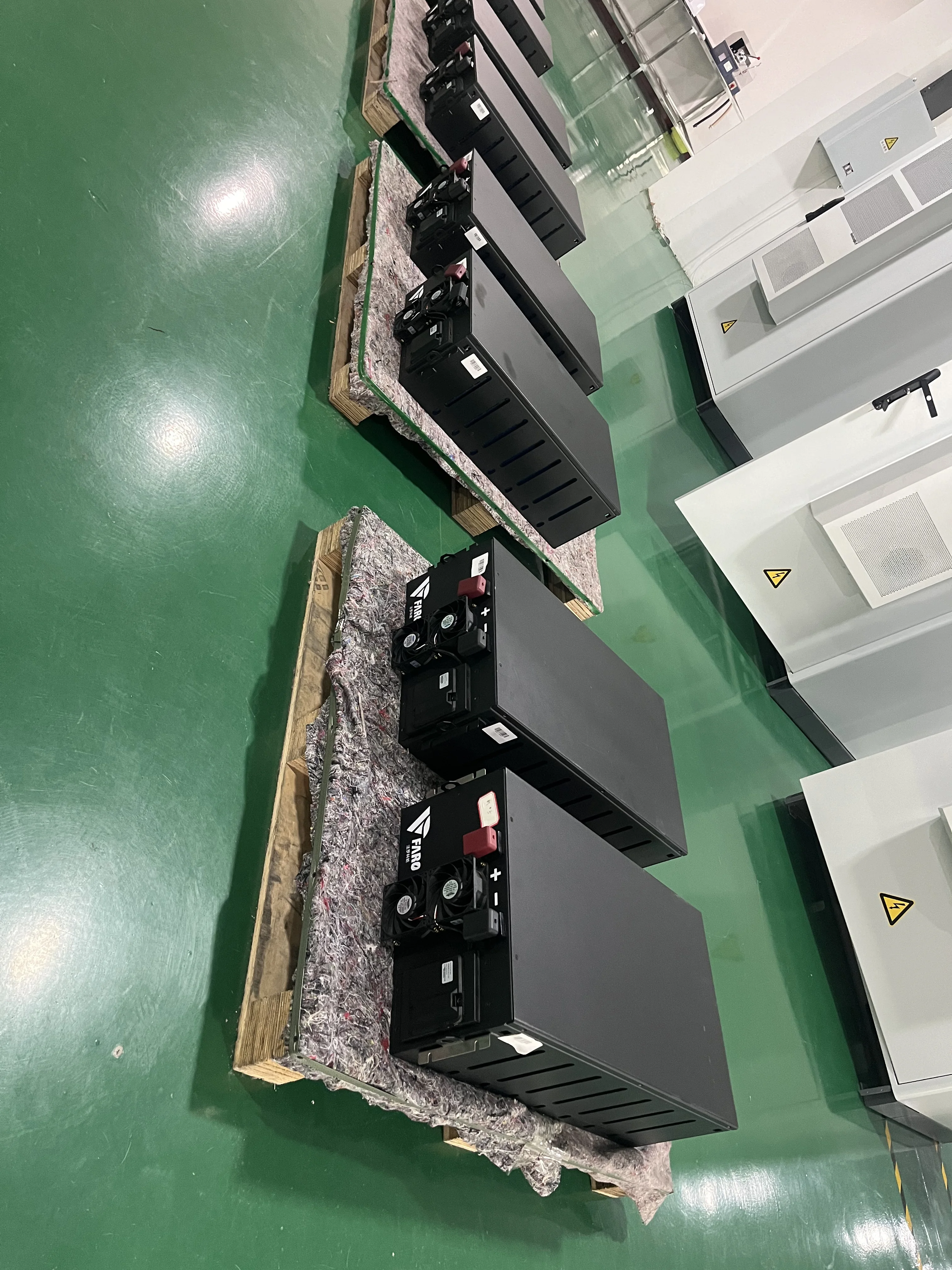

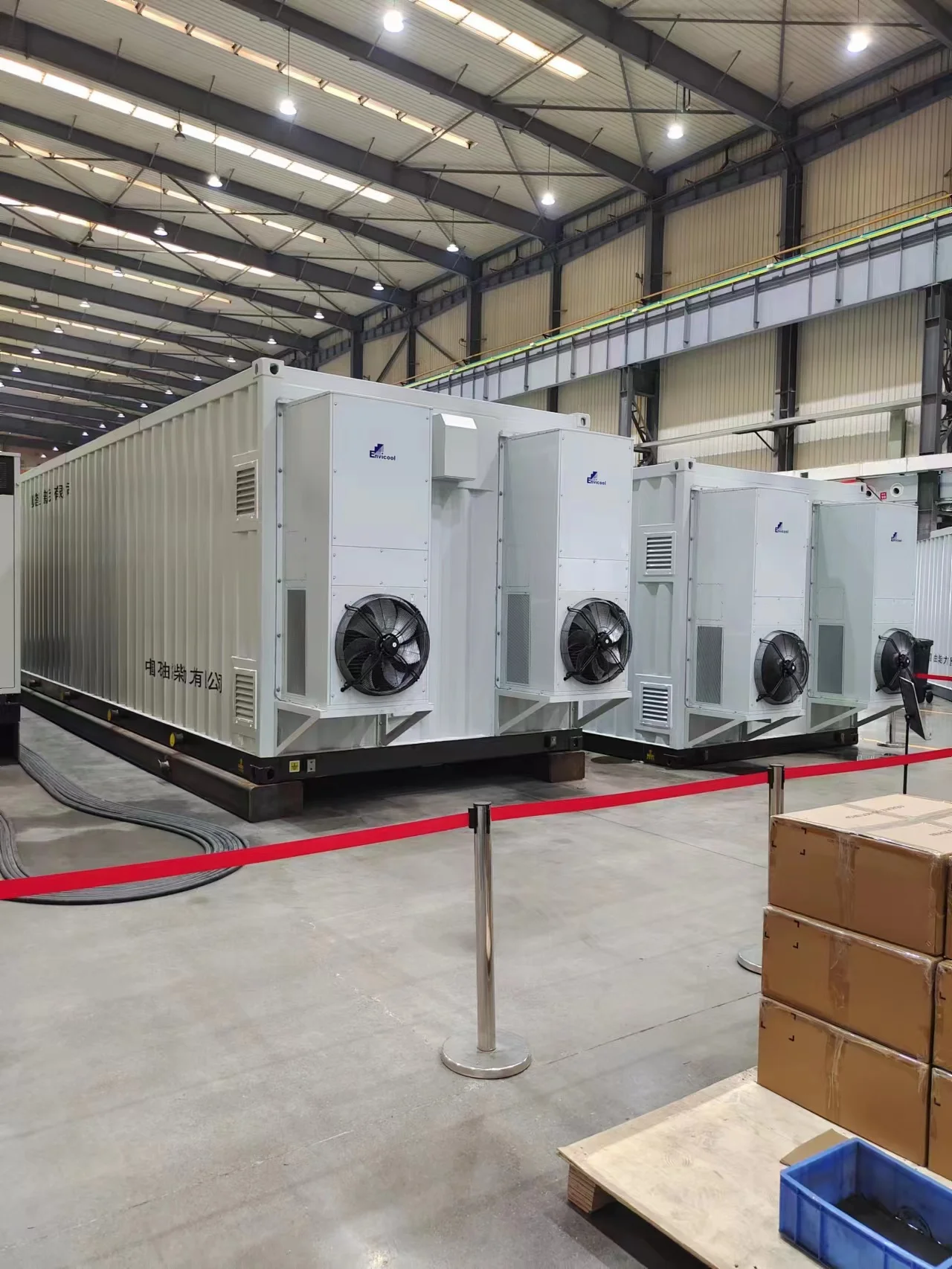

Our Factory
