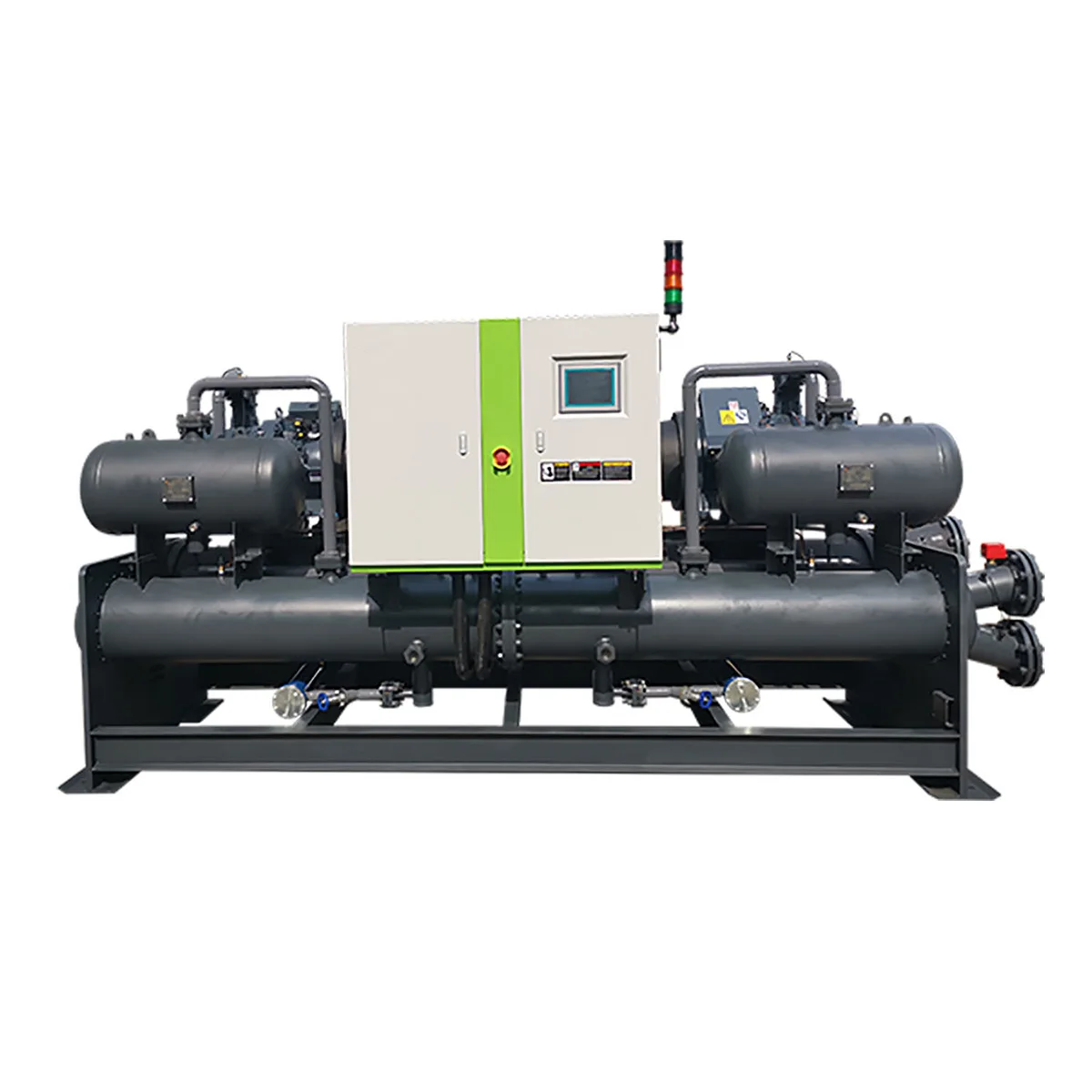

Water cooled scroll chiller High efficient

Product Overview

Description

Features:
Chassis sheet metal: The casing is designed using 3D software. The overall style is a European-style combined detachable structure. The surface is sprayed with polyester powder paint, which is beautiful and elegant, with strong color fastness and corrosion resistance.

System components: This machine adopts international famous brand intelligent fully enclosed scroll refrigeration compressor and refrigeration unit components. Matching efficient and optimized special heat exchanger components. Combined with excellent system design and high-precision assembly technology, the unit's energy efficiency can be fully utilized.

Finned condenser: 1. The wind side heat exchanger is made of copper tubes and hydrophilic corrugated aluminum foil that are mechanically tightly expanded. It has high heat exchange effect and low wind resistance coefficient. 2. The economical unit adopts high-efficiency micro-channel all-aluminum heat exchanger with high heat transfer coefficient; two options are available.



Shell-and-tube evaporator: The heat exchanger is self-made using the latest CAD/CAM design and processing technology and cooperates with the CNC machining center. The water baffle is specially processed to increase the turbulence effect of the circuitous flow of chilled water. The evaporator inlet design makes the refrigerant distribution in each exchanger tube more even, the heat transfer effect is more prominent, and the energy efficiency ratio is higher. The shell is available in stainless steel/carbon steel/PP plastic, etc. The core material is copper tube/304 stainless steel tube/pure titanium tube/316L stainless steel tube/aluminum brass tube/nickel-white copper tube/etc., which can also be used 304/316 stainless steel coil evaporator, various styles to choose from!



External rotor axial flow fan: It adopts domestic famous brand products. The fan is an all-aluminum shell copper core low-speed motor matched with a large elevation angle multi-blade structure. It has many advantages such as large air volume, high static pressure, low noise, maintenance-free, and long life. In cold areas, automatic control devices can be installed as needed!



Electrical components: Electrical components and contactors are all from world-famous brands, and the temperature control unit adopts a professional high-precision liquid crystal temperature controller with complete protection functions to ensure long-term stable and reliable operation of the unit.

Fluid components: Optional international famous brand pipeline pumps, high-quality SUS/304 stainless steel water storage tanks, stainless steel pipes with strict control of the assembly process, no leakage.

Comprehensive safety protection makes the unit operation more reliable:
1. High and low pressure protection and over-temperature protection of the refrigeration system.
2. Soft and hard dual protection for compressor overload.
3. Power supply phase loss, reverse phase, under voltage and over voltage protection.
4. Anti-icing protection, lack of water flow protection, etc. of the waterway system.

Tailor-made: Special models can be customized according to different usage conditions in various industries. For example: the overall dimensions of the model, the refrigerants used by the unit include: pure water, ethylene glycol solution, salt water solution, acid solution, alkali solution, electroplating bath liquid, hydraulic oil, sea water, etc.), the unit outlet water flow/pressure, etc. Designed and manufactured according to actual use requirements. The outlet water temperature of the unit ranges from -40℃ to 30℃, with a wide range of models available to choose from, which can fully meet the various needs of customers.

Unit cooling is widely used in: plastics, injection molding, extrusion, hydraulic equipment, ordinary aluminum anodizing, hard aluminum anodizing, electroplating, foaming molds, bottle blowing machines laminating machines, leather embossing machines, composite flooring, biotechnology Food, chemical, pharmaceutical, electronics, mariculture and other industries.
