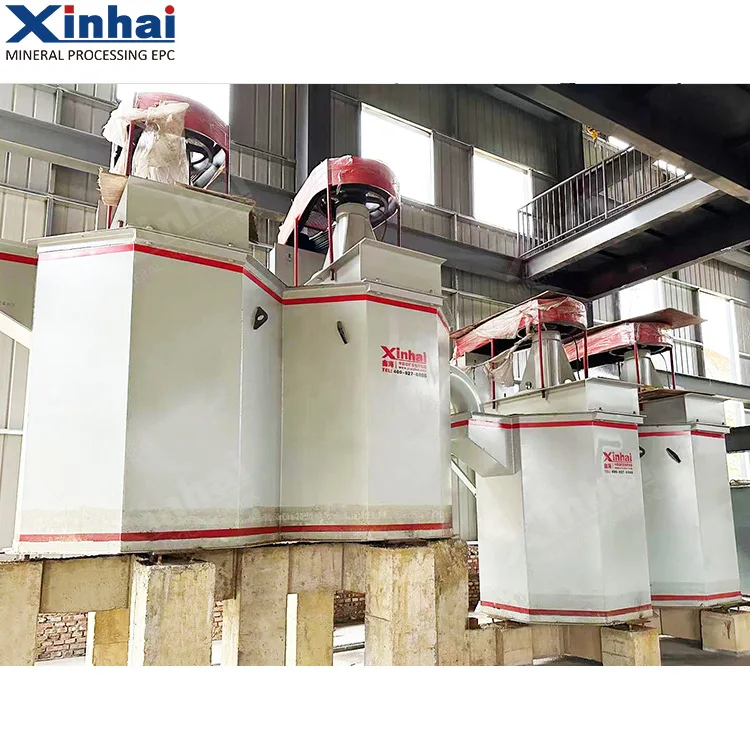

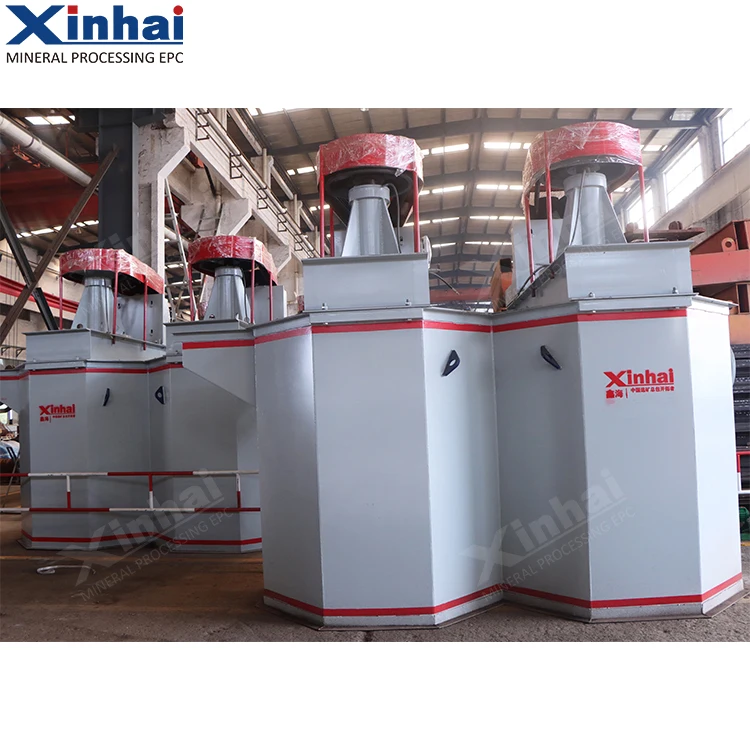

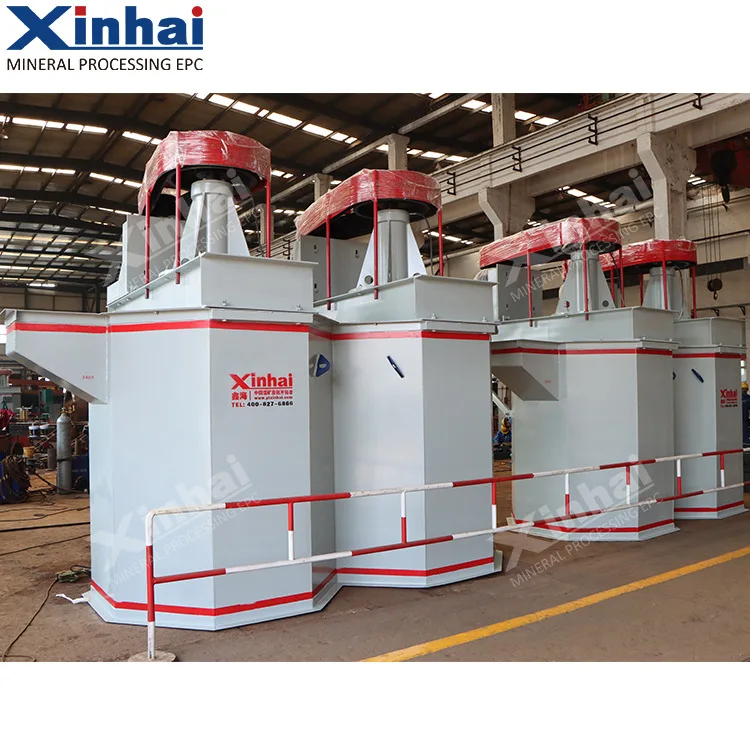

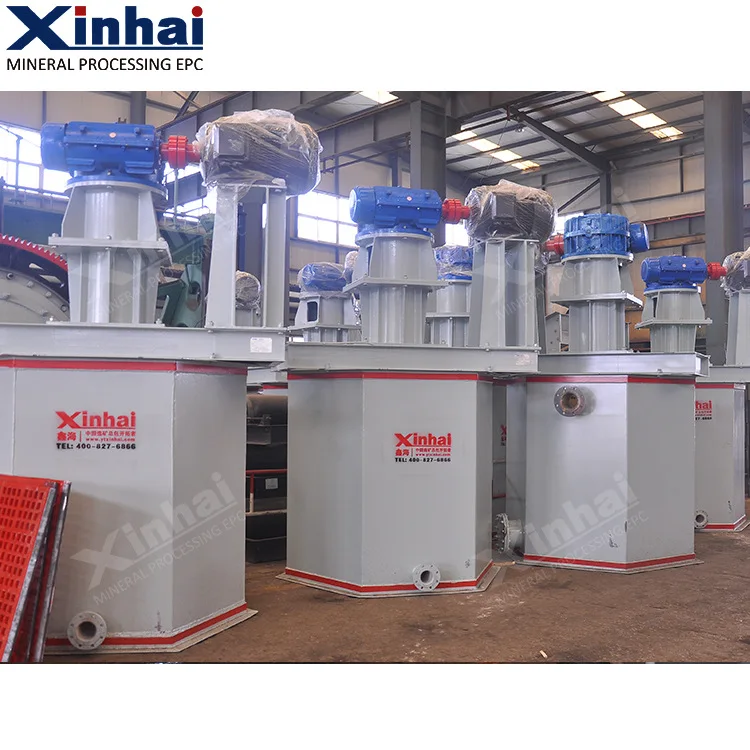

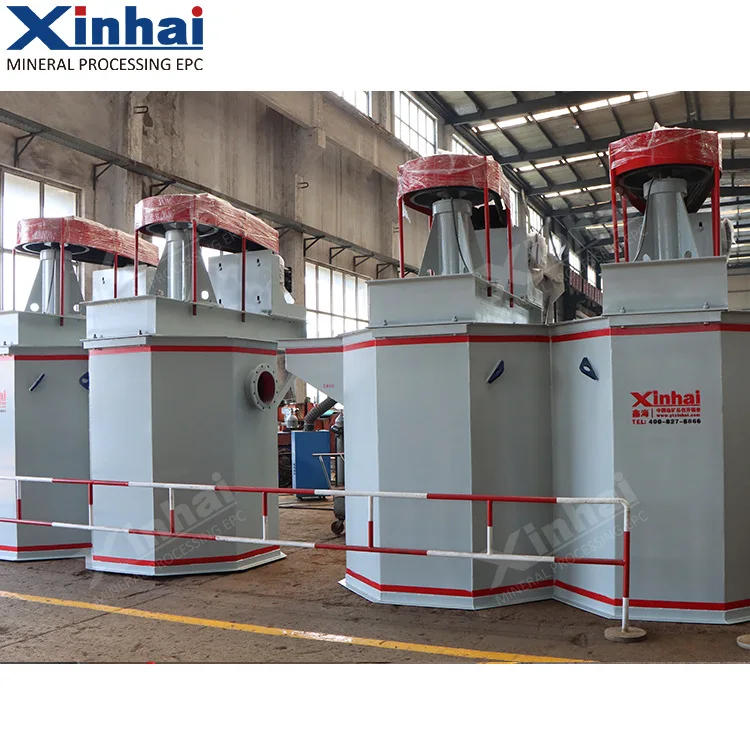

Mining Machine Attrition Scrubber Agitator Washer for Silica Sand Washing Plant
- Category: >>>
- Supplier: Shandong Xinhai Mining Technology & Equipment Inc.
Share on (1601004518858):
Product Overview
Description
Note!!! The current price is not the actual price, the specific price is subject to the sales quotation.
Product Description
Scrubber Washer---Product Description
[Introduction]: A mineral scrubber used for dispersing the mineral mud, removing and washing the impurities on mineral surface.
[Capacity]: 1.5-4.4m3
[Improvement]: The blade, shaft and tank of high-efficiency agitator washer are lined with Xinhai wear-resistant rubber, which is easy to resist the material impact and abrasion, has long service life and low failure rate.
[Capacity]: 1.5-4.4m3
[Improvement]: The blade, shaft and tank of high-efficiency agitator washer are lined with Xinhai wear-resistant rubber, which is easy to resist the material impact and abrasion, has long service life and low failure rate.
Product Advantages
Scrubber Washer---Product Advantages
01 Compact structure and small floor space;
02 The spindle rotates at high speed, which drives the impeller to scrub the material with a high scrubbing effect;
03 The blade, shaft and tank are lined with Xinhai wear-resistant rubber.
02 The spindle rotates at high speed, which drives the impeller to scrub the material with a high scrubbing effect;
03 The blade, shaft and tank are lined with Xinhai wear-resistant rubber.
Product Structure
Scrubber Washer---Product Structure

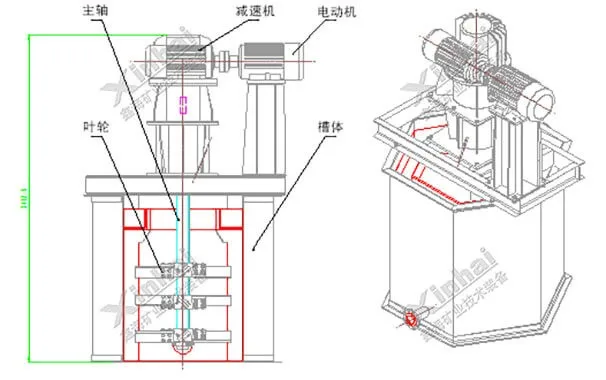

Xinhai high-efficiency agitator washer is mainly composed of the motor, reducer, spindle, upper, middle and lower impeller, tank.The motor drives the rubber impeller with a three-layer special design on the main shaft to rotate through the hardened reducer,which can scrub the material forcefully. The tank body is in the shape of six edges and lined with Xinhai wear-resistant rubber.
Technical Parameters
Model | Effective volume(m3) | Shape | Impeller | Motor | Weight(kg) | ||||||
Diameter(mm) | Rotate speed(r/min) | Model | Power(kW) | Rotate speed(r/min) | |||||||
GJC×1.5 | 1.5 | Six-party body | φ750 | 197 | Y200L-4 | 30 | 1480 | 1469 | |||
GJC×2.8 | 2.8 | φ1000 | 148 | Y250M-4 | 55 | 4030 | |||||
GJC×4.4 | 4.4 | φ1000 | Y280S-4 | 75 | 6200 | ||||||
