Product Overview
Description
Product Description

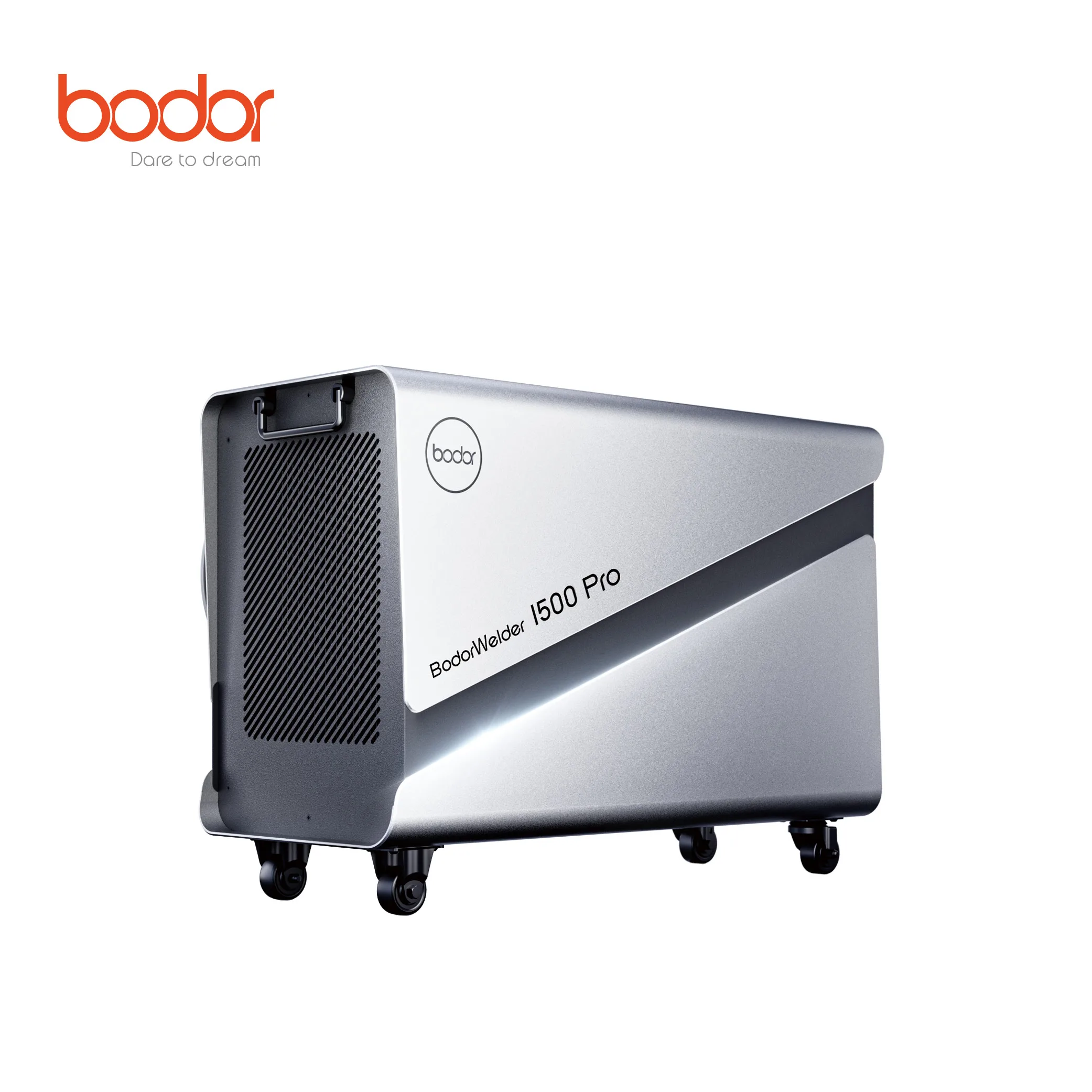

BodorWelder 1500 The Handheld Laser Welding Machine
Bring your welding projects to the next level. With BodorWelder 1500 Pro, you can produce quality welds easily. Thanks to its durability, BodorWelder 1500 Pro is ideal for operations at different workspaces. From prototypes to large-scale production, this machine shows its excellence across the board.

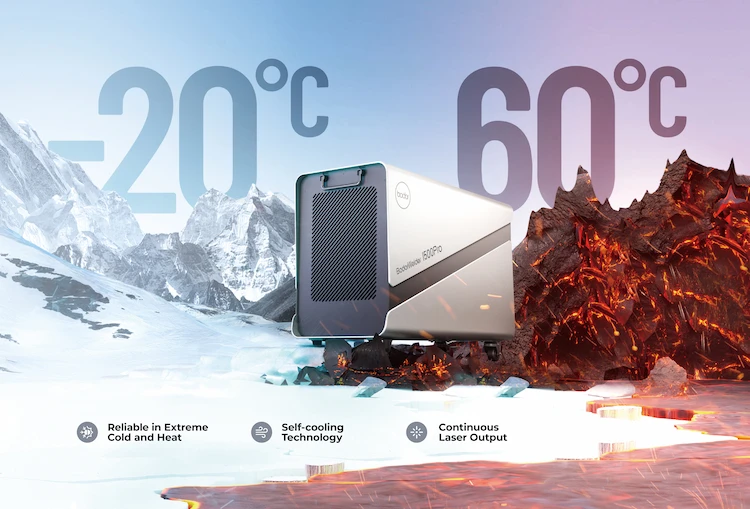

Reliable in extreme cold and heat
As a strong indicator of its durability, BodorWelder 1500 is able to maintain stable performance in -20℃- 60℃ and in up to 90% relative humidity levels under rigorous laboratory conditions. It as well keeps consistent welding quality across a diverse range of welding metal pieces.

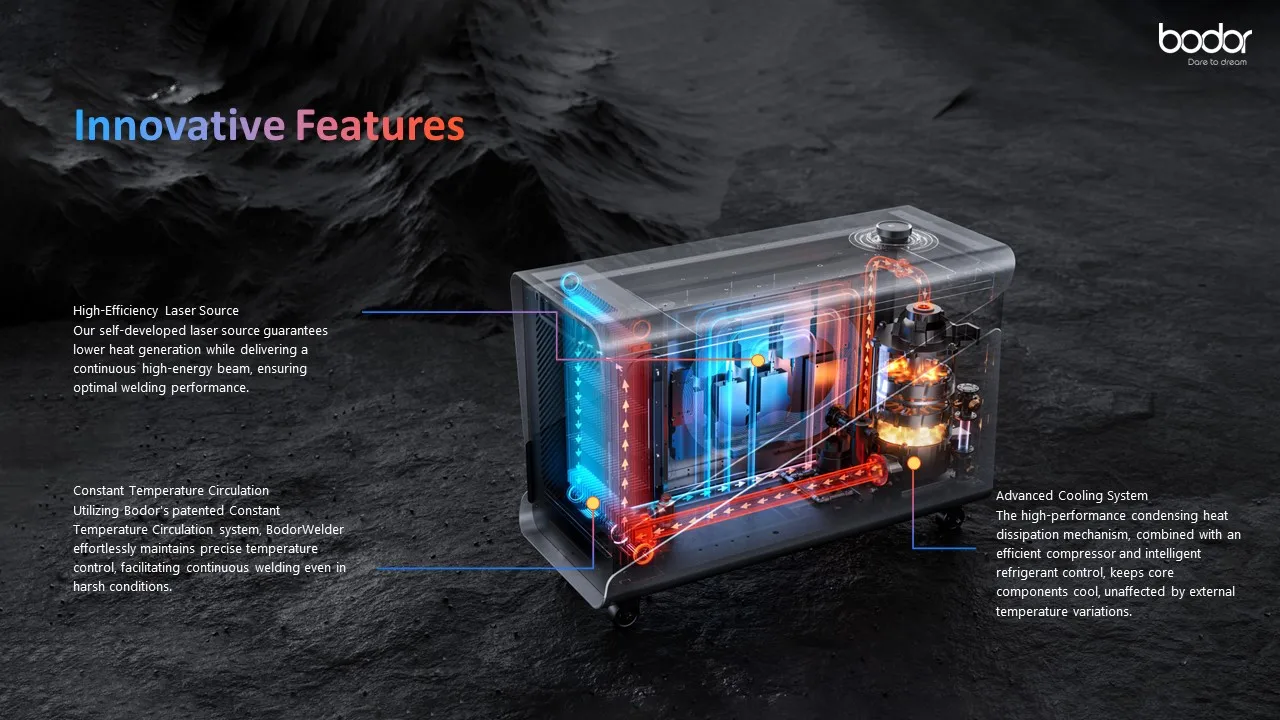

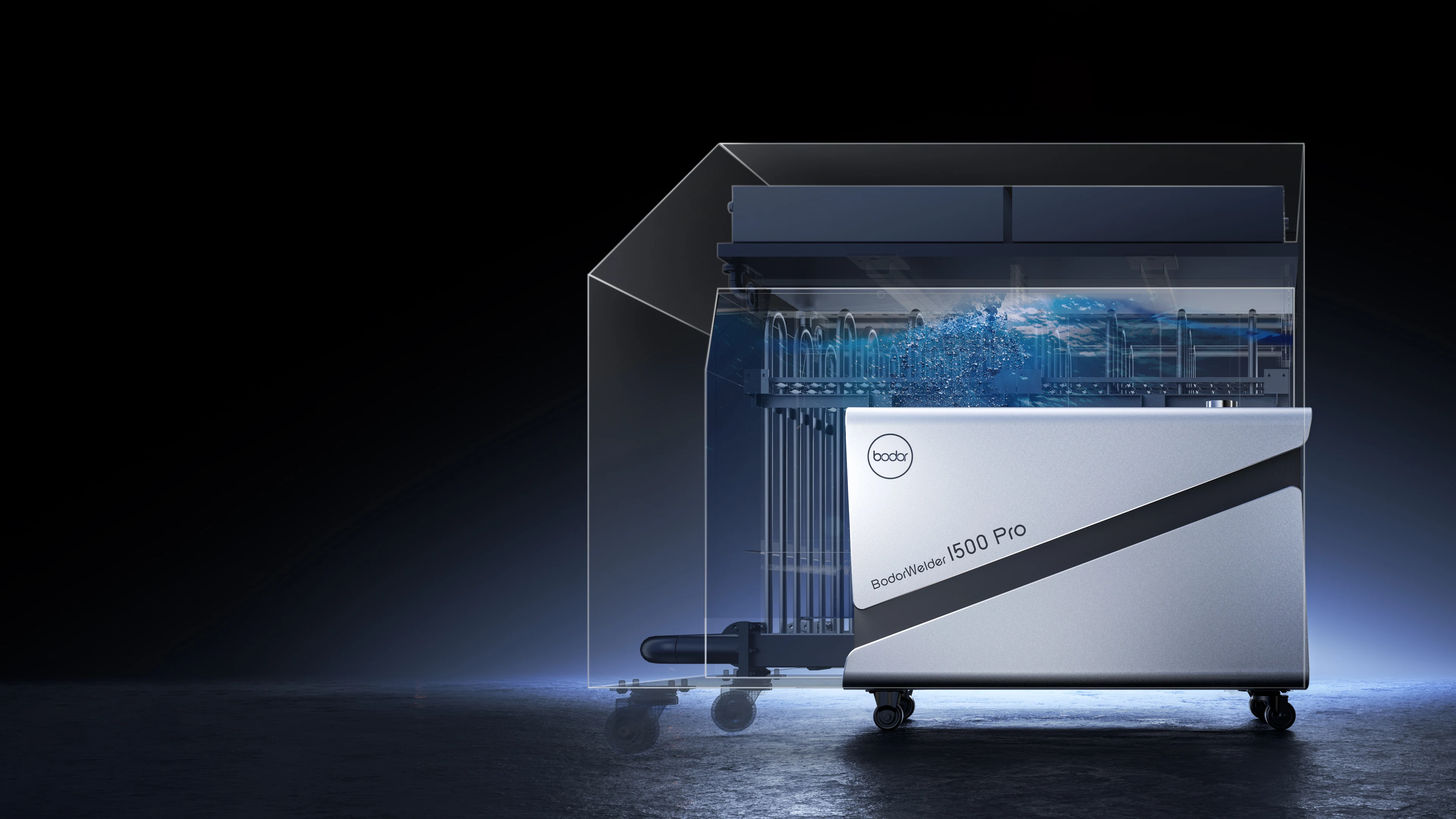

Self-cooling feature
The key to self-cooling comes from Bodor’s technology of Constant Temperature Circulation. The recyclable refrigerant absorbs excessive heat within the system, transferring the heat out via the heat sink. This ability to withhold temperature variations and high humidity is backed up by laboratory testing for over 10,000 hours.

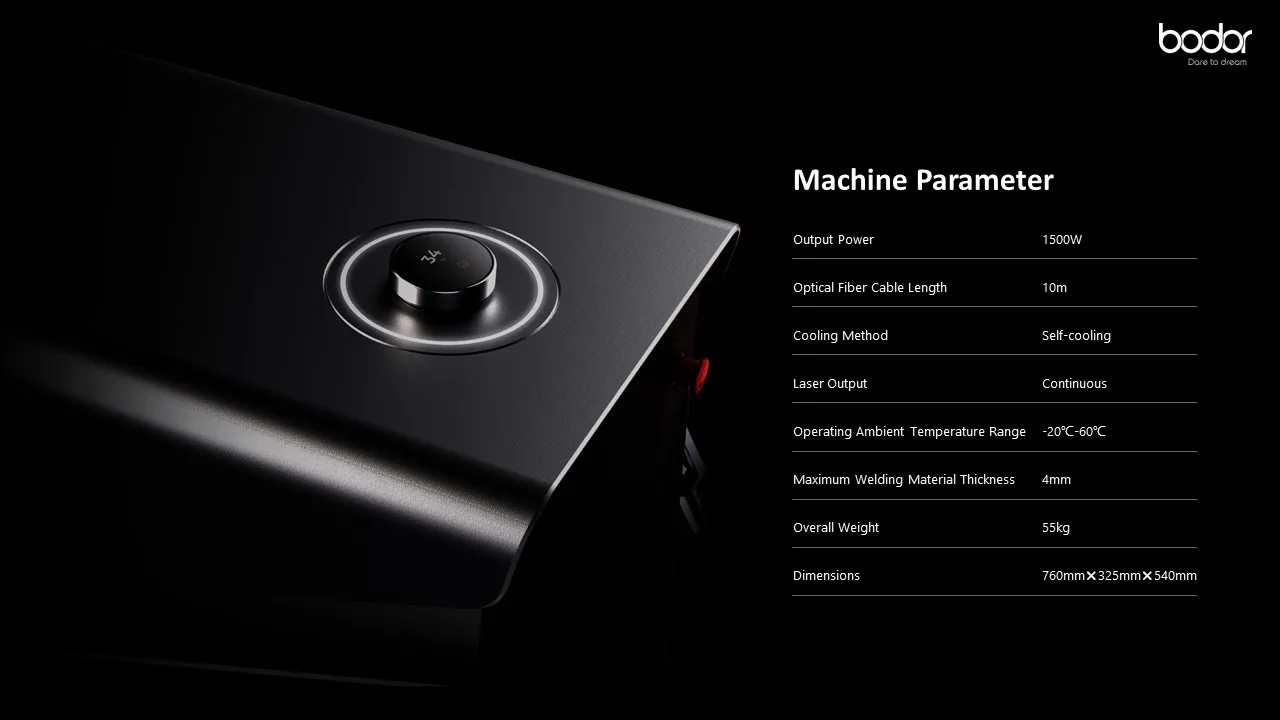

Specification
Output Power | 1500W |
Optical Fiber Cable Length | 10m |
Cooling Method | Self-cooling |
Laser Output | Continuous |
Operating Ambient Temperature Range | -20℃-60℃ |
Maximum Welding Material Thickness | 4mm |
Overall Weight | 55kg |
Dimensions | 760mm×325mm×540mm |
Features & Enhancements
Intelligent welding process support
Give your welding process additional drive with intelligent functions. The Bodor Welding Process Database incorporates welding parameters for steel from 1 to 4 mm in terms of flat welds and fillet welds. Working as a beginner’s guide, it allows users with different levels of expertise to weld effortlessly.

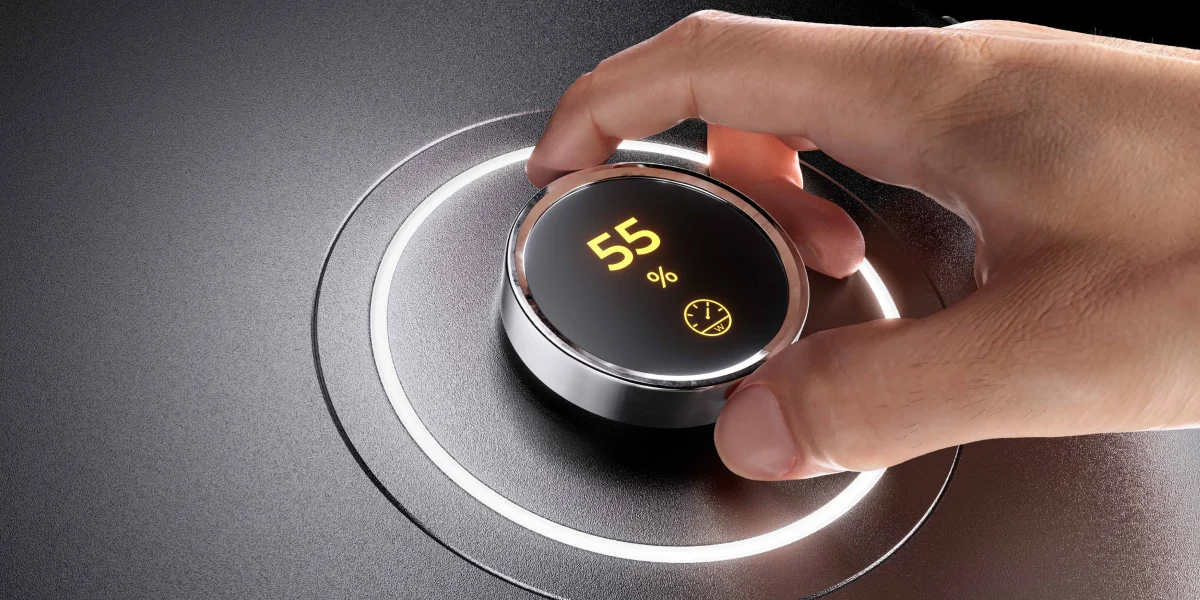

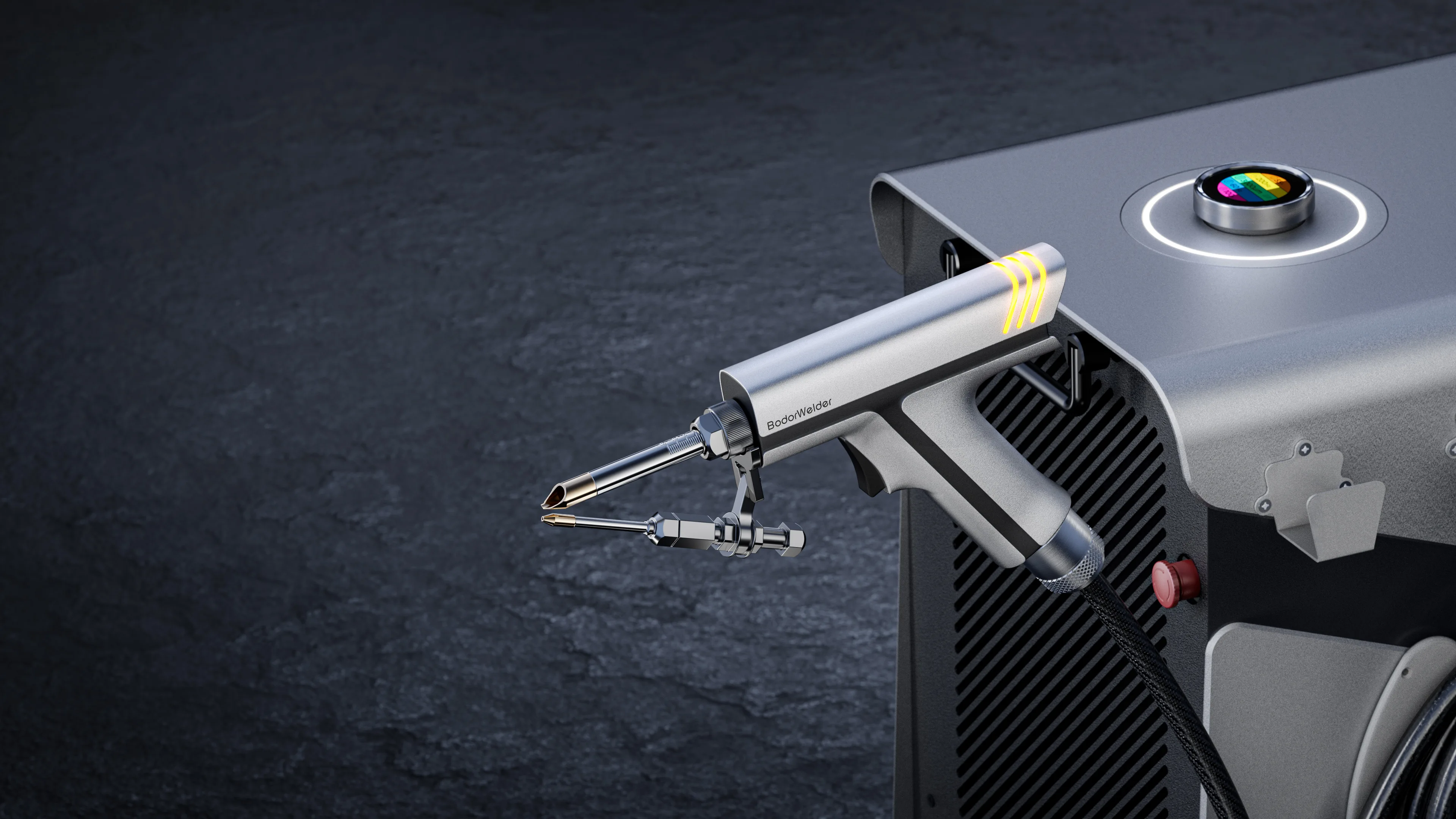

Smart control knob
The control knob is easy to navigate. Users are able to manage their welding solutions in one setting. They can select welding process and adjust welding parameters (e.g. power, weld bead width, frequency, etc) , and the knob will automatically store customized parameters for their operations in the future.
Portable design, integrated power structure
Without built-in water tanks or cooling fans, BodorWelder 1500 takes up a covering area of 0.24㎡. This compact machine aims to help users with complex welding jobs in diverse working scenarios. It also comes with a set of Bodor welding nozzles, fulfilling all kinds of requirements.
Applicable Industries
Sheet metal
The future of sheet metal processing relies on intelligent production. Let BodorWelder 1500 take care of your sheet metal welding project with intuitive operation.
Medical devices

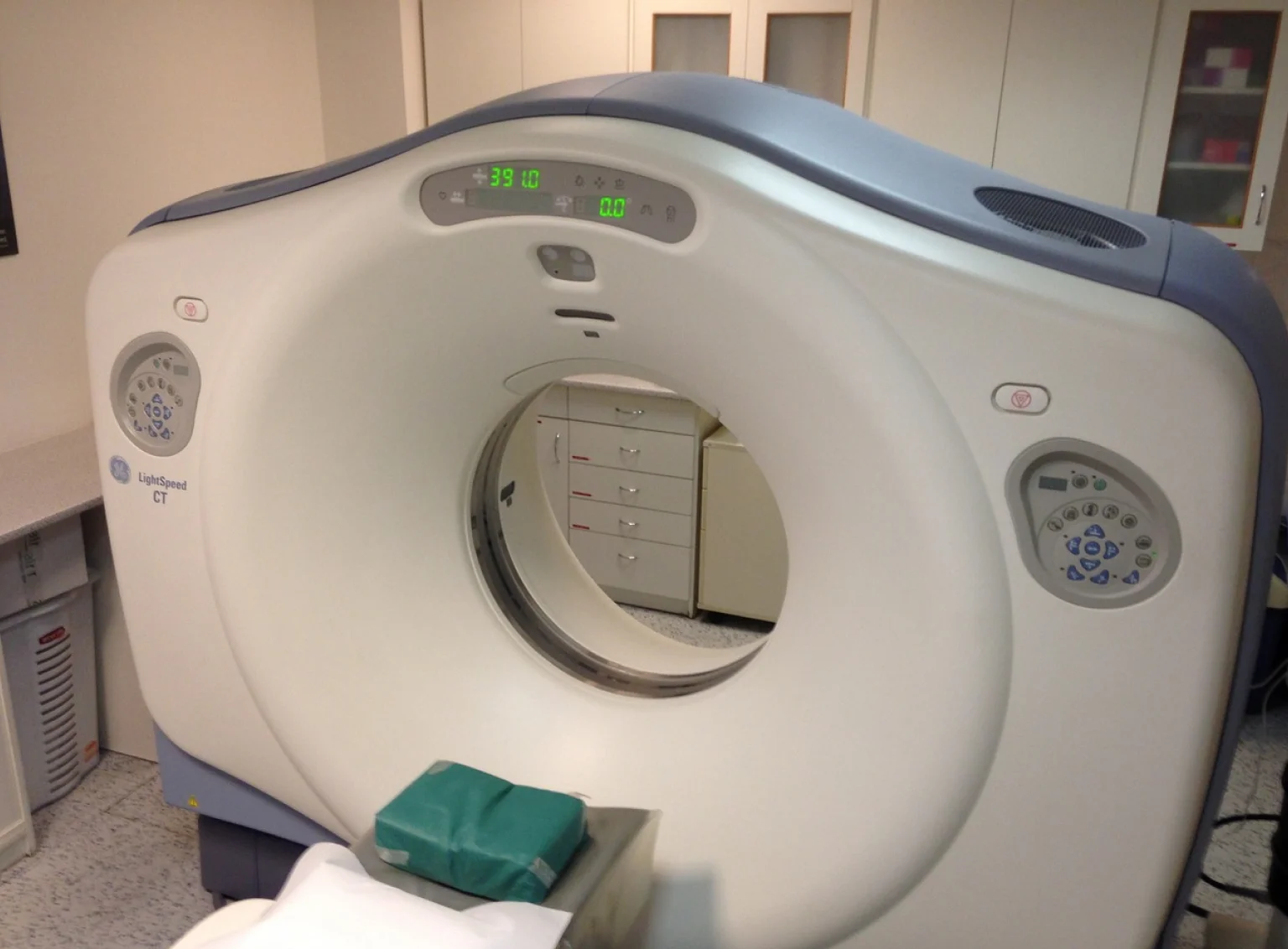

Welding with extreme delicacy, BodorWelder 1500 brings excellence to the production of medical devices, such as syringes, pacemakers, ultrasound, and CT scanners.
Vehicles
Whether it is automobiles or freight trucks, BodorWelder 1500 offers tailor-made solutions for the automotive industry. It is
applicable in particular to the manufacturing of sheet metal auto parts like brackets, hinges, spring seats, caps, and covers.
applicable in particular to the manufacturing of sheet metal auto parts like brackets, hinges, spring seats, caps, and covers.
After Sales Service
Offering more than 150 countries and regions
We have service stations in more than 150 countries to provide you with onsite services
Company Introduction
International Brand, European Quality, Intelligent Manufacturing in China

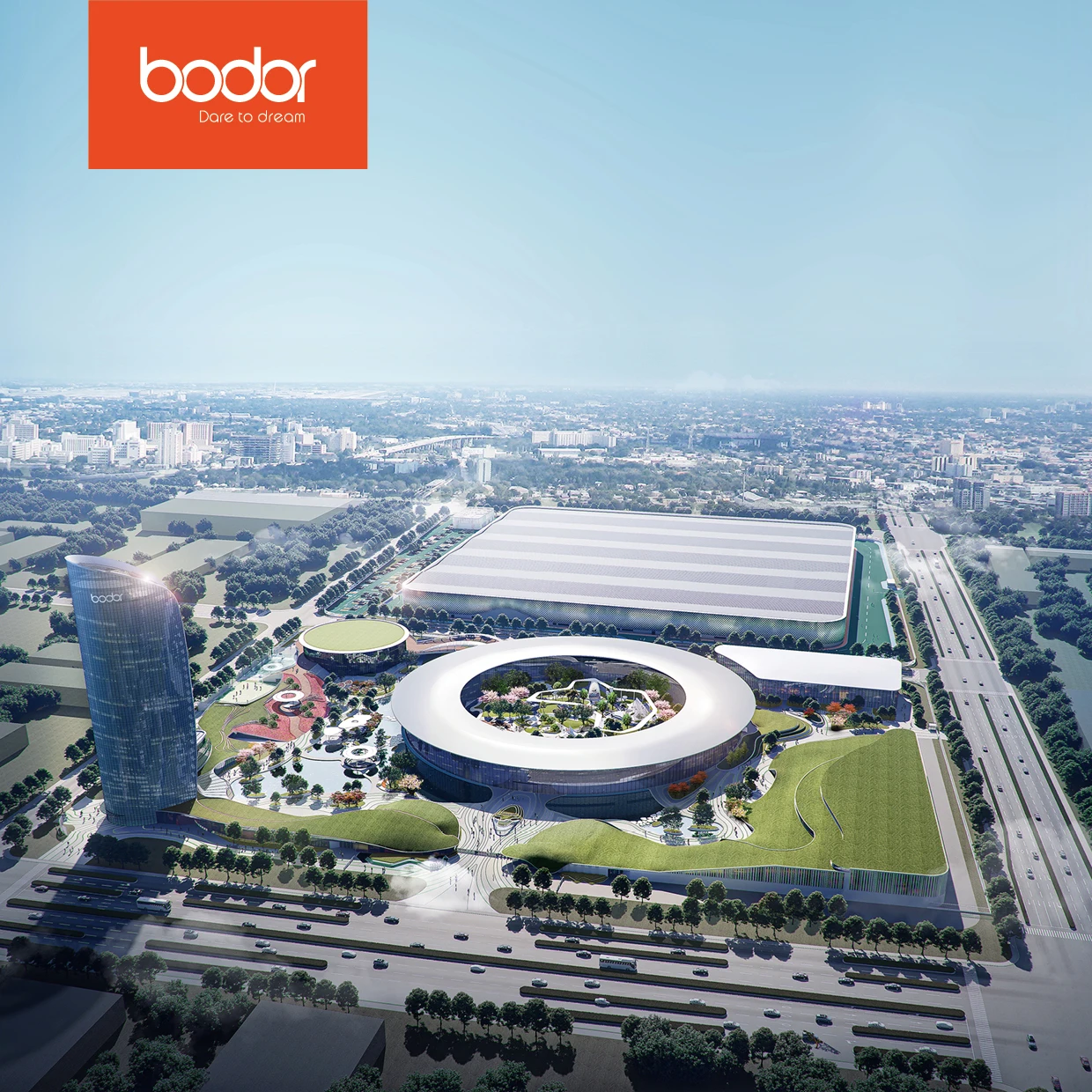

Super Factory, International Quality
The white floor & the largest monomer laser cutting equipment production workshop in the world (30,000 square meters); Production
meets the European standards and international quality control, obtains certificates such as CE/ISO9001/SGS etc.
meets the European standards and international quality control, obtains certificates such as CE/ISO9001/SGS etc.
