China river sand linear vibrating feeder with vertical vibrating conveyor

Product Overview

Description

China river sand linear vibrating feeder with vertical vibrating conveyor

     China river sand linear vibrating feeder with vertical vibrating conveyor

Summary

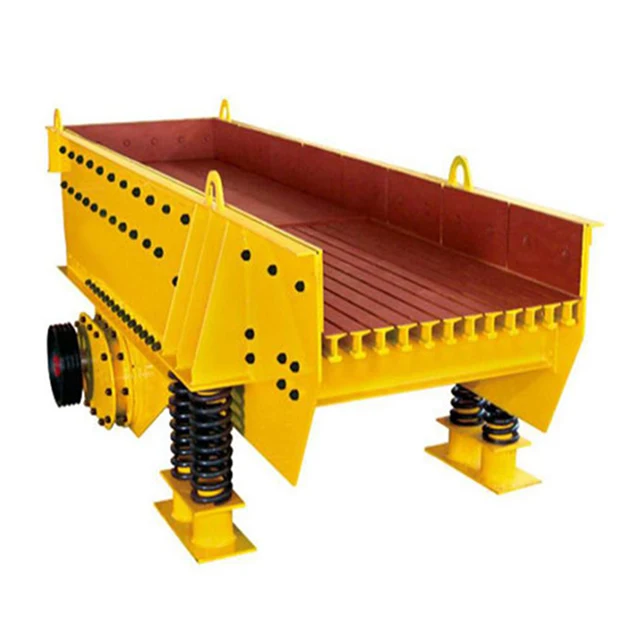

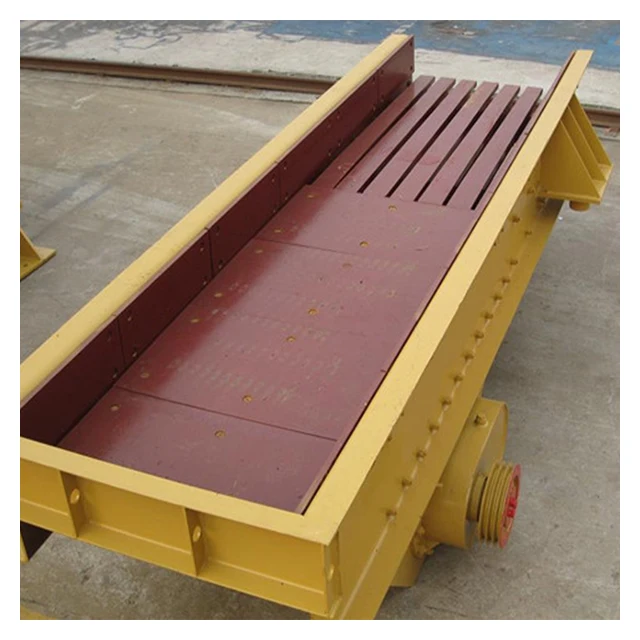

The structure is with the connection of groove rivet in the shape of frame. Shield and bars on the machine are made of manganese steel. Furthermore, the top-quality vibrator and the hard structure can stand the high-strength assault and wore. Apply to conveying of big-sized lump material to the crusher. Especially for the material like black ore, nonferrous metal ore and stone for building. During the feeding, the extra material like earth and small-sized particle can be separated under the gap between the bars. Thereby, making the crusher be with a better performance.

Through the vibration, the materials will slip and sling on the funnel, moving forward. When the materials pass the screening part, smaller parts will fall down, avoiding the further crushing, so screening purpose can be reached.





Features



1.Simple structure, convenient installation, stable vibration, stable operation, long life service, easy repair and maintenance, automatic control;
2.Adoption of double shaft vibration exciters to achieve liner vibration, simultaneous feeding and screening, improving the
utilization of the feeder, and reducing the cost;
3.Continuously and evenly feeding rock or minerals to the coarse crusher and simultaneously coarse screening of rock or minerals;
4.Adoption of frequency conversion motor to adjust the frequency and change the capacity, thus convenient to control the feeding capacity without starting up the electric motor frequently.







Product Application

Vibrating feeder is mainly used for evenly conveying the bigger size rock or minerals to the coarse crusher. It is widely used in mining, building material, coal, minerals processing plant, metallugry, chemical and abrasive industries of crushing and screening operations.

Technical Parameters

Technical Parameters
Model	Hoper Size (mm)	Max. Feeding Size	Feeding Capacity (tph)	Rotation Speed of Eccentric Speed (r/min)	Motor Power (kW)	Weight (kg)
ZSW-380x95	3800x950	500	96-160	800	11	4082
ZSW-420x110	4200x1100	580	120-240	800	15	4149
ZSW-490x960	4900x960	500	120-240	800	15	5351
ZSW-490x110	4900x1100	630	120-280	800	15	5352
ZSW-590x110	5900x1100	630	350-500	800	22	6130
ZSW-600x130	6000x1300	750	130-330	800	22	6130







About Us

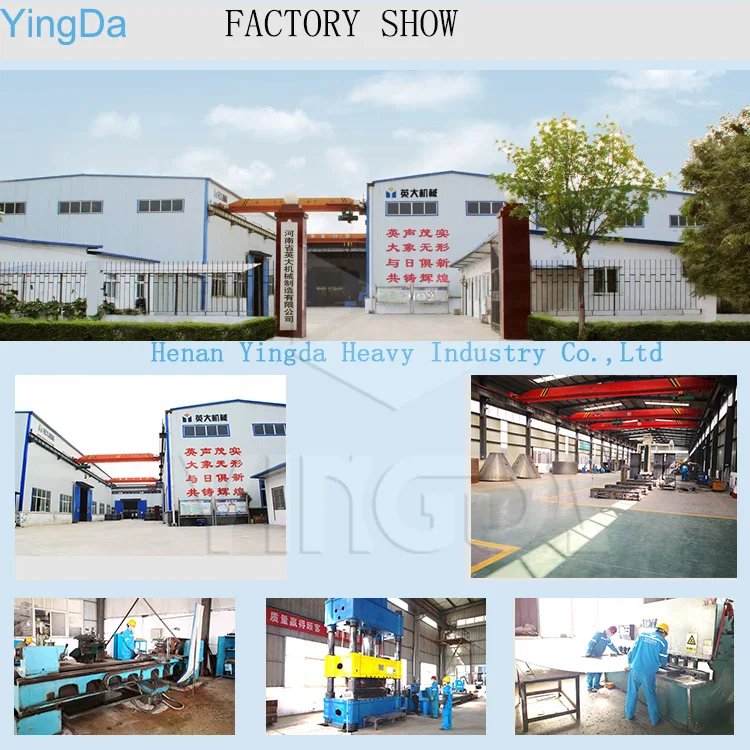

Henan Yingda Heavy Industry Co., Ltd has 22 years' experience in processing blet conveyor,bucket elevator, screw conveyor, apron feeder, scraper conveyor, dust-proof equipment, crushers,vibrating screen and so on. It is located in the main industry park of processing coveying systems of Henan, China.

We focus on importing and assimilating advanced technology wherever home and aboard, now we have adopted the technology of electrostatic power cating in processing. Also, with the development of Yingda, we have culvated a professional selling group,more than 10 people technical team and after-sales service team, and successfully achieved ISO9001:2008 Quality Management Certification and CE certification.



Customers of Yingda



Other products show



If you are looking for a reliable partner,we will be your best choice!



FAQ

Q1: Are you manufacturer?
Answer: Yes! we are. We have been in conveying equipment for 12 years and it will be longer. Now we have developed into a technical team of 10 experienced engineers in conveying system, feeding machine, crusher, vibraing sieve and dust-proof equipment etc.

Q2. Can you provide OEM service?

Answer: Of course, we can. Besides, we'll provide our professional suggestion for you as to your practical needs.

Q3. What's your MOQ (minimun order quantity)?

Answer:Generally speaking,one is okay.

Q4: What basic datas will clients provide?

Answer: The basic datas you need to provide is the kinds of raw material, the output of the machine, the size of the machine you need, the inclined angle, the voltage etc. Of course, more information, much better!

Custom-design service is feasible! Please give me more information about your special demand, we will provide the best choice for you!
