Machine to make Sticky Traps for Mouse with Hot Melt Glue Rat Glue Trap Making Machine
- Category: >>>
- Supplier: Cangzhou Kingsun Imp.& Exp. Co. Ltd.
Share on (1601004547262):
Product Overview
Description
Product Description

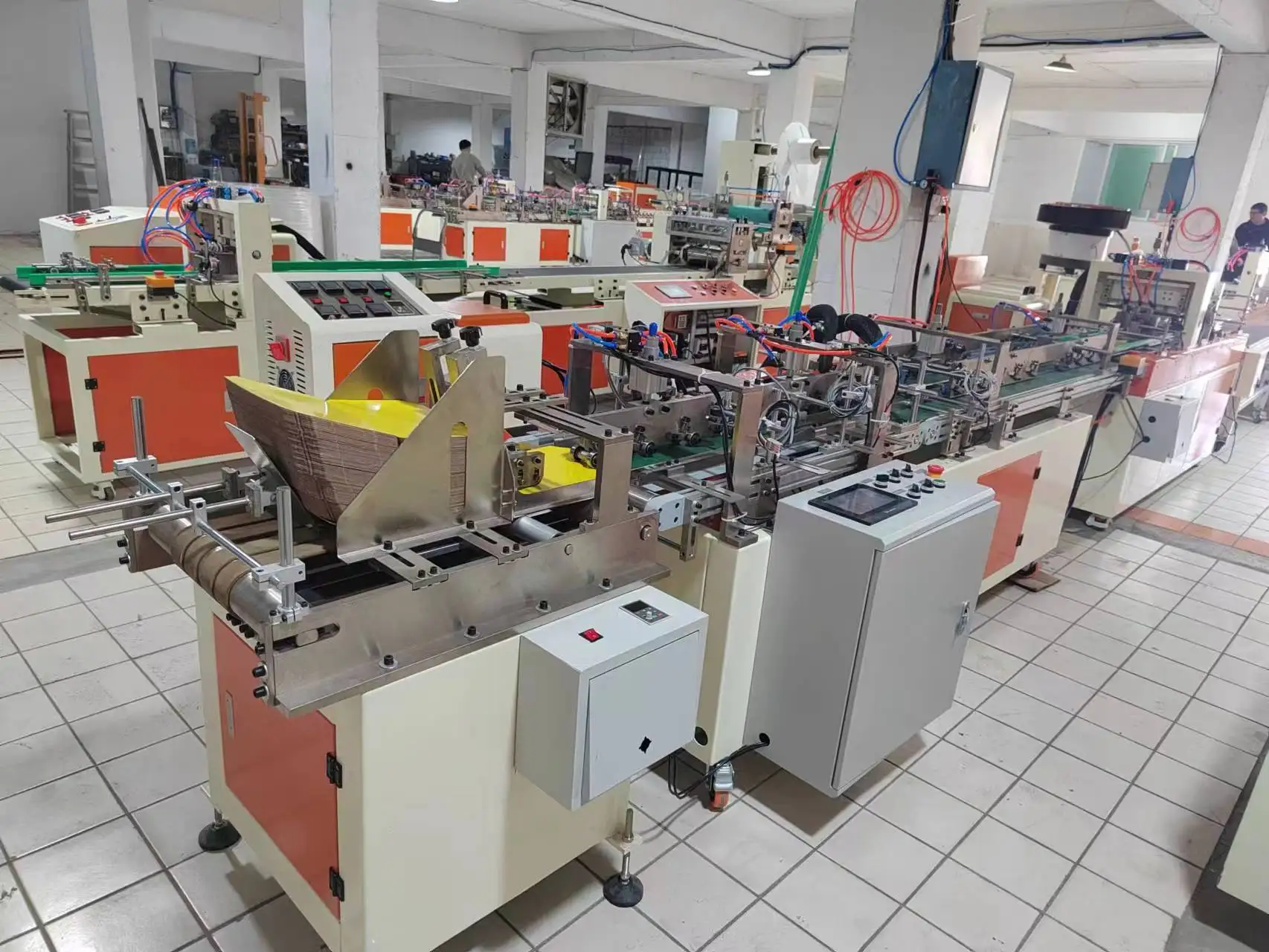

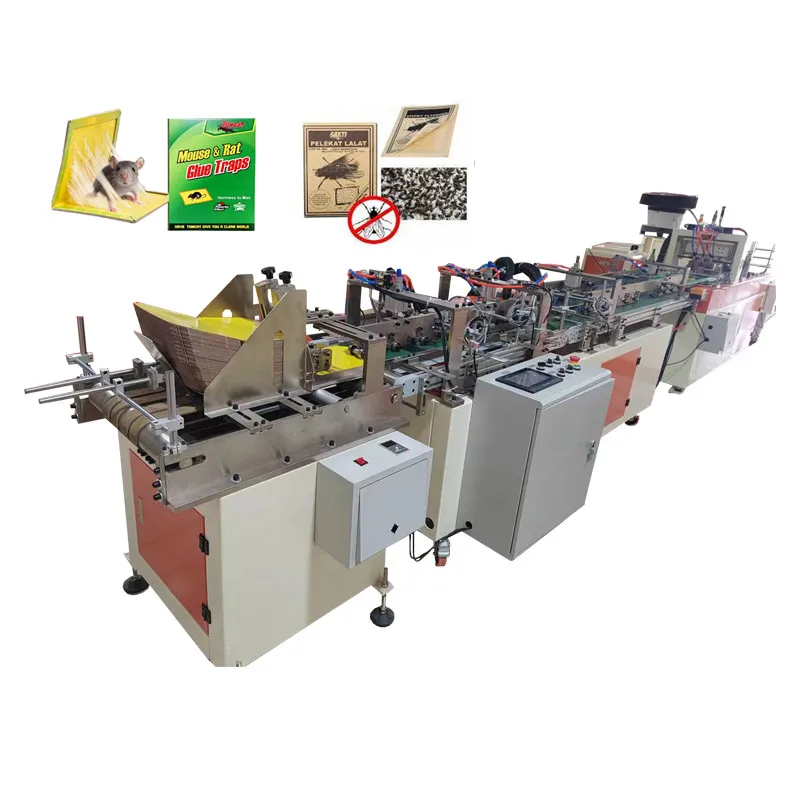

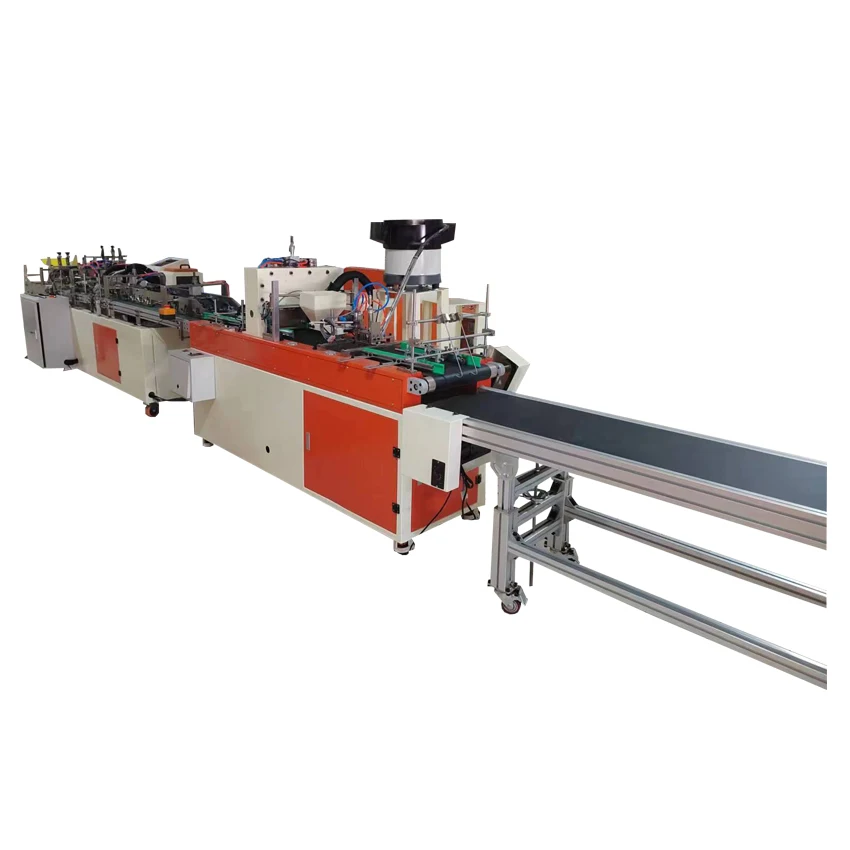

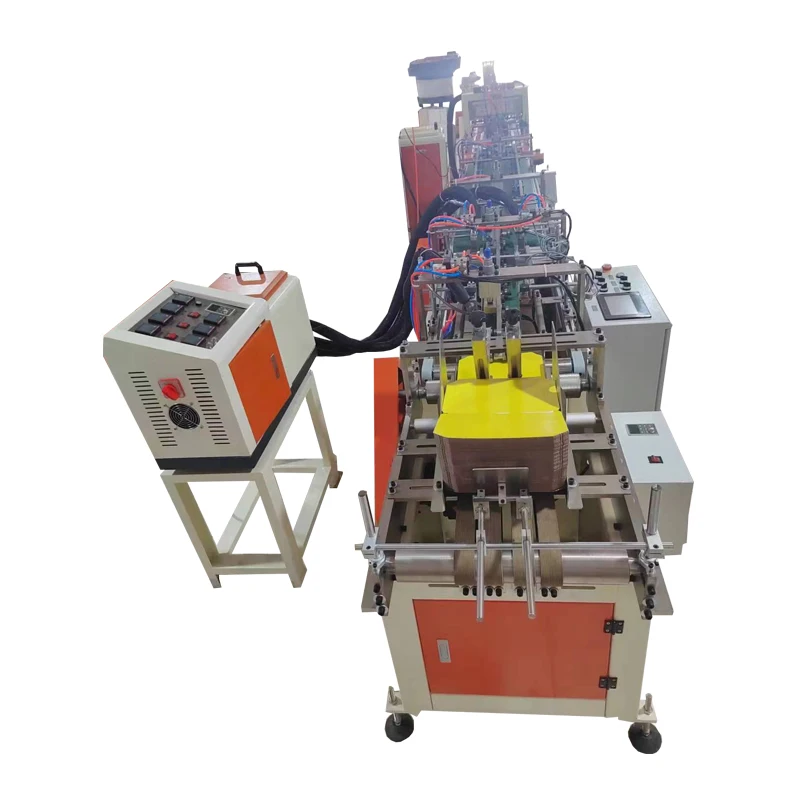

Machine to make Sticky Traps for Mouse with Hot Melt Glue Rat Glue Trap Making Machine
Rat pest control machine to make Sticky Glue Board Hot sale rodent mouse rat glue trap board making machine
Mouse glue trap machine main parts
automatic paper feeding part , automatic folding edge part, automatic gluing part , automatic material spraying part, automatic spacer put part , automatic fold final products part .multi function finished one time .This model machine is easy to operate and stable in production. Once launched, it is widely praised by customers.
Rodent mouse rat glue trap board making machine brief introduction
Fully auto mouse glue trap machine can move the folding machine section separately and connect the automatic paper feeder with the gluing section, can produce other products such as sticky board, magic blanket, mosquito killer lamp sticky board (semi-automatic operation, according to product requirements). Butt joint reproduction first fold then glue the glue . the gluing surface will be relatively smaller than the integrated gluing method.

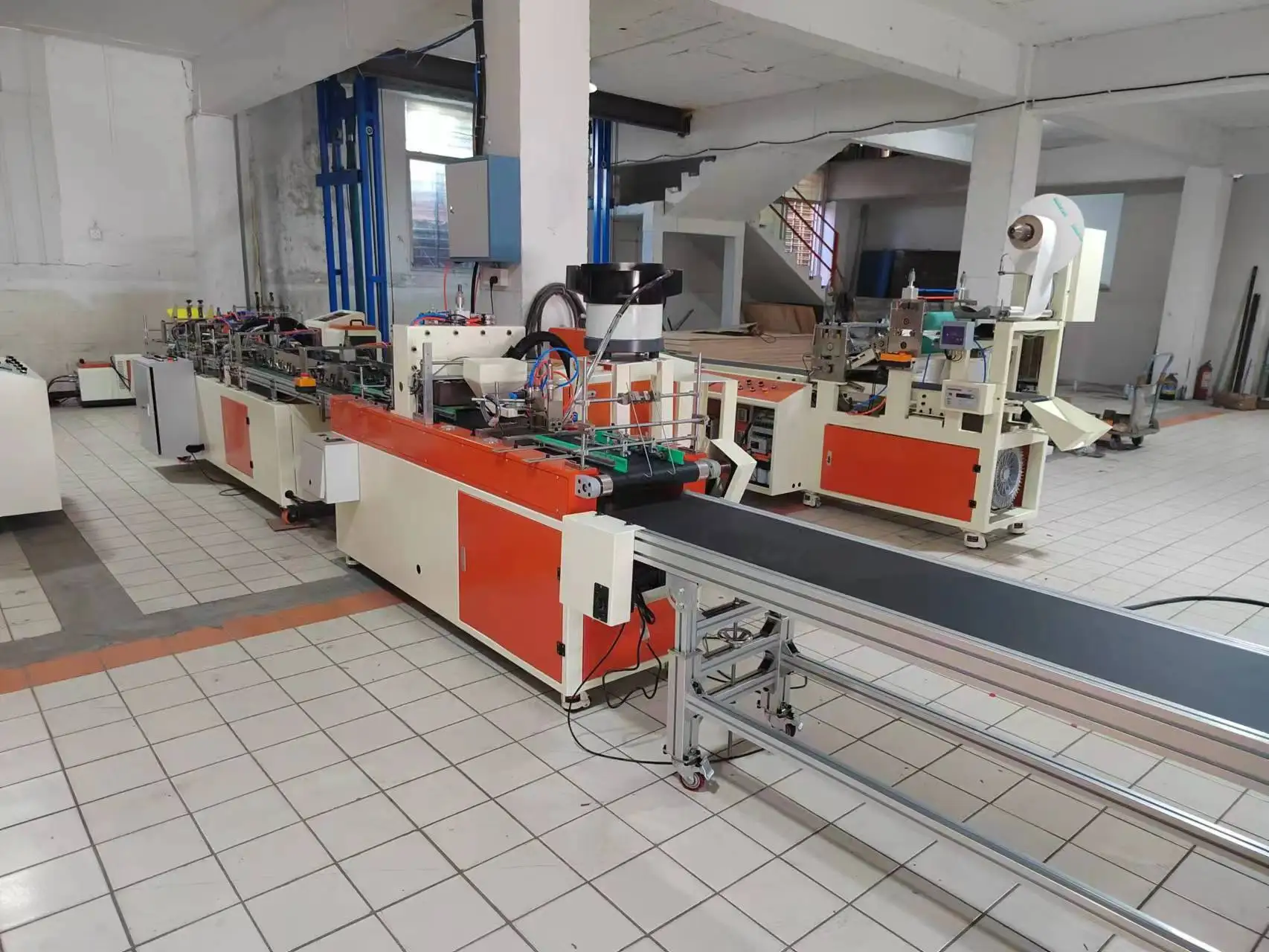

Whole mouse glue trap machine is composed of eight parts
a, automatic paper feeding;
b. Automatic edge folding (4-way edge);
c. Automatic gluing+automatic spraying bait;
d. Automatic put seperate button (spacer);
e. Automatic folder final products belt;
f. 5KG capacity hot melt machine,(this for coat glue for fold edge) four hose pipes and three sets glue coat guns;
g. 40kg hot melt machine, 1 hose pipe and 1 set of glue gun,for glue glue to board
h. 1set 150kg glue melting pot (for heat the glue in advance and extend continuous production time ,it can direct connect with 40kg glue tank )
a, automatic paper feeding;
b. Automatic edge folding (4-way edge);
c. Automatic gluing+automatic spraying bait;
d. Automatic put seperate button (spacer);
e. Automatic folder final products belt;
f. 5KG capacity hot melt machine,(this for coat glue for fold edge) four hose pipes and three sets glue coat guns;
g. 40kg hot melt machine, 1 hose pipe and 1 set of glue gun,for glue glue to board
h. 1set 150kg glue melting pot (for heat the glue in advance and extend continuous production time ,it can direct connect with 40kg glue tank )
Matters needing attention about mouse glue trap machine
1. Dry powder fire extinguishers shall be provided around the machine according to fire protection requirements;
2. It is prohibited to heat for a long time when there is no glue or little glue in the glue melting tank and glue melting pot;
3. The glue melting machine and glue melting tank shall be guarded when they are turned on for heating;
4. Try to keep half or more glue in the glue melting machine and the glue melting tank. When pouring glue into the outside, pay attention to prevent the glue from leaking out of the melting tank. When using the glue melting tank to add glue, pay attention to the amount of glue, and do not let the glue overflow to the outside;
1. Dry powder fire extinguishers shall be provided around the machine according to fire protection requirements;
2. It is prohibited to heat for a long time when there is no glue or little glue in the glue melting tank and glue melting pot;
3. The glue melting machine and glue melting tank shall be guarded when they are turned on for heating;
4. Try to keep half or more glue in the glue melting machine and the glue melting tank. When pouring glue into the outside, pay attention to prevent the glue from leaking out of the melting tank. When using the glue melting tank to add glue, pay attention to the amount of glue, and do not let the glue overflow to the outside;

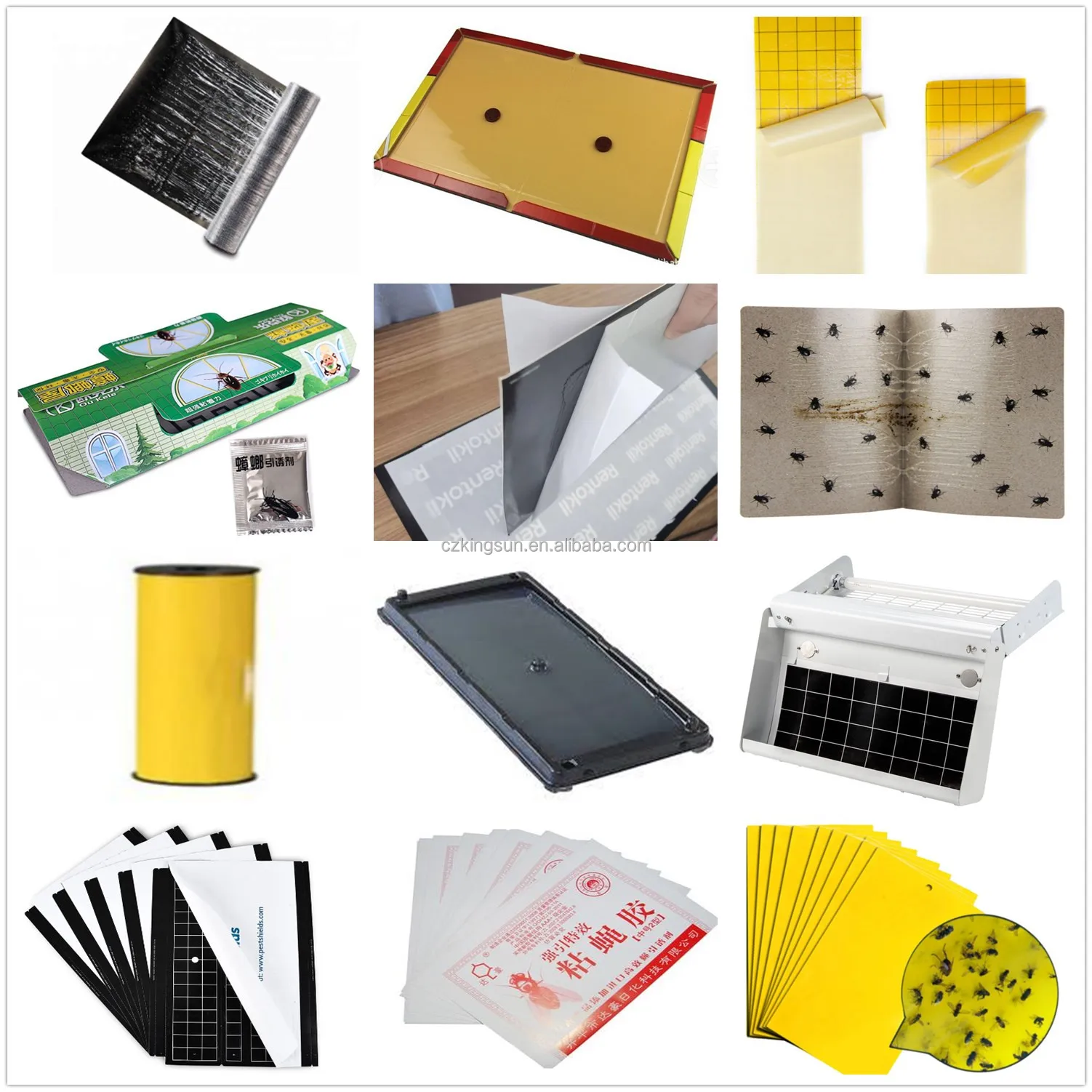

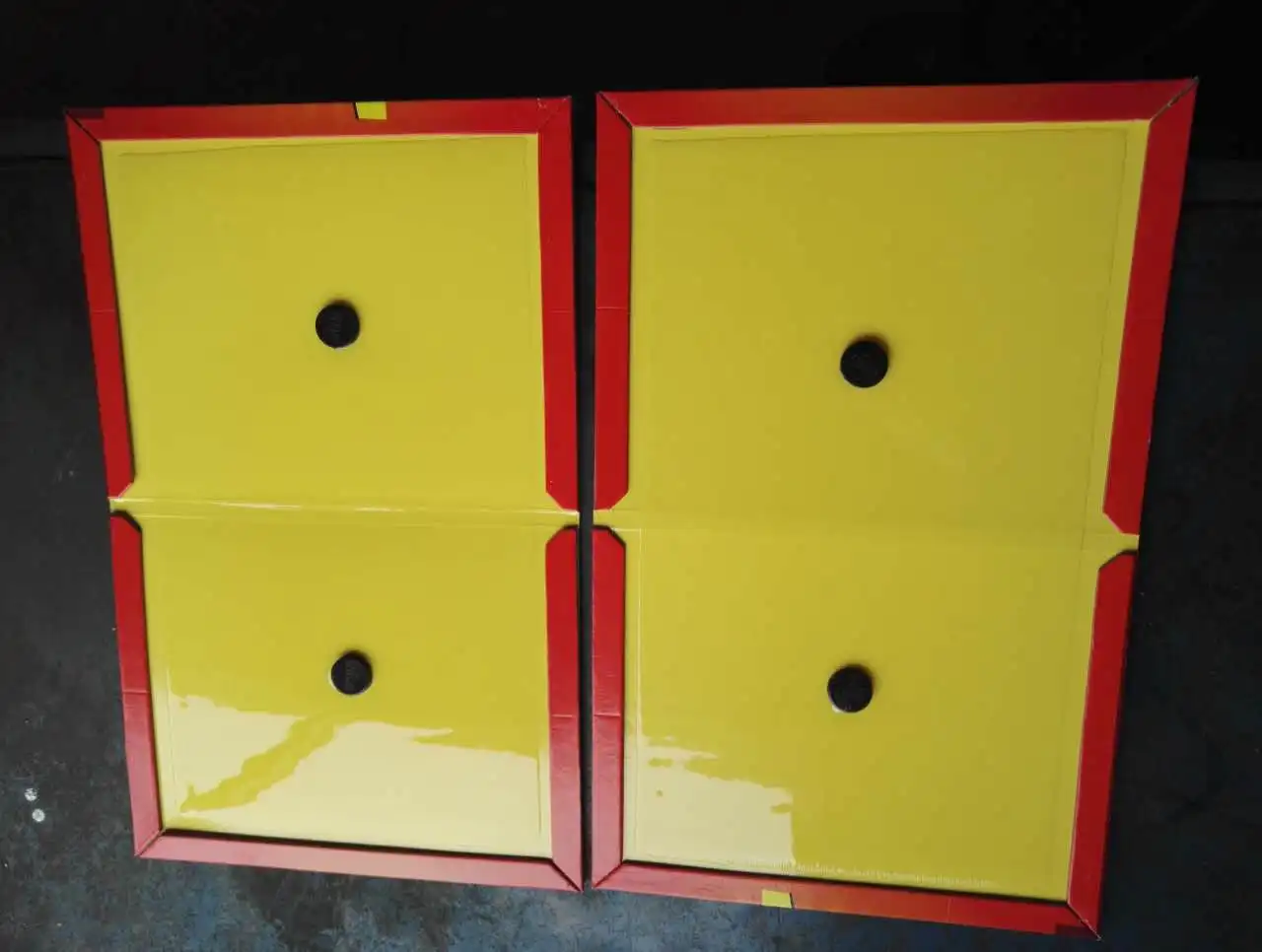

Finished product pictures
Specification
Glue tank capacity | 40KGS +180kg hot melt device |
Working pressure | 380V,220V, or as your request |
Max Glue coating size | 230mm |
Speed | 3000pcs per hour |
Control system | PLC control |
Floor Space | 7mx2m |
Weight | 950kg |
Environmental requirements | Clean, separate material machines, equipped with fire extinguisher facilities |
programmer | Plc controller and 7 inch touch screen |
Width | 170mm-300mm |
Machine motor | 30KW |
Constant temperature heating | PID control |
Width | 170mm-300mm |
Customer need to prepare | Air compressor |
Size: 92cmx83cmx111cm

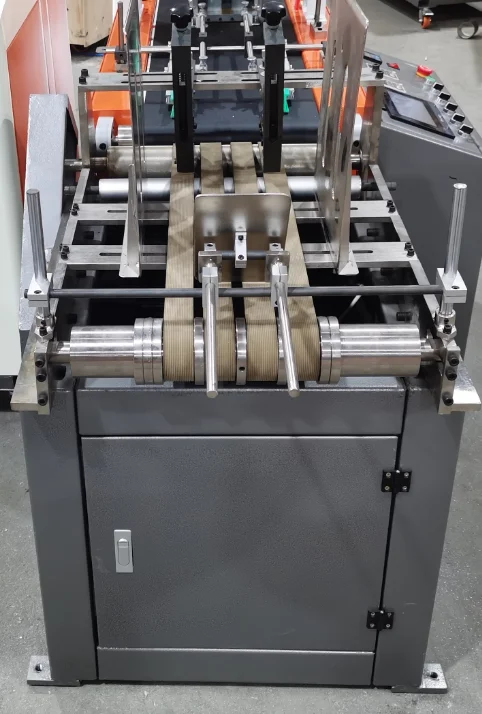

Features: The paper feeding motor uses a 200 vertical motor, the frequency converter adjusts the speed, the paper output is stable, and the speed is adjustable, suitable for fly stickers of various thicknesses, sticky mouse boards, cockroach houses, light boards, etc.
Features: The paper feeding motor uses a 200 vertical motor, the frequency converter adjusts the speed, the paper output is stable, and the speed is adjustable, suitable for fly stickers of various thicknesses, sticky mouse boards, cockroach houses, light boards, etc.
Size: 228cmx96cmx110cm

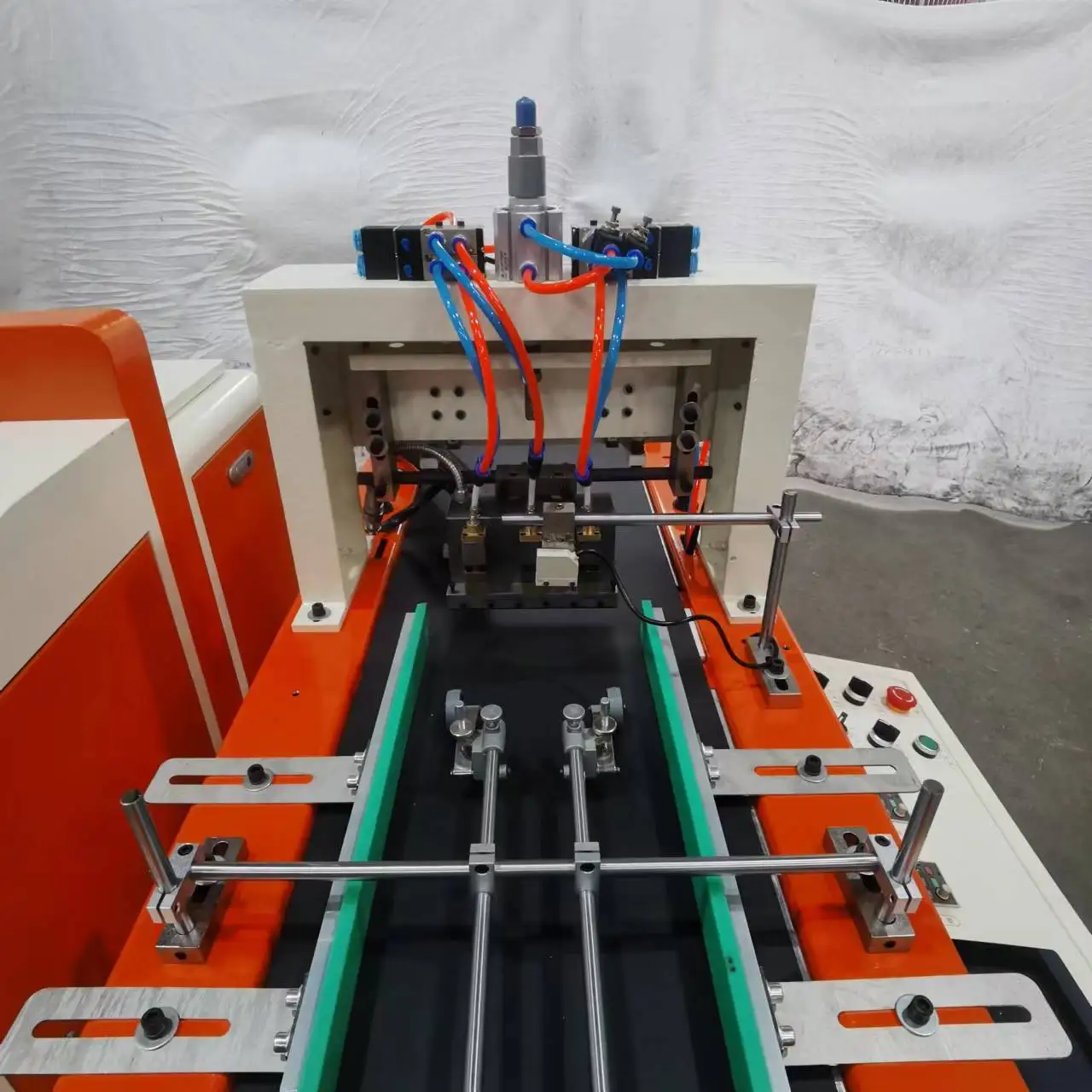

Features: The main drive motor is a 750w three-phase motor with variable frequency speed regulation, the conveyor belt runs fast and at a stable speed, and PLC or time relay adjusts various time parameters. High-precision sensor that can sense black or other color products at the same time.
Features: The main drive motor is a 750w three-phase motor with variable frequency speed regulation, the conveyor belt runs fast and at a stable speed, and PLC or time relay adjusts various time parameters. High-precision sensor that can sense black or other color products at the same time.
Size: 96cmx48cmx109cm

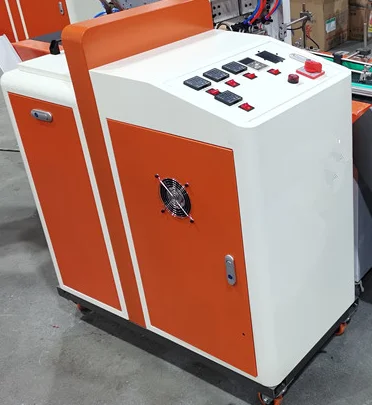

Features: The melter motor uses a 750w three-phase motor, and the frequency converter adjusts the speed. 45cc gear pump, the maximum amount of glue can reach 40g, the heating power is 9kw, and the heating speed is about 40 minutes.
Features: The melter motor uses a 750w three-phase motor, and the frequency converter adjusts the speed. 45cc gear pump, the maximum amount of glue can reach 40g, the heating power is 9kw, and the heating speed is about 40 minutes.

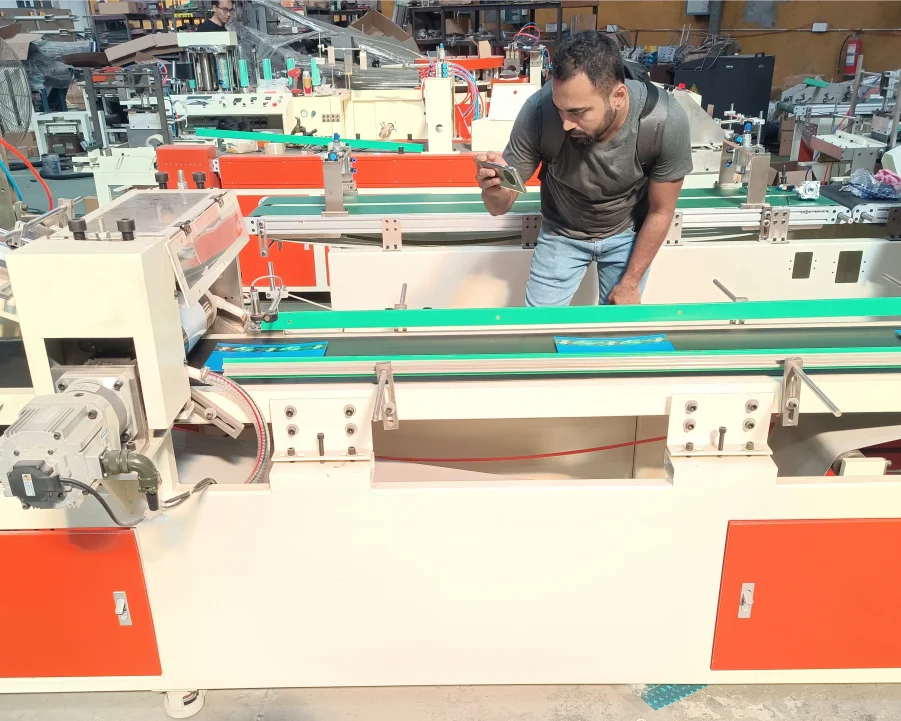

Customer visit

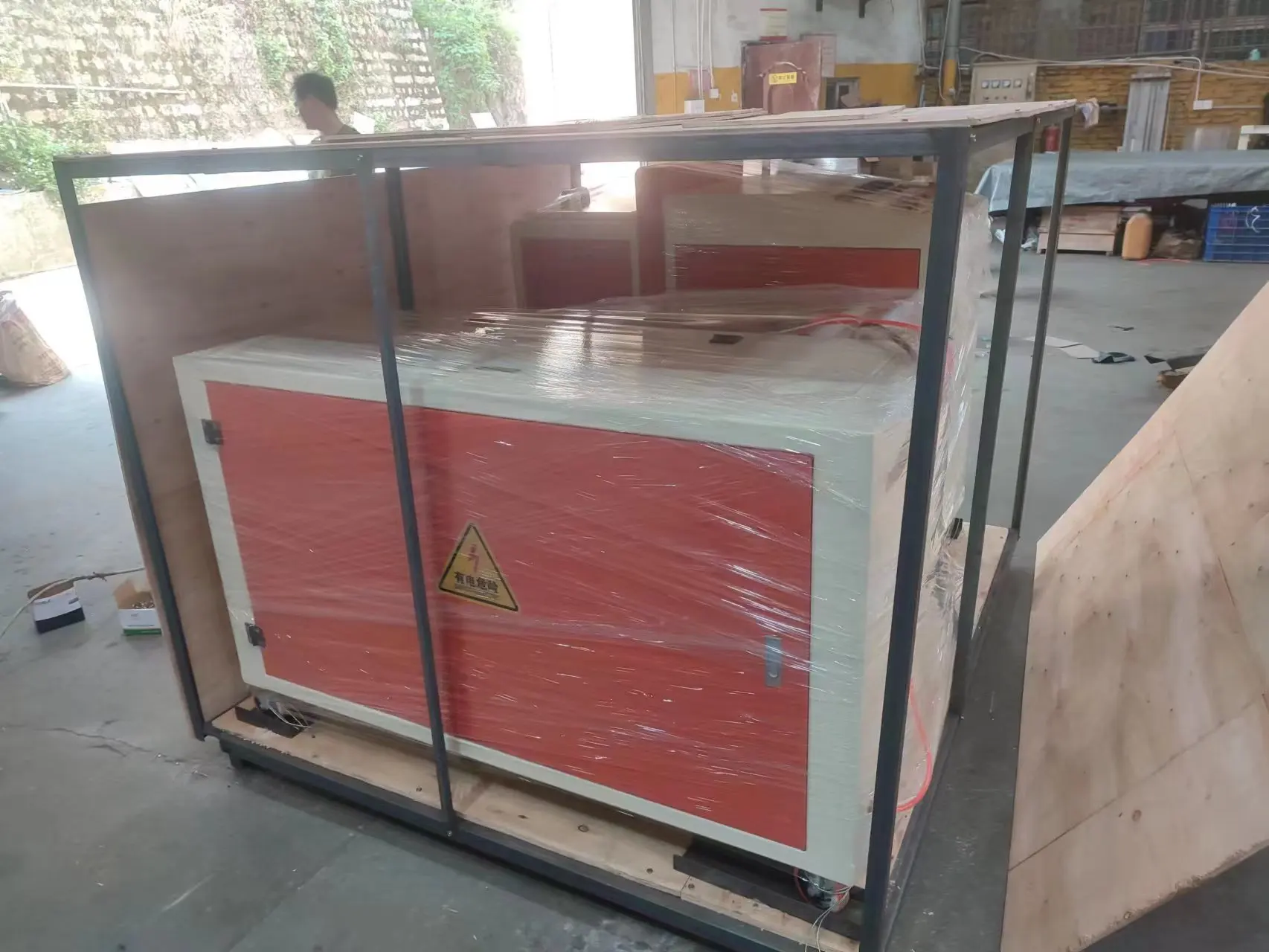

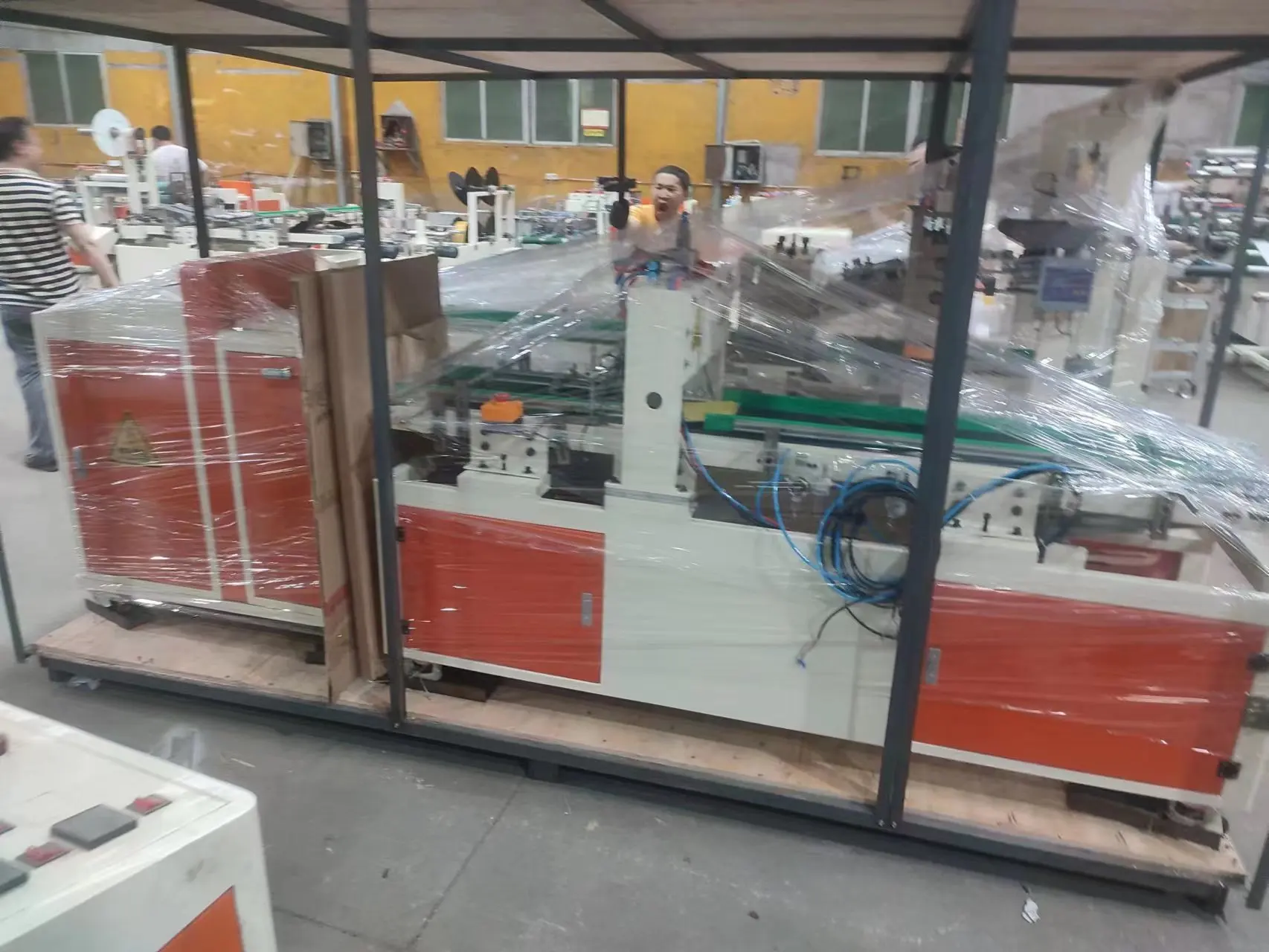

Packing & Delivery
