Factory Price Endoscopes Video Endoscope Camera Veterinary Gastroscopy Colonoscopy Clinic Hospital Pet Endoscopy
- Category: >>>
- Supplier: BMV Technology Co. Ltd
Share on (1601004583201):
Product Overview
Description
No fiber pet animal endoscope mainly for bronchoscope ureteroscope gastroscope veterinary endoscope
TECHNICAL SPECIFICATIONS:

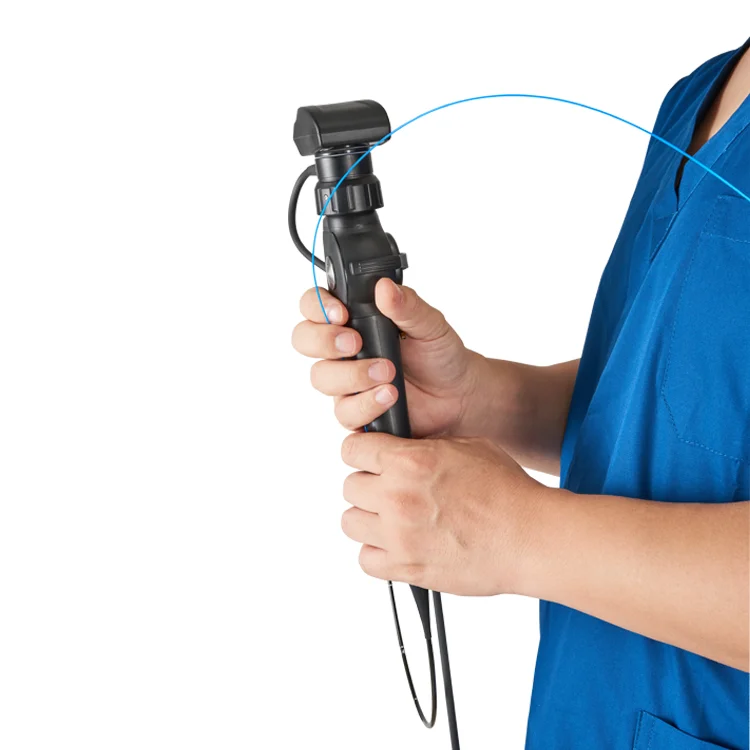

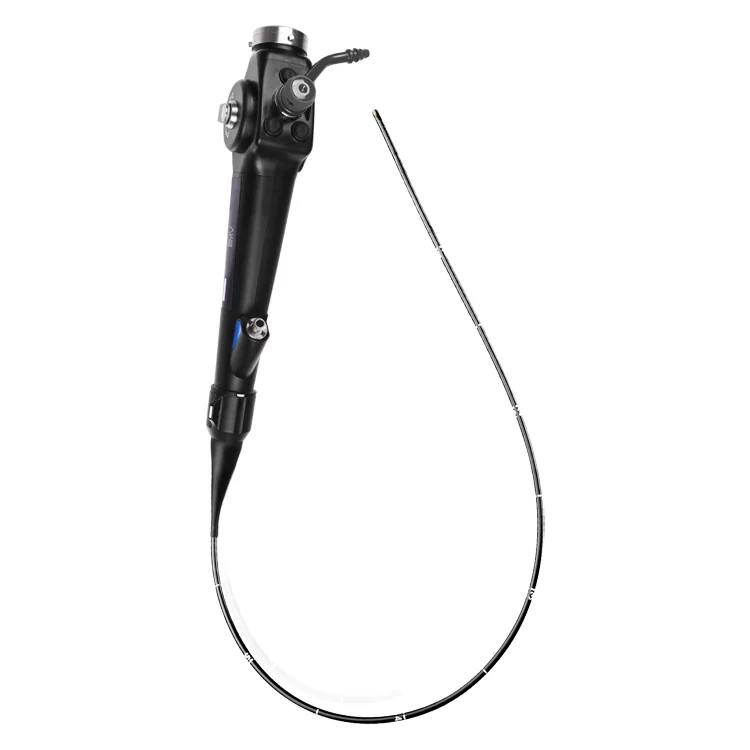

Gastroscope
* Outer diameter: 9.2mm
* Biopsy Channel: 2.8mm
* Working length: 3000mm
* 4-way angulation: Up 210°,Down 130°,Left100°,Rigth100°

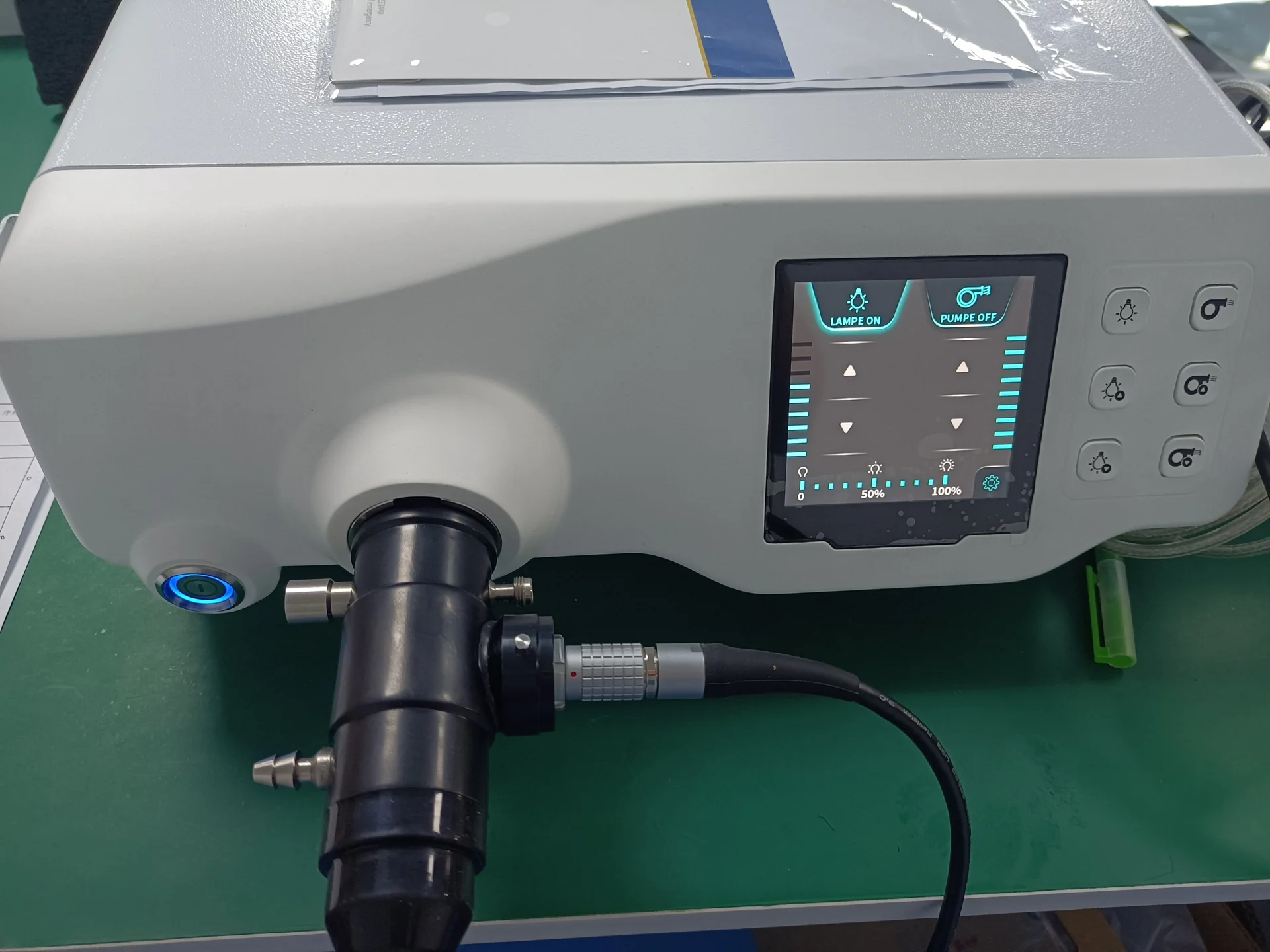

Light Source
* High brightness LED
* Touch screen control, friendly interactive interface
* All in one light source +water/air pump
* Brightness with 10 Level adjustment, suitable for a variety of scenes

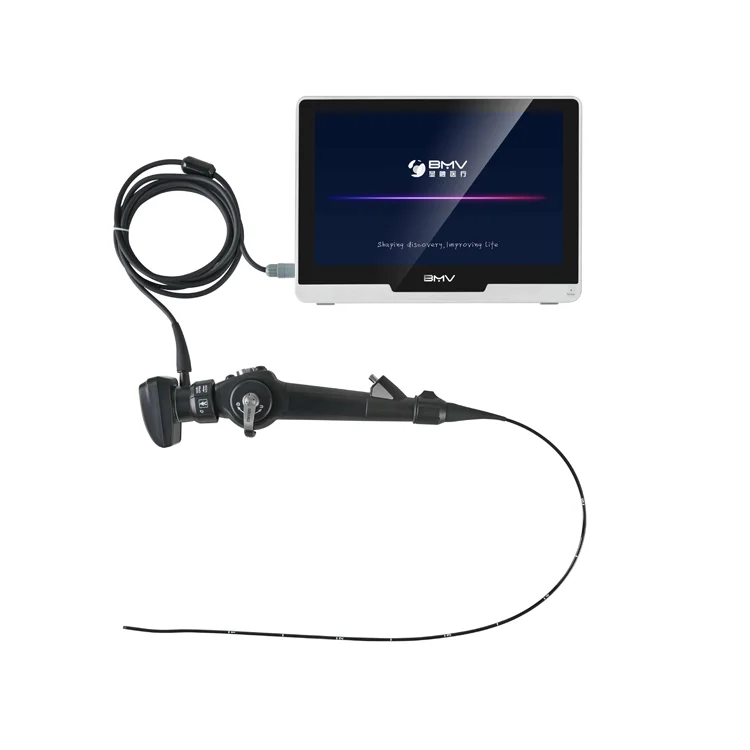

Image Processor

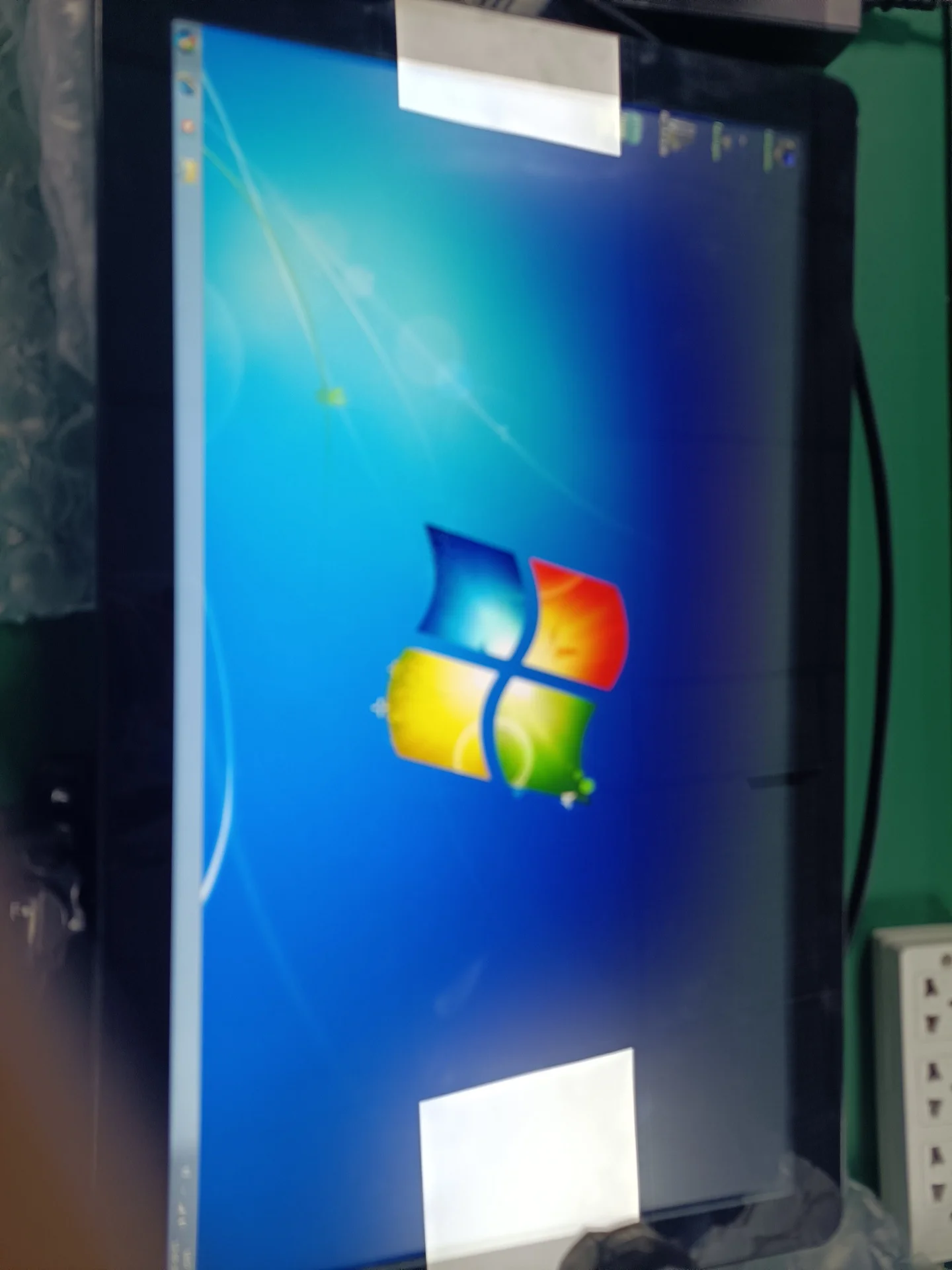

* 23.6 inch Touch Screen Medical grade Monitor
* Can restore medical truly and accurately
* High brightness, high contrast ratio and wide viewing angle
* Professional Medical Report System
* Outer diameter: 9.2mm
* Biopsy Channel: 2.8mm
* Working length: 3000mm
* 4-way angulation: Up 210°,Down 130°,Left100°,Rigth100°
Light Source
* High brightness LED
* Touch screen control, friendly interactive interface
* All in one light source +water/air pump
* Brightness with 10 Level adjustment, suitable for a variety of scenes
Image Processor
* 23.6 inch Touch Screen Medical grade Monitor
* Can restore medical truly and accurately
* High brightness, high contrast ratio and wide viewing angle
* Professional Medical Report System
Model | BV-160H | BV-180H | BV-190H | BV-190HL | |||
Type | Flexible | ||||||
Image Sensor | CMOS (Complementary Metal Oxide Semiconductor),Chip-on-tip | ||||||
System Resolution | 1280x720 | ||||||
View Angle | 120° | ||||||
Direction of View | 0° | ||||||
View Depth | 3-100mm | ||||||
Outer Diameter | Ø 6.8mm | Ø 8.8mm | Ø 9.2mm | Ø 9.2mm | |||
Channel ID | Ø 2.2mm | Ø 2.2mm | Ø 2.8mm | Ø 2.8mm | |||
Up/Down | U210°/D130° | U210°/D130° | U180°/D160° | U180°/D160° | |||
Left/Right | L100°/R100° | L100°/R100° | L100°/R100° | L100°/R100° | |||
Working Length | 1500mm | 1500mm | 1500mm | 3000mm | |||
