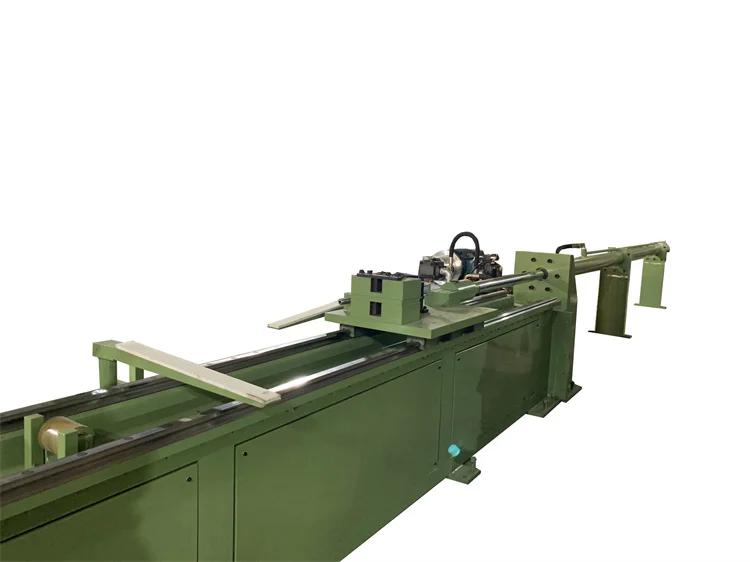

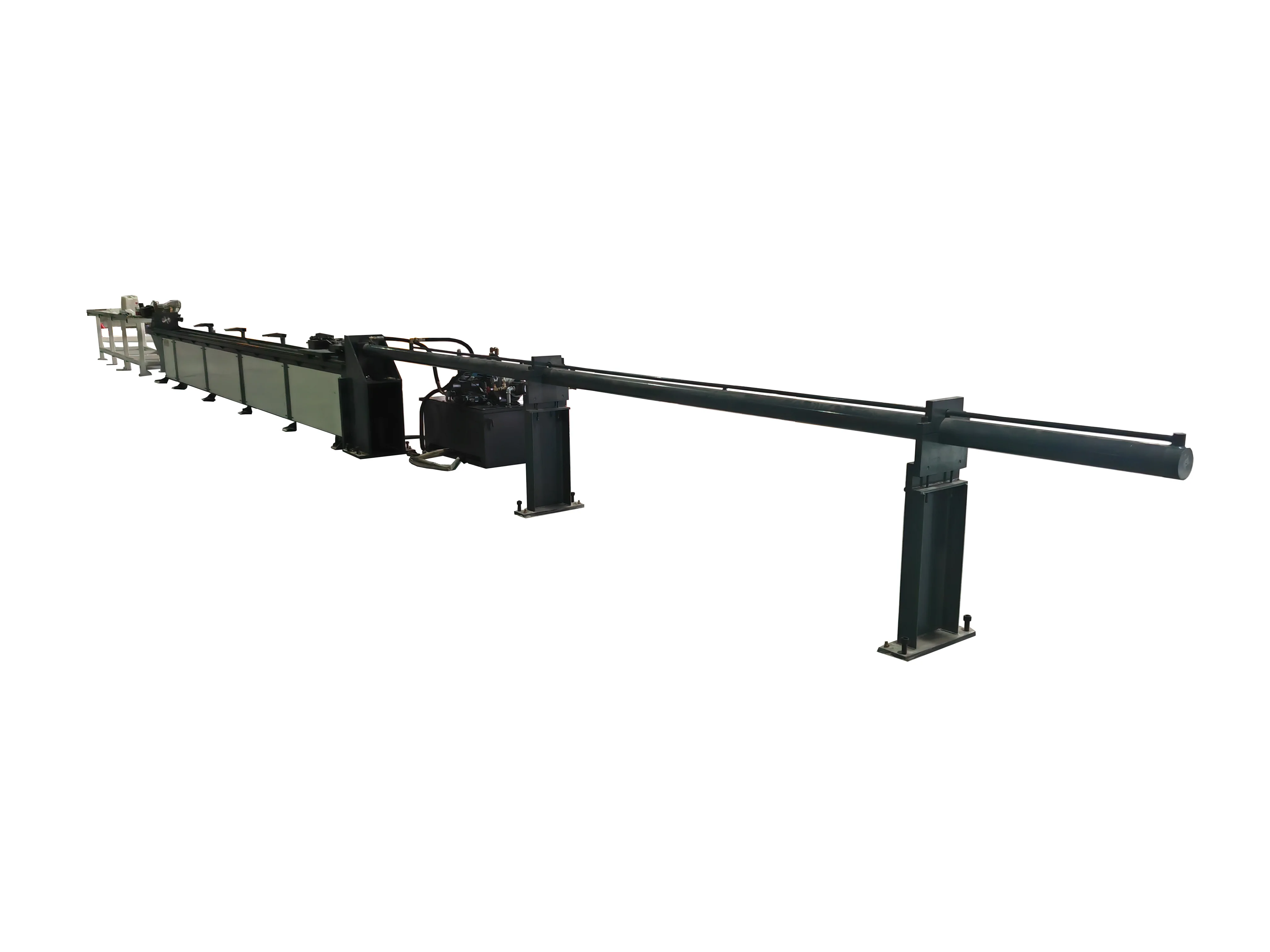

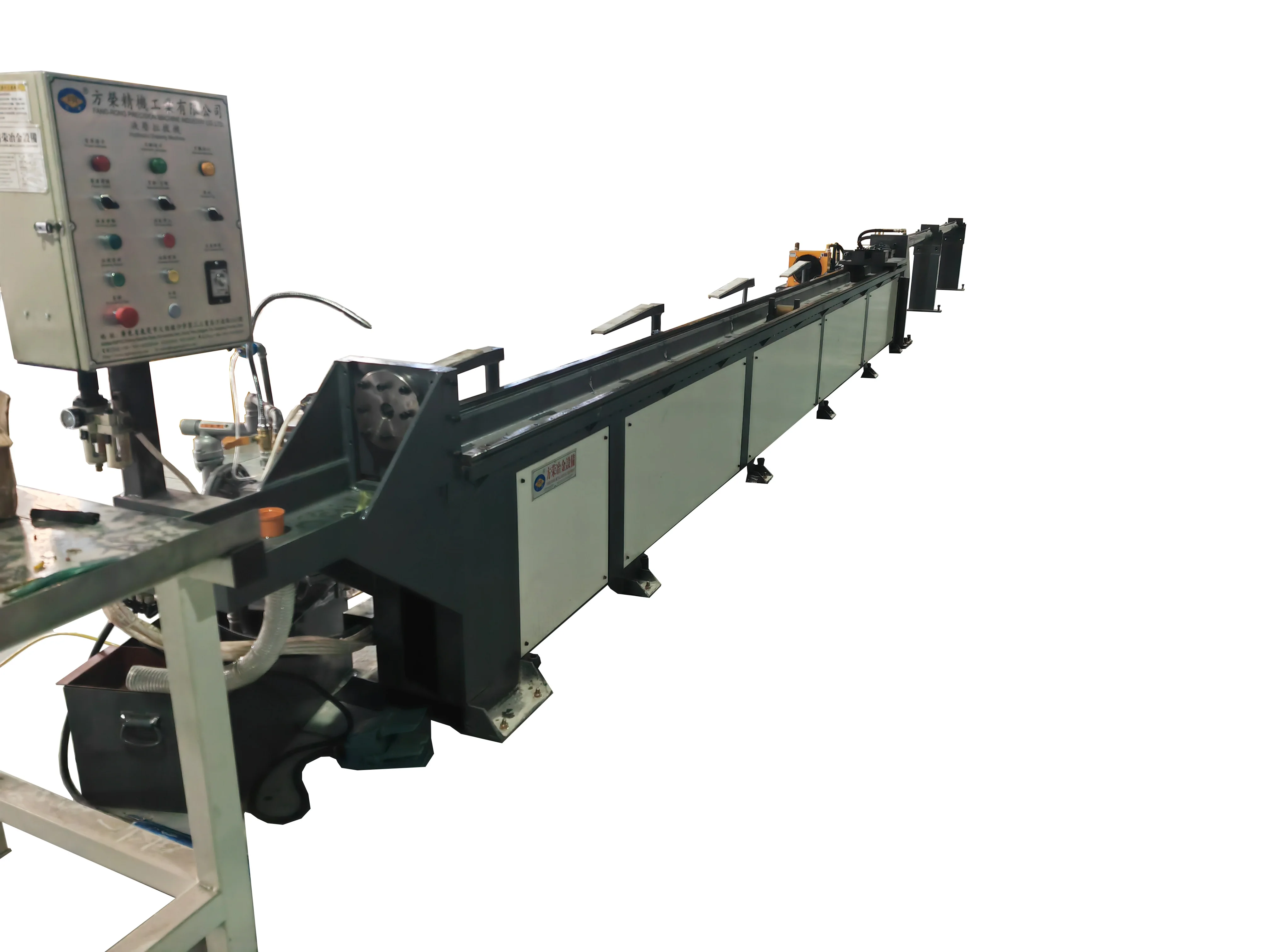

hydraulic metal drawing machine
- Category: >>>
- Supplier: Dongguan Fangrong Metallurgical Equipment Co. Ltd.
Share on (1601004596337):
Product Overview
Description
Products Description
DESCRIPTION
Copper bar drawing machine is a sophisticated piece of equipment designed to draw copper bars into fine wires of varying
diameters. This machine is ideal for use in various industries that require high-quality copper wires as a raw material for
various applications.
diameters. This machine is ideal for use in various industries that require high-quality copper wires as a raw material for
various applications.
Advantage :
1.High efficiency,high precision.
2.Not to hurt the surface,smooth running.
3.Easy to operate,high speed.
4.Taiwan technology,low noise and durable
1.High efficiency,high precision.
2.Not to hurt the surface,smooth running.
3.Easy to operate,high speed.
4.Taiwan technology,low noise and durable
Specification | ||||||||||||||
1. Equipment ability | ||||||||||||||
Drawing manner | one shape one set mould | |||||||||||||
Raw material tube diameter | Tube: Max. OD Ф80mm with 1 line type (The range is not fixed, its adjusted based on the reduction) | |||||||||||||
Effective length | 6m （the distance from carriage to Mold base） | |||||||||||||
Core length | 5m(suit for outter diameter ≥ 5mm) | |||||||||||||
Drawing force | 200KN(20Ton) | |||||||||||||
Drawing speed | 0-12m/min | |||||||||||||
Carriage speed | 0-20m/min | |||||||||||||
2. Equipment construction | ||||||||||||||

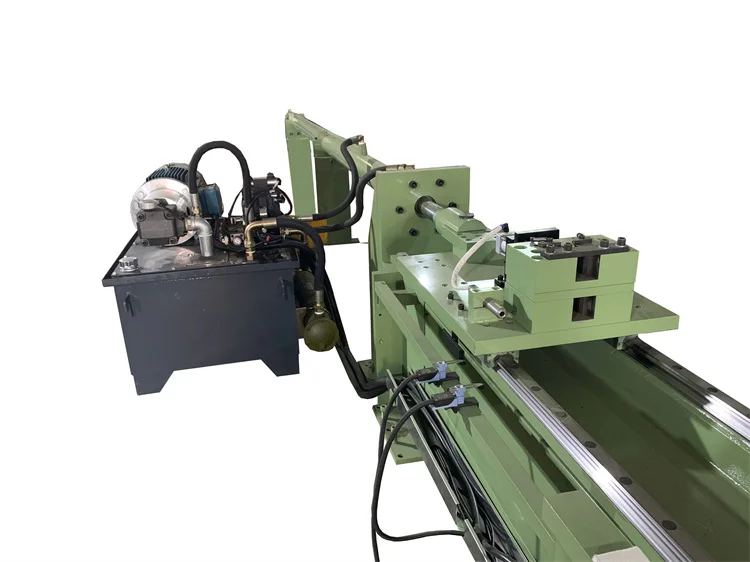

A. Hydraulic system | ||||||||||||||
Oil pump motor | 45kw-4N 50HZ | |||||||||||||
Main oil cylinder | ￠150mm(piston rod: ￠80mm) | |||||||||||||
Oil pump (vane pump) | VICKERS | |||||||||||||
Preset pressure | 17Mpa | |||||||||||||
Solenoid valve | YUKEN | |||||||||||||
B. Mechanical system | ||||||||||||||
Main Frame | A3 plate, channel welded | |||||||||||||
Carriage Rail | Linear Guid: HGL45CA | |||||||||||||
Carriage | A3 plate, pneumatic clamping, slideway go and return movement | |||||||||||||
Mould Installation base | A3 plate welding with ball type mould plate and bowl type adjustable base. | |||||||||||||
Height of center | 800mm | |||||||||||||
Pipe receiver | Arm | |||||||||||||
Drawing oil manner | High-pressure, high-temperature oil pump, internal and external mold pumping oil at the same time (internal oil supply internal diameter above ф16mm, high drawing oil viscosity can't be used) | |||||||||||||
C. Control system | ||||||||||||||
Electrical control system | Omron; Tiande | |||||||||||||
Action tracel control | Tracel switch, relay | |||||||||||||
Company Profile

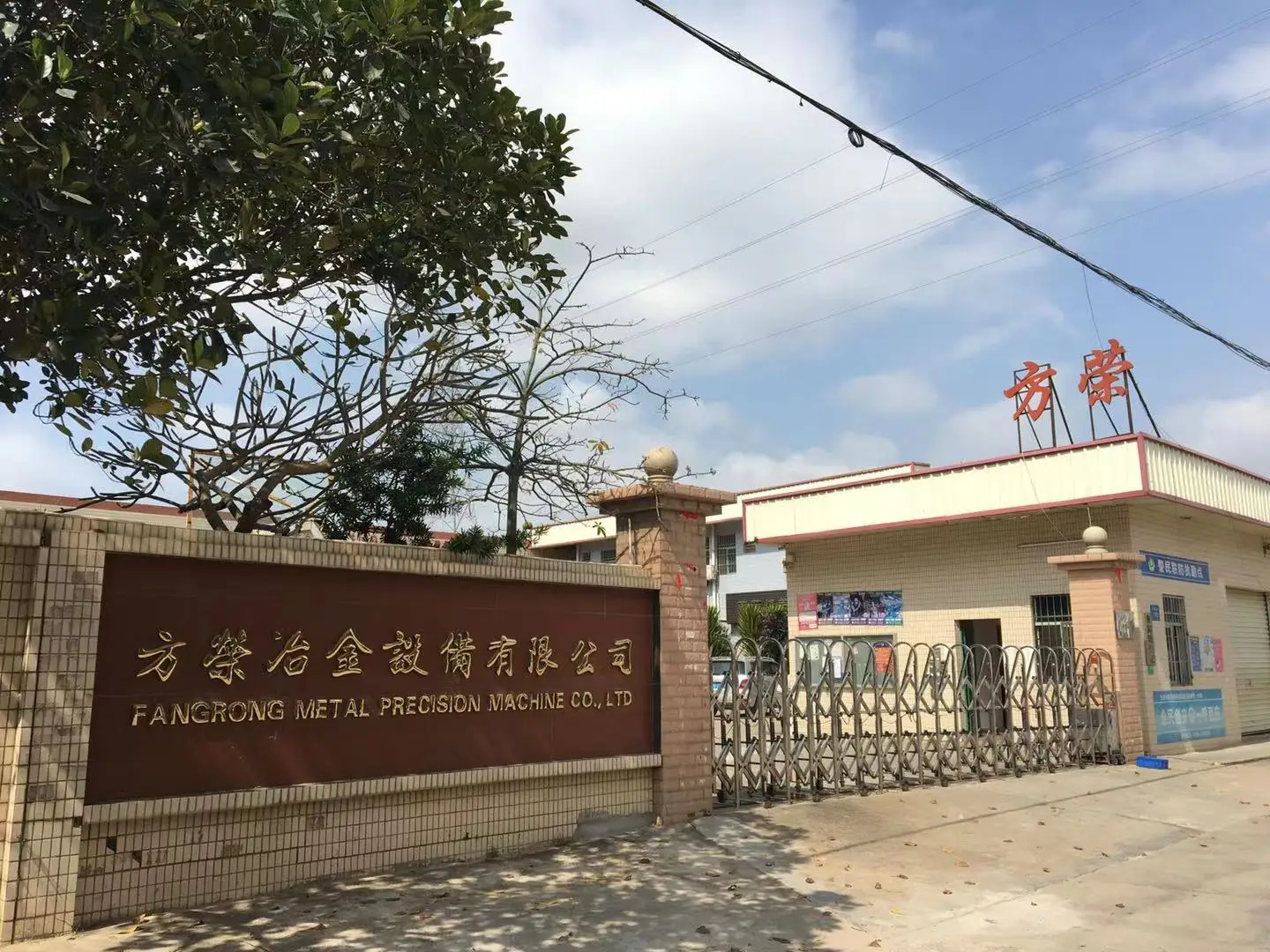

Company introducing:
Dongguan Fangrong Precision Machine Industry Co.,Ltd was established in 1999 ,which a professional manufacturer on drawing machine and straightening machine and thread rolling machine ect .Our company is a professional manufacturer that intergrates development,production and selling .Over the years ,Our goal is to making professional and class equipment,excellent service and top-ranking innovation ,to achieve product specialization ,technical specialization,services professional and team .
Dongguan Fangrong Precision Machine Industry Co.,Ltd was established in 1999 ,which a professional manufacturer on drawing machine and straightening machine and thread rolling machine ect .Our company is a professional manufacturer that intergrates development,production and selling .Over the years ,Our goal is to making professional and class equipment,excellent service and top-ranking innovation ,to achieve product specialization ,technical specialization,services professional and team .
Contract me :
Alice
Email:frmachine@dgfangrong.com
WhatsApp：13650019852
companywebsite://www.dgfangrong.com
https://www.fangrong-machine.com
Alice
Email:frmachine@dgfangrong.com
WhatsApp：13650019852
companywebsite://www.dgfangrong.com
https://www.fangrong-machine.com
Certifications

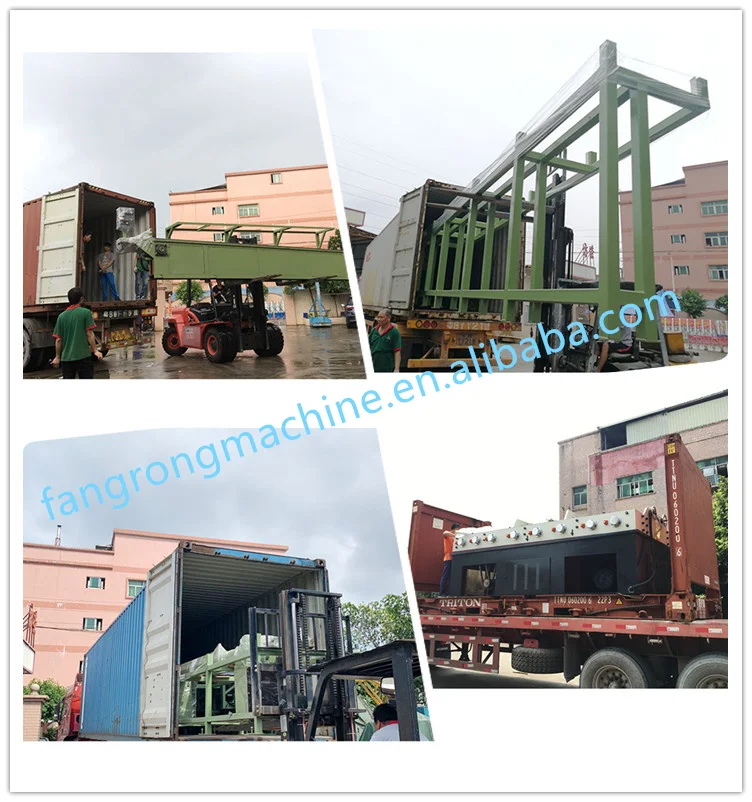

Packaging & Shipping
Packaging:
1.hydraulic straightening machine is packaged in wooden case.
2. neutral package can also be accepted.
Shipping:25-40 days after received the payment .
2. neutral package can also be accepted.
Shipping:25-40 days after received the payment .
Our Advantages
Warrantee & After-sale service :
1. all of our products give 1 year warranty
2. man-made destroy will be exception
3. after the warrantee time, if we still in cooperation, we will give cost repairment if still can repair.
4. for reducing the cost of our customers, we can supply the materials or tech support to them, help them fix the problems intheir hands .
5. We will pay the delivery charge from us to customers if the repair, return or replacement cases happen
2. man-made destroy will be exception
3. after the warrantee time, if we still in cooperation, we will give cost repairment if still can repair.
4. for reducing the cost of our customers, we can supply the materials or tech support to them, help them fix the problems intheir hands .
5. We will pay the delivery charge from us to customers if the repair, return or replacement cases happen
FAQ
1 ) Payment
What are the terms of payments you offer?
Payment of the goods should be sent in USD or RMB on the basis of goods Values. We accept payment of T/T , L/C and cash only
2 ) Shipment
How long will it take to deliver goods?
We will deliver the goods within 15 days for spare parts, other goods maybe take a little more times to test and prepare, we will deliver the goods within the deadline which both parties agreehainiud.
What kind of packaging you offer?
We will pack the goods well with exporting packages to make sure all goods in a good condition during storage and delivery.
What kind of transportation methods you offer?
We always transport by sea for the goods with large quantity, and we will confirm freight with buyers' prior delivery.
How about the insurance during transportation? How to deal with the responsibility?
Buyers should take the full responsibility for shortage of goods if the goods are checked by any custom during transportation.
During transportation, if goods are missed because of having been detained by custom in China, all loss thus occurred should be borne by us; if missing or detained of goods are occurred in other country except China, all loss should be borne by buyers
What Locations can you ship to?
We can send the goods to the whole world if the shipping way can deliver it.
3 ) Other Questions
What kind of problem will happen usually?
Some goods will be out of stock and cannot offer, because it cannot meet the quality request or really out of stock. Anyway we will contact the client to confirm well before shipping.
What are the terms of payments you offer?
Payment of the goods should be sent in USD or RMB on the basis of goods Values. We accept payment of T/T , L/C and cash only
2 ) Shipment
How long will it take to deliver goods?
We will deliver the goods within 15 days for spare parts, other goods maybe take a little more times to test and prepare, we will deliver the goods within the deadline which both parties agreehainiud.
What kind of packaging you offer?
We will pack the goods well with exporting packages to make sure all goods in a good condition during storage and delivery.
What kind of transportation methods you offer?
We always transport by sea for the goods with large quantity, and we will confirm freight with buyers' prior delivery.
How about the insurance during transportation? How to deal with the responsibility?
Buyers should take the full responsibility for shortage of goods if the goods are checked by any custom during transportation.
During transportation, if goods are missed because of having been detained by custom in China, all loss thus occurred should be borne by us; if missing or detained of goods are occurred in other country except China, all loss should be borne by buyers
What Locations can you ship to?
We can send the goods to the whole world if the shipping way can deliver it.
3 ) Other Questions
What kind of problem will happen usually?
Some goods will be out of stock and cannot offer, because it cannot meet the quality request or really out of stock. Anyway we will contact the client to confirm well before shipping.
