15.5 Meters Super Long Reach Excavator Boom And Arm Suit For Dredging River Subway Construction
- Category: >>>
- Supplier: Dongguan Hyking Machinery Co. Ltd.
Share on (1601004599989):
Product Overview
Description
Products Description
Long reach boom have large workrange,very popular in dredging river,dredging port,port construction,subway construction.
High efficiency and supply security for excavator drivers.
We can customize all kinds of long reach boom according to customer requirements.
High efficiency and supply security for excavator drivers.
We can customize all kinds of long reach boom according to customer requirements.
Features
1.Applicable for all model of excavator.
2.Standard supply include:bucket,linkage,bucket cylinder, oil pipe/hose,pins,lubricating system,etc.
3.Many different material such as Q345B,Q690D,Weldox are optional to suit to your application.
4.Big boom can be two jointed pcs to make it fittable into container to save shipping cost.
5.All the seam are 45 degree tapered before welding.
6.Six months warranty.
7.Some parts can be consolidated using thicker plate or overlapping another plate for heavy-duty application.
8.Boom cylinder and arm cylinder can also be supplied if customer want.
9.Extra pipeline can be added to suit to some extra application.
10.Biggest long boom we have done is 32m long boom for Hitachi EX3500.
2.Standard supply include:bucket,linkage,bucket cylinder, oil pipe/hose,pins,lubricating system,etc.
3.Many different material such as Q345B,Q690D,Weldox are optional to suit to your application.
4.Big boom can be two jointed pcs to make it fittable into container to save shipping cost.
5.All the seam are 45 degree tapered before welding.
6.Six months warranty.
7.Some parts can be consolidated using thicker plate or overlapping another plate for heavy-duty application.
8.Boom cylinder and arm cylinder can also be supplied if customer want.
9.Extra pipeline can be added to suit to some extra application.
10.Biggest long boom we have done is 32m long boom for Hitachi EX3500.
Product Parameters
Model | LR120 | LR200-1 | LR200-2 | LR300 | LR350-1 | LR350-2 | LR450 |
Total length(mm) | 13000 | 15380 | 18000 | 18000 | 20000 | 22000 | 24000 |
Total self weight(kg) | 3000 | 4150 | 4400 | 5200 | 6000 | 6500 | 7000 |
Max reach(mm) | 12500 | 15100 | 17600 | 17600 | 19600 | 21600 | 23600 |
Max cut depth(mm) | 9000 | 11340 | 12200 | 12200 | 14500 | 16100 | 18000 |
Max cut height(mm) | 11300 | 12510 | 13500 | 13720 | 14920 | 16100 | 17300 |
Folding height(mm) | 2900 | 2980 | 3040 | 3210 | 3210 | 3400 | 3400 |
Bucket volume(m3) | 0.3 | 0.6 | 0.4 | 0.4 | 0.5 | 0.6 | 0.6 |
Excavator tonnage(ton) | 10-15 | 16-22 | 20-24 | 25-33 | 30-36 | 30-40 | 40-50 |
Details Images
Product show

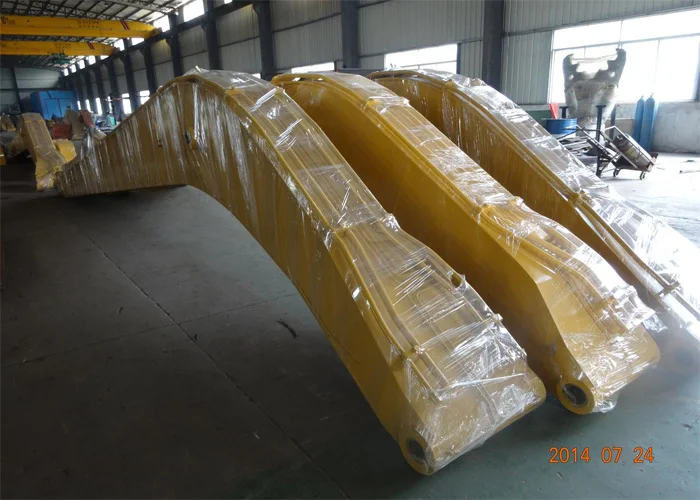

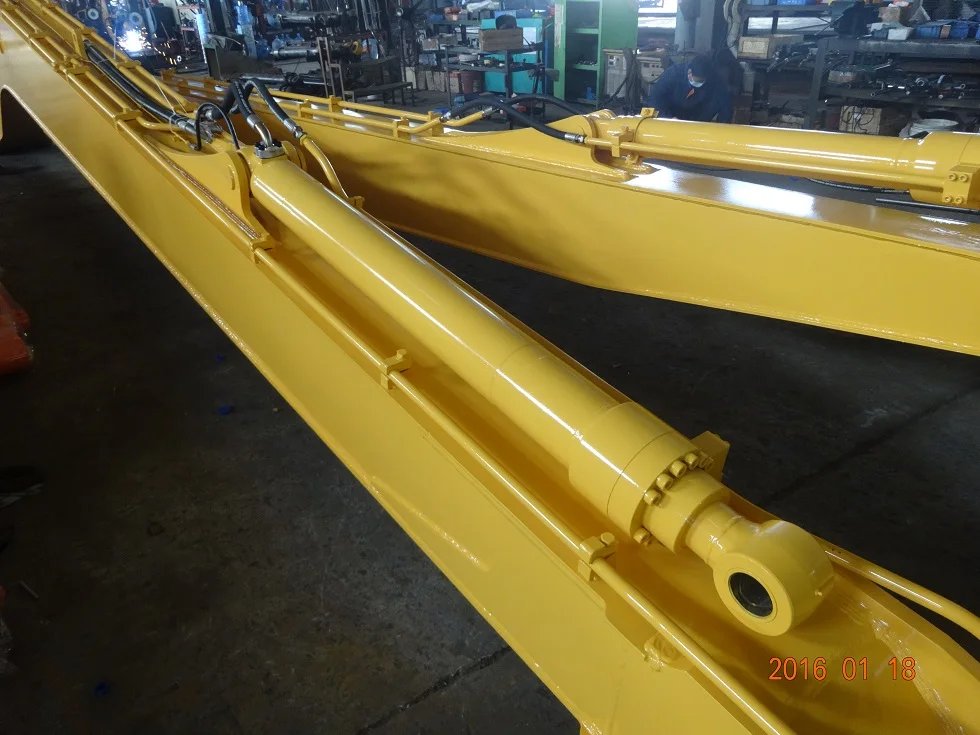

Long reach boom and arm

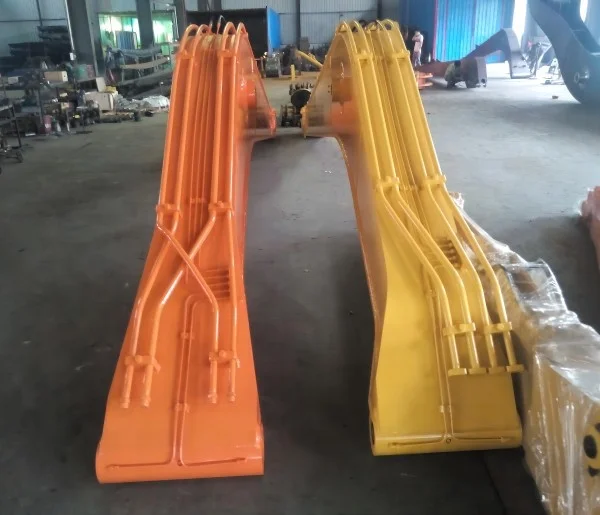

Long reach boom

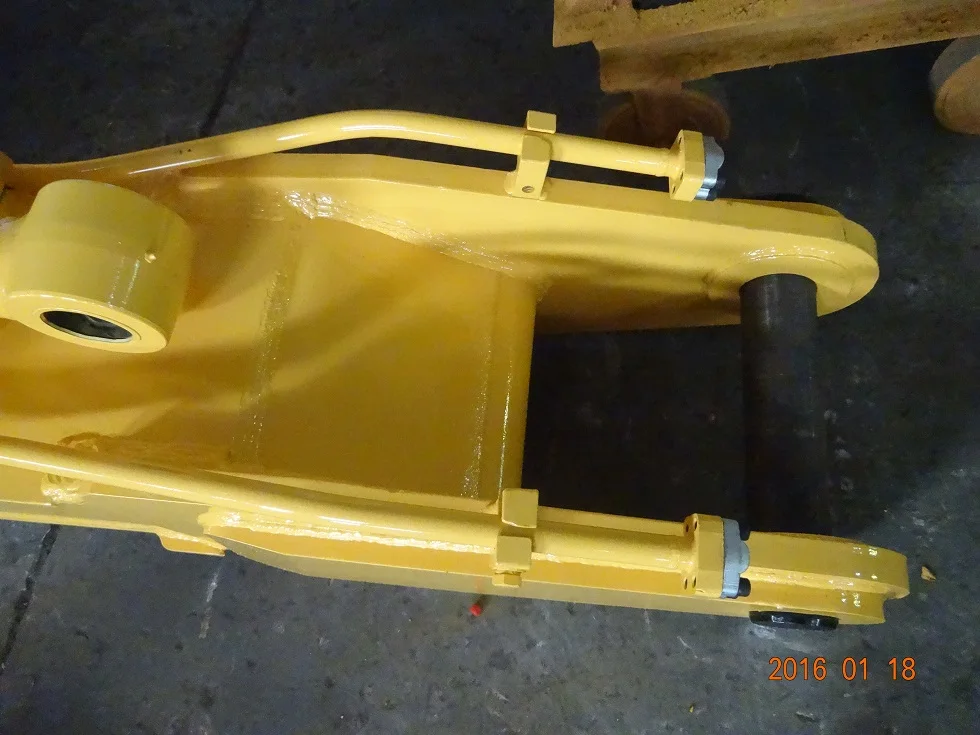

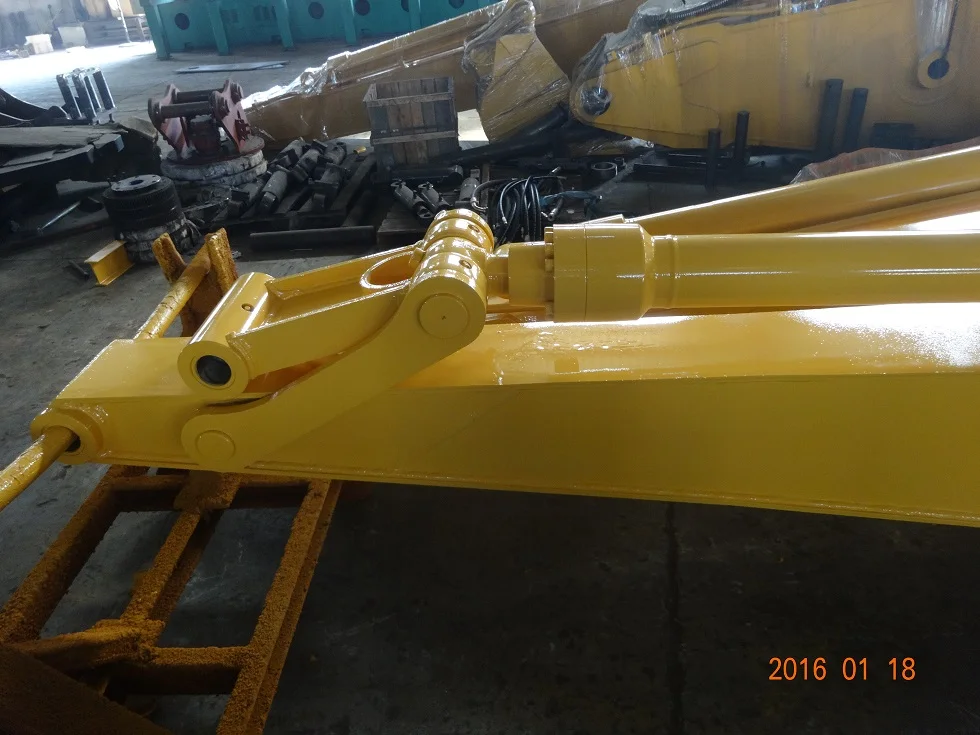

Long reach arm
Rock bucket
Rock bucket
Rock bucket
Reinforce Rock bucket
Reinforce Rock bucket
Rinforce Rock bucket
Tilt bucket
Tilt bucket
Tilt bucket
Wide bucket
Wide bucket
Wide bucket
Skeleton bucket
Skeleton bucket
Skeleton bucket
Clamshell bucket
Clamshell bucket
Clamshell bucket
Trenching bucket
Grab bucket
Rake bucket
Our Advantages
Customize services
We have detailed dimension for most excavators,can customize all kinds of long reach boom according to your excavator model.
Perfect design
All design have been tested and improved many years.
Best after-sales service
We supply detailed parts list,easy for after-sales service.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time for long reach boom?
A: 20 days for 1 kit,30 days for one container(3 kits)
Q: Do you provide parts for maintainance?
A: Yes, we will supply you explode parts list,if you need related parts,we can supply.
Q: What is your terms of payment ?
30% T/T in advance ,balance before shipment.
A: We are factory.
Q: How long is your delivery time for long reach boom?
A: 20 days for 1 kit,30 days for one container(3 kits)
Q: Do you provide parts for maintainance?
A: Yes, we will supply you explode parts list,if you need related parts,we can supply.
Q: What is your terms of payment ?
30% T/T in advance ,balance before shipment.
