Product Overview
Description
Gravity beneficiation equipment Spiral chute, gold ore beneficiation equipment, large concentrator gravity beneficiation equipment

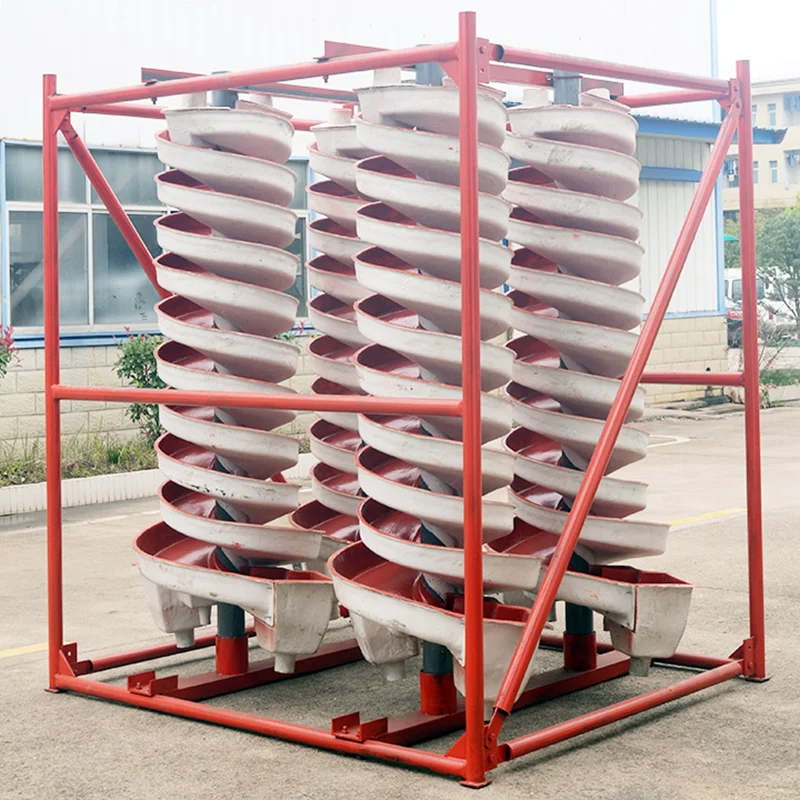

Spiral chute is a new type of gravity separation equipment.
suitable for the separation of fine materials with a particle size of 0.6-0.05 millimeters (in special cases, it can be used for the separation of 2 millimeters).
It is commonly used for theseparation of various minerals, including iron ore, chromite, pyrite, tungsten ore, tin ore, tantalum-niobium ore, alluvial gold, scheelite, hematite, monazite, phosphate ore, and other non-ferrous metals, rare metals, and non-metallic minerals based on differences in specific gravity.
Product Information

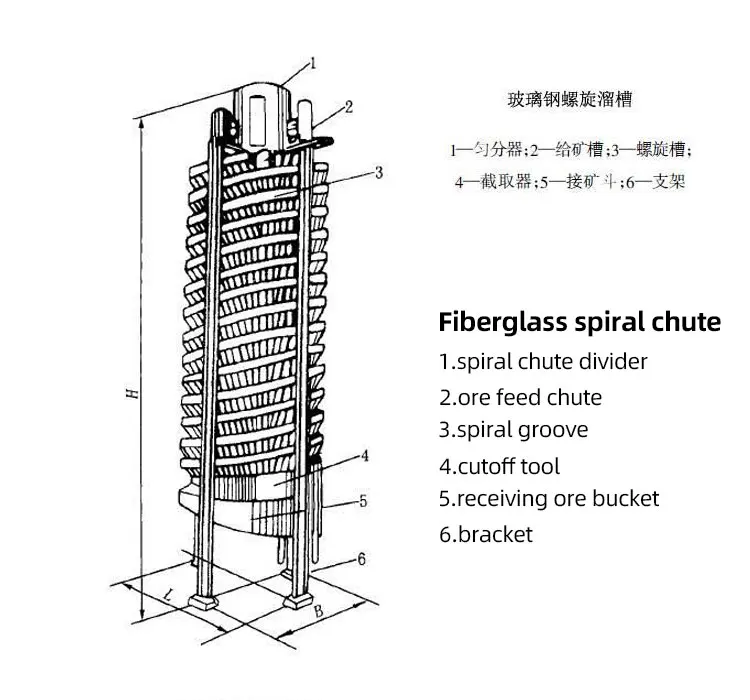

The working principle of the Spiral chute
spiral chutes play a crucial role in the entire mineral sorting process. They are primarily used to enrich heavy minerals,discard a significant portion of tailing in one pass, reduce the usage of other equipment in subsequent refining operations,decrease equipment investments, reduce the footprint of the processing plant, and enhance sorting capacity. Spiral chutes are known for their stability in ore dressing, high processing capacity, efficiency, adaptability to fluctuations in feed quantity,concentration, particle size, and grade. They are easy to install, occupy minimal space, are user-friendly, moisture-resistant,rust-resistant, corrosion-resistant, require no power, have no moving parts, and produce no noise. They are especially suitable for the mining of sand in coastal areas, riversides, sandbanks, and stream beds.
Model | 5LL-2000 | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 | ||
outer diameter(mm) | 2000 | 1500 | 1200 | 900 | 600 | 400 | ||
helical distance(mm) | 1200 | 810、720、540 | 720、540 | 540 | 360 | 240 | ||
lateral tilt angle(°) | 9° | 9° | 9° | 9° | 9° | 9° | ||
maximum number can be installed on | 3 | 4 | 4 | 4 | 3 | 2 | ||
number of spirals (%) | 4 | 5 | 5 | 5 | 5 | 5 | ||
feed particle size（mm） | 4-0.04 | 0.8-0.037 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 | ||
feed concentration | 20-45 | 25-50 | 25-55 | 25-55 | 25-55 | 25-55 | ||
production capacity (t/h) | 15-40 | 6-8 | 4-6 | 2-3 | 0.8-1.2 | 0.1-0.2 | ||
external dimensions (mm) | L | 2300 | 1560 | 1360 | 1060 | 700 | 460 | |
W | 2300 | 1560 | 1360 | 1060 | 700 | 460 | ||
H | 6500 | 5230、436 | 5230、4360 | 4000 | 2150 | 1500 | ||

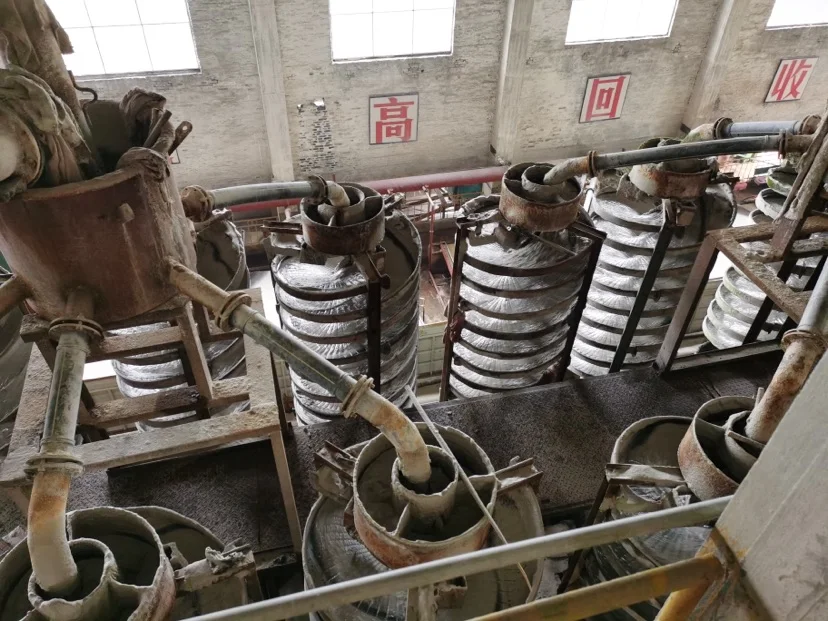

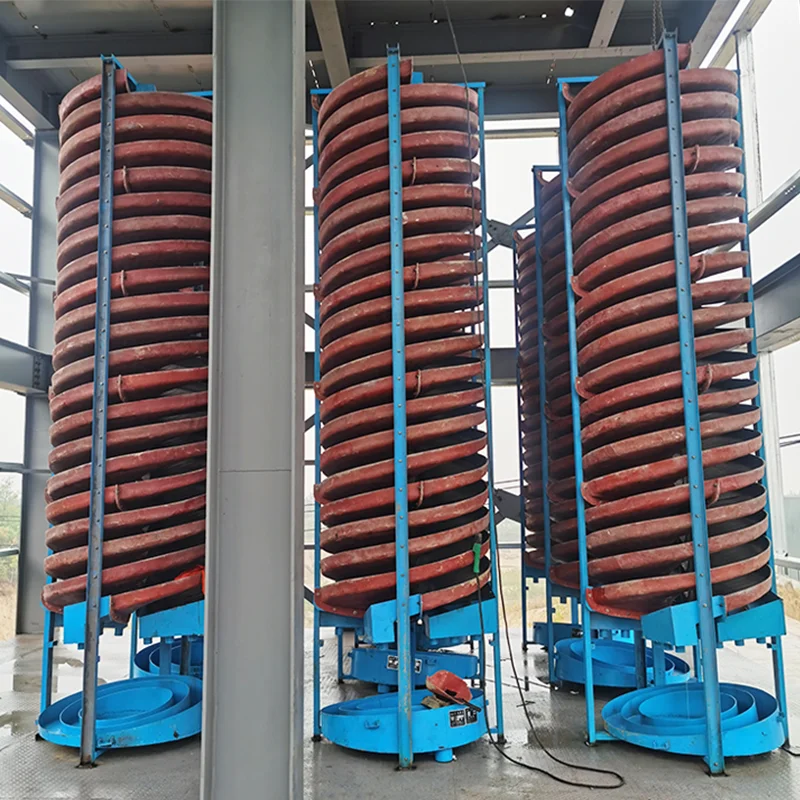

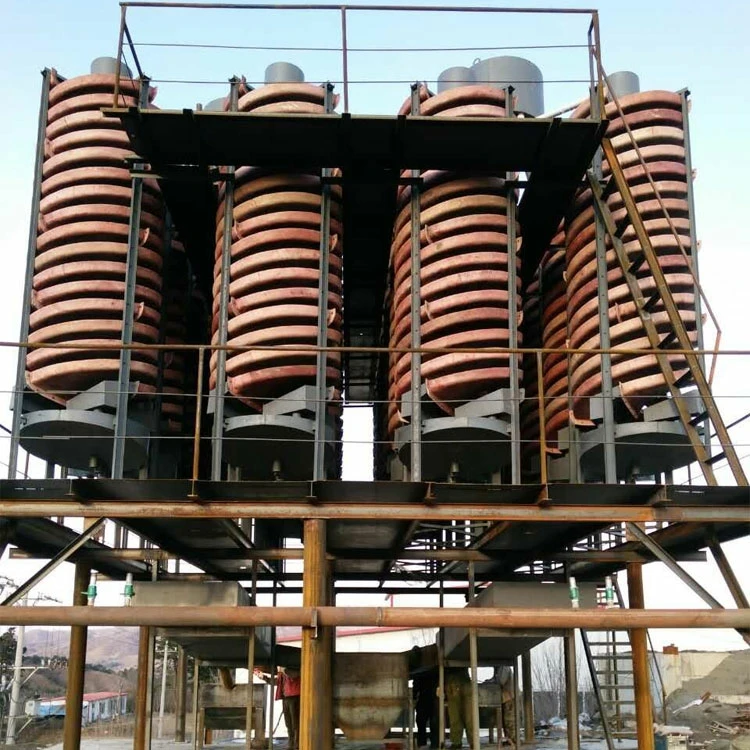

Product Usage
FAQ
Q1：Why we believe in WEIDA?
A1：More than 20 years' experience.
Q2：Deliver time?
A2：The lead time is 10-20 days, Delivery time will vary depending on the type of themachine, shipping method selected and part availability.
Q3：Payment terms?
A3：Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After signthe contract, pay the 10%-30% deposit of total purchase price and pay the full paymentbefore delivery.
Q4：What will you do if the machine is broken down?
A4：The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q5：What should i do if I want to get a best quotation?
A5：If you want a suitable type for you, please let us know your material and capacity.
