Product Overview
Description
Products Description
Product Application
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Specifications | Unit | GL-1313 | GL-1613 | GL-2016 |
Table size | mm | 1300*1100 | 1600*1100 | 2000*1300 |
X Axis travel | mm | 1300 | 1600 | 2000 |
Y Axis travel | mm | 1300 | 1300 | 1600 |
Z Axis travel | mm | 700 | 700 | 700 |
Distance from spindle nose to table surface | mm | 100-800 | 100-800 | 100-800 |

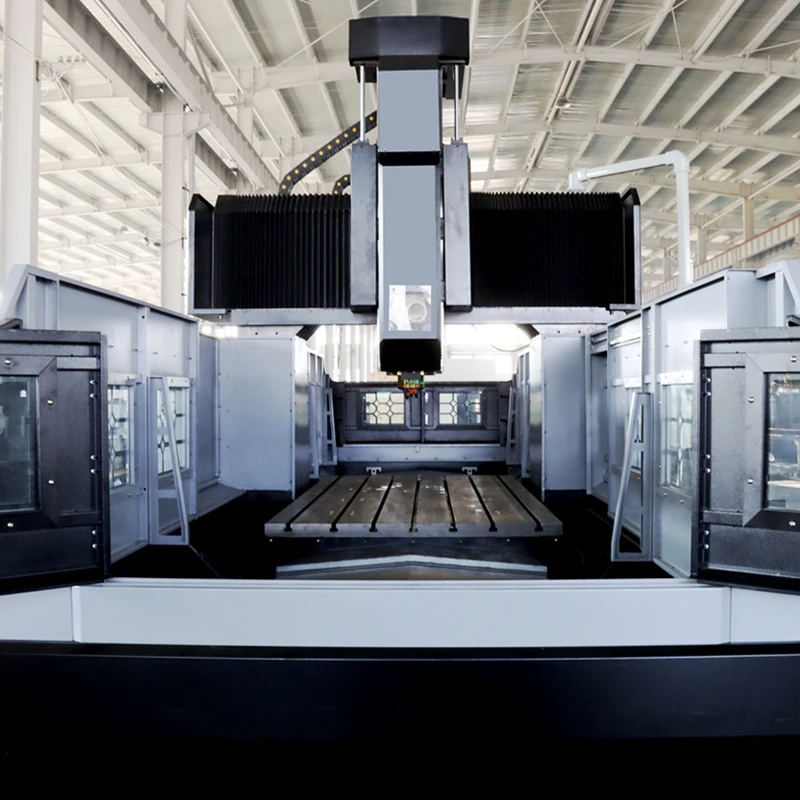

Gantry width | mm | 1350 | 1350 | 1650 |
T slot (slot number-width*pitch) | mm | 7-18-165 | 7-18-165 | 7-18-165 |
Spindle taper | BT40 | BT40 | BT40 | |
Max.spindle speed | rpm | 8000 | 8000 | 8000 |
Main motor power | kw | 11 | 11 | 11 |
X/Y/Z axis servo motor torque | NM | 23/23/23 | 28/23/23 | 35/23/23 |
Max table load | kg | 1500 | 2000 | 2500 |
Table height from floor | mm | 800 | 800 | 800 |
X/Y/Z axis rapid traverse | M/min | 18/18/12 | 18/18/12 | 12/18/12 |
Cutting feed speed | M/min | 1-10 | 1-10 | 1-10 |
Positioning accuracy | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 |
Repeat positioning accuracy (mm) | mm | ±0.004 | ±0.004 | ±0.004 |
Machine dimension | mm | 3800x2600x3400 | 3800x2600x3400 | 5000x3000x4600 |
Machine weight | kg | 10200 | 10500 | 13000 |

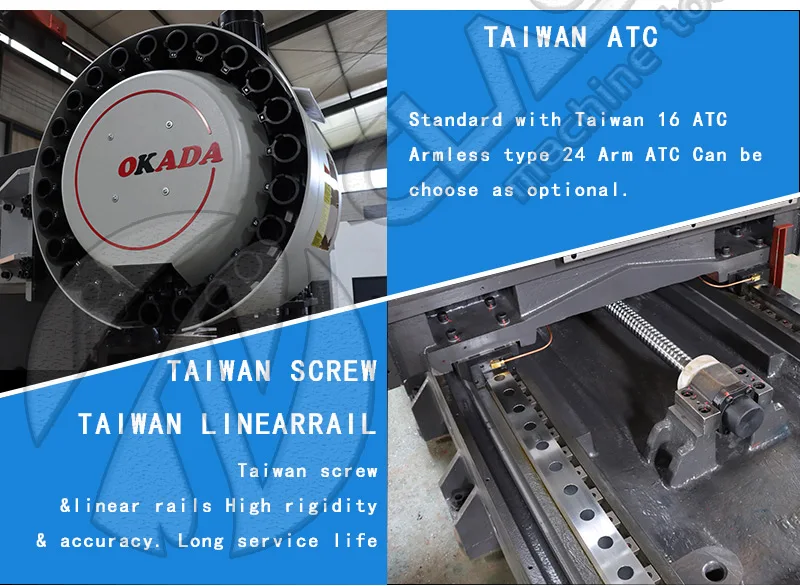

Detailed Images
Details Display
Recommend Products
Company Introduction
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What CNC system do you use?

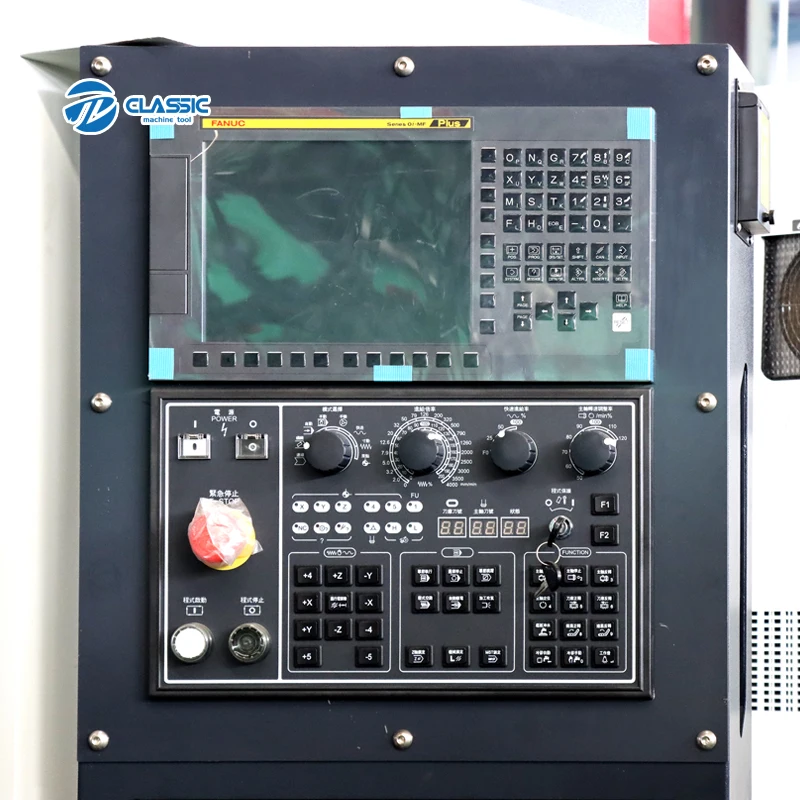

A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.3.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films
