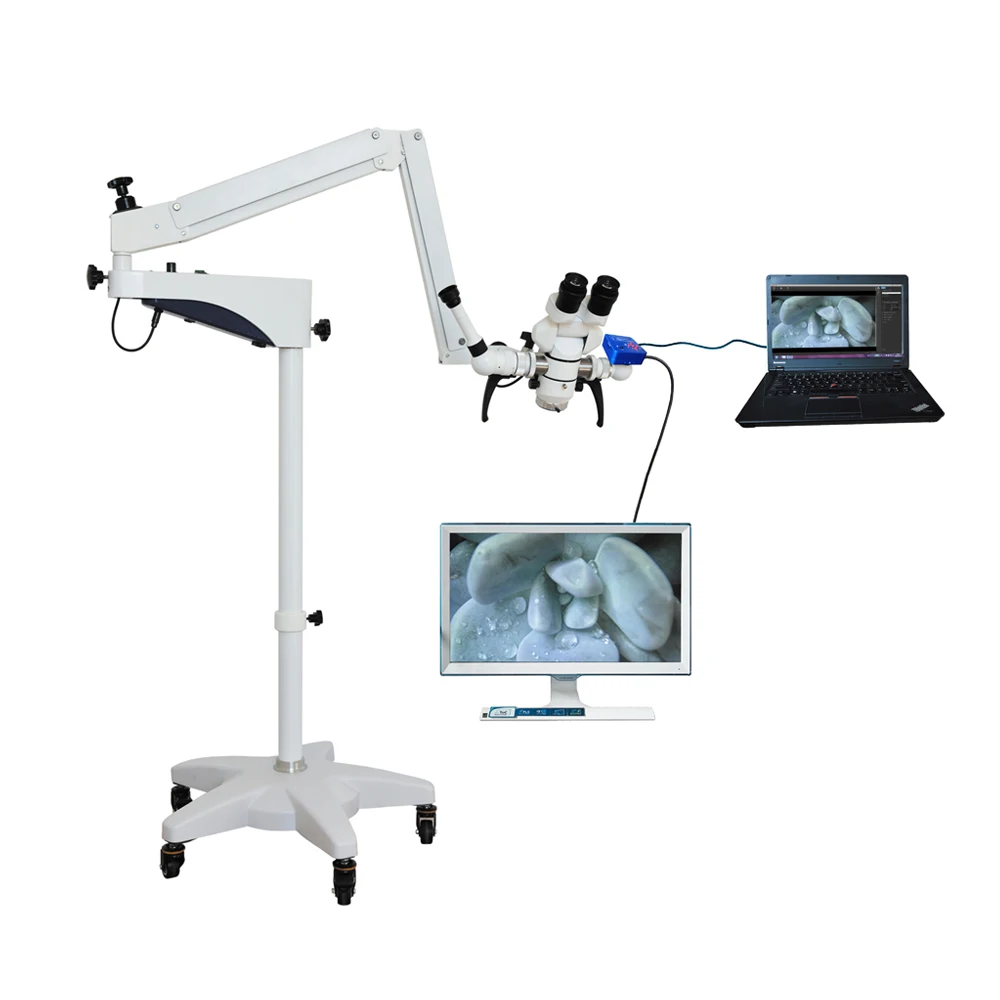

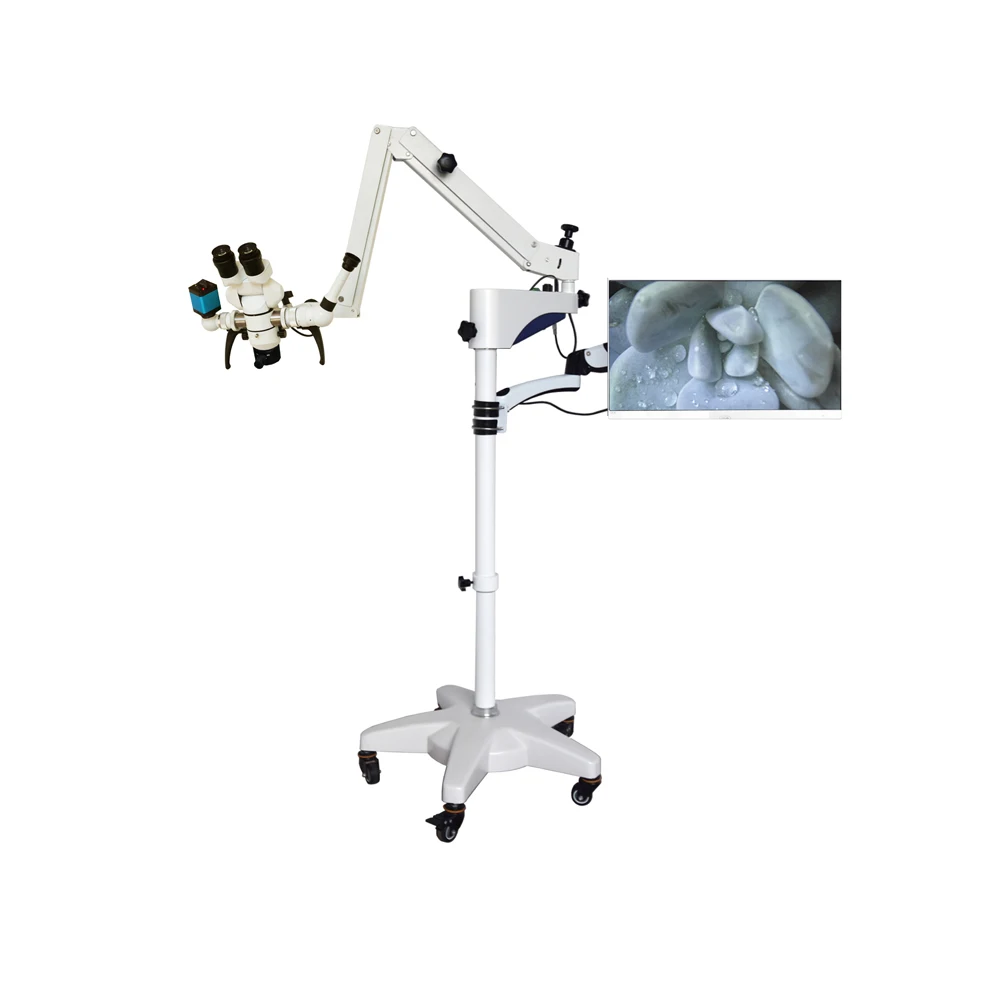

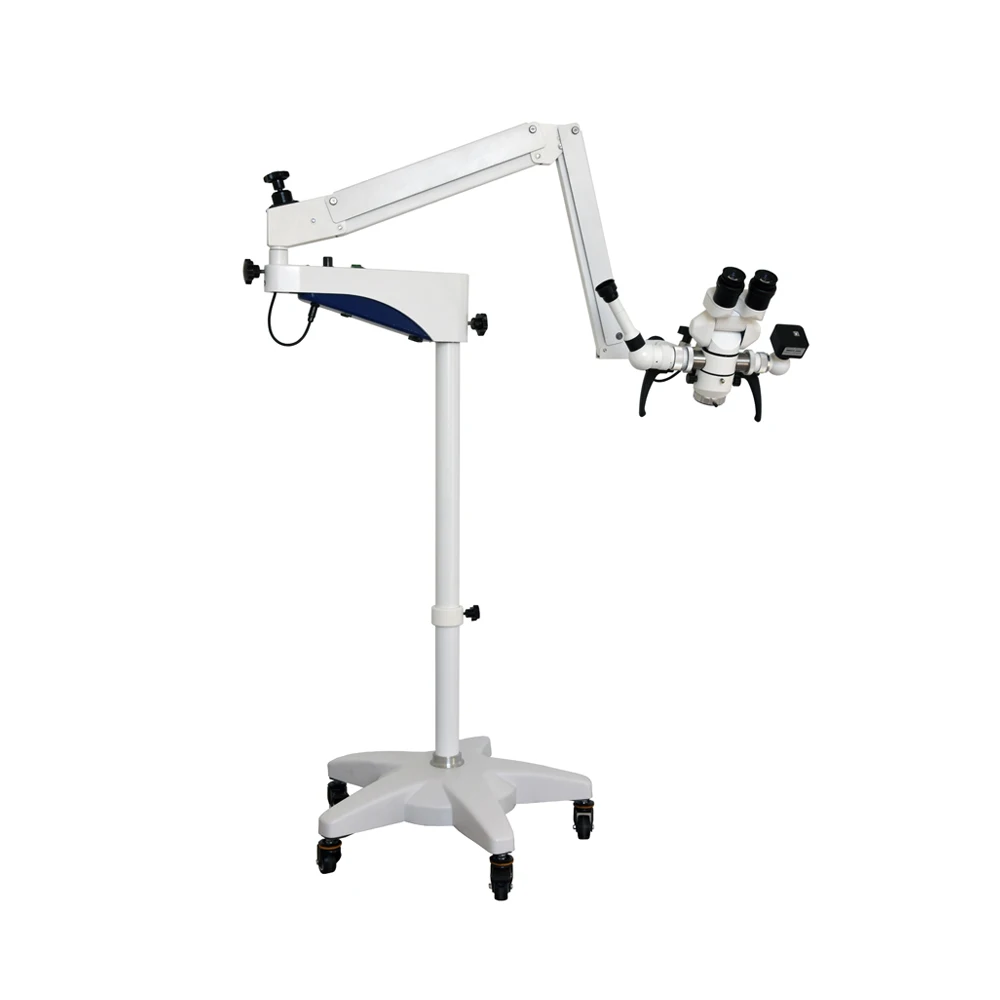

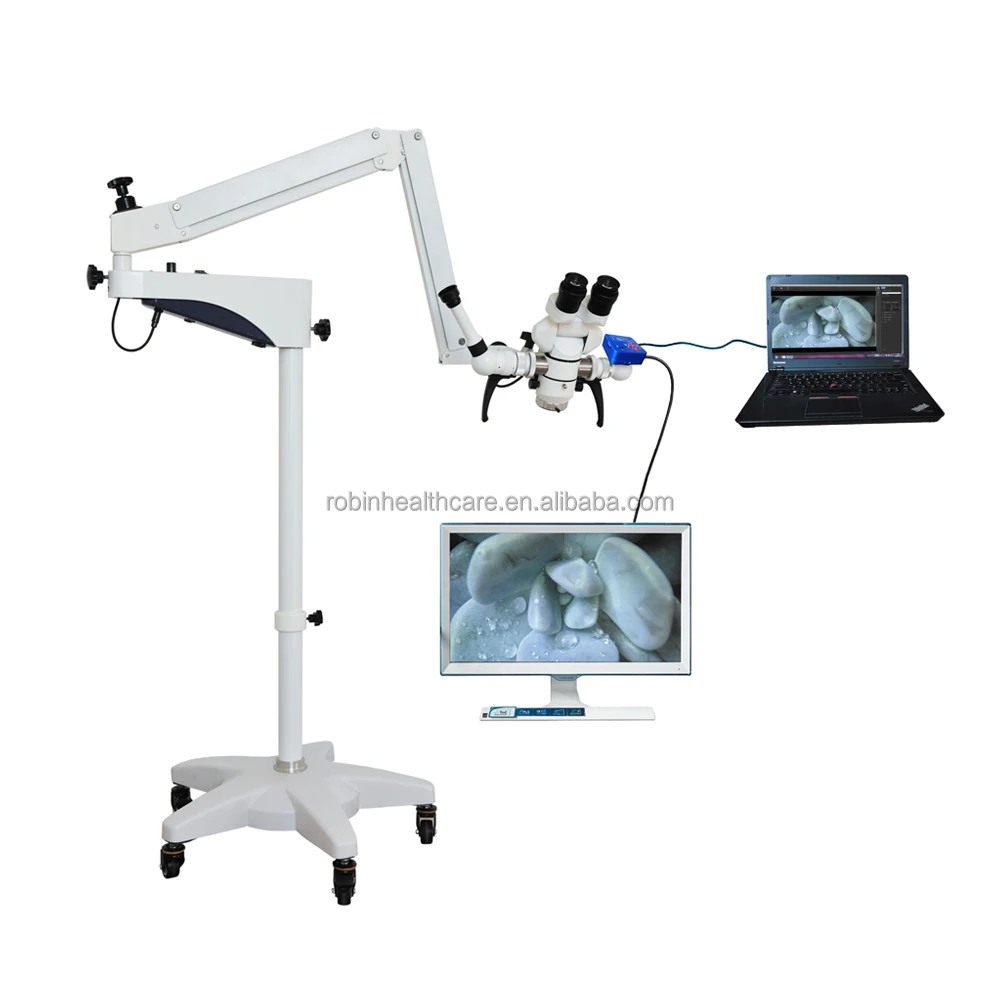

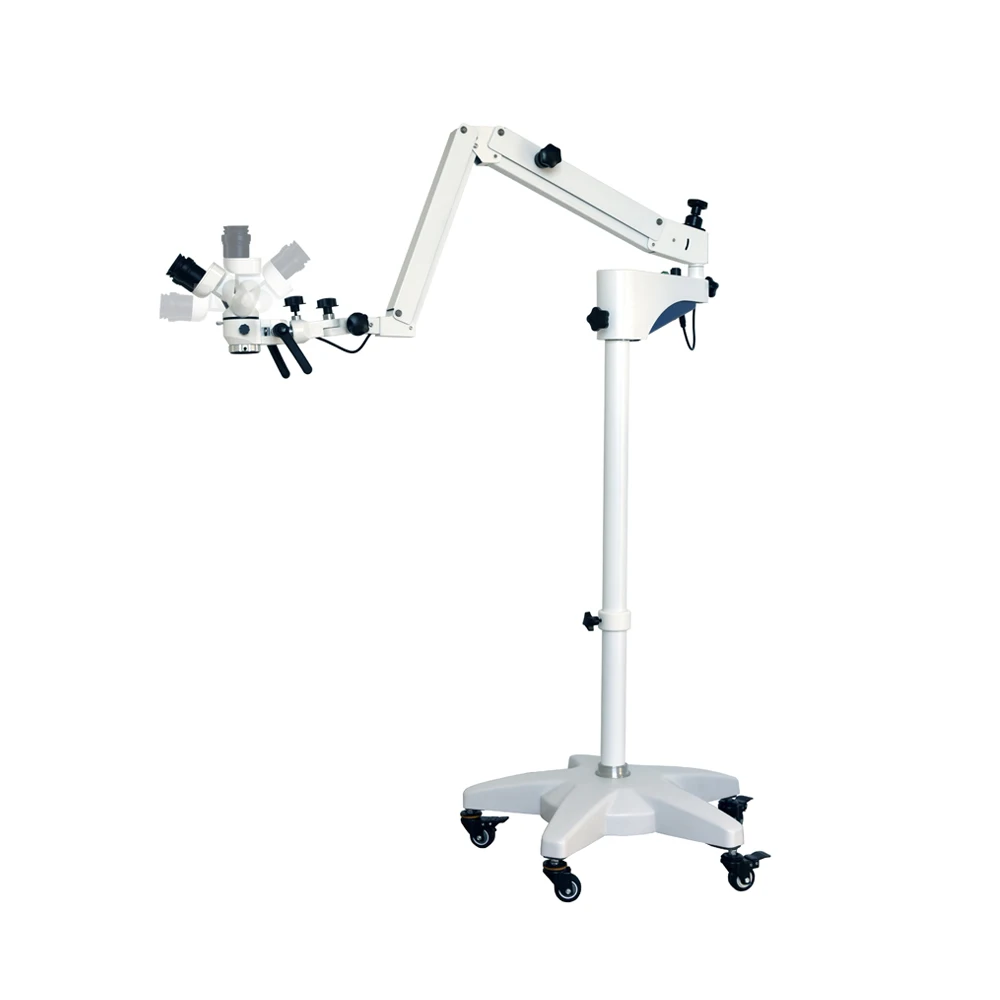

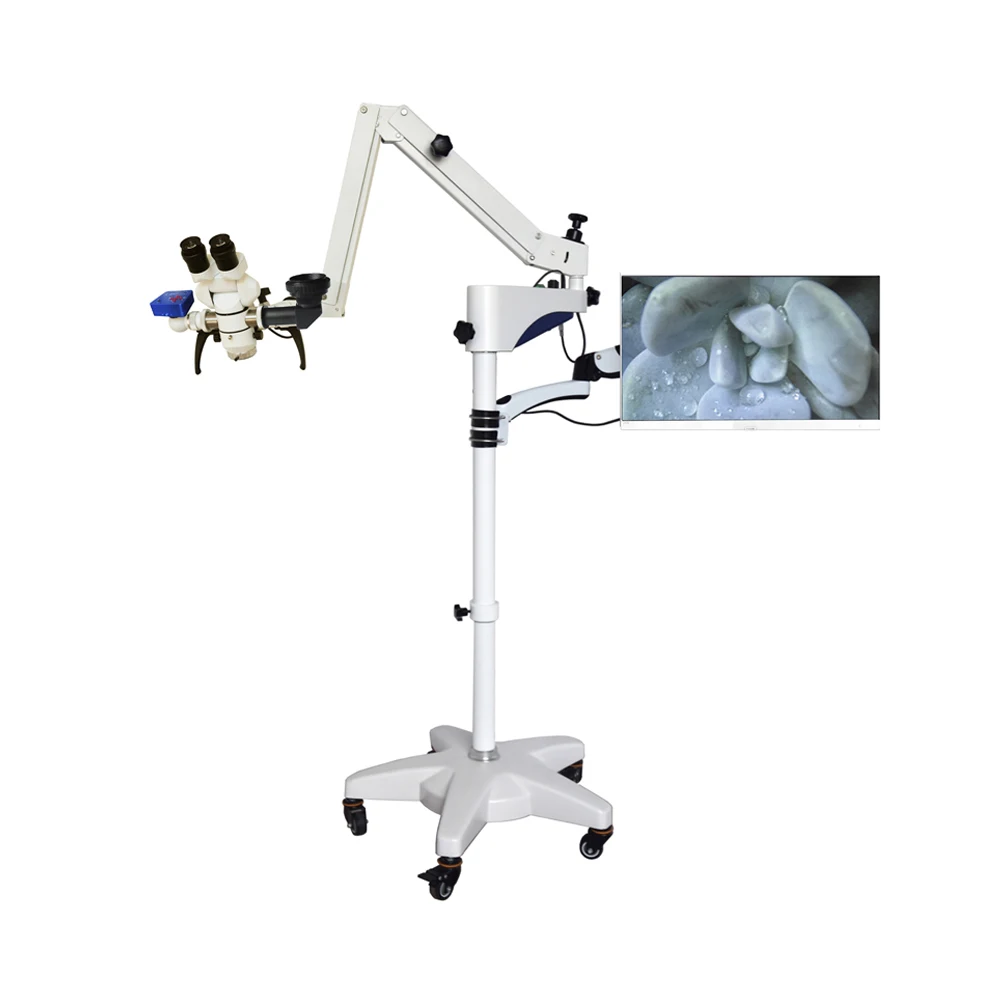

180 degree Medical Clinical LED Surgical Dental Operating Microscope ENT Ophthalmology Equipment
- Category: >>>
- Supplier: Qingdao Robin Health Technology Co. Ltd.
Share on (1601004654141):
Product Overview
Description
YSX180 Operation Microscope using LED light source for coaxial illumination, with 0-180° inclinable binocular and 3-step magnification changer, have different working distance and magnification. It is featured for flexible handling and easy operation. It is sued for micro-operation in dental especially, and can be used for micros-operation in ophthalmology, ear-nose-throat, gynecology and surgery.
Magnification of binocular: 8X
Binocular: 0-180° inclinable
Magnification of eyepiece: 12.5X
Interpupillary distance: 50mm-80mm
Diopter: ±7D
Focal length of objective: F=200mm and F=250mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total magnification: 4.8X, 8X, 12.8X, 6X, 10X, 16X
Linear field: 50mm, 30mm, 19mm, 40mm, 24mm, 15mm
Fine focusing distance: 10mm
Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>40000lx
Binocular: 0-180° inclinable
Magnification of eyepiece: 12.5X
Interpupillary distance: 50mm-80mm
Diopter: ±7D
Focal length of objective: F=200mm and F=250mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total magnification: 4.8X, 8X, 12.8X, 6X, 10X, 16X
Linear field: 50mm, 30mm, 19mm, 40mm, 24mm, 15mm
Fine focusing distance: 10mm
Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>40000lx
Product parameter
Filter: Build-in green and yellow filters
Balancing arm: 2-part arm with universal joints, counterweight adjustable and can be locked
Floor stand: 2-part column fitted on the five-star base with casters
Power supply input: AC100V-240V, 50HZ-60HZ
Power supply adapter: DC12V3A, 36W

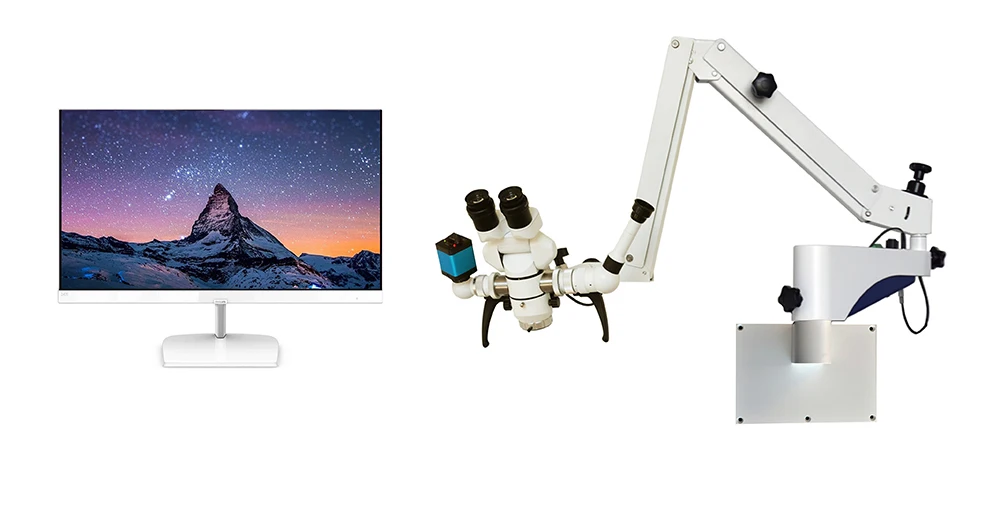

Optional accessories: Beamsplitter, Video camera adapter, Demonstrator, Camera (U3CMOS03100KPA, XCAM1080PHA, XCAM1080P2MPA, XCAM1080PHD, WUCAM0720PA, FHD2100, HD200), Monitor (S24R352FHC, S24F350FHC), Eyepiece 10X, Objective F=300mm & F=400mm, F=200mm-300mm zoom objective, Table mount clamp, Wall mount bracket, Monitor mount (GM112B, GM112W)
Balancing arm: 2-part arm with universal joints, counterweight adjustable and can be locked
Floor stand: 2-part column fitted on the five-star base with casters
Power supply input: AC100V-240V, 50HZ-60HZ
Power supply adapter: DC12V3A, 36W
Optional accessories: Beamsplitter, Video camera adapter, Demonstrator, Camera (U3CMOS03100KPA, XCAM1080PHA, XCAM1080P2MPA, XCAM1080PHD, WUCAM0720PA, FHD2100, HD200), Monitor (S24R352FHC, S24F350FHC), Eyepiece 10X, Objective F=300mm & F=400mm, F=200mm-300mm zoom objective, Table mount clamp, Wall mount bracket, Monitor mount (GM112B, GM112W)
ltem | YSX180 series |
Binocular observation | 0-180° inclinable |
Magnification of binocular | 8X |
Interpupillary distance | 50mm-80mm |
Diopter | ±7D |
Magnification changer | 3-step magnification change: 0.6X,1X,1.6X |
Focal length of objective | Two objectives: F=200& F=250mm |
Total magnification | 4.8X, 8X, 12.8X, 6X, 10X, 16X |
Linear field | 50mm, 30mm, 19mm, 40mm, 24mm, 15mm |
Fine focusing range | 10mm |
Filter | Built-in green and yellow filters |
Balancing arm | 2part arm with universal ioints, counterweiaht adiustable and can be locked |
Illumination system | Coaxialilluminationwith10WLEDlamplight source, brightness adjustable, illumination>40000lx |

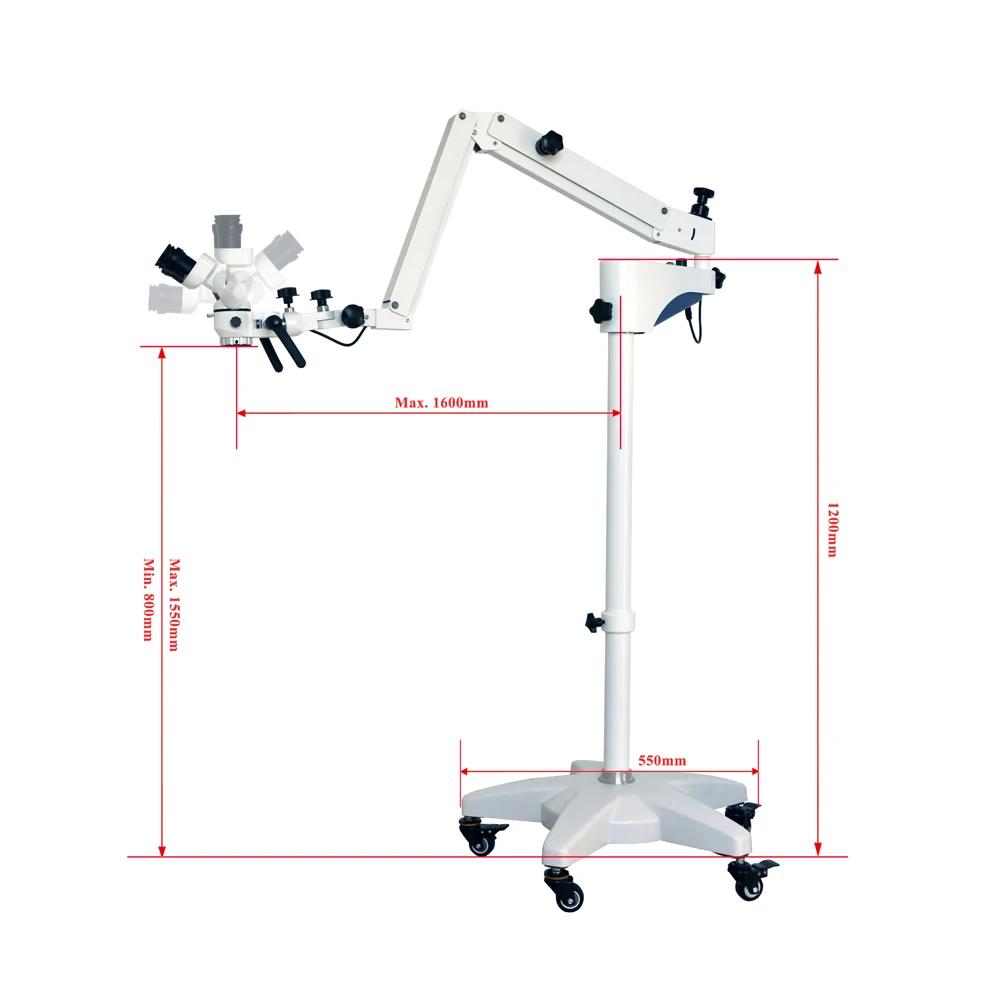

Stand | 2-part column fitted on the five-star base with casters |
