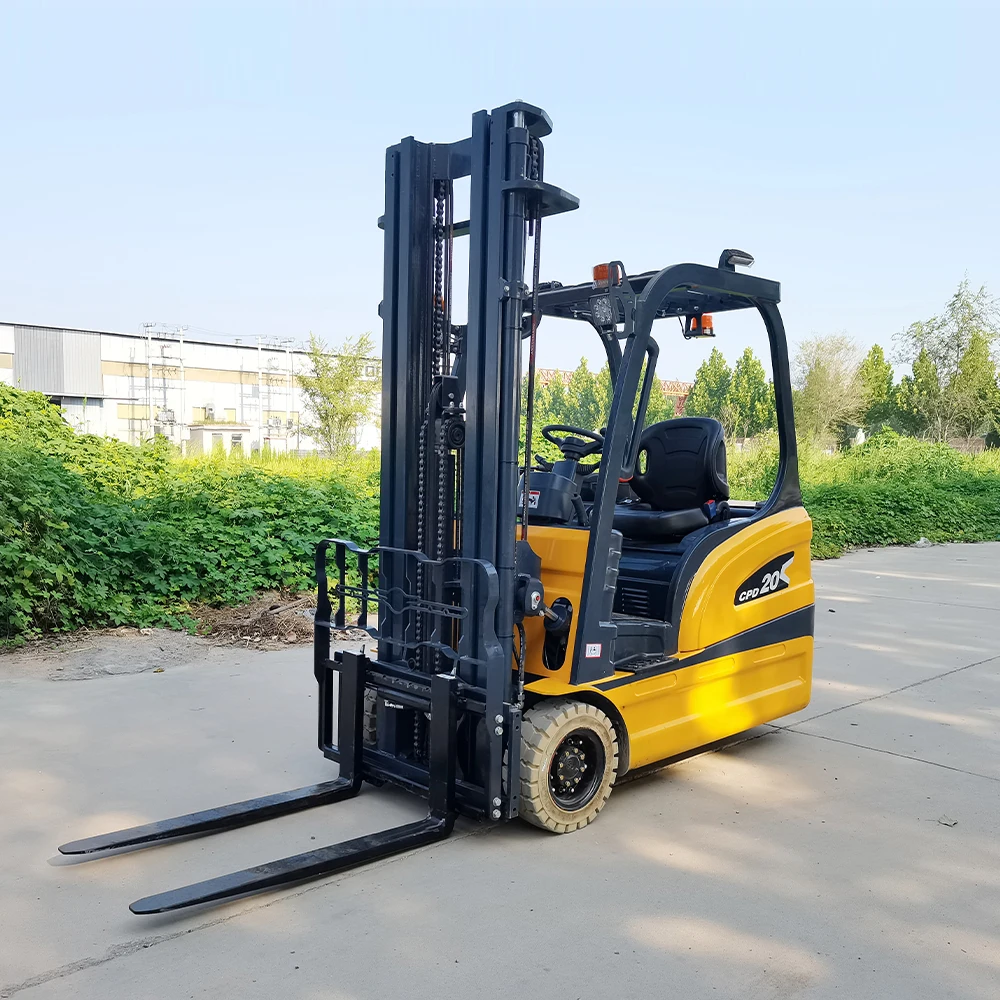

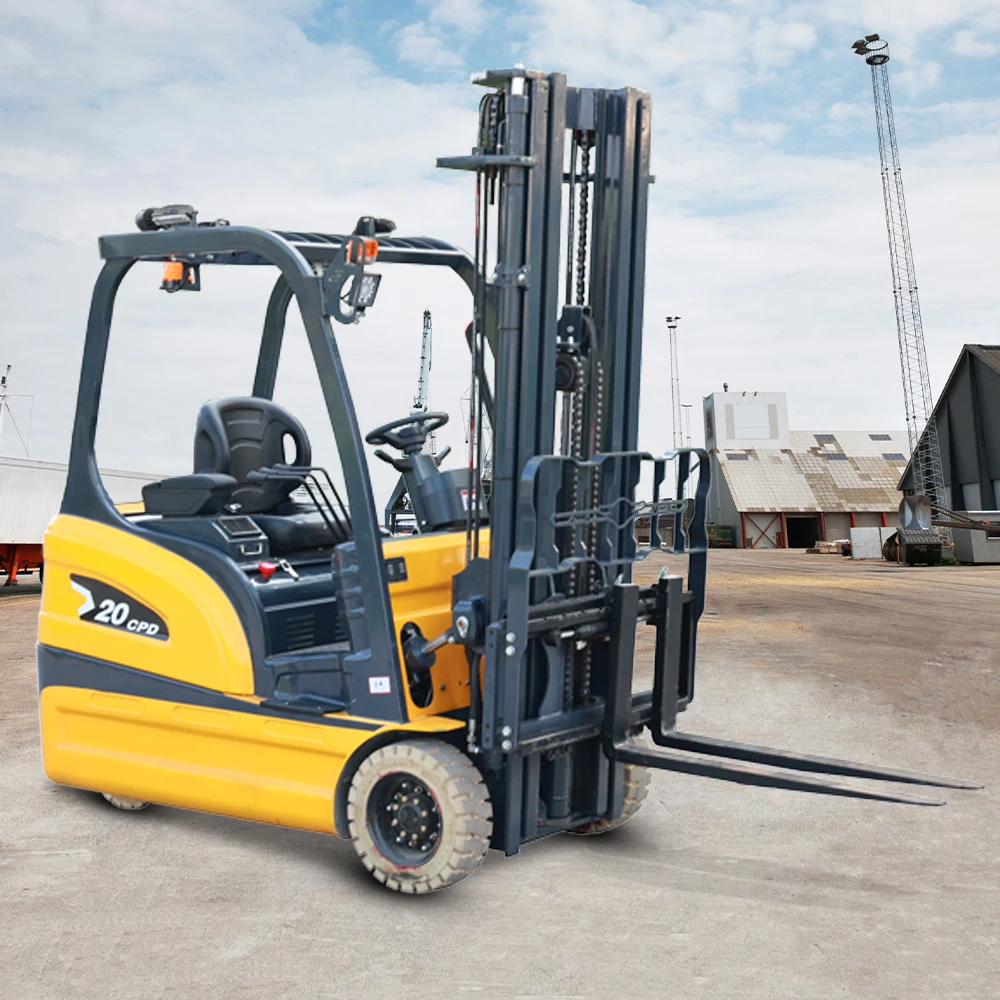

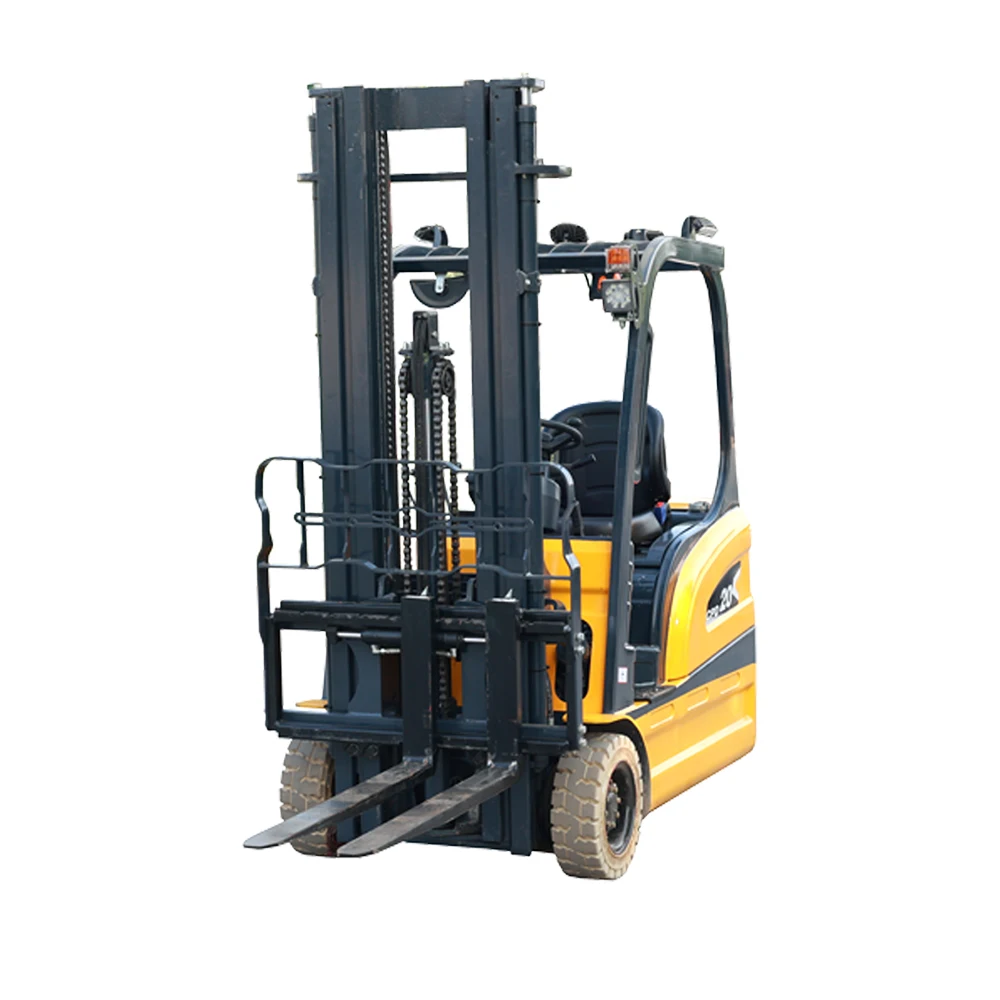

Qilu Chinese Supplier Mini Diesel Forklift Truck Price With Euro5/EPA
- Category: >>>
- Supplier: Shandong Qilu Industrial Co. Ltd.
Share on (1601004664641):
Product Overview
Description
Product Specifications

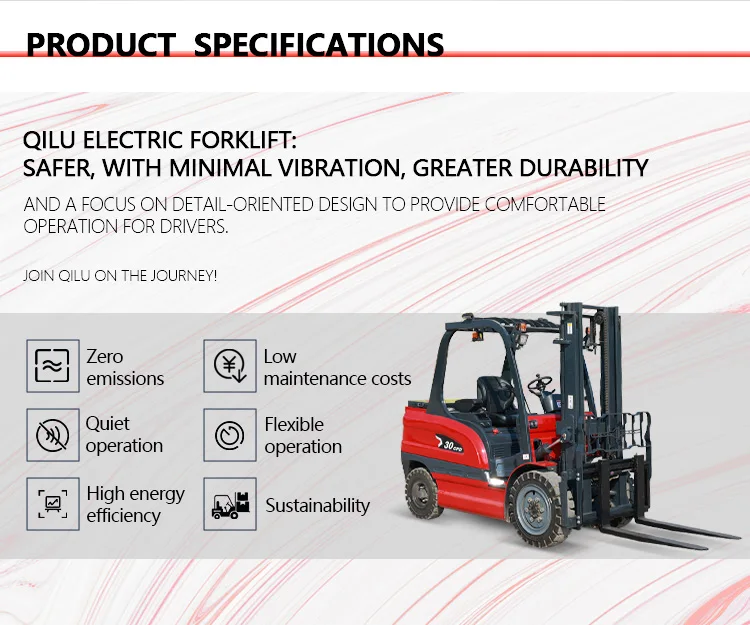

Qilu electric forkliftsafer,with minimal vibration，greater durability
And a focus on detail-oriented design to provide comfortableoperation for drivers
And a focus on detail-oriented design to provide comfortableoperation for drivers
Model | QL-20F | QL-30A | QL-35A |
Power Form | Ｅlectric | Ｅlectric | Ｅlectric |
Load Capacity | 2000kg | 3000kg | 3500kg |
Load Center Distance | 500mm | 500mm | 500mm |
Front Overhang | 300mm | 420mm | 420mm |
Wheelbase | 1600mm | 1860mm | 1860mm |
Operating Weight (including battery) | 2850kg | 3700kg | 4000kg |
Forward/Backward Tilt Angle of Mast and Forks | 5/9α/ β (°) | 5/9α/ β (°) | 5/9α/ β (°) |
Height with Mast Lowered | 2130mm | 2180mm | 2180mm |
Maximum Lifting Height with Standard Mast | 3000mm | 3000mm | 3000mm |
Mast Height at Maximum Lifting Height | 4000mm | 4100mm | 4100mm |
Height of Overhead Guard (Cabin) | 2050mm | 2100mm | 2100mm |
Overall Length of the Vehicle | 3410mm | 3860mm | 3750mm |
Length to the Vertical Plane of the Forks | 2340mm | 2790mm | 2680mm |
Overall Width | 1100mm | 1220mm | 1220mm |
Fork Dimensions | 40X122X1070mm | 45X122X1070mm | 45X122X1070mm |
Outer Width of Fork Frame | 1040mm | 1240mm | 1240mm |
Minimum Ground Clearance of the Vehicle Body | 80mm | 150mm | 150mm |
Turning Radius | 2230mm | 2480mm | 2480mm |
Travel Speed, Full Load/Empty Load | 10/12km/ h | 12/13km/ h | 12/13km/ h |
Lifting Speed, Full Load/Empty Load | 0.24/0.3m/ s | 0.35/0.45m/ s | 0.35/0.45m/ s |
Lowering Speed, Full Load/Empty Load | 0.4/ 0.36m/ s | 0.4/ 0.36m/ s | 0.4/ 0.36m/ s |
Maximum Gradeability, Full Load/Empty Load | 15% | 15% | 15% |
Driving Brake Type | Hydraulic+Mechanical | Hydraulic+Mechanical | Hydraulic+Mechanical |
Parking Brake Type | Machinery | Machinery | Machinery |
Rated Power of Drive Motor S2 60 minutes | 5.5kW | 11.5kW | 11.5kW |
Rated Power of Lifting Motor S3 15% | 5.5kW | 12kW | 12kW |
Battery Voltage/Nominal Capacity K5 | 60V260Ah | 48V500Ah | 48V500Ah |
Drive Control Type | Exchange | Exchange | Exchange |
Product Application Scenarios

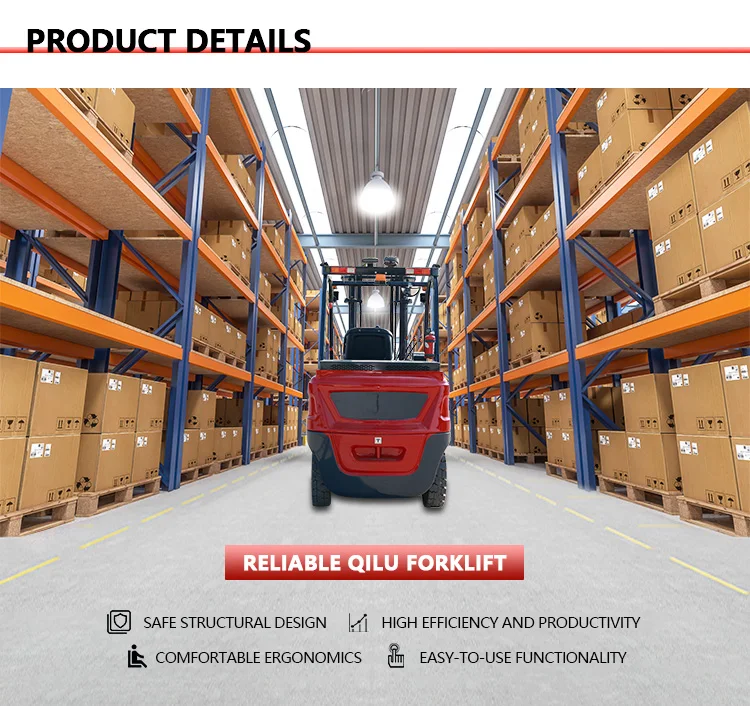

Product Details

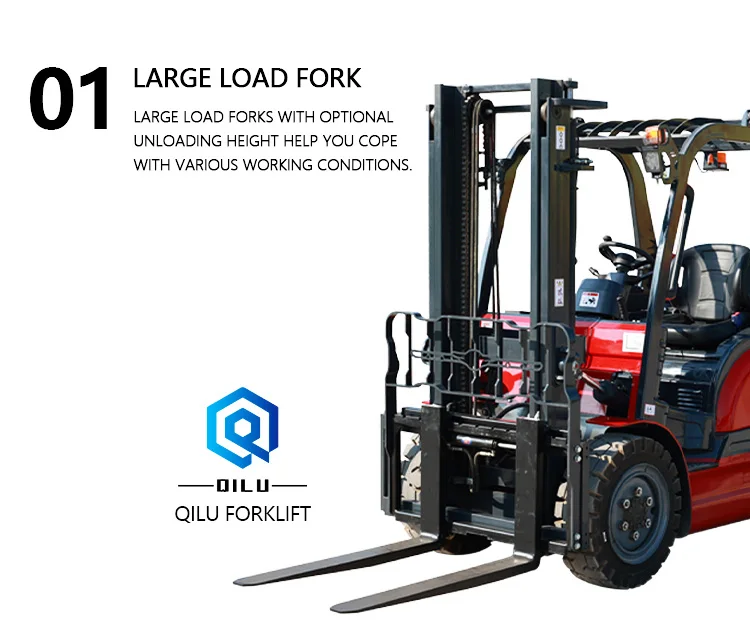

Large load fork
Large load forks with optionalunloading height help you copewith various working conditions

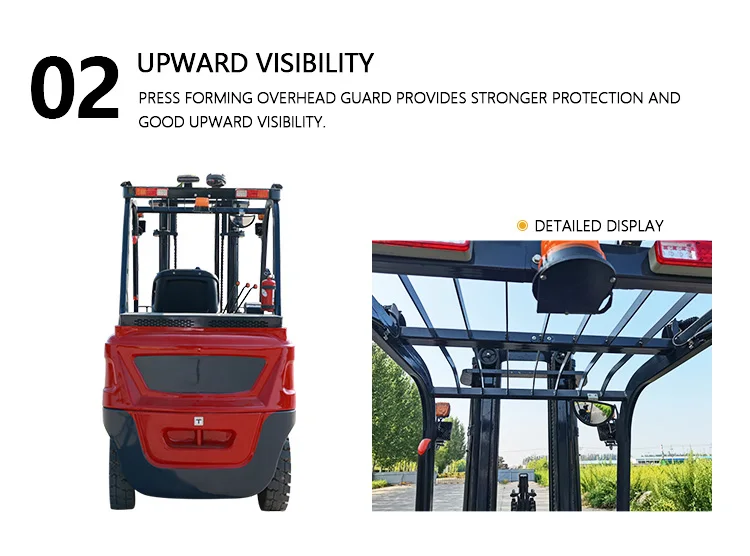

Upward visibility
Press forming overhead guard providesstronger protection and good upward visibility

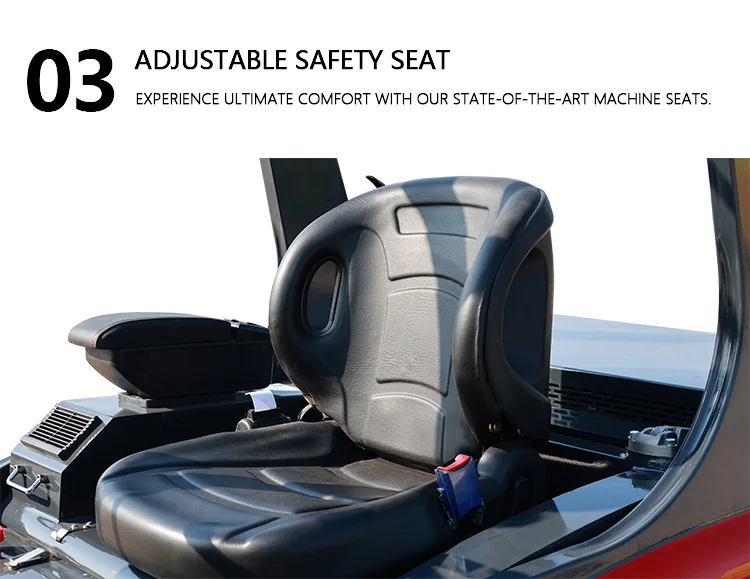

Adjustable safety seat
Experience ultimate comfort with our state-of-the-art machine seats.

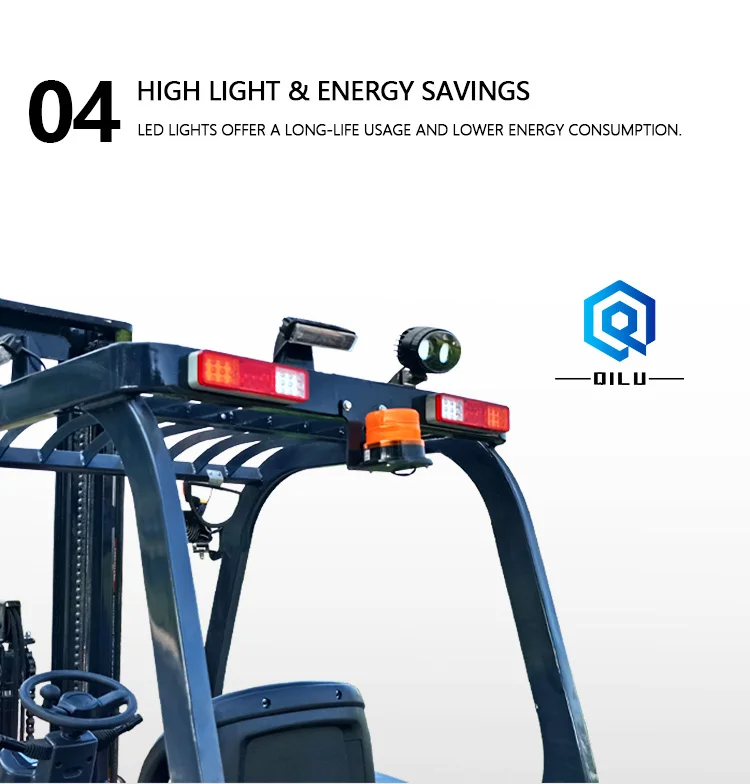

High light & energy savings
Led lights offer a long-life usage and lower energy consumption

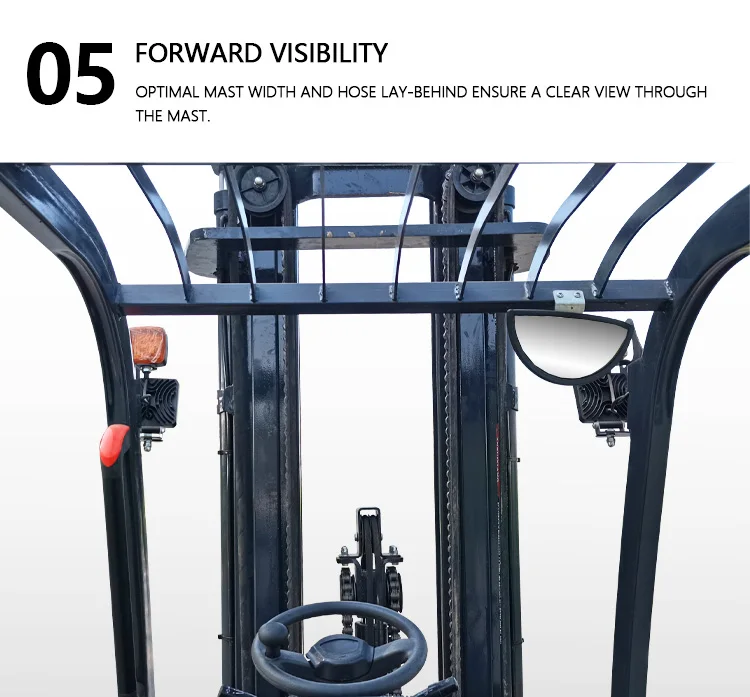

Forward visibility
Optimal mast width and hose lay-behind ensure a clear view throughthe mast

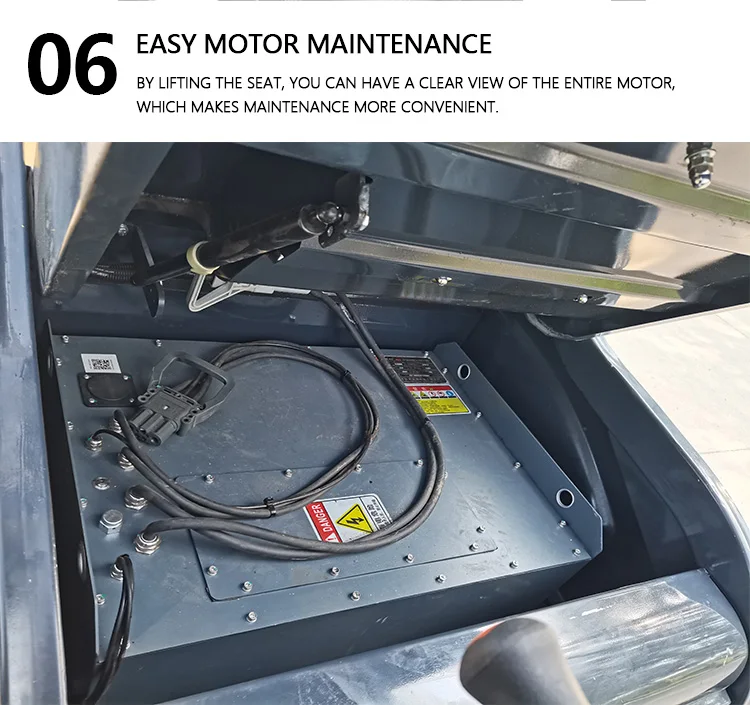

Easy motor maintenance
By lifting the seat, you can have a clear view of the entire motorwhich makes maintenance more convenient

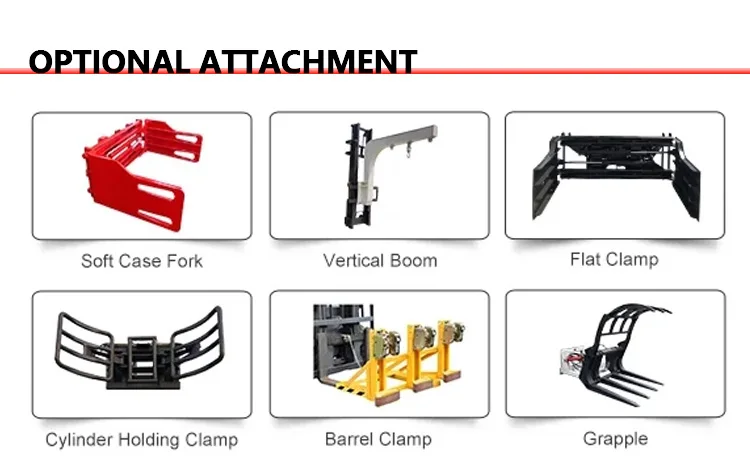

Optional Attachments

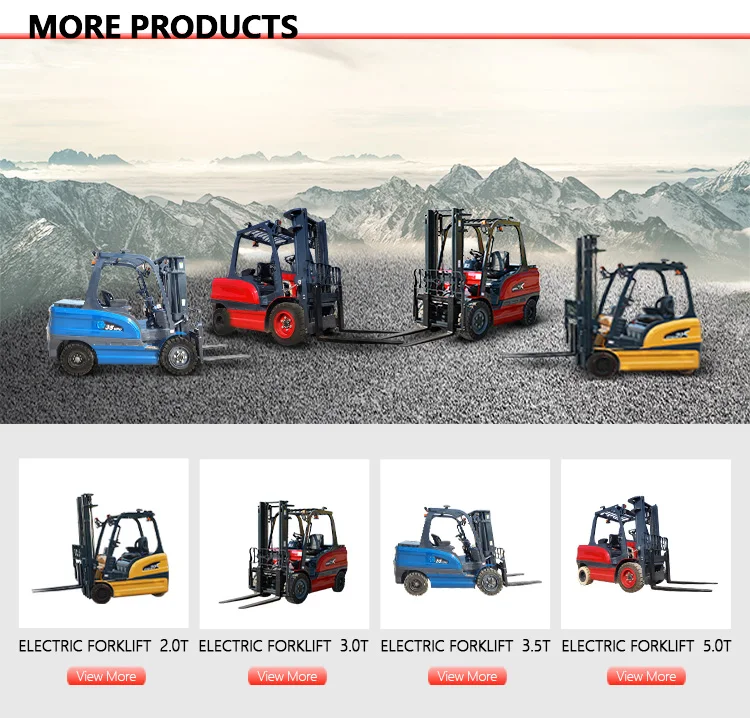

More Products
Product packaging
Company Profile
Shandong Qilu Industrial Co., Ltd. is an integrated trading andmanufacturing company that specializes in producing excavatorselectric forklift and tractors. Located in the beautiful city of JiningShandong Province, China, our company covers an arca of50,000 square meters and has a workforce of 150 employeesWith advanced production facilities and strict quality control,we are dedicated to providing high-quality products to domesticand international customers. Our annual production capacityfor tractors is 20,000 units, while our production of excavatorsreaches up to 5,000 units per year.Our excavators feature advanced hydraulic systems and adurable steel frame, making them reliable and efficient for allyour excavation needs. They come in various sizes, rangingfrom small mini excavators to larger models with greater powerand digging capability. Meanwhile, our electric vehicles arerenowned for their versatility and durability, making them widelyused for transportation tasks.At Shandong Qilu industrial Co Ltd. we prioritize the satisfaction of our customers above all else. We strive to provide excellent customelservice and technical support, ensuring that our clients receive the highest level of care and assistance.We look forward to establishing long-erm partnerships with customers from al over the world. and to continue delivering high-quality productsand services that meet their needs and exceed their expectations
FAQ
Q1. Will you provide after-sale service?
Q3.What is your terms of packing?
Q4.How soon can you respond client inquiries?
A. Yes. The warranty period is 12 months or 1200 hours, once any spare parts break down during this period, the seller shall replace the parts for free according to the pictures of the damaged spare parts shown by the buyer.
Q2.How to buy machines from your company?
You can choose a model from our website, or tell our sales manager your specific requirements and we will recommend a suitable model for you. After confirming the model and price. we can confirm the order.
Q3.What is your terms of packing?
We use standard exported wooden case for LCL goods, and and fixed with strap for FCL goods
Q4.How soon can you respond client inquiries?
We are online 24 hours a day to respond to your inquiries. You can contact me anytime
Q5.Which payment terms can you accept?
Normally we can work on T/T term or LC term, sometime DP term
1)On T/T term 30%down payment is required in advance, and 70% balance shall be settled before shipment.
2)On LC term, please seek the advice from the individual sales manager whom you work with
