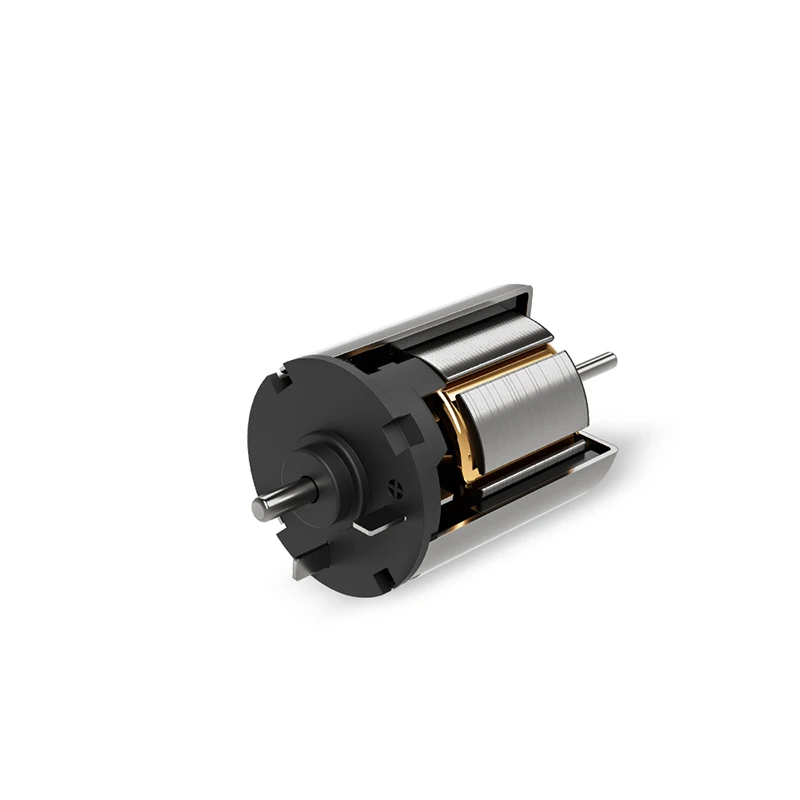

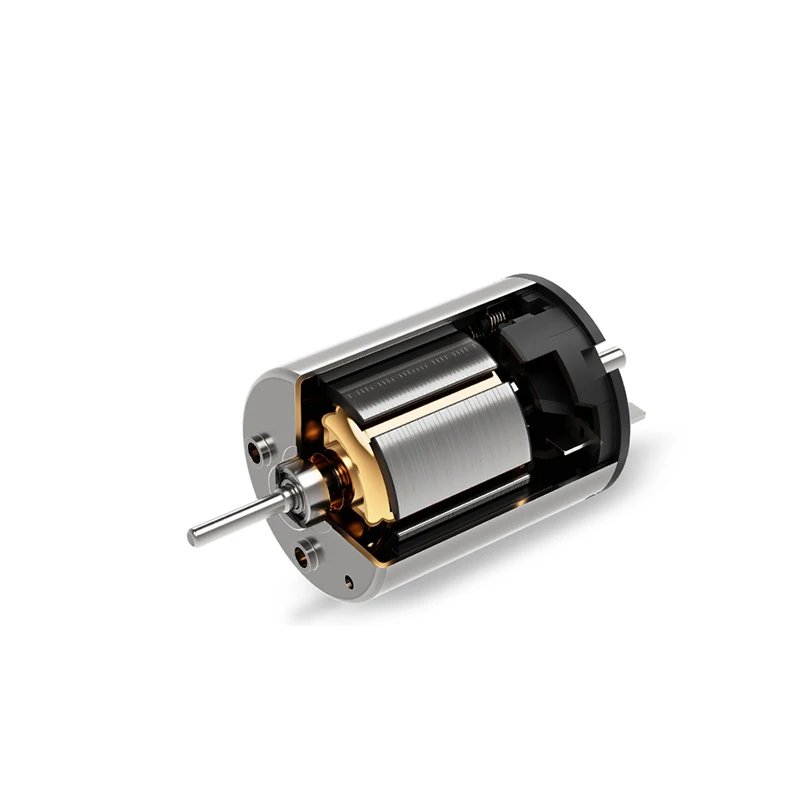

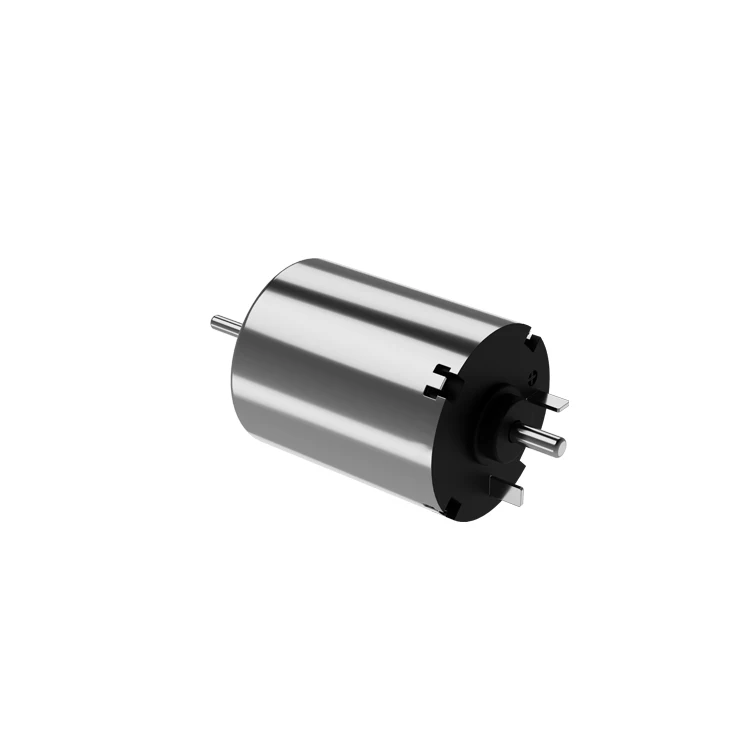

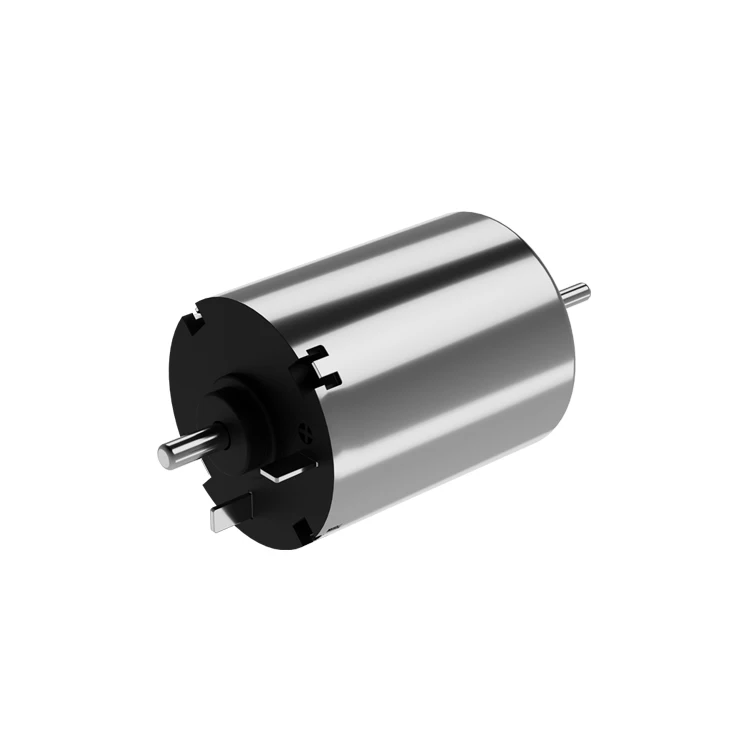

ZHAOWEI MP2430 03 24mm 24mNm 4400rpm 12v high performance Long life brush dc Motor for replace maxon motor Medical Imaging
- Category: >>>
- Supplier: Shenzhen Zhaowei Machinery & Electronics Co. Ltd.
Share on (1601004667356):
Product Overview
Description
| brushed motor | MP1935-01 | MP2238-01 | MP2430-03 | MP2435-01 | MP3657-01 |
| The rated voltage | 12 | 12 | 12 | 12 | 12 |
| Air load speed/RPM | 7800 | 6600 | 5600 | 9100 | 9600 |
| Air load current/A | 0.5 | 0.4 | 0.4 | 0.1 | 0.8 |
| Rating speed/RPM | 6200 | 5400 | 4400 | 8000 | 6800 |
| Rating torque/mNm | 10 | 20 | 24 | 4 | 140 |
| Rated current/A | 1.8 | 1.5 | 1.5 | 0.6 | 13 |
| Blocking torque/mNm | 40 | 90 | 100 | 40 | 450 |
| Cover current/A | 5 | 9 | 5.8 | 4 | 45 |
| Maximum efficiency/% | 65 | 65 | 65 | 60 | 75 |
| End resistance/ω | 2.4 | 1.34 | 2.01 | 2.8 | 0.28 |
| Torque constant/mNm/A | 7 | 18 | 18 | 10 | 11.2 |
| Motent constant/rpm/V | 630 | 540 | 450 | 750 | 790 |
| Remark | High -performance version | High -performance version | High -performance version | Extended version 280 | professional motor |

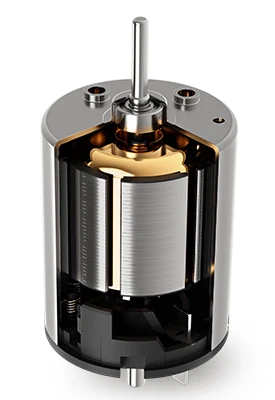

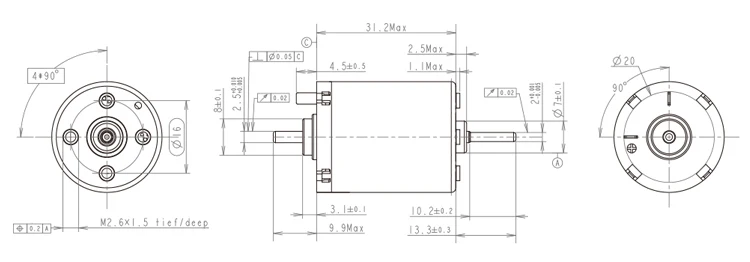

MP2430-03 24mm High-performance coreless brush motor
| Motor data |  | |
| Diameter ( mm ) | 24mm | |
| Total length ( mm ) | 30mm | |
| Rated voltage ( V ) | 12 | |
| Air -load speed ( rpm ) | 6600 | |
| No-load current ( mA ) | 0.4 | |
| Rated speed ( rpm ) | 5400 | |
| The rated continuous torque ( mNm ) | 20 | |
| The rated continuous current ( A ) | 1.5 | |
| Torch ( mNm/A ) | 90 | |
| Torque constant ( mNm/A ) | 18 | |
| Speed constant ( rpm/V ) | 540 | |
#ZHAOWEI drives system to serve the innovation market We can provide coreless brushless motor 6mm ,8mm,10mm,12mm and coreless brush motor 19mm,22mm,24mm,36mm |
