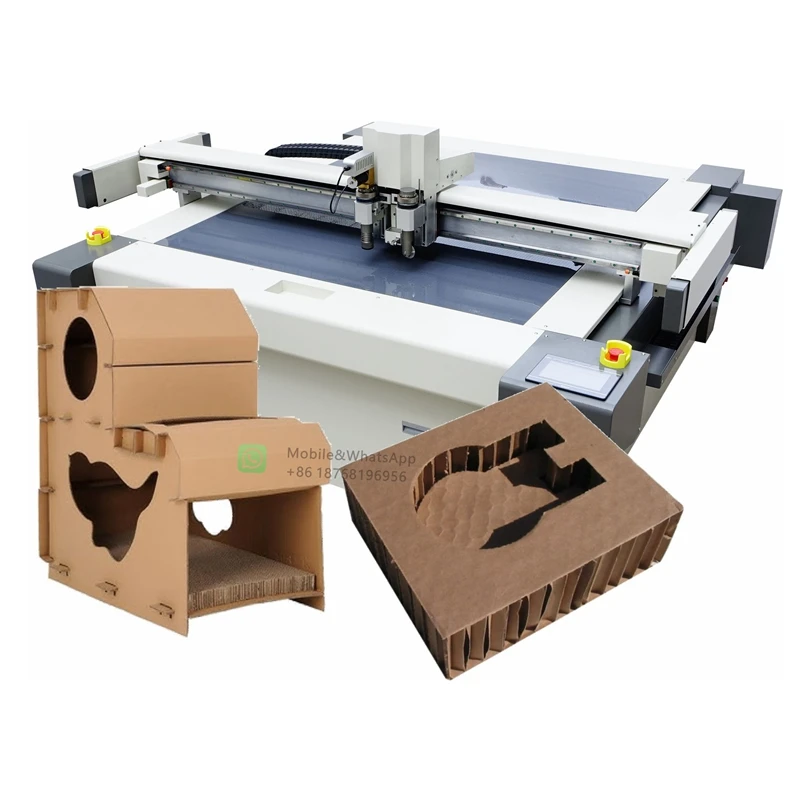

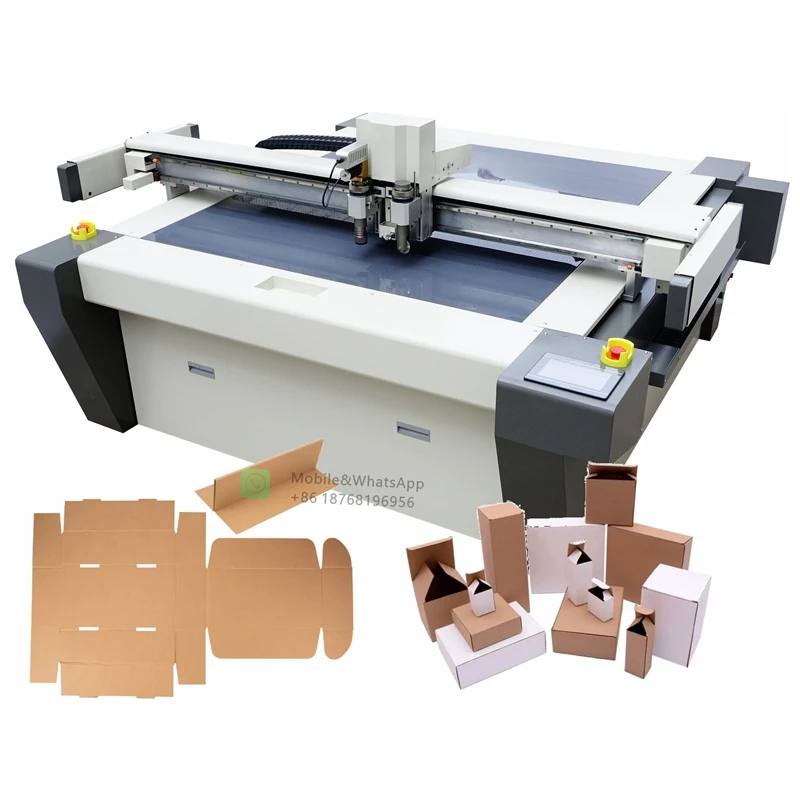

CNC Computerized Mat Cutter For Leather Corrugated Board Seat Cover Mat Rubber Car Floor Mat Cutting Machine With CE

Product Overview

Description

CNC Computerized Mat Cutter For Leather Corrugated Board Seat Cover Mat Rubber Car Floor Mat Cutting Machine With CE

Contact: Mr. Kevin Kong

Mobile: + 86-18768196956

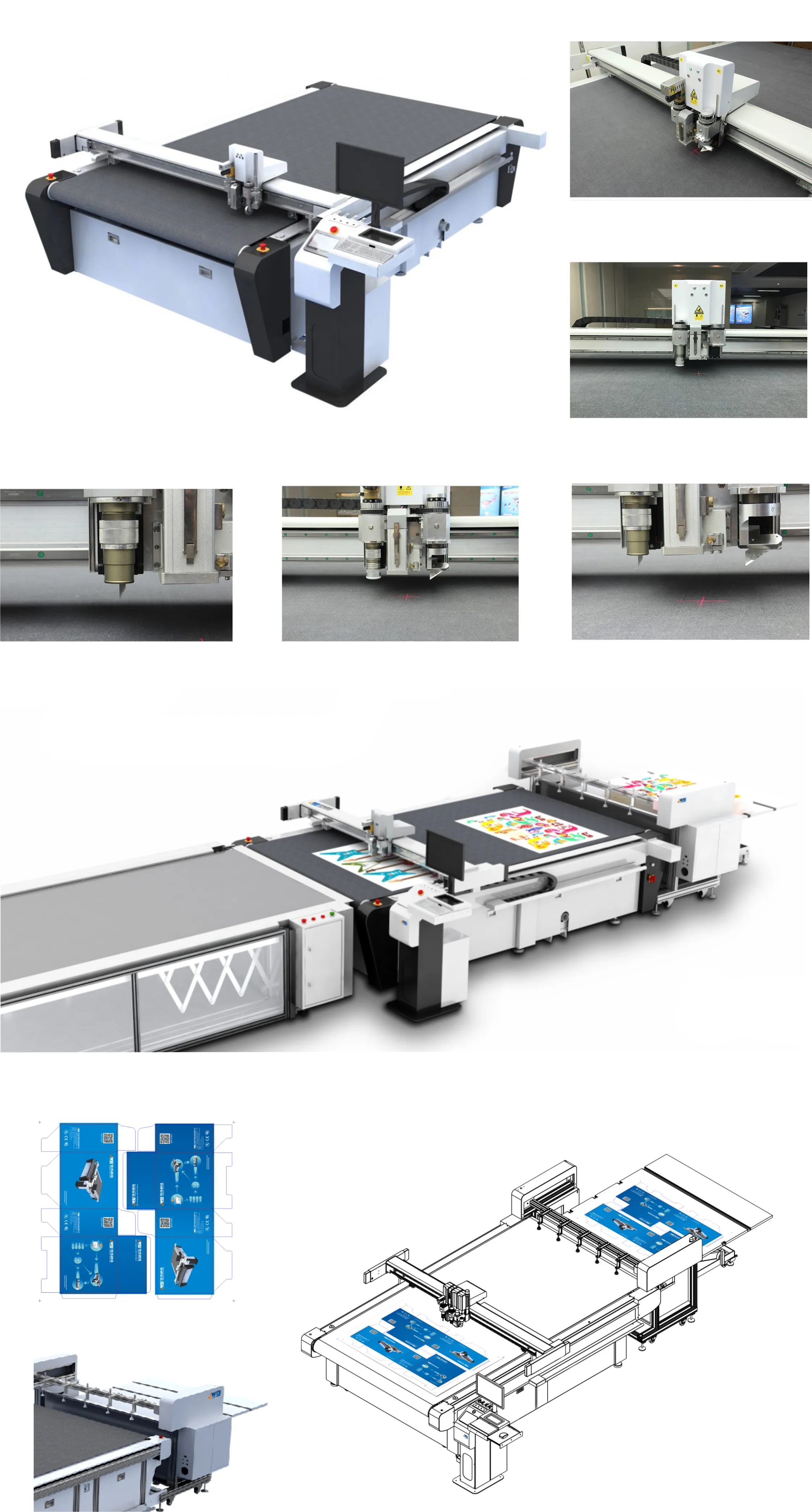

General Introduction of Digital Paper Board Cutter

The cutting system provides an integrated solution for all your sampling and short-run production needs. An extensive selection of knives and pens are available to allow the system to intelligently and precisely cut, kiss cut, punch and plot. The cutting system interfaces with most design software, and allows you to complete the transition from time cunsuming manual sampling to high speed precision sampling, and also supports short run production needs as well.

1500mm/s max. speed  |  1G acceleration  |  6 independent vacuum areas  |  50mm max. thickness cutting capacity  |  6 axis servo drive  |  Versatility for various industries  |  Entry-level flatbed digital cutters



Model No.	RB-1113         |         RB-1816          |         RB-2516
Multifunctional head	Easy to change different tools. Engraving and router. Oscillating thorough cutting/ Kiss cutting/ Creasing/  Plotting/ Laser positioning, and precise camera registration.
Tools	Various kinds of cutting blades, different size of creasing wheels
Safety device	Infrared sensor, responsive, safe and reliable
Max. Speed	Up to 1500 mm/s
Cutting speed	Up to 1200 mm/s(Depends on different materials)
Cutting thickness	Up to 50mm(Depends on different materials)

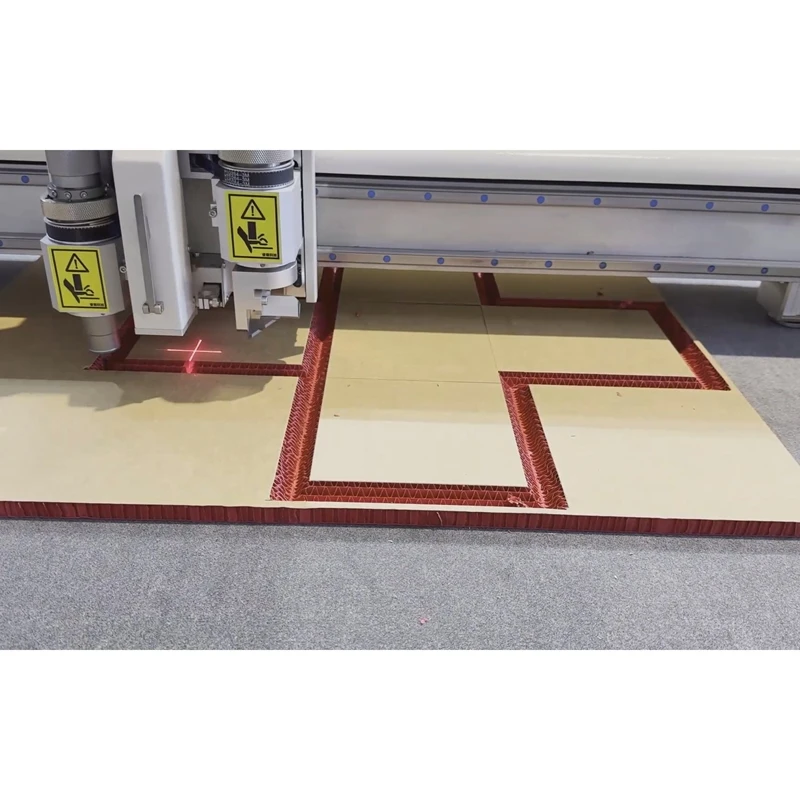

Cutting material	All kinds of corrugated paper, grey cardboard, KT board, PVC expansion sheet, honey comb plate, light slide,  PP gum, car sticker, flag fabric, EPE foam, foam, arcylic  etc.
Repeatability	Up to 0.05 mm
Repeat Precision	Up to 0.01 mm
Buffer memory	2GB
Interface	Ethernet port
Work command	HP-GL compliant format
Transmission distance	Up to 350m
Transmission system	Digital servo driver, straight rail, synchronous  belt, guide screw
Numerical control panel	EN LED Touch screen
Power Supply	AC 380V/220V±10% , 50HZ/60HZ
Working Environment	Temperature 0-35 degree; Humidity 60% - 80%
Effective Cutting Area	1100mm*1300mm            1800mm*1600mm            2500mm*1600mm

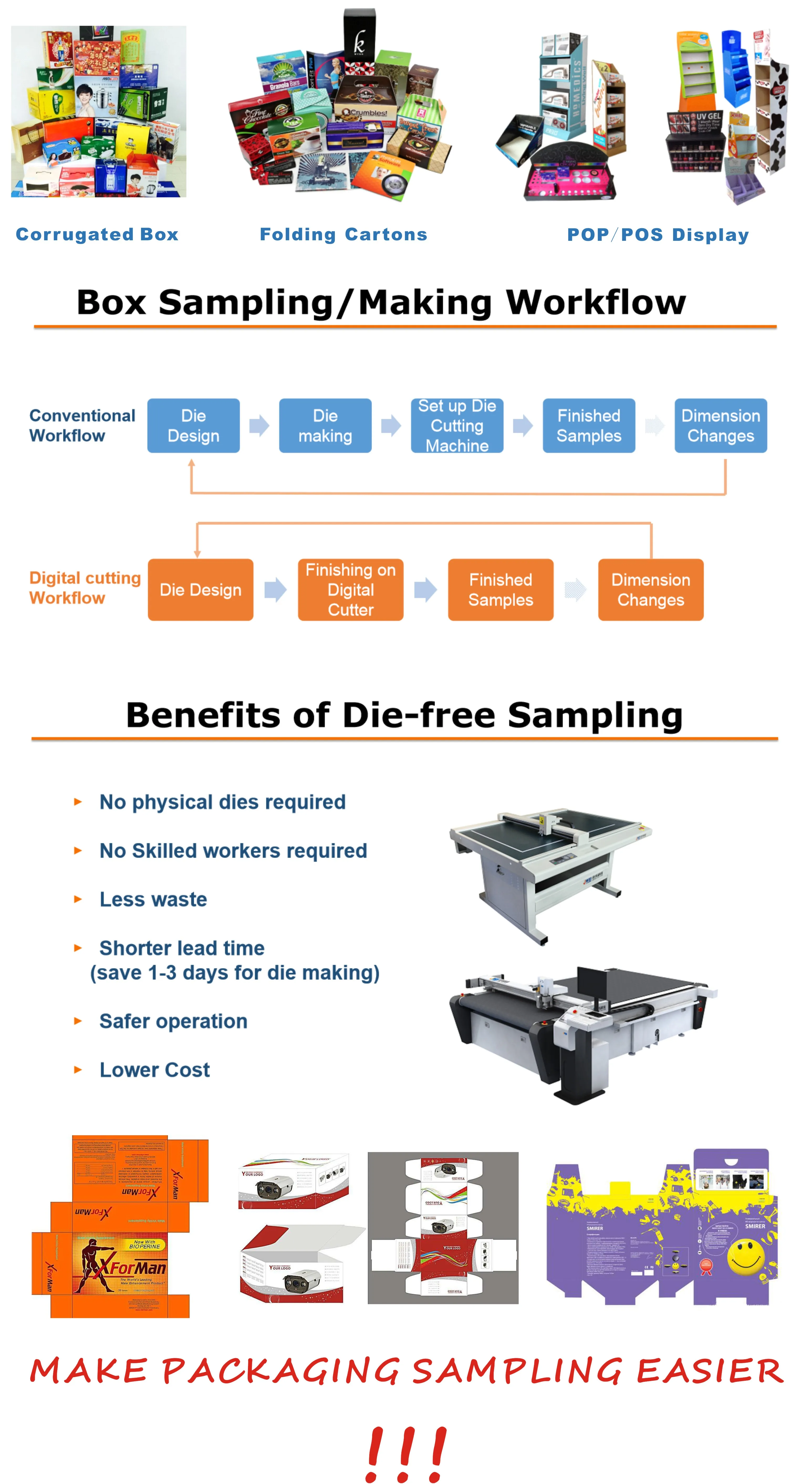

Application Field of Digital Paper Board Cutter









Supported Software Application of Digital Paper Board Cutter

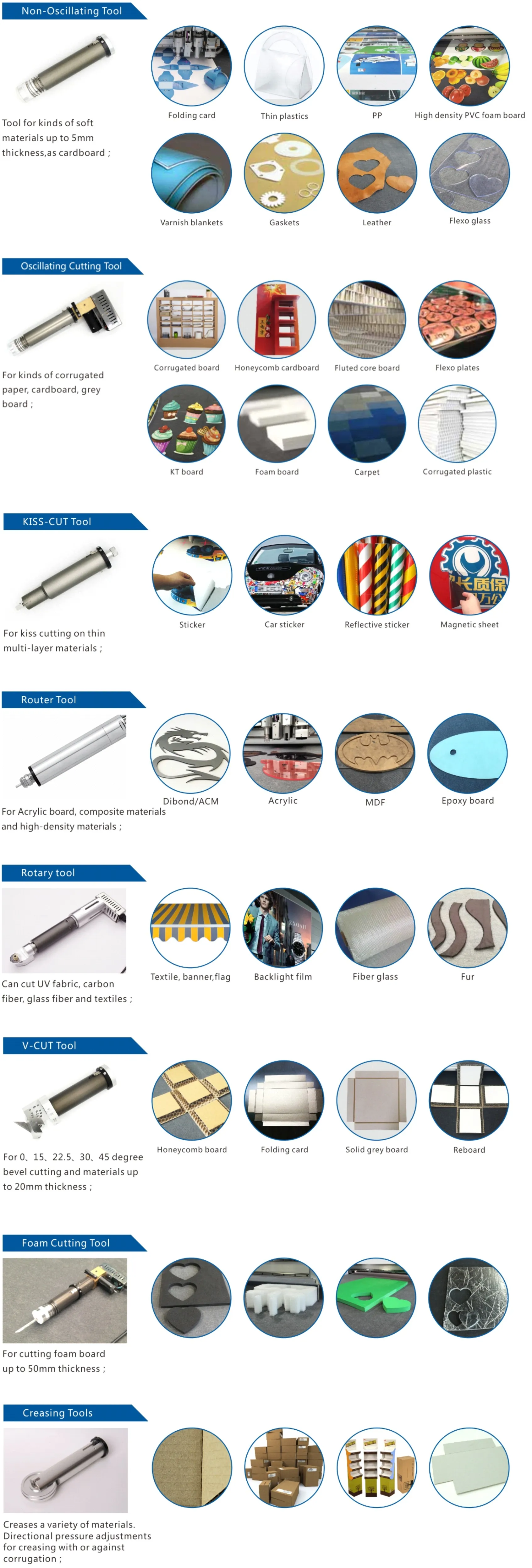

Multiple Choices of Cutting Tools suits for various of target materials of Digital Paper Board Cutter

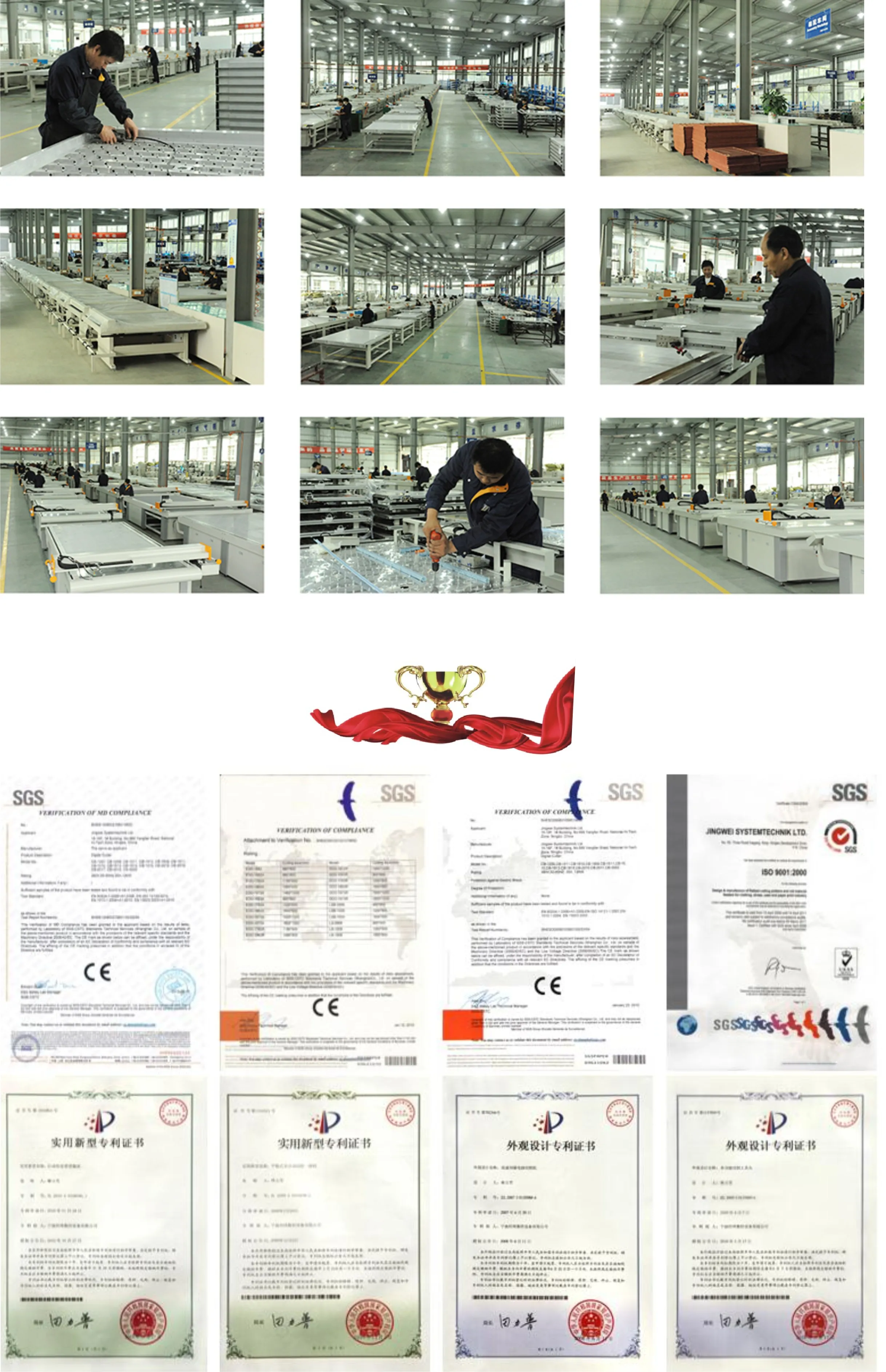

Factory & Honour of Digital Paper Board Cutter
