RCDE electric separation suspension electromagnetic separator

Product Overview

Description

        RCDE Suspended Oil cooled electric Electromagnetic electromagnet

Introduction of Oil cooling electromagnetic magnet



RCDE Oil cooling electromagnetic magnet uses electrical pure iron and insulated coil immersed in cooling oil as the source of magnetic force line. After being energized, the insulated aluminum wire will generate huge magnetic force around the magnetic core. It is generally installed above the conveyor. When the tramp scrap iron metal in the material passes under the oil-cooled electromagnet, it is magnetized instantly. Under the strong magnetic adsorption force of Suspended Oil cooled electromagnet, the scrap iron buried in the bulk flow is adsorbed to the bottom of the magnet. The cleaned materials continue to flow to the downstream equipment to protect the downstream equipment.

For Oil cooled electromagnetic separator, because the heat generated by the electromagnetic coil will be transferred to the cooling oil in time, dc electromagnet can more effectively avoid the damage caused by the temperature rise to the magnetic force. Therefore, the magnetic field depth is deeper, the magnetic force of electromagnet magnet is greater, and the performance of suspended electromagnet is more stable.

RCDE Suspended Oil cooled electromagnet can be adopted at coal handling ports, Large thermal power plants, mines, building materials and other places with high requirements for iron removal. It can work normally in harsh environments such as dust, humidity, serious salt fog corrosion in the sea, and oil cooling has become the most commonly used manufacturing process of electromagnetic iron remover in the world. The product quality is stable, mature and reliable.



Features of Oil cooled electromagnetic separator





(1) The magnetic circuit of coil of Oil cooling Electromagnetic electromagnet is designed by computer simulation, can create magnetic field with large magnetic penetration depth and strong magnetic force.

(2) Double-layer excitation coil design. The heat from conveyor separation oil cooled electromagnet will be more effectively transferred to the transformer cooling oil, reducing the coil temperature

(3) Coil insulation can reach F grade, using new heat transfer oil, reasonable oil circuit design, unobstructed, fast circulation, high heat dissipation efficiency

In the cooling oil of high intensity electromagnetic sealed by the coil, it has excellent dust-proof, moisture-proof and corrosion-proof capabilities.

(4) There are ducts pileline for circulating heat dissipation on both sides, which greatly increases the heat dissipation area. The working temperature of the coil of electro magnetsfor a long time is less than 70 ℃, reaching the equivalent technical level of peer products abroad.

(5) Its main performance indicators meet or exceed the requirements of JB/T7689-2004 standard. RCDE electric magnet can pick up 0.1-68 kg tramp metal mixed in bulk flow.





Applications of Suspended Oil cooled electromagnet

•       Protection of Processing Equipment such as Crushers,pulverizer, Conveyors,Belts, Screen etc.

•       Purification of product or ingredient for higher quality end product by removing iron from material in process  such as foundry sand,glass cullet,grain,food products,chemicals,etc.

•       Reclamation of either the ferrous or non-ferrous  material from open hearth and blast furnace slag,incinerator and garbage plant products etc.

•       Recovery of steel from steelworks slag.

•       Salvage of valuable tools, Cutter bits and machinery parts.

•       Reclaiming steel for rescale and separating ferrous contaminants from other recyclable material such as aluminium,glass,plastic,tyres,curshed concrete or wood.

•       Many facilities use Magnetic Separator to protect machinery such as crusher at quarries.

•       Cement plants: They keep metal out of coal pulverize.

•       pulp & paper mills use them on wood chips.

•       The extraction of tramp iron from coal conveyors to protect pulverizing mills in power station and screen in collieries.

•       Foundries they use to remove chills, spruces and gaggers from foundry return sand.

•       Recovery of ferrous metal from household or industrial refuse (Garbage Plant).

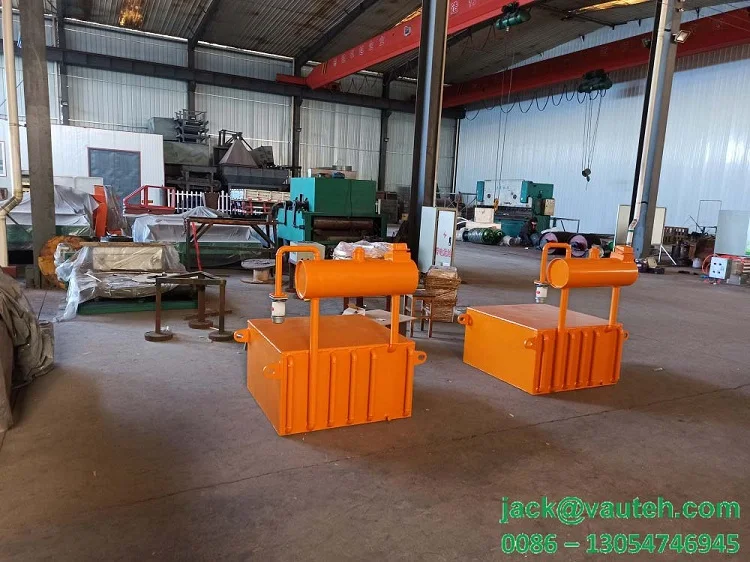

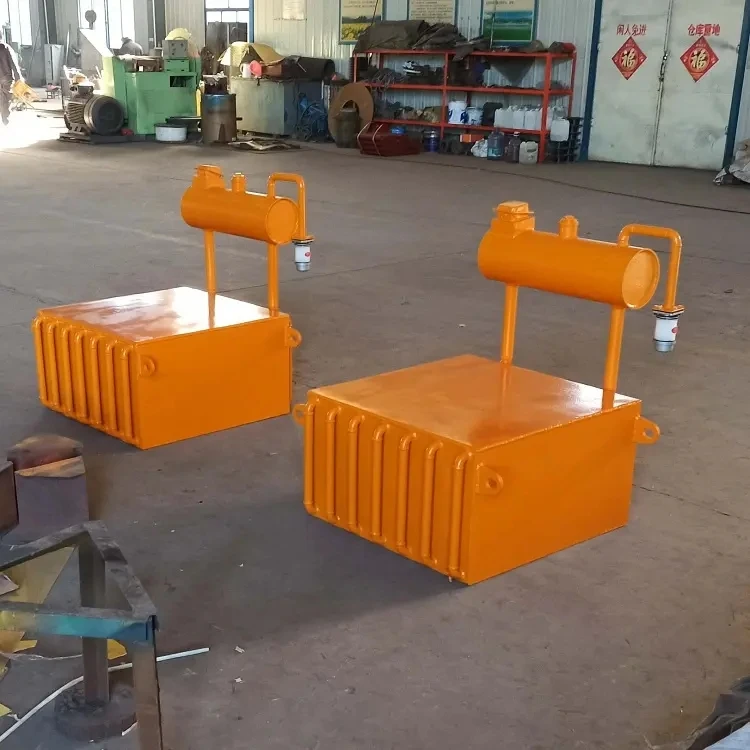

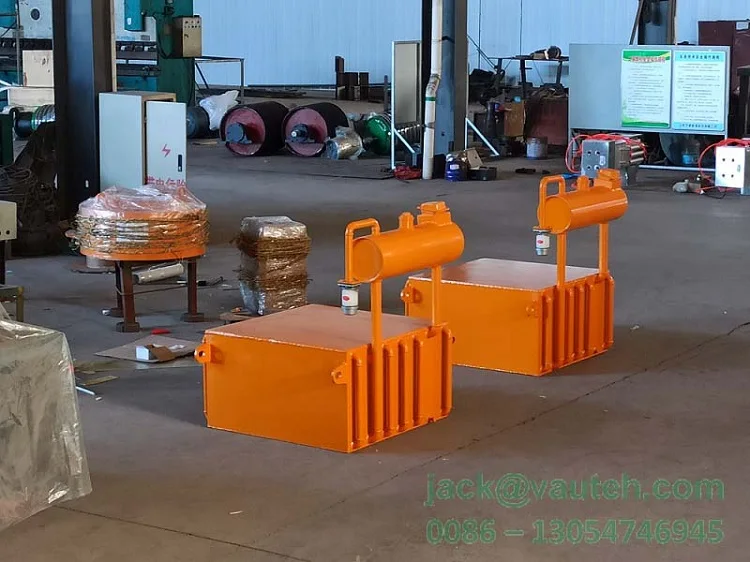

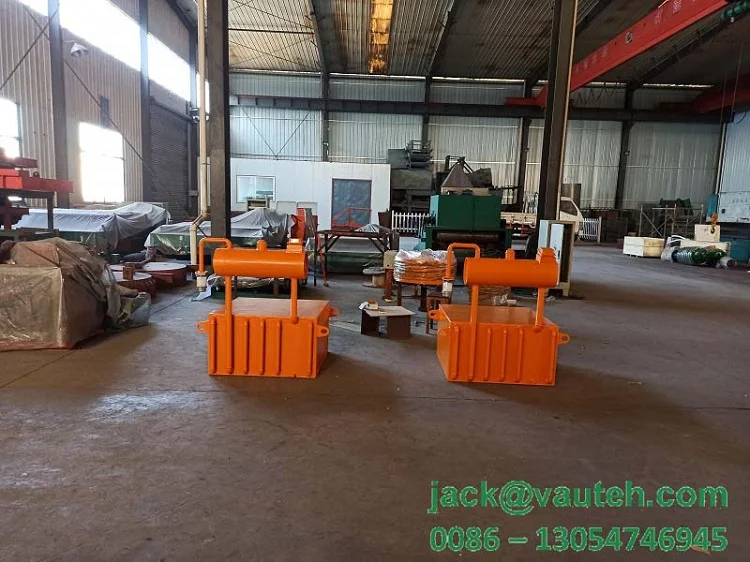

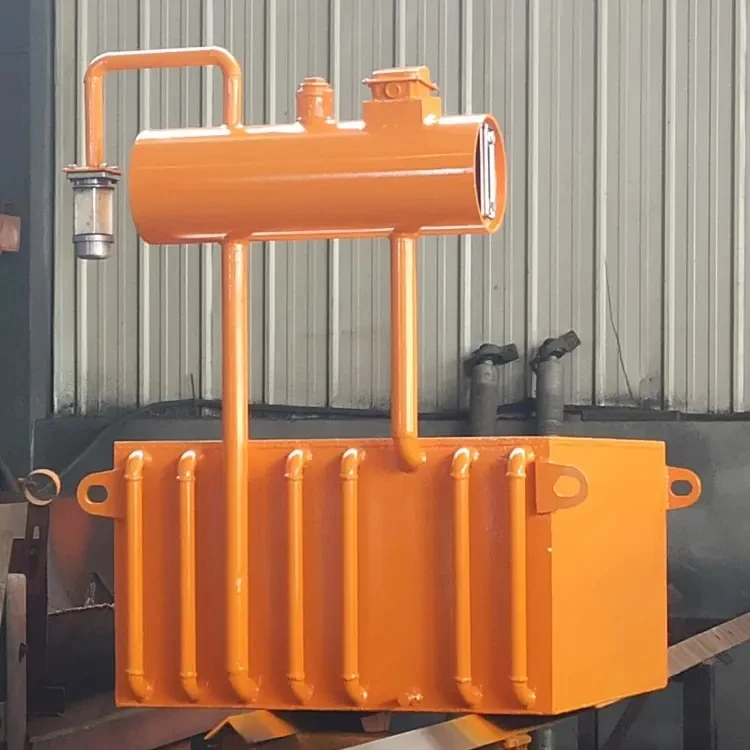

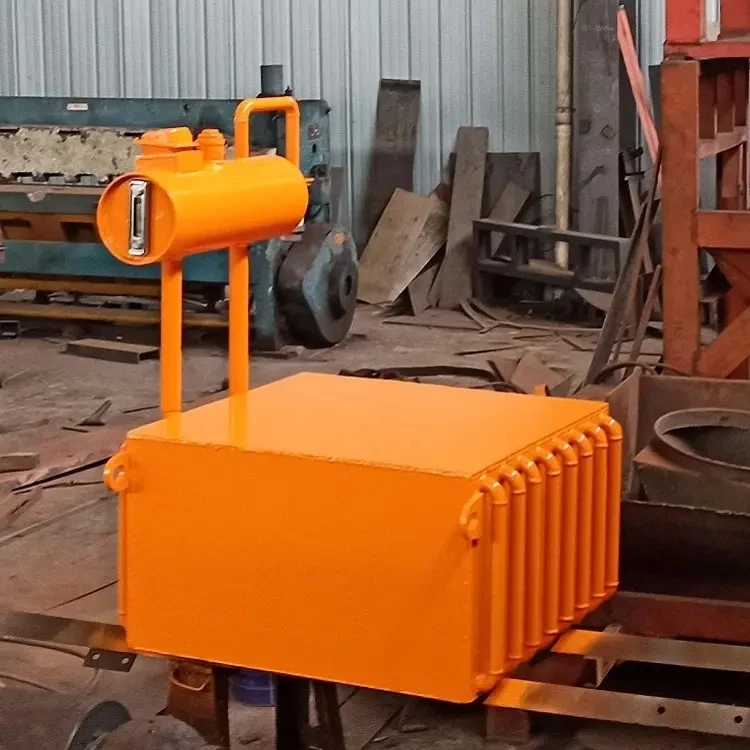

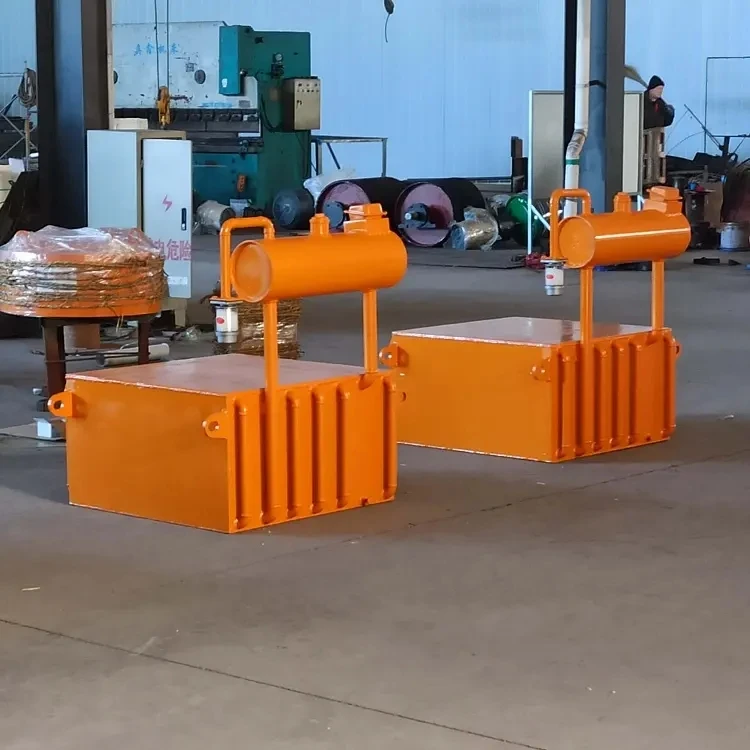

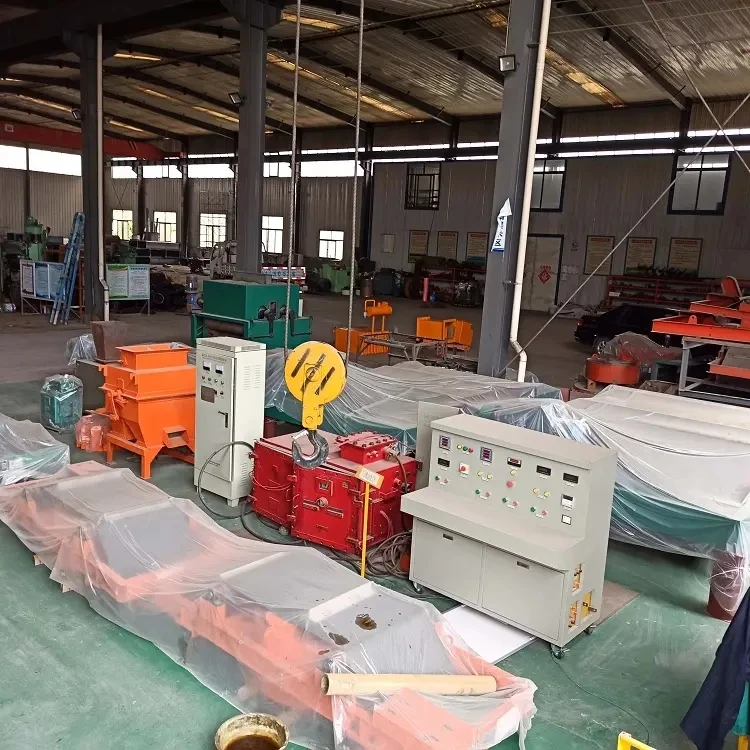

Photos View of Oil cooled Electromagnetic electromagnet

electric magnet

electromagnet magnet











 more machine tailored to your actual needs

Other's option

 (1),Electro magnetic design

(2),Rare earth magnet design

(3),Explosion proof .

(4),hydraulic drive for mobile crushers.

(5),stainless steel cladding.



 Technical Data of Oil cooling Electromagnetic electromagnet

Model / item	Belt width mm	Suspend height h mm	Magnetic force ≥mT	Belt speed ≤m/s	Burden depth ≤mm	power ≤kw	power kg	Outline size mm
								A	B	C	D	E	F
RCDE-4	400	100	50	4.5	60	0.6	300	500	620	350	250	400	400
RCDE-5	500	150	60		100	1	500	670	760	480	300	475	500
RCDE-6	600	175	60		125	1.5	650	775	835	580	450	530	600
RCDE-6.5	650	200	70		150	2.0	750	795	855	590	440	550	650
RCDE-8	800	250	70		200	3	1150	1050	980	770	620	670	835
RCDE-10	1000	300	70		250	4.5	1400	1400	1160	940	800	755	1000
RCDE-12	1200	350	70		300	6	2780	1460	1190	1260	1070	730	1290
RCDE-14	1400	400	70		350	8.5	4200	1700	1280	1500	1340	800	1560
RCDE-16	1600	450	70		400	12.5	5700	1950	1370	1850	1630	860	1850
RCDE-18	1800	500	70		450	18	7300	2170	1490	2050	1880	950	2000
RCDE-20	2000	550	70		500	22	8500	2400	1660	2250	2180	1110	2100
RCDE-22	2200	600	70		550	27	10500	2700	1900	2470	2420	1350	2280

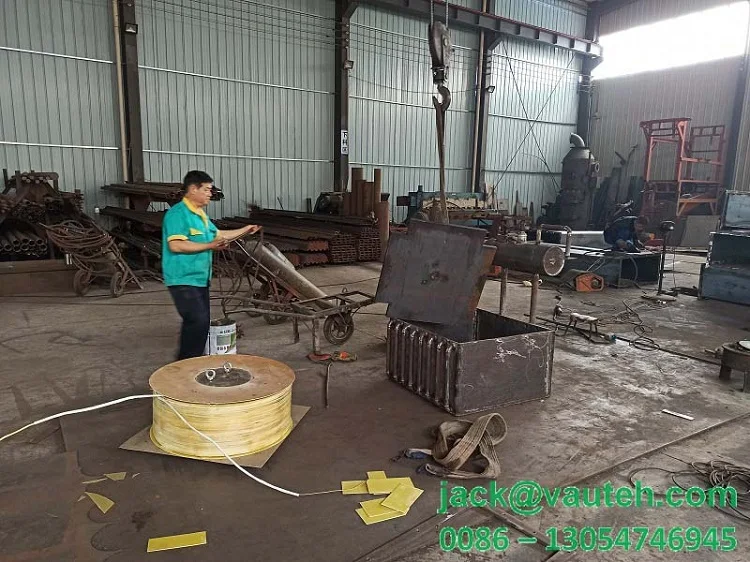

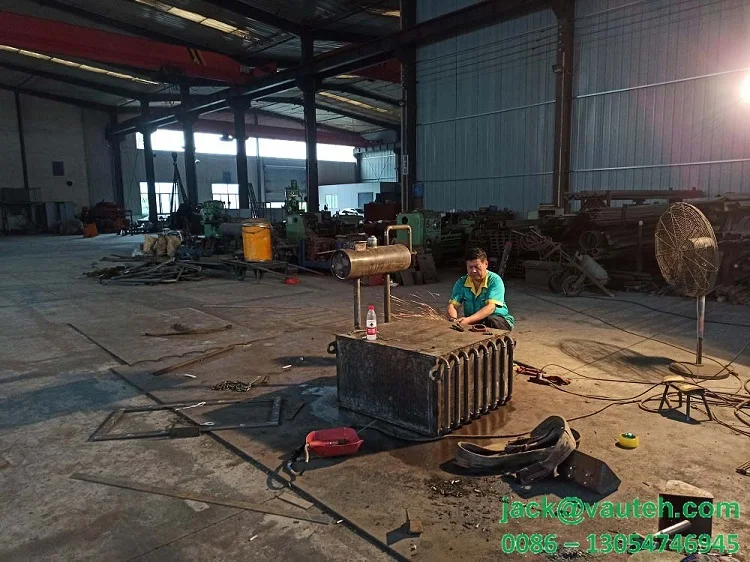

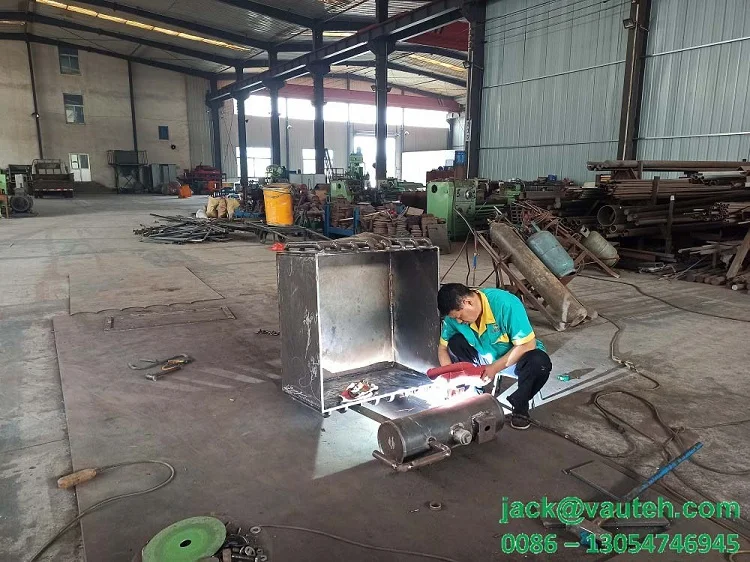

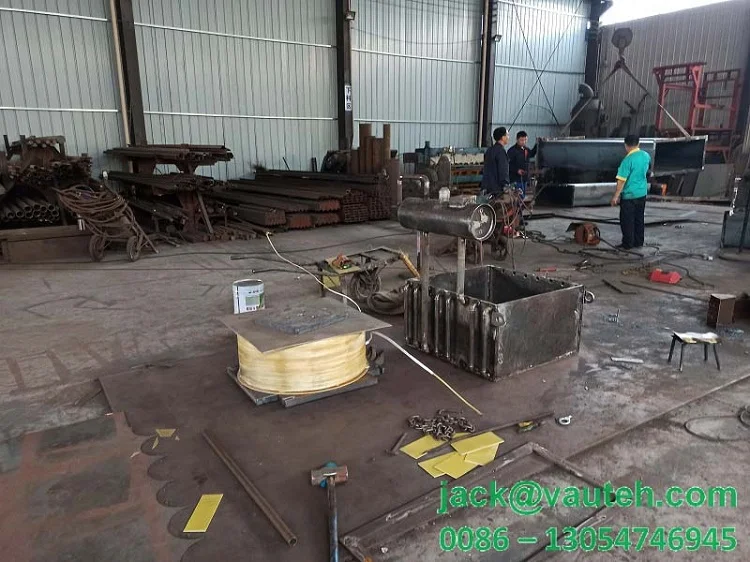

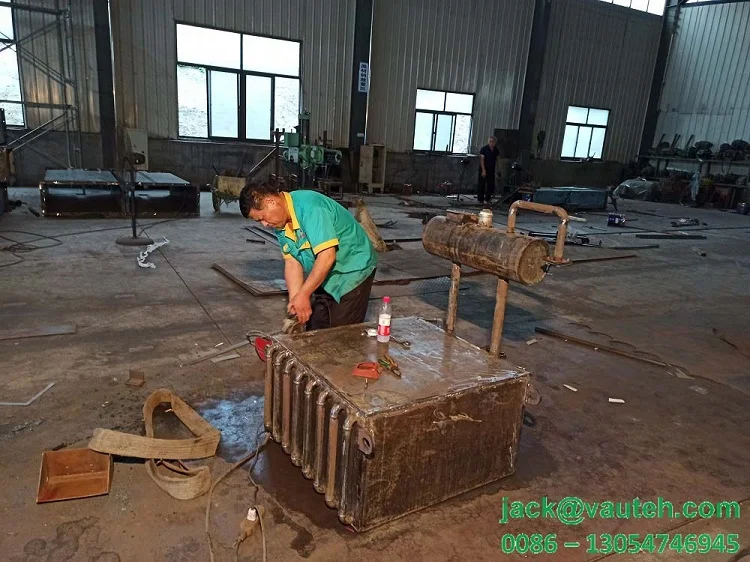

 Fabrication of strong electromagnet

(1) RCDE Oil cooled Electromagnetic electromagnet uses high-quality DT4 electrical pure iron as the magnetic core, and the external winding of double-layer glass wire as excitation coil.

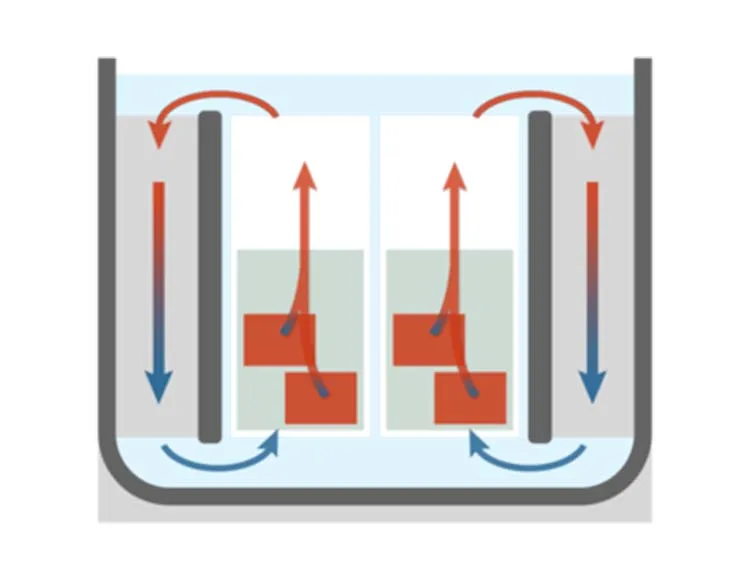

(2) Unique oil circuit design: there are horizontal and vertical oil circuits and up and down oil circuits. The cooling oil flows more smoothly, with 360 ° heat dissipation and higher efficiency.

(3) In the process of winding, there will be a unique gap design to facilitate the heat generated by the excitation coil to be discharged from the coil. The whole excitation coil is composed of upper and lower parts, with gaps left in the middle.

(4) Full-sealed structure, double-sided groove welding of the whole shell, eliminate possible gaps and prevent oil leakage.

(5) The inside of the shell will be treated with epoxy resin to prevent the oxidized pollution particles from entering the coil and blocking the heat dissipation channel under long-term high temperature environment.

(6) Equipped with dehydrator unit, it is convenient to absorb the moisture from the cooling oil.

(7) It is manufactured with international natural cooling technology, and must undergo strict pressure test before leaving the factory .



electro magnet for sale



suspended electromagnet

electromagnetic suspension

high intensity electromagnetic



Besides above,if you have other specific requirements to address to our technician,

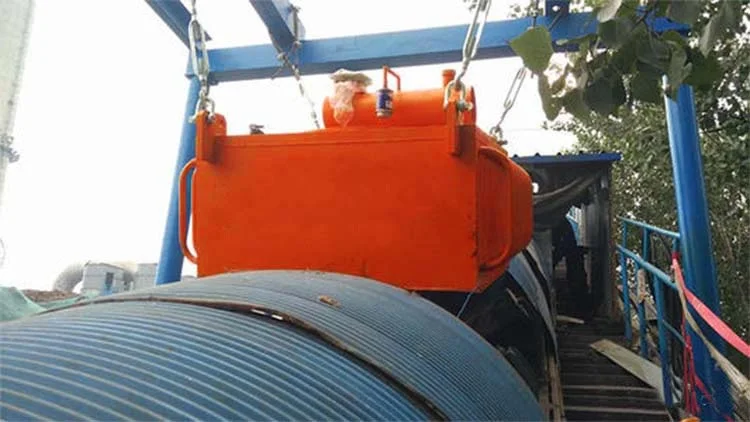

Installation project of electro magnets



The suspended electromagnetic separator can be installed either inline over the terminal head pulley or transversal to the conveyor at right

angle. In both cases, it is important to make sure Non-Magnetic products  lying under the electro magnetic field.

The ideal position is inline over the head pulley, where the material “broke open”, The material being conveyed is in actually suspension and

tramp metal is therefore more easily pulled out of bulk material flow.





How to get a quote of super strong electromagnet

To make a responsible and exact quote for you, it will be helpful if you can tell us :

(1),what kind of mineral to be processed by magnetic separation?

(2),the metal size to be removed ?

(3),the burden depth ,and the suspension height

(3),others to be cleared with our engineer,  where you can receive professional advice about the test analysis, flow chart ,and machine choices.

your contact will keep confidential with us.

With your permission, we would like to send you E-catalogue, photos, and actual video.
