  • 550mm 240V 50HZ/60HZ 9 Heads Planetary Epoxy Concrete Floor Polishing Grinding Machine Polisher Grinder

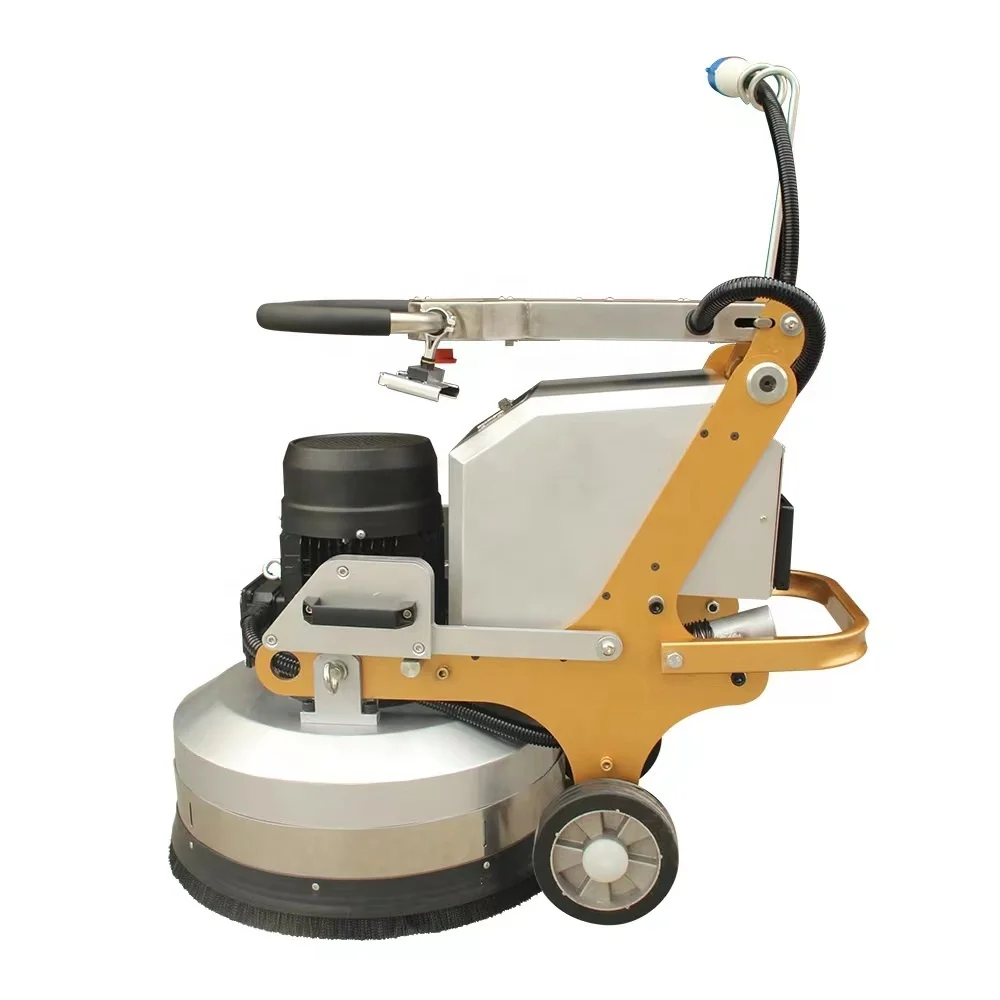

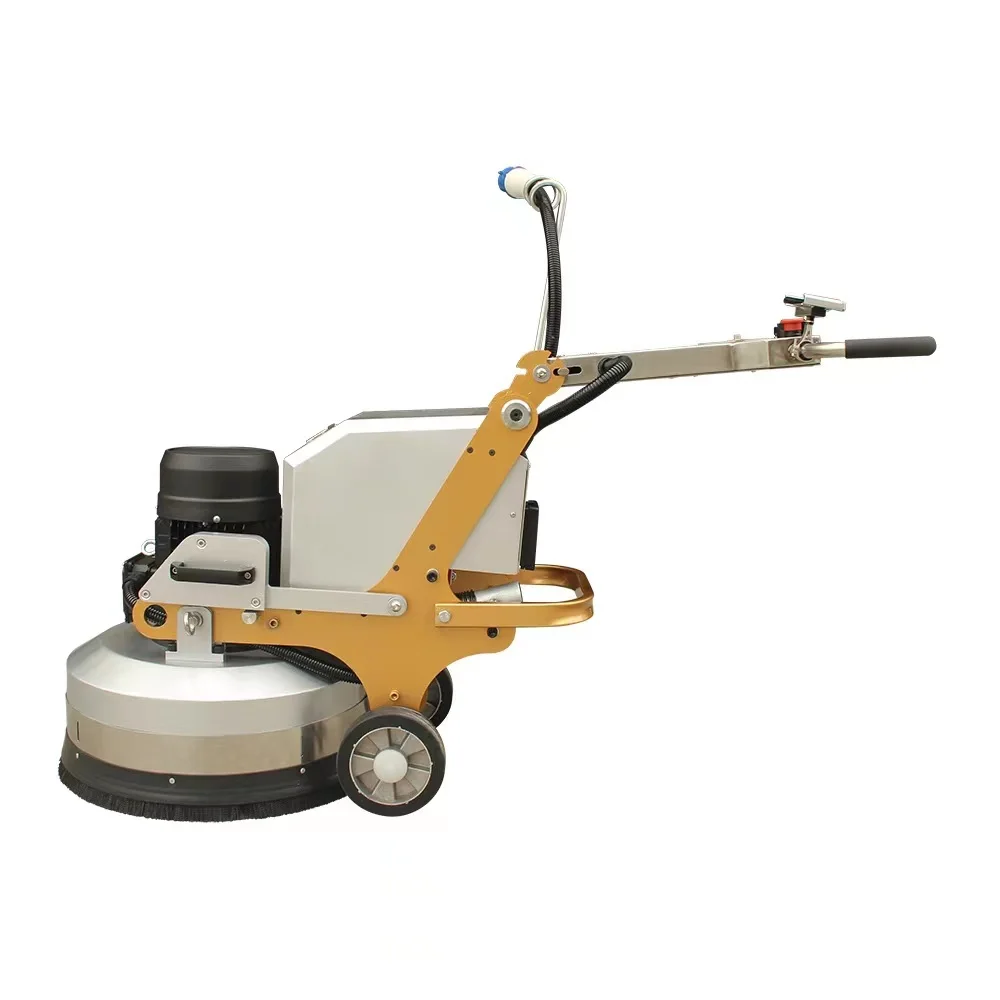

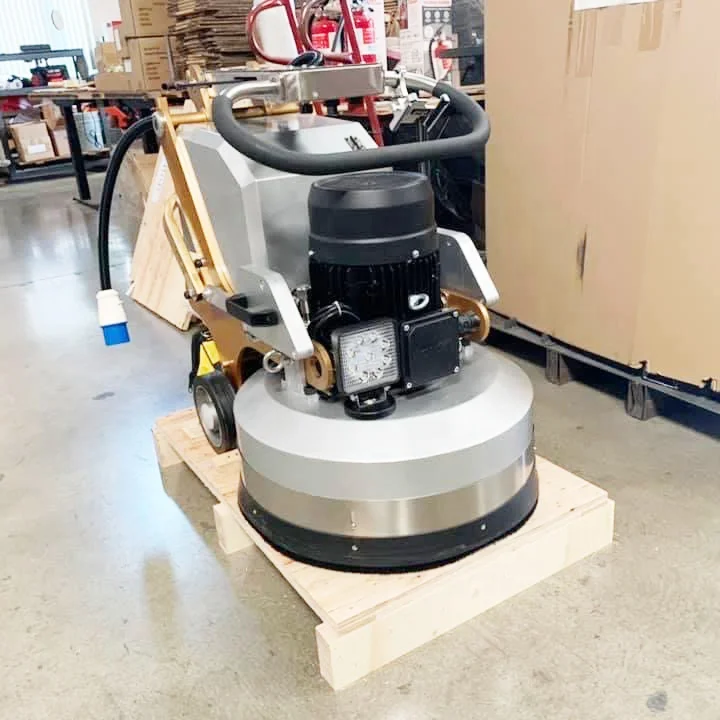

550mm 240V 50HZ/60HZ 9 Heads Planetary Epoxy Concrete Floor Polishing Grinding Machine Polisher Grinder
550mm 240V 50HZ/60HZ 9 Heads Planetary Epoxy Concrete Floor Polishing Grinding Machine Polisher Grinder
550mm 240V 50HZ/60HZ 9 Heads Planetary Epoxy Concrete Floor Polishing Grinding Machine Polisher Grinder
550mm 240V 50HZ/60HZ 9 Heads Planetary Epoxy Concrete Floor Polishing Grinding Machine Polisher Grinder
550mm 240V 50HZ/60HZ 9 Heads Planetary Epoxy Concrete Floor Polishing Grinding Machine Polisher Grinder

550mm 240V 50HZ/60HZ 9 Heads Planetary Epoxy Concrete Floor Polishing Grinding Machine Polisher Grinder

Share on (1601004697809):


Price:$1,688.00 - $3,168.00

Quantity:


Product Overview

Description



PRODUCT SPECIFICATIONS


Description

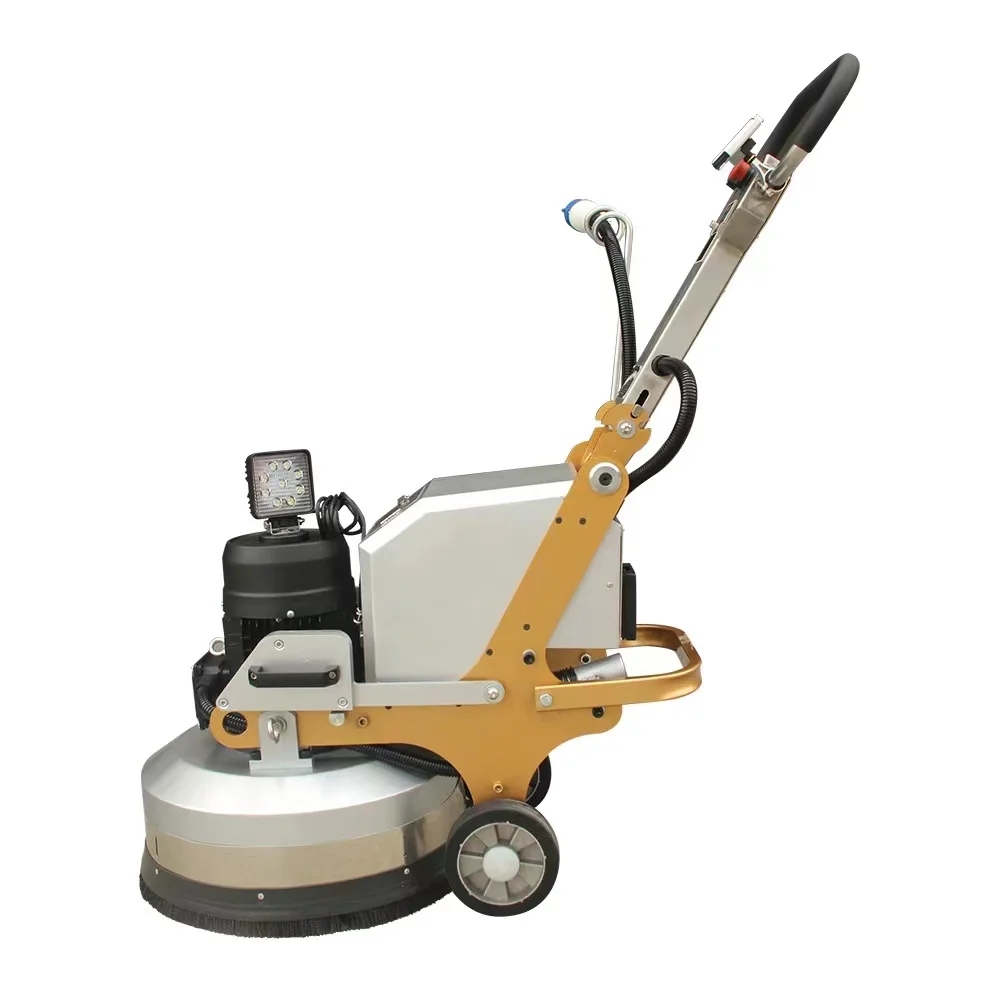

550mm 240V 50HZ/60HZ 9 Heads Planetary Epoxy Concrete Floor Polishing Grinding Polisher Grinder Machine
Model
S9-X-550 4KW
S9-X-550 4KW
S9-X-550 5.5KW
S9-X-550 5.5KW
Phase
1
3
1
3
Voltage
220V-240V
380V-440V
220V-240V
380V-440V
Power
5.5HP/4KW
5.5HP/4KW
7.5HP/5.5KW
7.5HP/5.5KW
Inverter
5.5HP/4KW
5.5HP/4KW
7.5HP/5.5KW
7.5HP/5.5KW
Autorotation rate
0-1250rpm
0-1250rpm
0-1250rpm
0-1250rpm
Revolution speed
0-320 rpm
0-320 rpm
0-320 rpm
0-320 rpm
Work width
550mm
550mm
550mm
550mm
Heads
9 pieces
9 pieces
9 pieces
9 pieces
Grinding plate
3 pieces
3 pieces
3 pieces
3 pieces
Water tank
10.6 L
10.6 L
10.6 L
10.6 L
NW (KG)
220
220
232
232
Packing size(CM)
98*63*94
98*63*94
98*63*94
98*63*94


Product Overview




Function
1. 550mm 240V 50HZ/60HZ 9 Heads Planetary Epoxy Concrete Floor Polishing Grinding Polisher Grinder Machine is used to all kinds of floor, such as marble, granite, quartz, terrazzo, epoxy and concrete floor etc..
2. For leveling, grinding, polishing or removing.
3. With unique and patented planetary 9-heads driving system, which achieve the innovation of low maintenance gear driving planetary head rotation system.


Marble floor
Granite floor
Terrazzo floor


Derusting floor
Old paint floor
Epoxy floor


Concrete floor before grinding
Concrete floor after polishing

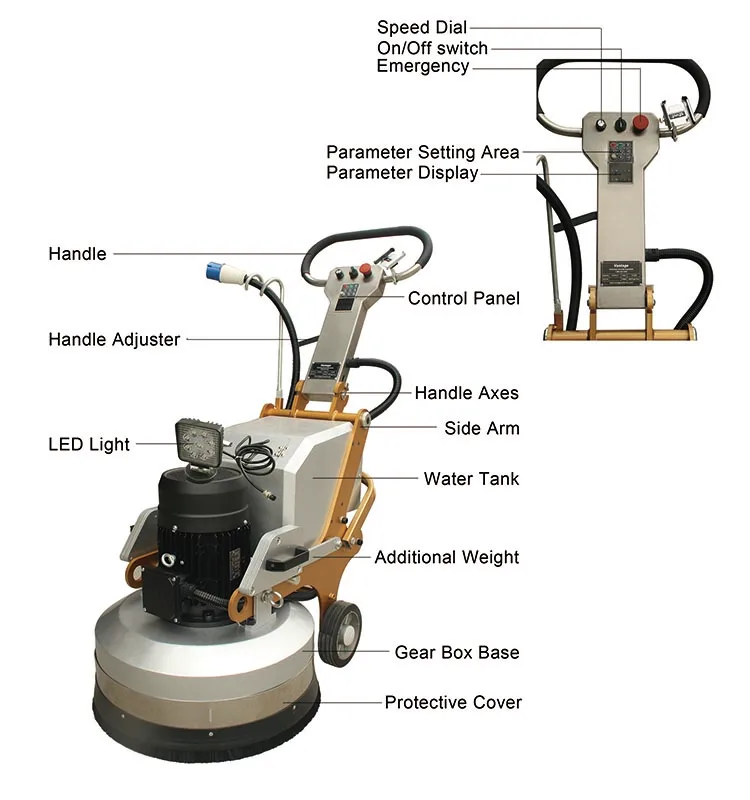

Feature
1. S9-X-550 with the multi-functional plate which with magnets, it's suitable for all kinds of pads, blade, like velcro-back or
metal wheel.

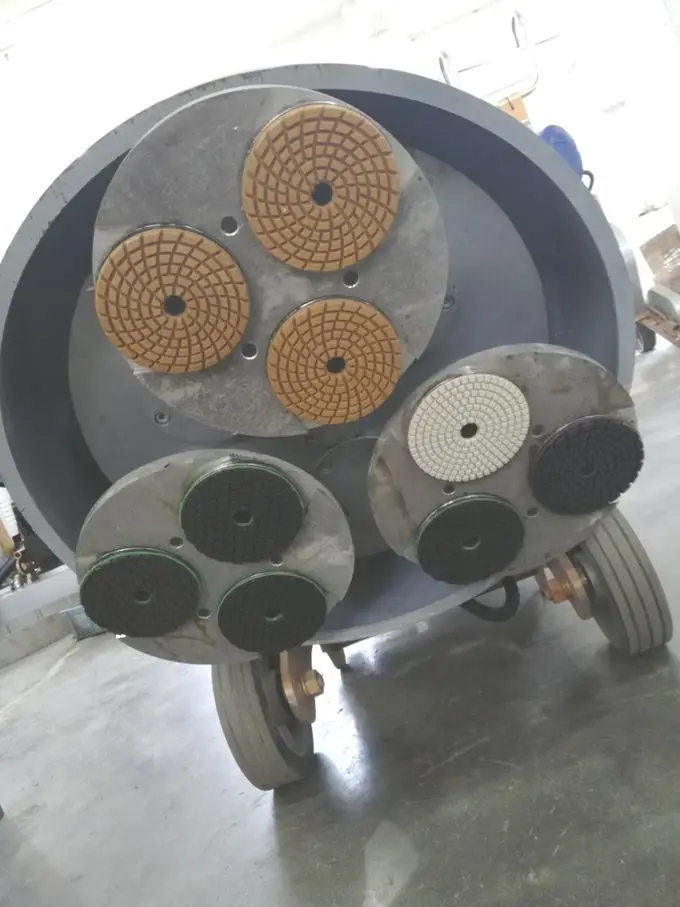

2. Three plates with 9 pieces heads, each time need fix 9 pieces pads (blades).

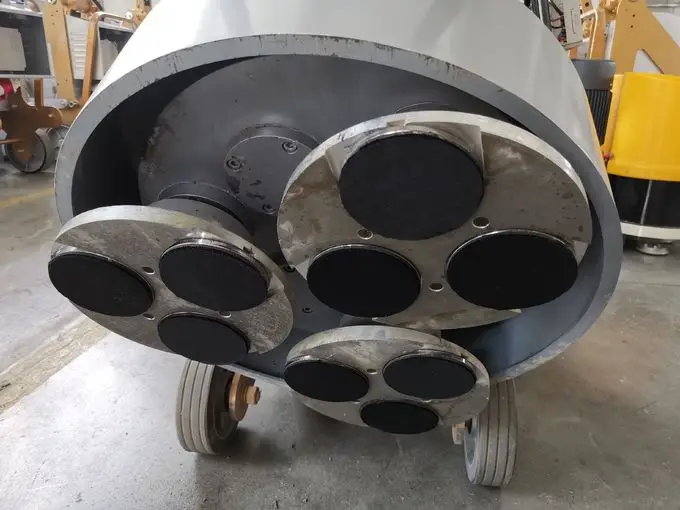

With pad holder can fix the resin polishing pad

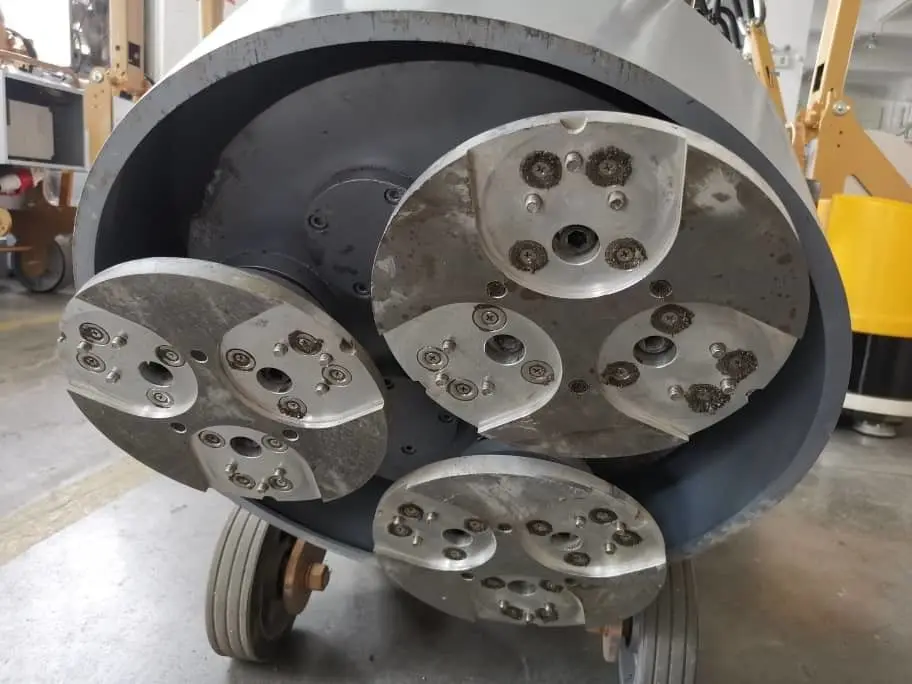

Take off the pad holder can fix the metal diamond grinding blade


Two kinds of pad holder for option

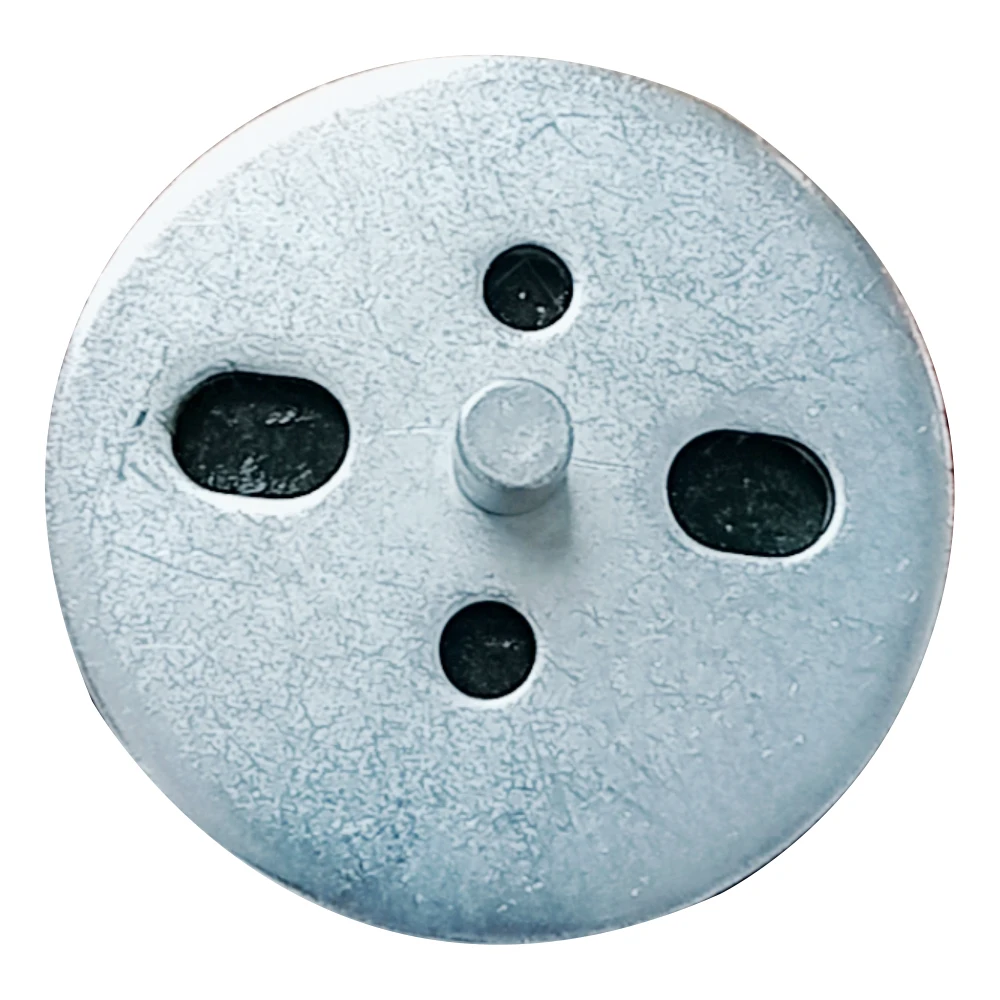

1. Back side picture-with a pole, front side is velcro.

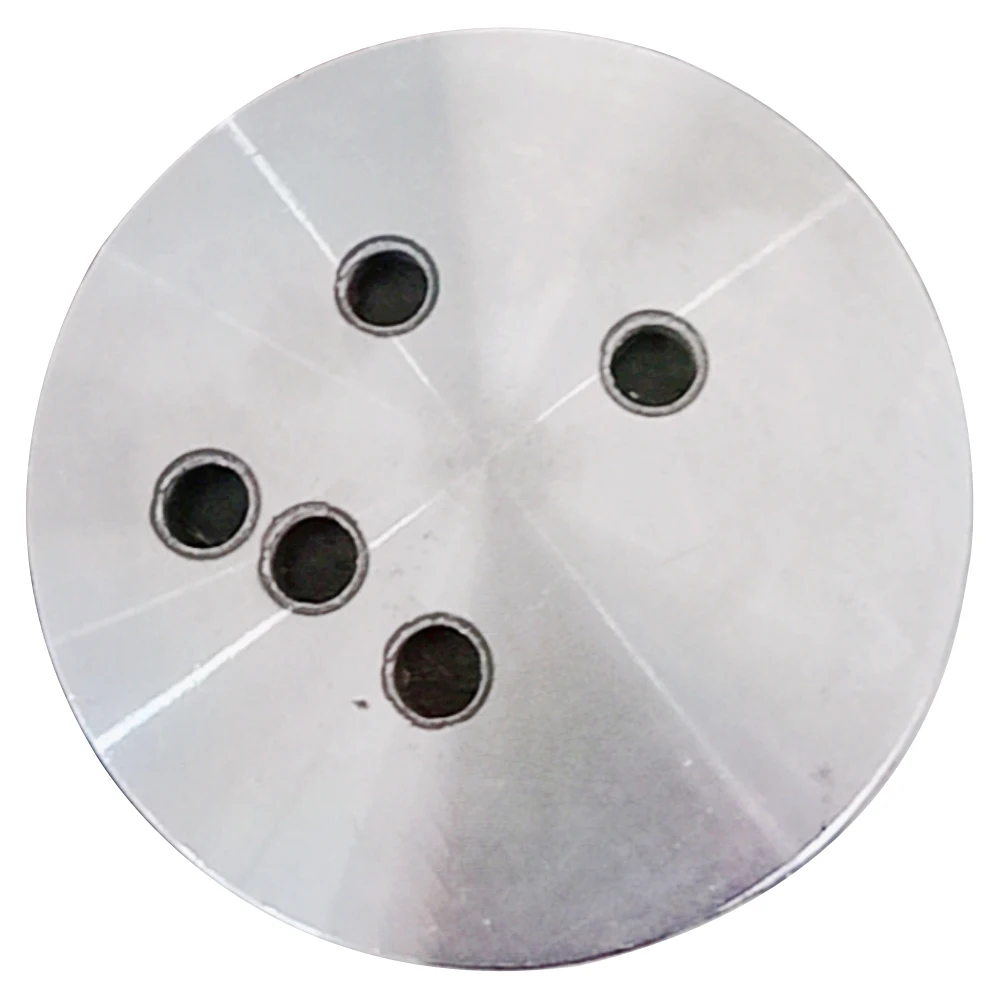

2. Back side picture-without a pole, front side is velcro.

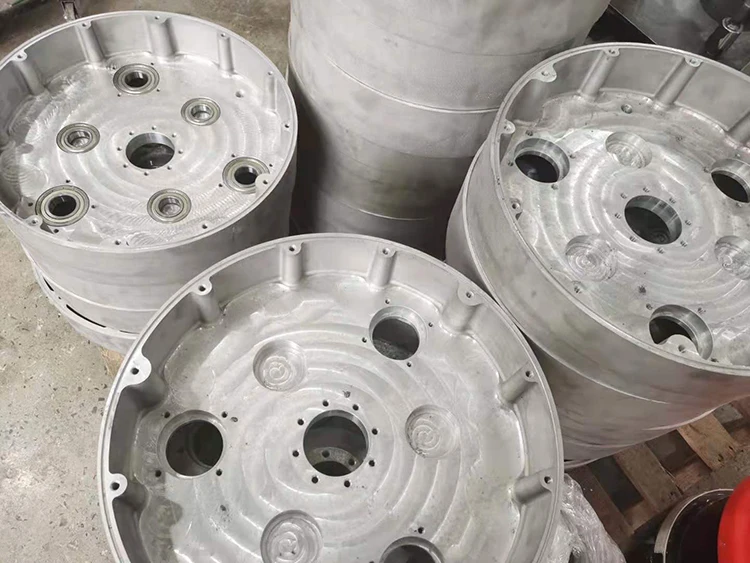

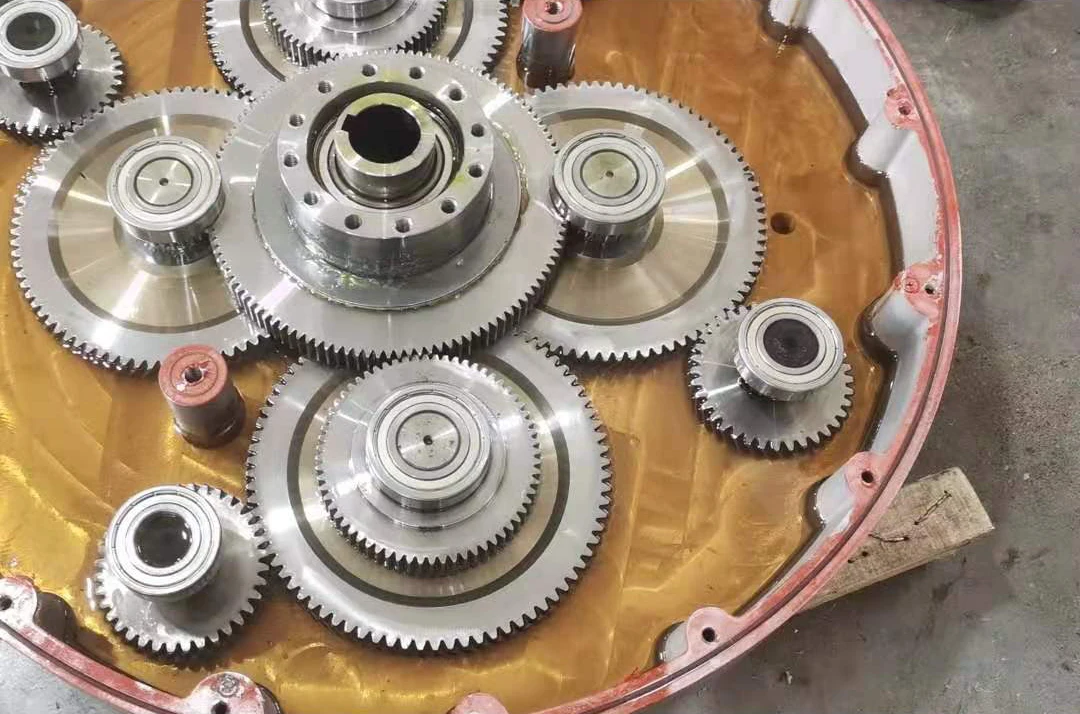

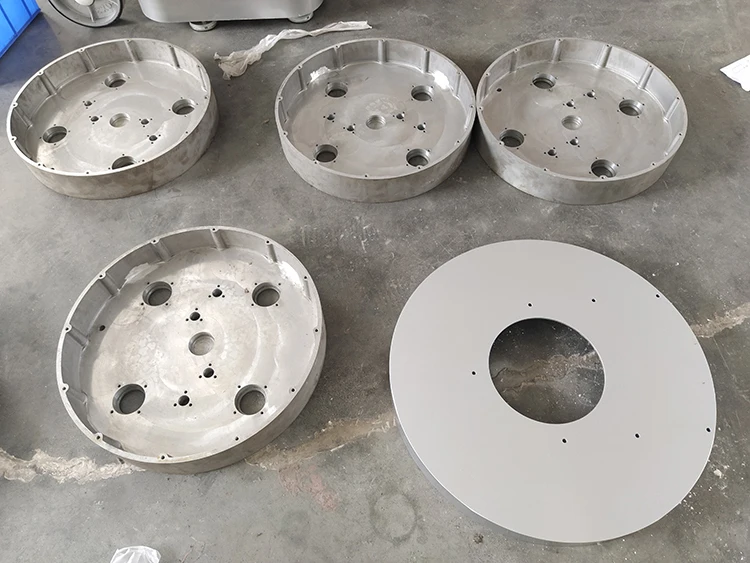

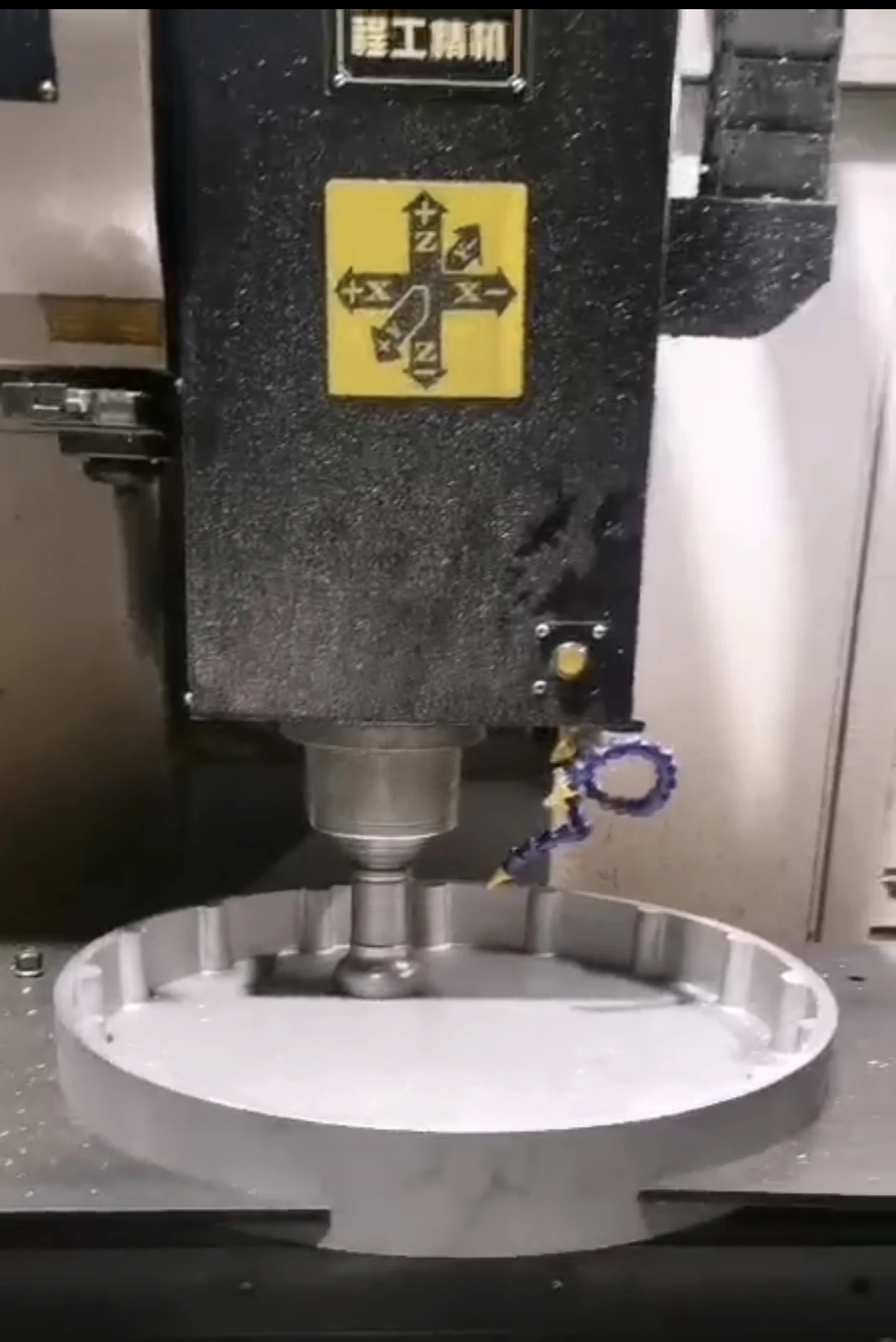

3. With planetary three-plate driving system, S9-X-550 use aluminum alloy die-casts gearbox, processing by CNC machine, it's hard and won't be out of shape.






4. Fold handle can save space.

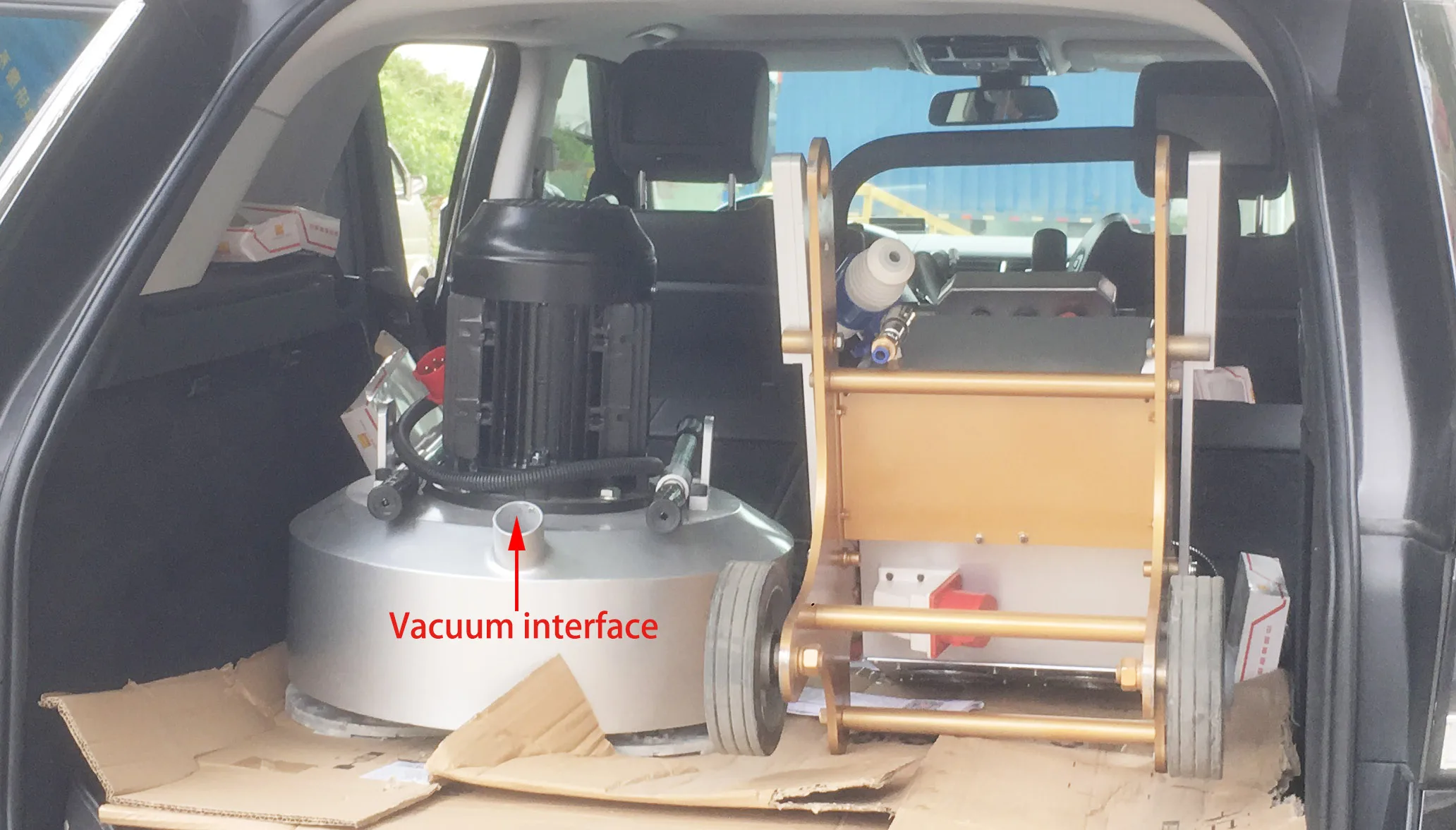

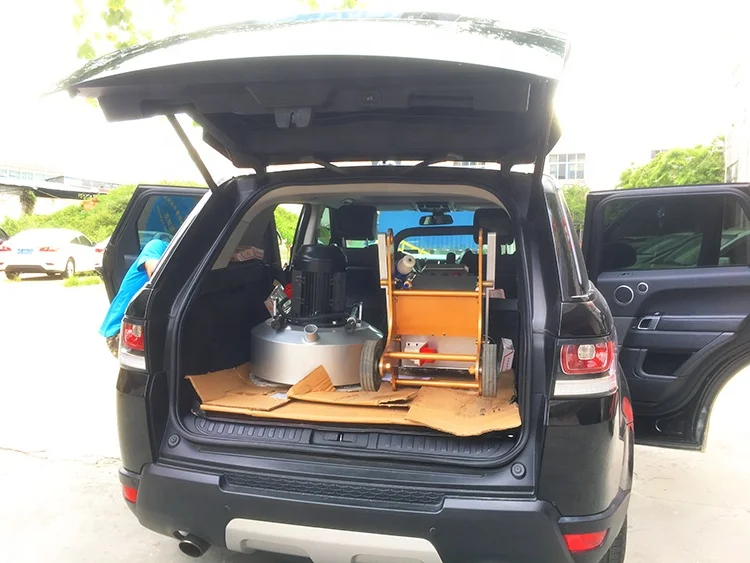

5. Dismantled body and chassis can put in a car.




6. With vacuum cleaner connector could install a vacuum cleaner outside.
7. It with stainless steel water tank can wet and dry grinding.
8. With led light can work at night.

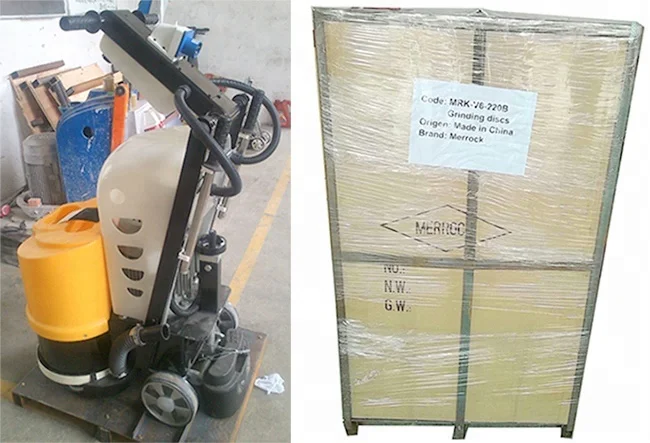

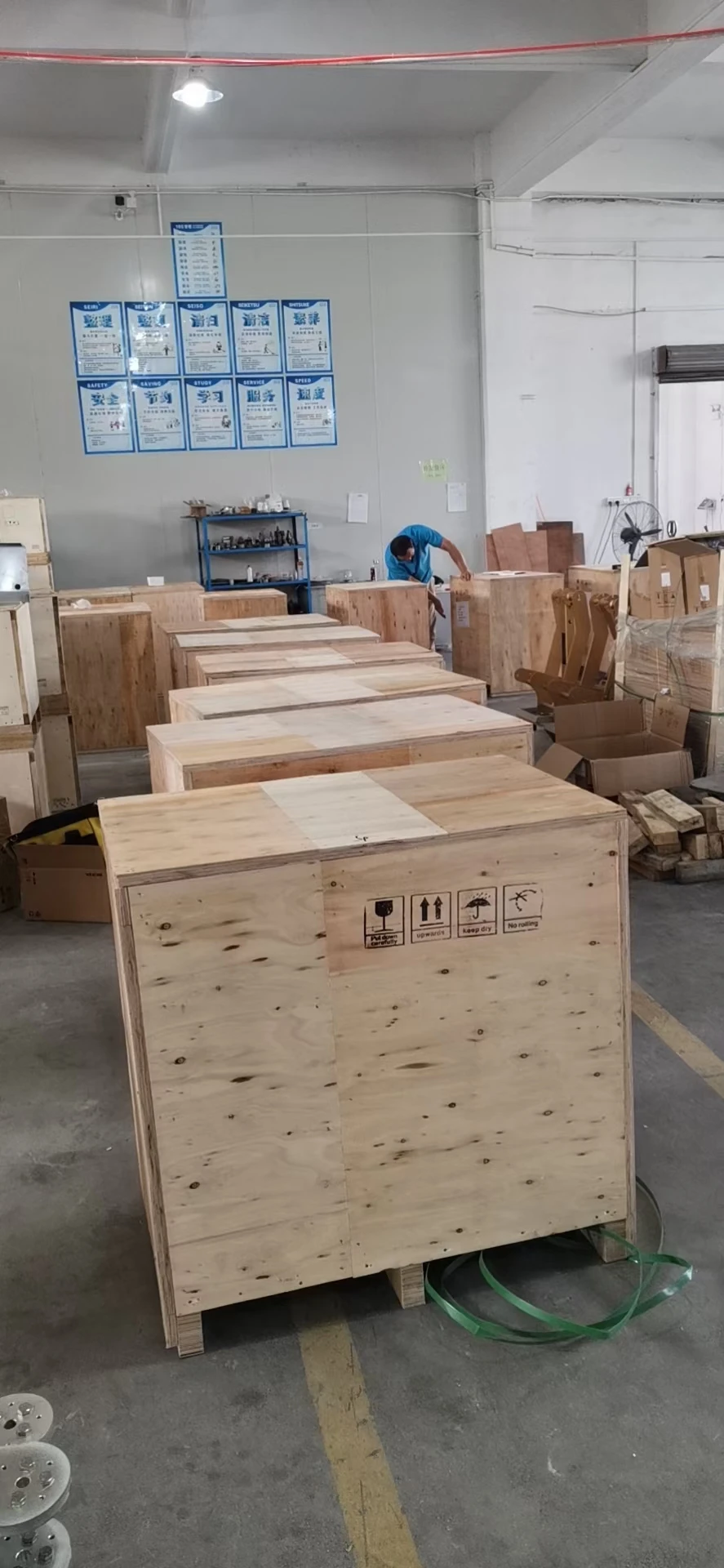

Product packaging


Packing in free fumigation wooden box.Packing size: 98*63*94 cm
Port: Shenzhen/Guangzhou (The nearest port)




OEM Customer Case




Customers visit factory


@USA
@Canada @Australia @ Algeria @Lebanon @Mauritius @Thailand


@Russia @Vietnam
@Saudi Arabia @South Korea


SIMILAR PRODUCTS




FAQ


Q1:Are you trading company or manufacturer?
A1:We are manufacturer and we have our own factories. specializes in floor grinder products for about 12 years. Welcome to visit our factory, we can also provide the best suitable flooring construction solution for you. Our factory is located in Dongguan City, China, which is near Guangzhou and Shenzhen.

Q2:What are the advantages of your products compared with other products?
A2:Our products are excellent in terms of productivity, handling, reliability and construction results.Laser cutting and aluminum casing gear box make the machine parts more accurate. We make the machine, polishing pads and chemical, so we can offer you the full set of product you need for the floor.

Q3.What is the payment?
A3. T/T, Western Union, Wechat, Cash.

Q4: How long your product's warranty ?
A4: One year warranty .

Q5: What is your MOQ ?
A6: 1 set

Q7: What is your packaging ?
A7: We package in carton with iron frame.

Q8 :Can you customize the machine for the customer?
A8:Yes. We can, we also provide OEM for customers; If you need customized services, please contact us

Q9: What is your delivery time ?
A9: 7~20 days ( according to the total quantity)
