Muffle Furnace Box type Atmosphere Gas Vacuum Electric Experimental High Temperature 1200 1400 1600 1700 Degree
- Category: >>>
- Supplier: Foshan Kabadi Trade Co. Ltd.
Share on (1601004730299):
Product Overview
Description
Product Overview

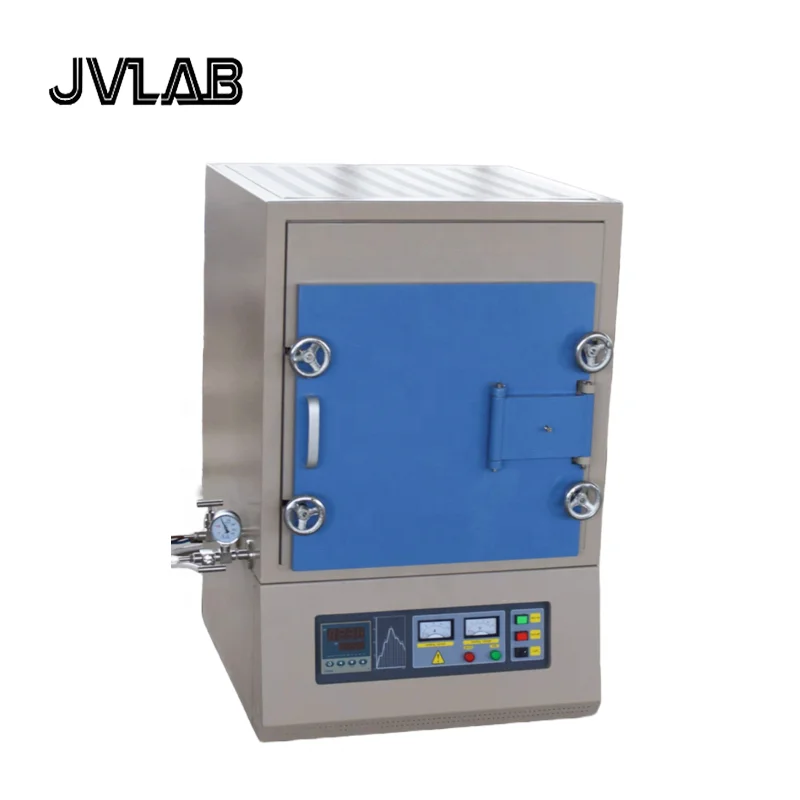

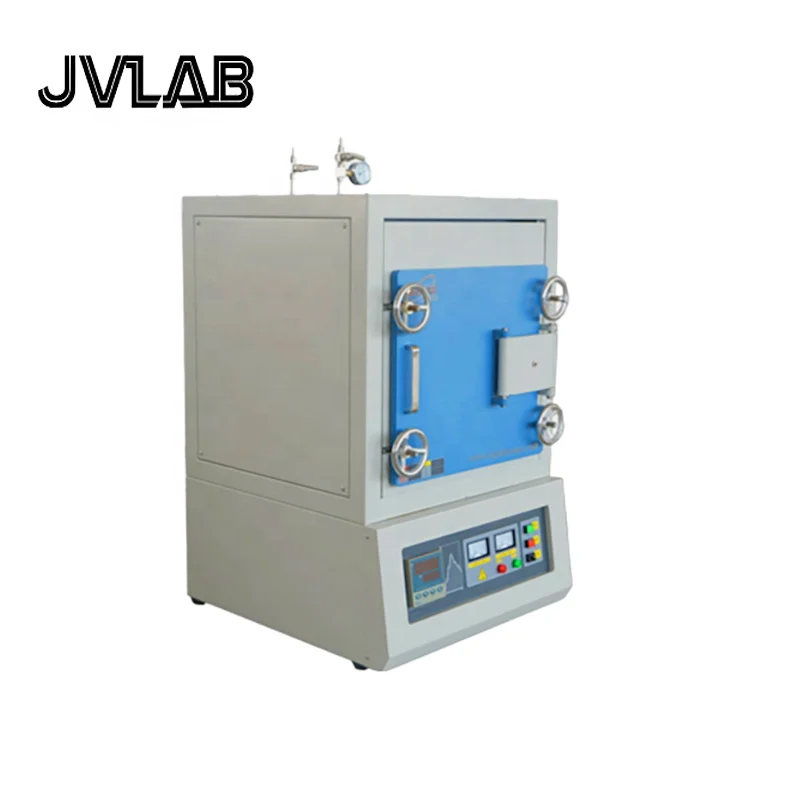

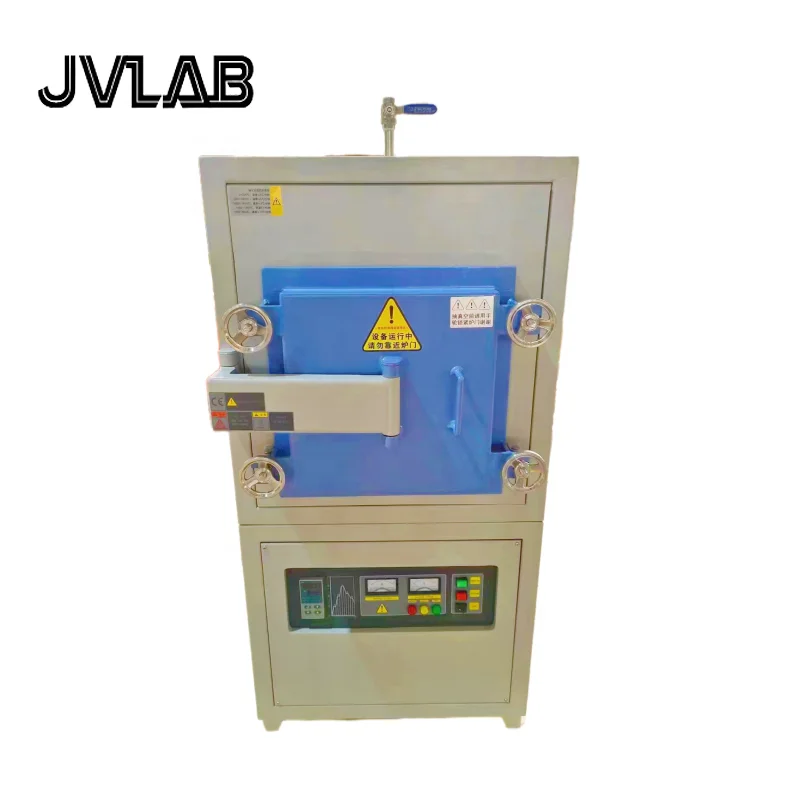

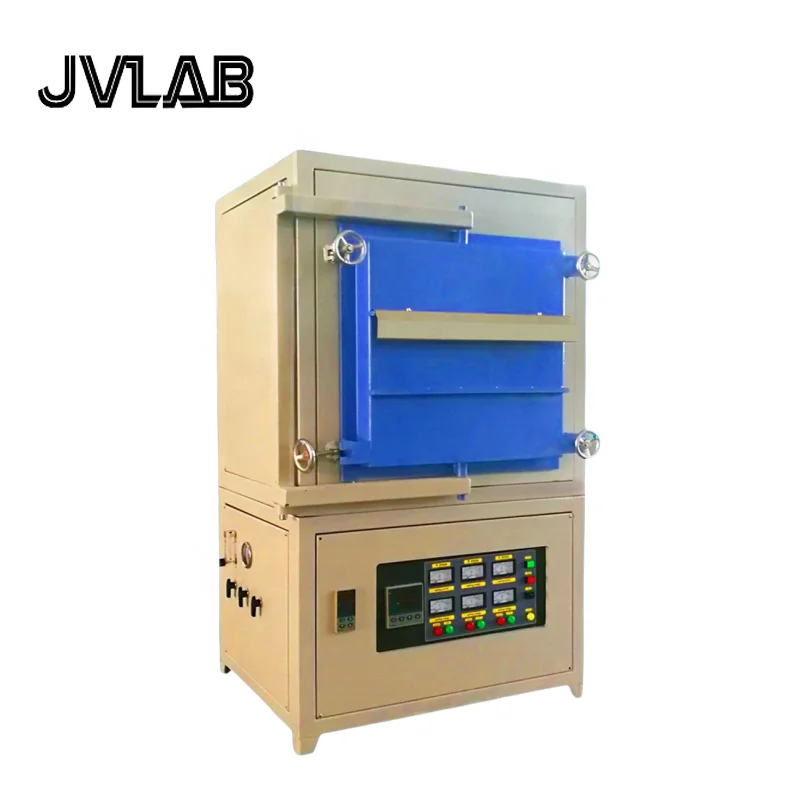

Box-type Atmosphere Gas Vacuum Muffle Furnace
12L controlled atmosphere gas vacuum muffle furnace is a laboratory box-type atmosphere protection furnace, atmosphere protection box-type furnace, controlled atmosphere box-type furnace can be divided into low temperature, medium temperature, high temperature three heating forms, and also can be divided into resistance wire heating atmosphere protection box-type furnace (used below 1100 °C), silicon carbon rod heating atmosphere protection box-type furnace (used below 1400 °C), silicon molybdenum rod heating atmosphere protection box-type furnace (used below 1800 °C), etc.. The small controllable atmosphere box-type furnace adopts double-layer shell structure and PID program temperature control system, phase shift trigger, thyristor control, the furnace is made of alumina polycrystalline fiber material, and the double-layer furnace shell is equipped with an air cooling system, which can quickly raise and fall the temperature, the shell is sealed as a whole, the cover plate is sealed with silica gel mud, the furnace door is made of silicone pad and has a water cooling system, the gas enters and exits from the breech after passing through the flow meter, and there are multiple washing furnace inlets and outlets. The furnace has the advantages of balanced temperature field, low surface temperature, fast temperature rise and fall rate, energy saving, etc., and is a common high-temperature heating equipment used by universities, scientific research institutes, industrial and mining enterprises to do atmosphere protection sintering and atmosphere reduction.
Features
1. The furnace is made of alumina fiber or heat-resistant alloy material, which can be vacuumed, and the vacuum degree can reach below 0.05mPa, and can pass into a variety of protective atmospheres; 2. The furnace is made of alumina polycrystalline fiber material, which has good performance, durability, high tensile strength, no stray balls, high purity, and obvious energy-saving effect;
3. Resistance heating is adopted, and the heating elements are arranged on the left and right sides of the furnace respectively, which has a long service life and a stable temperature field in the furnace.
(1) The heating element is made of high-resistance alloy wire 0Cr27Al7Mo2, and the design heating temperature can reach 1200°C;
(2) The heating element is made of silicon molybdenum rod, and the design heating temperature can reach 1200～1700°C;
4. The furnace door adopts a circulating water cooling system, which can ensure the overall sealing;
5. The furnace door and the top of the furnace are sealed with high-temperature silicone rubber, the furnace door is equipped with a water cooling system, and the furnace body has air inlet, air outlet, vacuum outlet and pressure gauge.
6. It can be pre-vacuumed and can pass hydrogen, argon, nitrogen and other gases, and the furnace is equipped with an overpressure explosion-proof system with gas;

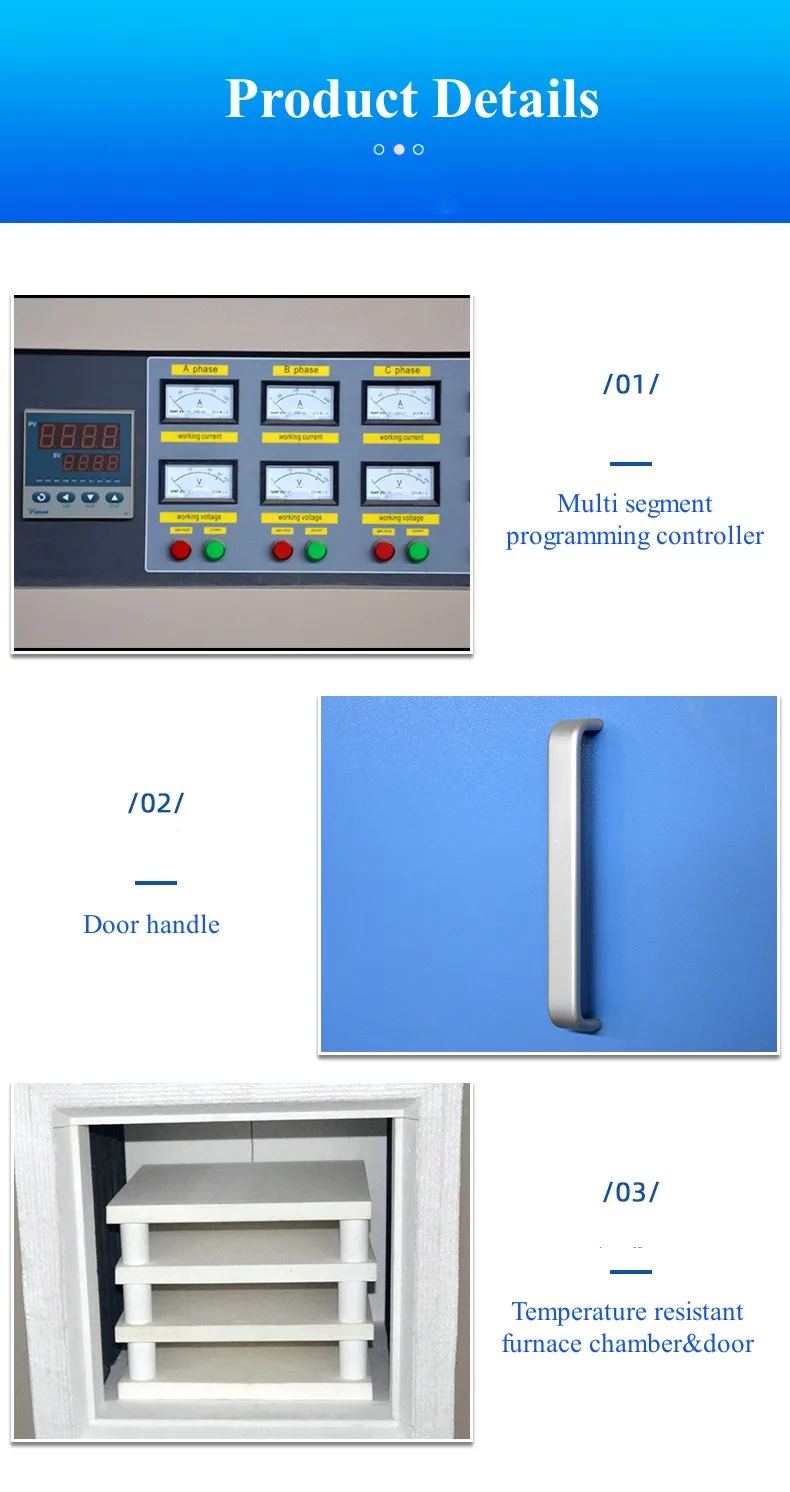

7. Multiple heating curves can be preset and assigned to different sintering materials, which can be directly called when needed, without interfering with each other, and there is no need to repeatedly modify the temperature parameters;
8. Equipped with pressure sensor, overpressure automatic pressure relief protection, safe and reliable operation;
9. The 485 conversion interface is reserved, which can be interconnected with the computer through our special software, which can realize the functions of remote control, real-time tracking, historical record, output report and other functions of single or multiple electric furnaces;

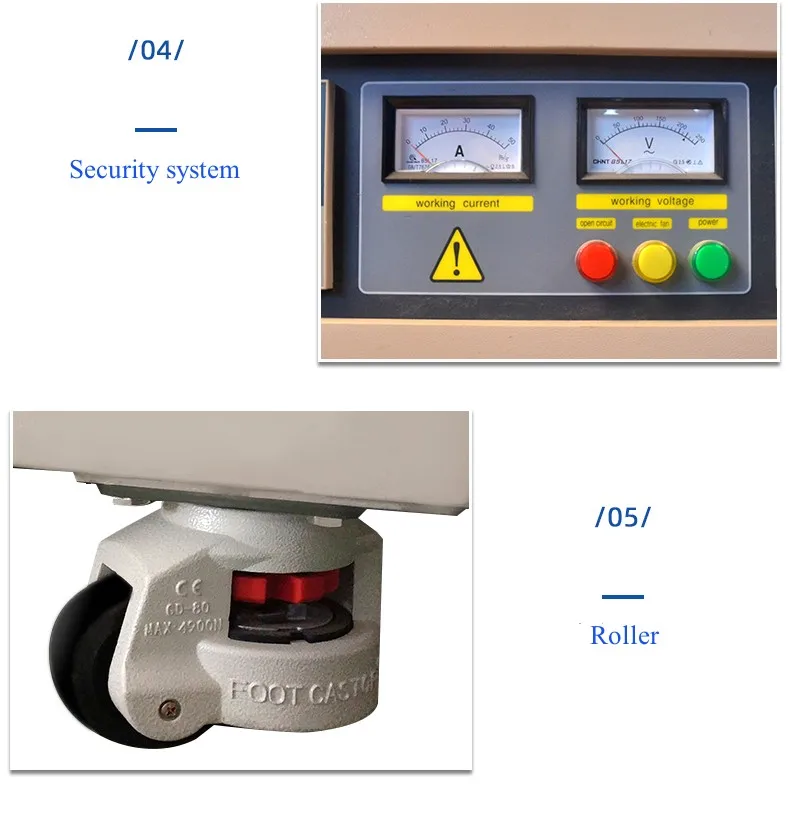

10. Over-temperature alarm and power-off, leakage protection, safe and reliable operation.
Standard Specifications
Furnace size（mm） | Effective Volume(L) |
150*150*150 | 3.4 |
150*150*200 | 4.5 |
200*200*200 | 8 |
200*200*300 | 12 |
300*300*300 | 27 |
300*300*400 | 36 |
400*400*400 | 64 |
500*500*500 | 125 |
600*600*600 | 216 |
800*800*800 | 512 |
PRODUCT SPECIFICATIONS
Model | JV-AM1200-322 | JV-AM1400-322 | JV-AM1700-322 | JV-AM1750-322 | |||
Equiment style | Side door opening | 120×200×120 mm | 3 L | 3 KW | |||
Heating style | Resistance wires | Silicon carbide | Silicon-molybdenum rods | Silicon-molybdenum rods | |||
Heating power | 4KW±10％ | 7KW±10％ | 9KW±10％ | 12KW±10％ | |||
Working size | D3*W2*H2dm | D3*W2*H2dm | D3*W2*H2dm | D3*W2*H2dm | |||
Maximum temperature | 1200℃ | 1400℃ | 1600℃ | 1700℃ | |||
Rated temperature | 1150℃ | 1350℃ | 1550℃ | 1650℃ | |||
Control accuracy | ±1℃ | ±1℃ | ±1℃ | ±1℃ | |||
Thermocouple model | K type | S type | B type | ||||
Ultimate vacuum | ≤0.05MPa | ||||||
Atmosphere pressure | ≤0.05MPa | ||||||
Atmosphere requirement | It can be filled with nitrogen and argon | ||||||
