Factory Price Figure 8 Aerial SM OS1 OS2 Single-Armored Single-Jacket 96 48 32 24 12 core fiber optical cable By FEIBOER
Product Description

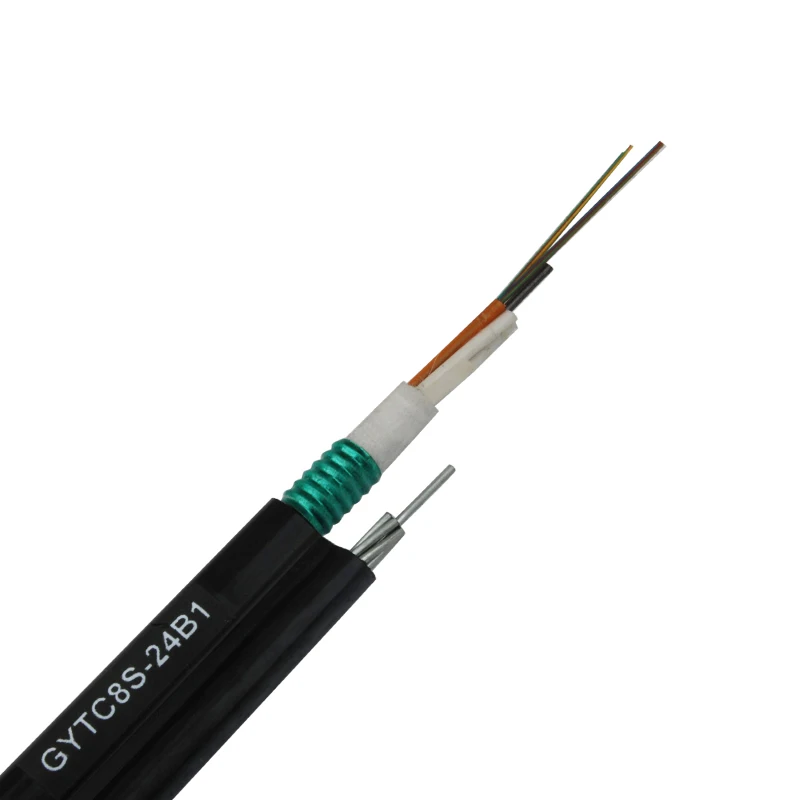

Loose tube stranded Figure 8 fiber self-support fiber optic cable(GYTC8S)
Product Description

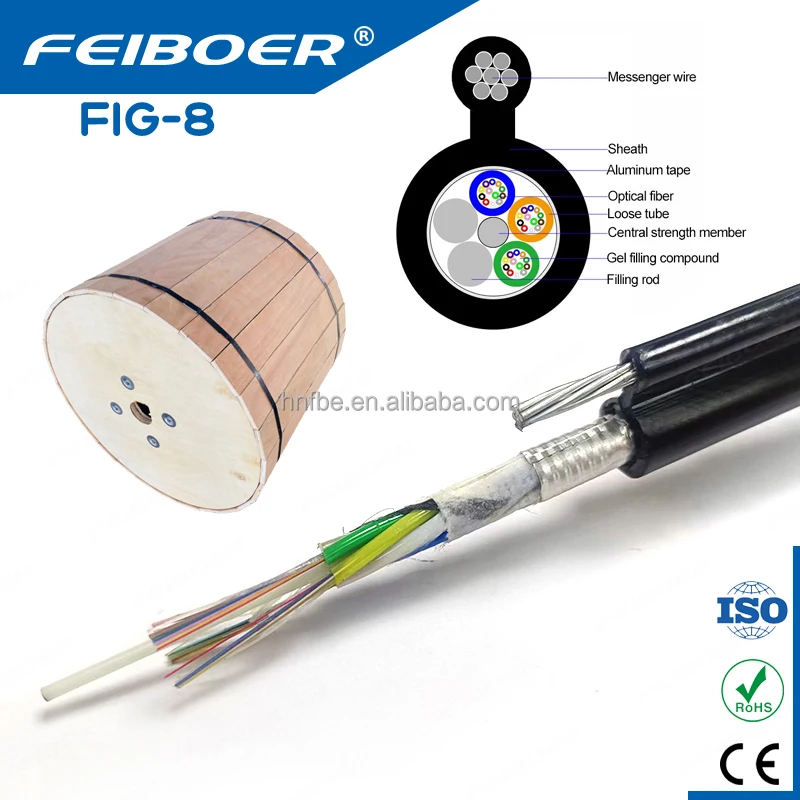

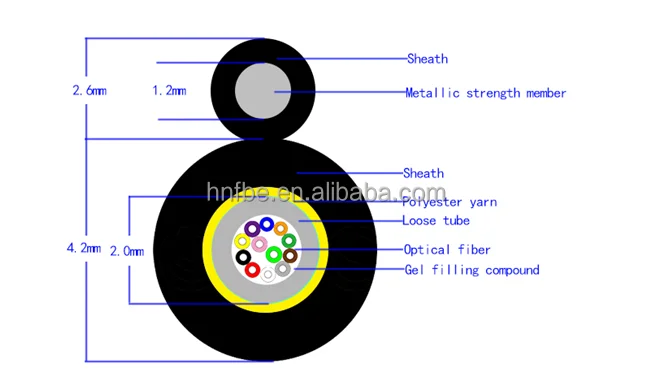

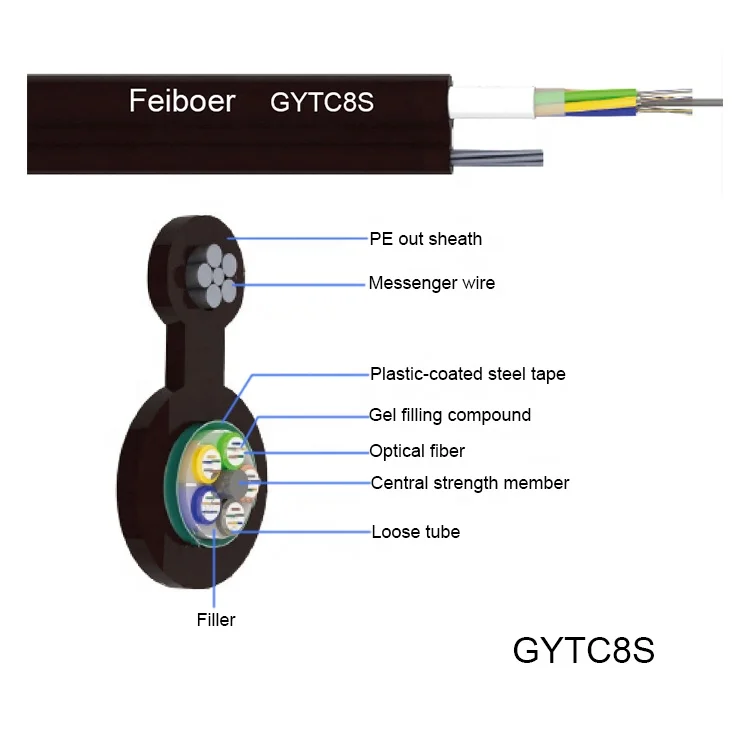

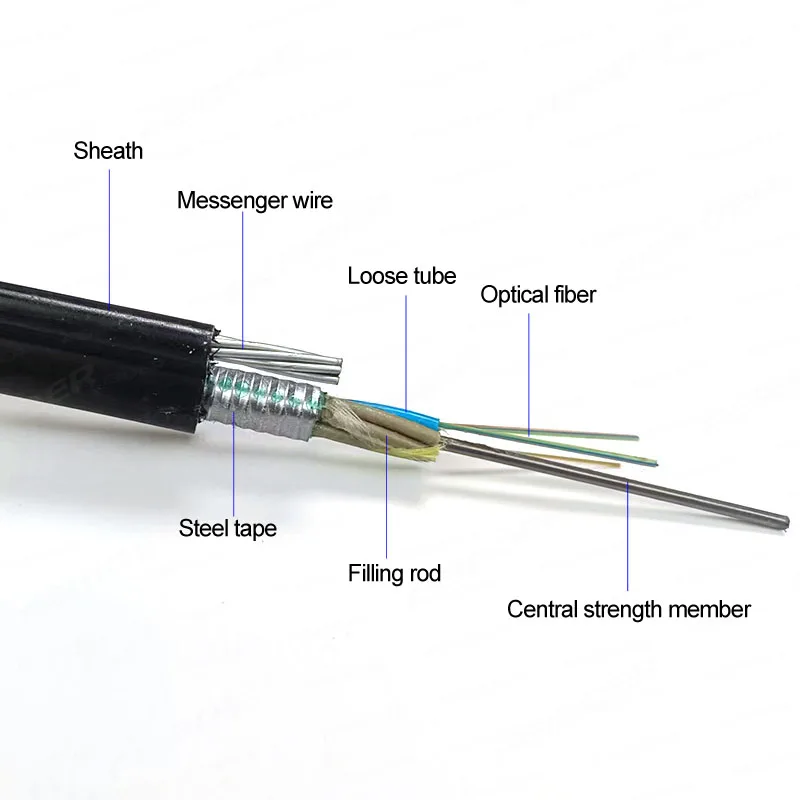

The structure of GYTC8AS cable is to put 250µm optical fiber into loose tube made of high modulus material, which is filled with waterproof compound. The cable core is wrapped in a plastic-coated steel and integrated with the steel strand into an 8-figure polyethylene sheath. Figure-8 self-supporting structure provide high tensile strength and enables easy and cost saving aerial installations.
Product Characteristics
• Steel wire strands have extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs
• With good mechanical properties and temperature characteristics
• Material of loose tube has good hydrolysis resistance and high strength
• The loose tube is filled with special gel, which protect the optical fiber
• Take the following measures to ensure the waterproof performance of the optical cable
-Single metallic wire center reinforced core
-Filled with special Water-blocking material in loose tube
-Complete cable core filling
- Moisture-proof layer of plastic-coated steel
Optical Fibre Performance
Type | Attenuation(+20℃) | Bandwidth | Numerical aperture | ||||
@850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | ||
G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- |
G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- |
50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA |
62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA |
Technical Performance
Model | Fiber count | Tube count | Filling rope count | Weight (kg/km) | Tension (N) | Crush (N/100mm) | Bending Radius Static / dynamic (mm) |
GYTC8S-2~6Xn | 2~6 | 1 | 4 | 158 | According to the diameter of suspension wire | 300/1000 | 10D/20D |
GYTC8S-8~12Xn | 8~12 | 2 | 3 | 158 | |||
GYTC8S-14~18Xn | 14~18 | 3 | 2 | 158 | |||
GYTC8S-20~24Xn | 20~24 | 4 | 1 | 158 | |||
GYTC8S-26~30Xn | 26~30 | 5 | 0 | 158 |
Environmental Characteristics
• Transport/storage temperature: -40℃ to +70℃
Application
• overhead
