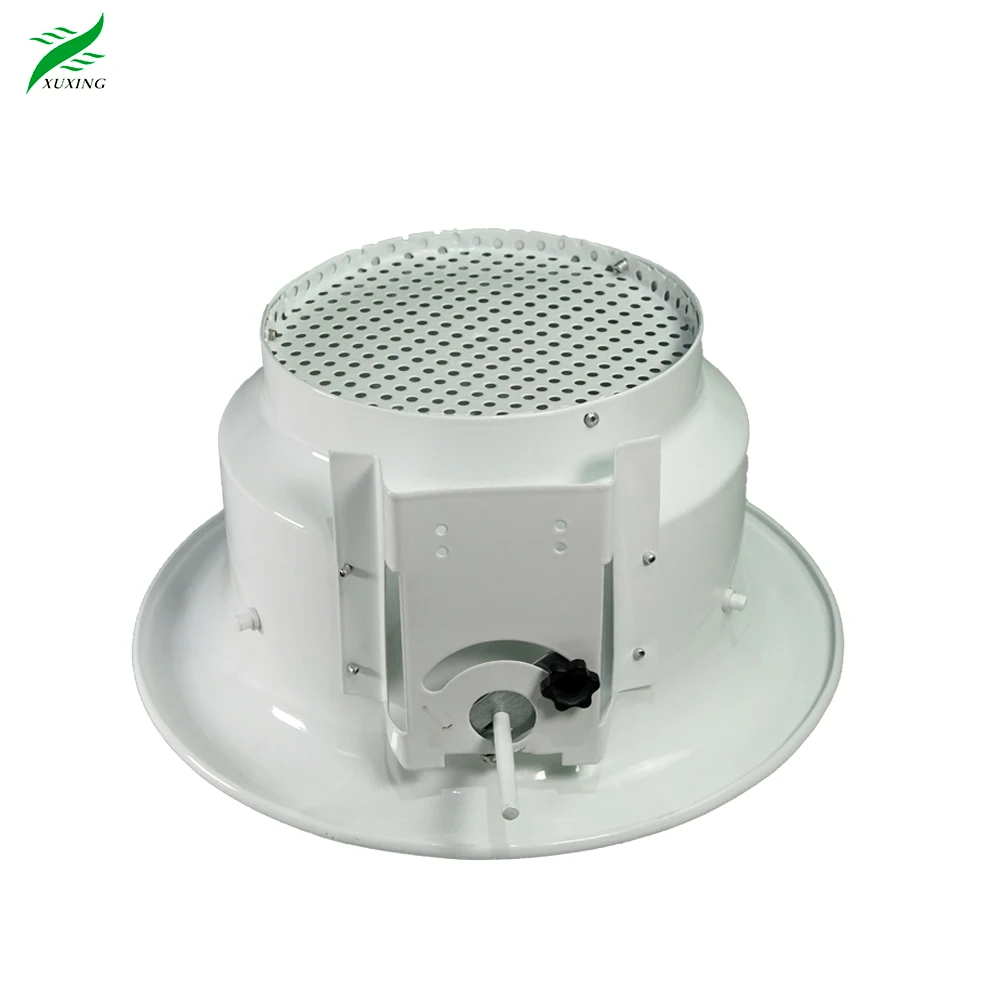

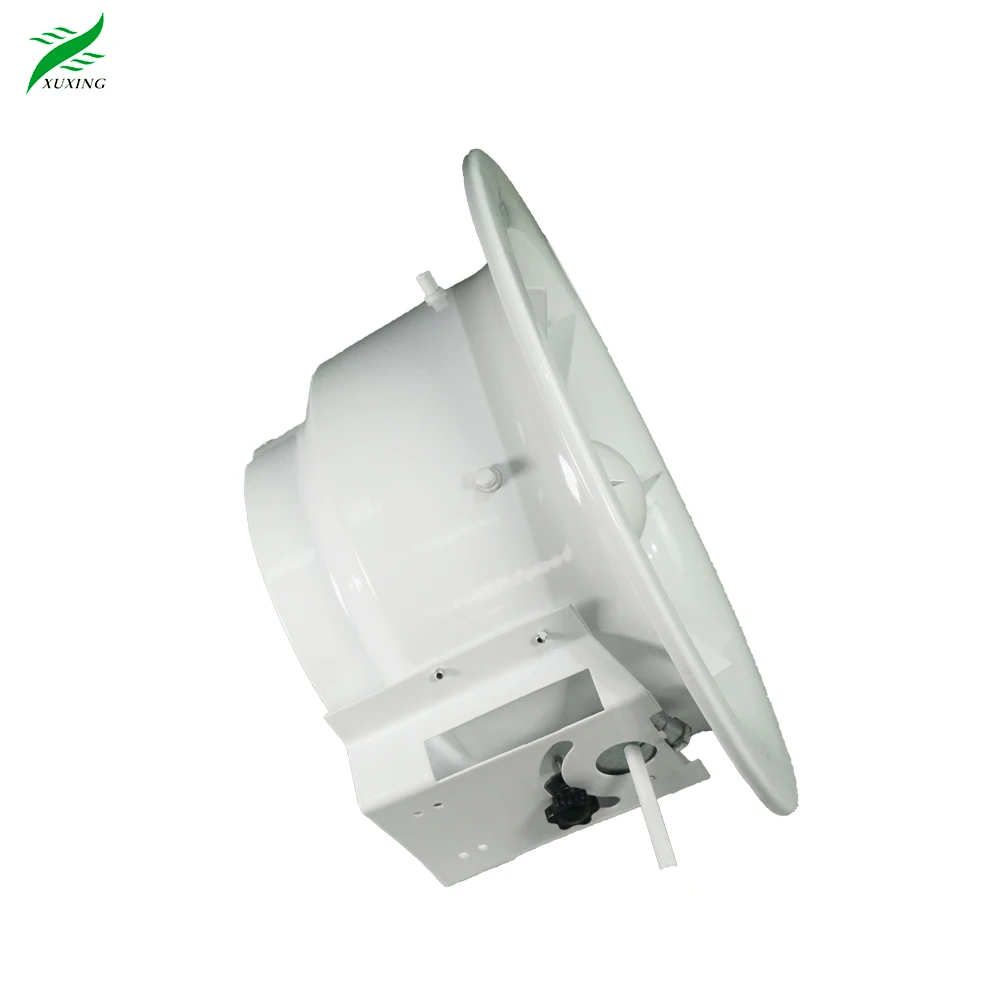

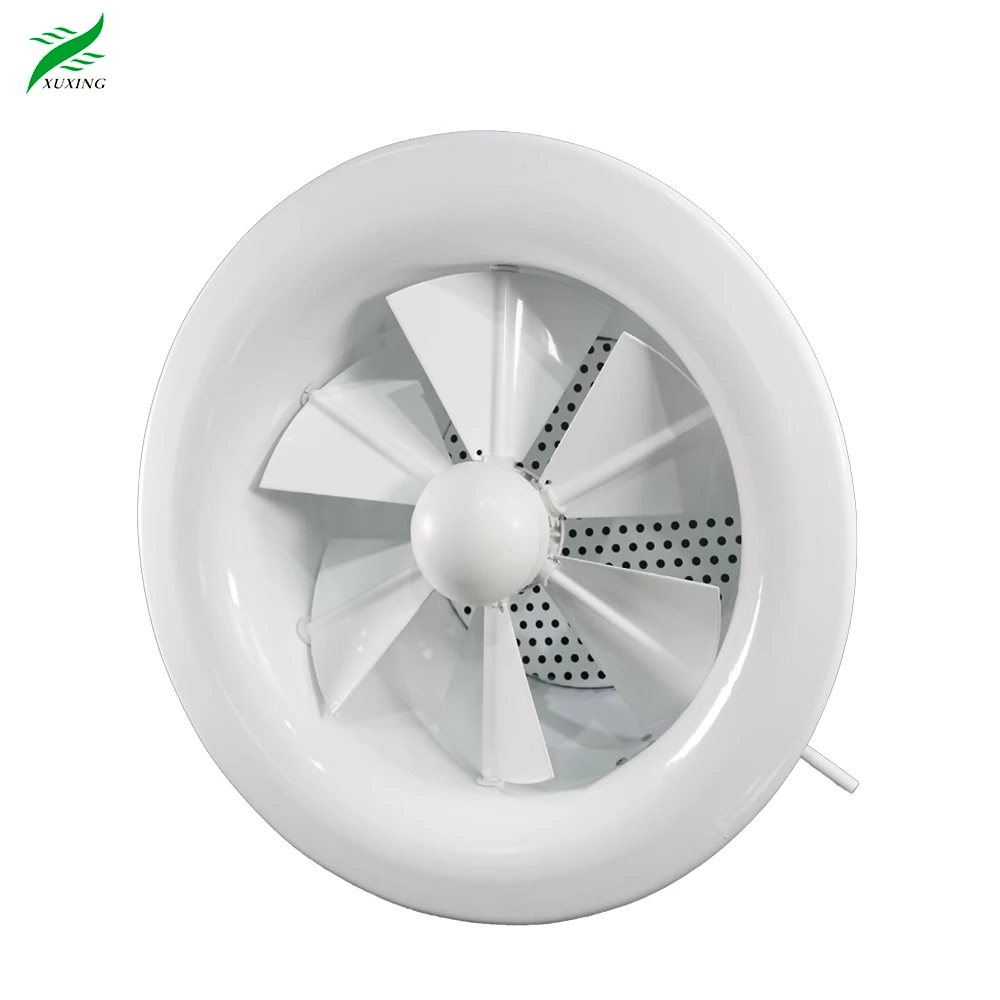

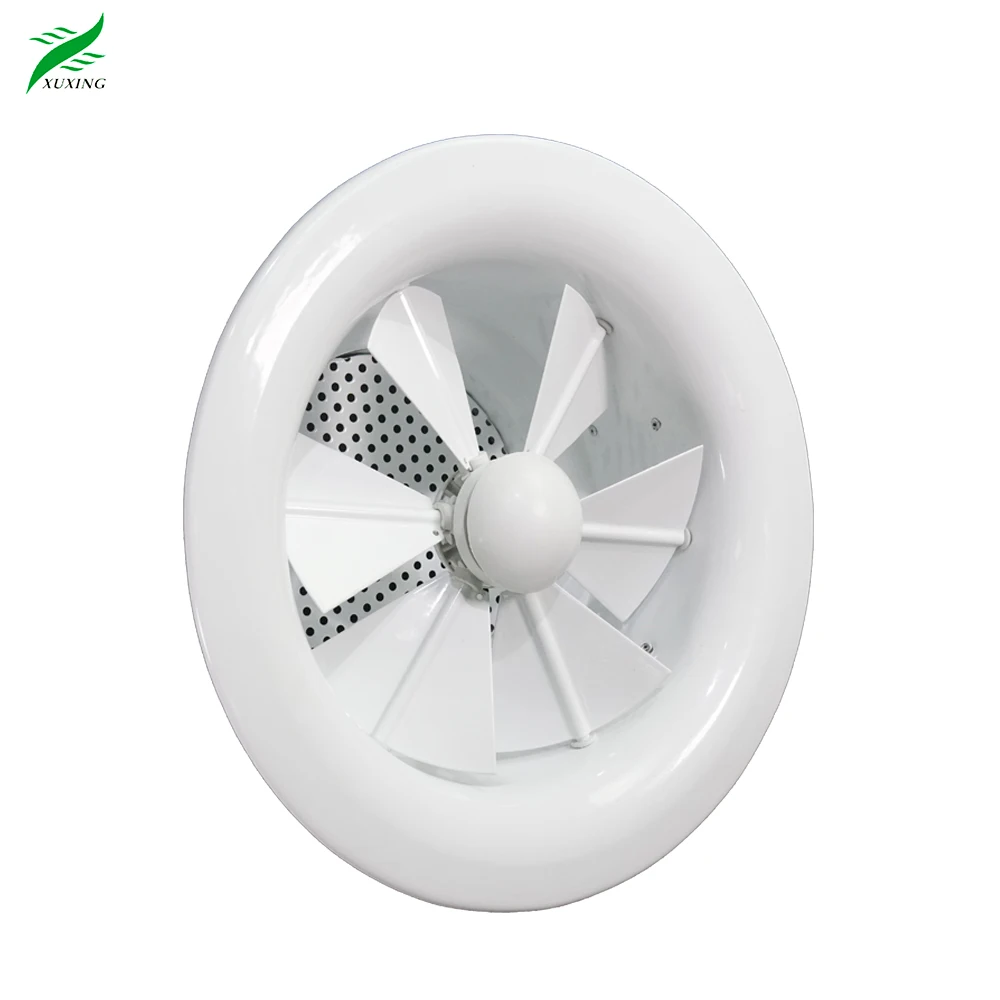

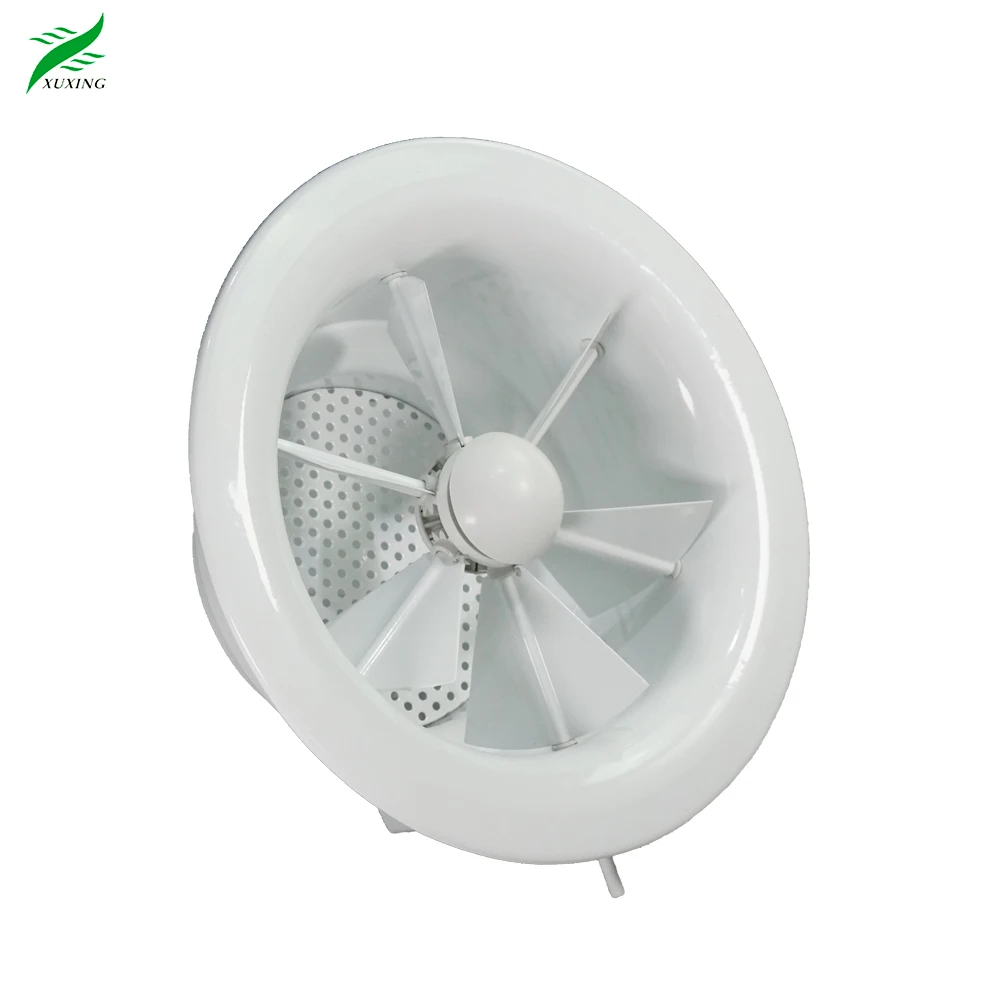

Hvac Ventilation Ceiling Adjustable Blade Air Volume Diffuser Aluminium Round Swirl Air Diffusers
- Category: >>>
- Supplier: Foshan Xuxing Ventilation Co. Ltd.
Share on (1601004764083):
Product Overview
Description
Products Description
Construction:
*Powder coated color finish as per RAL color
standard color: RAL9016, 9010
* Panel: High quality extruded aluminum alloy sheet 1.1~1.5mm thick.
* Cylinder: High quality extruded aluminum alloy sheet 1.1~1.5mm thick.
* Blades: High quality extruded aluminum alloy sheet 1.1~1.5mm thick.
Description:
* The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.

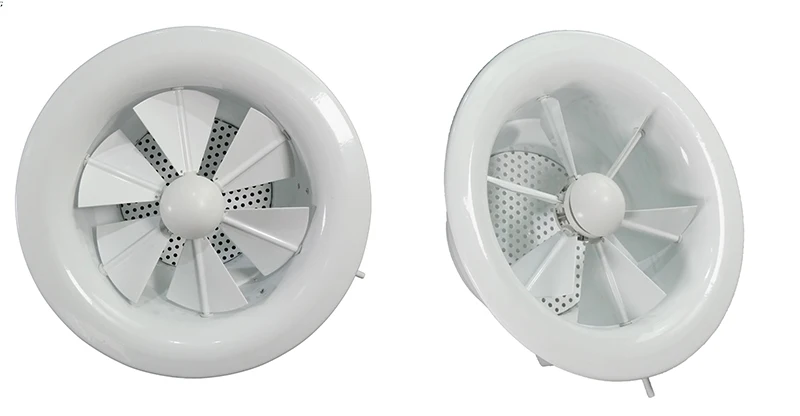

* It consists out frame and inner swirl diffusing blades. This type of swirl diffuser is adapted to the HVAC system. Comparing the traditional spout, it can enhance the airflow supplying depth.

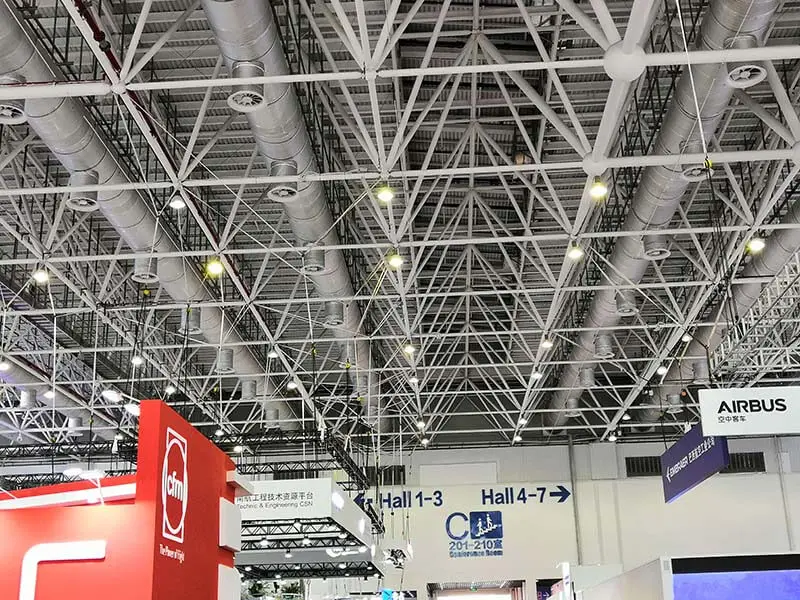

* It is available to supply cold air horizontally, hot air vertically and normal temperature air in 45° angle. It is special for high floor in public, such as stadium, factory, airport, etc..
*The blades can be easily moving by the handle to control the air volume.
Surface Finish:
*Powder coated color finish as per RAL color
standard color: RAL9016, 9010

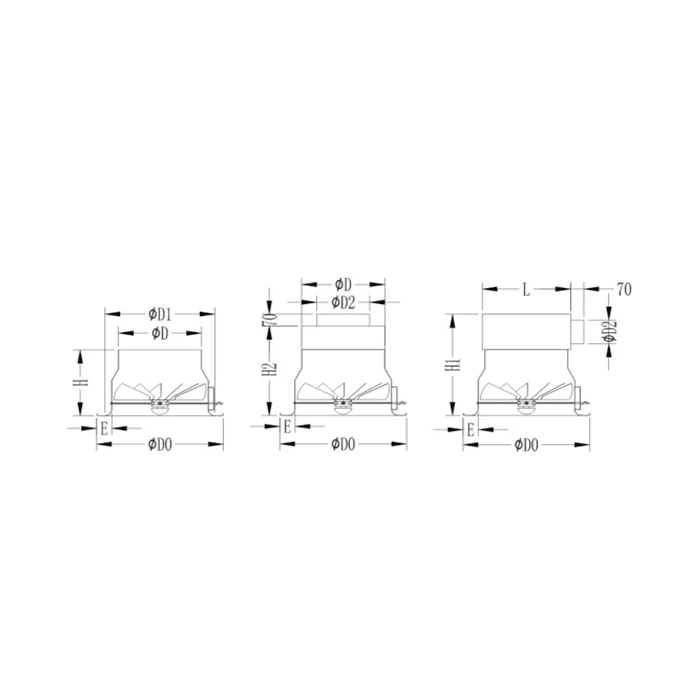

Item code | Neck Size (mm) | ΦD (mm) | ΦD0 (mm) | ΦD1 (mm) | ΦD2(mm)(MAX) | Height (mm) |
SWD-A2-200 | 200 | 195 | 380 | 248 | 200 | 170 |
SWD-A2-250 | 250 | 245 | 400 | 298 | 200 | 205 |
SWD-A2-315 | 315 | 313 | 500 | 398 | 250 | 230 |
SWD-A2-400 | 400 | 398 | 615 | 465 | 300 | 280 |
SWD-A2-500 | 500 | 498 | 780 | 565 | 350 | 320 |
SWD-A2-630 | 630 | 628 | 935 | 665 | 400 | 340 |
