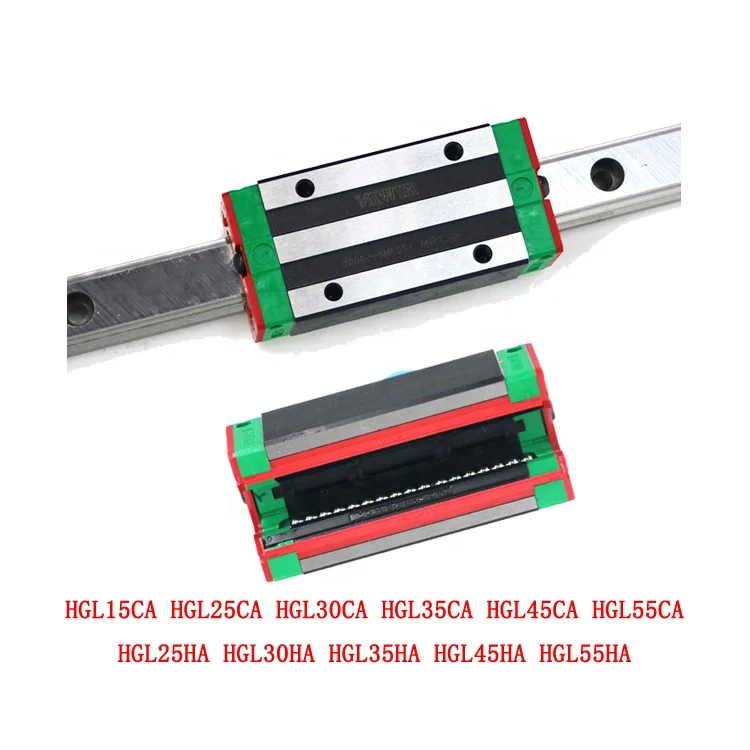

In stock Taiwan original Hiwin linear guides HGL15CA HGL25CA HGL30CA HGL35CA HGL45CA HGL55CA
- Category: >>>
- Supplier: Tianjin Tengqi International Trade Co. Ltd.
Share on (1601004811246):
Product Overview
Description
Product Description

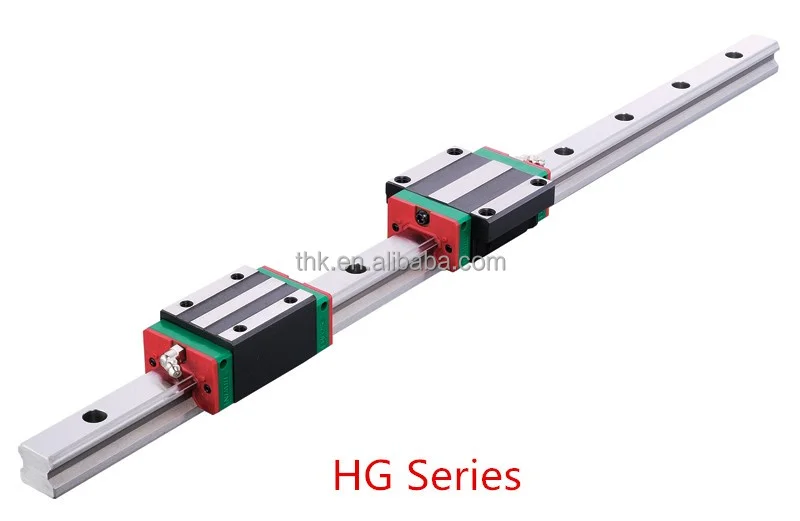

HIWIN HG Series Heavy Load Ball Type Linear Guideway
Product Name | In stock Taiwan original Hiwin linear guides HGL15CA HGL25CA HGL30CA HGL35CA HGL45CA HGL55CA |
Material | Stainless Steel/chrome steel |
Quality | high-precision, high-rigidity, with long service lives. |
Feature | Self-aligning capability By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors dueto surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements andthe shift of contact points. Self-aligning capability, high accuracy and smooth operation can be obtained with an easyinstallation. Interchangeability Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range,which means that any blocks and any rails in a specific series can be used together while maintaining dimensionaltolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail. High rigidity in all four directions Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radialand lateral directions. Furthermore, the circular-arc groove provides a wide-contact width between the balls and thegroove raceway allowing large permissible loads and high rigidity. |
Application | Machine centers、Machine tools、Precision machining machines、Heavy cutting machines、Punching machines、Marble cutting machines、Automatic equipments、Grinding machines、High speed transfer equipments、Injection molding machines、Measuring equipments |
Brand Name | HIWIN |
Block Series | HGL15CA HGL25CA HGL30CA HGL35CA HGL45CA HGL55CA HGL25HA HGL30HA HGL35HA HGL45HA HGL55HA |
HS CODE | 8483300090 |

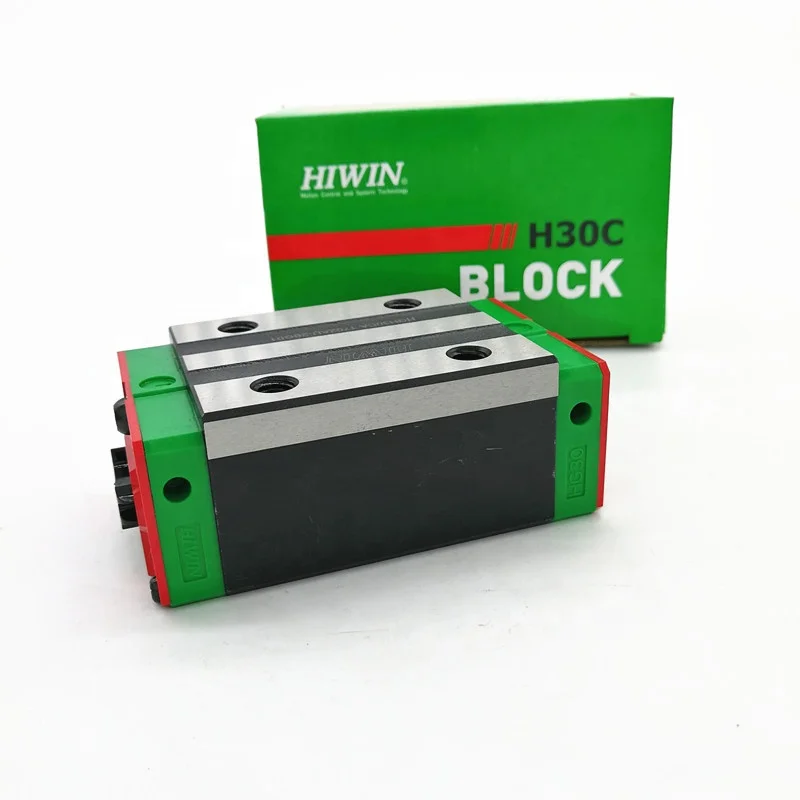

Products Show

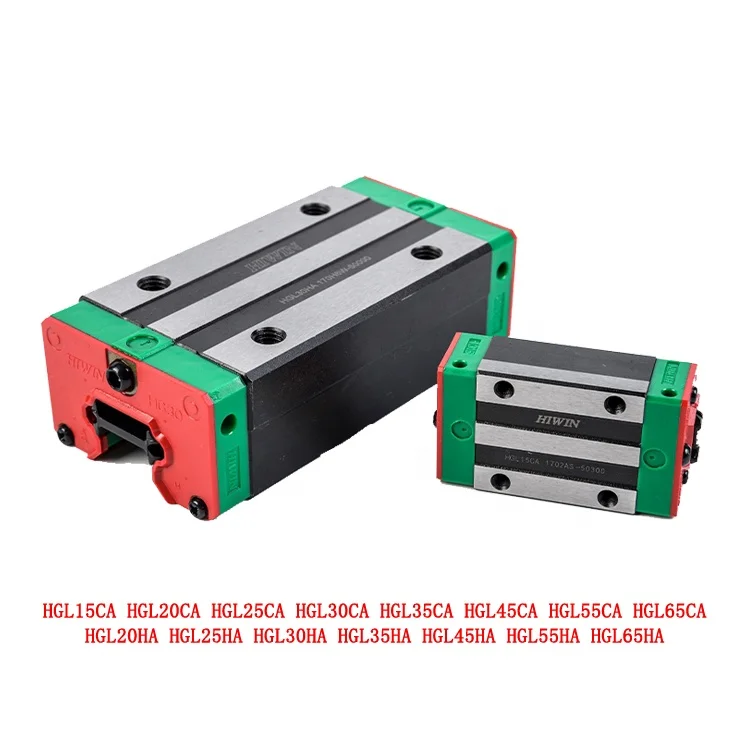

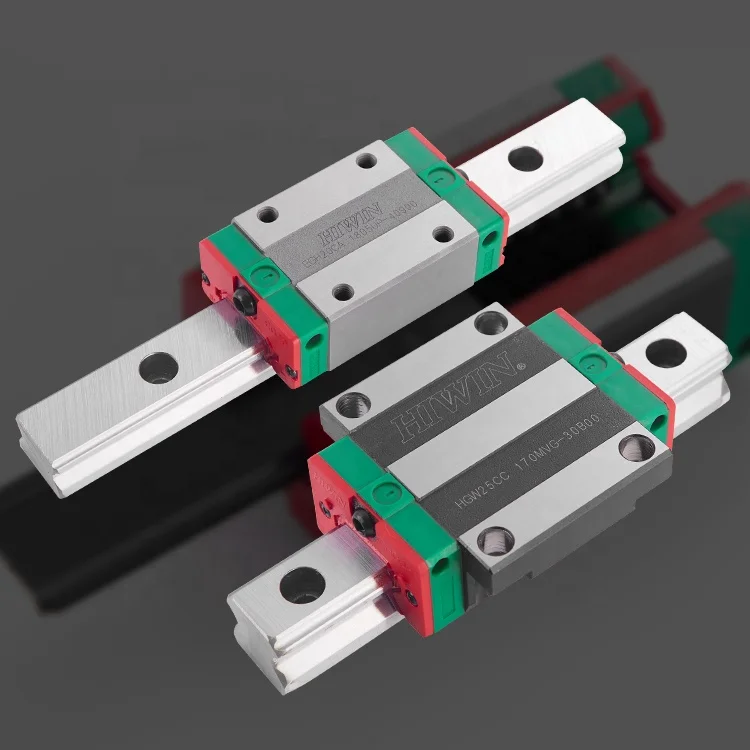

In stock Taiwan original Hiwin linear guides HGL15CA HGL25CA HGL30CA HGL35CA HGL45CA HGL55CA
In stock Taiwan original Hiwin linear guides HGL15CA HGL25CA HGL30CA HGL35CA HGL45CA HGL55CA

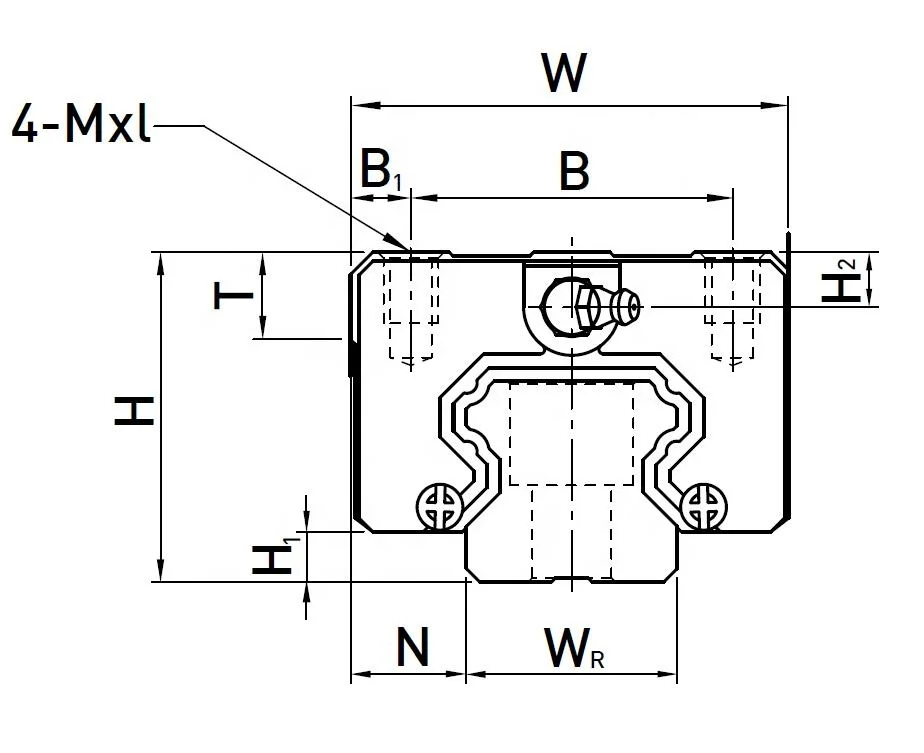

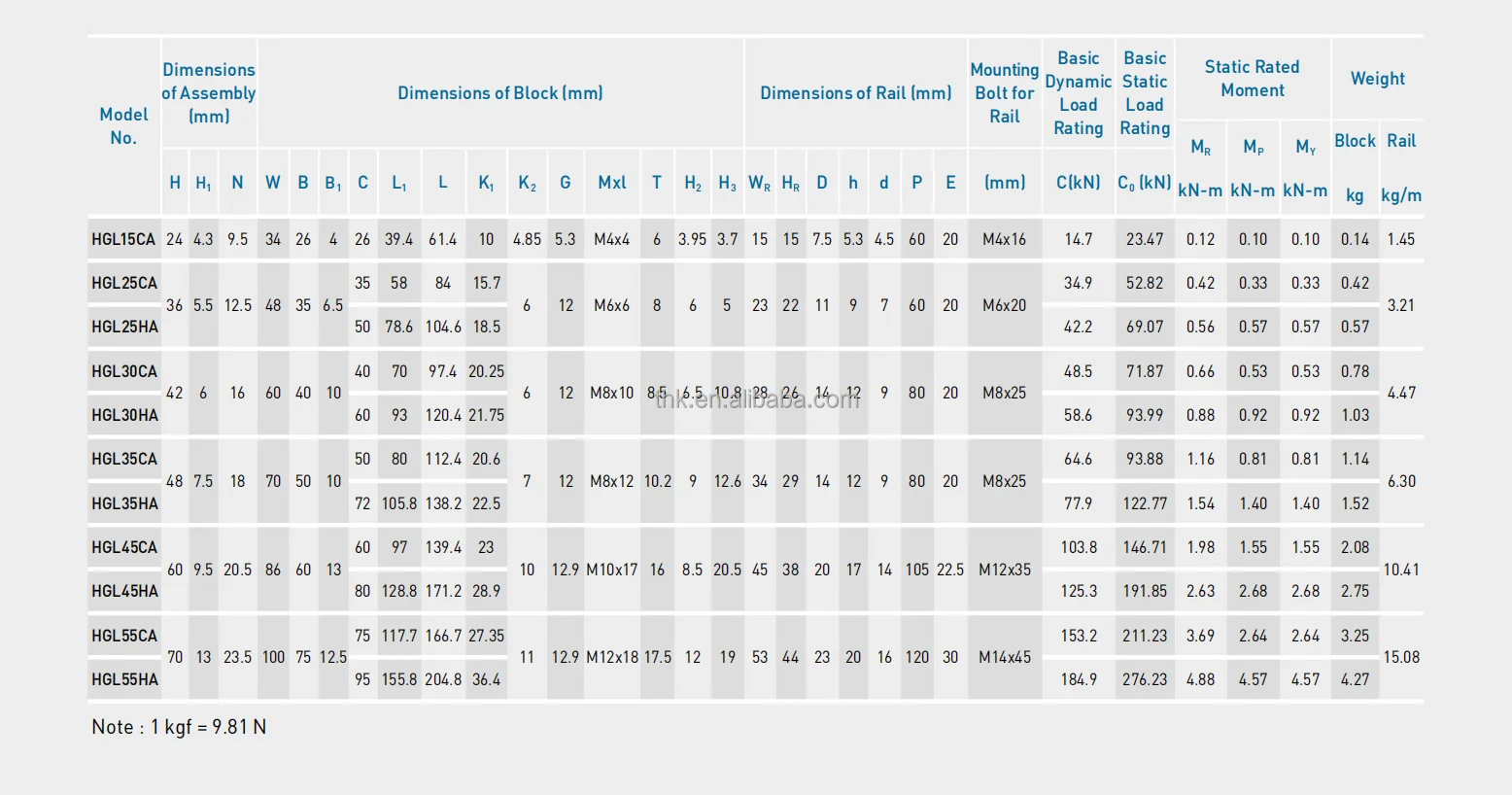

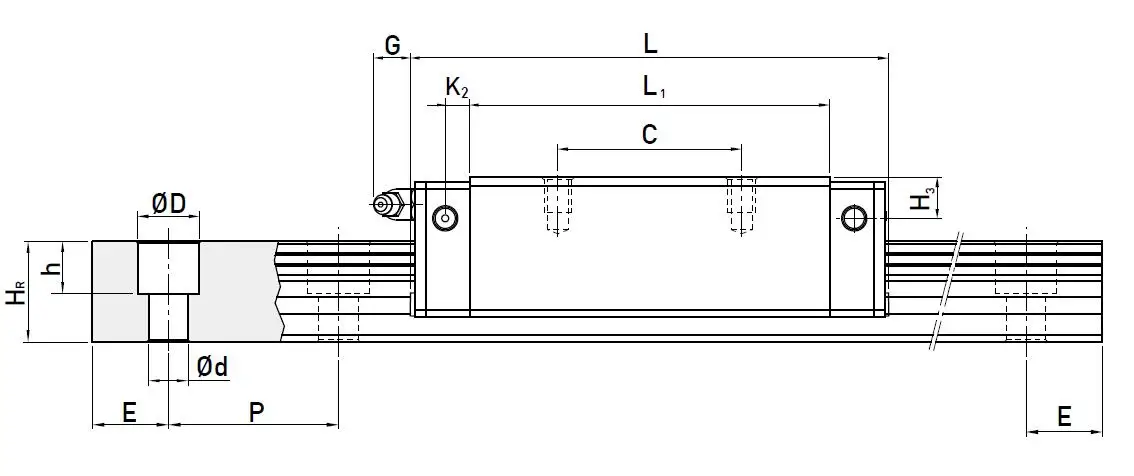

Model | Dimensions of Block(mm) | Weight | ||||||||||
W | B | C | L1 | L | Block(kg) | Rail(kg/m) | ||||||
HGL15CA | 34 | 26 | 26 | 39.4 | 61.4 | 0.14 | 1.45 | |||||
HGL25CA | 48 | 35 | 35 | 58 | 84 | 0.42 | 3.21 | |||||
HGL30CA | 60 | 40 | 40 | 70 | 97.4 | 0.78 | 4.47 | |||||
HGL35CA | 70 | 50 | 50 | 80 | 112.4 | 1.14 | 6.3 | |||||
HGL45CA | 86 | 60 | 60 | 97 | 139.4 | 2.08 | 10.41 | |||||
HGL55CA | 100 | 75 | 75 | 117.7 | 166.7 | 3.25 | 15.08 | |||||
HIWIN Others Model
Model Number of HG Series | HGH-CA / HGH-HA | HGH15CA HGH20CA HGH25CA HGH30CA HGH35CA HGH45CA HGH55CA HGH65CA HGH15HA HGH20HA HGH25HA HGH30HA HGH35HA HGH45HA HGH55HA HGH65HA |
HGL-CA / HGL-HA | HGL15CA HGL25CA HGL30CA HGL35CA HGL45CA HGL55CA HGL25HA HGL30HA HGL35HA HGL45HA HGL55HA | |
HGW-CB / HGW-HB | HGW15CB HGW20CB HGW25CB HGW30CB HGW35CB HGW45CB HGW55CB HGW65CB HGW20HB HGW25HB HGW30HB HGW35HB HGW45HB HGW55HB HGW65HB | |
HGW-CC / HGW-HC | HGW15CC HGW20CC HGW25CC HGW30CC HGW35CC HGW45CC HGW55CC HGW65CC HGW20HC HGW25HC HGW30HC HGW35HC HGW45HC HGW55HC HGW65HC | |

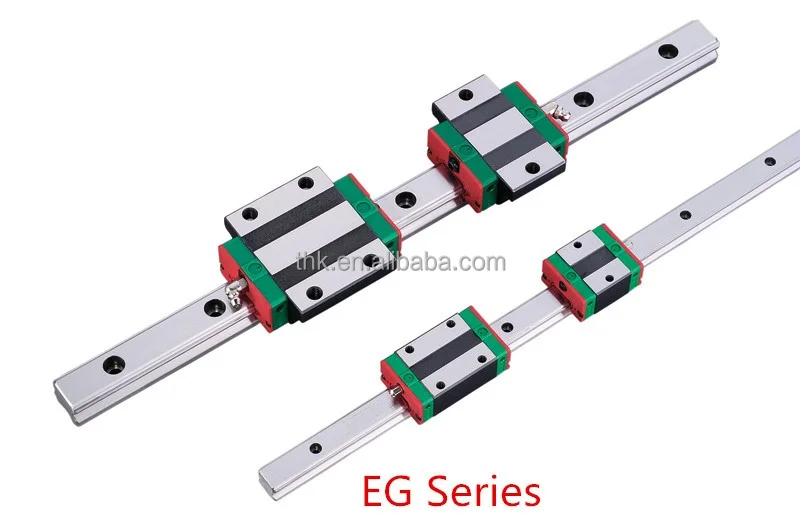

Model Number of EG Series | EGH-SA / EGH-CA | EGH15SA EGH20SA EGH25SA EGH30SA |
EGW-SA / EGW-CA | EGW15SA EGW20SA EGW25SA EGW30SA EGW15CA EGW20CA EGW25CA EGW30CA | |
EGW-SB / EGW-CB | EGW15SB EGW20SB EGW25SB EGW30SB EGW35SB EGW15CB EGW20CB EGW25CB EGW30CB EGW35CB | |

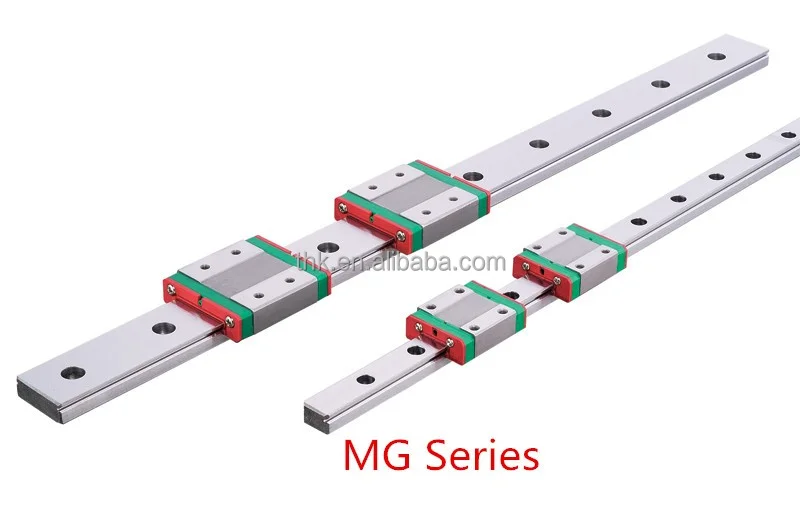

Model Number of MG Series | MGN-C / MGN-H | MGN7C MGN9C MGN12C MGN15C MGN7H MGN9H MGN12H MGN15H |
MGW-C / MGW-H | MGW7C MGW9C MGW12C MGW15C MGW7H MGW9H MGW12H MGW15H | |

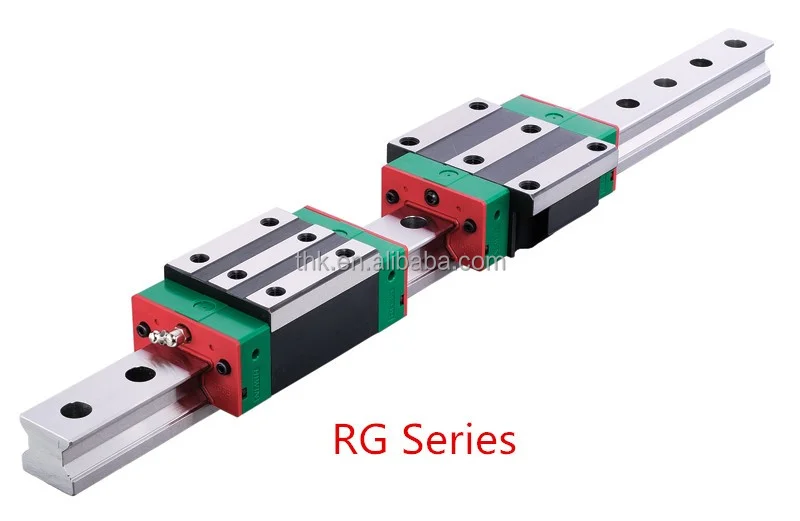

Model Number of RG Series | RGH-CA / RGH-HA | RGH25CA RGH30CA RGH35CA RGH45CA RGH55CA RGH65CA RGH25HA RGH30HA RGH35HA RGH45HA RGH55HA RGH65HA |
RGW-CC / RGW-HC | RGW25CC RGW30CC RGW35CC RGW45CC RGW55CC RGW65CC RGW25HC RGW30HC RGW35HC RGW45HC RGW55HC RGW65HC | |
Model Number of QH Series | QHH-CA / QHH-HA | QHH15CA QHH20CA QHH25CA QHH30CA QHH35CA QHH45HA QHW15CA QHW20CA QHW30CA QHW35CA |
QHW-CA / QHW-HA | QHW20CA QHW25CA QHW30CA QHW35CA QHW45CA QHW20HA QHW25HA QHW30HA QHW35HA QHW45HA |
Packing & Delivery

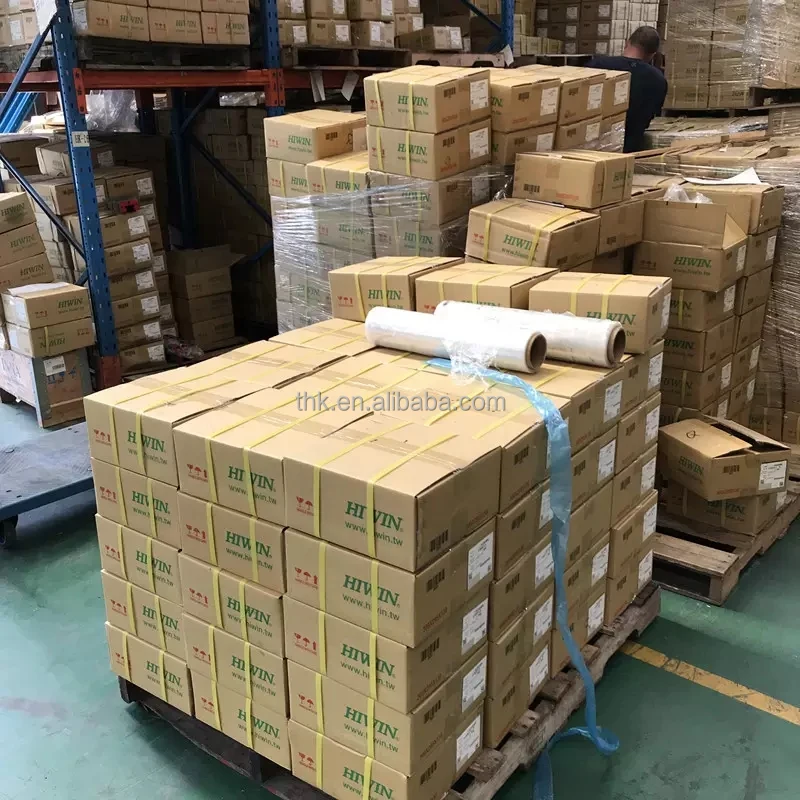

Our package
1 Single box
2. Single box + carton
3. Single box + carton + wooden box
4.according to demand of customers
1. Single box
2. Single box + carton
3. Single box + carton + wooden box
Shipping mothods available as below.
DHL, TNT, FEDEX, UPS, by air or by sea according to your request.
It usually takes 4-7 working days to deliver.
We'd like to check freight cost for your reference when order confirmed.

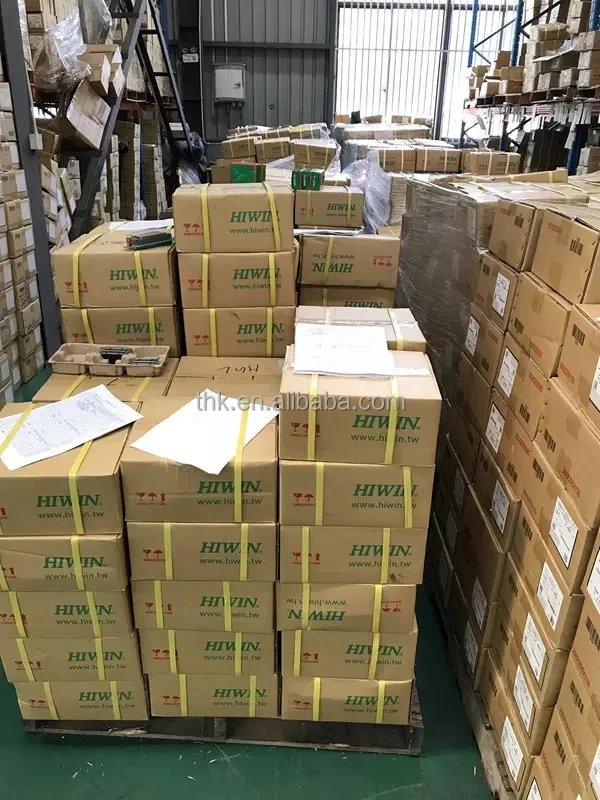

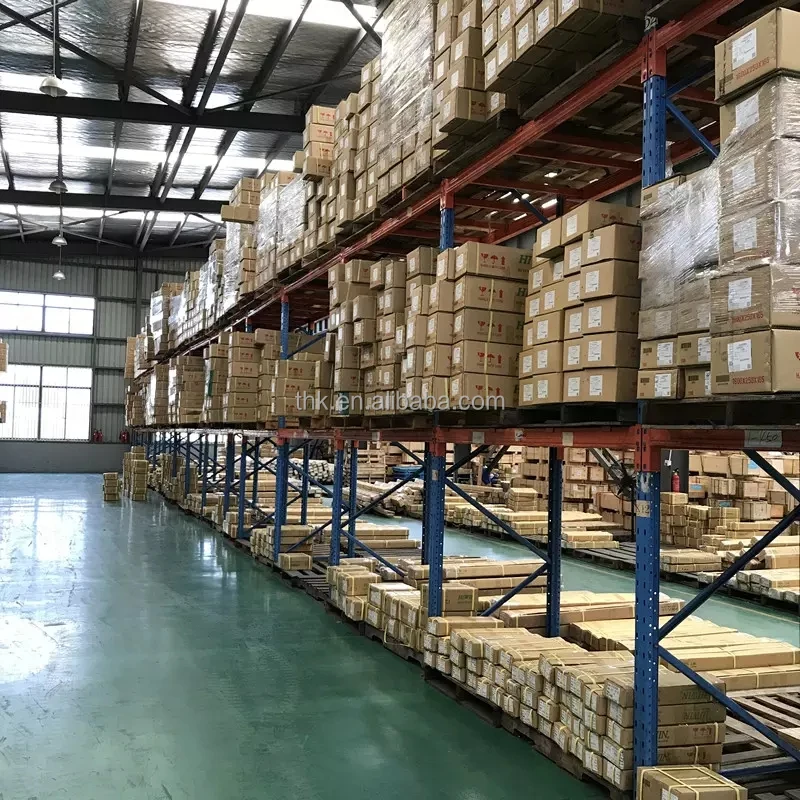

Warehouse
