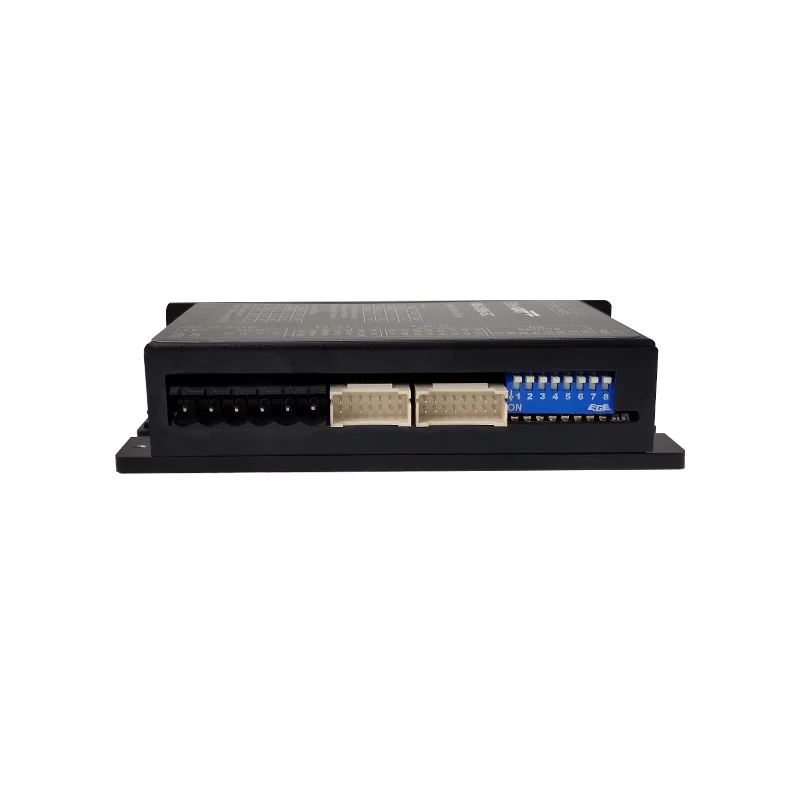

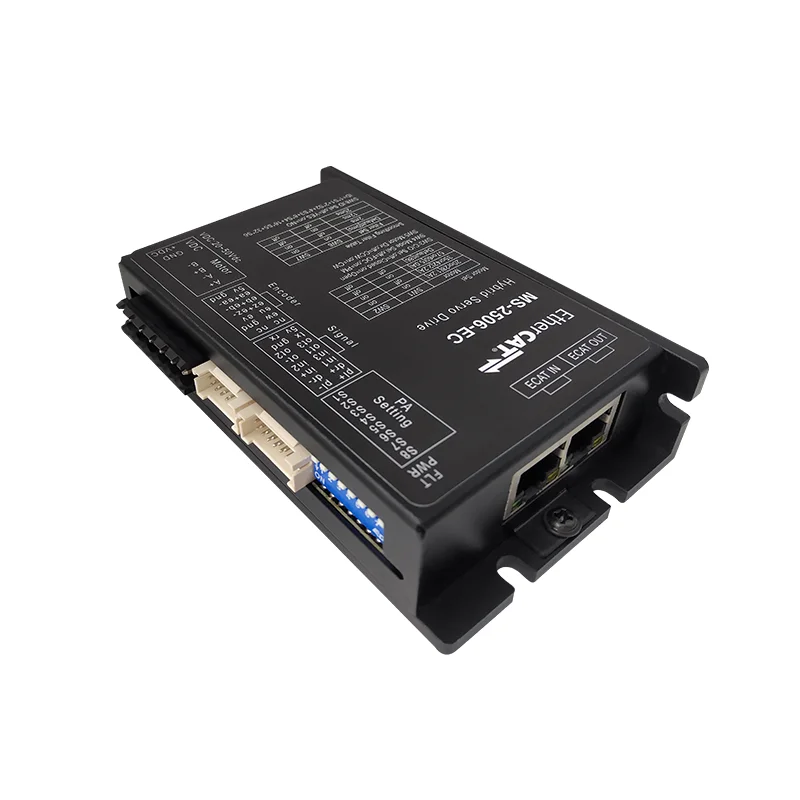

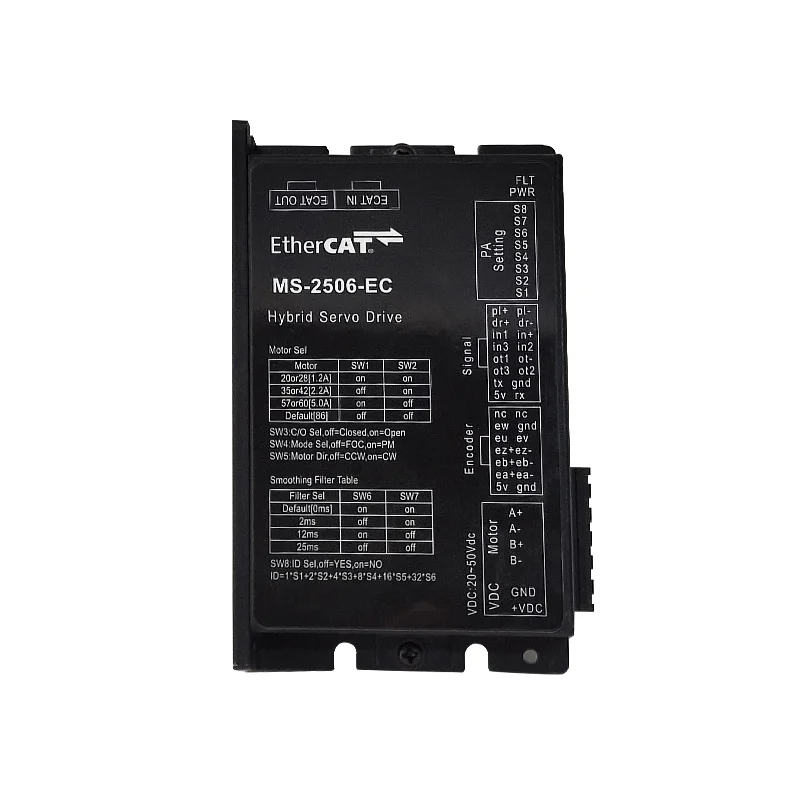

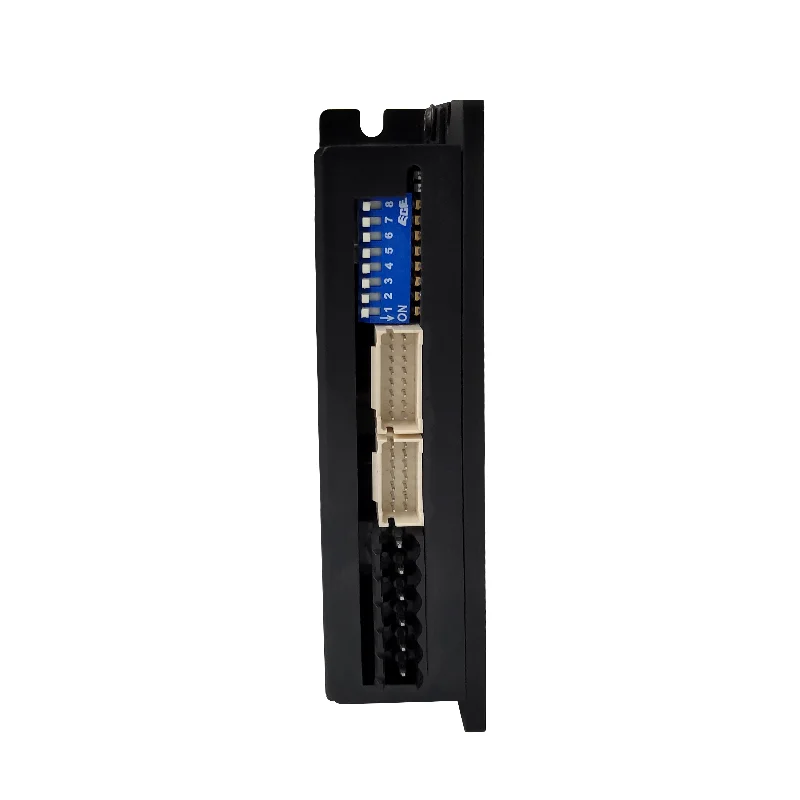

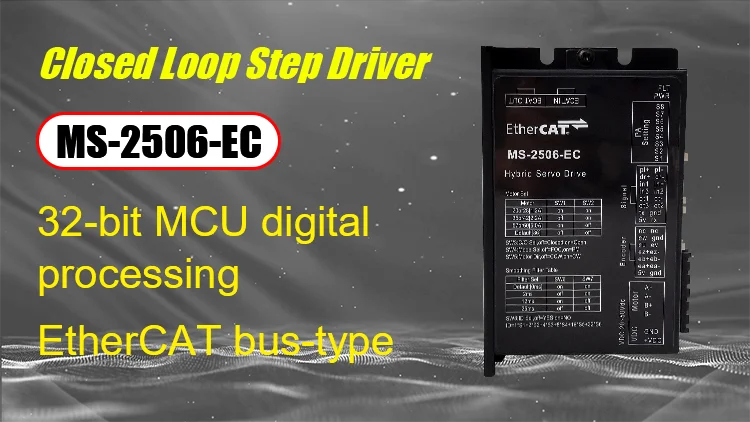

High torque Bus Control 32 Bit Closed Loop Stepper Servo NEMA34 50VDCStepper Motor Driver for CNC
























BrandMOONS
ModelMS-2506-EC
Driver Size116mm*69.2mm*26.5mm
CertificationCE  RoHS







 Drive Specifications


1. Amplifier Type: Dual H-Bridge, 4 Quadrant

2. Current Contro: PWM at 20 KHz

3. Output Current:0.1 - 5.0A/phase (peak-of-sine) in 0.01 amp increments

4. Voltage Range: 24 - 48VDC

5. Input Voltage Range:  18 - 53VDC

6. Protection:  Over voltage, under voltage, over temp, over current, open winding, communication cable disconnection

7. Idle Current Reduction: Reduction range of 0 - 90% of running current after a delay selectable in milliseconds

8. Anti-Resonance: Raises the system-damping ratio to eliminate midrange instability and allow stable operation throughout the speed range of the motor

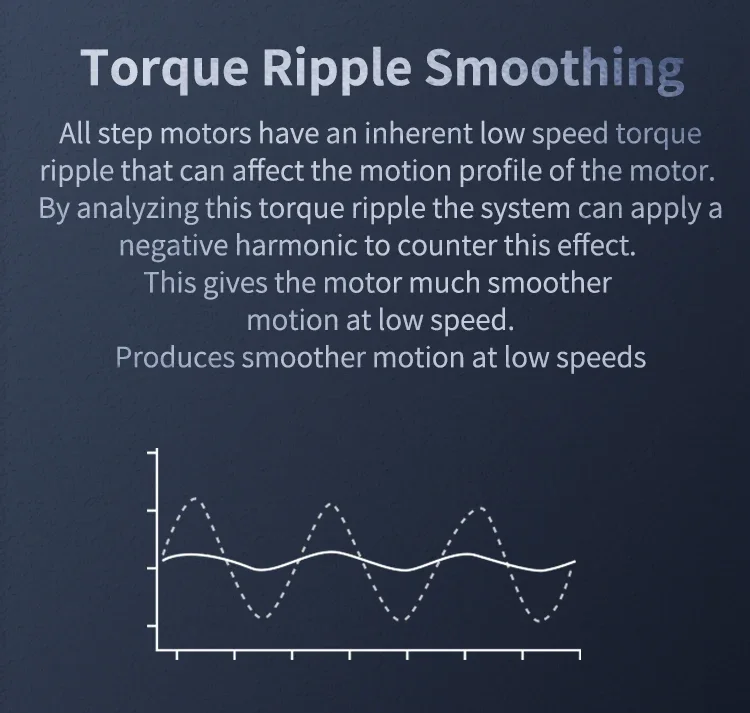

9. Torque Ripple Smoothing: Allows for fine adjustment of phase current waveform harmonic content to reduce low-speed torque ripple in the range of 0.25 to 1.5 rps

10. Auto Test & Auto Setup: Auto test and setup at power on (ie. motor resistance, and capacitance) to optimize your system performance.

11. Non-Volatile Storage: Configurations are saved in FLASH memory on-board the DSP

12. Operation Mode:EtherCAT (CoE) with full support of CiA402, Support PP, PV, CSP&HM mode and Q mode

13. Digital Input: 3 digital inputs

14. Output:  2 Opto-couplers isolation outputs
15. Communication Port:Dual port Ethernet(RJ45 connector)and RS-232(RS-232 serial port for configuration)

16. Ambient Temperature: 0 - 40°C when mounted to a suitable heat sink

17. Humidity:  90% non-condensing

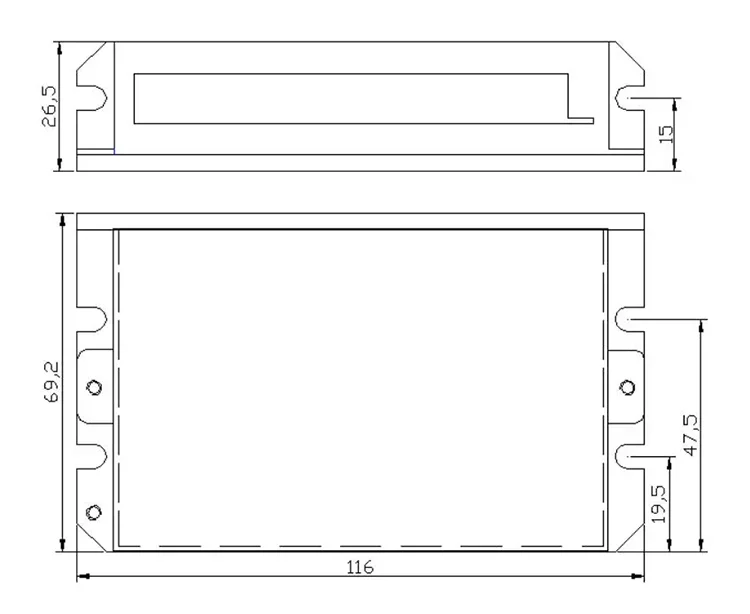

Demensions (Unit: mm)









Certifications







Packaging & Shipping


PACKAGING.pngshipping .jpg


Company Informtion


company information.jpg





FAQ


1.Factory or Agent?
We are Agent, but have professional R&D team as introduced in company information.





2. How about the delivery?
- Sample: 1-3 days.
- Bulk order: 5-20 days.





3. What is your after-sales services?
1. Free maintenance within 12 months guarantee, lifetime consultant.
2. Professional solutions in installation and maintence.





4. Why choose us?
1. Accept customize & 24/7 after-sale services.
2. From mold customization to material processing and welding, from fine components to finished assembly,strict aging, finished product inspection.





5. Do you get the relevant certification?
All products are made according to ISO9001, CE &RoHS requirements.
