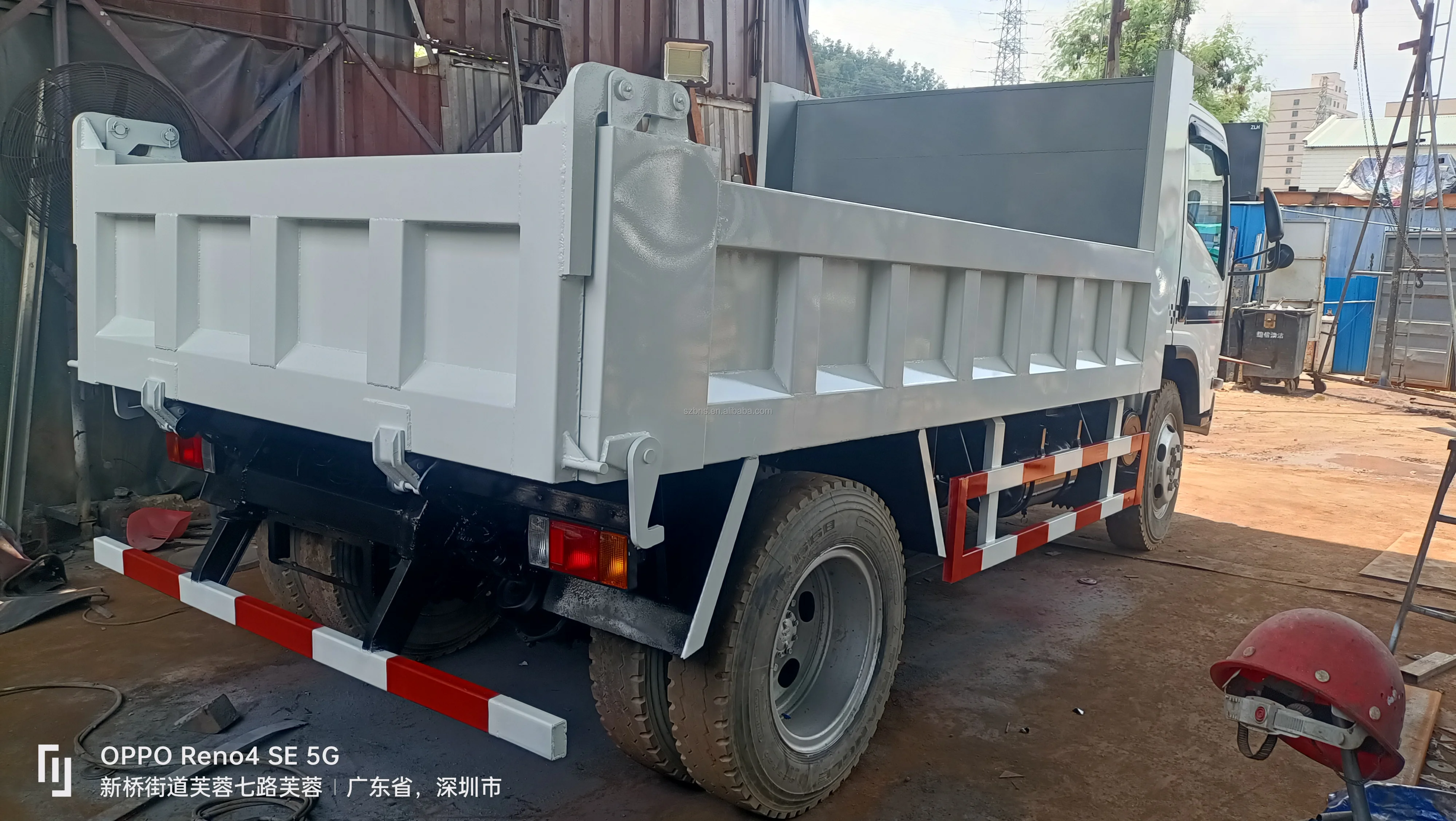

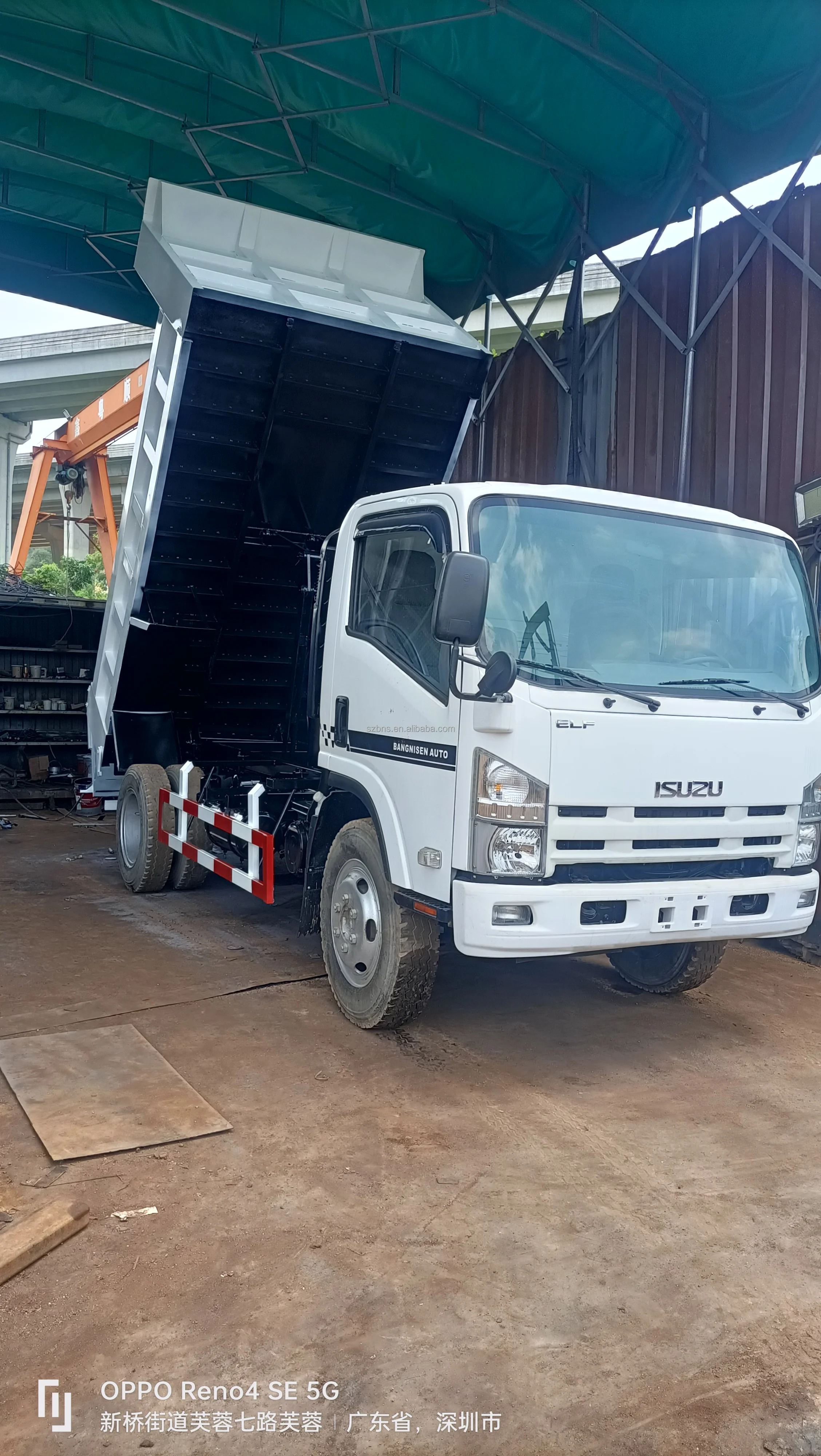

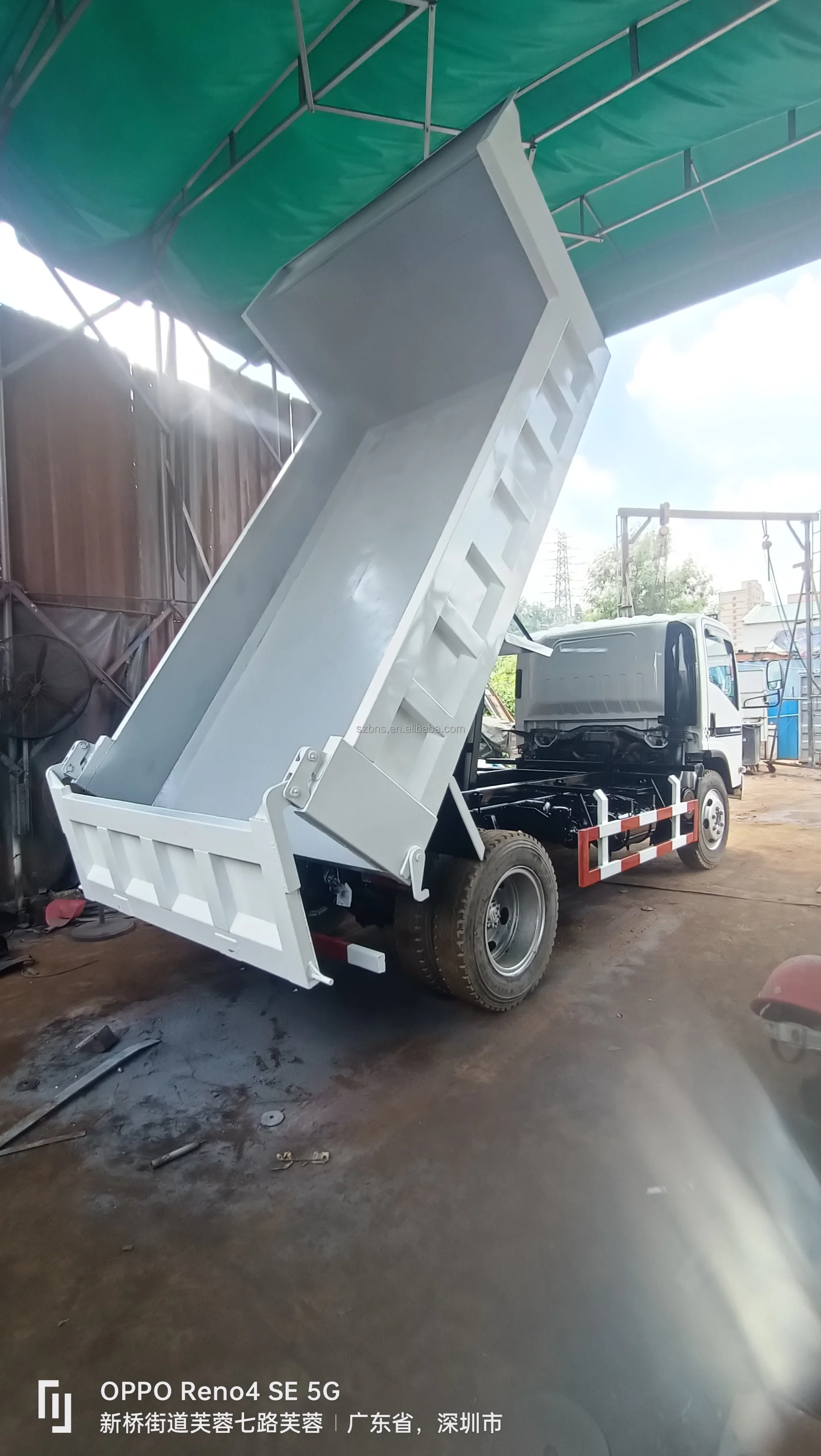

Good Condition Second Hand Tipper Truck ISUZUs 700P ELF 4WD Dump Truck Cargo Tipper Truck Price

Share on (1601004894149):


Price:$14,200.00 - $15,000.00

Quantity:


Product Overview

Description


Good Condition Second Hand Tipper Truck ISUZUs 700P ELF 4WD Dump Truck Cargo Tipper Truck Price






Product Description





1.Durable Construction: This dump truck is built with a sturdy chassis and a reinforced body, capable of withstanding heavy loads and rough terrains. It is designed to endure the demands of construction sites, ensuring long-lasting durability and reliability.





2.Large Payload Capacity: The Isuzu 700P dump truck has a spacious dump bed with a large payload capacity, allowing for efficient transportation of bulk materials such as sand, gravel, and construction debris. It can handle substantial loads, reducing the number of trips required and improving overall productivity.





3.Easy Operation: Isuzu has prioritized user-friendly features in the 700P dump truck. It includes ergonomic controls, comfortable seating, and clear visibility from the driver's cabin, enabling operators to maneuver the vehicle with ease and confidence.





4.Advanced Safety Features: Safety is a top priority in the Isuzu 700P dump truck. It is equipped with various safety features such as ABS (Anti-lock Braking System), airbags, and a robust braking system, ensuring enhanced stability, control, and protection for both the driver and the cargo.





5.Fuel Efficiency: Isuzu is known for its fuel-efficient engines, and the 700P dump truck is no exception. It incorporates advanced technologies to optimize fuel consumption, reducing operational costs and environmental impact.





6.Maintenance and Serviceability: Isuzu vehicles are renowned for their ease of maintenance and serviceability. The 700P dump truck is designed with accessible components and a well-organized engine compartment, allowing for convenient maintenance and reducing downtime

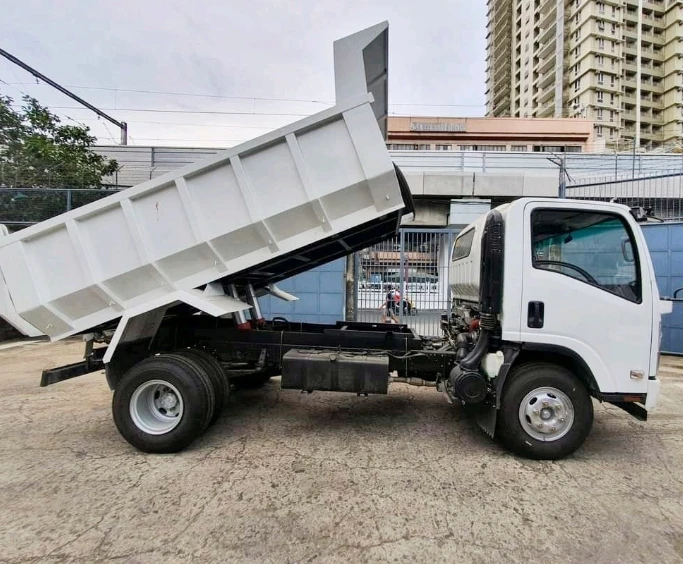

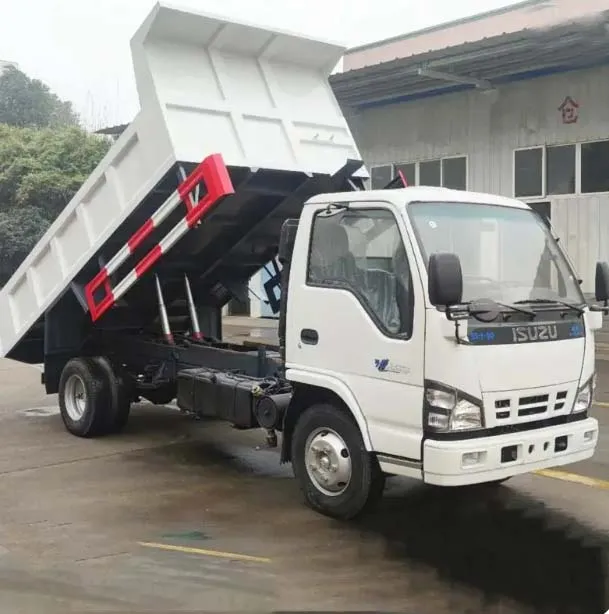

55.jpgisuzu dump truck-2.jpg





Technical Parameters








ISUZU truck with 4HK1 engine information


Basic information




























































Drive Type:



4X2



Wheelbase:



3815mm



Cargo box length:



5.1m



Engine model:



ISUZU 4HK1-TC51



Gearbox model:



ISUZU MLD-6Q



Rear axle ratio:



4.1



Body length:



7.02m



Body width:



2.26m



Body height:



2.46m



Wheel track:



front:1680mm;


rear:1650mm



Vehicle weight:



3.92 t



Rating Loading Capacity:



5.88t



Gross mass:



9.995 t



Maximum speed:



110KM/h



Place of origin:



Chongqing



Tonnage level:



Medium-sized truck



Angle of approach/departure:



16/14°



Front/rear suspension:



1.11/2.095m



Engine information










































Engine model:



ISUZU 4HK1-TC51



Engine brand:



ISUZU



Engine colloquial name:



4HK1



Cylinder:



4



Fuel type:



Diesel



Cylinder arrangement:



In-line



Displacement:



5.193L



Emission Standard:



Euro III



Maximum output:



141kw



Maximum horsepower:



190HP



 Torque:



510N·m











Cab parameters












Passenger:



3



Seat row:



Single



Gearbox parameters
























Gearbox model:



ISUZU MLD-6Q



Brand:



ISUZU



Shifting method:



Manual



Forward gear:



6



Reverse gears:



1











Tyre parameters















Tyre size:



235/75R17.5 14PR



Tyre number:



6



Suspension


















Allowable load on front axle:



3350KG



Allowable load on rear axle:



6645KG



Rear axle ratio:



4.1



Spring leaf number:



8/10+6
