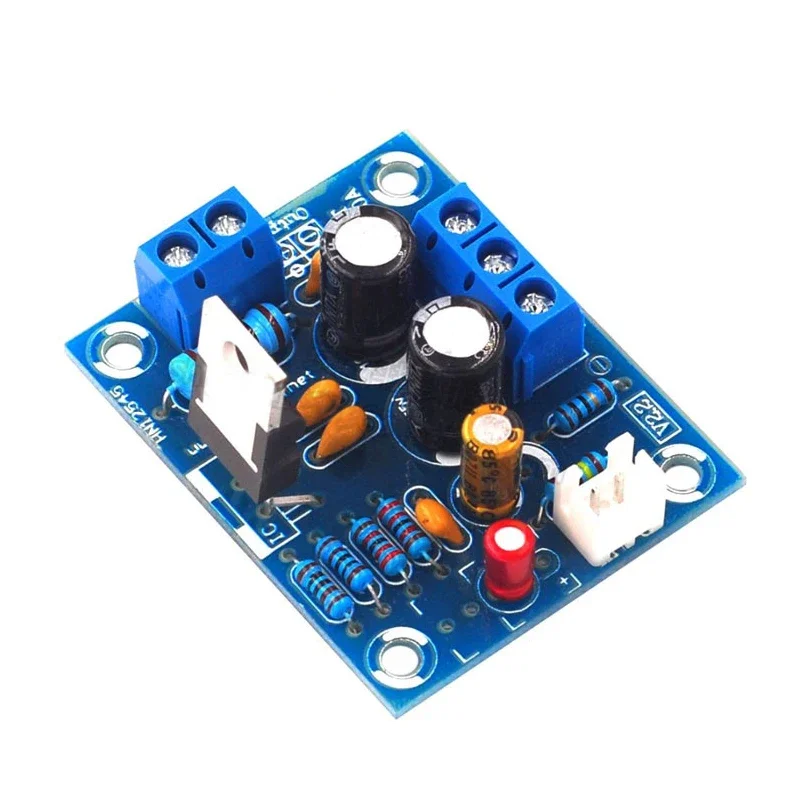

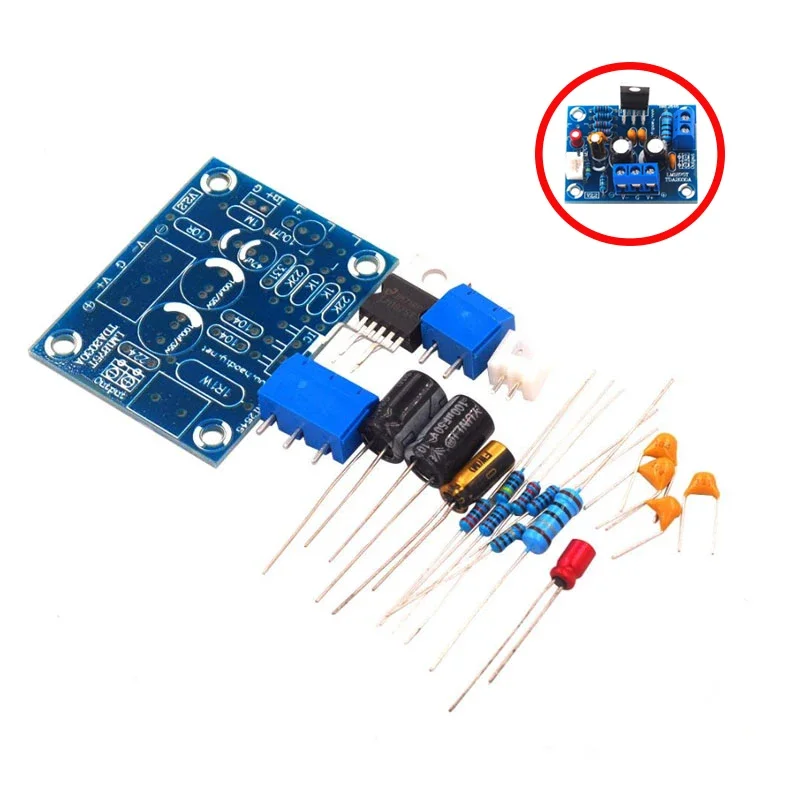

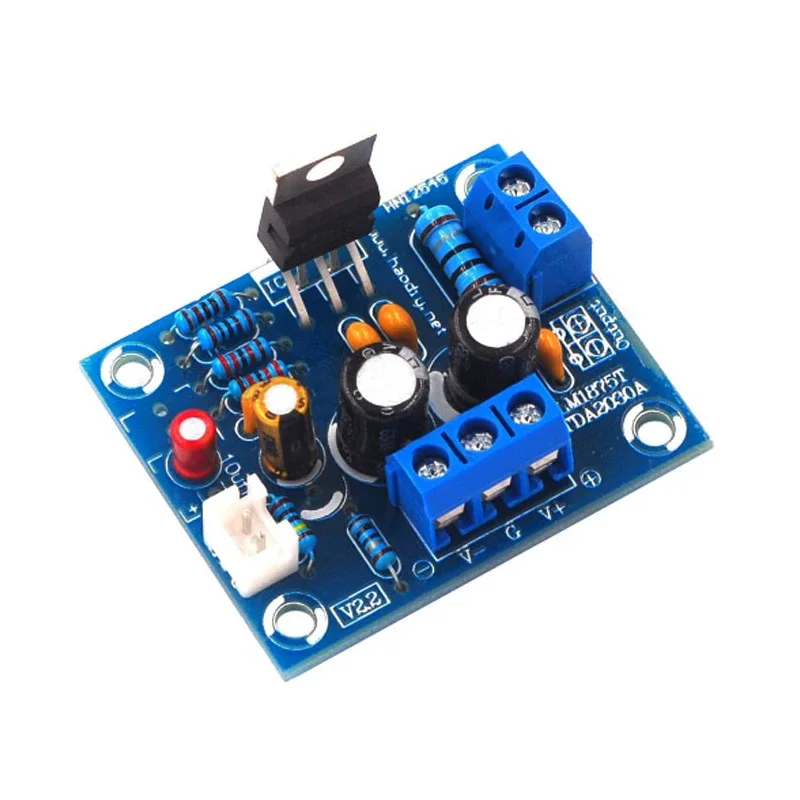

LM1875T Mono Boom Level Power 30W Amplifier Board Speaker Power Amplifier PCB Production DIY Kit LM1875
- Category: >>>
- Supplier: Shenzhen Hengtaiyi Technology Co. Ltd.
Share on (1601004940270):
Product Overview
Description

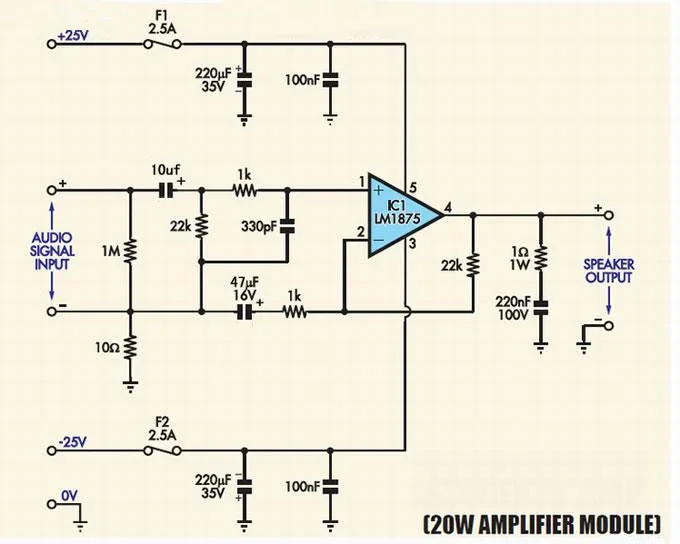

This product circuit and PCB layout originated from Europe and America, LM1875T classic design for Europe and America!Reasonable wiring!Outstanding performance!Since its release in 2007, it has been highly sought after by DIY enthusiasts.Retain all the original wiring, maximize the original performance under the premise of compression of the entire board size!Make it more DIY!At the same time also on the original components to enhance oh!
Performance parameters:
Output power: typical 20W (Max. 30W)
The speaker impedance: 4 Ω - 8 Ω
Total harmonic distortion: < 0.04%
Signal to noise ratio: 105dB
Frequency response: 14hz-100khz (maximum range calculated by RC high-low power circuit: 3.29 hz-482.29 kHz)
Power supply voltage: recommended ±25V (highest voltage shall not exceed ±30V, full bridge rectification of 18V is 25V)

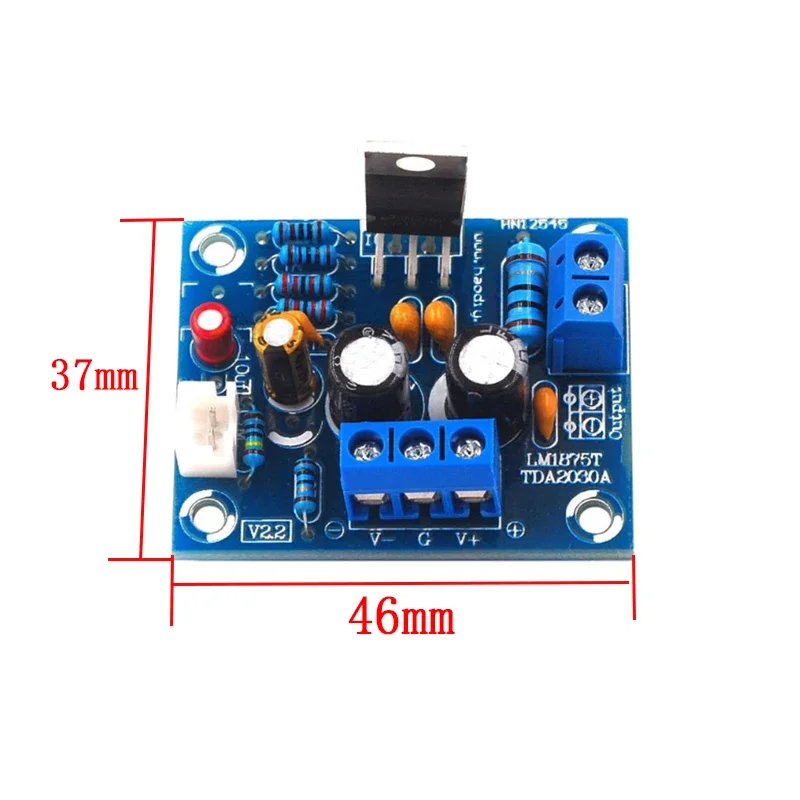

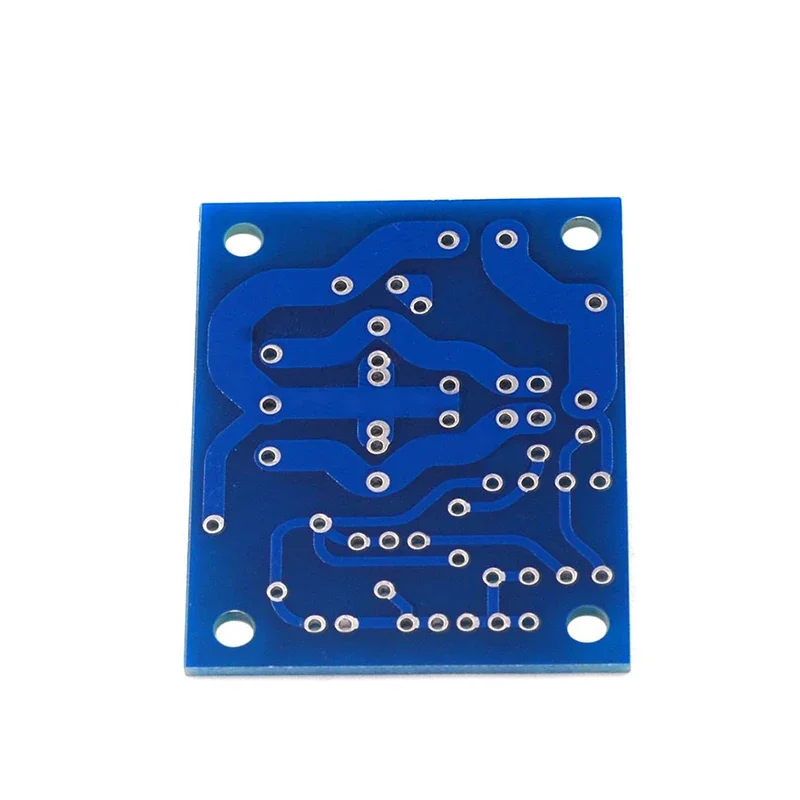

PCB size of engineering drawing is 46.5*37.5mm
Q1:What service do you have?
We provide turnkey solution including RD, PCB fabrication, SMT, testing and other value-added service.
Q2:What are the main products of your PCB/PCBA services?
Our PCB / PCBA services are mainly for the industries including Medical, Automotive, Energy, Metering / Measurements,
Consumer Electronics.
Q3:What is standard delivery term?
Delivery terms of EXW, FCA, FOB, DDU etc. are all available based on each quote.
Q4:Do you have any minimum order quantity (MOQ) requirement?
No, we do not have MOQ requirement, we can support your projects starting from prototypes to mass productions.
