no mental glass yarn 4 6 8 12 24 cores uni tube GYXTC8Y Fig 8 self supporting fiber optic cable price
- Category: >>>
- Supplier: Guangzhou Jiqian Fiber Optic Cable Co. Ltd.
Share on (1601004942459):
Product Overview
Description
Product Description

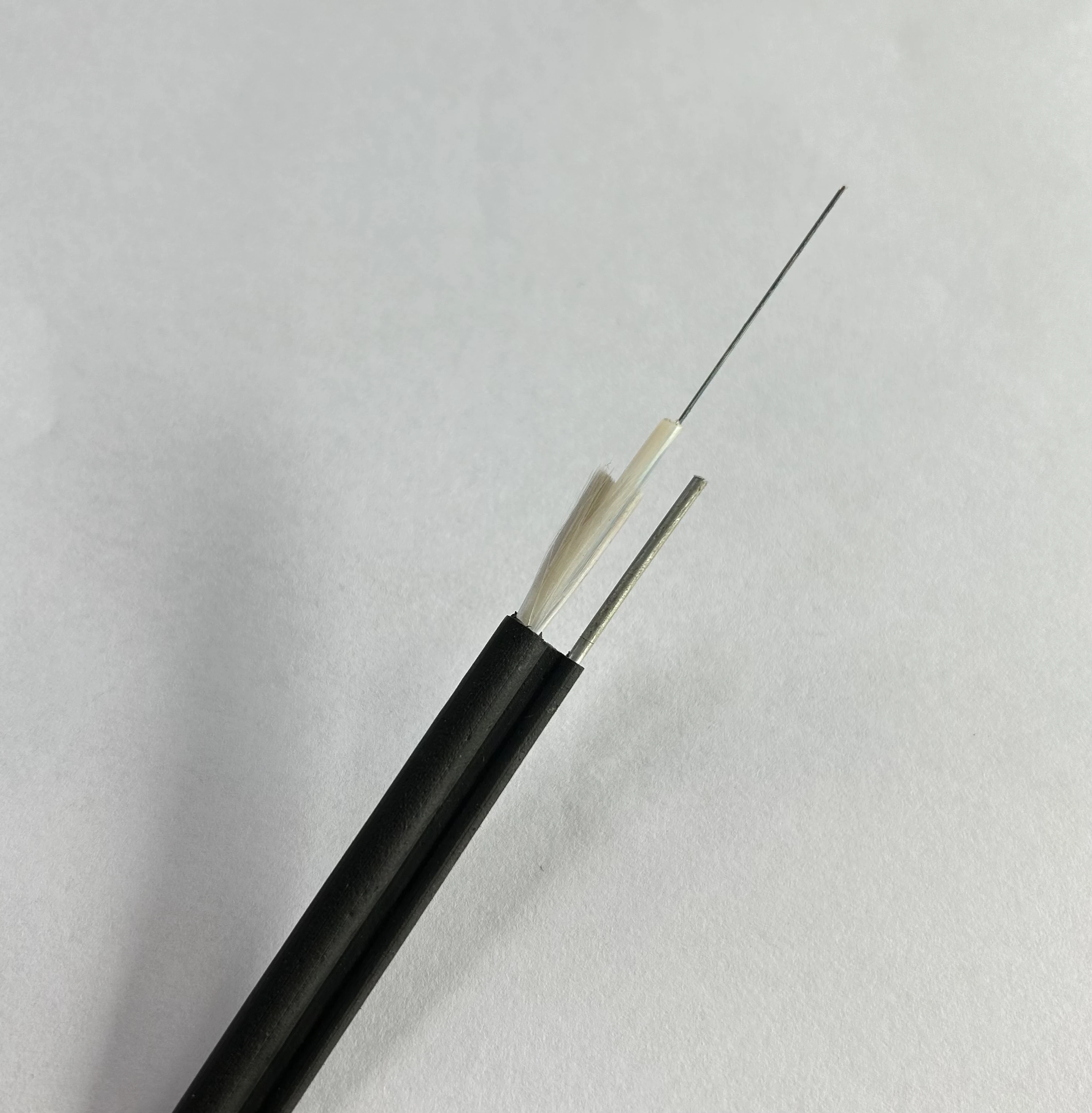

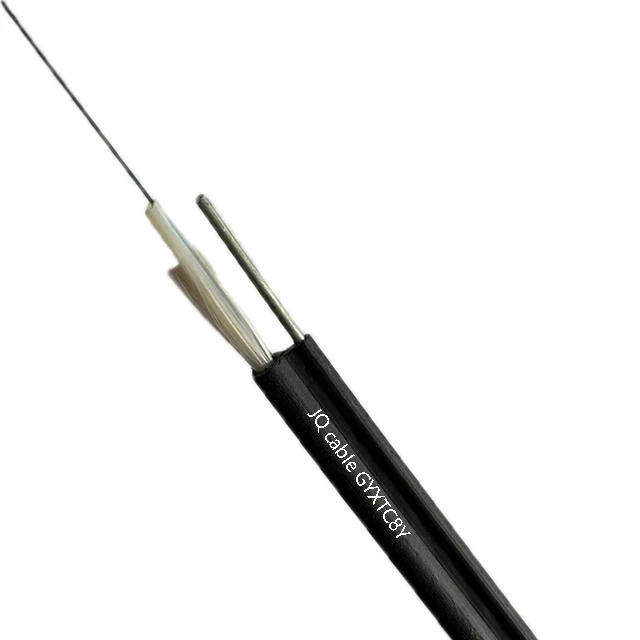

GYXTC8Y Fig 8 fiber cable
* GYXTC8Y is an ideal self-supporting outdoor cable,used for aerial installation. The cable core is composed of loose tubes each with up to 2-24 fibers.

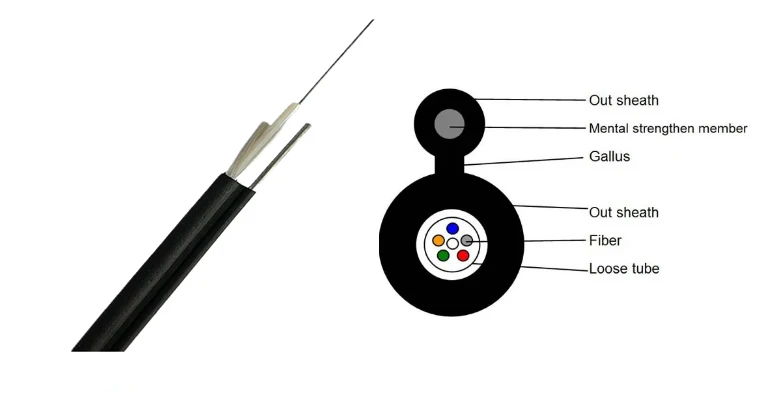

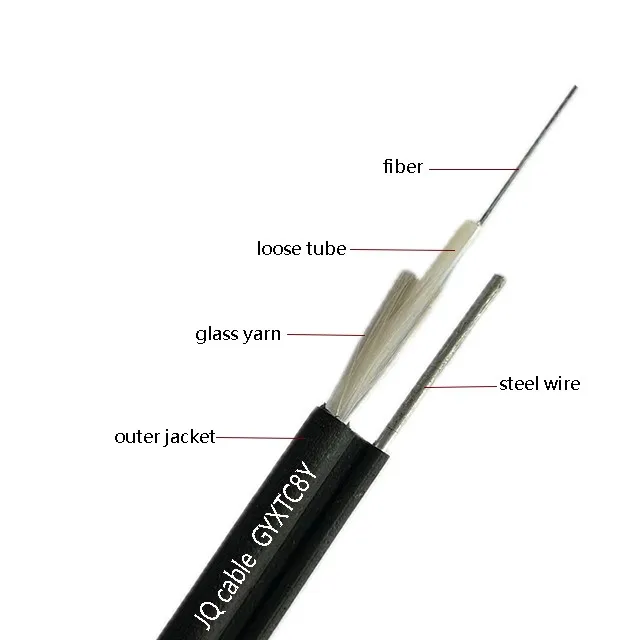

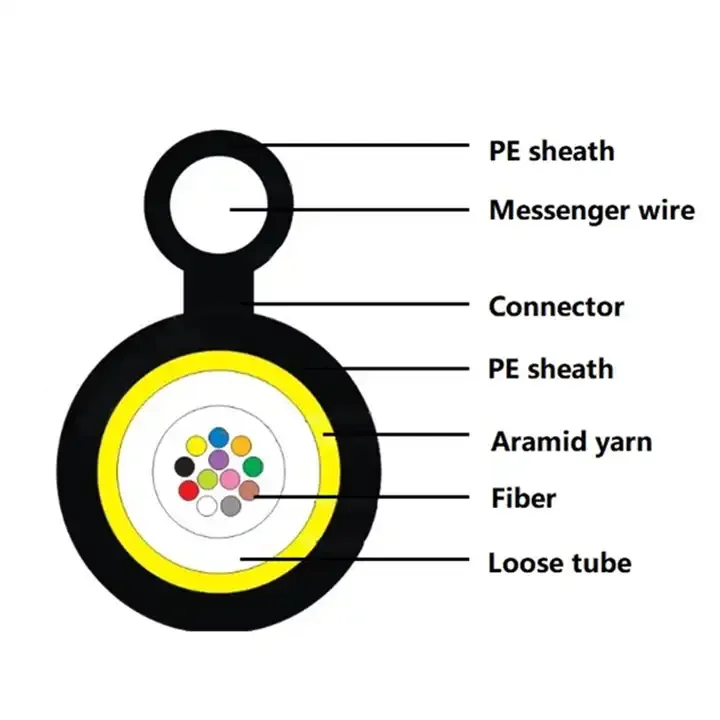

* The mental strength member is made up of stranded wires as the supporting part are completed with polyethylene(PE) sheath to be figure 8 structure. High strength loose tube that is hydrolysis resistant. GYXTC8Y The optical fiber unit is positioned the center.Two prallel Fiber Reinforced (FRP)are placed at the two sides.Then the cable is completed with a black or color LSZH sheath.APL moisture barrier,finally extrusion PE sheathed cable.
* The mental strength member is made up of stranded wires as the supporting part are completed with polyethylene(PE) sheath to be figure 8 structure. High strength loose tube that is hydrolysis resistant. GYXTC8Y The optical fiber unit is positioned the center.Two prallel Fiber Reinforced (FRP)are placed at the two sides.Then the cable is completed with a black or color LSZH sheath.APL moisture barrier,finally extrusion PE sheathed cable.
Characteristics
* Stainless steel or gaivanized steel self-supporting.
* Excellet mechanical and environmental performance.
* Excellet mechanical and environmental performance.
fiber count | fiber in tube | cable diameter (mm) |
2 | 2 | 4.0*6.0 |
4 | 4 | 4.0*6.0 |
6 | 6 | 4.0*6.0 |
8 | 8 | 4.0*6.0 |
12 | 12 | 4.0*6.0 |
24 | 24 | 4.0*7.0 |
Application
* Adopted to Outdoor distribution.
* Suitable for aerial pipeline laying method.
* Long distance and local area network communication.
* Suitable for aerial pipeline laying method.
* Long distance and local area network communication.
Specification
parameter of fiber G652D | ||||||
Item | Unit | Specification | ||||
Fiber Type | G.652D | |||||
Mode field diameter | 1310nm | μm | 9.2±0.4 | |||
1550nm | μm | 10.4±0.8 | ||||
Cladding diameter | μm | 125.01 | ||||
Cladding non-circularity | % | <1.0 | ||||
Core/cladding concentricity error | μm | <0.5 | ||||
Coating diameter | μm | 245±5 | ||||
Coating non-Circularity | % | <6.0 | ||||
Coating/cladding concentricity error | μm | <12.0 | ||||
Cable cut-off wavelength | nm | <1260 | ||||
Attenuation Coefficient | 1310nm | dB/km | <0.36 | |||
1550nm | dB/km | <0.22 | ||||
Proof stress level | kpsi | ≥100 | ||||
Cable performance
items | Specifications | ||
Fiber Count | 8 | ||
Colored Coating Fiber | Diameter | 250µm±15µm | |
Color | Blue、Orange、Blue、Brown、Grey 、White、red、black | ||
Loose Tube | Diameter | 2.0mm±0.1mm | |
Material | PBT | ||
Color | Natural or blue Color | ||
Strength Member | Glass Yarn or aramid yarn | ||
Outer Jacket | Diameter | 4.0mm*6.0mm±0.1mm | |
Material | LSZH or PE/HDPE | ||
Color | Black | ||
Mechanical and Environmental Characteristics | ||||||||
Items | Unite | Specifications | ||||||
Tension（Long Term） | N | 1000 | ||||||
Tension（Short Term） | N | 1500 | ||||||
Crush（Long Term） | N/10cm | 500 | ||||||
Crush（Short Term） | N/10cm | 1000 | ||||||
Min. Bend Radius（Dynamic） | mm | 20D | ||||||
Min. Bend Radius（Static） | mm | 10D | ||||||
Installation Temperature | ℃ | -10～+60 | ||||||
Operating Temperature | ℃ | -40～+60 | ||||||
Storage Temperature | ℃ | -40～+60 | ||||||
Packing & Delivery
Packaging Details

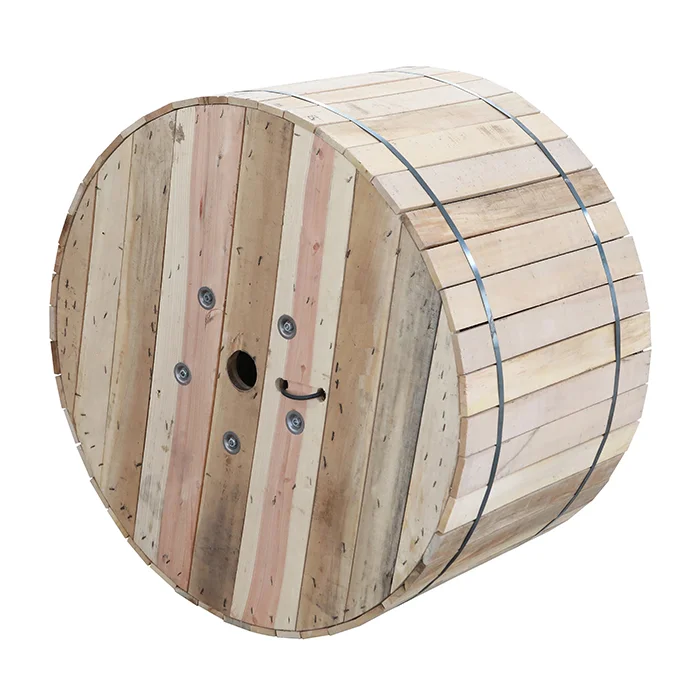

1.Wooden drum, 1Km/ drum, 2Km/ drum, 3Km/ drum, we recommend to be 5km/km, customer's requirements are also welcome;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.
1.Wooden drum, 1Km/ drum, 2Km/ drum, 3Km/ drum, we recommend to be 5km/km, customer's requirements are also welcome;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.
Delivery
1.For large orders: by sea (LCL or FCL)
2.For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
1.For large orders: by sea (LCL or FCL)
2.For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
Company Profile
Guangzhou Jiqian fiber optical cable co., LTD is located in Guangzhou city, Guangdong province Xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable, the company adhering to the "integrity,fast, flexible, efficient and innovative" spirit of enterprise, strive for perfection, for the customer appreciation and paved the road to success.
certifications
we have gained the certifications for ISO 9001-2015/ROHS/CE/FC....
FAQ
1. Are you factory direct?
we are a professional Cable manufacturer, specialized in Fiber Optic Cable, such as ADSS, , MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables such as GYXTC8Y/ADSS ,GYTA, GYTS, ASU, GYXTW / indoor fiber optic cables /FTTH Drop cables
3. Product quality guarantee period?
25 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
3. Product quality guarantee period?
25 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
