Product Overview
Description
Brightwin factory high quality sale chicken broth 8g 10g bouillon cube machine maquina para fabricar caldos boxing machine
Cubes processing and packaging line layout
1. Powder Feeding Machine: feeding powder to cubes pressing machine.
2. Cubes Pressing Machine: pressing the powder to be cubes as requested shape and size.
3. Cubes Wrapping Machine: wrapping cubes with film, folding and sealing.
4. Cubes Box Packing Machine: packing cubes into boxes.
5. Cubes Tray Packing Machine: packing boxes into carton trays.
6. Transparent Film Wrapping Sealing Machine: wrapping carton trays with film, folding and sealing.
7. Carton Packing and Sealing Machine: packing wrapped carton trays into cartons and sealing.

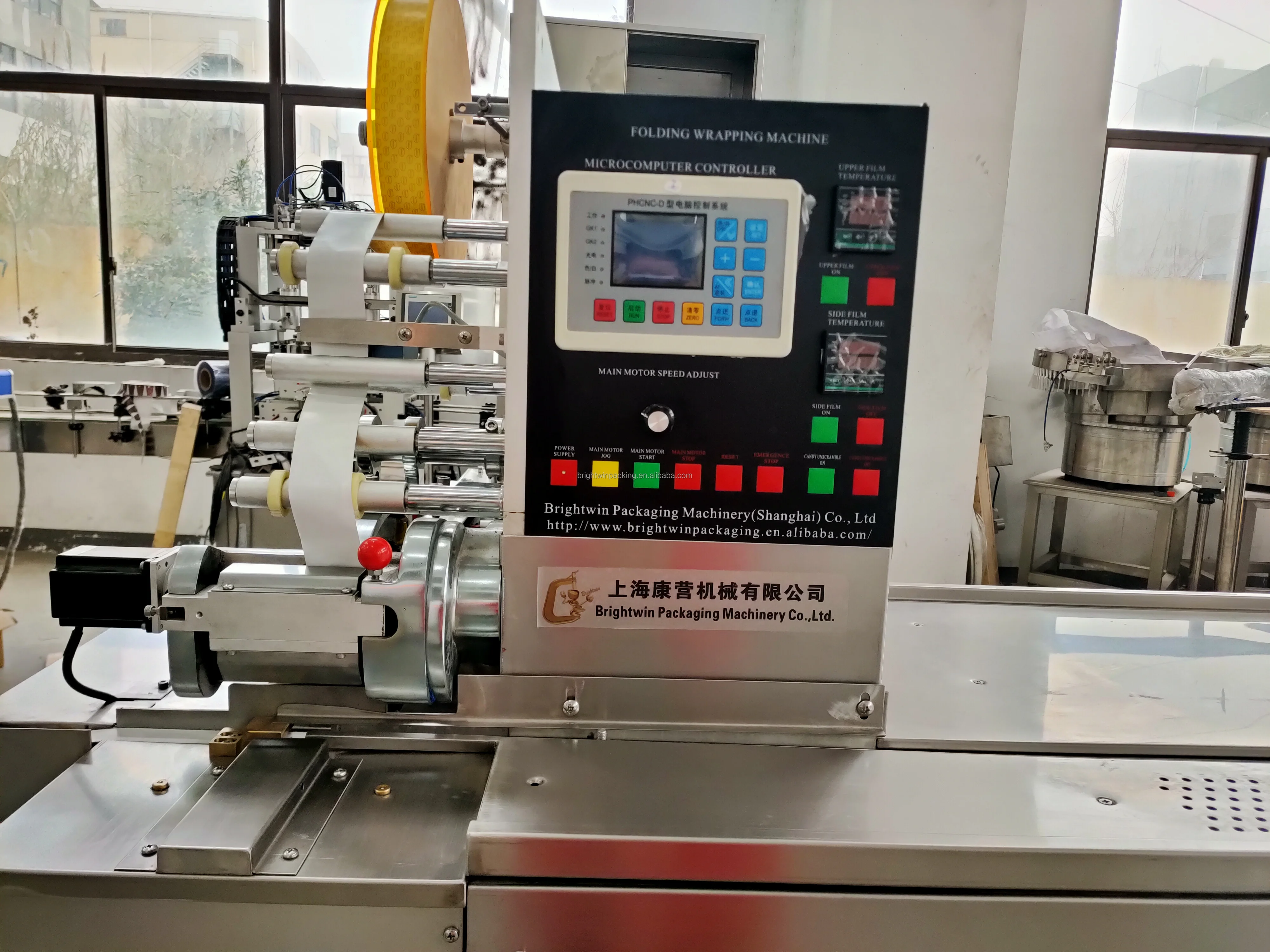

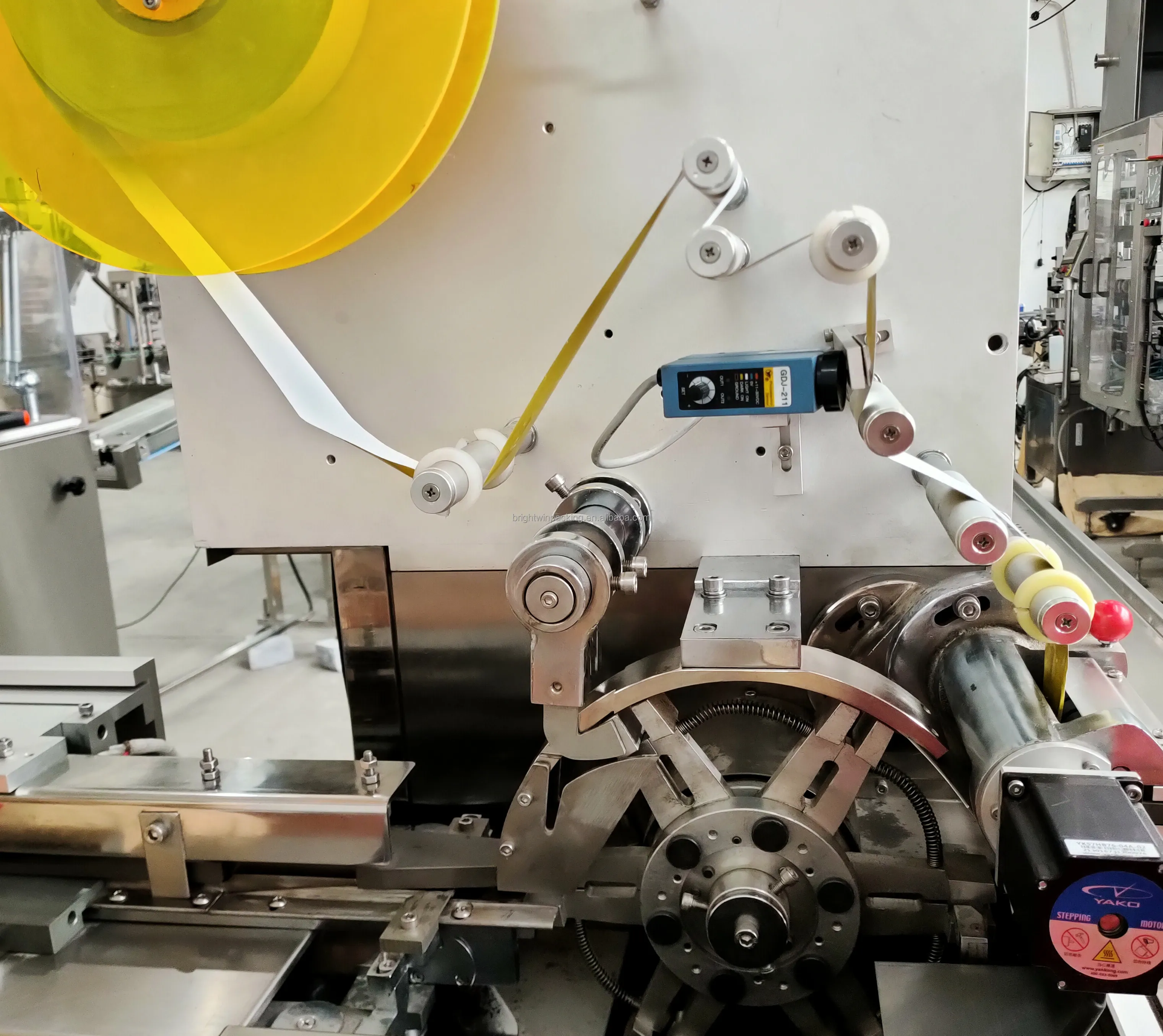

3. Cubes Wrapping Machine: wrapping cubes with film, folding and sealing.
4. Cubes Box Packing Machine: packing cubes into boxes.
5. Cubes Tray Packing Machine: packing boxes into carton trays.
6. Transparent Film Wrapping Sealing Machine: wrapping carton trays with film, folding and sealing.
7. Carton Packing and Sealing Machine: packing wrapped carton trays into cartons and sealing.
Product Evolution Flowchart
Products Over view

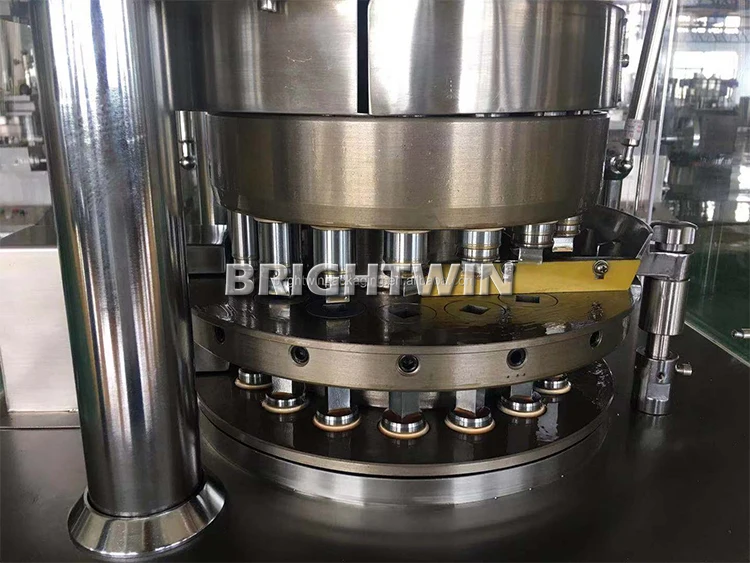

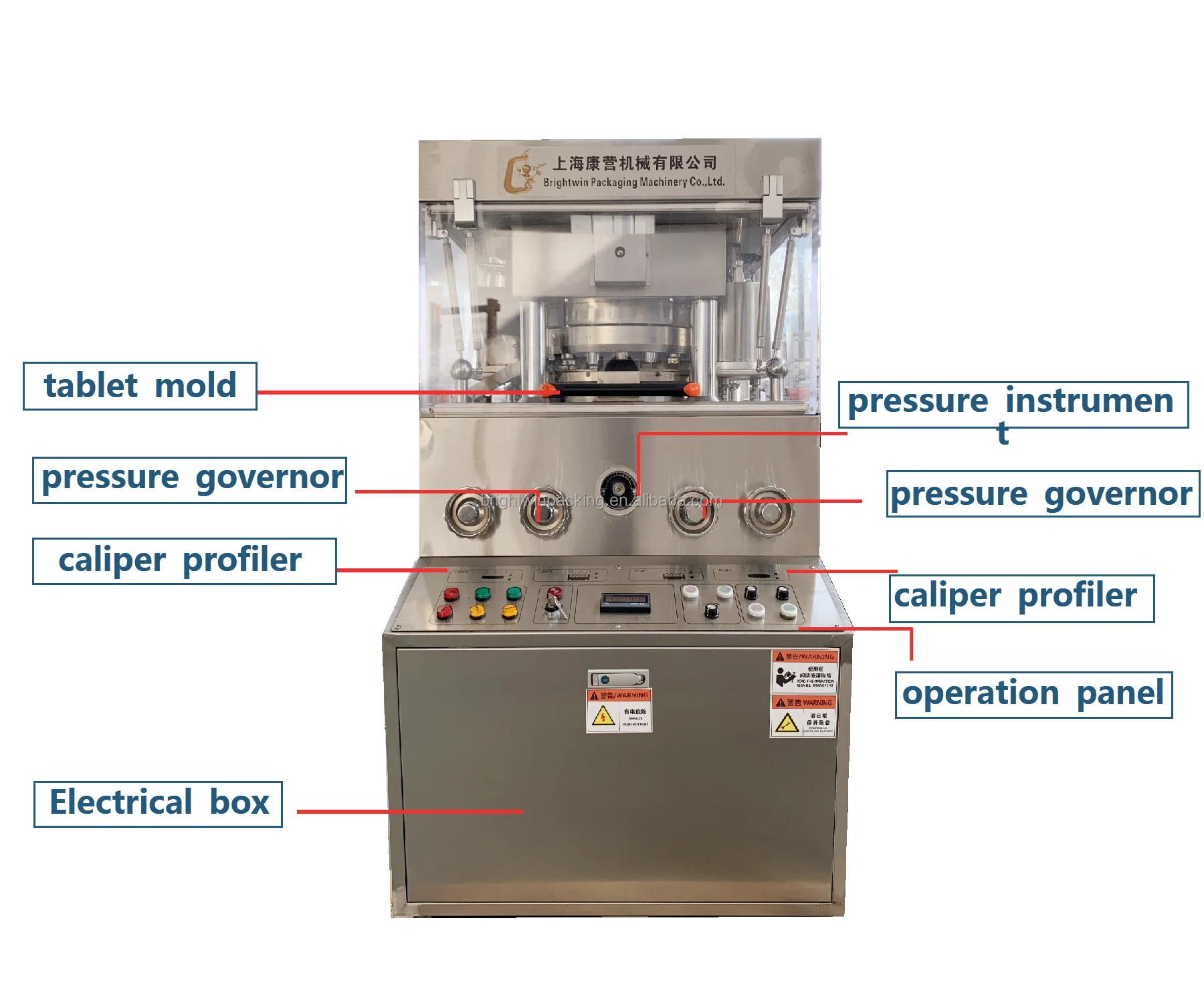

1. Cubes pressing machine
This machine is designed for pressing all kinds of powder materials into a cube, like bouillon cube, effervescent,fish feed,
carbon, lump sugar etc. It is suitable for batch production of the basic equipment. The machine can be another match suction
powder box, through the suckers to absorb dust, avoid bonding jams, and recycle raw materials to use.
carbon, lump sugar etc. It is suitable for batch production of the basic equipment. The machine can be another match suction
powder box, through the suckers to absorb dust, avoid bonding jams, and recycle raw materials to use.

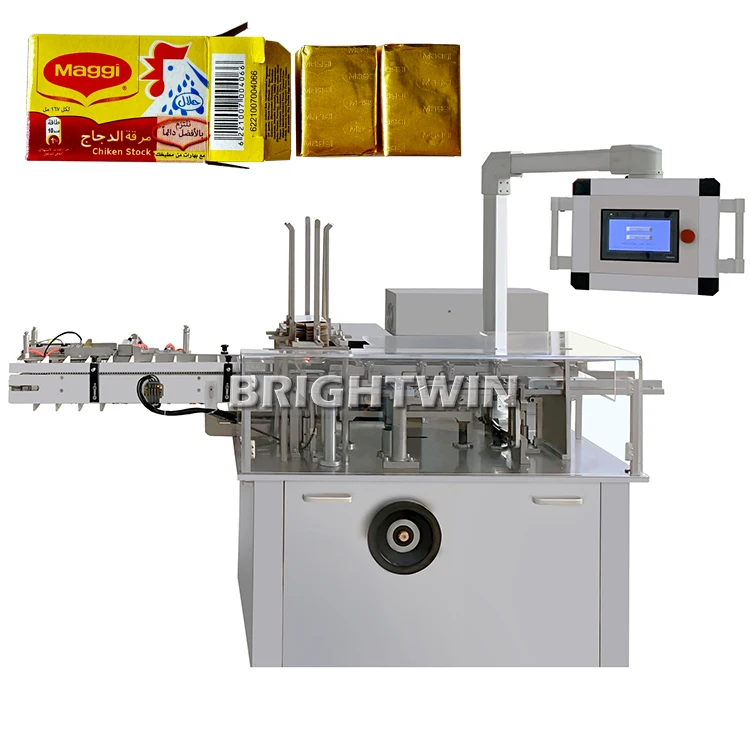

3. Box packing machine
This boxing machine is applicable for packing various solid regular objects into boxes, like cubes, bags, bottles, and cookies
etc.It can finish automatically opening box, pushing product and instruction paper into box, printing batch number, and sealing etc.
etc.It can finish automatically opening box, pushing product and instruction paper into box, printing batch number, and sealing etc.
4. Automatic tray packing machine
This automatic tray packing machine is used to pack cubes into trays; it can be 2 layers, 3 layers and 4 layers etc. It adopts
vacuum sucker to feed trays.This is one of the Original designed machine from Brightwin.
vacuum sucker to feed trays.This is one of the Original designed machine from Brightwin.
5. Transparent film 3d packaging machine
This machine is widely used in film automatic packaging for various single or piece collection items such as bulk poker, cakes,
soap, tissue, cigarette, sugars, wafer biscuits, cube trays etc.The machine adopts a new type of double safety mechanism, so it
does not need to stop or damage other parts when the machine is not running synchronously.
soap, tissue, cigarette, sugars, wafer biscuits, cube trays etc.The machine adopts a new type of double safety mechanism, so it
does not need to stop or damage other parts when the machine is not running synchronously.
6. Conveyor
This conveyor is developed in dependently by our company, used for delivery the cubes, it's not common conveyor, and our company
is the ONLY ONE who can make such conveyor in China. Many companies try to copy ours, but never succeed.
is the ONLY ONE who can make such conveyor in China. Many companies try to copy ours, but never succeed.
Technical Parameters
Line type | 1-1 | 1-2 | 1-3 | 1-4 | |||
Capacity | 180cubes/min | 360cubes/min | 540cubes/min | 720cubes/min | |||
QTY of wrapping machine | 1 | 2 | 3 | 4 | |||
Air consumption | 0.8L/min | ||||||
Suitatble cube size | 8g, 10g, 12g, etc rectangle cubes | ||||||
Suitatble product | Chicken cubes, beef cubes, shrimp cubes, bouillon cubes, seasoning cubes, green bee cake, etc. | ||||||
Film material | wax paper, Aluminum thin, art paper, wafer | ||||||
Main features:
1. It's designed and manufactured according to customers' different products, film and capacity etc.
2. According to the capacity to decide the quantity of each machine in the line(QTY of each machine can be arranged and combined
arbitrarily).
3. Can be different box packaging way by changing some parts.
4. All conveyors are controlled by PLC and Touch screen, easy to operate and adjust.
2. According to the capacity to decide the quantity of each machine in the line(QTY of each machine can be arranged and combined
arbitrarily).
3. Can be different box packaging way by changing some parts.
4. All conveyors are controlled by PLC and Touch screen, easy to operate and adjust.
Our videos
180pcs/min 12g chicken beef bouillon cube pressing film wrapping pillow bag packing machine line
2000pcs/min 4g beef bouillon cube pressing film wrapping counting and filling screw capping and labeling machine line
360pcs/min 10g chicken bouillon cube pressing film wrapping and boxing machine line
800pcs/min 5g chicken beef bouillon cube pressing film wrapping counting and packing machine line
540pcs/min 10g shrimp cube pressing wrapping tray packing and transparent film warpping and sealing machine line
Maggi bouillon cube count and filling film cutting sealing press capping machine line for Nestle
Our service
Pre-Sales Service
* Inquiry and consulting support.
* Machine testing support.
* View our Factory.
* Machine testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.* Online technical support.
* Engineers available to service machinery overseas.* Online technical support.
We Supply Your Factory Design Service
We can design the layout of lines according to your workshop's size
