WOOD PET PE PP PVC EVA Plastic Pulverizer High Quality Grinding Machine Milling Machine Customized

Product Overview

Description

HIGH SPEED PLASTIC PVC, PE, PET, EVA, WOOD POWDER CHINA PULVERIZER MACHINE



Brief introduction:

1.

   With water cycle and wind cooling, this plastic miller/pulverizer can be applied to process  thermoplastic material. like PE/PVC/PC/PA/ABS, etc





2.

   Drived by the he high-speed rotating air stream (partly eddy flow) which is produced by the high-speed rotating of the main shaft, the raw materials collide strongly with the board and the cutting blade, and was grinded into powder (without sieving).




3.

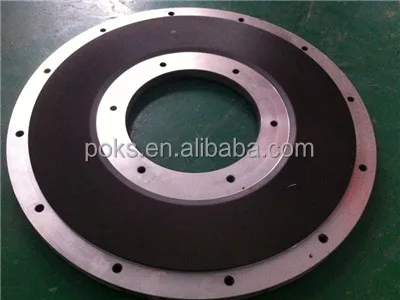

   Both the board and the blade are made of stainless steel, with excellent performance after heat treatment.




4.

   Slender body, Wonderful design, and Golden quality.



Main technical parameter:

Model	SMP-400	SMP-500	SMP-600	SMP-800
Grinding diameter	Ø410	Ø510	Ø610	Ø810
Rotation speed	2600rpm	2600rpm	2600rpm	2600rpm
Motor power	30kw	37kw	55kw	75kw
Output	50-80kg/h	100-200kg/h	200-300kg/h	300-500kg/h
Powder fineness	20-100mesh
Overall weight	1000kg	1200kg	1650kg	2800kg
Overall size	5.9*2.8*2.9m	5.9*2.8*2.9m	6.2*2.8*3.1m	6.5*3*3.3m

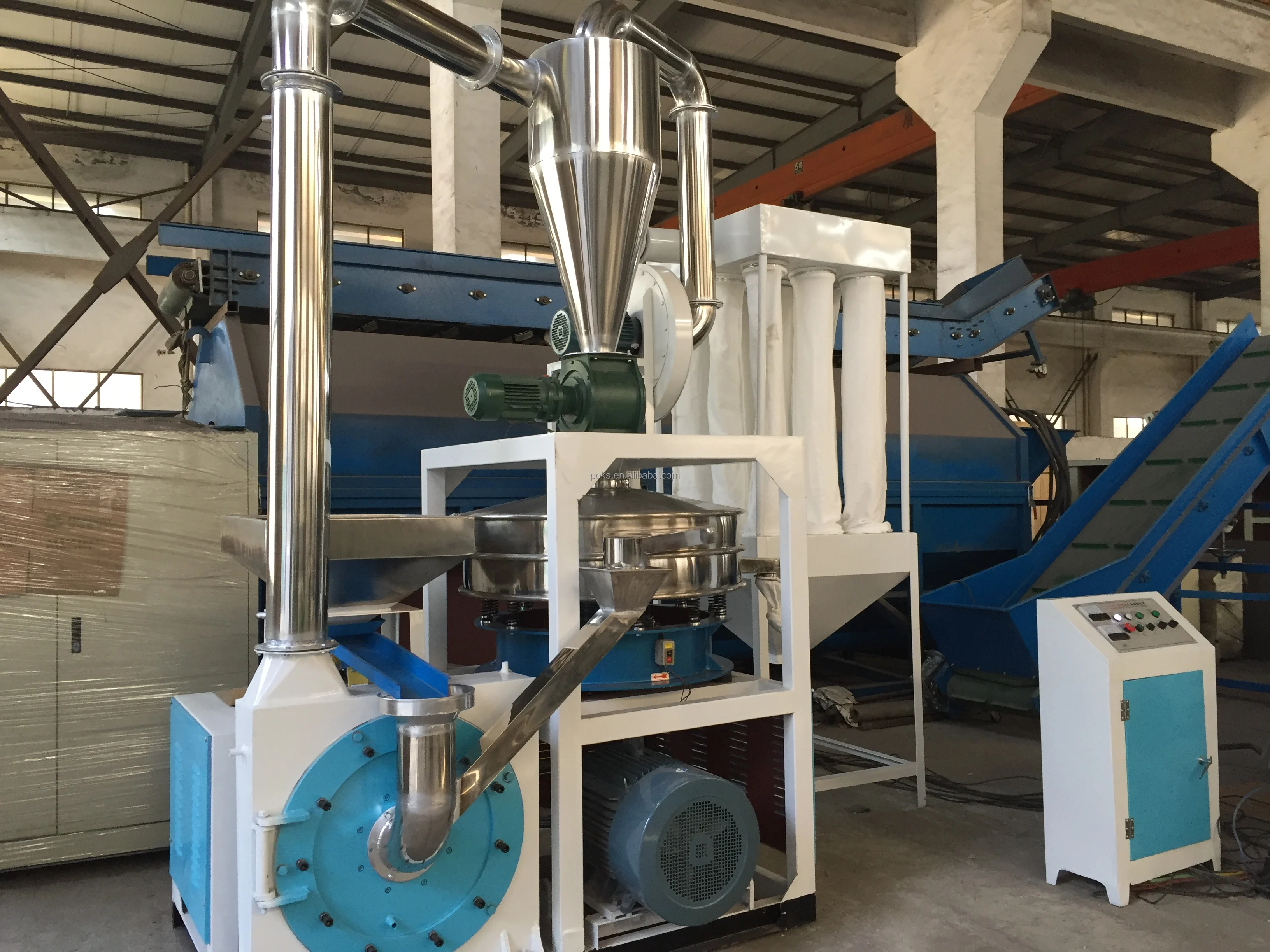

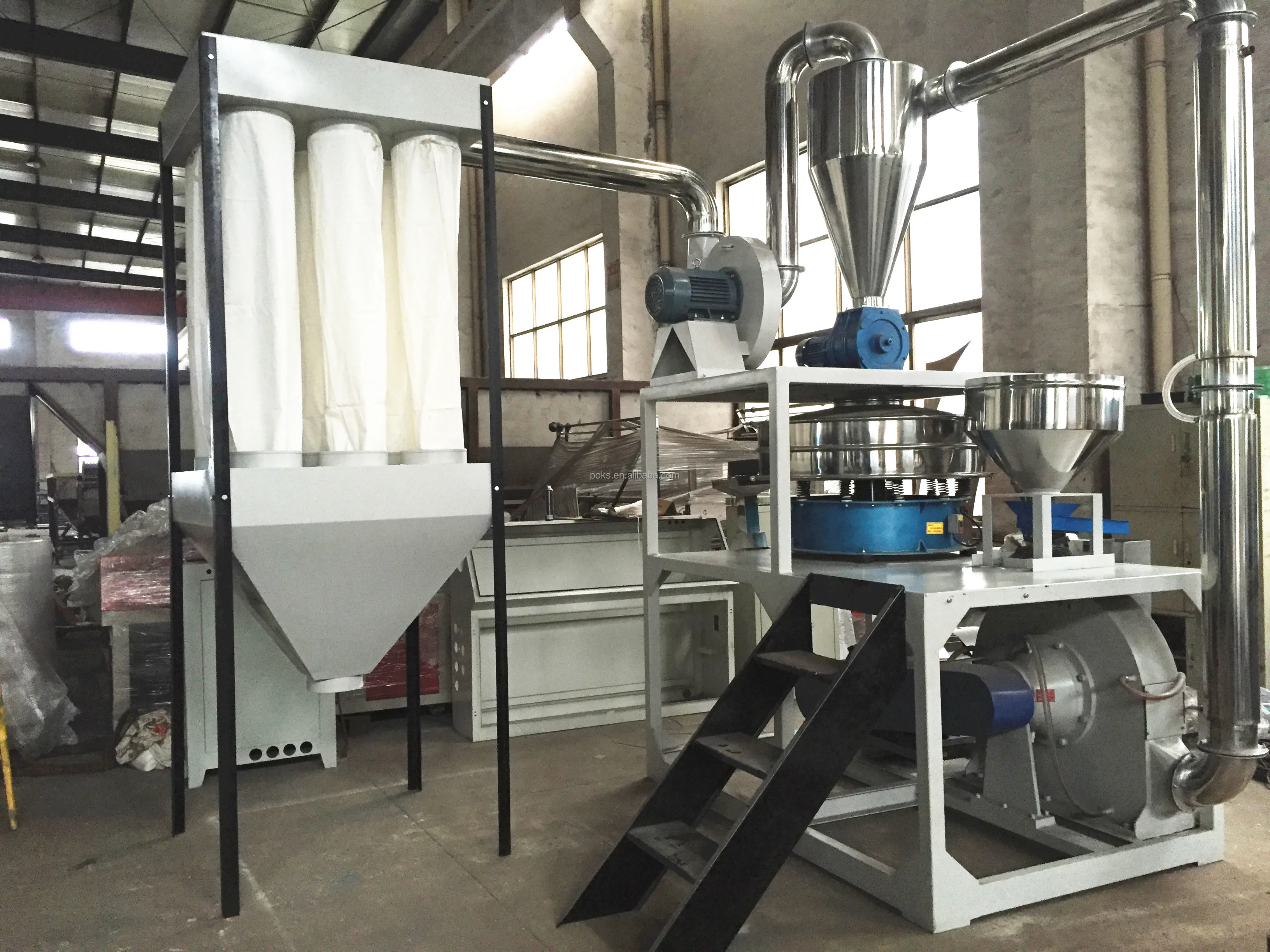

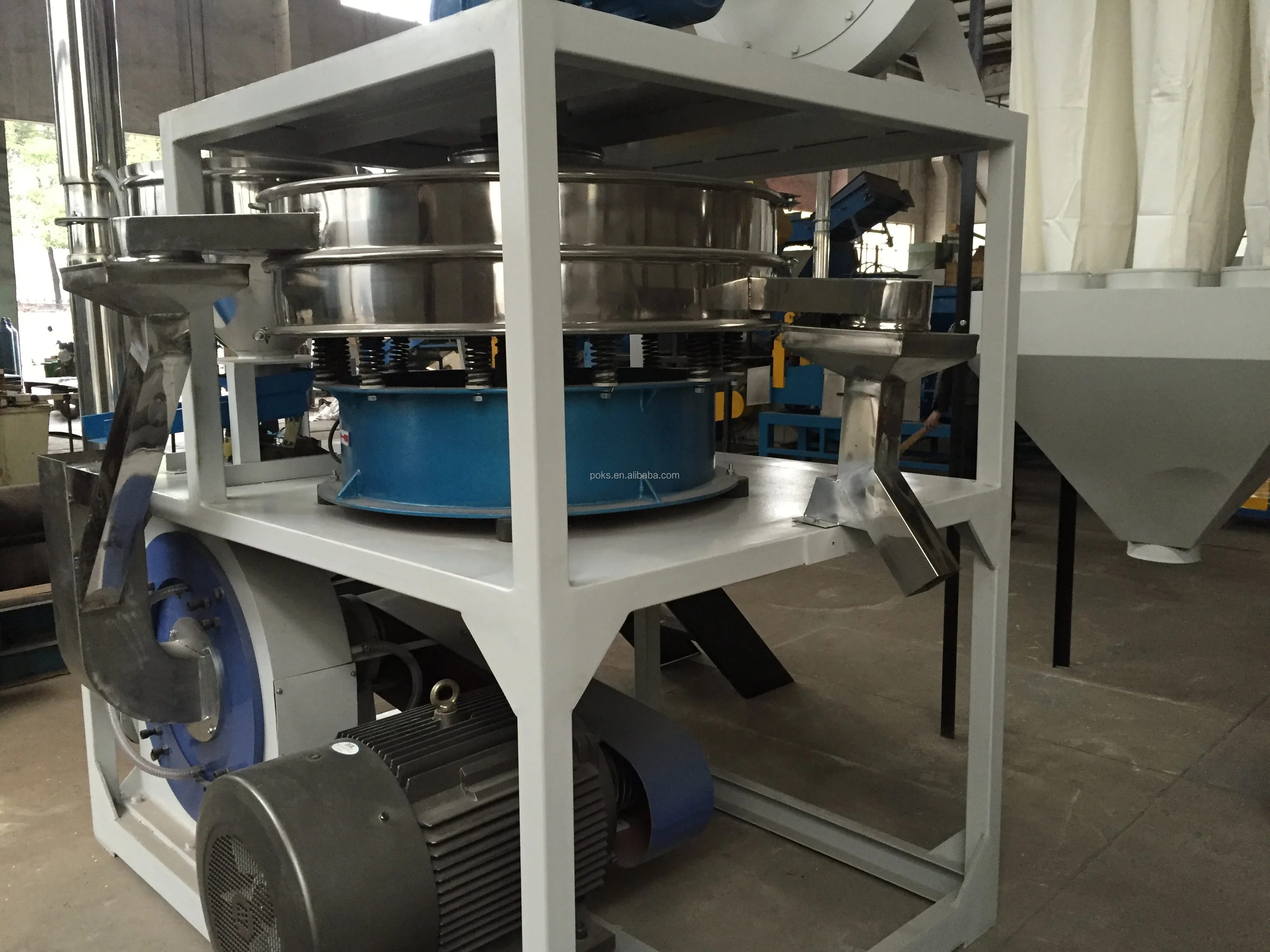

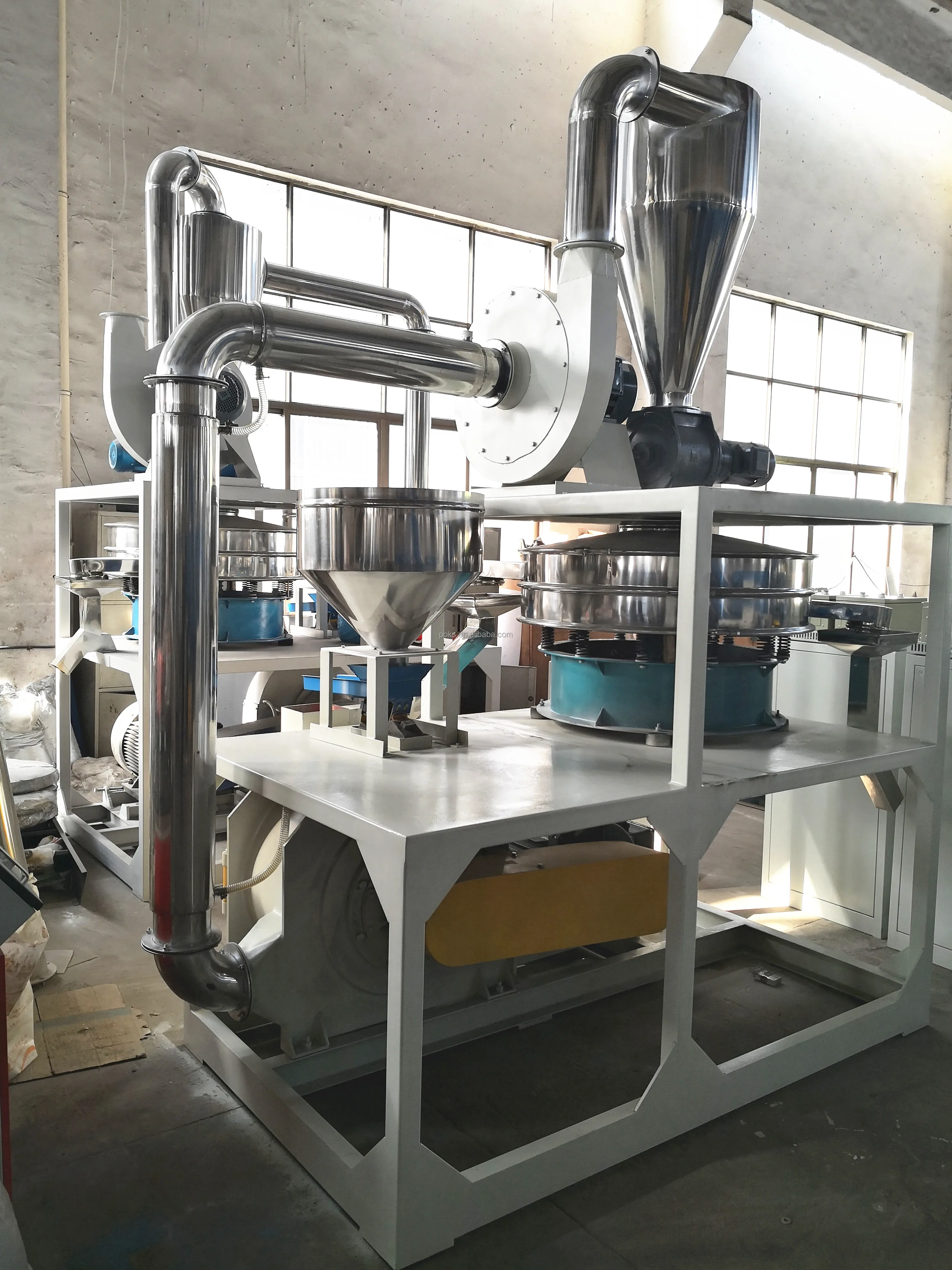

more pictures for china pulverizer machine

For more details of this high quality plastic pulverizer/plastic milling machine, pls no hesitation to contact with me.
