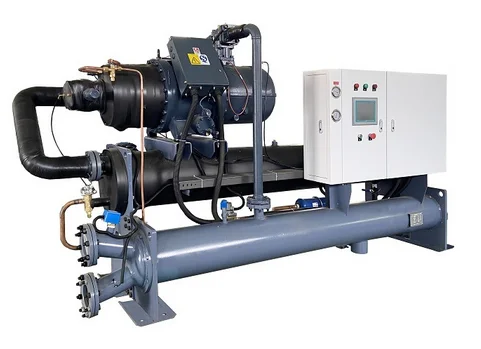

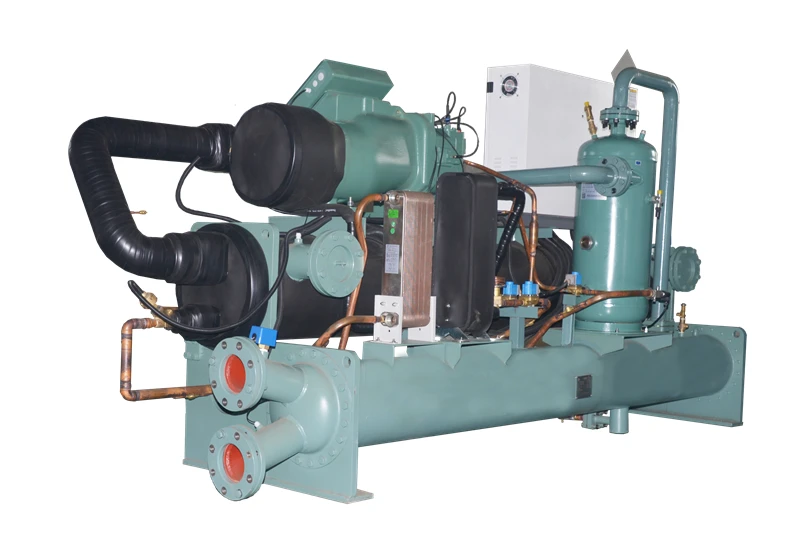

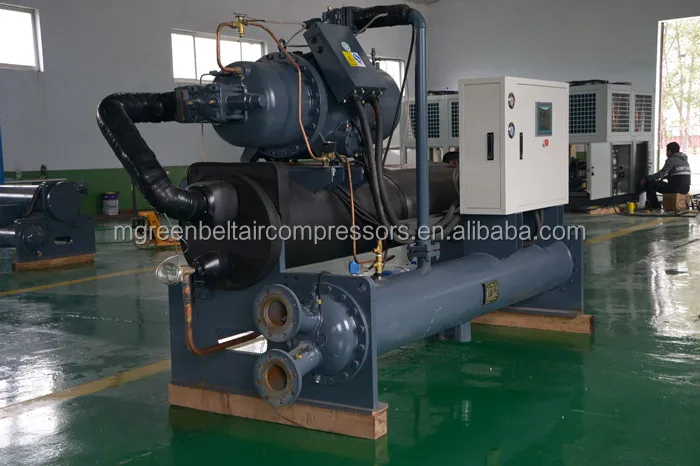

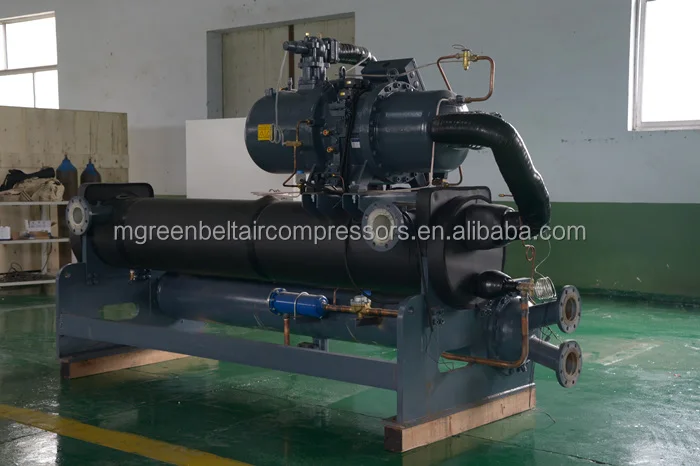

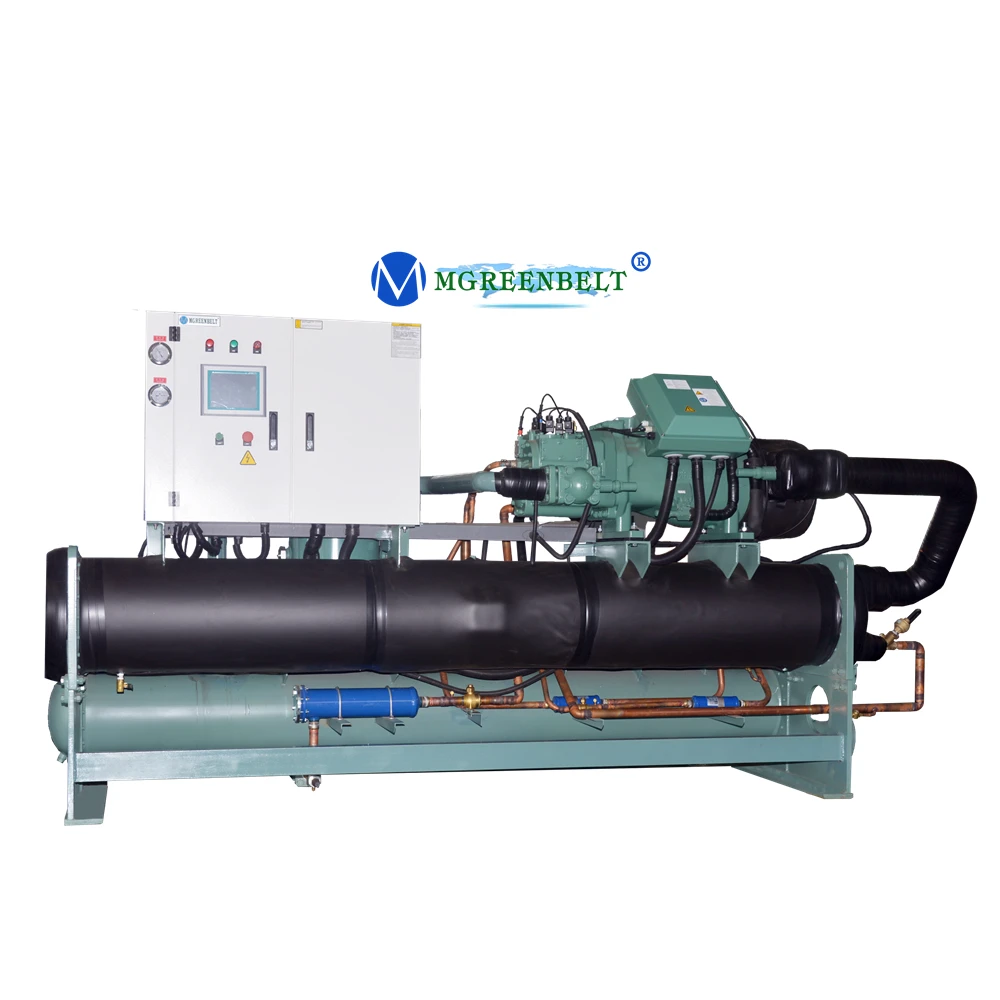

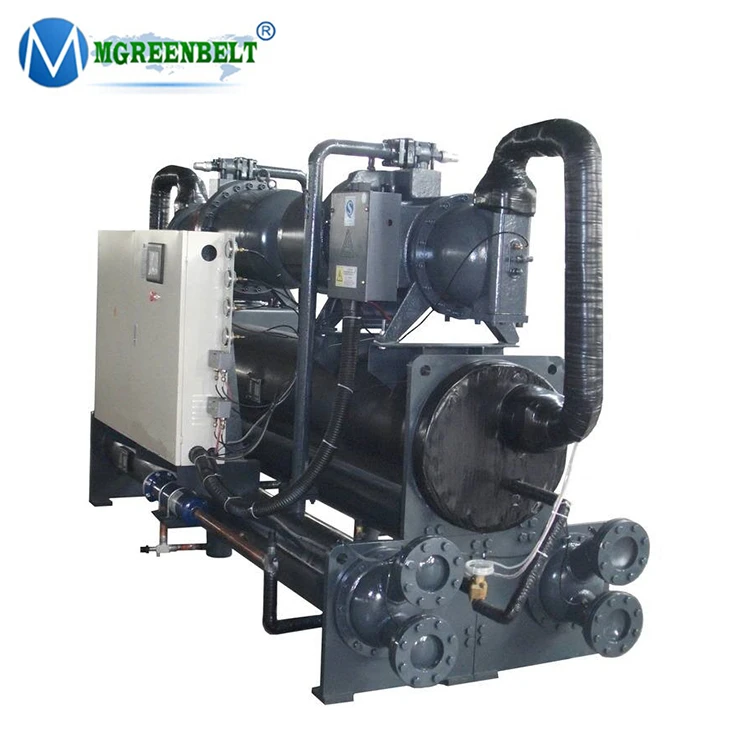

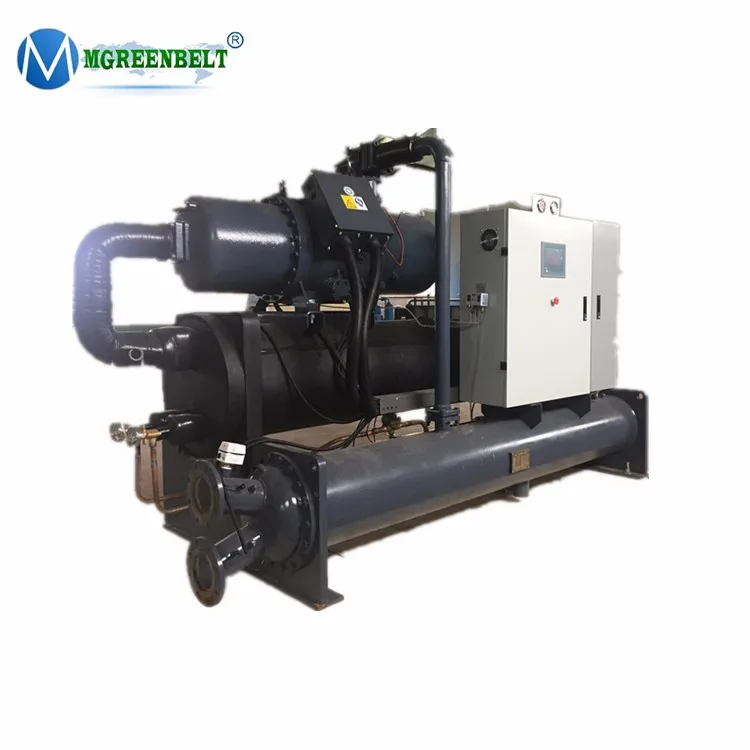

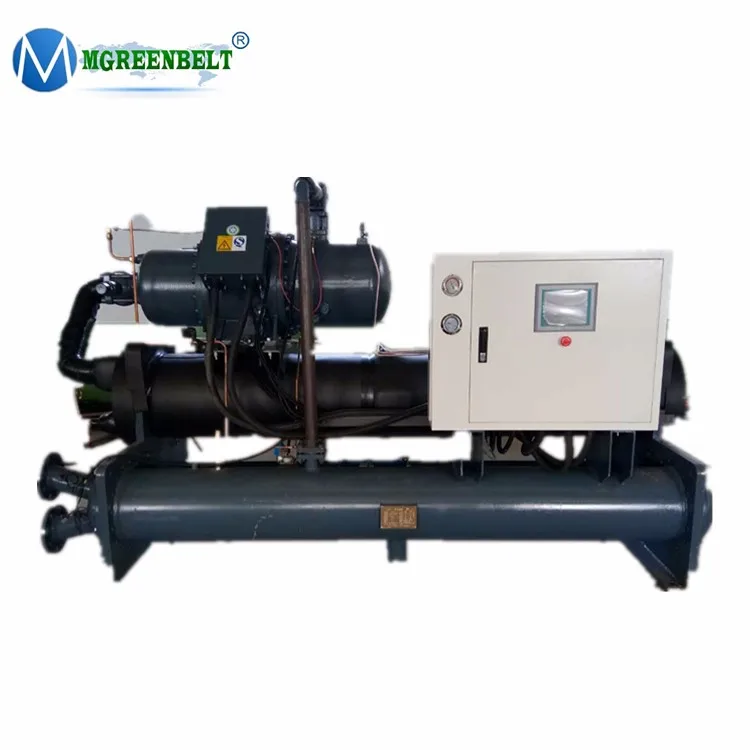

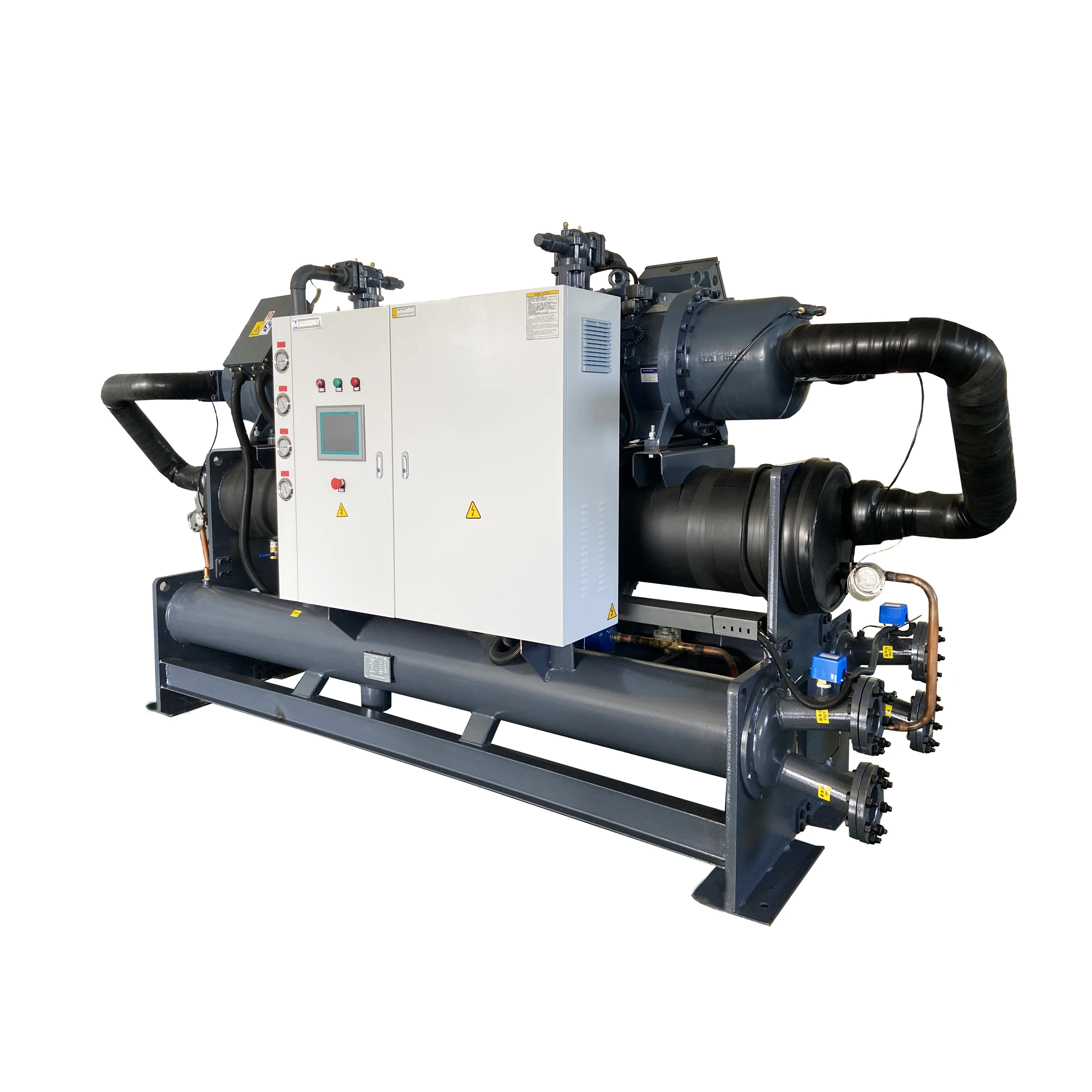

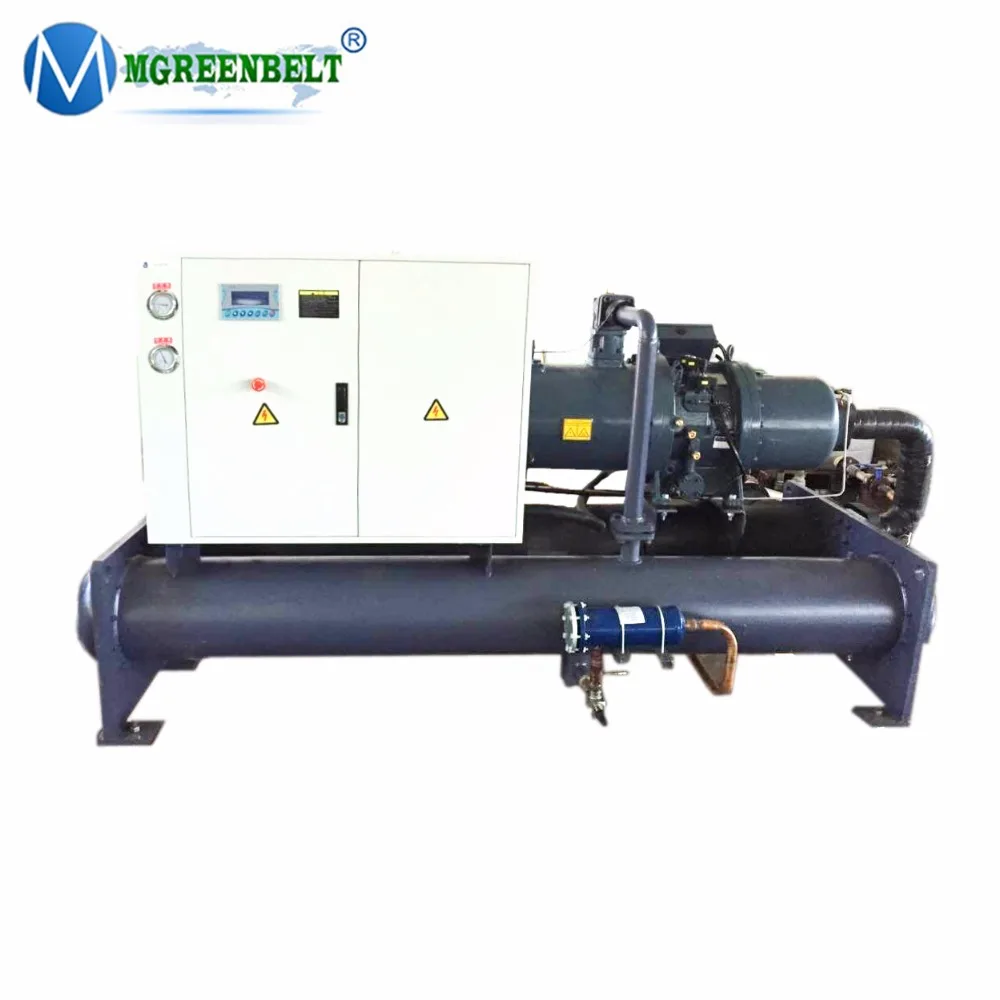

Industrial Anodizing Line Equipment Rectifier Power Supply Cooling Machine Water Cooled Chiller

Industrial Anodizing Line Equipment Rectifier Power Supply Cooling Machine Water Cooled Chiller

Cooling capacity: 30 tons ~ 700 tons

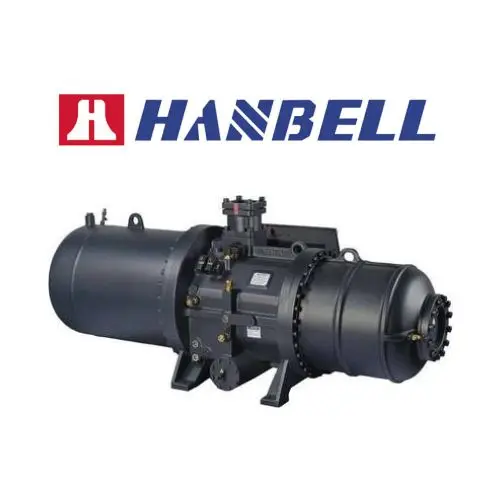

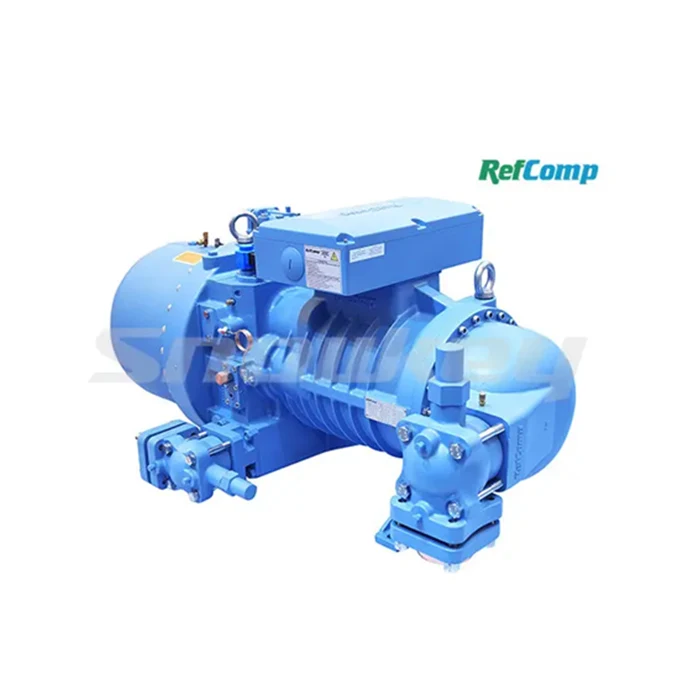

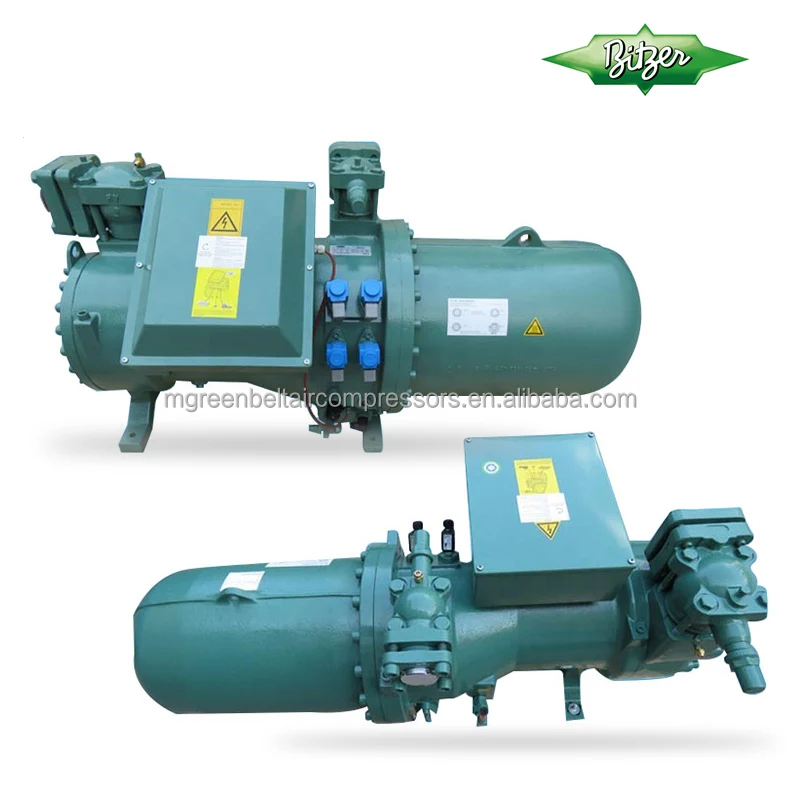

1. Compressor: Semi-hermetic Screw type or Reciprocating , Most brand use Hanebll/Bizter/RefComp/Fusheng.

2. Evaporator: closed shell and tube type, connect with water tank and take away the heat back from the processing.

3. Condenser: Sealed shell and tube, to connect with cooling tower, and discharge the heat out of the system.

4. Use world brand Danfoss solenoid valve, sightglass, expansion valve, Emerson dry filter and Schneider electric components to make the water cooled chiller running well and super good cooling effect.

5.Non-Ozone depleting and Low global warming impact refrigerant for options by R134A, R407C, R507

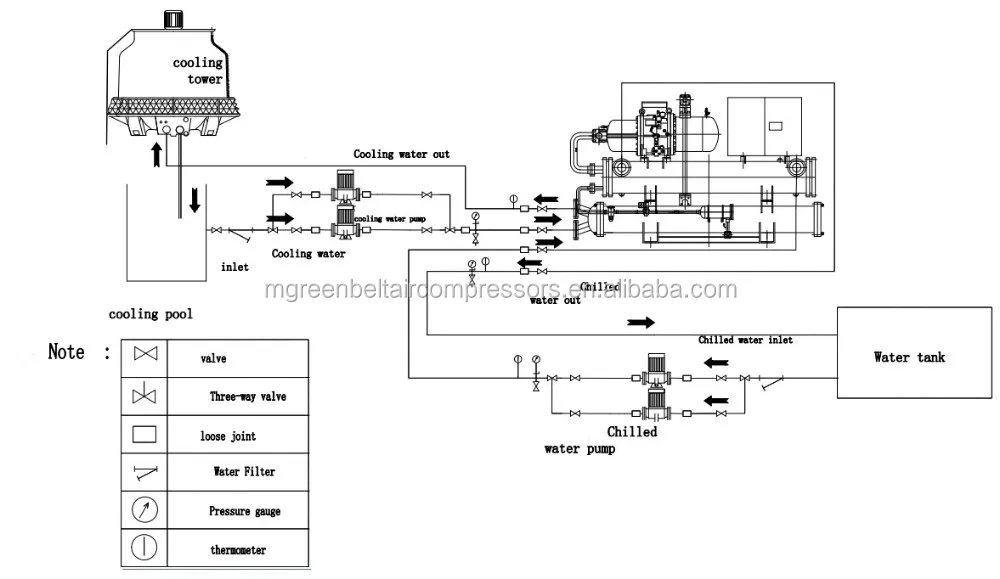

1-  water cooled chiller, connect with external water tank and cool it

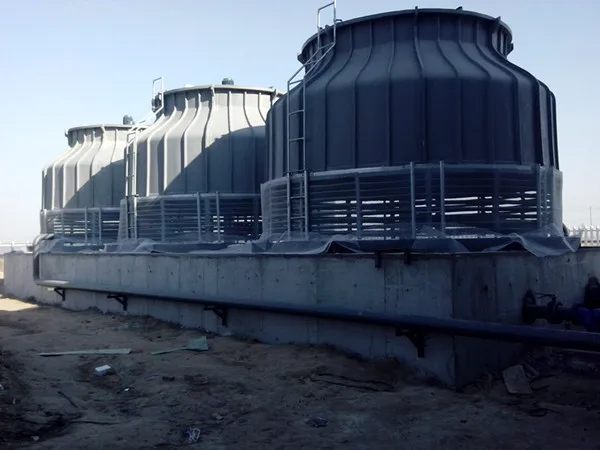

2- Cooling tower, connect with chiller condenser to take away the heat from the process

3- Cooling pumps, between chiller and tower, keep circulations

4- Chilled water pumps, circulation water from tank to chiller

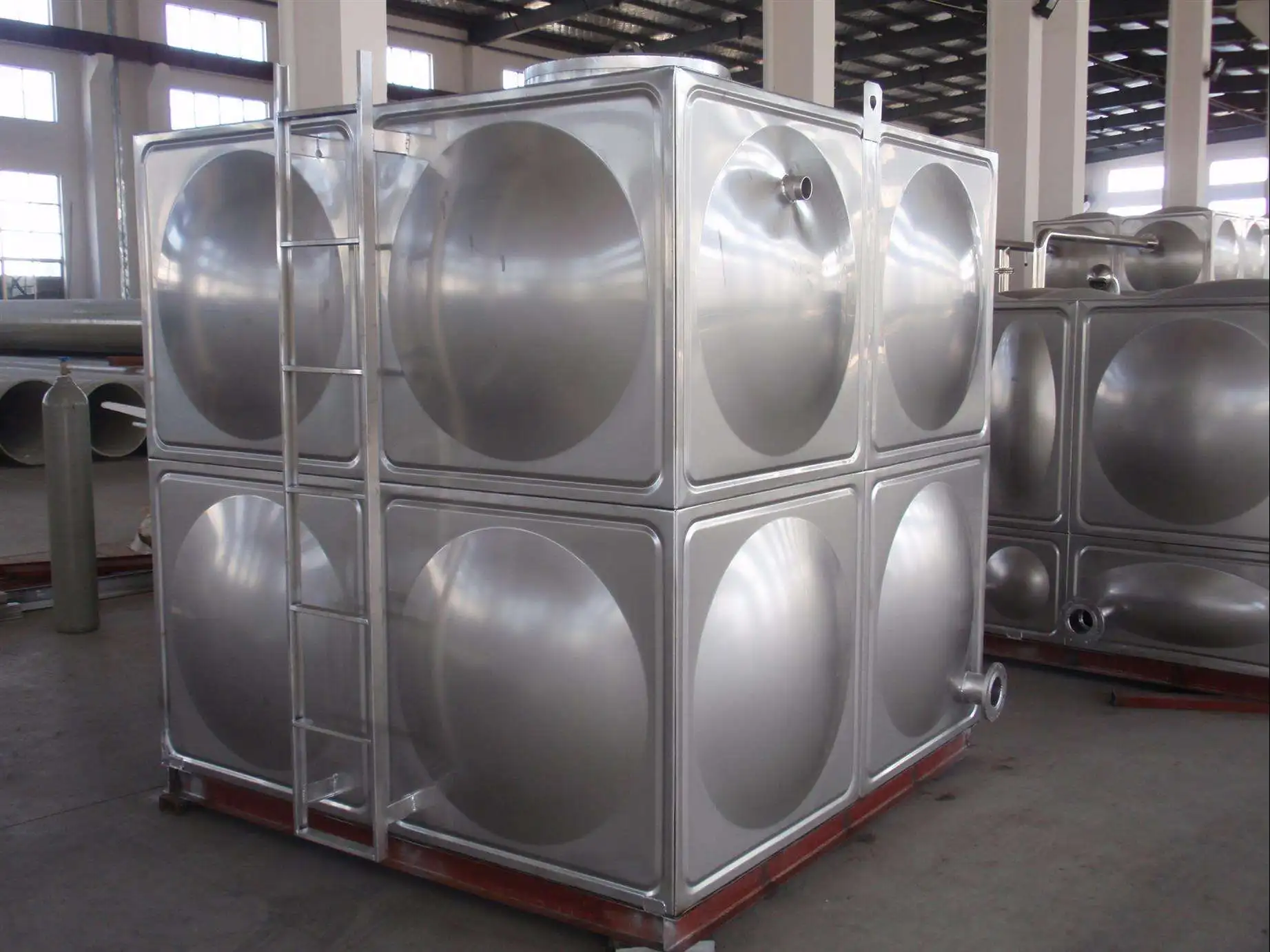

5- Water tank, insulation to prevent cold loss

6- Accessories on the pipeline

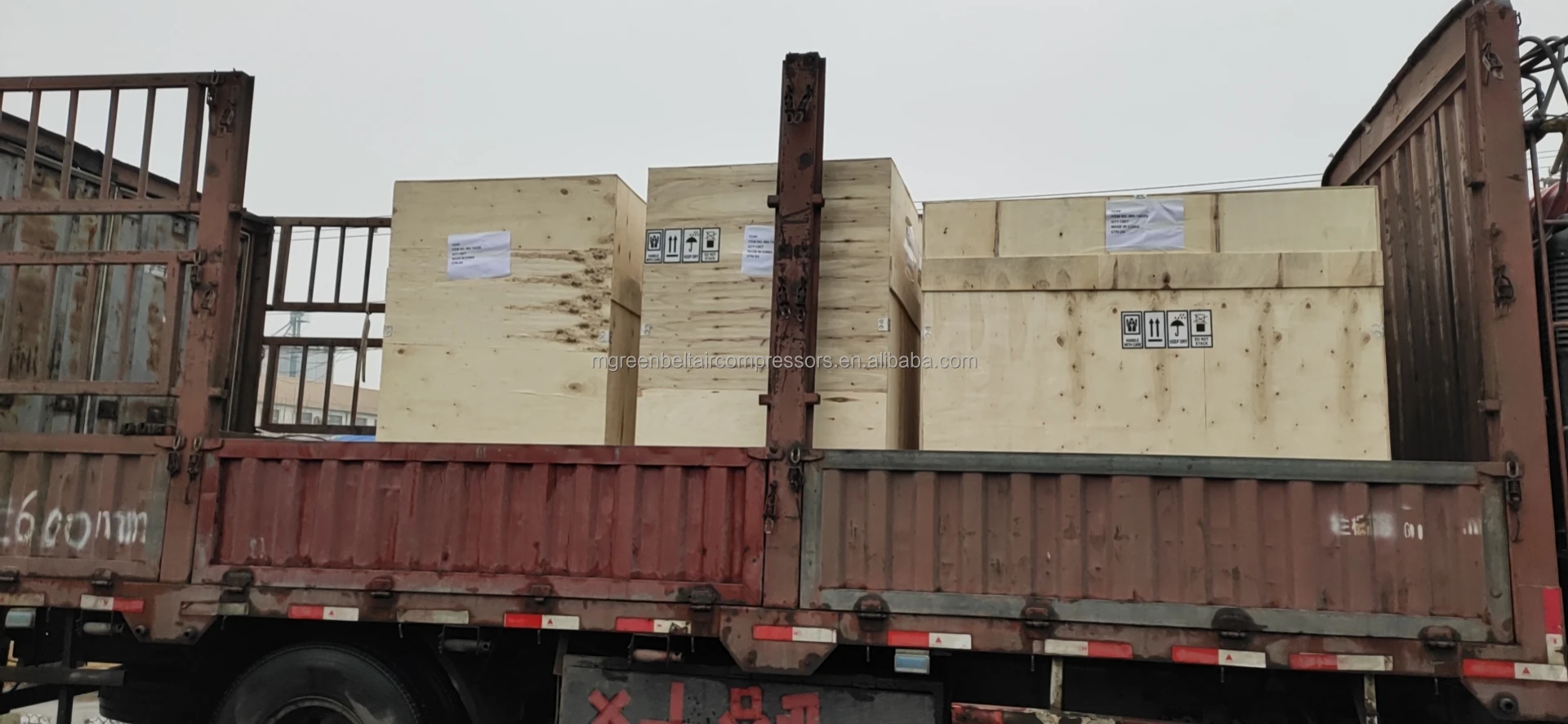

Packaging : We consider all different potential situation in the delivery, so we use every prevention measures to avoid any potential inconvenience or trouble

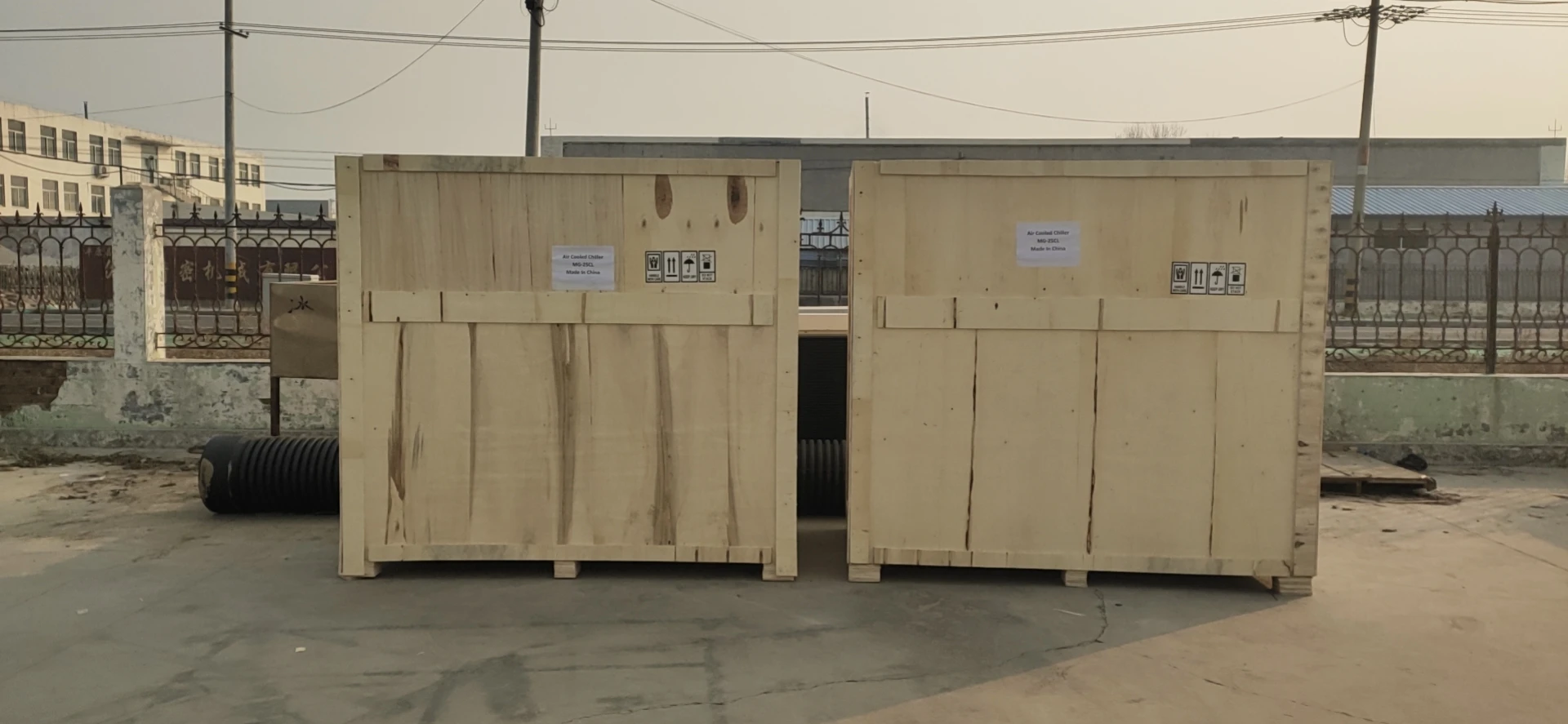

1.Bulk cargo: Standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the surface of our products.
2. Container cargo: the equipment will be bound firmly and won’t easily swing to the side, or up, or down.
Shipping: Deliver from Qingdao port within 15-35 days after the payment

Q1: What information do you need to provide in order to get a quotation?

A1: For industrial water chiller we need to know the following information in order to suggest the suitable water chiller models and for providing the quotation.

-Air cooled or water cooled?
-Cooling Capacity,___Tons,___KW,___Kcal___BTU
-Power Supply_V_Phase_hz
-Chilled water outlet temperature.
-Application industry


Q2: Can I use our own brand logo on the products?
A2: Yes. We provide OEM/ODM service to our customers. Our professional engineers having rich experience in chiller design and manufacture. Just tell us your ideas or provide the drawing, we can help you to carry out your ideas.

Q3.How to calculate cooling capacity for chillers


Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86
Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)


Q4:Cooling capacity unit conversion?

1 kcal/h = 1.163W,1 W = 0.8598 kcal/h;
1 Btu/h = 0.2931W,1 W = 3.412 Btu/h;
1 USRT = 3.517 kW,1 kW = 0.28434 USRT;
1 kcal/h = 3.968 Btu/h,1 Btu/h = 0.252 kcal/h;
1 USRT = 3024 kcal/h,10000 kcal/h = 3.3069 USRT;


Q5:The chiller Warranty.


A5: 12 months warranty, if there are problems with the machine parts. We provide free accessories
and delivery to customers.

Welcome to contact with us for further discussion and communication by the whole proposal.
