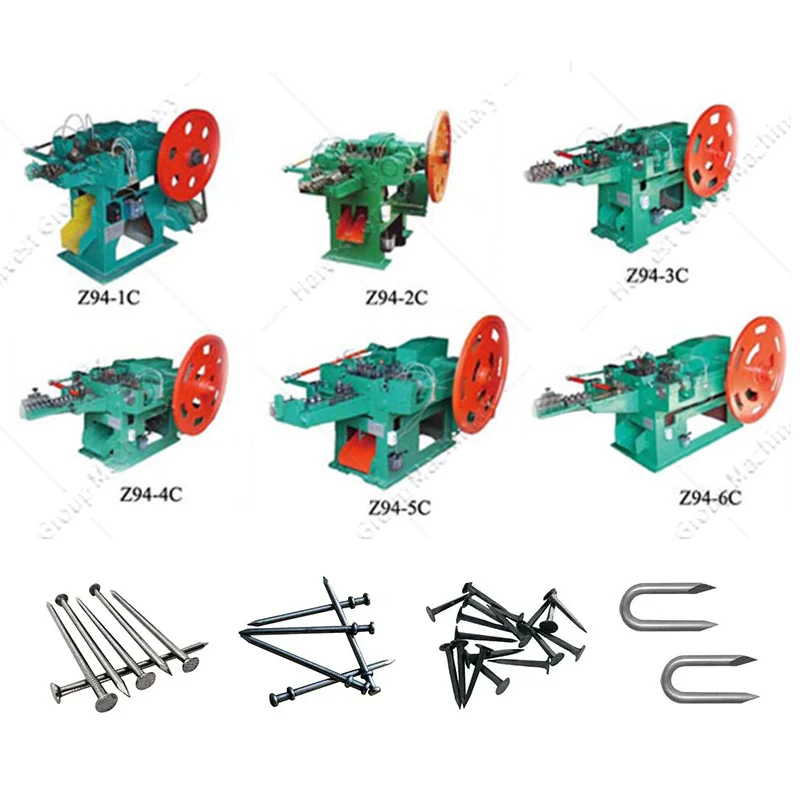

automatic high speed iron machines for making nails and screws roofing nail making machine
- Category: >>>
- Supplier: Zhengzhou Harvest Machinery Co. Ltd.
Share on (1601005141407):
Product Overview
Description
Product Description

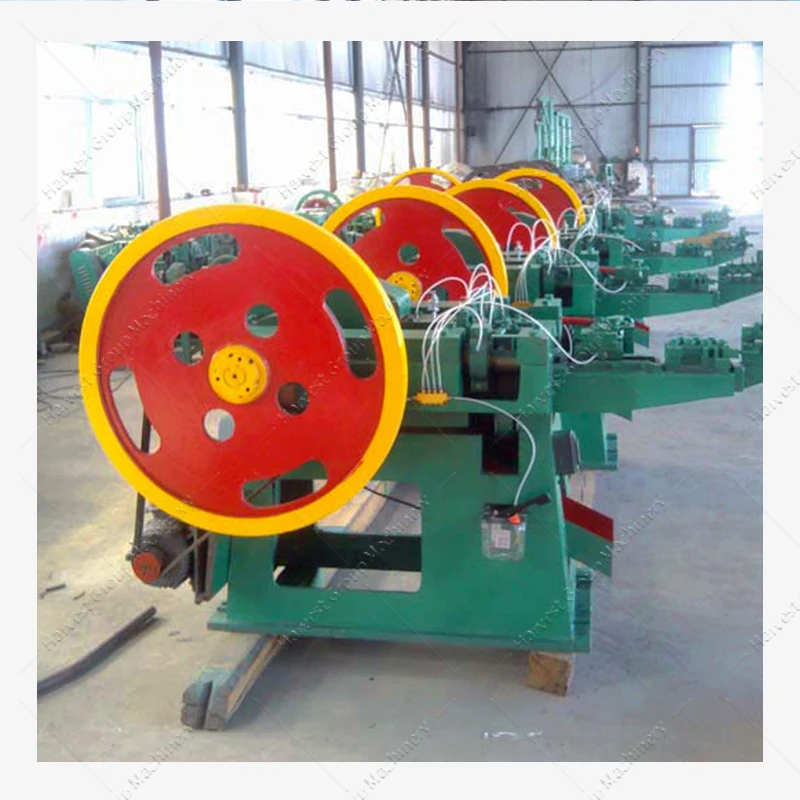

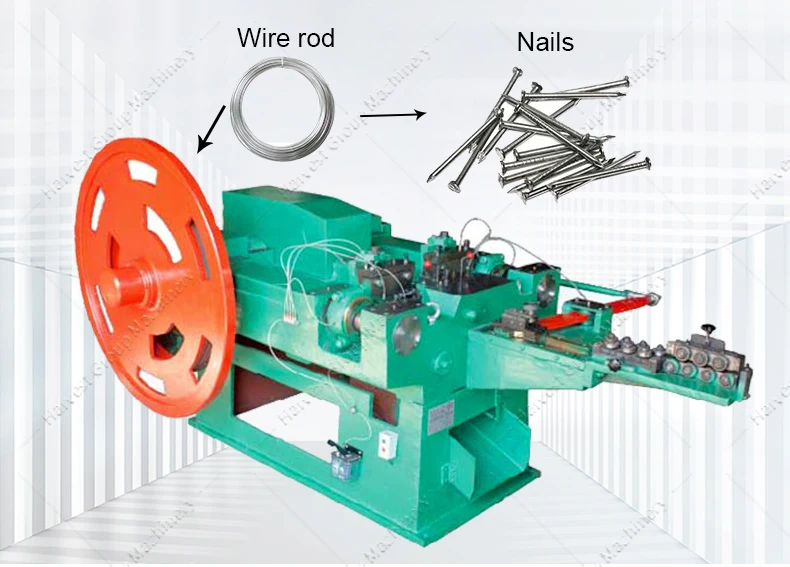

Nail Making Machine
Nail making machine，This new type machine adopts plunger and oil pipe lubricating structure, to ensure the high working speed, low noise and less impact. It has the features of advanced design, compact confirmation, and attractive appearance. It is easy and safe to operate.
Product Paramenters

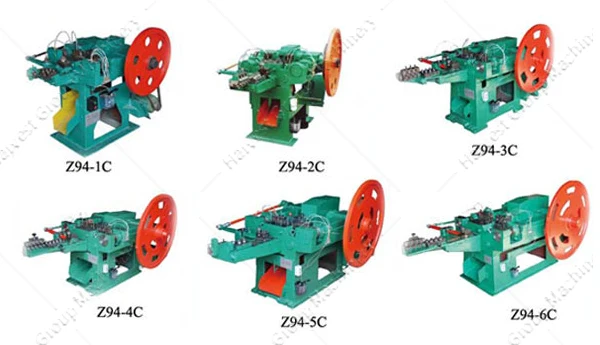

Model | Z94-1C | Z94-2C | Z94-3C | Z94-4C | Z94-5.5C | Z94-6.5C |
Max. dia. of nail | 1.6mm | 2.8mm | 3.5mm | 4.5mm | 5.5mm | 6.5mm |
Min. dia. of nail | 0.9mm | 1.2mm | 1.8mm | 2.8mm | 3.8mm | 4.1mm |
Max. Length of nail | 25mm | 50mm | 75mm | 100mm | 150mm | 200mm |
Min. length of nail | 9mm | 16mm | 30mm | 50mm | 80mm | 100mm |
Motor power | 1.5kw | 2.2kw | 3kw | 4kw | 5.5kw | 11kw |
Nail making speed | 450pcs/min | 350pcs/min | 320pcs/min | 260pcs/min | 200pcs/min | 180pcs/min |
L*W*H | 1.5*1.3*1.2m | 1.7*1.3*1.4m | 2.0*1.4*1.4m | 2.2*1.6*1.65m | 2.5*1.6*1.5m | 3.5*1.9*1.8 |
Weight | 1.2tons | 1.45tons | 1.8tons | 2tons | 2.3tons | 5.5ton |

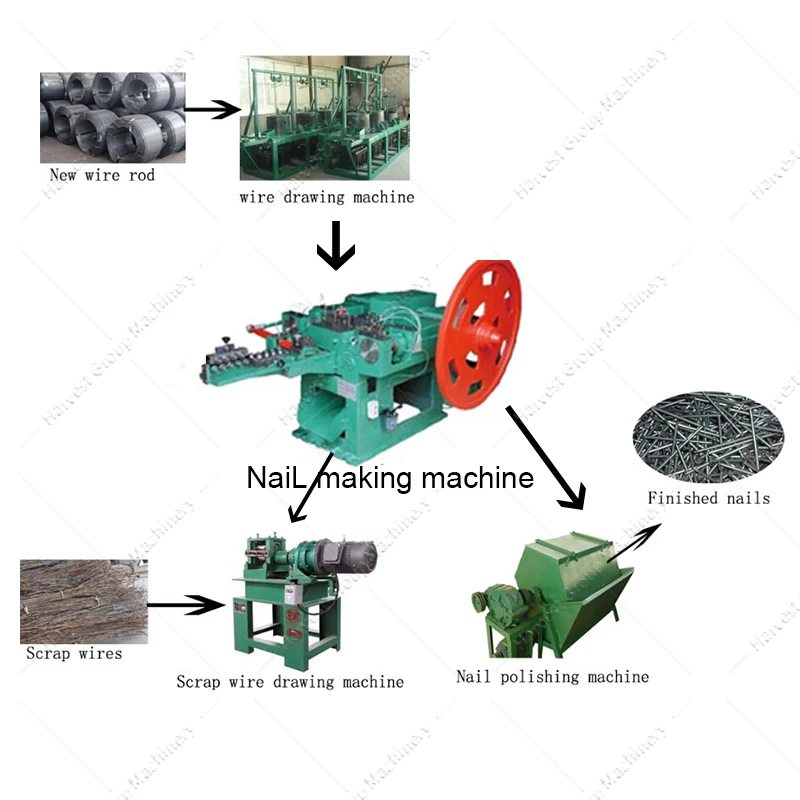

Main Recycling Process

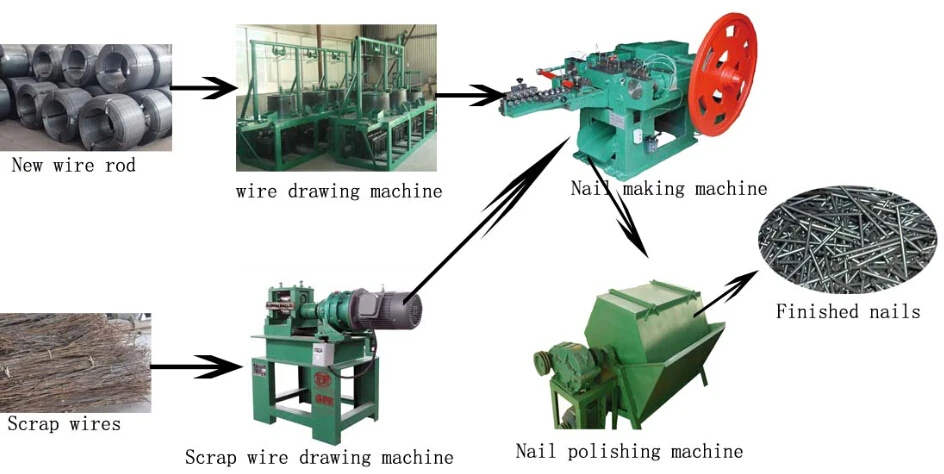

Process flow: steel wire -- wire drawing ---nail making—nail polishing—finished nails.
One nail making machine can make different sizes of nails. Both of the scrap iron wire and the new steel rod can be used to make nails.

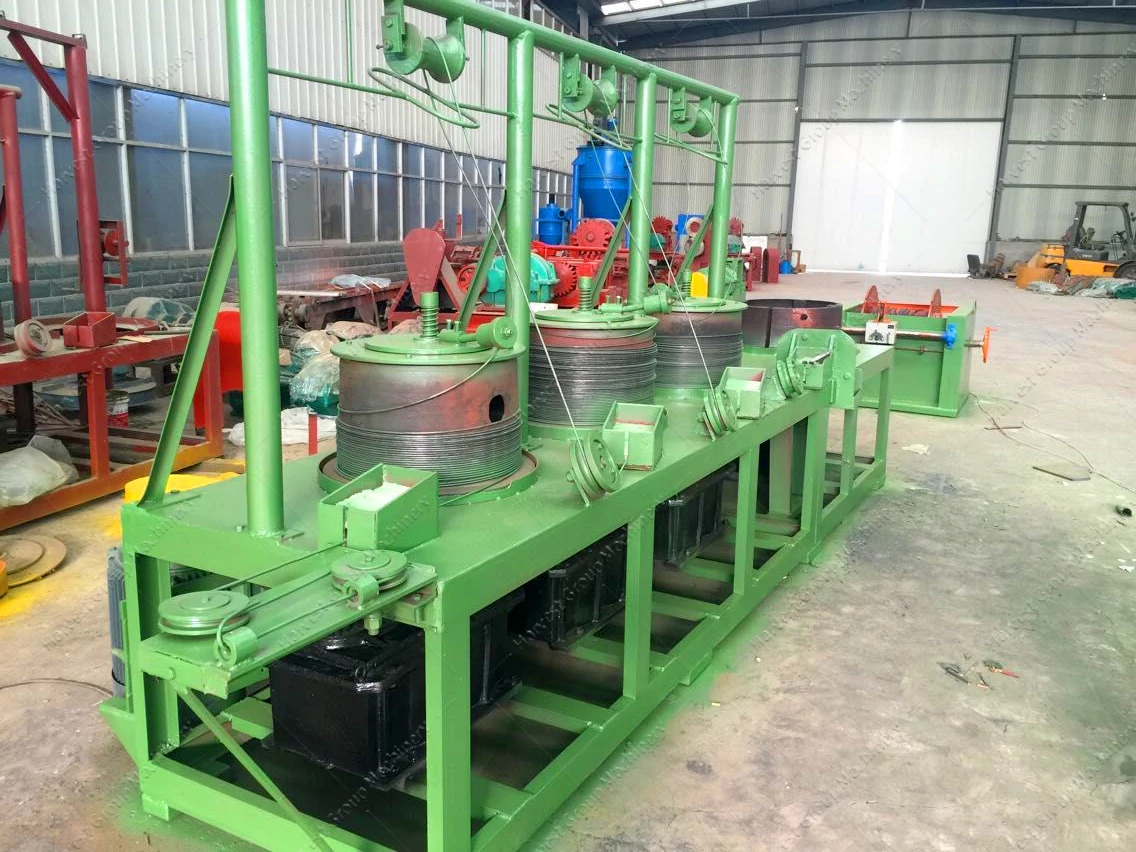

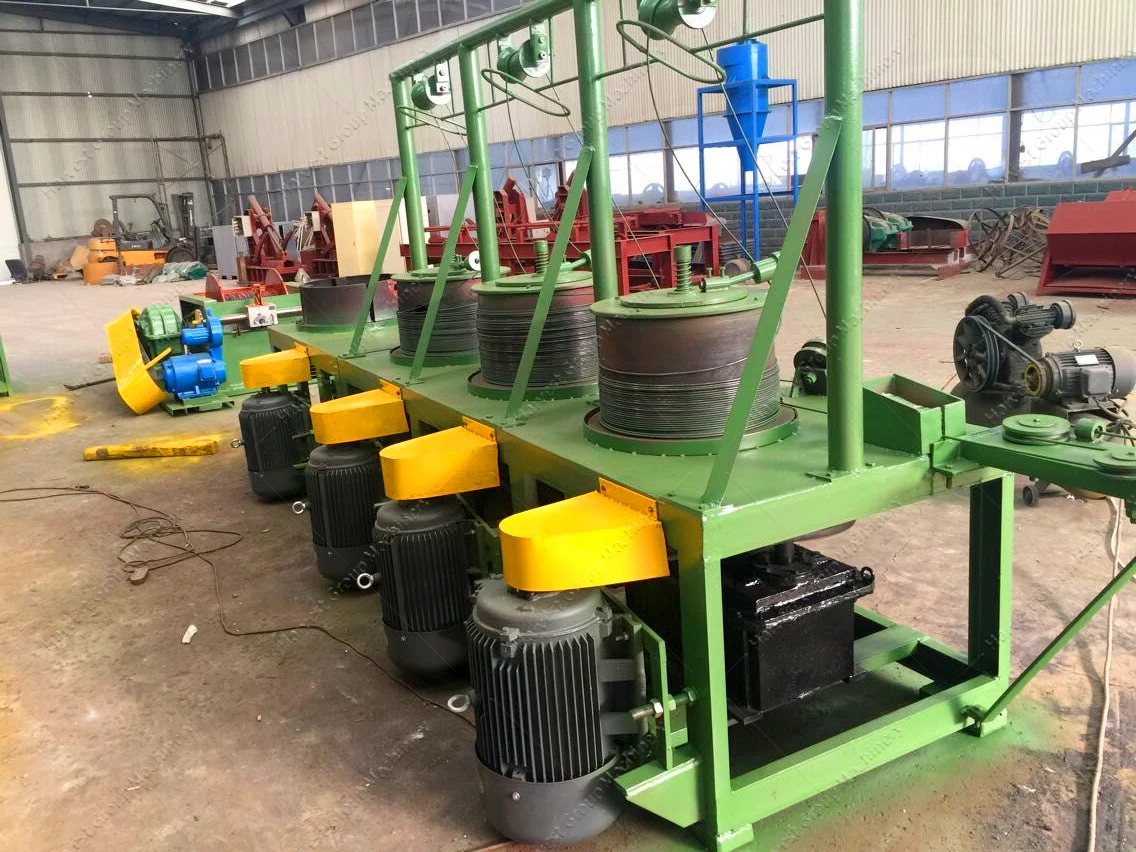

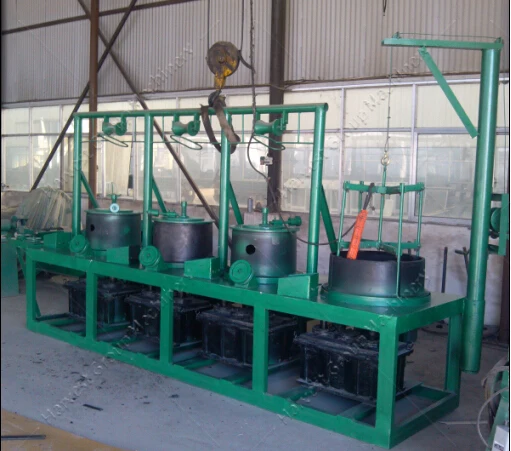

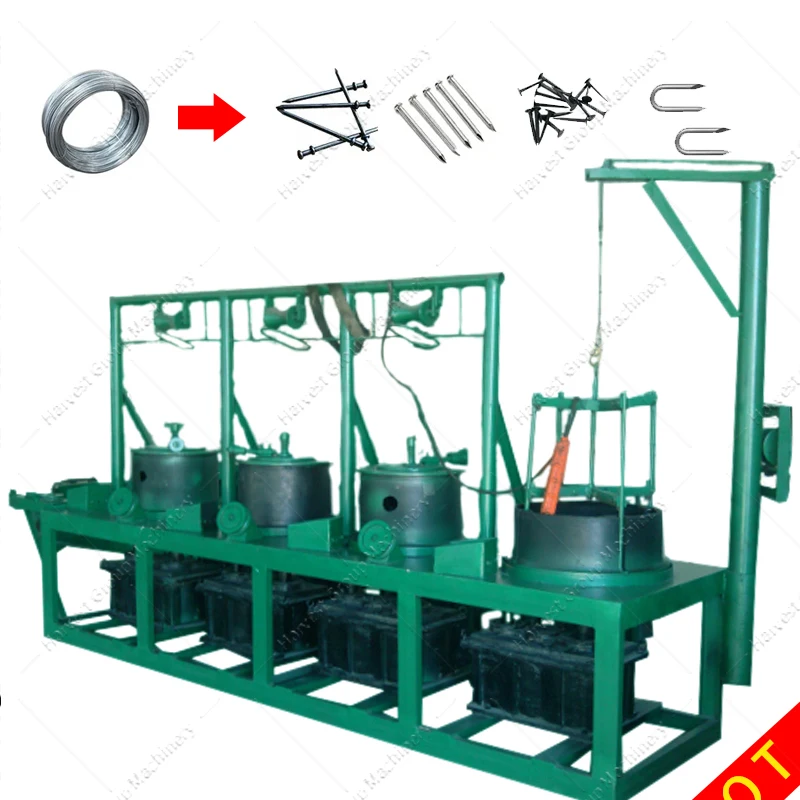

Wires-Drawing mahcine
The metal wire drawing machine is a pre-processing equipment for the production of metal products such as standard parts. Its diameter, roundness, surface finish and straightness all meet the raw material processing requirements for the production of
standard parts and other metal products.
standard parts and other metal products.

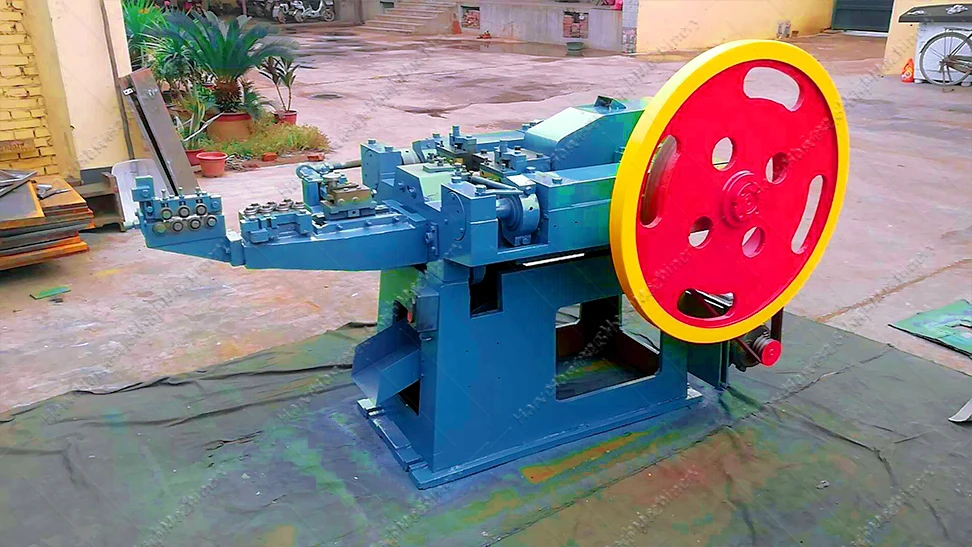

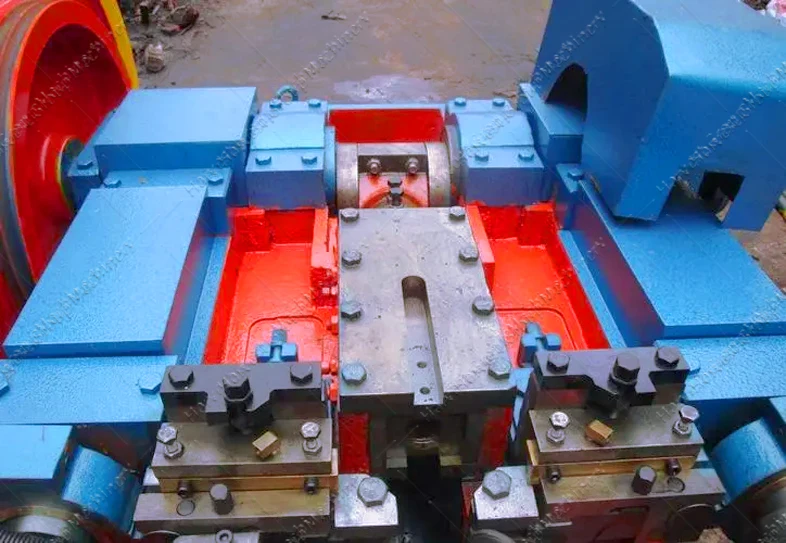

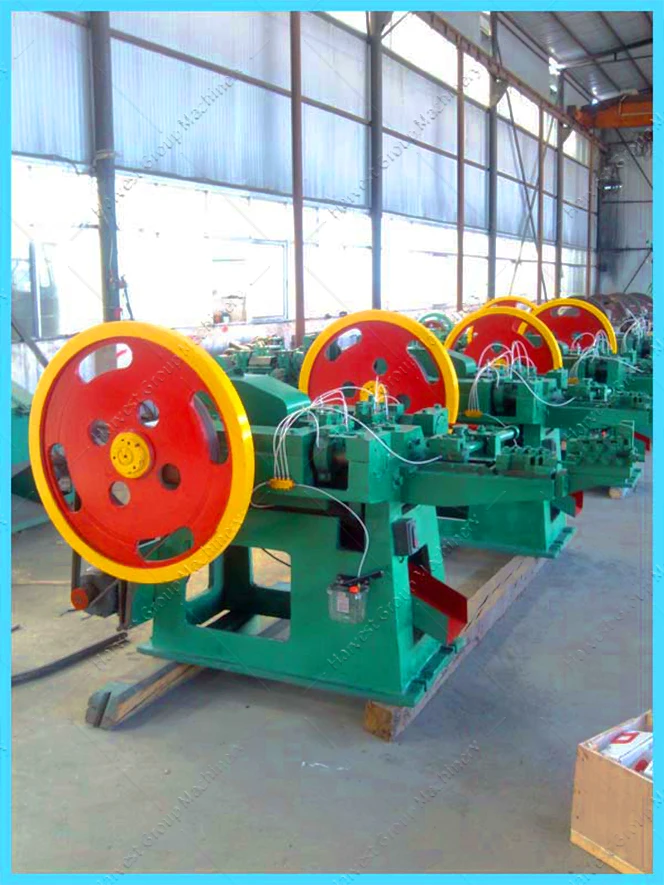

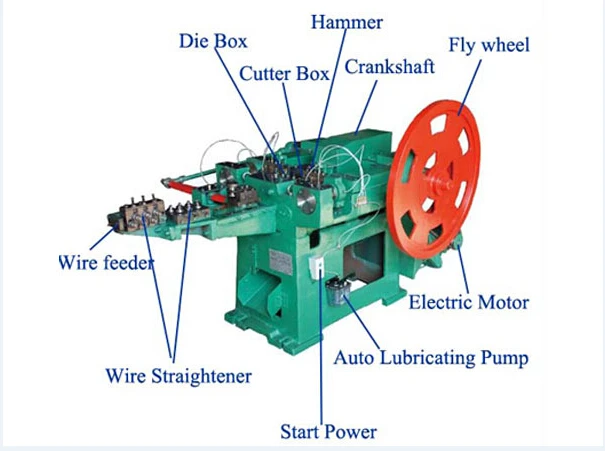

Nail-Making machine
This machine adopts piston structure to ensure the high working speed, low noise and less chance of impact characteristics, especially can make excellent quality YouMao nail and other special-shaped nail which are suitable for high speed studs for welding machine and nail gun.

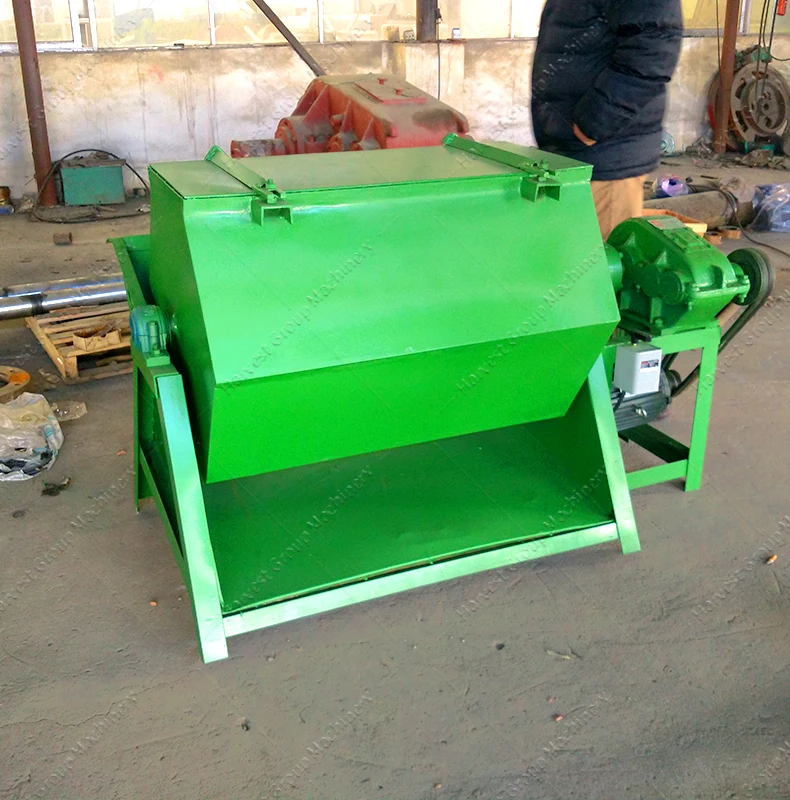

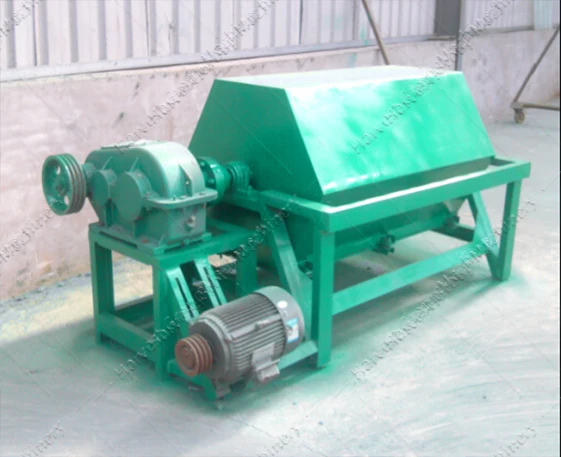

Nail polishing machine
This machine is auxiliary equipment of nail making machine. When the nails have been made by the nail making machine, it will be
not very bright. The user can use this machine to polish the nails to let it brighter, smoother and anti-rust.
not very bright. The user can use this machine to polish the nails to let it brighter, smoother and anti-rust.

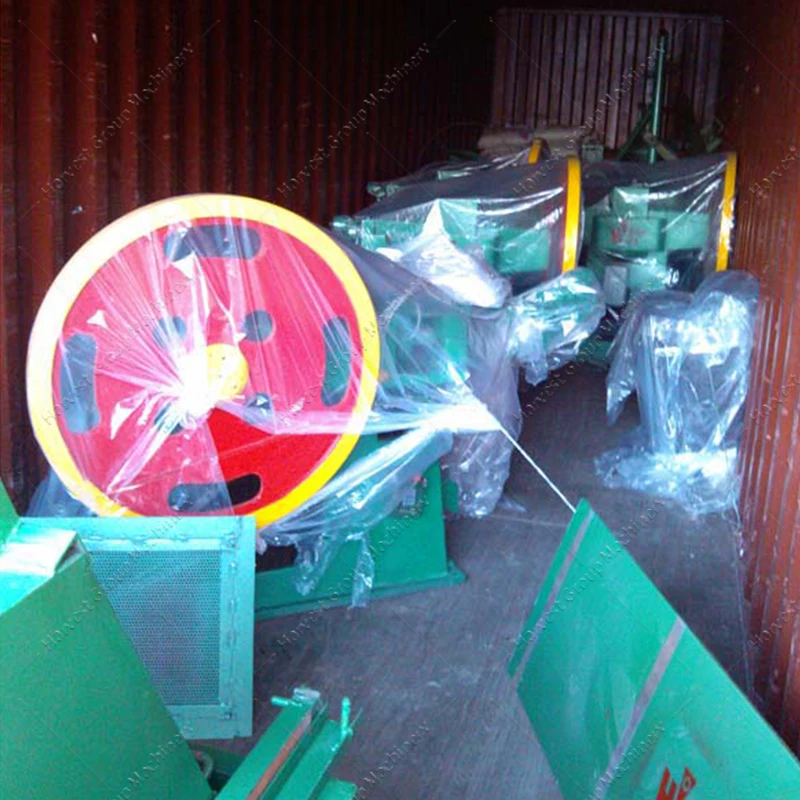

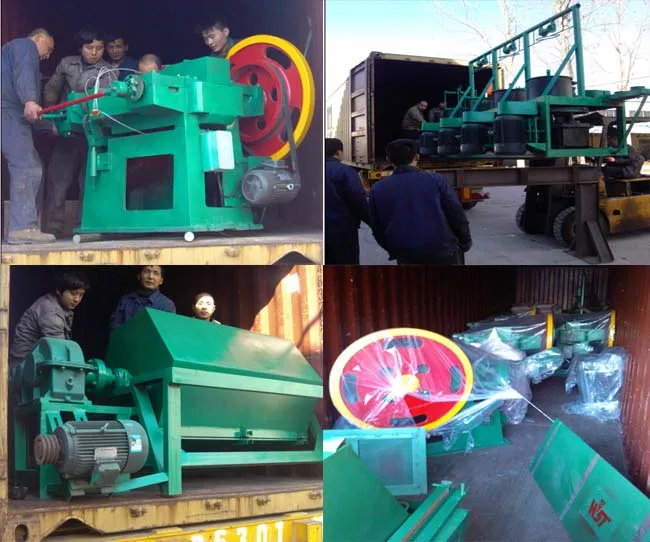

Packing&Delivery
1. Plastic film or bubble film which protect machine from rust on the humid environment on sea
2. Spare parts are in wooden box
3. All devices will be fasten in container to avoid the shake on road
2. Spare parts are in wooden box
3. All devices will be fasten in container to avoid the shake on road

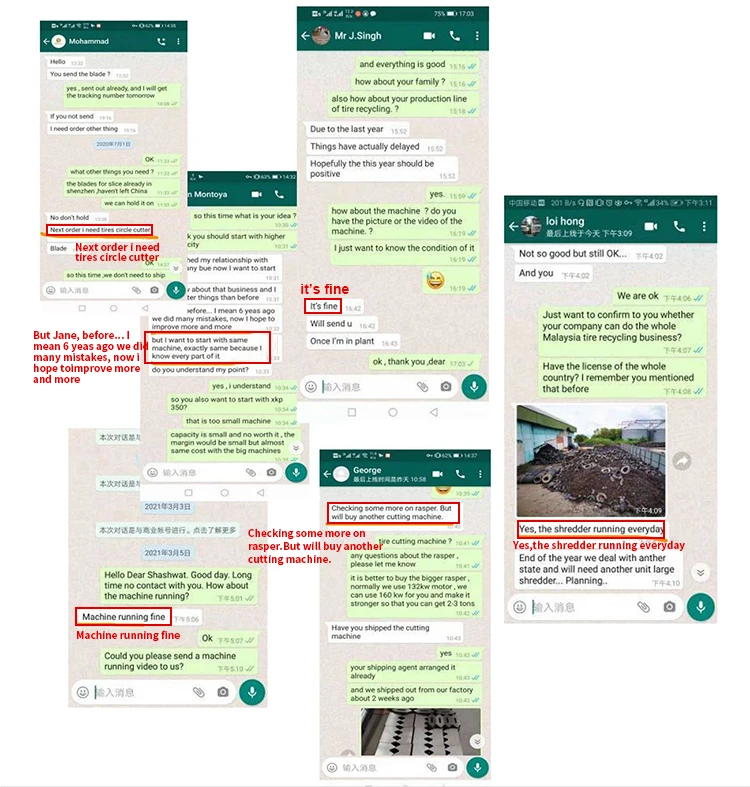

Customer feedback
