Deveup Polyester Fiber Felt Cutter PET Acoustic Panel Engraving Grooving Slotting Cutting Machine
- Category: >>>
- Supplier: Jinan Deveup Intelligent Equipment Co. Ltd.
Share on (1601005143611):
Product Overview
Description
Product Description

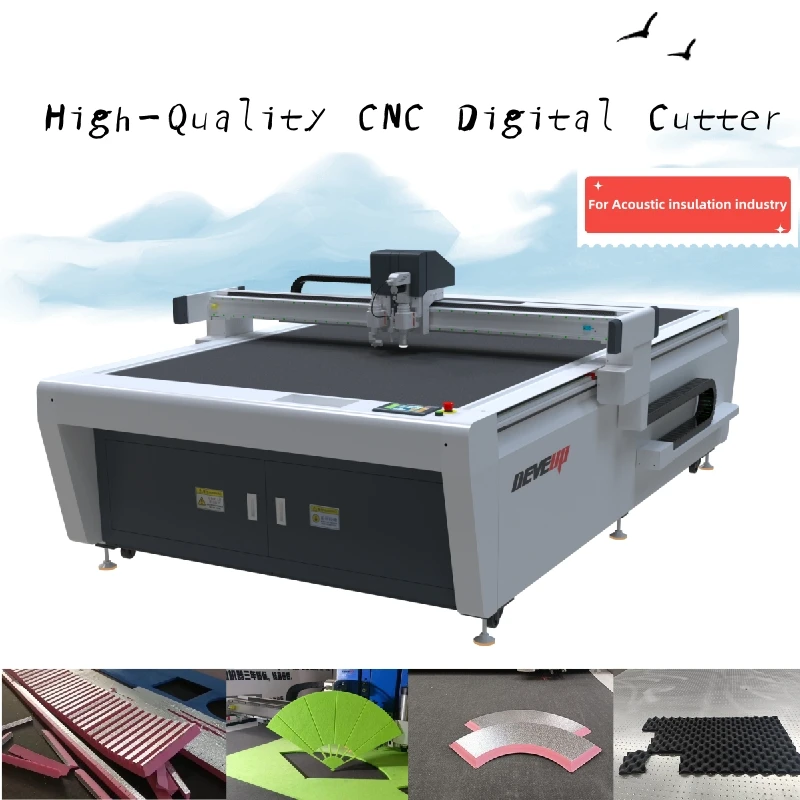

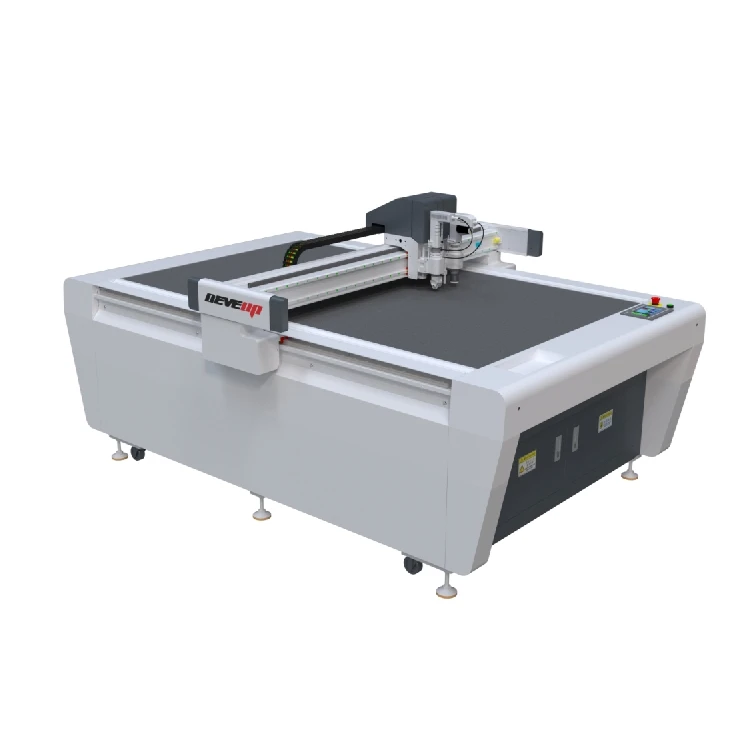

CNC Oscillation Knife Cutting Machine For Insulation Foam & Acoustic Panels
What insulation materials and sound absorbing materials can be cut by DEVEUP oscillation cnc knife cutting machine? It can cut rubber insulation wool, polyester fiber acoustic panel(PET Foam), fiberglass wool, rock wool, aluminosilicate wool, phenolic foam insulation board, Extruded polystyrene insulation board(XPS), and other insulation wool materials and acoustic panels.. Manual cutting is the traditional way of cutting. Insulation cotton cutting machine compared to the traditional manual cutting what are the advantages?
1, some insulation materials will produce a certain amount of harm to the human body, such as glass fiber cotton will affect the lungs and respiratory tract, and may cause contact dermatitis, manual cutting when the need to wear protective clothing. Insulation cotton cutting machine reduces the artificial contact with the material, reducing the harm to the human body.
2, the manual cutting of the precision reading is relatively low, manual cutting when the sample is placed on the material, and then cut with a wallpaper knife extended sample, the cutting edge is not neat and easy to pull, affecting the beauty and accuracy of the installation. Insulation cotton cutting machine is CNC vibration knife cutting machine, vibration knife cutting machine using high-frequency vibration knife cutting insulation cotton, cutting high precision, and cutting the edges clean and neat smooth.
3, the cost of manual cutting insulation cotton is relatively high, the efficiency is relatively slow. Glass fiber wool, for
example, vibrating knife cutting machine can cut ten squares a day, if the manual cutting ten squares, it takes three people to work two days, insulation cotton cutting machine to improve the processing efficiency, reduce labor costs. Fourth, insulation cotton cutting machine can be optional automatic feeding table, the machine can automatically pull the material forward to achieve continuous cutting of the coil.
4, Oscillating knife cutting machine using vacuum adsorption fixed material, vacuum adsorption automatic start and stop.
In addition to the insulation cotton material, Deveup intelligent oscillating knife cutting machine can also cut EVA foam, polyethylene poam, PE & EPE foam, polyurethane fiber cotton, packing carton, corrugated carton, honeycomb cardboard, hollow board, glass fiber, carbon fiber, aramid fiber, leather, fabric and other flexible materials with fast speed and easy operation without mold. Just import the CAD drawing into the machine cutting software, the software will automatically optimize the layout, one key cutting, save time and effort.
1, some insulation materials will produce a certain amount of harm to the human body, such as glass fiber cotton will affect the lungs and respiratory tract, and may cause contact dermatitis, manual cutting when the need to wear protective clothing. Insulation cotton cutting machine reduces the artificial contact with the material, reducing the harm to the human body.
2, the manual cutting of the precision reading is relatively low, manual cutting when the sample is placed on the material, and then cut with a wallpaper knife extended sample, the cutting edge is not neat and easy to pull, affecting the beauty and accuracy of the installation. Insulation cotton cutting machine is CNC vibration knife cutting machine, vibration knife cutting machine using high-frequency vibration knife cutting insulation cotton, cutting high precision, and cutting the edges clean and neat smooth.
3, the cost of manual cutting insulation cotton is relatively high, the efficiency is relatively slow. Glass fiber wool, for
example, vibrating knife cutting machine can cut ten squares a day, if the manual cutting ten squares, it takes three people to work two days, insulation cotton cutting machine to improve the processing efficiency, reduce labor costs. Fourth, insulation cotton cutting machine can be optional automatic feeding table, the machine can automatically pull the material forward to achieve continuous cutting of the coil.
4, Oscillating knife cutting machine using vacuum adsorption fixed material, vacuum adsorption automatic start and stop.
In addition to the insulation cotton material, Deveup intelligent oscillating knife cutting machine can also cut EVA foam, polyethylene poam, PE & EPE foam, polyurethane fiber cotton, packing carton, corrugated carton, honeycomb cardboard, hollow board, glass fiber, carbon fiber, aramid fiber, leather, fabric and other flexible materials with fast speed and easy operation without mold. Just import the CAD drawing into the machine cutting software, the software will automatically optimize the layout, one key cutting, save time and effort.
Specification
Parameters/Model | FV1216 FV1625 FV2030 FV1650 |
Cutting Size | 1200x1600mm 1600x2500mm 2000x3000mm 1600x5000mm |
Cutting Thickness | ≤50mm (Other thickness can be customized according to the material) |
Cutting Speed | ≤1700mm/s(The actual speed depends on the material and cutting graphics) |
Applicable materials | Rubber foam, fiberglass wool, rock wool, aluminum silicate cotton, phenolic foam insulation board, polyester fiber(PET) acoustic panels, XPS polystyrene insulation board and etc |
Cutting precision | ± 0.1mm |
Repeat accuracy | ≤3mm Diameter |
Positioning way | Laser positioning also optional CCD camera positioning |
Safety device | Physical anti-collision mechanism + infrared induction anti-collision to ensure production safety |
Material fixed way | Vacuum adsorption |
Transport interface | Ethernet front-end ports/usb |
Compatible software | AI software, AutoCAD, CorelDRAW, and all of the box type design software can output directly, without conversion, and with automatic optimization |
Support File Format | DWG, AI, PLT, DXF |
Operation Panel | Multilingual languages LCD touch panel |
Transmission system | High precision linear guide, meshing transmission gear and rack structure, Japanese Panasonic high performance servo drive motors + precision reducer |
Power supply voltage | AC 220 v to 380 v ± 10%, 50 - 60hz |
Pump power | 7.5kw/9kw/11kw |
Work environment | Temperature: - 10 ºC to 40 ºC, humidity: 20% ~ 80% RH |
Dimension(L*W*H) | 3.5x2.2x1.3m |
Weight | 1400KG |
Machine Details
Colorful LCD touch operation panel supports world multilingual kinds of languages, with more intuitive operation interface, which can directly input processing data, set processing speed and knife depth, support screen automatic protection, and protect
processing data,feature-rich and user-friendly operation.
processing data,feature-rich and user-friendly operation.

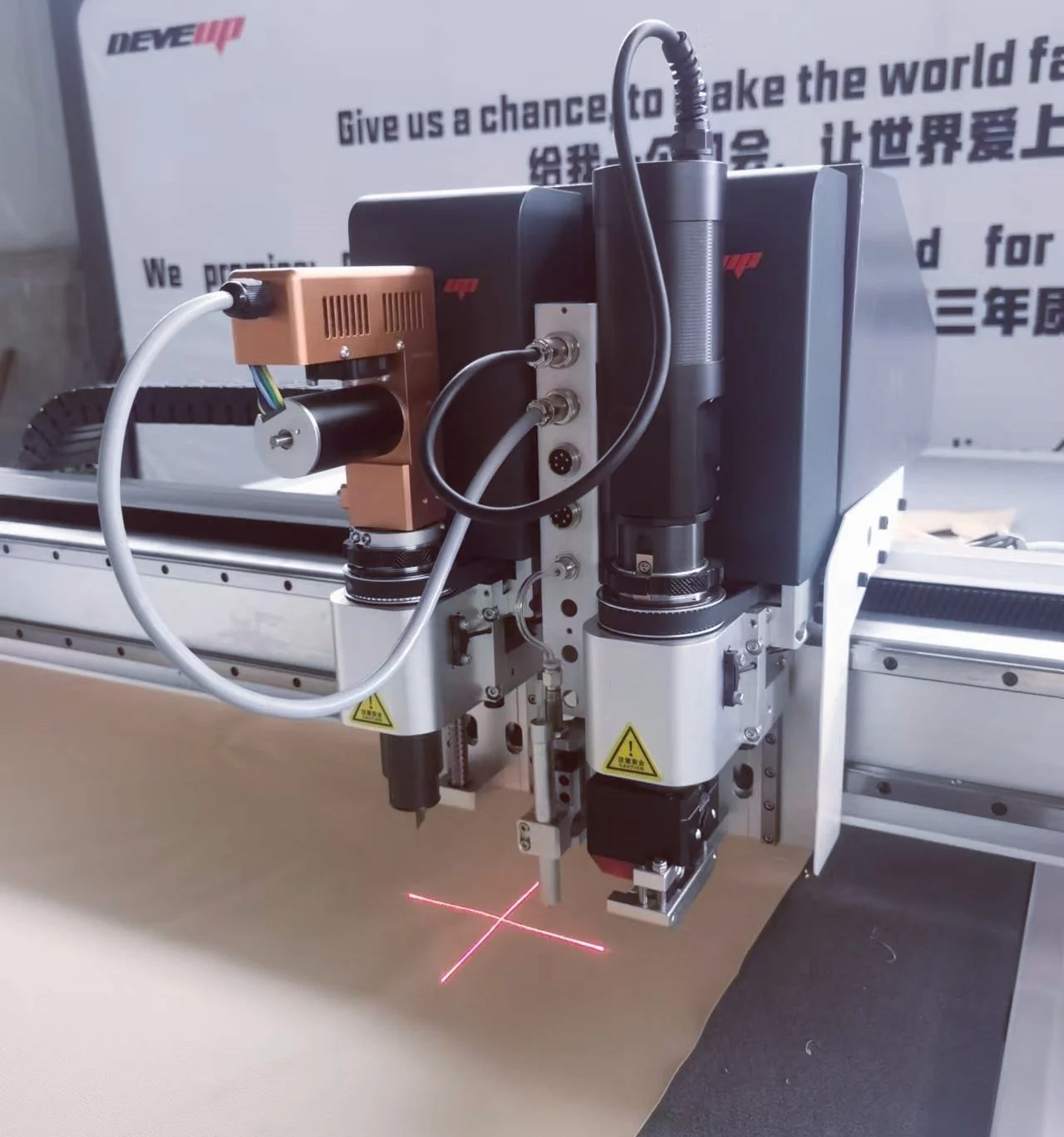

A variety of tool combinations, equipped with intelligent tools interchange system, can cut different materials to achieve different tasks, and multiple tool heads can work individually or in concert. Powerful function, fast running speed, high
processing accuracy, truly multi-purpose machine.
processing accuracy, truly multi-purpose machine.
We use CNC gantry machining center for planing and milling machine shelf. Our bed has the characteristics of heavy weight, good load-bearing capacity, higher precision, and high hardness, which ensures the accuracy and stability of the oscillating knife cutting machine at high speed. We guarantee that the machine will not be deformed in 10 years.
The beam adopts the extrusion process of aviation aluminum alloy die, which ensures the stability and high precision of machine operation at high speed, especially suitable for some industries that require high precision, such as sealing gaskets
Imported famous brand helical gear rack, quenching and hardening treatment. High precision, strong load-bearing capacity, smooth
running at high speed and less noise.
running at high speed and less noise.
Imported PMI 20mm high precision linear guide, high positioning accuracy, high repeatability. Low friction resistance, high rigidity four-way load design, high speed and long time operation to maintain high precision
Safety protection device. Highly sensitive collision avoidance system and red light brake system. When the machine is cutting at high speed, it can effectively protect safety of the operator.
The worktable is a high precision and strength aluminum honeycomb vacuum absorption worktable. Cooperate with high power vacuum pump to fix the material.
Imported Holland 4mm felt with built-in fiber tensile layer to protect the vacuum table and blades while the machine is working. Cutting-resistant, soft, won't scratch the product, non-slip, prevent the material from shifting during the cutting process.
High power vacuum pump to fix material. The vacuum pump runs automatically when the machine is working.
Use top quality Japan Panasonic servo motors and drivers(X-axis double servo motor driving + precision reducer drive). Strong power, long life, and high precision.
Cutting software is feature-rich, supports multi-language, friendly operation, and has automatic optimization nesting function, which can help customers save raw materials to the greatest extent.
Tools Introduction

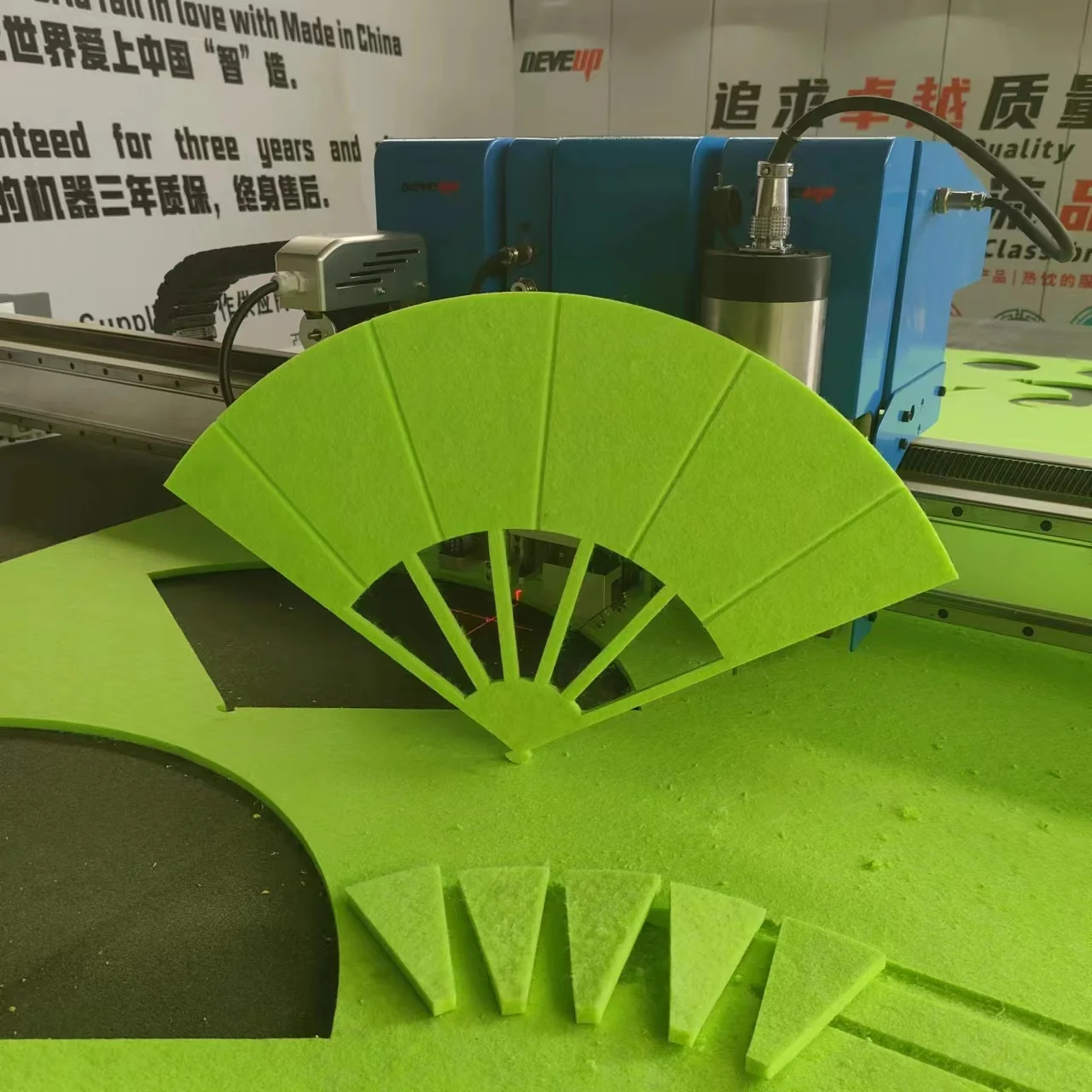

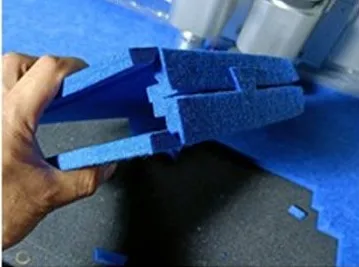

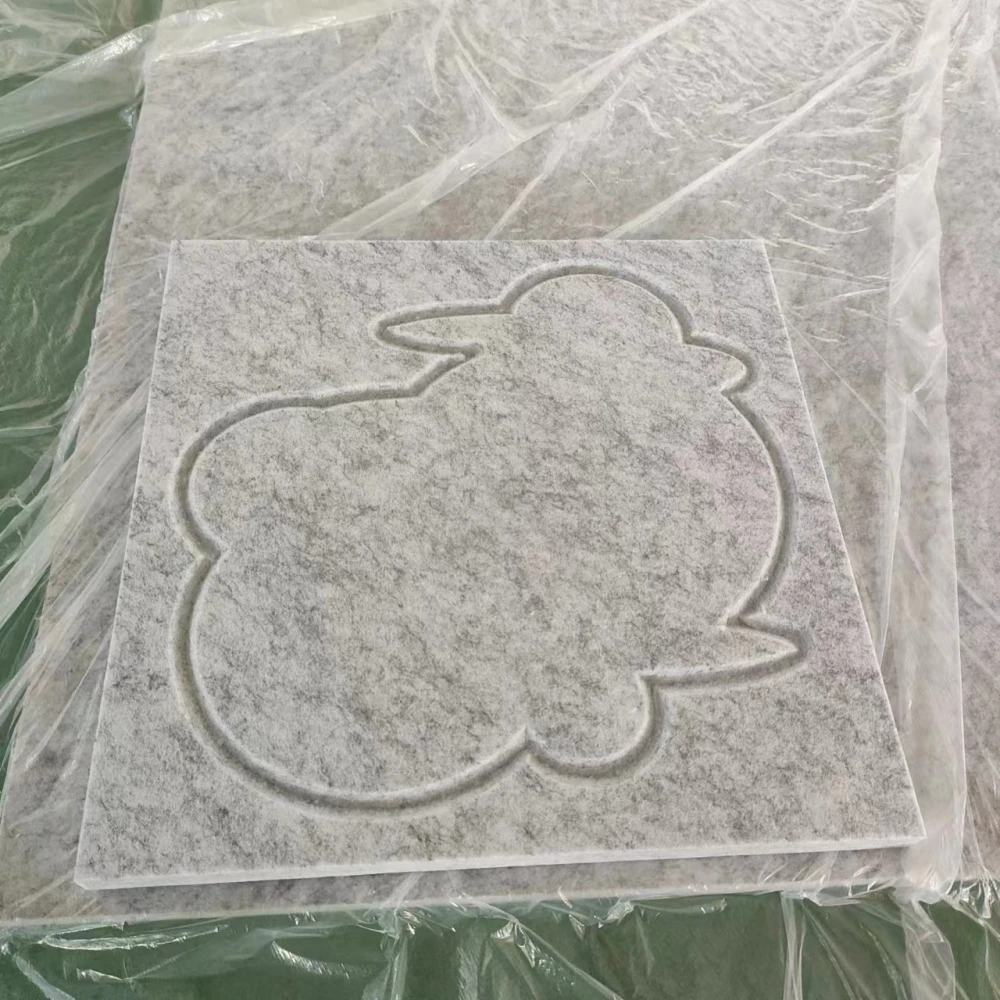

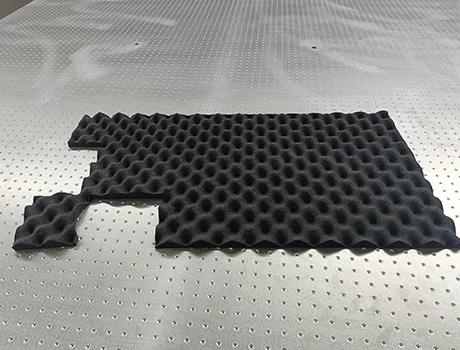

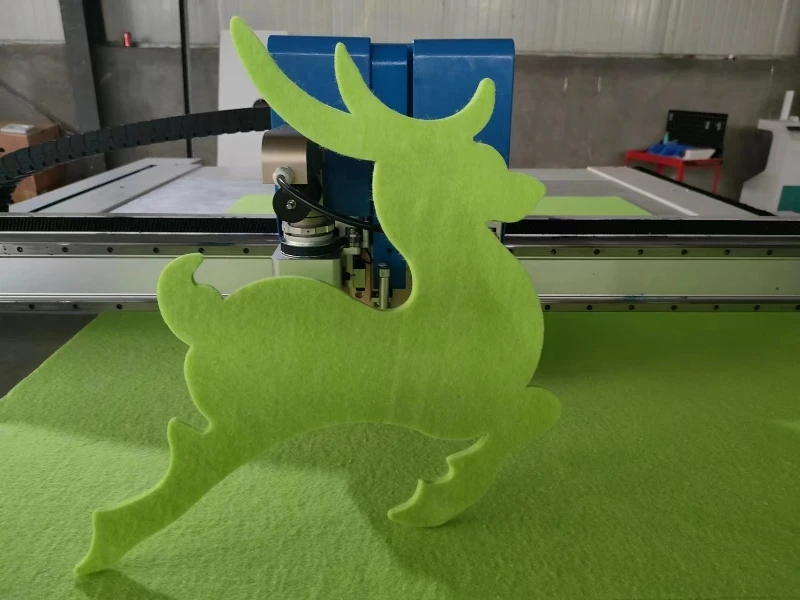

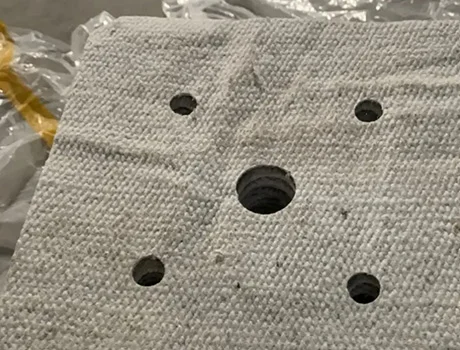

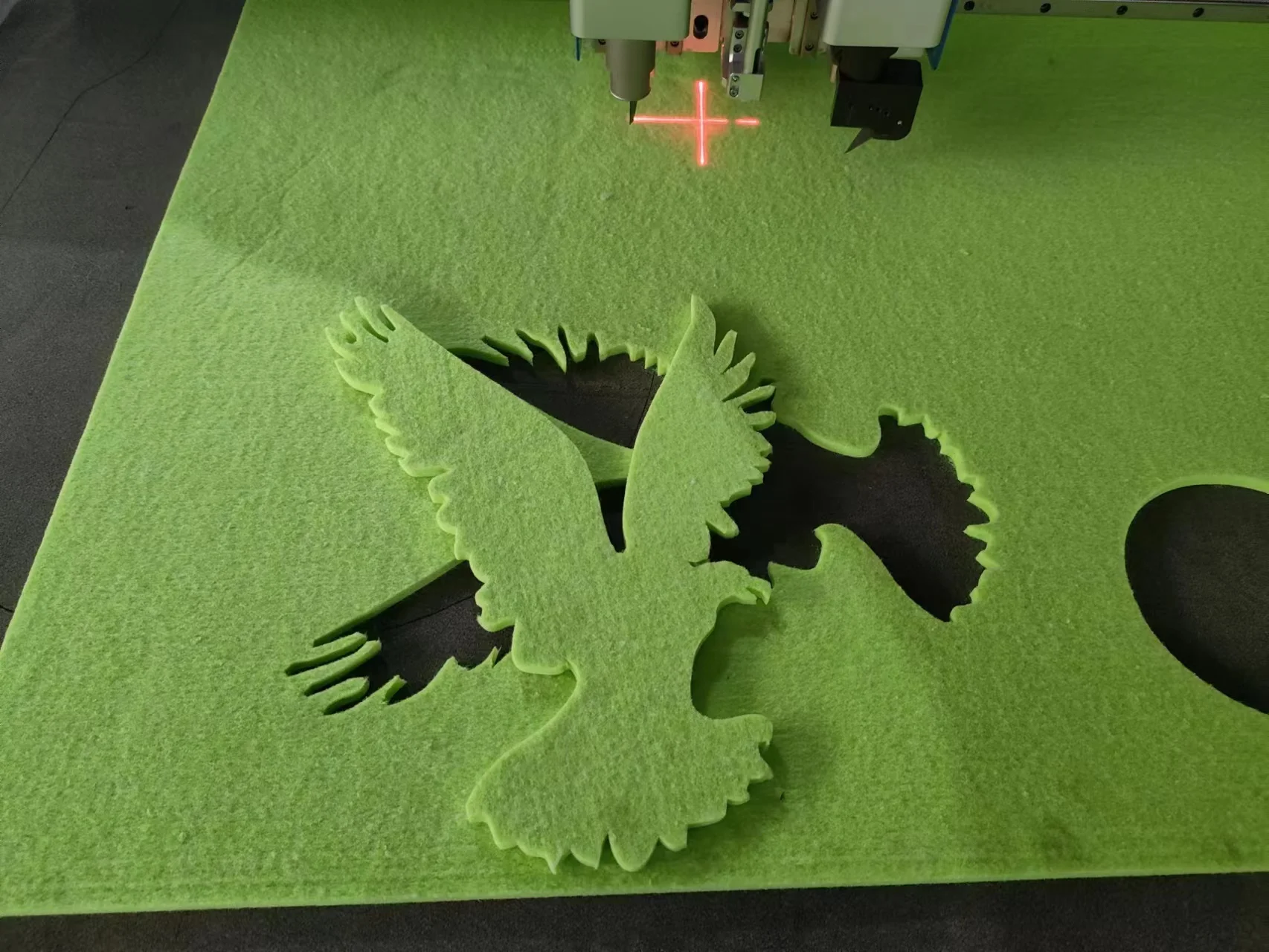

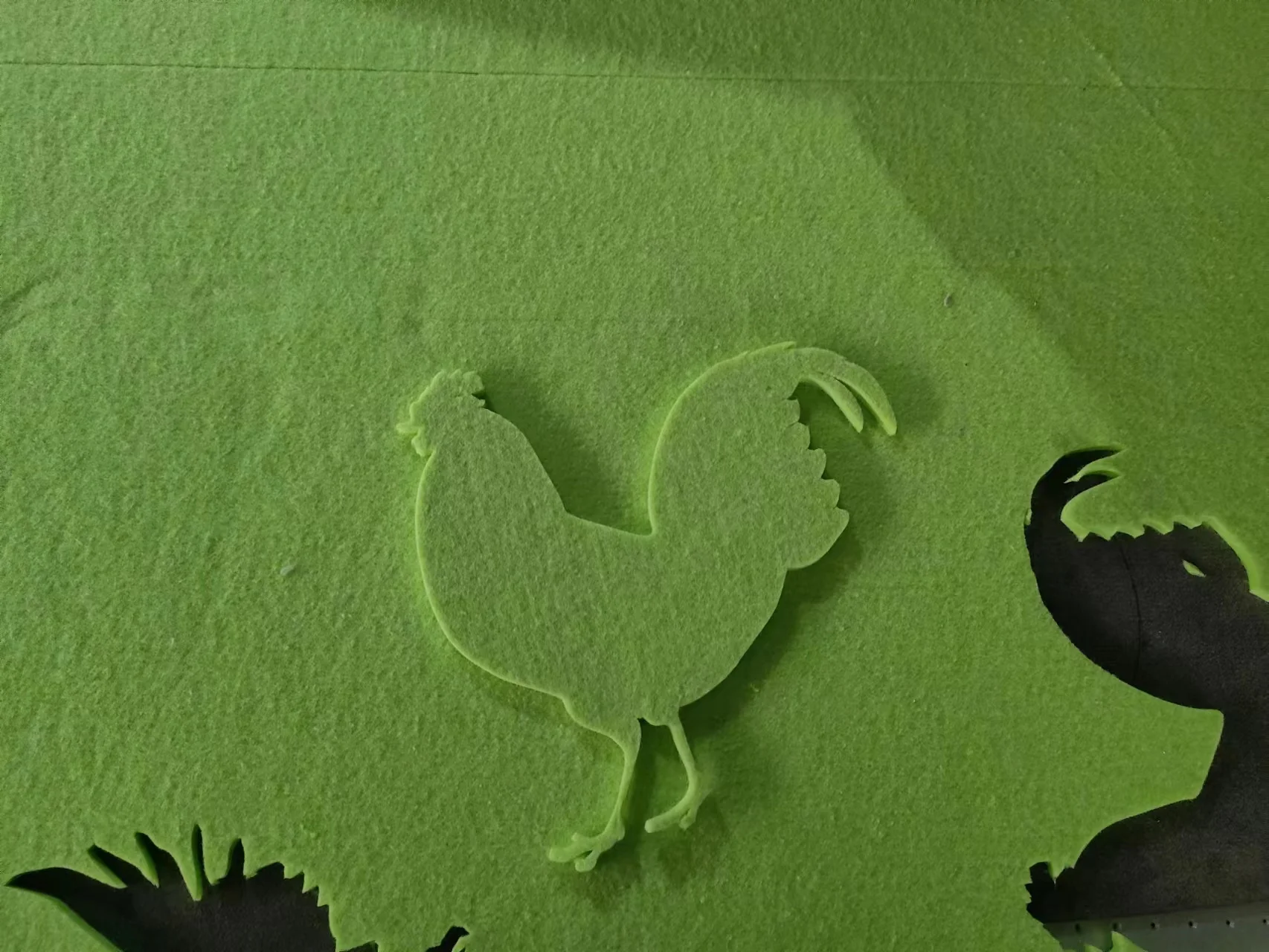

Cutting Samples

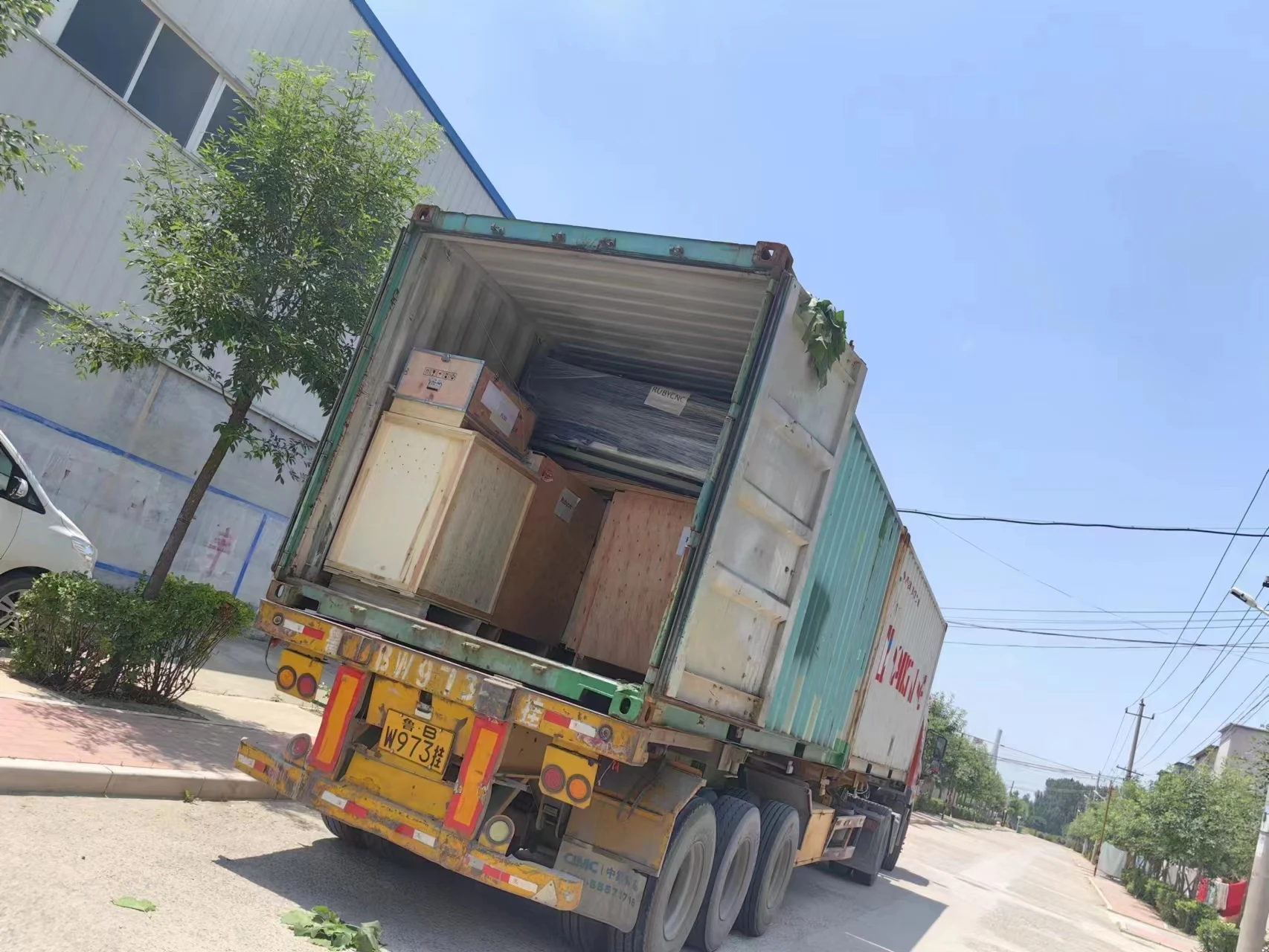

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Q: Are you a factory or Trading company?
A: We are a professional oscillating knife cutting machine production factory, we produce high-end quality CNC cutting machines.
2. Q: Can you customize the machine according to my needs?
A: Yes, we accept the customized machine, our company has an experienced professional design team, we can give you our professional suggestions according to your requirements and design a cost-effective machine for your needs.
3. Q: What is the difference between this knife cutting product and your laser cutting machine?
A: a. This knife cutting machine cut with vibrating blades, no laser, no pollution, and create a good working environment for
workers.
b. Blade cutting can ensure the edge of material cutting smooth without burning.
4. Q: What's the warranty policy?
A:Standard warranty is 36 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period. Problems caused by wrong operate will also well-solved.
5. Q: Can I still get support after warranty?
A: Of course, We offers life-time technology support, you can always counting on our service.
6. Q: This is the first time I buy machine from China, what can you do for me?
A: We supply DDU service for the new buyers. This service means we will deliver machine directly to your factory.
A: We are a professional oscillating knife cutting machine production factory, we produce high-end quality CNC cutting machines.
2. Q: Can you customize the machine according to my needs?
A: Yes, we accept the customized machine, our company has an experienced professional design team, we can give you our professional suggestions according to your requirements and design a cost-effective machine for your needs.
3. Q: What is the difference between this knife cutting product and your laser cutting machine?
A: a. This knife cutting machine cut with vibrating blades, no laser, no pollution, and create a good working environment for
workers.
b. Blade cutting can ensure the edge of material cutting smooth without burning.
4. Q: What's the warranty policy?
A:Standard warranty is 36 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period. Problems caused by wrong operate will also well-solved.
5. Q: Can I still get support after warranty?
A: Of course, We offers life-time technology support, you can always counting on our service.
6. Q: This is the first time I buy machine from China, what can you do for me?
A: We supply DDU service for the new buyers. This service means we will deliver machine directly to your factory.
