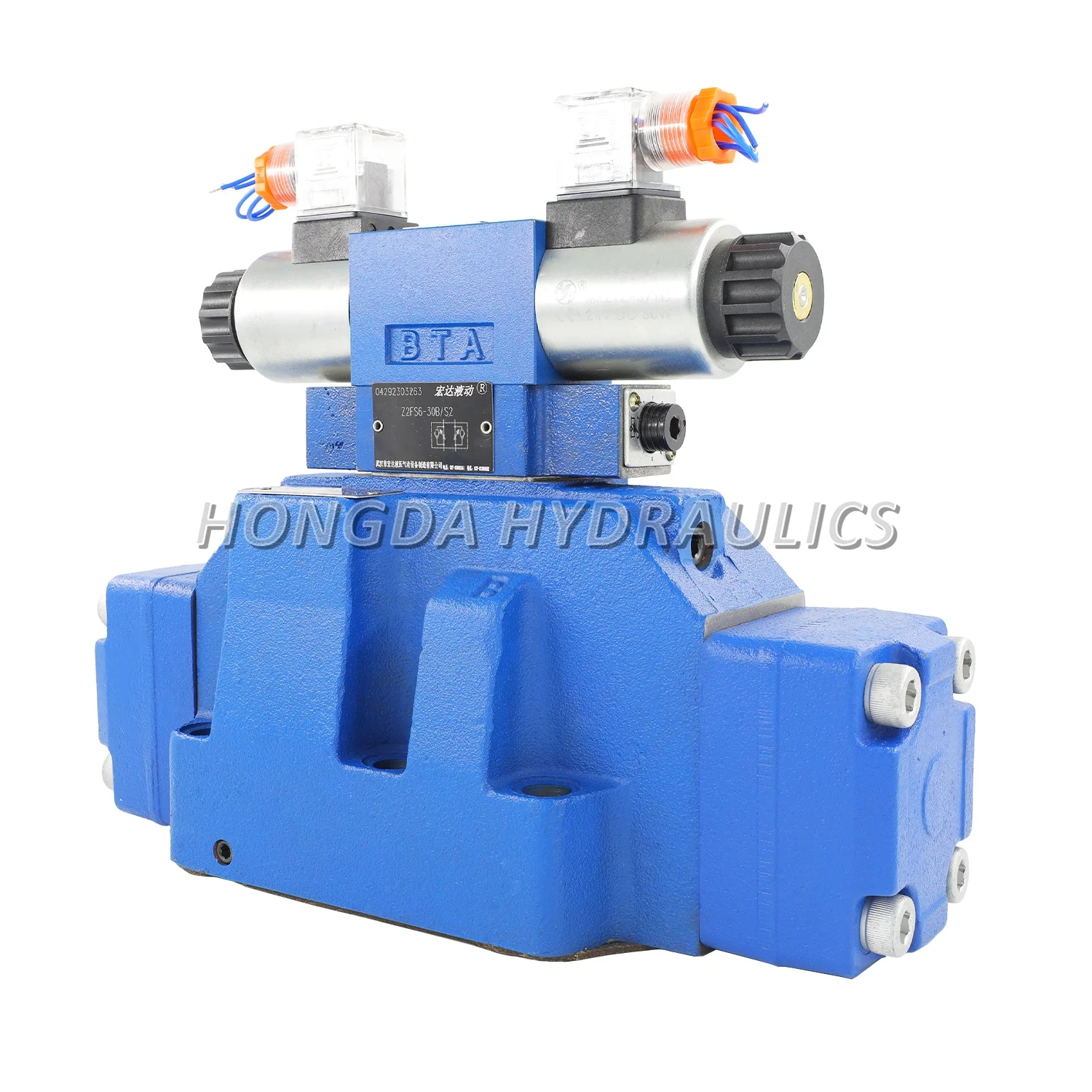

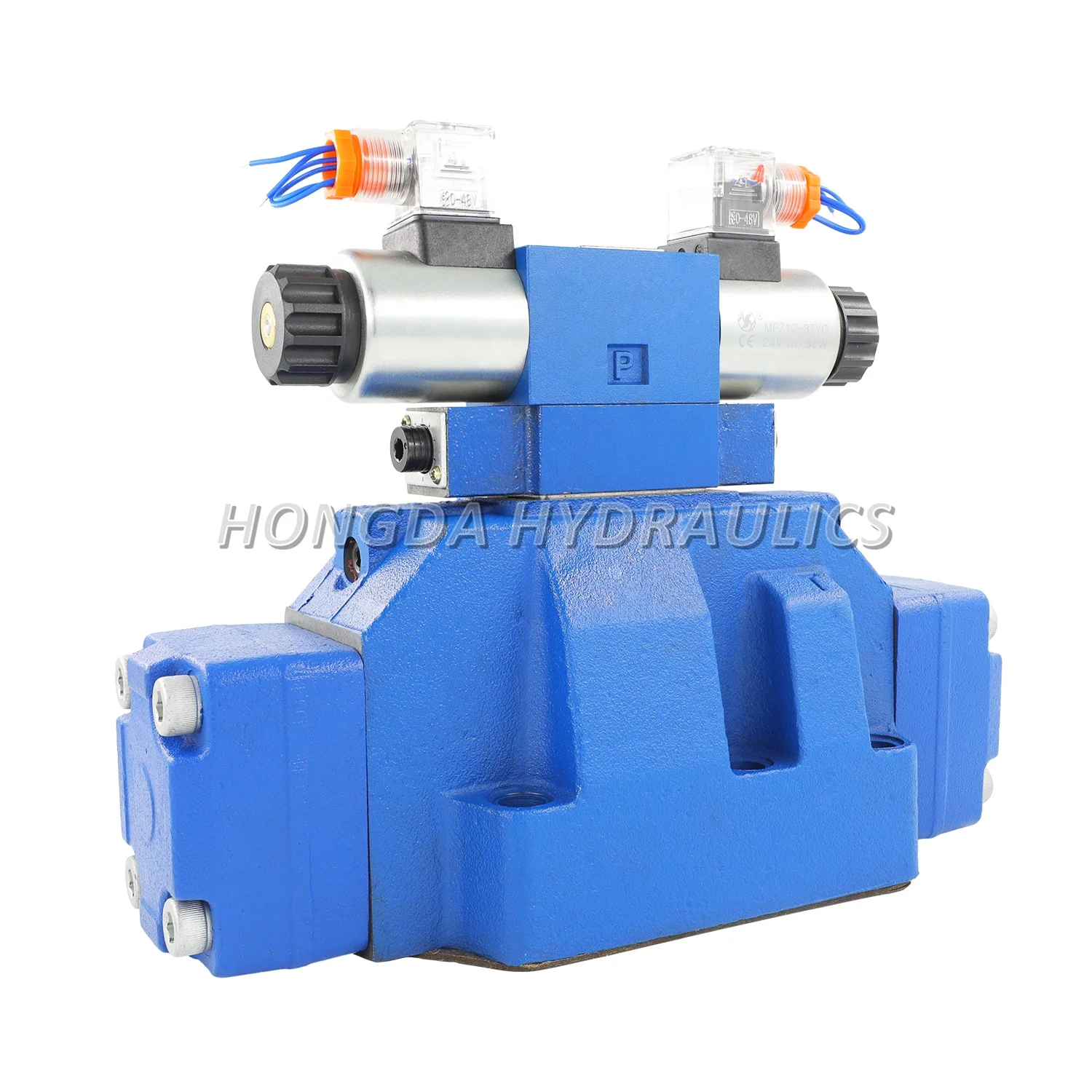

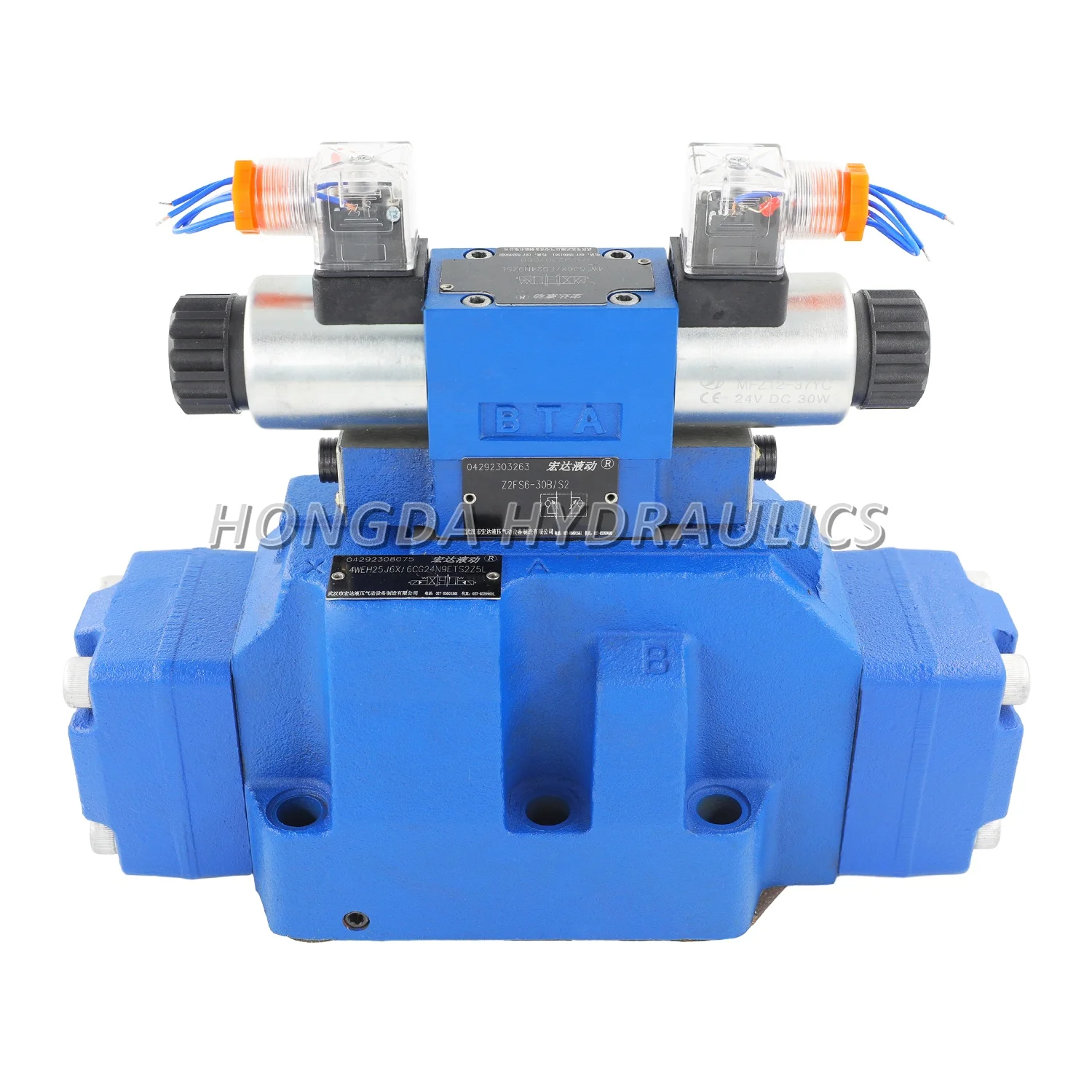

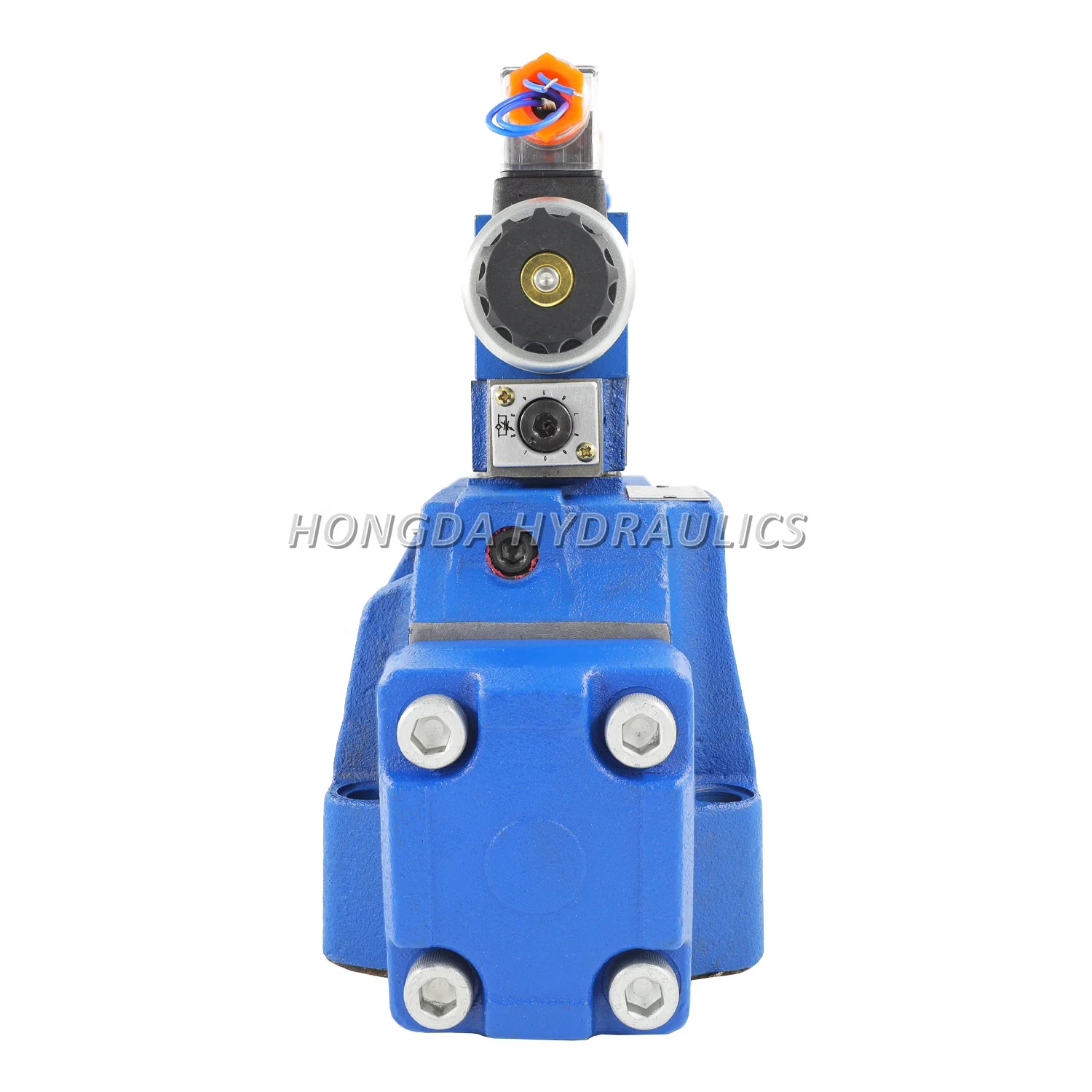

Manufacturer Supply Electro Hydraulically Operated, Pilot Operated, Directional Valve, Type 4WEH10, Up to 35 MPa and 1100 L/min

Directional valves are designed to control the direction of the flow of the working fluid in the hydraulic system. Most often they are used to control the cylinder piston or hydraulic motor, as well as to implement the start and stop positions.

Features:

- Valves used to control the start, stop and direction of a fluid flow

- Electro-hydraulic operation (WEH), hydraulic operation (WH)

- For subplate mounting

- Spring or pressure-centred,spring or hydraulic offset

- Wet-pin DC or AC solenoids, optional

- Manual override, optional

- Electrical connection as individual or central connection

- Shifting time adjustment, optional

- Pre-load valve in the P-channel of the main valve, optional

- Auxiliary equipment:

Stroke adjustment at main spool, optional

Stroke adjustment and/or end position indicator, optional

Mechanical or inductive limit switch (proximity type) at the main spool, optional

- Porting pattern to Din 24 340 form A, ISO 4401 and CETOP-RP 121H

Is sample order acceptable?

Yes, it's ok.

How will we make the shipment?

By sea shipment/Air/Express service.

Can we provide custom hydraulic cylinder solutions?

Yes, we specialize in custom hydraulic cylinder solutions. Our experienced engineering team works closely with customers to design and manufacture hydraulic cylinders tailored to their specific applications and requirements.

How can I request a quote?

To request a quote, simply visit our website or contact our sales team. Provide details about your specific requirements, and our team will promptly provide you with a competitive and customized quote.
