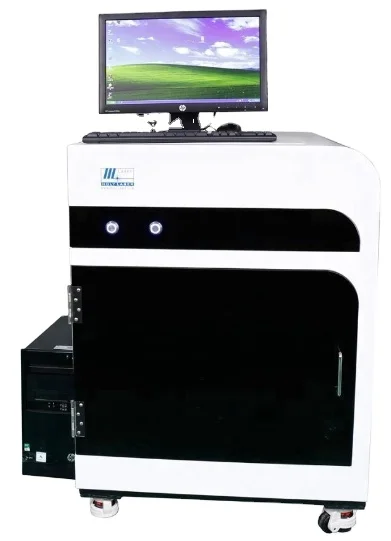

HOLY LASER 2D 3D Crystal Subsurface Laser Engraving Machine Engraving Photo into Crystal Glass Price for Gift Shop
- Category: >>>
- Supplier: Zhejiang Holy Laser Technology Co. Ltd.
Share on (1601005159090):
Product Overview
Description
Product Overview

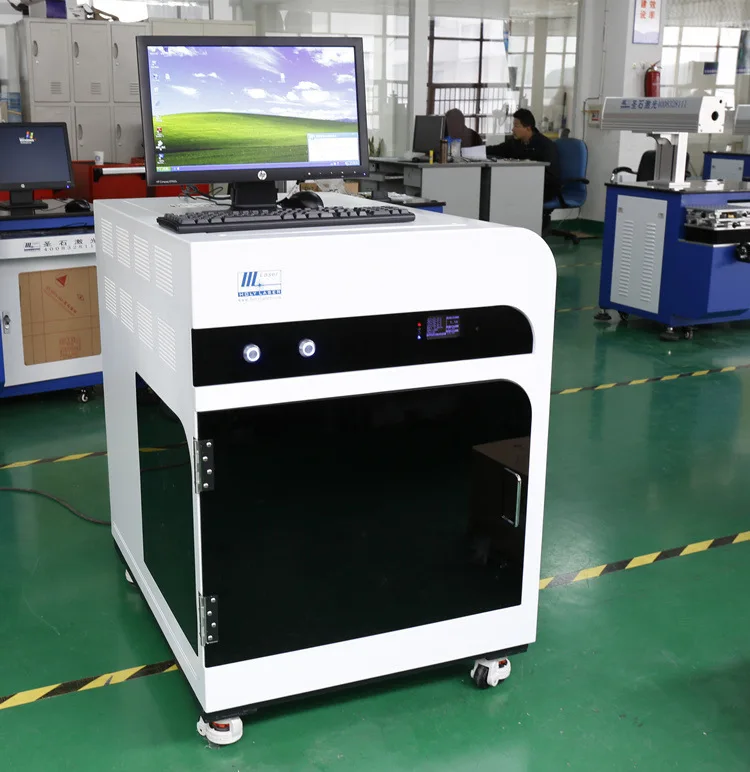

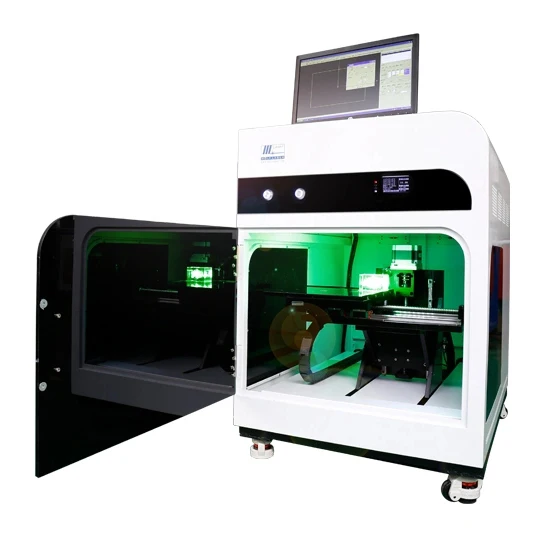

HSGP Series 3D Crystal Laser Engraving Machine
Introduction:
Holy Laser technology independent research and development of HSGP series of 3d laser engraving machine, the imported laserequipment, independent design control system, fully consider the special needs of the user in different application direction,software and hardware operation efficiency, carving, equipment stability, free-maintenance, especially suitable for artificialcrystal, glass, acrylic transparent rigid material three dimensional laser engraving, has been widely used in three-dimensional,two-dimensional crystal photo engraving, personalized crystal engraving gift customization, high fine crystal products batchprocessing, glass decoration and other business areas.Main Functions:
Engraving plane or three-dimensional patterns in transparent materials such as crystal and glass.
It can engrave 2D / 3D portraits, personal footprints, trophies and other personalized gift souvenirs, and can also mass-produce 2D / 3D animals,plants, buildings, cars, ships, aircraft and other model products and 3D scene display.

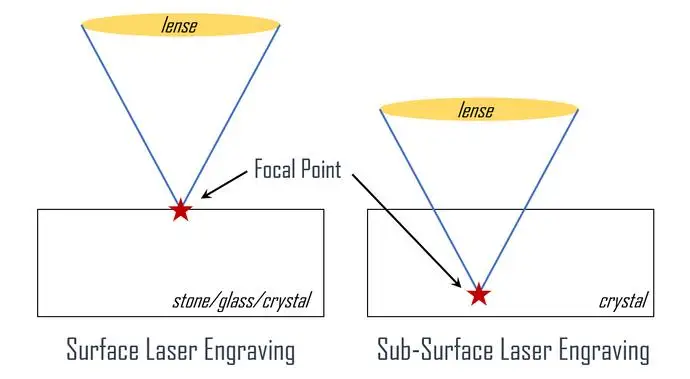

Engraving Principle
Engraving laser will be a certain wavelength of laser into the glass or crystal inside, so that the internal
specific parts of the subtle burst to form bubbles, so as to outline the preset shape of the processing process,
also refers to the processing out of this process. Laser "is the most useful tool for engraving artificial crystals
(also known as" crystal glass "). Using the laser interior engraving technology, the plane or three dimensional
pattern is "engraved" on the inside of the crystal glass
specific parts of the subtle burst to form bubbles, so as to outline the preset shape of the processing process,
also refers to the processing out of this process. Laser "is the most useful tool for engraving artificial crystals
(also known as" crystal glass "). Using the laser interior engraving technology, the plane or three dimensional
pattern is "engraved" on the inside of the crystal glass
PRODUCT SPECIFICATIONS
No | Item | 3D Crystal Subsurface Laser Engraving Machine | ||
1 | Laser Power | 2.5±0.3W | ||
2 | Max Working Area | 300*400*130mm | ||
3 | Laser Wavelength | 532nm | ||
4 | Engraving Speed | 6000dots/sec | ||
5 | Max Pulse Energy | 1. 2mj | ||
6 | Pulse Width | 7ns | ||
7 | Beam Quality | M2＜1.5 | ||
8 | Resolution | 1200DPI | ||
9 | Focus Diameter | 0.02mm | ||
10 | Focal Length | ≥100mm | ||
11 | Cooling | Air Cooling | ||
12 | Power Supply | AC220V+/-10%, 50Hz/60Hz | ||
Features
1.Small size: adopt integrated design, small volume , light weight.
2.Simple operation: friendly software interface, simple and easy to learn; integrated automatic center function, convenient crystalplacement for operator.
3.Strong adaptability: According to the mobile needs of the machine, the core components are equipped with shock proof system.which effectively prevents the damage caused to the core components of the machine due to accidental impact during the transportation of equipment and use.
4.Fast Engraving speed: using the vibrator laser high speed scanning working mode, the maximum speed can reach 240000/300000
dots/min.
dots/min.
5.High stability, exquisite engraving effect: using the world's advanced air cooled high frequency narrow pulse wide pump solid stat e
laser technology, good beam quality, high stability, the engraved point effect is exquisite.
laser technology, good beam quality, high stability, the engraved point effect is exquisite.
6.Support a variety of data formats: equipped with HOLY LASER special software can support 3DS, DXF, OBJ, BMP, JPG and any flat
and 3D format data, with good compatibility.
and 3D format data, with good compatibility.

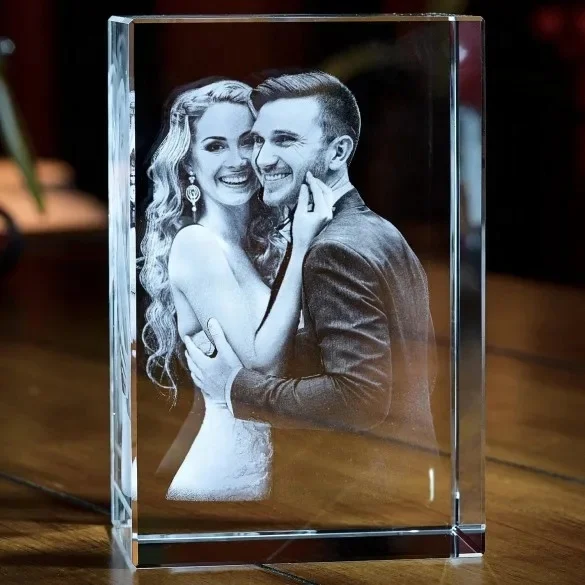

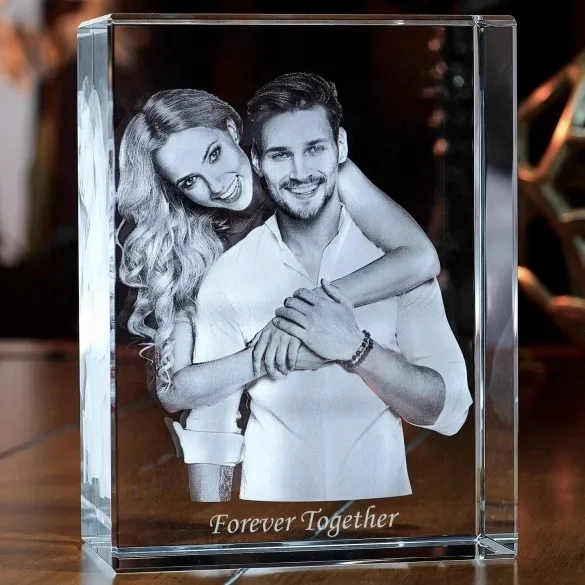

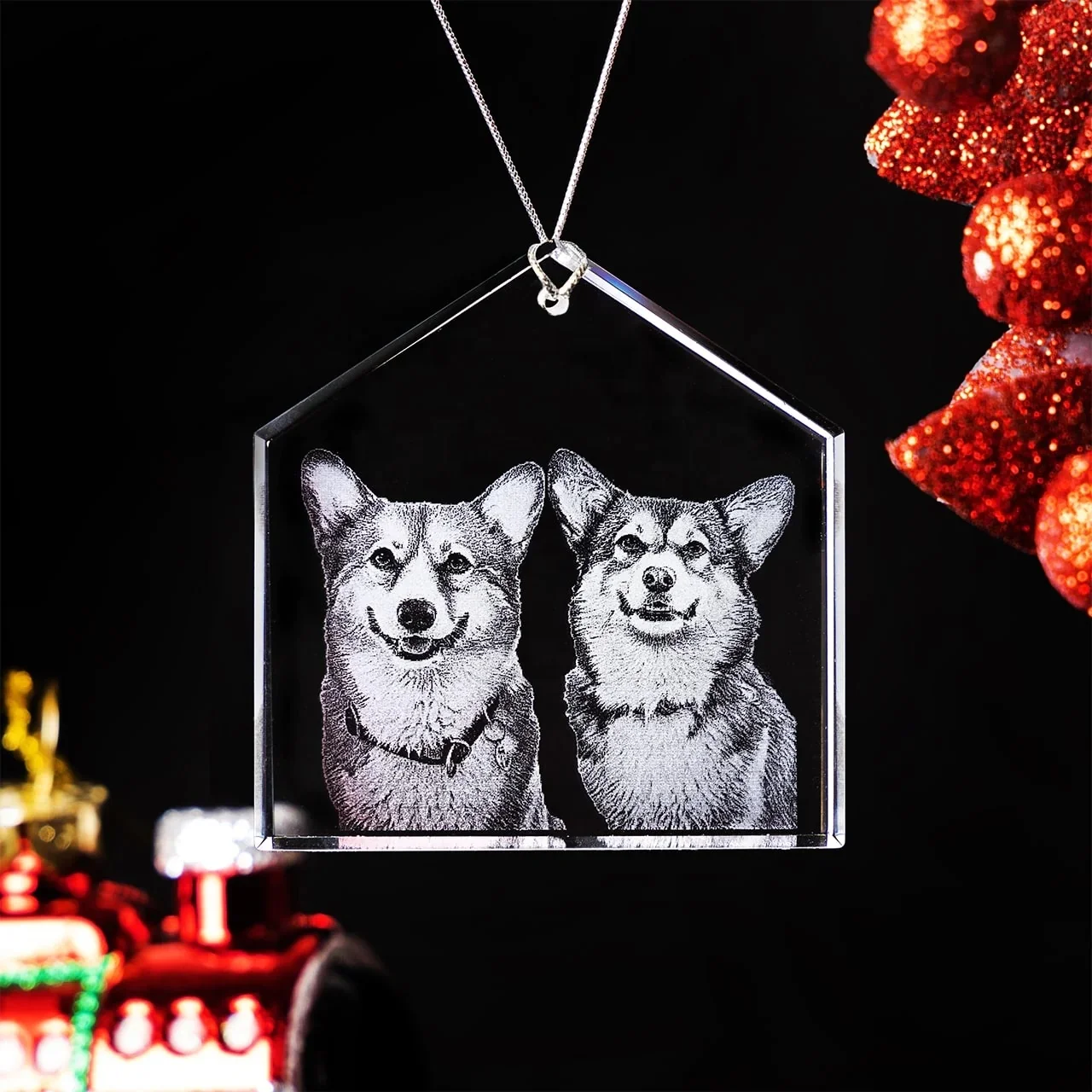

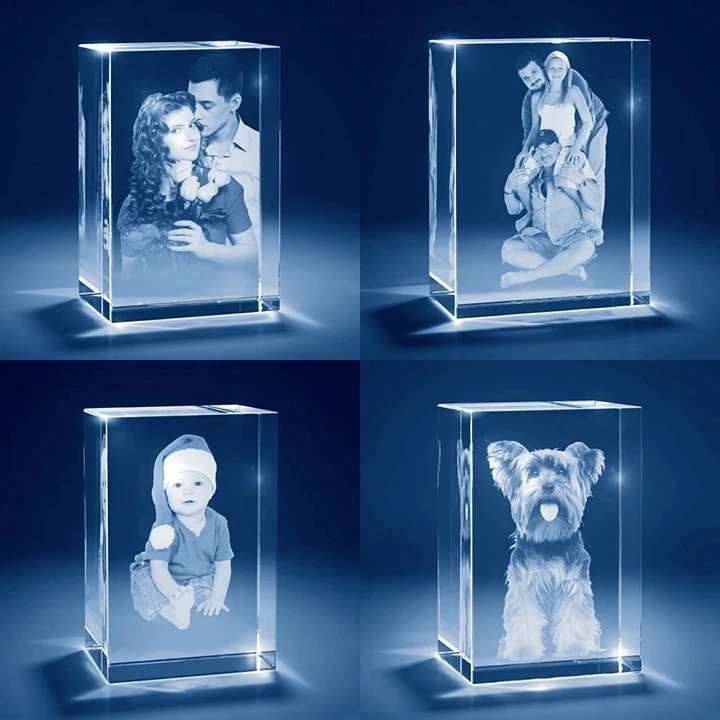

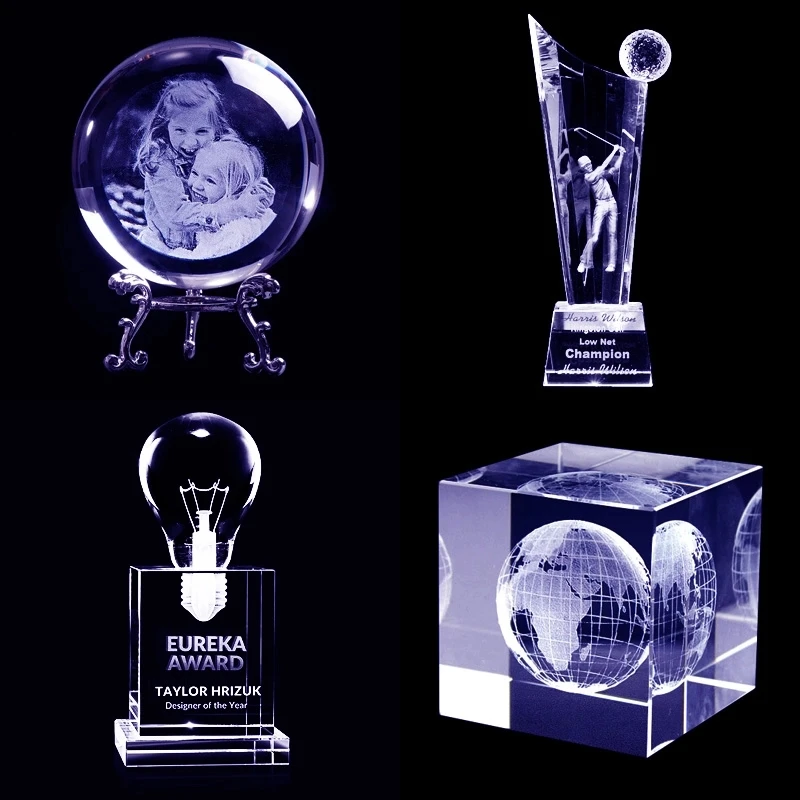

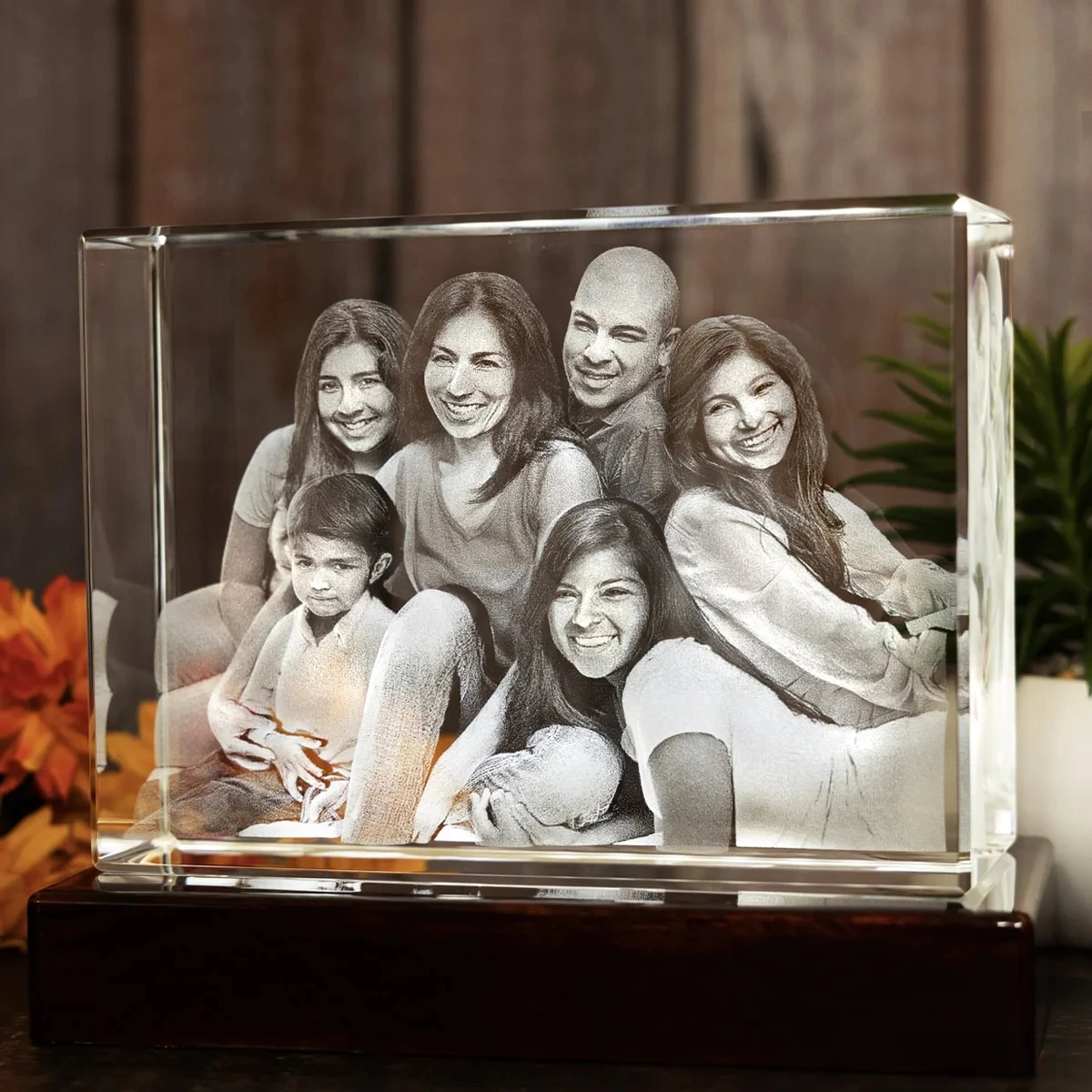

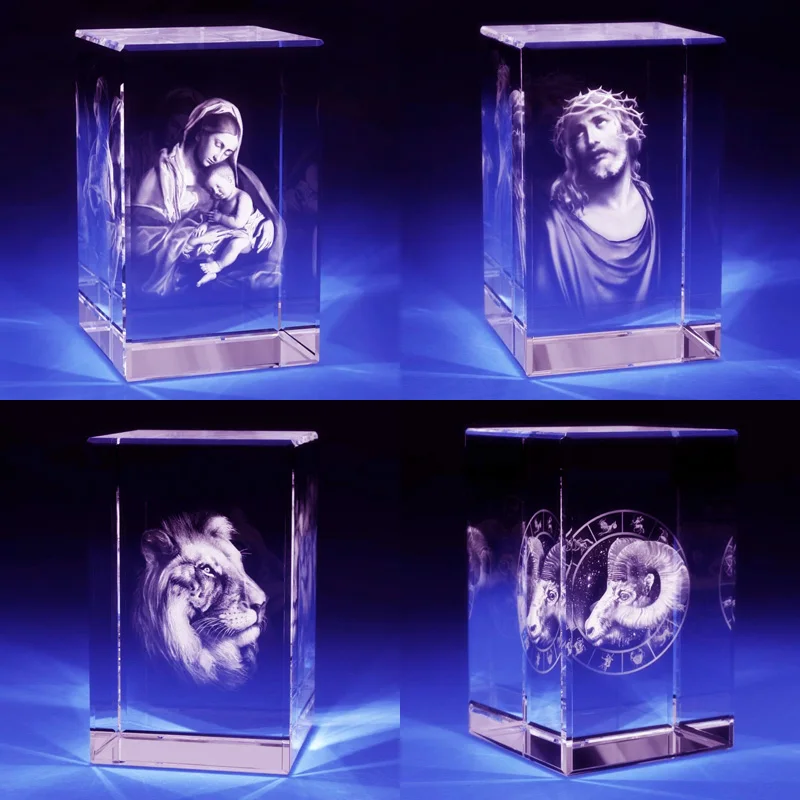

Samples Show

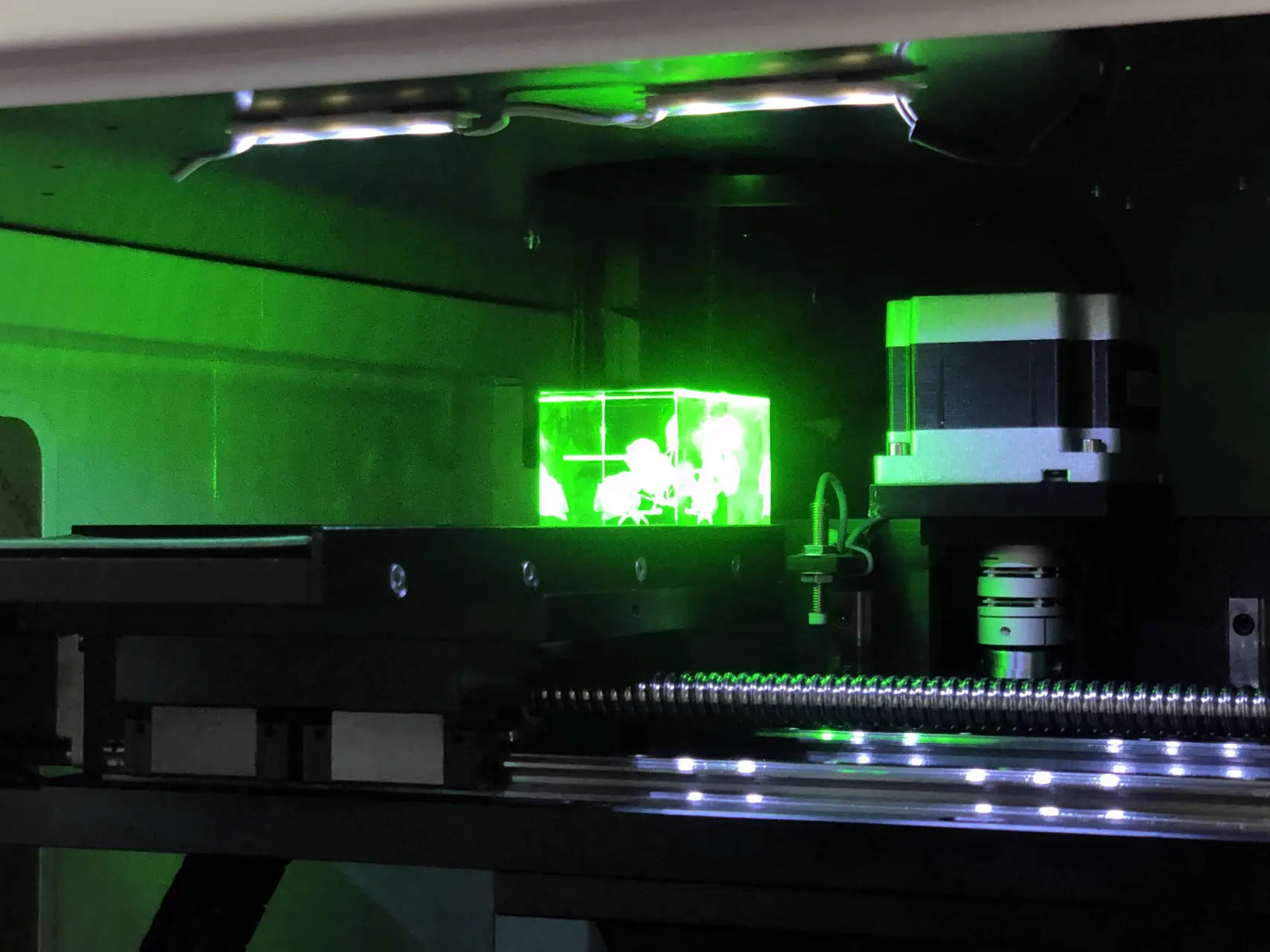

Product Configuration
Hi-Speed Field Lens from Singarpore
Hiwin Power Supply from Taiwan
Universal Wheel Easy to Move
DIODE laser source from Germany
Panasonic Guide Rail from Japan
Precise Laser Control Card
Fiber Cable Wire from France
Screw Road
X, Y, Z sensor

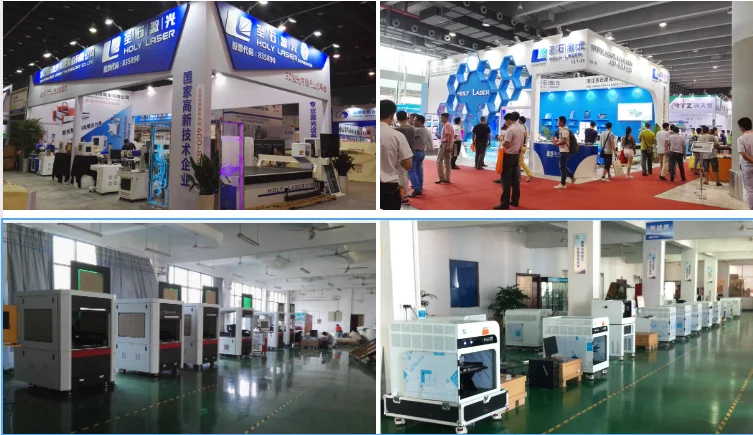

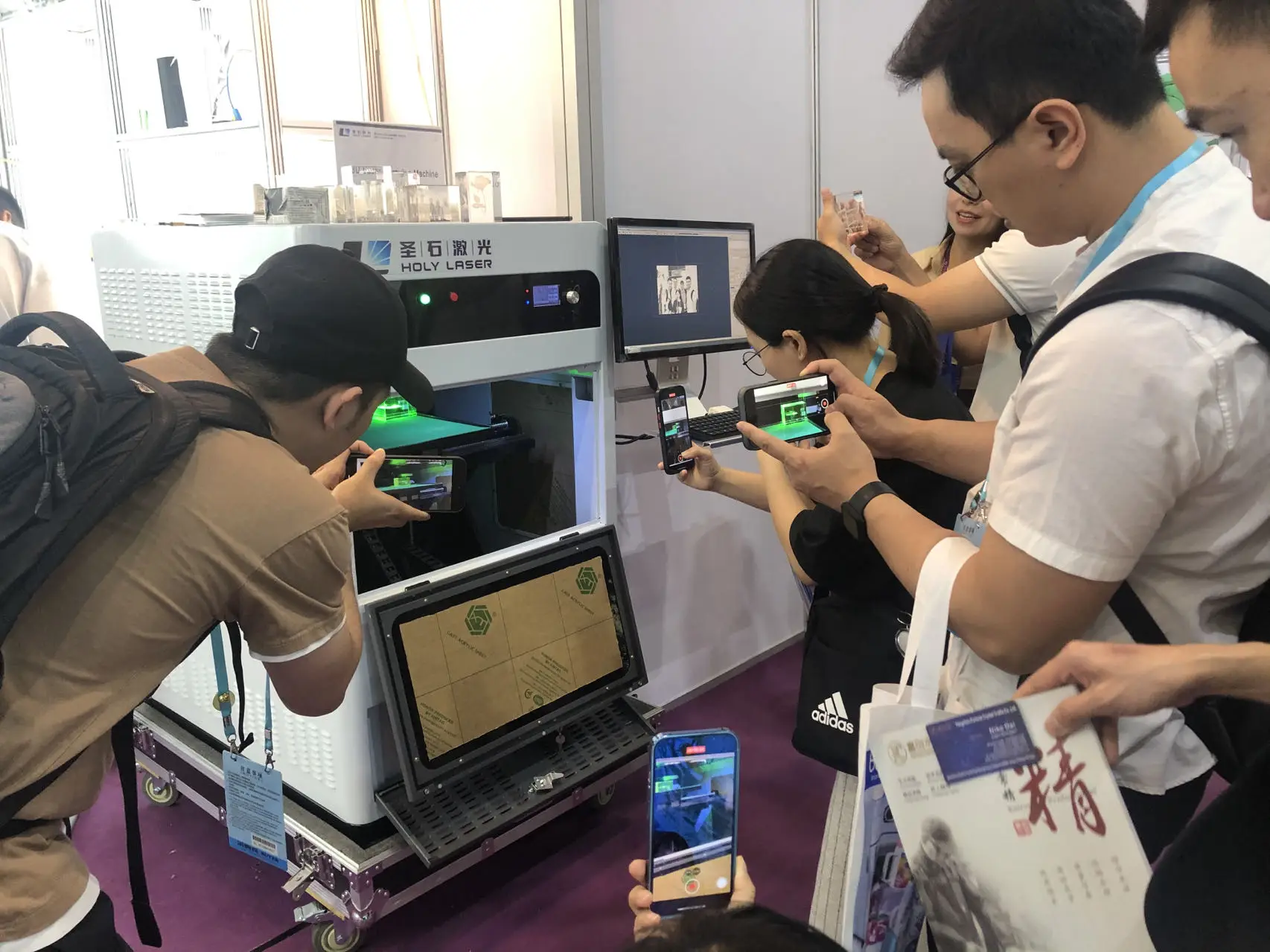

Various Fairs
FAQ
Q: What’s the package?
A: We have 3 layers package: The outside is flight case, which has wheels, easy to move. In the middle is covered with thick sponge to protect the machine from shaking. Inside this is covered by thickening plastic bag for waterproof.
A: We have 3 layers package: The outside is flight case, which has wheels, easy to move. In the middle is covered with thick sponge to protect the machine from shaking. Inside this is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation.
Q: How to install and run the machine?
A: Our engineer have installed and tested the machine before shipping. No parts need installed.
For running machine, we have menus and videos to show you for training. And we also will training you on line. Most of customers training to run the machine like this, very little customer come factory for training.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us ASAP and do not try to fix the machine by yourself or someone else. We will response within 24 hours as quickly as we can to solve it for you.
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation.
Q: How to install and run the machine?
A: Our engineer have installed and tested the machine before shipping. No parts need installed.
For running machine, we have menus and videos to show you for training. And we also will training you on line. Most of customers training to run the machine like this, very little customer come factory for training.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us ASAP and do not try to fix the machine by yourself or someone else. We will response within 24 hours as quickly as we can to solve it for you.
