15611 NPT Male Straight Connector Hose Nipple Coupling High Pressure Rubber Pipe Fitting
Product Description

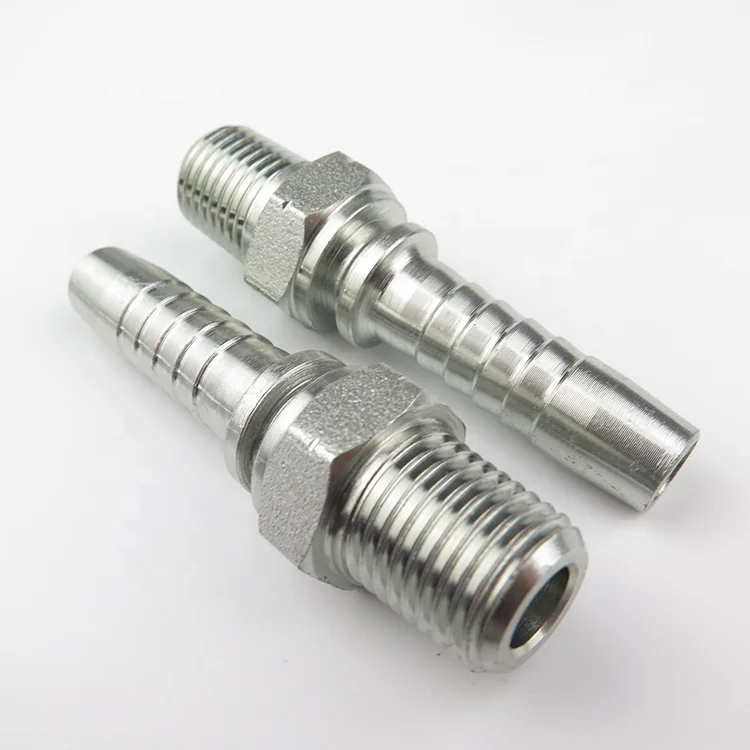

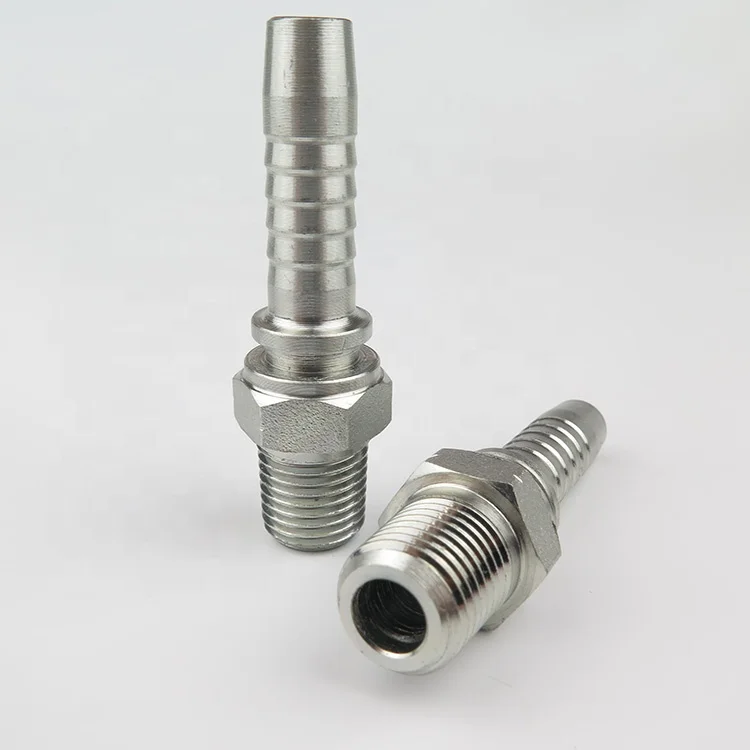

15611 NPT Male Fitting
| PART NO. | T | HOSE BORE | DIMENSIONS | ||
| THREAD T | DN | DASH | L | 1 | |
| 15611-02-04 | Z1/8"X27 | 6 | 4 | 18.5 | 12 |
| 15611-04-04 | Z1/4"X18 | 6 | 4 | 22.5 | 17 |
| 15611-04-05 | Z1/4"X18 | 8 | 5 | 22.5 | 17 |
| 15611-04-06 | Z1/4"X18 | 10 | 6 | 22.5 | 17 |
| 15611-06-04 | Z3/8"X18 | 6 | 4 | 21.5 | 19 |
| 15611-06-05 | Z3/8"X18 | 8 | 5 | 23.5 | 19 |
| 15611-06-06 | Z3/8"X18 | 10 | 6 | 23.9 | 19 |
| 15611-06-08 | Z3/8"X18 | 13 | 8 | 24.4 | 19 |
| 15611-08-06 | Z1/2"X14 | 10 | 6 | 26.5 | 22 |
| 15611-08-08 | Z1/2"X14 | 13 | 8 | 26.5 | 22 |
| 15611-08-10 | Z1/2"X14 | 16 | 10 | 28 | 22 |
| 15611-12-08 | Z3/4"X14 | 13 | 8 | 29 | 27 |
| 15611-12-10 | Z3/4"X14 | 16 | 10 | 29.5 | 27 |
| 15611-12-12 | Z3/4"X14 | 19 | 12 | 30 | 27 |
| 15611-12-16 | Z3/4"X14 | 25 | 16 | 31 | 32 |
| 15611-16-10 | Z1"X11.5 | 16 | 10 | 33.5 | 36 |
| 15611-16-12 | Z1"X11.5 | 19 | 12 | 34 | 36 |
| 15611-16-16 | Z1"X11.5 | 25 | 16 | 35 | 36 |
| 15611-20-16 | Z1.1/4"X11.5 | 25 | 16 | 37.5 | 46 |
| 15611-20-20 | Z1.1/4"X11.5 | 32 | 20 | 38.5 | 46 |
| 15611-24-24 | Z1.1/2"X11.5 | 38 | 24 | 40.5 | 50 |
| 15611-32-32 | Z2"X11.5 | 51 | 32 | 43.5 | 65 |
NOTE:1,For use with braided hoses. 2,If use spiral hoses,hose fitting series number is 15612-XX-XX.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white wearable woven bags. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
