Product Overview
Description
Supply FTTH Aerial Drop Cable Optisches Kabel Optik GJYXCH optical fiber cable 12 core fiber optic drop cable GJYXFCH
Product Description
Product Characteristics
- Flex Durable Fiber: The cable features flex durable fiber to enhance network transmission characteristics and provide greater bandwidth .
- Strength Members: It includes two parallel metallic strength members to protect the fiber and provide adequate tension and pressure, ensuring good tensile performance.
- Simple Structure: The optical cable has a simple structure, making it lightweight and highly practical.
- Unique Groove Design: It incorporates a unique groove design for easy peeling off and splicing, simplifying installation and maintenance.
- Halogen-Free Sheath: The cable is equipped with a low smoke halogen-free flame-retardant sheath, promoting environmental friendliness.
Application
The cable is suitable for both indoor and outdoor wiring systems, FTTH terminal systems, and indoor and outdoor shaft and building wiring.
This detailed description provides a comprehensive overview of the product's features and applications, highlighting its flexibility, durability, and practicality for various network transmission needs.

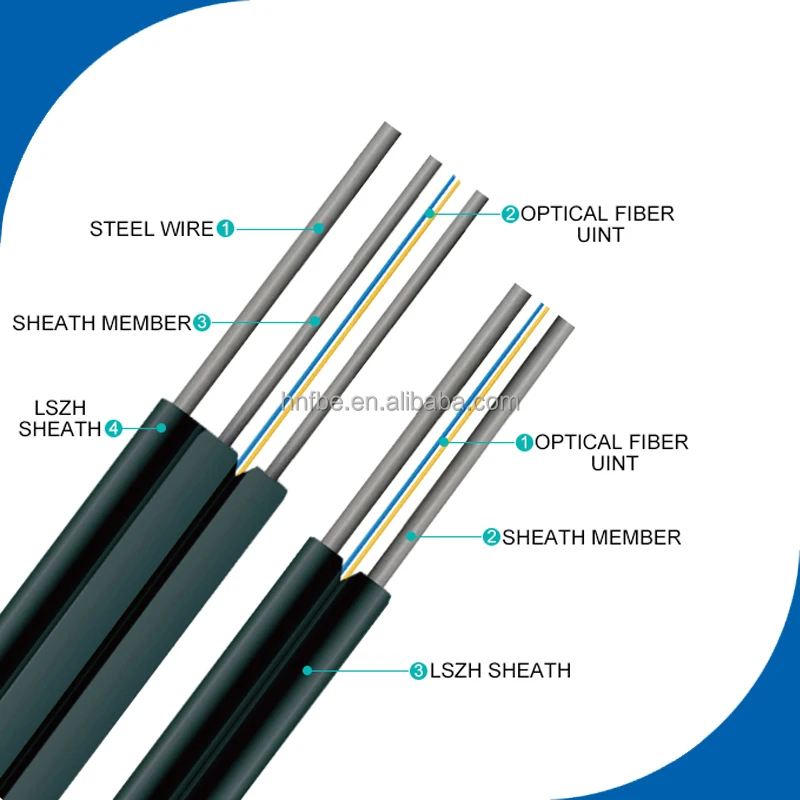

Structural Parameter
Model No. | Count | Cable Size (mm) | Weight (kg/km) | Tension | Crush (N/100mm) | Bending Radius Static / dynamic |
GJYXCH-1Xn | 1 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
GJYXCH-2Xn | 2 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
Optical Fibre Performance
Type | Fiber attenuation(+20℃) | OFL | Band Width | 10G Ethernet link length | Minimum bending radius | |||
Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
Typical value | MAX | Typical value | MAX | |||||
Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Transportation / storage / use temperature: -20 ℃ ~ + 60 ℃
