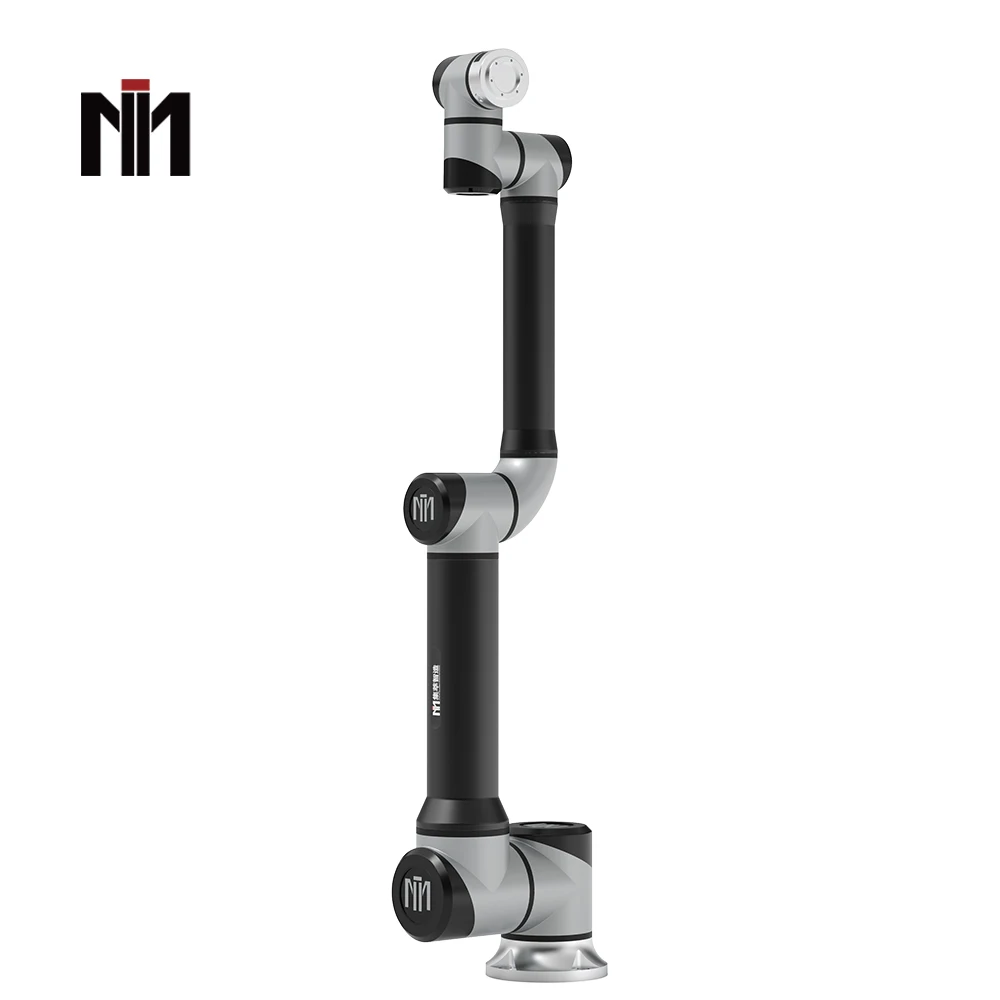

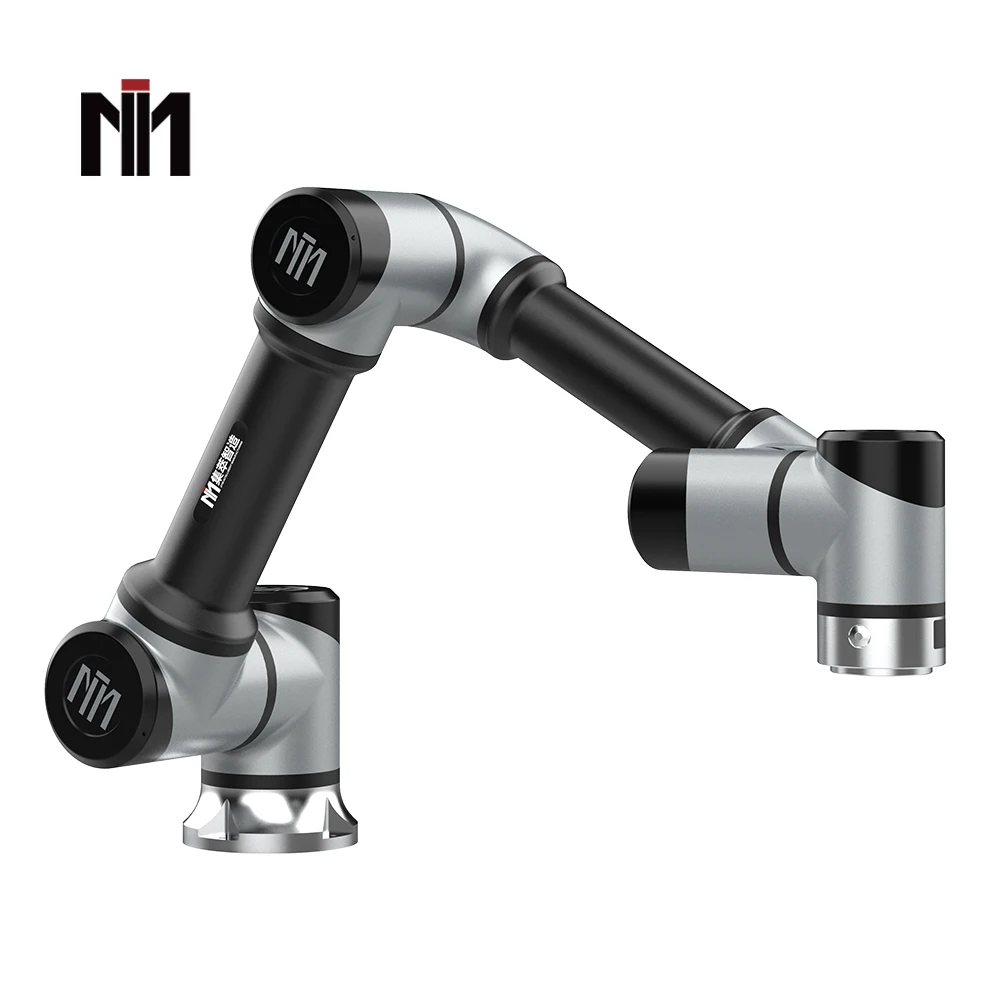

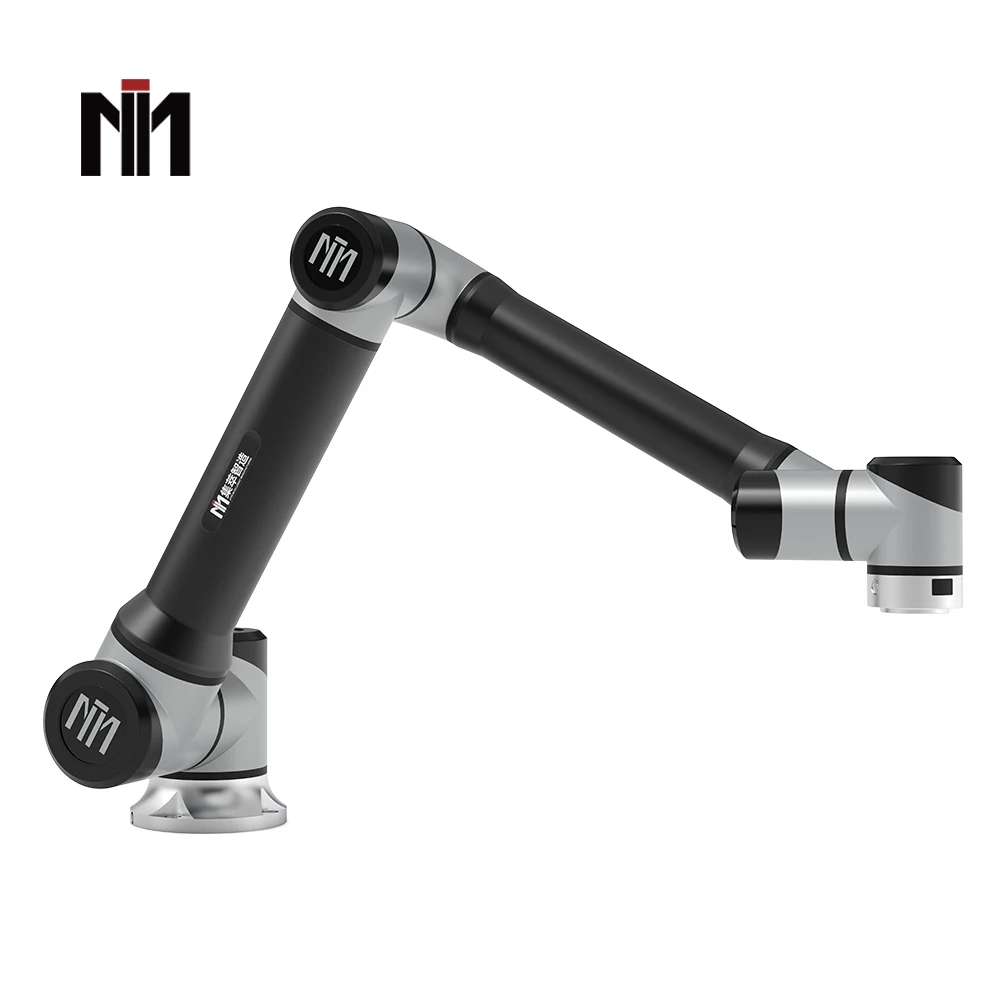

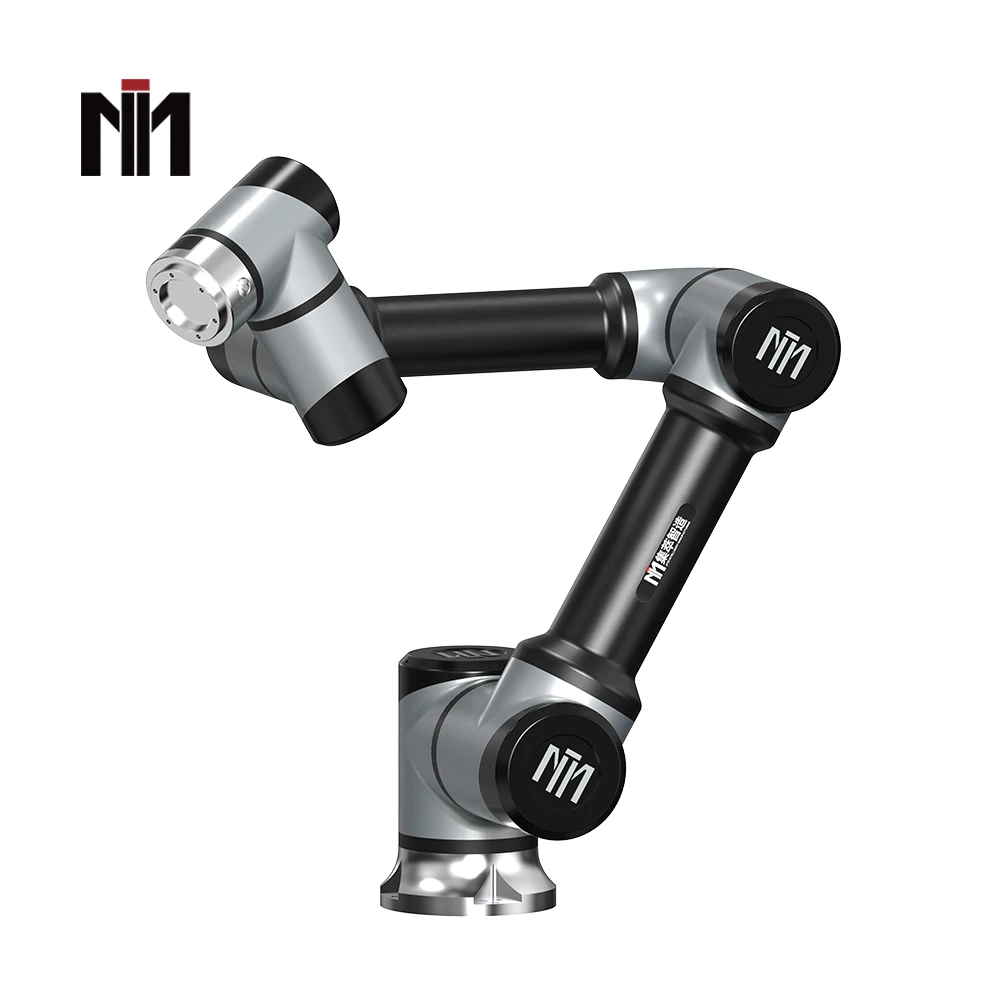

Industrial Collaborative 6 Axis Robot With Camera For Casepacker Assembly Automation
- Category: >>>
- Supplier: Jiangsu Jitri Intelligent Manufacturing Technology Institute Co. Ltd.
Share on (1601005250326):
Product Overview
Description
Third Generation - COLLABORATIVE ROBOT - CI Series
Full coverage of load and working range; repeat positioning accuracy +0.03mm. absolute positioning accuracy 0.1mm; working speed increased by 20%.
Products Description
Model | IIMT-CI-03 | IIMT-CI-05 | IIMT-CI-10 | IIMT-CI-16 | IIMT-CI-20 | ||||
Self Weight | 13kg | 20.4kg | 32kg | 50kg | 64kg | ||||
Payload | 3kg | 5kg | 10kg | 16kg | 20kg | ||||
Working Radius | 60mm | 900mm | 1300mm | 1000mm | 1650mm | ||||
Repeatability | ±0.03mm | ±0.03mm | ±0.05mm | ±0.05mm | ±0.05mm | ||||
Max Joint and Tool Speed | Joint: 180°/s Tool: 0.9m/s | Joint: 180°/s Tool: 1.5m/s | Joint: 180°/s Tool: 2.0m/s | Joint: 180°/s Tool: 1.6m/s | 1-2 Joint: 90m/s, 3 Joint: 160m/s, 4-5-6 Joint: 180°/s Tool: 2.5m/s | ||||
Safety Certificate | CE,CNAS,5 security configurations, Comply with EN ISO 13849-1:2008, PLD | ||||||||
Joint of Range Motion | The 6th joint is +360", the remaining joints are :180° | ||||||||
Degree of Freerdom | 6 Rotating Joints | ||||||||
Programming | Teach pendant graphical programming, handheld PAD programming, lua script programming, C/C++ programming.Python programming,SDK library | ||||||||
Carbinet Dimension | 3kg/5kg/10kgCarbinet: 440*260*215.7: 16kg/20kCarbinet: 440*290*2827 | ||||||||
Carbinet I/O | 16 digital input, 13 digital output, 4 analog input (2 4~20mA, 2 0~10V) | ||||||||
Response Time After Collision | ≤0.1s | ||||||||
Collision Safety Detection | 30N | 30N | 50N | 50N | 50N | ||||
Rated Power | Approx. 200W | Approx. 300W | Approx. 500W | Approx. 500W | Ave: 1200W, Max 3000W | ||||
Robot & Human Integration | Collision detection, drag teaching, safety area setting, 48V power supply for the body | ||||||||
Warranty | 1 year | ||||||||
Material | Aluminum alloy,ABS plastic | ||||||||
Communication Interface | TCP/IP 100Mbit.ModbusTCP | ||||||||
Components List | Robot arm, control cabinet, Teaching Pendant. cable. operating manual, certificate | ||||||||
Ambient Temp. | 0~45 | ||||||||
Ambient Humidity | 25~85%(Non-condensing) | ||||||||
Braking Mode | IIMT-CI-05 models brake by relay, other models are brake brake | ||||||||
Quality Assurance:
Professional testing of core components. Products have passed multiple certifications. More than 30 key parts verified.
Faster
Work speed increased by 20%. 6 degrees of freedom trajectory planning optimization. Application tempo is greatly improved.
More powerful function
Terminal integrated 485 communication. Added end drag teaching and record point button. Terminal integrated analog output.
Precision NC Machining
It's suitable for precise processing of complex parts, automatic planning of processing path, integration of milling, boring, drilling tapping and cutting threads and other functions. It can complete processing tasks at one time, reduce accumulated errors, improve processing efficiency and accuracy, and ensure product quality.
3D Printing Processing
It can be used to add materials for metal or non-metal components, spare parts, functional samples and parts of complex mechanism. It can process parts directly according to CAD data quickly, flexibly and efficiently, and produce first-class customized parts with perfect matching between high quality and application.
Water Cutting Processing
It's used for materials that can not be processed or difficult to be processed by general methods, such as glass ceramics, stone, metal carbon fibers, reflective materials, chemical fibers and heat sensitive materials. The cutting speed is fast, the efficiency is high, the slit is narrow, the cut is smooth, there is no heat distortion, and the process cost is low.
Three-Coordinate Measurement
It's used for measuring complex geometry parts, and for testing items such as parts, dies, threads, gears, blades, reverse, engineering, design, profile and so on.
Spectrometry
Suitable for rapid analysis of matrix composition, covering analysis of metallic and non-metallic elements in alloys, such as C, Si, Mn, P, S, Cr,Ni, Al, Co, Cu, Nb, Ti, V, W, Fre etc.
Roundness Eylindricity Measurement
Used in high precision simulation manufacturing process, it can measure such data as roundness, cylindricity, flatness, verticality, concentricity, coaxiality, gradient, full funout, eccentricity, etc
Scanning electron microscope
Low vacuum, high vacuum and ultra-high vacuum operating mode, without material limitation. It can be used for multi-directional micro-area morphology contrast analysis of metal and non-metal materials, and can be used for micro-area composition analysis with energy dispersive spectrometer.
Academic Activities
1. Joint Research and development with Monash University Laboratory in Australia: Research and development of auxiliary puncture robot based on CT Image processing.
2. Robot control and sensor manufacturing of special pipe fittings in Northwestern University.
3. University of Sydney, Australia to explore the establishment of a field robot research and development center.
4. Multi-sensor information fusion and big data analysis at Michigan State University.
Company Profile
Jiangsu Jitri Intelligent Manufacturing Technology Institute Co., Ltd. ( IIMT) is located in Nanjing China and set up in 2016. With the professional service team, fast delivery, perfect customer service network to help our customers to promote effective industrial automation process, we are committed to be the realizable partner of the honored customers all over the world.
Jiangsu Jitri IIMT is a high-tech enterprise focusing on providing overall solutions for intelligent manufacturing, providing customers with Collaborative robot, service robot, smart factory design and implementation, and industrial software development and application.
Till now, IIMT already applied for 368 patents and software copyrights:
• 165 patents for invention
• 144 utility model patents and 72 authorizations
• 6 patents for appearance and 4 patents for authorization
• 52 software copyrights and 50 authorizations
Based on independent research and development capabilities, Jitri IIMT is committed to solving the problem of localization of core robot components such as brush-less torque motors and magnetic encoders, reducing the cost of robot core components, and facilating the use of cobot and service robot in industry and human life. Jitri IIMT is continuing to bring a ′human-machine integration, safer and smarter′environment for everybody, replacing labors by robots to handle the dangerous and boring repeated works.
′Free your hands, Save your time′ is our dream. We will try our best to let the world have our robot and work for everyone you need.
Jiangsu Jitri IIMT is a high-tech enterprise focusing on providing overall solutions for intelligent manufacturing, providing customers with Collaborative robot, service robot, smart factory design and implementation, and industrial software development and application.
Till now, IIMT already applied for 368 patents and software copyrights:
• 165 patents for invention
• 144 utility model patents and 72 authorizations
• 6 patents for appearance and 4 patents for authorization
• 52 software copyrights and 50 authorizations
Based on independent research and development capabilities, Jitri IIMT is committed to solving the problem of localization of core robot components such as brush-less torque motors and magnetic encoders, reducing the cost of robot core components, and facilating the use of cobot and service robot in industry and human life. Jitri IIMT is continuing to bring a ′human-machine integration, safer and smarter′environment for everybody, replacing labors by robots to handle the dangerous and boring repeated works.
′Free your hands, Save your time′ is our dream. We will try our best to let the world have our robot and work for everyone you need.
Our Advantages
Certficate
Since its establishment, we have obtained a number of invention patents and relevant certifications, and have been recognized by the industry in the robot field.
The love of IIMT with the Industrial Robotics Show
In 2023, CELSIS will be in full bloom, showing its brand charm to the whole world and appearing in Turkey, India, Mexico and other international arenas!
As a representative enterprise of domestic intelligent robots, Coca-Cola participated in the Turkey International Industrial Exhibition held in Istanbul on June 7-10, 2023, to display and publicize our intelligent robotic products and technology level, and conduct field visits and trade negotiations.
Certified, patented and endorsed by big brands. Trustworthy & Premium.
Adhering to the concept that "innovation is the soul of the Institute's development", the Institute has broken through a number of key technologies in innovative product design, core component development, AI control algorithms, etc., developed five models of collaborative robots and two indoor unmanned vehicles, applied for more than 100 invention patents, and undertook more than 20 major national, provincial and municipal science and technology projects.
Packaging & Shipment
The Packaging is shown like below.
Each product in the packaging process will be done tightly, meticulously, for the safety of the product in the transportation process to protect!
FAQ
1. What's your advantage? |
Good communication and high sensitivity of service & responsibility. We have more than 180 R&D staff and a number of high-end processing and testing equipment, including five-axis linkage processing machine tools, metal 3D printing, laser dynamic testing, etc. The Institute has developed five models of collaborative robots and two models of AI control algorithms. We have applied for more than 100 invention patents, which will be the guarantee for us to provide high quality solutions for our customers. |
2. What's the guarantee? |
Lifetime software upgraded. Robotic automatic solutions can be provided. Remote support service in any needed time. Trail order is acceptable. |
3. Do you support local after-sale service? |
Sure. |
4. Are you factory or trading company? |
We're manufacturer and trading company. |
5. What is your terms of payment? |
Payment: L/C, D/A, T/T, MoneyGram, Paypal, Western Union, Ali Trade Assurance; |
6. What's your shipment method? |
Sample: DHL, UPS, FedEx Order shipment by road, air and sea. Wooden carton package to avoid any damage while delivery. |
7. How long about your lead time? |
15 working days in general. |
8. Can we add our logo on the goods? |
Yes, of course. The MOQ is 5 units. |
