Pixel Pitch 3.91mm 4.81mm 5.95mm LED Screens for Outdoor Concerts
- Category: >>>
- Supplier: Maxtop Technology Industrial Company LimitedMaxtop Limited
Share on (1601005258110):
Product Overview
Description

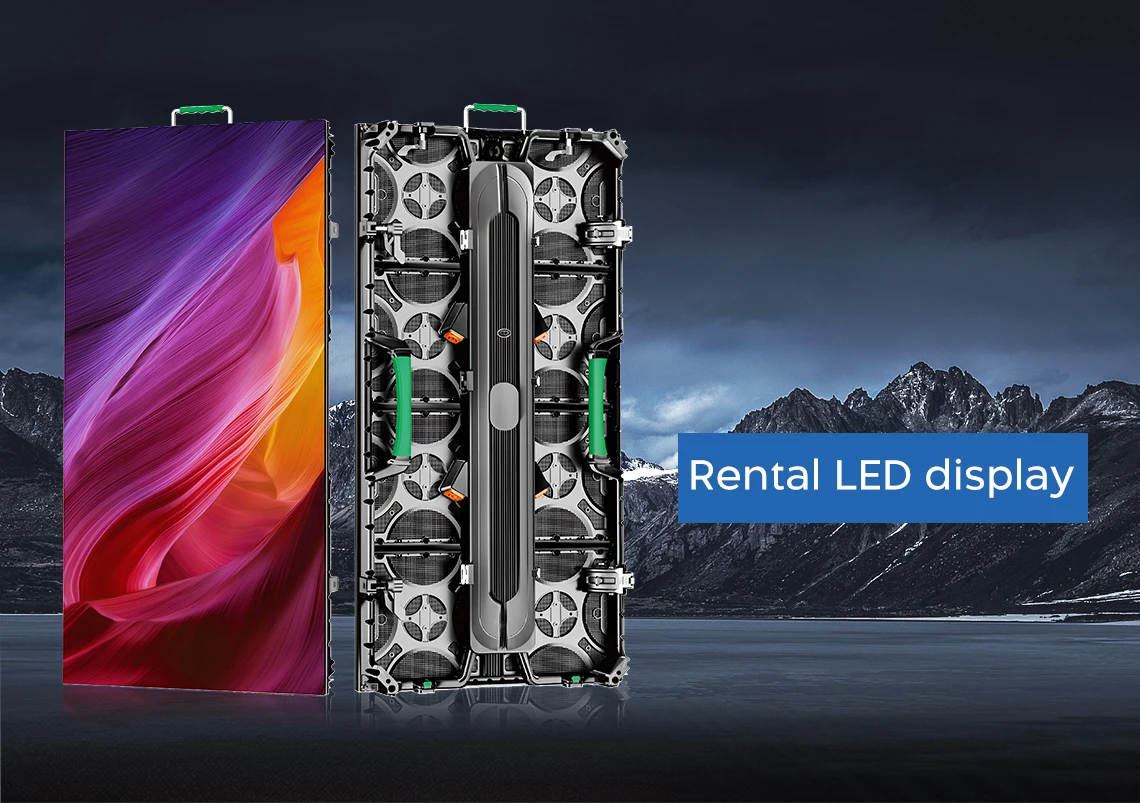

MAXTOP LED Video Wall Panel
Technical Parameters
| Product Model | P2.976 | P3.91 | P4.81 |
| LED | SMD1415 | SMD1921 | SMD1921 |
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| Module Resolution | 84dots(W)*84dots(H) | 64dots(W)*64dots(H) | 52dots(W)*52dots(H) |
| Pixel Synthesis | 1R1G1B(3 in 1) | 1R1G1B(3 in 1) | 1R1G1B(3 in 1) |
| Pixel Density | 112896dots/m² | 65536dots/m² | 43264dots/m² |
| Scan Mode | 1/21 Scan | 1/16 Scan | 1/13 Scan |
| Refresh Rate | ≥1920HZ | ≥1920HZ | ≥1920HZ |
| Driving IC | MBI5124 | MBI5124 | MBI5124 |
| Gray Level | ≥14Bit | ≥14Bit | ≥14Bit |
| Module Size | 250mm(W)*250mm(H) | 250mm(W)*250mm(H) | 250mm(W)*250mm(H) |
| Brightness | ≥3500cd/m² | ≥3500cd/m² | ≥3500cd/m² |
| Color Temperature | 9000K±500 | 9000K±500 | 9000K±500 |
| Viewing Angle | ≤140° | ≤140° | ≤140° |
| Best Viewing Distance | >3m | >4m | >5m |
| Power Consumption(max.) | ≤640W/m² | ≤640W/m² | ≤640W/m² |
| Power Consumption(ave.) | 213W/m² | 213W/m² | 213W/m² |
| MTBF | >50000H | >50000H | >50000H |
| Working Temperature | -20℃ ~ 60℃ | -20℃ ~ 60℃ | -20℃ ~ 60℃ |
| Level of Protection | IP65 | IP65 | IP65 |
Product Description
Why Choose Maxtop
Case & Certificate
FAQ
Q1. Can I have a sample order for an LED display?
A: Yes, we welcome sample orders to test and check quality. Both for the module and the whole screen.
Q2. What about the lead time?
A: Orders less than 100 square meters led time to take 15 working days
Q3. Do you have any MOQ limit for LED display orders?
A: Low MOQ, 1 square meter, or a module checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accept FOB train terms, but we can help you order and arrange a shipping agent. It usually takes 20 to 30 days on the sea. a few days for customs clearance
Q5. How to proceed with an order for an LED display?
A: Firstly let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places a deposit for the formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design first based on our sample.
Q7: Do you offer a guarantee for the products?
A: Yes, we offer 5 years warranty on our products
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in a strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send a new module with a new order for a small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to the real situation.
